InnoVet by Summit Select HF X-Ray

InnoVet Select HF Highlights & Benefits

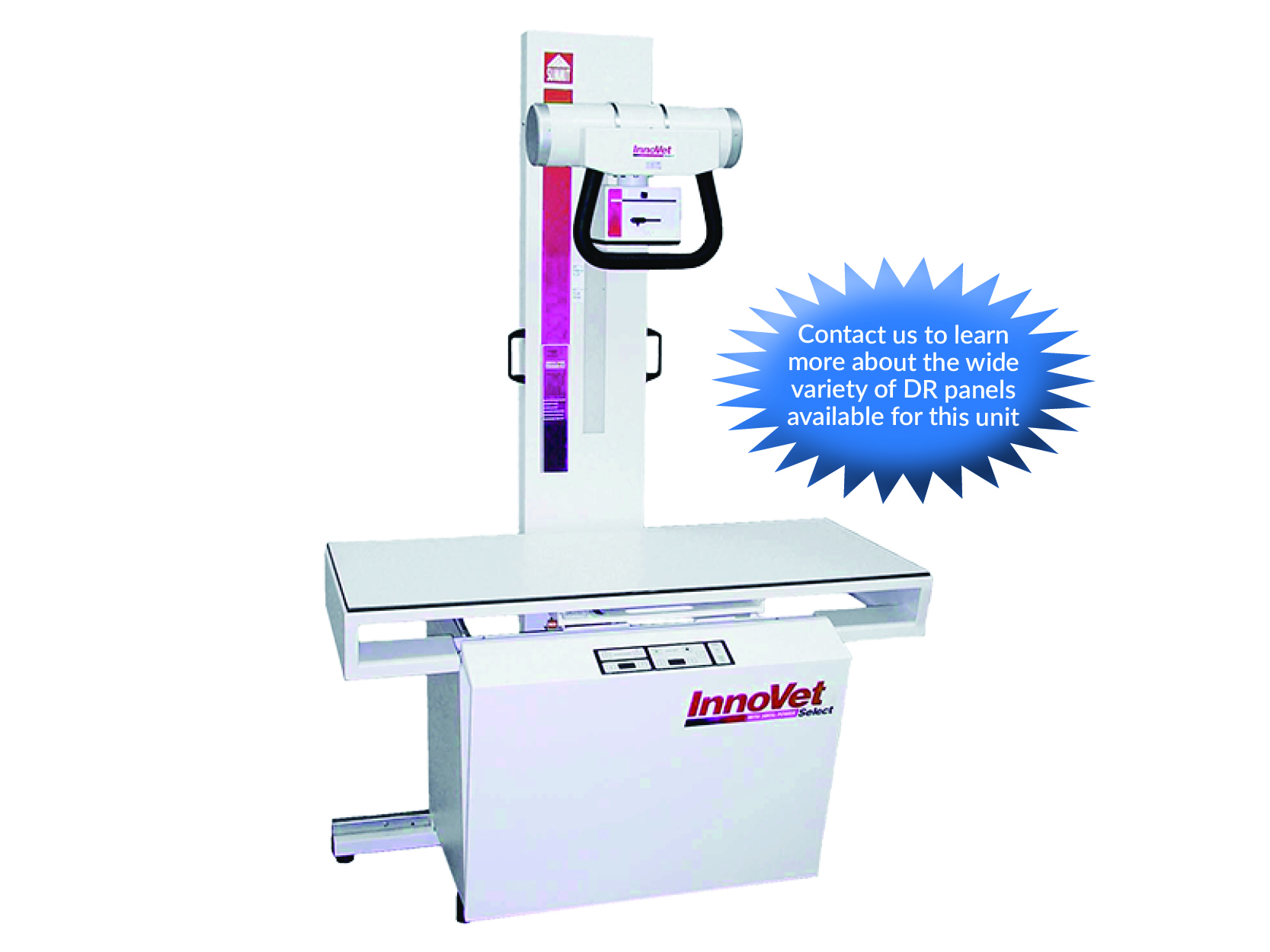

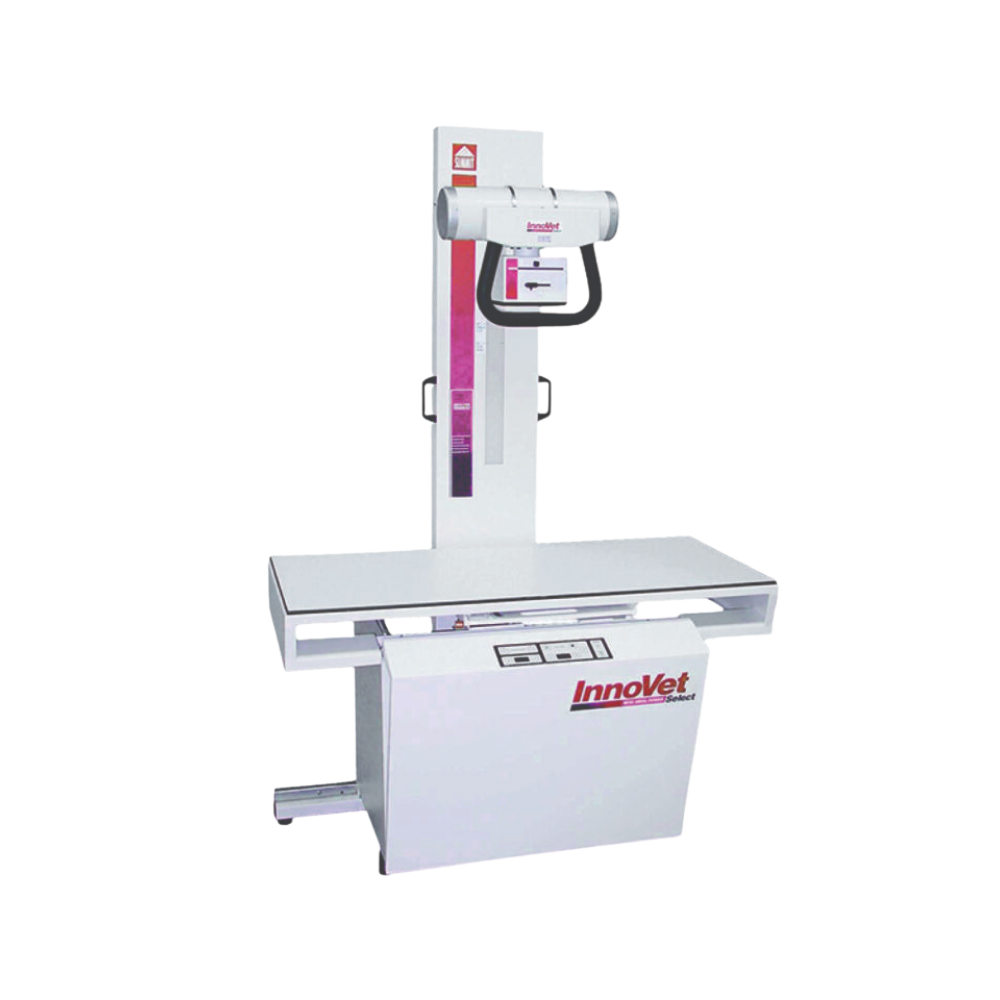

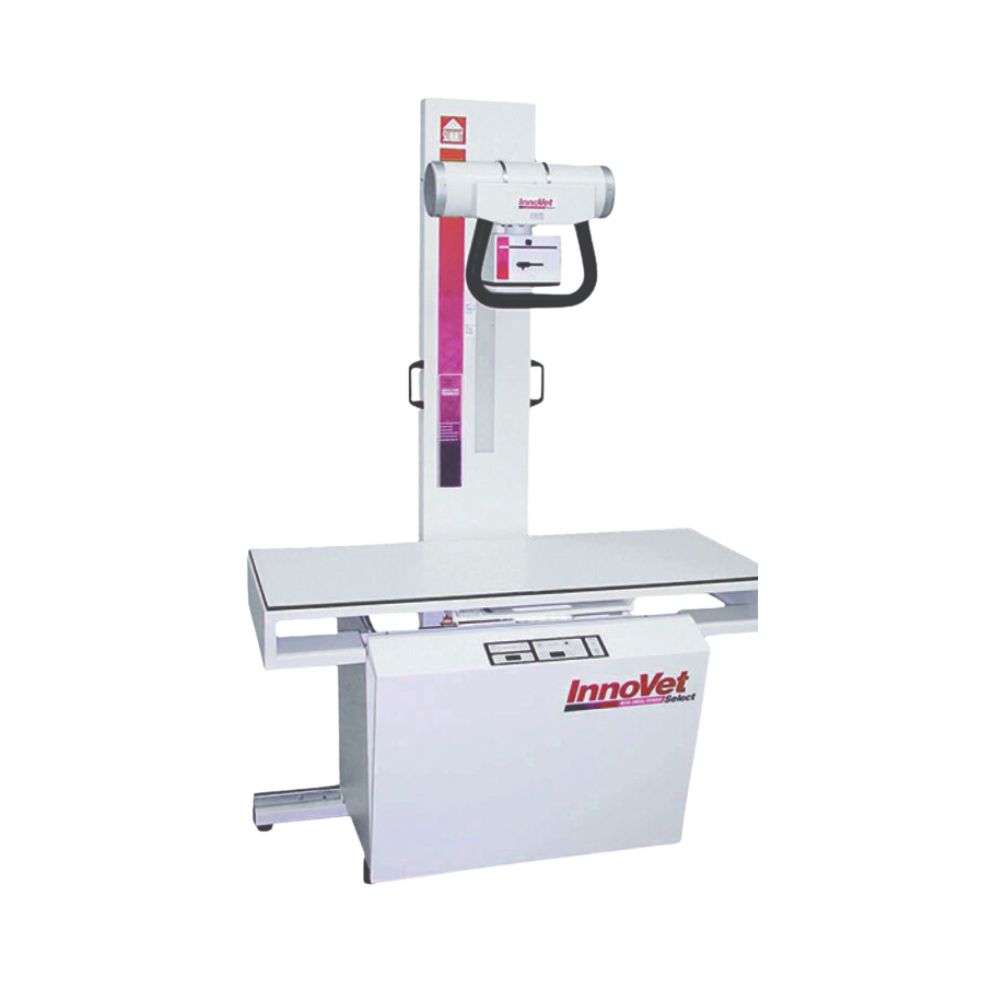

The InnoVet Select HF combines the X-ray generator, patient table, tubestand, receptor positioning, and exposure controls into one dedicated veterinary radiography system. The result is a straightforward room-based setup that can be configured around the imaging and positioning needs of the practice.

Key Benefits

• • Integrated table and tubestand for routine small-animal positioning
  • Adjustable exposure settings for different patient sizes and examinations
  • Digital kVp, mA, and mAs readouts for clear technique confirmation
  • Compatible with most digital imaging systems
  • Built-in tube protection and self-diagnostics
  • Optional two-way and four-way float-top tables
  • Optional anatomical technique programming and higher-output generator configuration

The Select HF also provides practices with several configuration choices, allowing the system to support a straightforward general-radiography workflow or a more flexible positioning and technique setup.

Configurable Table & Positioning Options

Integrated Stationary Table

The standard Select HF uses a 53 × 24 in. (135 × 61 cm) stationary tabletop with an integrated tubestand. Keeping the table and tube support within the same system provides a dedicated platform for positioning the patient, X-ray tube, and image receptor during routine studies.

An angulation dial, operator handgrips, tubestand handles, and an animal restraining device assist with positioning and system adjustment during examinations.

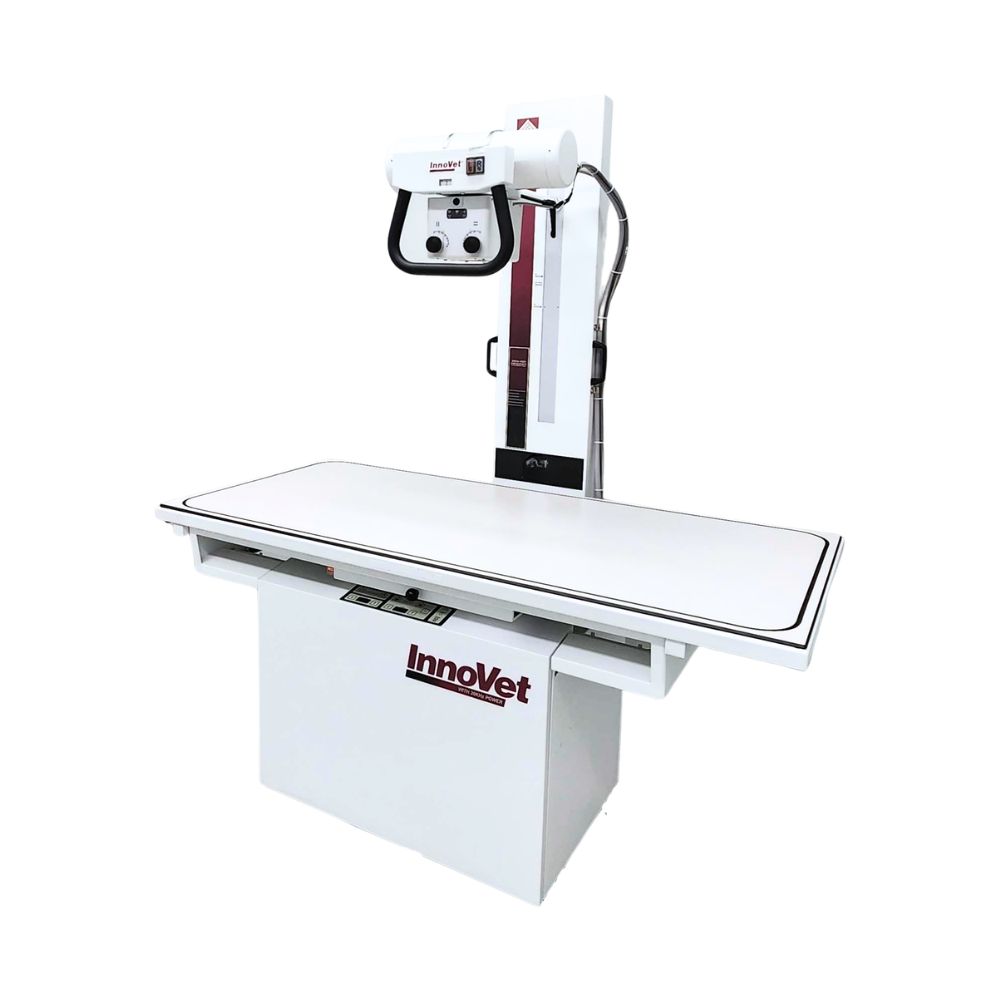

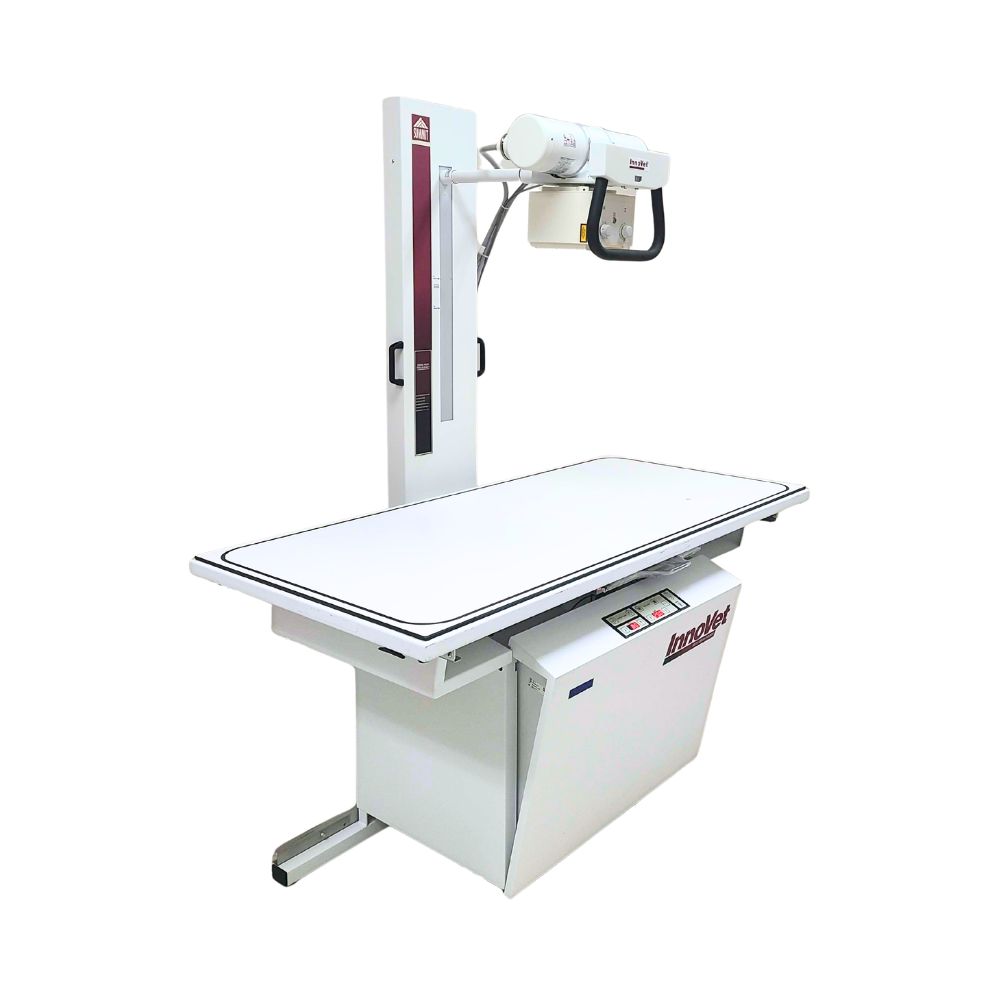

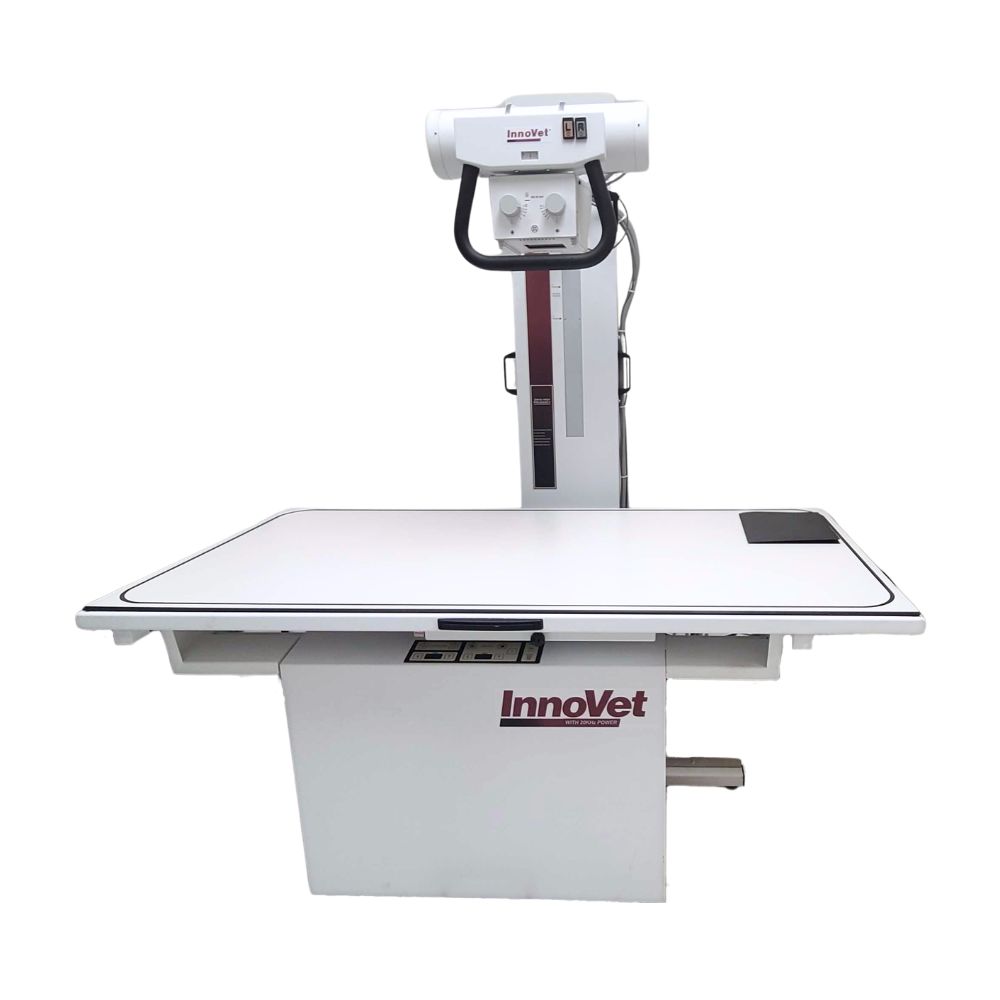

Optional Float-Top Tables

Practices that want more positioning flexibility can replace the standard tabletop with a larger two-way or four-way float-top configuration.

The two-way table measures 58 × 32 in. (147 × 81 cm), while the four-way table measures 67 × 32 in. (170 × 81 cm). These options provide a larger working surface and additional tabletop movement for practices that want more flexibility when positioning patients for radiography.

Technique & Workflow Options

The Select HF can also be configured with anatomical programmed technique selection. Instead of relying entirely on manual technique setup for every examination, this option allows the practice to use anatomy-based exposure selections as part of its routine workflow.

Other available options include a 500 mA generator upgrade, tabletop fluid trough, and hands-free collimator light system.

Practices that need a larger standard table and additional positioning flexibility can also compare the InnoVet Specialist Veterinary X-Ray.

Small-Animal Clinical Environments & Applications

The InnoVet Select HF is designed for small-animal radiography in a dedicated X-ray room and can serve veterinary practices and hospitals with different imaging volumes and workflow needs.

Clinical Environments

• • Small-animal veterinary practices
  • Companion-animal clinics
  • Veterinary hospitals
  • General veterinary practices performing routine radiography
  • Routine Veterinary Radiography

The table-based configuration supports common canine and feline X-ray examinations, including:

• • Thoracic and abdominal imaging
  • Musculoskeletal and orthopedic studies
  • Extremity imaging
  • Spinal and pelvic radiography

The integrated table and tubestand keep patient positioning and tube alignment within one radiographic platform rather than requiring separate positioning equipment.

Digital Imaging & Exposure Workflow

Digital Imaging Compatibility

The Select HF is compatible with most digital imaging systems, giving practices flexibility when selecting a digital radiography solution for the room.

Because the X-ray system is not limited to one proprietary digital imaging platform, practices can pair the Select HF with a compatible imaging system that fits their existing workflow or equipment plans.

Adjustable Exposure Technique

The Select HF gives the operator control over the exposure settings used for each examination. kVp can be adjusted from 40 to 125 in 1 kV increments, allowing relatively small technique changes when adapting the exposure to the patient and anatomy being imaged.

Digital displays show the selected kVp, mA, and mAs values so the operator can confirm the technique before making the exposure.

Practices that prefer a more preset-driven workflow can add anatomical programmed technique selection as an option.

Collimation & Exposure Controls

The manual collimator includes an LED light field that helps the operator see the selected X-ray field during positioning before the exposure is made. The light can remain on for 30, 45, or 60 seconds depending on the preferred positioning workflow.

The system also includes an audible exposure signal, built-in tube protection, self-diagnostics, and an automatic generator shut-off circuit to support day-to-day operation.

Generator & X-Ray Tube

Flexible Generator Controls

The 30 kW high-frequency generator provides the exposure range needed to adjust technique across different routine veterinary examinations and patient sizes.

A tilt-out control panel and digital technique readouts keep the selected exposure settings visible to the operator, while 1 kV adjustment increments allow more precise changes than broad preset steps alone.

Dual-Focal-Spot X-Ray Tube

The Select HF uses an X-ray tube with 1.0 and 2.0 mm focal spots, giving the system two focal-spot selections for different radiographic technique requirements.

The tube is rated at 140,000 heat units and is paired with the system’s 30 kW generator as part of the complete radiographic configuration.

InnoVet Select HF System Specifications

High Frequency Generator

• • High-frequency technology: 20 kHz
  • Power rating: 30 kW
  • Technique selection: mAs/kVp
  • kVp range: 40 to 125 kVp
  • kVp adjustment: 1 kV increments
  • mA stations: 50S, 100S, 100L, 300L
  • Readout: Digital kVp, mA, and mAs
  • Tilt-out control panel
  • Built-in tube protection
  • Self-diagnostics
  • Adjustable-volume audible exposure signal
  • Automatic generator shut-off circuit
  • UL Classified

Table & Tubestand

• • Enclosed, integrated radiographic table
  • Standard stationary tabletop: 53 × 24 in. (135 × 61 cm)
  • Welded base construction
  • Transformer mounting shelf
  • Grid cabinet with cassette tray
  • Grid cabinet/tubestand interlock
  • Grid ratio: 8:1
  • Grid density: 103 LPI
  • Animal restraining device
  • Angulation dial
  • Operator handgrips
  • Tubestand handles

X-Ray Tube

• • Focal spots: 1.0 / 2.0 mm
  • Heat capacity: 140,000 heat units
  • Tube configuration: 90-degree horns

Collimator

• • Manual collimator with LED light field and swivel mount
  • Field light “on” time – selectable 30 or 60 seconds

High-Voltage Cables

• • Cable length: 12 ft. (3.66 m)
  • Federal terminations

Available System Options

• • Four-way float-top table: 67 × 32 in. (170 × 81 cm)
  • Two-way float-top table: 58 × 32 in. (147 × 81 cm)
  • Anatomical programmed technique selection
  • 500 mA generator upgrade
  • Tabletop fluid trough
  • Hands-free collimator light system

Manufacturer Warranty

• • 7-year limited parts warranty
