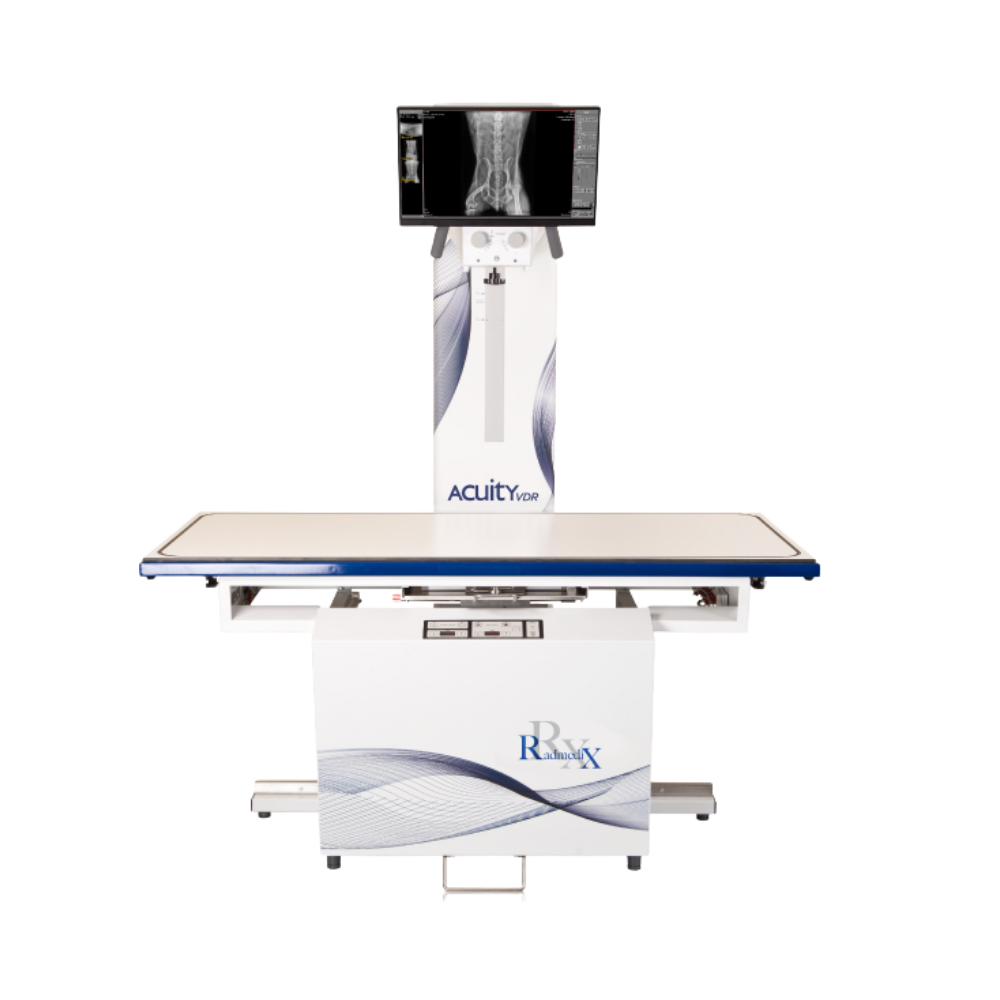

Radmedix Acuity VDR X-Ray System

30 kW Generator, 21-Inch Touchscreen & Veterinary Table Design

The Radmedix Acuity VDR brings X-ray generation, patient positioning, exposure control, and digital imaging into a stationary system designed specifically for veterinary radiography. Its table, tube, collimator, and software controls work together to reduce unnecessary movement between patient positioning and image acquisition.

VDR Key Benefits

• • 30 kW high-frequency X-ray generator
  • 6-way system movement for flexible positioning
  • 67 × 32 in. (1702 × 813 mm) 4-way floating table
  • 21 in. table-side touchscreen
  • AccuVue Vet software integration
  • Auto-advancing exams with exposure footswitch
  • Laser-lined collimator with LED light field
  • 300 lb (136 kg) table capacity
  • Integrated patient tie-downs and urine trough

The result is a veterinary X-ray system that allows the equipment to be adjusted around the patient while keeping imaging controls accessible near the table.



6-Way Positioning Around Veterinary Patients

The Acuity VDR combines tube-column travel, tube-head rotation, collimator rotation, and tabletop movement to provide multiple ways to align the X-ray beam and patient. This can reduce unnecessary patient repositioning when setting up routine and angled projections.

Lateral Tube Travel & 180° Tube Rotation

The tube column tracks from side to side across the table, while the tube head rotates through 180°. These movements give the operator additional flexibility when aligning the X-ray tube with different areas of anatomy.

67 × 32 in. 4-Way Floating Table

The 67 × 32 in. (1702 × 813 mm) tabletop moves in four directions, allowing the patient to be repositioned relative to the X-ray beam without repeatedly lifting or moving the animal.

The table supports patients up to 300 lb (136 kg).

Rotating Laser-Lined LED Collimator

The rotating collimator combines a laser alignment guide with an LED light field to help operators center and define the imaging field.

Together with the tube and table movement, the rotating collimator also provides added flexibility when setting up oblique projections.

Patient Tie-Downs & Integrated Trough

Built-in patient tie-downs provide attachment points for stabilization when appropriate for the patient and exam.

An integrated urine trough helps contain fluids and prevent runoff from the table, providing a practical feature for routine veterinary imaging and cleanup.



Acuity VDR Applications for Veterinary Radiography

The Acuity VDR is built for stationary veterinary radiography performed on the integrated table. Its 300 lb (136 kg) capacity, positioning movement, and patient-handling features make it particularly relevant for veterinary facilities performing routine in-clinic X-ray examinations.

Companion-Animal & In-Clinic Veterinary Radiography

The Acuity VDR can fit imaging workflows in:

• • Companion-animal veterinary practices
  • Veterinary hospitals
  • Specialty and referral practices
  • Mixed practices performing appropriate table-based radiography

The fixed table configuration is intended for in-clinic imaging rather than portable or field radiography.

General Diagnostic & Orthopedic Imaging

The positioning flexibility of the Acuity VDR can support common veterinary radiography applications, including:

• • Orthopedic and musculoskeletal imaging
  • Extremity studies
  • Thoracic radiography
  • Abdominal radiography
  • Spine and skull studies
  • Oblique and angled projections
    General diagnostic radiography

The 4-way table and movable tube assembly allow the system to be adjusted to the projection instead of relying entirely on patient repositioning.



21-Inch Touchscreen & Auto-Advancing Exam Workflow

The Radmedix Acuity VDR is designed to keep imaging and exposure controls close to the patient. Generator integration, the mounted touchscreen, and auto-advancing exams reduce the number of separate control points the operator needs to manage during an examination.

Exposure Settings from AccuVue Vet

The X-ray generator integrates with Radmedix AccuVue Vet software, allowing X-ray parameters to be entered directly through the imaging software.

This connects technique setup more closely with the digital imaging workflow rather than requiring the operator to move between independent generator and acquisition controls.

Auto-Advancing Exams & Footswitch Exposure

Auto-advancing exams move the operator through the imaging sequence while an exposure footswitch allows exposures to be initiated without operating a separate hand control at the table.

This arrangement helps the operator remain near the patient during positioning and image acquisition.

Table-Side Touchscreen & Wall-Mounted PC

A 21 in. mounted touchscreen provides operational controls directly at the system. The Acuity VDR also includes a wall-mounted PC, with corresponding controls available through both interfaces.

This gives the operator access to the imaging workflow from the table or workstation depending on the stage of the exam.



AccuVue Vet Software & Acuity DR Integration

The Acuity VDR combines generator operation with Radmedix veterinary imaging software and compatible digital radiography technology to create an integrated acquisition workflow.

APR Technique Selection & Generator Control

APR, or Anatomical Program Radiography, supports anatomy-based X-ray technique selection. Exposure parameters can also be entered through the integrated AccuVue Vet software.

This helps connect exam selection, technique setup, exposure, and digital image acquisition within the same workflow.

G4 Acuity DR 17×17 Integration

The Radmedix G4 Acuity DR 17×17 detector can be fully integrated with the Acuity VDR. Its 17 × 17 in. (43 × 43 cm) imaging format provides a large square imaging area that reduces the need to rotate the detector between portrait and landscape orientations.

MXR also offers the Radmedix G4 Acuity DR detector family for compatible configurations.



---

Radmedix Acuity VDR Specifications

30 kW Generator & Exposure Controls

• • Generator: High-frequency X-ray generator
  • Generator output: 30 kW
  • APR: Anatomical Program Radiography
  • Software-integrated generator control
  • X-ray parameters accessible through imaging software
  • Operator console integrated into tilt-out table door
  • Digital operator readout
  • Exposure footswitch

67 × 32 in. Table & 300 lb Capacity

• • Tabletop dimensions: 67 × 32 in. (1702 × 813 mm)
  • Table movement: 4-way float
  • Maximum table load: 300 lb (136 kg)
  • Integrated patient tie-downs
  • Integrated urine trough

Tube, Table & Collimator Movement

• • 6-way system movement
  • Lateral tube-column travel
  • Tube-head rotation: 180°
  • Rotating collimator
  • Collimator: Laser-lined with LED light field
  • Source-to-image distance (SID): Variable to 40 in. (1016 mm) to film plane and tabletop
  • Supports angled and oblique positioning

Touchscreen, Software & DR Integration

• • Mounted display: 21 in. touchscreen
  • Included wall-mounted PC
  • Matching operational controls available at both interfaces
  • Radmedix AccuVue Vet software integration
  • Generator control through imaging software
  • Auto-advancing exam workflow
  • Compatible with supported Acuity DR configurations
  • G4 Acuity DR 17×17 available for fully integrated digital radiography

Veterinary Table Features

• • 4-way floating tabletop
  • 300 lb (136 kg) patient capacity
  • Patient tie-down attachment points
  • Integrated urine trough
  • Exposure footswitch

Warranty

• • System parts warranty: 62 months
  • X-ray tube warranty: 62 months prorated
