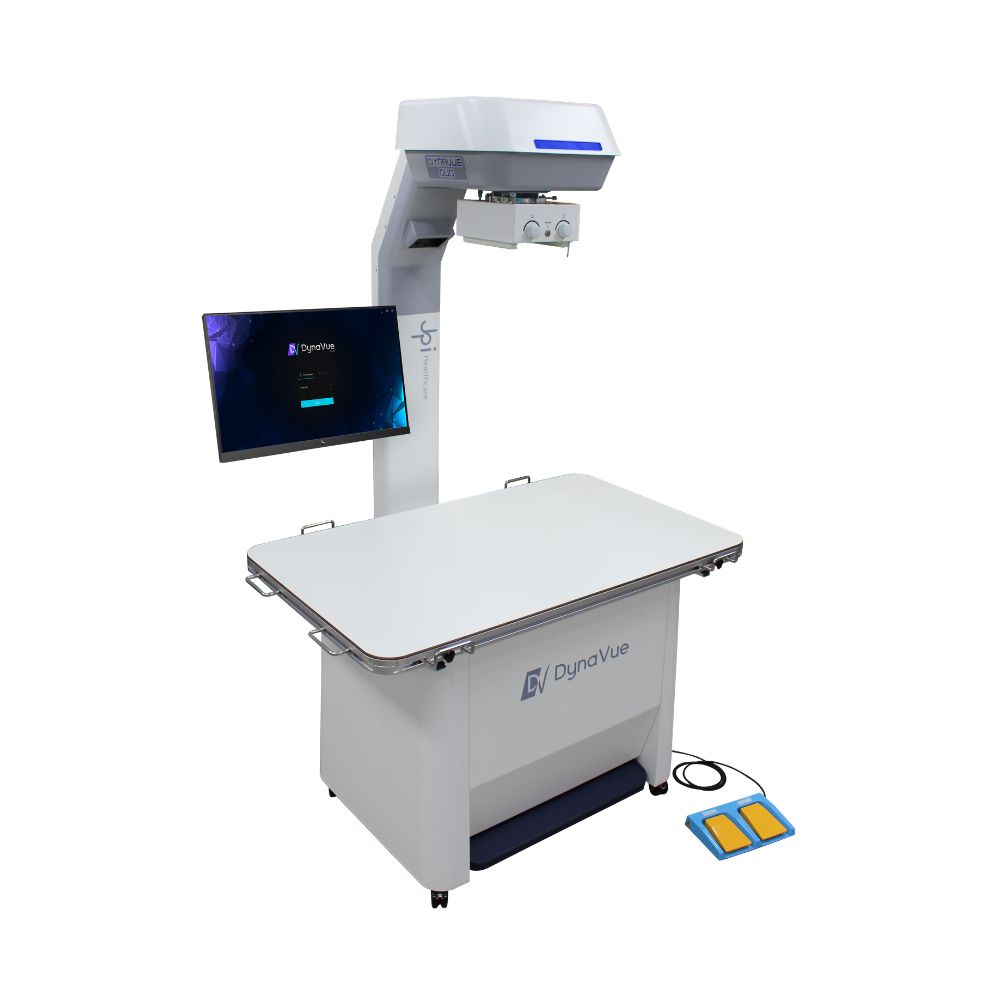

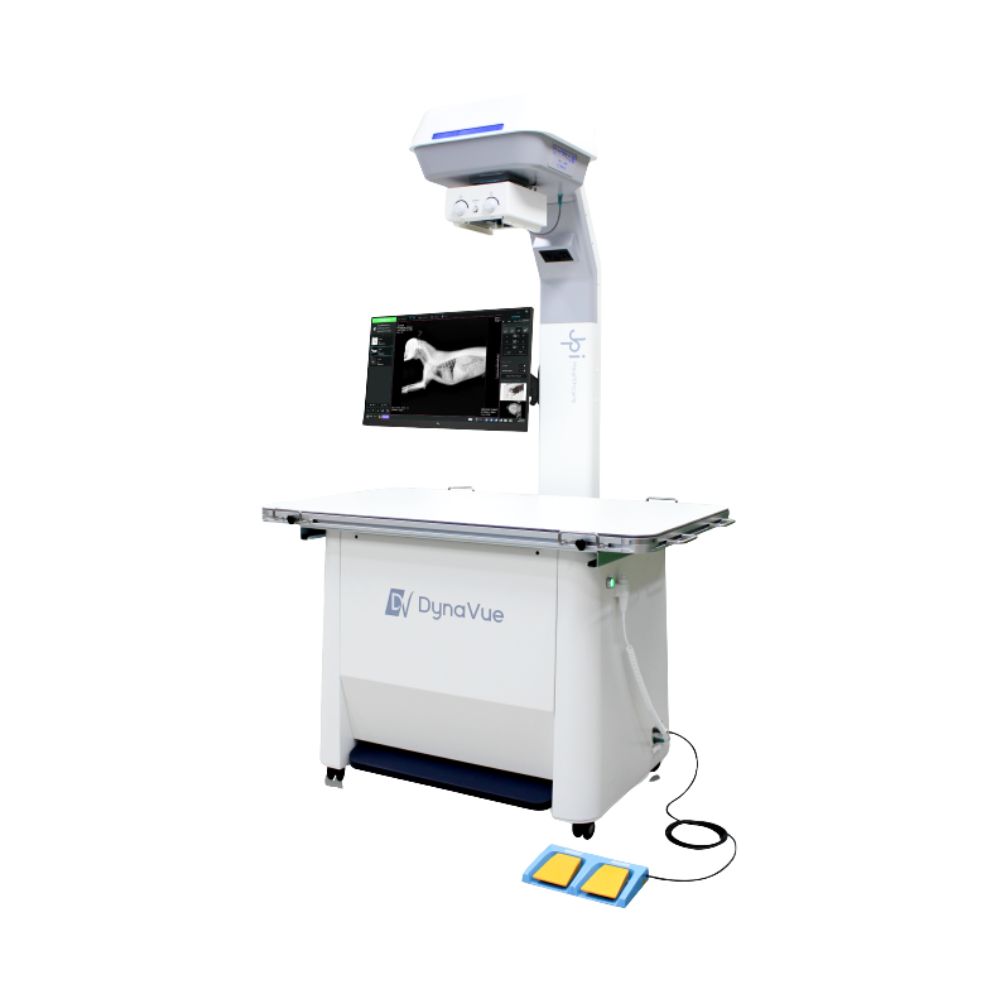

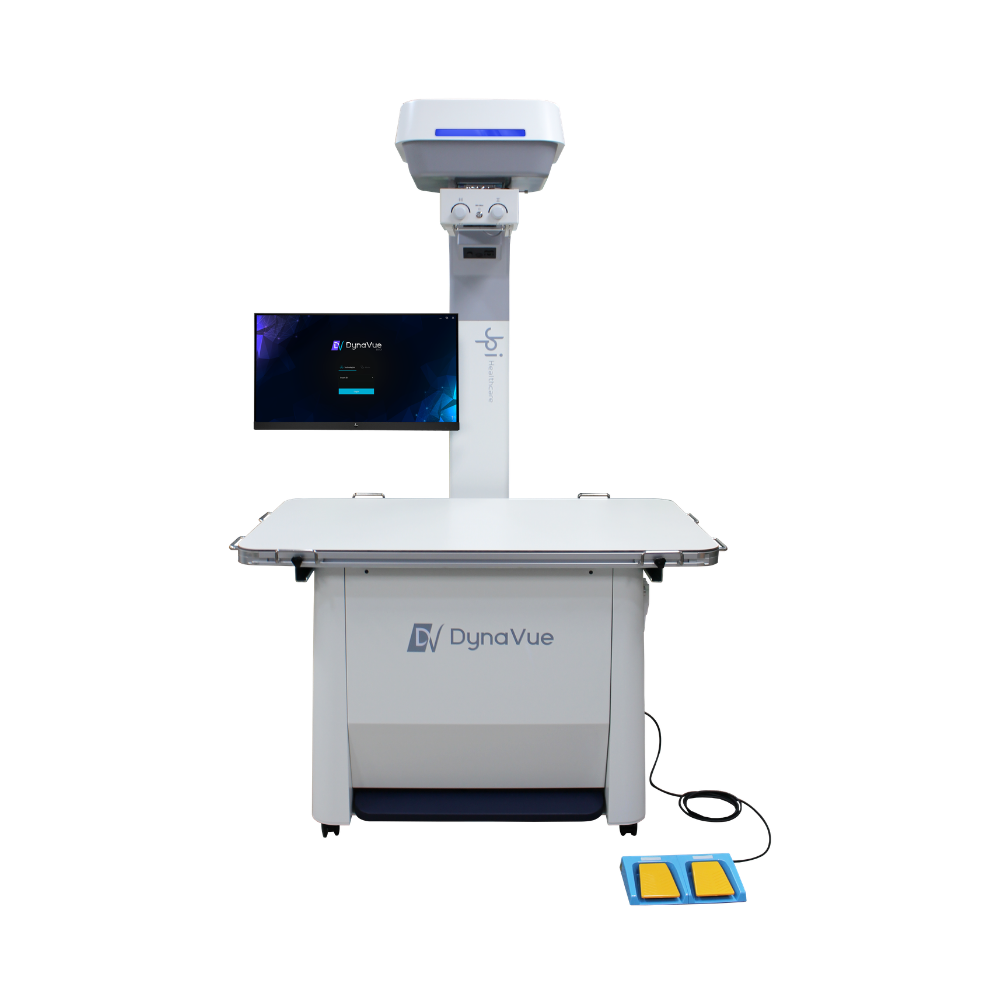

JPI DynaVue Duo Digital Veterinary X-Ray

Digital Veterinary X-ray with Live Video Imaging, Thermal Imaging, & LiDAR

The JPI DynaVue Duo Veterinary X-ray is designed to give veterinary providers access to multiple diagnostic technologies from a single imaging platform. By combining digital radiography, live video X-ray imaging, thermal imaging, and automated positioning tools, the system helps support efficient workflows while expanding diagnostic capabilities.

Key Benefits of the JPI DynaVue Duo

• • Digital radiography and live video X-ray capabilities in one system
  • Integrated thermal imaging functionality
  • LiDAR-assisted patient thickness measurement
  • One-click switching between imaging modalities
  • Compact footprint designed for veterinary environments

The combination of imaging technologies helps reduce equipment complexity while providing clinicians with additional diagnostic tools for a wide range of veterinary imaging applications.

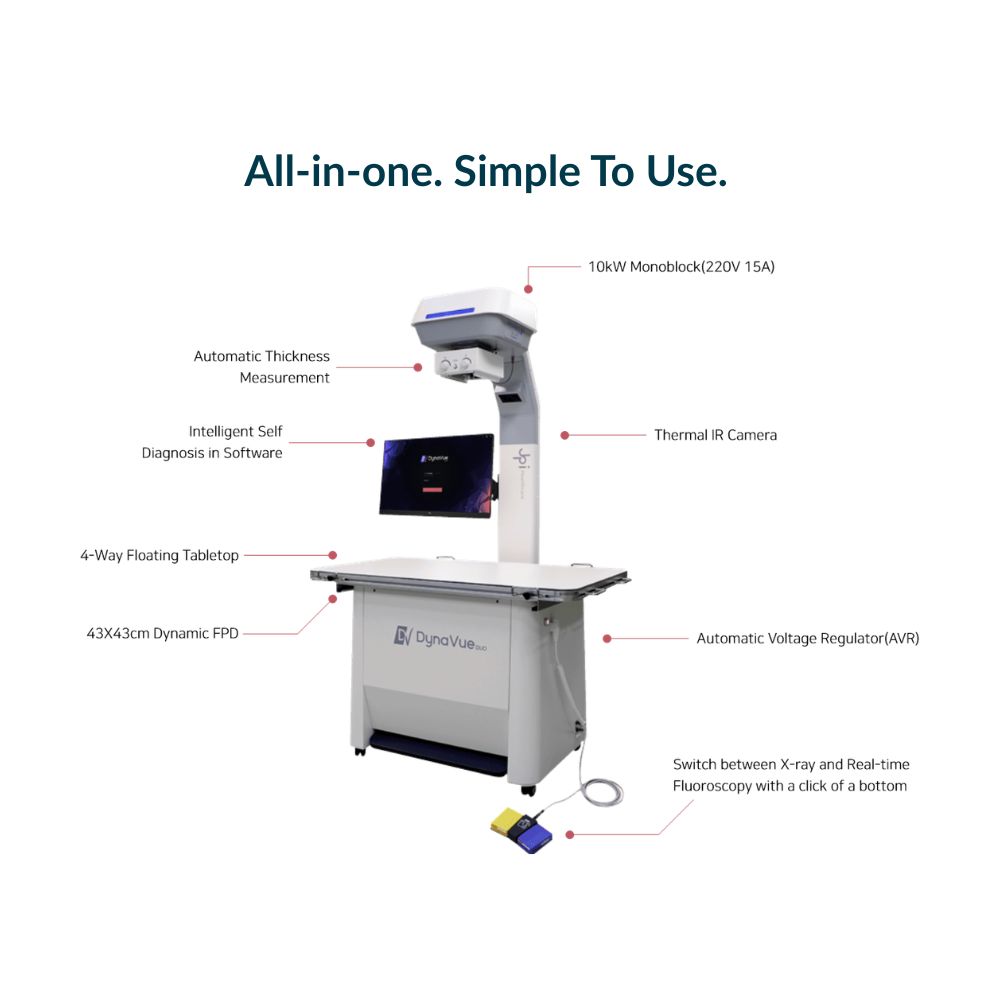

Workflow and Efficiency Features

• • Large touchscreen operating console
  • Embedded positioning guides and imaging techniques
  • Automated technique selection through LiDAR measurement
  • Fast switching between imaging modes during examinations
  • Compact design with integrated mobility features for cleaning and positioning

These workflow-focused features help veterinary teams move efficiently between patients while maintaining consistent imaging protocols and reducing manual setup requirements.

Four Integrated Imaging Technologies in One Veterinary X-ray System

Unlike conventional veterinary radiography systems, the DynaVue Duo integrates four imaging and positioning technologies into a single workstation.

Digital Radiography (DR)

High-resolution digital radiography supports routine veterinary diagnostic imaging with detailed image quality, fast image acquisition, and streamlined image management.

Live Video X-ray & Fluoroscopic Imaging

The integrated live video X-ray mode allows clinicians to visualize anatomical motion in real time. This capability can assist with evaluations where movement plays an important role in diagnosis and may not be fully captured with static radiographs alone.

Integrated Thermal Imaging

Thermal imaging provides temperature variation assessment that may help identify areas requiring further clinical investigation. This additional diagnostic tool expands the information available during patient evaluations.

LiDAR-Assisted Patient Measurement & Positioning

Integrated LiDAR technology measures patient thickness and automatically assists with technique selection, helping simplify exam setup and improve consistency between studies.

Veterinary Imaging Applications

The DynaVue Duo supports a broad range of companion animal imaging applications commonly performed in general practice, emergency medicine, and specialty veterinary environments.

Orthopedic & Musculoskeletal Examinations

• • Small fracture detection
  • Orthopedic evaluations
  • Joint assessments
  • Soft tissue and ligament investigations

Respiratory & Gastrointestinal Imaging

• • Tracheal collapse evaluation
  • Swallowing studies
  • Esophageal examinations
  • Dynamic motion assessments using live imaging

General Veterinary Diagnostic Imaging

• • Urinary tract evaluations
  • Hernia investigations
  • Skull and jaw fracture assessment
  • Routine diagnostic radiography examinations

The combination of static radiography and live imaging capabilities allows clinicians to evaluate both anatomical structure and movement when clinically appropriate.

Veterinary Imaging Table & Positioning Features

The DynaVue Duo incorporates an integrated veterinary imaging table designed to support efficient patient positioning and comfortable workflow.

Four-Way Floating Tabletop

The four-way floating tabletop allows veterinary staff to adjust patient positioning with minimal effort while maintaining accurate alignment throughout the exam.

Compact Space-Saving Design

The compact footprint helps maximize available clinical space while supporting efficient room cleaning and maintenance. Integrated wheels provide flexibility when repositioning the system.

Digital X-ray Image Quality & Performance

Image quality remains at the core of the DynaVue Duo platform. The system combines a high-frequency generator, advanced detector technology, and imaging software designed to support diagnostic confidence.

Image Quality & Detector Features

• • High-resolution digital radiography imaging
  • Active imaging area of 427 × 427 mm
  • Up to 16-bit image depth
  • Up to 30 frames per second live imaging capability
  • Embedded positioning and technique guidance

The ability to switch between static radiography and live imaging modes allows clinicians to select the imaging approach most appropriate for the examination.

Advanced Veterinary Imaging Capabilities

The DynaVue Duo extends beyond conventional digital radiography by providing multiple diagnostic technologies within a single platform.

Integrated Diagnostic Technologies

• • Digital radiography
  • Live video X-ray imaging
  • Thermal imaging
  • LiDAR-assisted positioning and technique selection

This integrated approach helps veterinary facilities reduce the need for multiple standalone systems while maintaining access to advanced imaging capabilities.

Specifications

X-ray Generator Specifications

• • Generator Output: 10 kW (15 kW inverter)
  • Tube Current: 1 mA to 160 mA
  • Exposure Time: 200 ms
  • Focal Spot: 0.6 mm
  • kVp Range: 40 to 120 kVp (1 kVp increments)

Fluoroscopy Specifications

• • Power Output: 3.8 kW
  • Tube Current: 1 mA to 25 mA
  • Maximum Exposure Time: 10 minutes
  • Focal Spot: 0.3 mmPulse Rate: 10 ms per pulse

Digital Detector Specifications

• • Active Imaging Area: 427 × 427 mm
  • Pixel Resolution (Radiography): 3052 × 3052
  • Pixel Pitch (Radiography): 140 μm
  • Spatial Resolution (Radiography): 3.57 lp/mm
  • Pixel Resolution (Live Imaging): 1516 × 1516
  • Pixel Pitch (Live Imaging): 280 μm
  • Spatial Resolution (Live Imaging): 1.78 lp/mm
  • Maximum Frame Rate: 30 fps
  • Bit Depth: 16-bit

Camera System Specifications

• • Infrared Camera Field of View: 65°
  • Infrared Camera Frame Rate: 9 fps
  • Video Camera Field of View: 65°
  • Video Camera Frame Rate: 15 fps

Electrical Requirements

• • Input Voltage: 220 VAC 60 Hz / 110 VAC 50 Hz
  • Installation Requirement: 220V, 15A

Warranty Information

• • System Warranty: 2 Years
  • Detector Warranty: 3 Years
