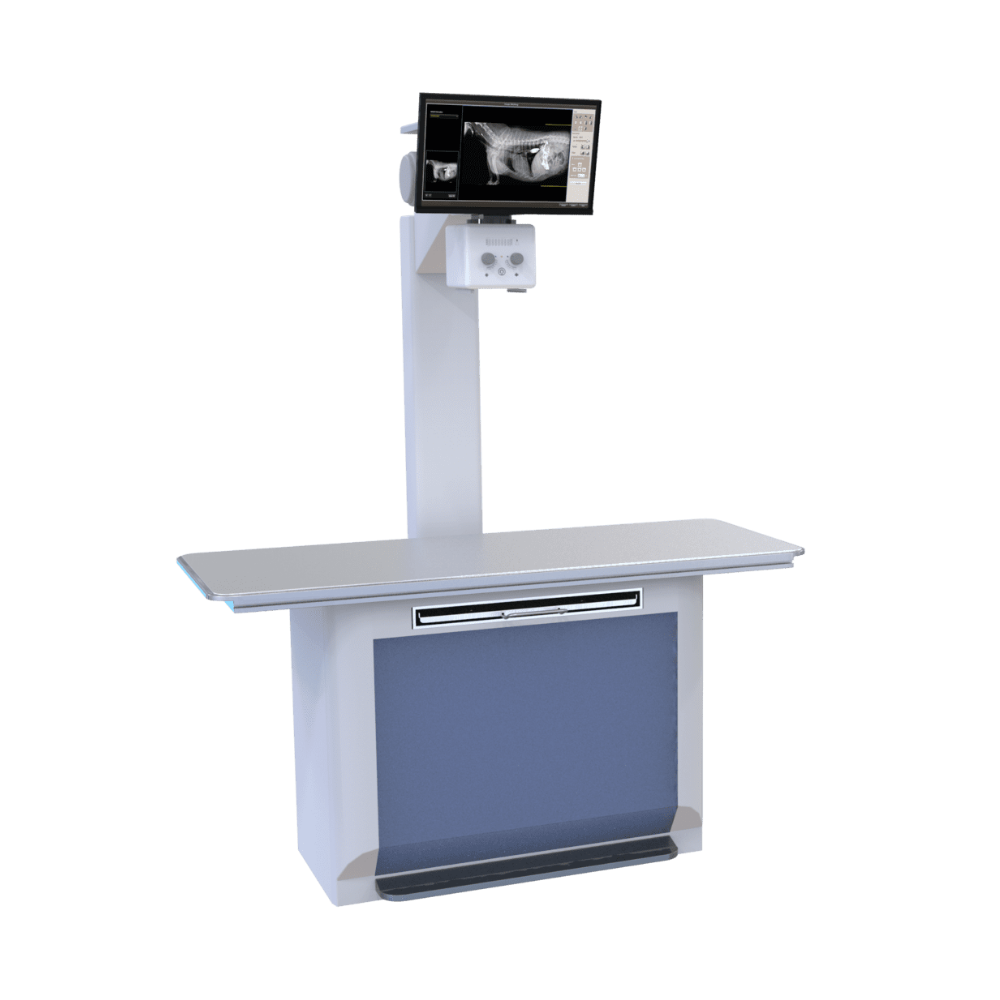

MyVet Table X500 Veterinary Digital X-ray

Overview of the MyVet Table X500 Veterinary Digital X-ray

The MyVet Table X500 is an integrated veterinary digital X-ray table designed to simplify radiography workflow while minimizing space requirements. Combining the generator, tube stand, imaging table, and detector into a single platform, the system provides a practical solution for veterinary facilities seeking efficient digital imaging capabilities.

Key Features of the MyVet Table X500

• • 32 kW high-frequency X-ray generator
  • 17″ × 17″ tethered cesium iodide (CsI) flat panel detector
  • Four-way floating tabletopIntegrated tube stand mounted directly to the table
  • Compact, space-efficient footprint

The integrated architecture eliminates the need for multiple standalone imaging components while helping practices maximize available clinical space.

Integrated Veterinary X-ray Table Design

The X500 is designed to support efficient daily imaging operations through a streamlined table-based design. By mounting the tube stand directly to the table and housing the generator within the system, the unit provides a clean, consolidated imaging platform.

Benefits of the Integrated Imaging Workflow

• • Simplified room planning and installation
  • Efficient patient positioning
  • Reduced equipment footprint
  • Integrated imaging workflow
  • Intuitive operator controls

This configuration makes the system particularly attractive for veterinary practices that want digital radiography capabilities without dedicating a large room to imaging equipment.

32 kW High-Frequency Generator Performance

The X500 utilizes a 32 kW high-frequency generator designed to support a wide range of routine veterinary imaging procedures. The generator automatically supports appropriate exposure selections while providing the output needed for common companion animal radiography exams.

Generator Specifications and Output Range

• • Maximum output: 32 kW
  • kV range: 40-125 kV
  • mA range: 10-400 mA
  • mAs range: 0.1-500 mAs

The system incorporates a rotating anode X-ray tube with dual focal spots to support image detail and diagnostic confidence across a variety of studies.

17″ × 17″ DR Detector with Cesium Iodide Technology

The included tethered flat panel detector combines a large imaging area with cesium iodide technology to support efficient veterinary digital radiography.

Large-Format Detector for Veterinary Imaging

The full-field 17″ × 17″ detector accommodates larger anatomical regions in a single exposure and helps reduce detector repositioning during exams. This streamlined workflow can improve efficiency while helping staff focus on patient care.

Benefits of the 17″ × 17″ Detector

• • 17″ × 17″ active imaging area
  • Reduces detector repositioning during exams
  • Supports larger field-of-view imaging
  • Cesium iodide (CsI) detector technology

The detector utilizes amorphous silicon TFT technology and is integrated directly into the table-based imaging workflow.

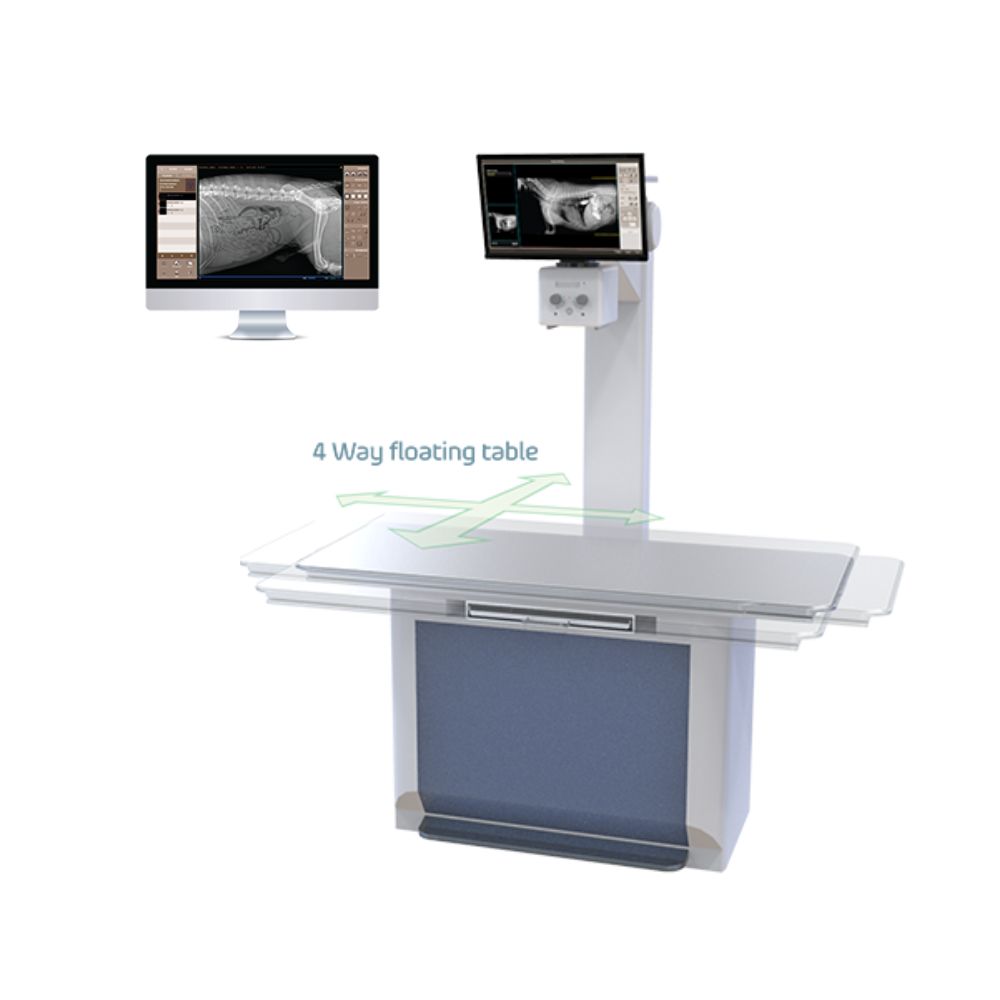

Four-Way Floating Table for Animal Positioning

Patient positioning plays a critical role in veterinary imaging workflow, and the MyVet Table X500 veterinary digital X-ray is designed to simplify that process.

Smooth and Efficient Patient Positioning

Spring-activated tabletop locks quietly release the four-way floating tabletop, allowing staff to reposition patients smoothly and efficiently. The quiet operation helps create a calmer imaging environment while improving positioning flexibility.

Floating Table Features

• • Four-way floating tabletop movement
  • Spring-activated tabletop locks
  • Smooth patient positioning
  • Designed for routine veterinary radiography workflow

The combination of tabletop movement and integrated tube stand design helps support efficient exam setup throughout the workday.

Clinical Applications

The MyVet Table X500 is designed for companion animal radiography in veterinary clinics, specialty practices, and animal hospitals.

Common Veterinary Radiography Exams

• • Thoracic imaging
  • Abdominal imaging
  • Orthopedic studies
  • Musculoskeletal imaging
  • Pre-surgical radiography
  • Post-surgical follow-up exams
  • Routine wellness imaging
  • General veterinary radiography

The large-format detector and floating tabletop make the system particularly well-suited for routine table-based veterinary imaging exams.

Compact Footprint for Veterinary Clinics & Animal Hospitals

Many veterinary practices need advanced imaging capabilities without sacrificing valuable floor space. The MyVet Table X500 addresses this challenge through its integrated design and small working footprint.

Space-Saving Benefits of the X500 Design

• • Generator integrated into the system
  • Table-mounted tube stand
  • Reduced room requirements
  • Efficient use of clinical space

This compact configuration allows practices to add digital radiography capabilities while maintaining flexibility within the imaging room.

MyVet Table X500 Specifications

Generator Specifications

• • Maximum Output: 32 kW
  • kV Range: 40-125 kV
  • mA Range: 10-400 mA
  • mAs Range: 0.1-500 mAs

Detector Specifications

• • Detector Type: Tethered DR Panel
  • Detection Area: 17″ × 17″
  • Sensor Type: Amorphous Silicon with TFT
  • Scintillator: Cesium Iodide (CsI)

Table & System Specifications

• • Four-way floating tabletop
  • Spring-activated tabletop locks
  • Integrated tube stand
  • Compact footprint
  • Table-mounted imaging configuration
