Fujifilm VXR Veterinary X-Ray System

Complete Veterinary Digital Radiography in One Integrated X-Ray Room

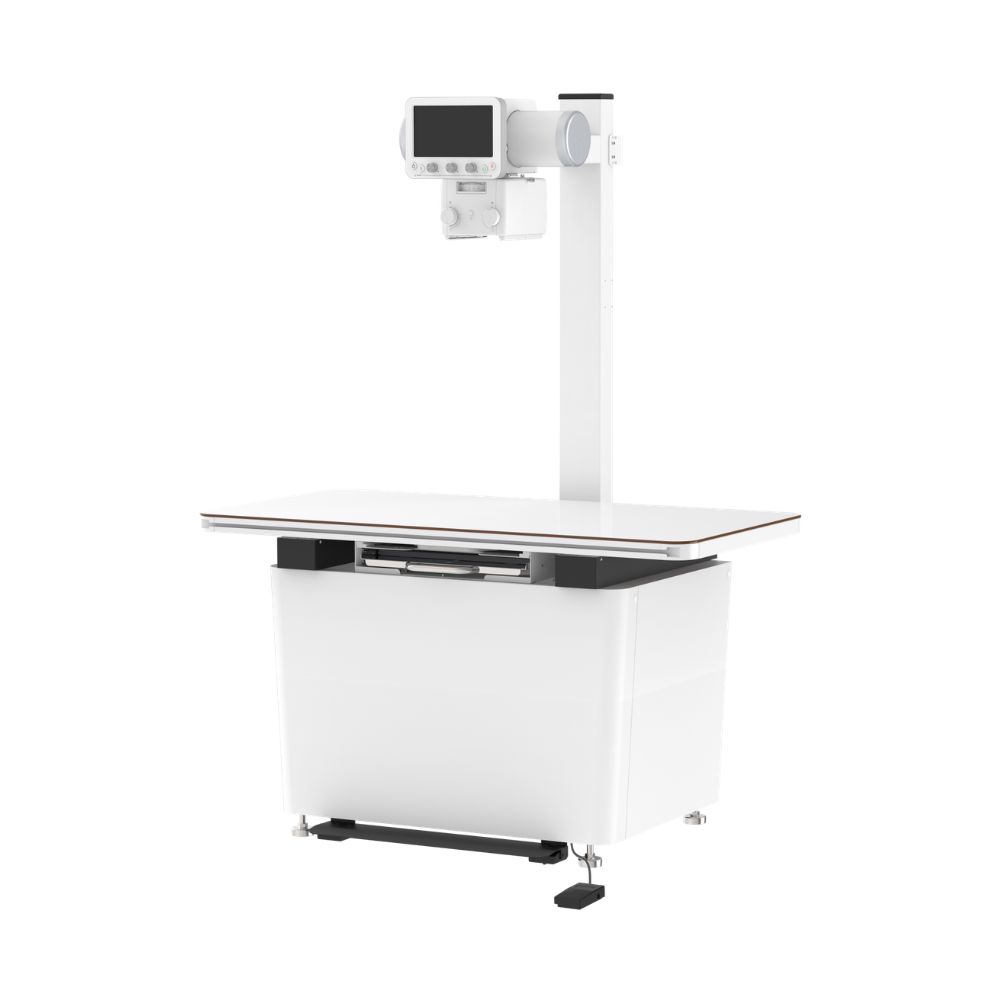

The Fujifilm VXR combines a high-frequency X-ray generator, floating patient table, operator workstation, and Fujifilm digital imaging technologies into a complete veterinary X-ray room. Every major component is designed to work together, helping practices improve workflow consistency while reducing the complexity of integrating equipment from multiple manufacturers.

The result is a veterinary DR room that supports routine imaging, advanced diagnostic studies, and future practice growth without requiring an oversized installation footprint.

Key System Features

• • Complete veterinary digital radiography room
  • Integrated imaging workflow from acquisition through image review
  • Compact room design for new construction and renovations
  • Fujifilm ISS detector technology and Dynamic Visualization image processing
  • Compatible with DR detectors and standard radiographic cassettes

The Fujifilm VXR combines the performance of a full diagnostic imaging room with a layout designed to maximize available clinical space.

Integrated Imaging Workflow

Rather than functioning as a collection of independent components, the Fujifilm VXR is engineered as a complete imaging system. The generator, patient table, workstation, detector workflow, and image processing technologies are designed to complement one another, creating a streamlined workflow throughout the imaging process.

This integrated design simplifies installation, standardizes imaging protocols, and helps veterinary teams spend less time managing equipment and more time focusing on patients.

Four-Way Floating Table & Automated Exam Workflow

Efficient positioning is one of the primary workflow advantages of the Fujifilm VXR. The system combines a four-way floating tabletop, rotating Bucky, anatomical exam programming, and an articulating touchscreen workstation so technologists can move efficiently through each examination with fewer manual adjustments.

The workflow is designed to promote consistency between operators while helping reduce unnecessary patient repositioning.

Positioning & Workflow Features

• • Four-way floating patient table
  • Rotating Bucky for portrait and landscape detector orientation

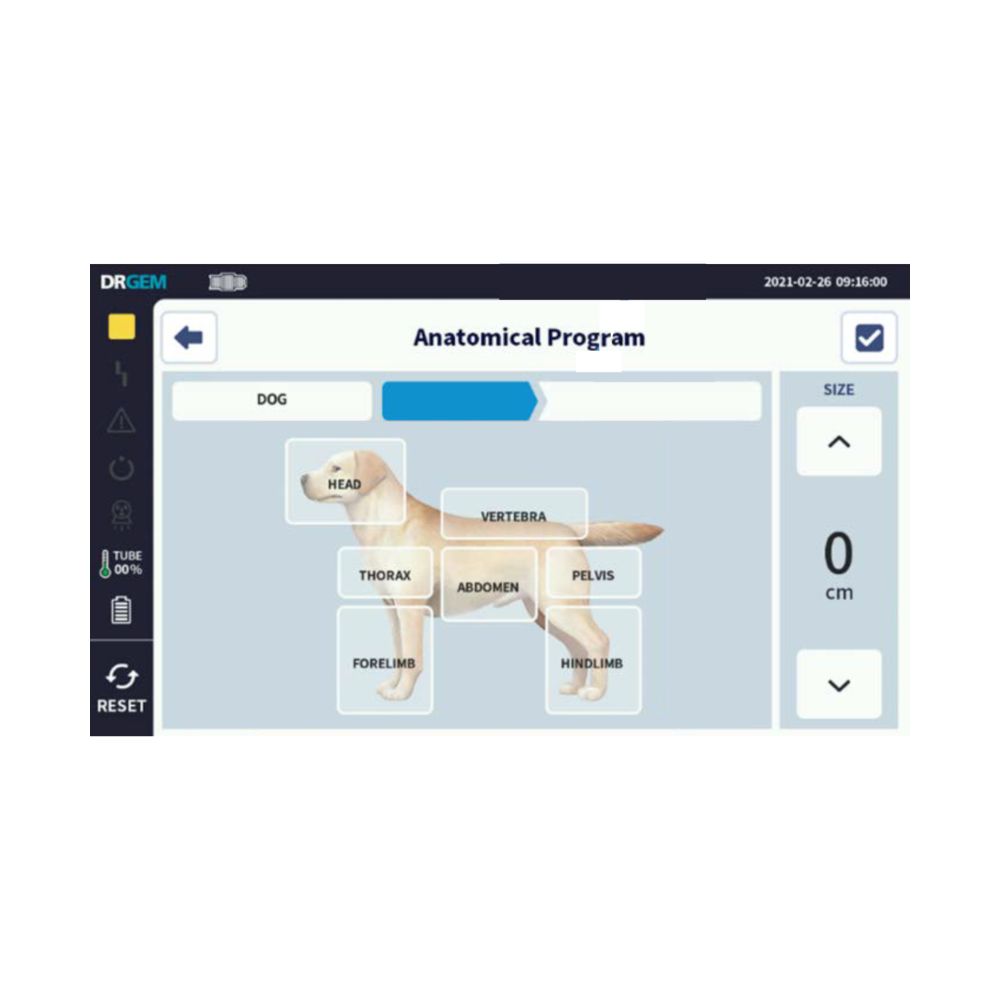

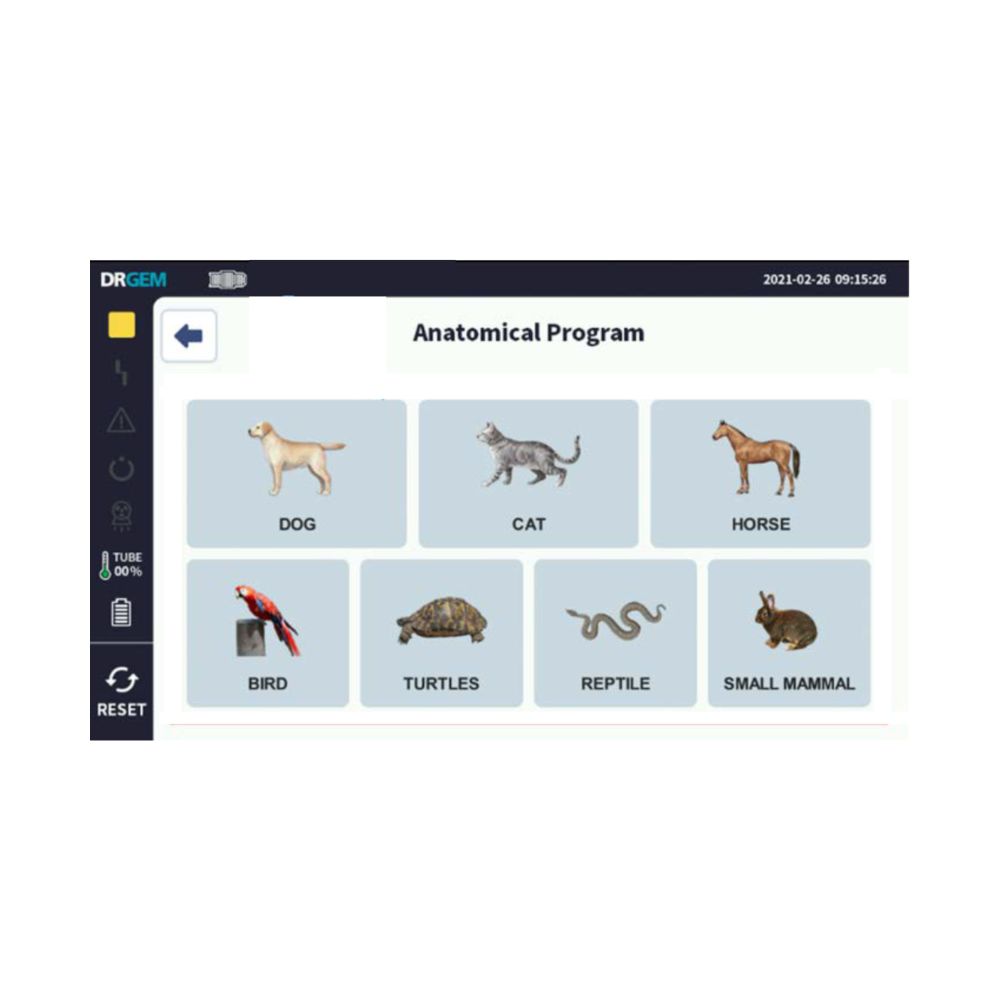

  • Anatomical exam presets with user-programmable techniques
  • Eye-level articulating touchscreen workstation
  • Automatic exposure technique selection

The articulating workstation allows operators to review images and adjust examination techniques from a comfortable viewing position without repeatedly returning to a fixed control console.

ISS Detector Technology & Dynamic Visualization Image Processing

The Fujifilm VXR combines Fujifilm’s proprietary detector technology with intelligent image processing to produce detailed diagnostic images while supporting lower radiation dose than conventional detector designs.

Together, these technologies improve image quality immediately after acquisition, helping clinicians spend less time performing manual image adjustments during routine studies.

Image Quality Technologies

Fujifilm ISS Detector Technology

Fujifilm’s patented Irradiation Side Sampling (ISS) detector design positions the photodiode layer closer to the X-ray source, improving detector efficiency and helping capture more usable signal while maintaining excellent image quality.

Dynamic Visualization Image Processing

Dynamic Visualization automatically balances image contrast so dense anatomy and soft tissue structures remain visible within the same image. This improves image presentation while reducing the amount of manual windowing required during routine review.

Key advantages include:

• • High-quality diagnostic image detail
  • Low-dose imaging support
  • Consistent first-image presentation
  • Enhanced visualization of anatomical structures

Detector Options for the Fujifilm VXR

The Fujifilm VXR supports multiple detector configurations, allowing practices to build an imaging room around their preferred Fujifilm detector while maintaining flexibility for future expansion.

Support for both DR detectors and traditional radiographic cassettes also provides additional workflow flexibility for practices transitioning to fully digital imaging.

Supported Detector Configurations

• • Standard 14 × 17-inch DR detectors
  • Standard 17 × 17-inch DR detectors
  • Standard radiographic cassettes
  • Optional additional detector configurations

As detector needs evolve, the imaging room can expand without replacing the core X-ray system.

Veterinary Imaging Applications Supported by the Fujifilm VXR

The Fujifilm VXR supports the everyday imaging needs of companion animal veterinary hospitals and clinics performing both routine and advanced radiographic examinations.

Its positioning flexibility, integrated workflow, and digital imaging technologies make it well suited for:

Common Veterinary Examinations

• • Routine wellness imaging
  • Orthopedic examinations
  • Thoracic studies
  • Abdominal studies
  • Emergency and trauma imaging
  • Pre-surgical imaging
  • Post-operative evaluations
  • Follow-up diagnostic examinations

Compact Veterinary DR Room for Space-Conscious Practices

Although the Fujifilm VXR is a complete veterinary X-ray system, it is designed with a compact footprint that helps maximize available imaging space.

The integrated generator design and efficient room layout make the system appropriate for new veterinary facilities, imaging room renovations, and practices replacing aging radiography equipment without requiring the space of larger radiographic suites.

Standard Components Included with the Fujifilm VXR

The Fujifilm VXR is delivered as a complete imaging room that includes the core equipment needed for routine veterinary radiography.

Standard System Components

• • High-frequency X-ray generator
  • X-ray tube assembly
  • Four-way floating patient table
  • Rotating Bucky
  • Integrated operator workstation
  • Fujifilm image processing software
  • DR detector compatibility

Optional Accessories & Future Expansion

As imaging needs change, the Fujifilm VXR can be configured with additional hardware and software options that expand detector capabilities and support evolving clinical workflows.

Available options include:

• Additional flat panel detectors
• Wireless detector accessories
• Detector holders
• Grid caps
• Advanced Fujifilm imaging software

Fujifilm VXR Veterinary X-Ray System Specifications

X-Ray Generator

• • High-frequency generator
  • 32 kW output
  • Single-phase power
  • Standard 220 to 240 V configuration
  • Capacitor-assisted 100 to 120 V option available
  • Maximum output:
    • 400 mA at 80 kV
    • 320 mA at 100 kV
    • 250 mA at 125 kV
  • Exposure time: 0.001 to 10 seconds
  • mAs range: 0.1 to 320
  • Tube head touch control console
  • Four-parameter display showing kV, mA, exposure time, and mAs

Tube Stand

• • Integrated tube support
  • Manual positioning controls
  • Designed for coordinated movement with the imaging table

Patient Table

• • Four-way floating tabletop
  • Multiple tabletop length options
  • Integrated urine trap
  • Rotating Bucky
  • Standard 17 × 17-inch Bucky
  • Removable grid
  • 100 cm SID

Digital Imaging

• • Compatible with 14 × 17-inch DR detectors
  • Compatible with 17 × 17-inch DR detectors
  • Standard cassette compatibility
  • ISS detector technology support
  • Dynamic Visualization image processing

Operator Workstation

• • Eye-level articulating touchscreen
  • Anatomical exam programming
  • User-programmable techniques
  • Automatic exposure technique assistance
  • Integrated image acquisition workflow
