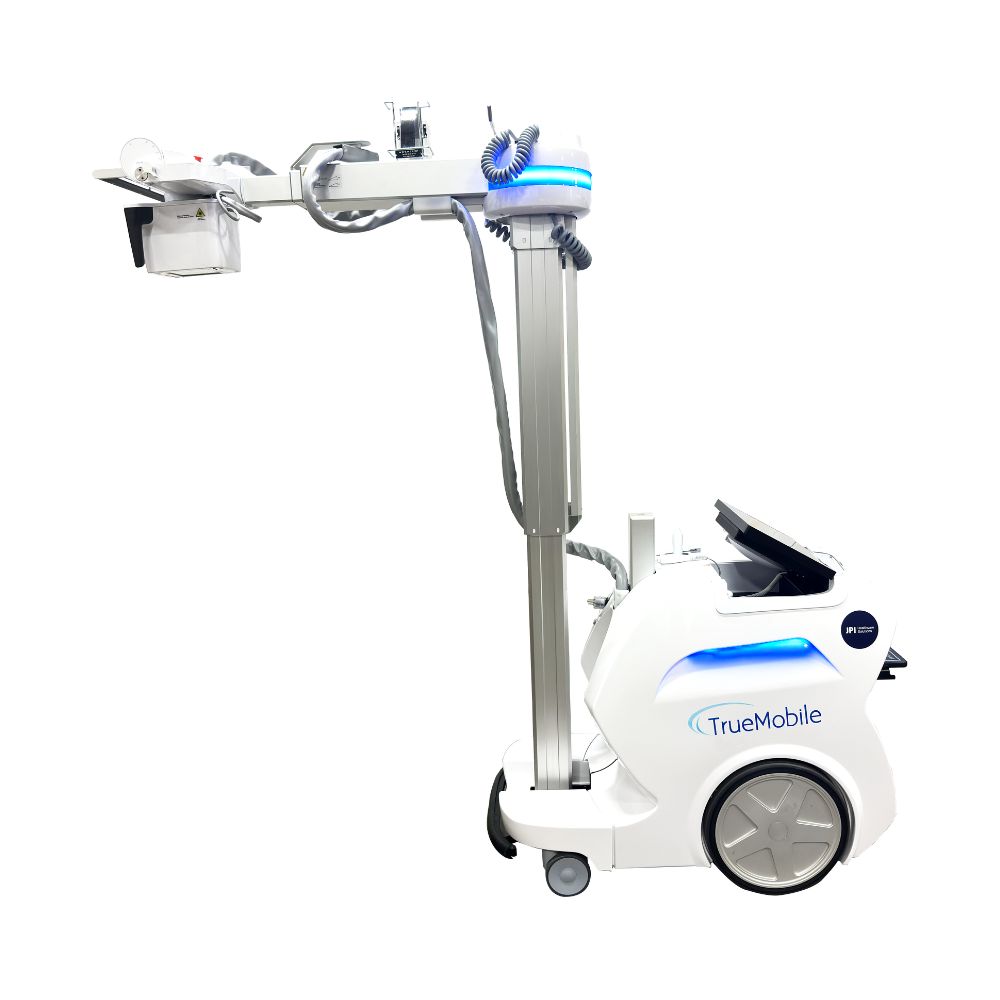

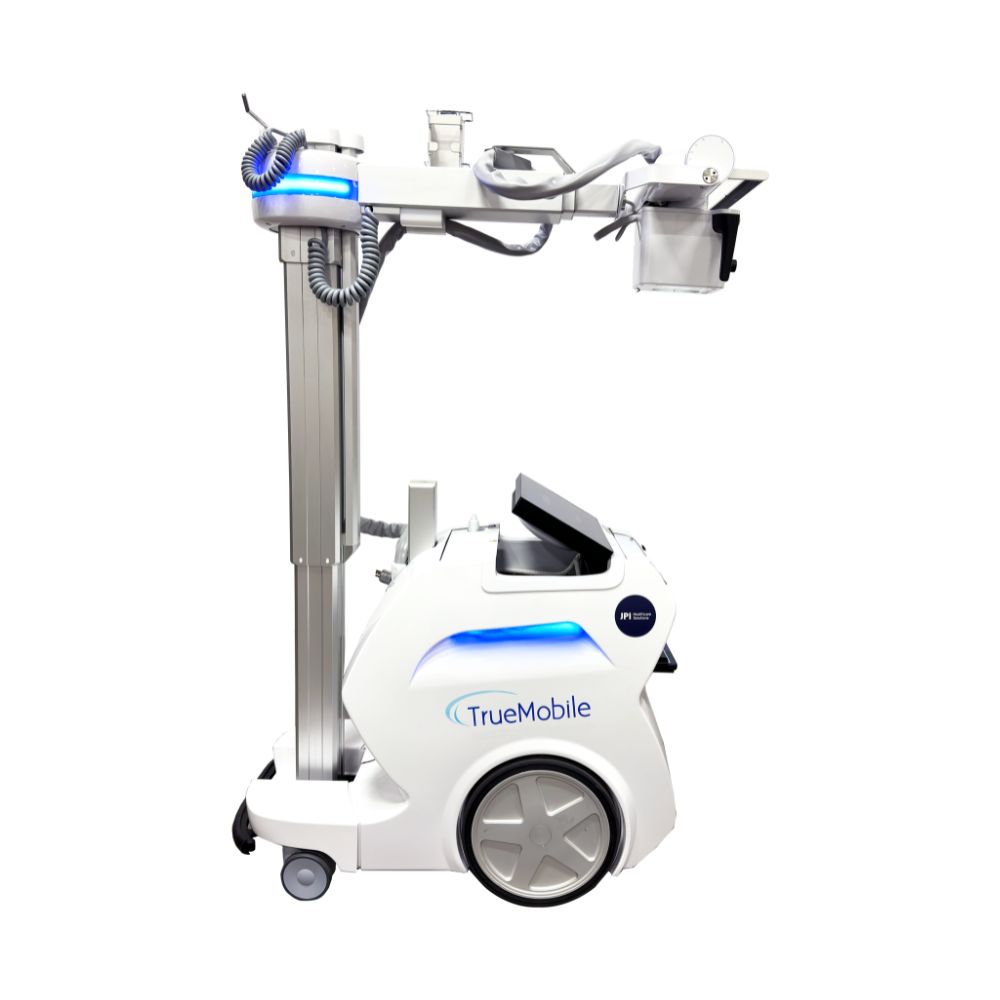

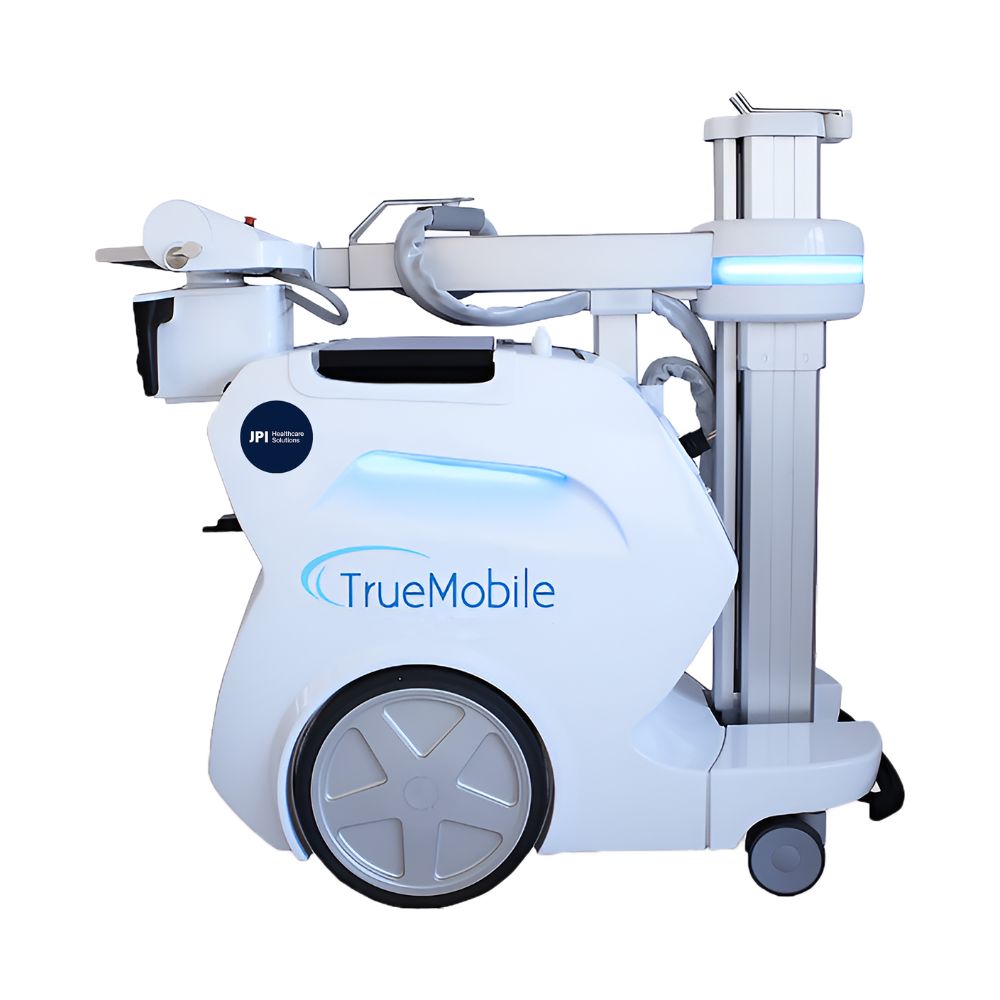

JPI TrueMobile Apex Portable X-Ray

Battery-Powered Portable X-Ray for Bedside Imaging

The JPI TrueMobile Apex is designed to improve bedside imaging by combining a 32 kW generator, battery performance, and maneuverability in a single portable X-ray system. It supports high patient volume environments where speed, uptime, and positioning flexibility directly impact workflow.

Built for mobility and speed, this system features fast startup, effortless maneuverability, and intuitive controls that make bedside imaging easier than ever. Integrated with the ExamVue Apex flat panel detector (99 microns) and ExamVue™ Duo software, TrueMobile™ delivers sharp images, fast workflow, and superior uptime.

Key Highlights

• • 32 kW generator supports consistent portable imaging output
  • Up to 1,200 exposures on a full battery charge
  • Fast charging: 10 minutes provides up to 1 hour of use
  • Hot-swap battery eliminates downtime between exams
  • Lightweight, maneuverable design for tight hospital spaces
  • Integrated detector storage and charging within the system
  • Unobstructed line of sight supports more accurate positioning

These features allow the system to maintain uptime, reduce delays between exams, and support consistent imaging throughout the day.

JPI TrueMobile Apex Operation & Positioning Demonstration

Watch how the JPI TrueMobile Apex performs in clinical environments, including bedside positioning, system navigation, and real-world workflow.

How JPI TrueMobile Apex Improves Bedside Imaging Workflow

Portable X-ray systems must balance output, maneuverability, and uptime. The TrueMobile Apex is designed to address each of these factors to support faster and more consistent bedside imaging.

High Generator Output for Portable Exams

The 32 kW generator supports a wide range of exams, allowing operators to perform bedside imaging without compromising exposure capability.

Battery Performance for Full-Day Imaging

The system delivers up to 1,200 exposures on a full charge, reducing the need for frequent charging interruptions during busy imaging schedules.

Fast Charging & Hot-Swap Battery Operation

Rapid charging minimizes downtime, while the hot-swap battery design allows continuous operation without waiting for recharge cycles.

Navigation in Patient Rooms & Tight Hospital Spaces

The compact design allows the system to move easily through hallways, patient rooms, and crowded clinical environments, helping technologists position the unit quickly without unnecessary repositioning.

Together, these features support faster exam turnaround, improved workflow efficiency, and consistent imaging performance in bedside settings.

Where JPI TrueMobile Apex Fits in Clinical Practice

The TrueMobile Apex is designed for facilities where bedside imaging is a critical part of daily operations. Portable X-ray systems reduce the need to transport critically ill or immobile patients, helping improve safety and workflow efficiency.

Clinical Environments

The system is well suited for:

• • Hospitals and acute care facilities
  • Emergency departments
  • Intensive care units (ICU)
  • Surgical and recovery areas
  • Facilities with high portable imaging demand

Bedside Imaging Applications

Portable X-ray systems are often used when patients cannot be transported. The TrueMobile Apex supports these use cases with positioning flexibility and consistent output.

• • Chest imaging in ICU and critical care
  • Orthopedic imaging at bedside
  • Post-operative imaging
  • Emergency and trauma imaging
  • Imaging for immobile or high-risk patients

Detector & Imaging Flexibility

The system is designed to pair with wireless DR panels such as the ExamVue Apex, while remaining compatible with a range of detector options depending on workflow preferences and integration requirements.

Image Quality & Acquisition Performance

The JPI TrueMobile Apex is designed to deliver consistent image quality while maintaining speed and ease of use in portable imaging environments.

High-Resolution Imaging with Wireless Detectors

Wireless detector options provide high-resolution imaging with up to 99 μm detail, supporting clear visualization for bedside chest, orthopedic, and post-operative imaging.

Integrated Software & Imaging Workflow

The ExamVue™ Duo acquisition software is designed to streamline image capture, processing, and workflow management, helping reduce delays between exams and improve overall efficiency.

How the TrueMobile Apex Fits Into Your Imaging Workflow

The JPI TrueMobile Apex is designed to integrate into hospital workflows without slowing down patient care. Its combination of portable operation, battery performance, and integrated imaging tools supports efficient bedside imaging from acquisition through image review.

Integrated Detector Storage & Charging

The system includes built-in storage for wireless detectors, along with automatic charging when stored inside the unit. This reduces the need for separate charging stations and keeps detectors ready for use.

Portable System Design That Reduces Setup Steps

By combining generator, detector storage, and imaging controls into a single system, the TrueMobile Apex minimizes setup time and simplifies operation during busy imaging shifts.

Wireless Operation That Supports Bedside Imaging

Wireless exposure control and detector integration allow technologists to perform exams without being restricted by cables or fixed positioning, improving flexibility in patient rooms.

Designed for Continuous Use in High-Demand Environments

Battery performance, fast charging, and hot-swap capability allow the system to support repeated imaging throughout the day without workflow interruptions.

System Movement & Positioning Capabilities

The JPI TrueMobile Apex is engineered to support precise positioning in patient rooms, ICU settings, and other constrained clinical environments.

Long Reach for Bedside Imaging

The tube arm provides extended reach, allowing technologists to position the system properly while minimizing patient movement.

Wide Range of Motion for Flexible Positioning

The system supports:

• • Extensive arm rotation
  • Tube rotation and tilt adjustments
  • Collimator rotation for alignment

These movement capabilities help ensure proper positioning across a wide range of exam types.

Stable Positioning with Precision Control

Joystick controls on both the system body and tube head allow for controlled movement and positioning during exams.

Collision Protection for Patient & Equipment Safety

Built-in collision protection helps prevent damage to the system and surrounding equipment during operation.

Core Technologies & System Features

The JPI TrueMobile Apex combines generator performance, imaging software, and hardware design to support consistent results in portable imaging environments.

High-Frequency Generator Performance

The system delivers up to 32 kW output with a wide kVp and mAs range, supporting consistent exposure across clinical applications.

ExamVue™ Duo Software for Image Acquisition

The integrated acquisition software supports image capture, processing, and workflow management, helping streamline imaging from exposure through review.

Software Grid & Image Processing Tools

Built-in scatter correction and image processing features support improved image clarity without requiring physical grids in certain scenarios.

Dose Area Meter for Exposure Monitoring

An integrated dose area meter provides visibility into radiation output, supporting dose management and compliance.

JPI TrueMobile Apex Specifications

Generator Output

• • Up to 32 kW

Tube Voltage Range

• • 40–125 or 40–133 kVp

Tube Current / mAs Range

• • 0.1–320 mAs

Focal Spot Size

• • 0.6 / 1.3 mm

Anode Angle

• • 13.5°

Heat Capacity

• • 212 kHU

Detector Options (ExamVue™ Apex)

• • 10 × 12 in
  • 14 × 17 in
  • 17 × 17 in
  • IP67 rated (water and dust resistant)
  • Automatic charging when stored in system

System Movement

• • Tube arm reach: 134 cm (52.8 in)
  • Arm rotation: ±270°
  • Tube rotation: ±180°
  • Tube tilt: -10° to +90°
  • Collimator rotation: ±90°
  • SID range: 53–195 cm (20.8–76.8 in), optional 200 cm

User Interface & Controls

• • 19″ TFT LCD display (1280 × 1024)
  • Capacitive touchscreen
  • Adjustable drive handle
  • Dual joystick control (body and tube head)
  • Visual indicator lights

Battery & Power

• • Operating time: up to 9 hours
  • Up to 1,200 exposures per charge
  • Fast charging: ~1.5 hours full charge
  • 10-minute charge supports ~1 hour of use
  • Hot-swap battery capability

Dimensions & Weight

• • Weight: 714 lbs (324 kg)
  • Length: 44.5 in (113 cm) body / 49 in (125 cm) with handle
  • Width: 22.8 in (58 cm)
  • Height (transport): 47.2 in (120 cm)
