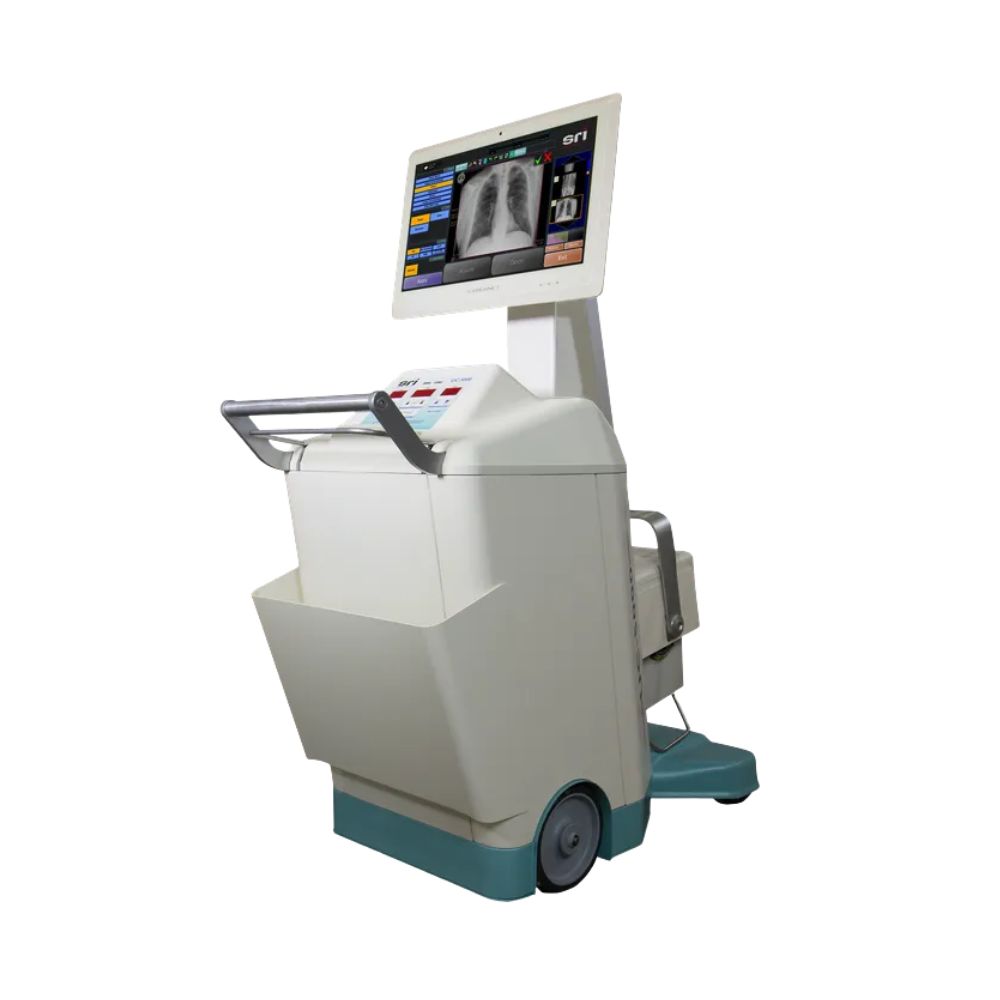

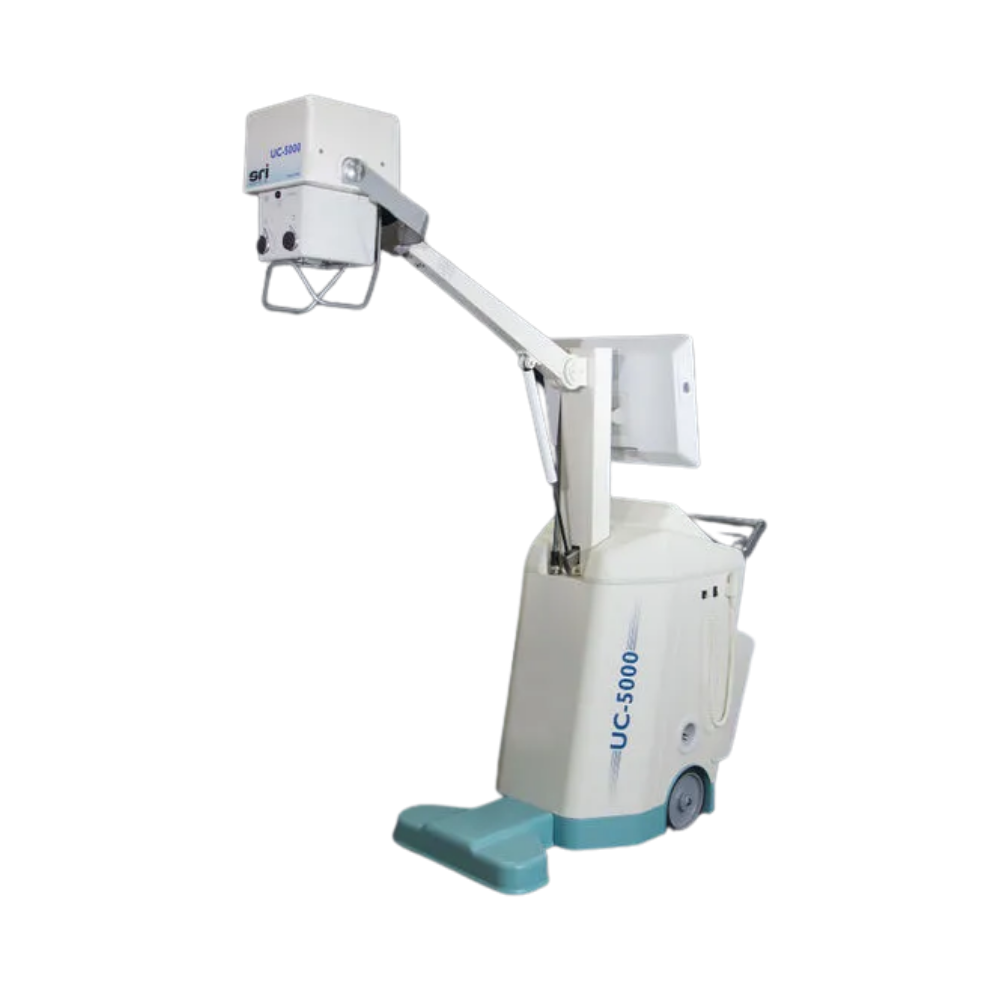

Source-Ray UC-5000 Portable X-ray System

Compact Digital X-Ray Designed for Clinical Flexibility

The Source-Ray UC-5000 combines digital radiography, wireless detector technology, and simplified installation into a compact imaging platform. Designed for facilities where space, infrastructure, and workflow efficiency are important considerations, the system delivers diagnostic imaging capabilities without many of the requirements associated with traditional radiographic rooms.

Key Advantages

• • Minimal Space Requirement (as little as 8’ x 10’)
  • No Special Power Requirements (standard 115V)
  • Significant Savings in Both Initial Cost and Service Expenses
  • Minimal Site Preparation Expenses
  • Fully Touchscreen, Direct Digital & Wireless
  • Full Turnkey – “Plug and Play” X-ray Solution Specifically Designed for the Urgent Care Arena

Clinical Applications

The Source-Ray UC-5000 is well suited for facilities performing routine diagnostic radiography, including:

• Urgent care centers
• Outpatient medical clinics
• Occupational medicine practices
• Community health centers
• Ambulatory care facilities
• Multi-specialty medical practices

Common imaging applications include:

• Chest imaging
• Upper extremity exams
• Lower extremity exams
• General musculoskeletal imaging
• Routine diagnostic radiography

Source-Ray UC-5000 Specifications

Generator

• • High frequency resonant inverter (5kW)
  • Closed loop regulation
  • Input Voltage: 115VAC, 60 Hz / 230VAC, 50 Hz
  • kVp Range: 40 – 110 adjustable in 1 kV increments
  • Indicators: Digital display of kVp, mAs & Exposure Time X-ray, Ready, mA Station & Fault indicators
  • Minimum Inherent Filtration:
  • 3.6 mm of aluminum equivalent at 100 kVp
  • 3.9 mm of aluminum equivalent at 110 kVp
  • Exposure Switch: Detachable two-position

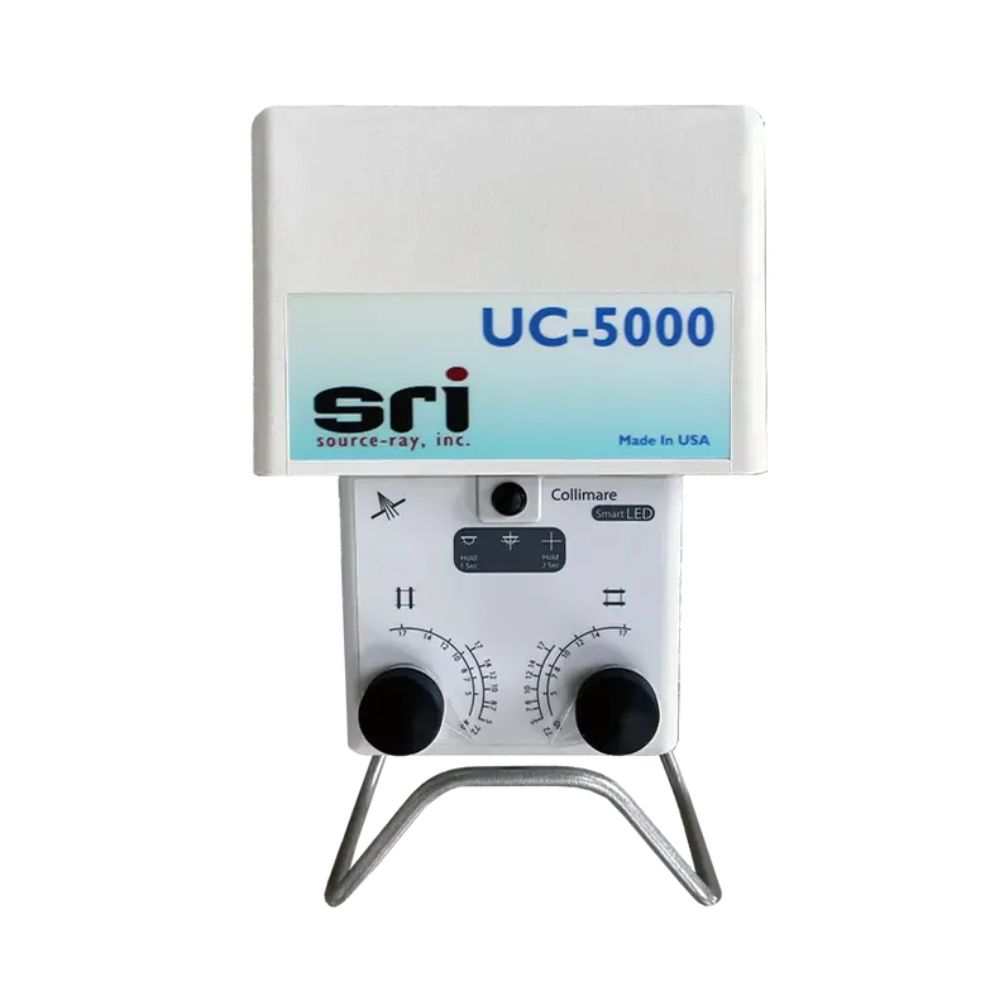

Collimator

• • Laser Crosshairs for center locator
  • 24VDC LED Lamp
  • Retractable Tape Measure for SID Measurement
  • Inclinometer for Angle Measurement

X-Ray Tube

• • Stationary Anode: 130 kVp
  • Target Angle: 15°
  • Target Material: Tungsten
  • Focal Spot: 1.2 mm

Computer

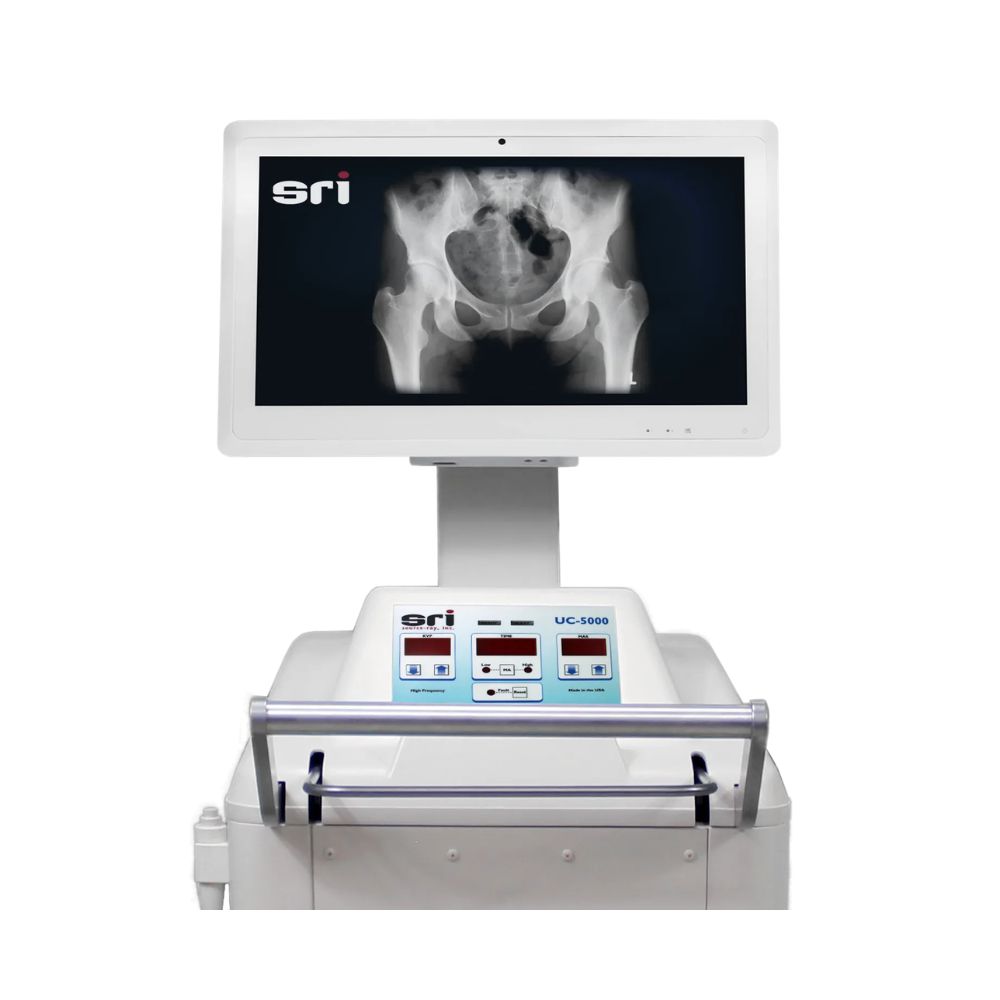

• • AIO 22” Touch Screen Medical Grade
  • Intel i5, 4GB, 120SSD
  • Microsoft Windows 7 Professional 64bit
  • Internal Battery, 60 Minute run time
  • Intel Wireless-N 7260AC
  • EN60601-1 Medical Certified
  • UL60950, FCC Class B

Wireless Panel Case

• • Splashproof Housing
  • Convenient carry handle
  • Removable back for easy battery changes

Wireless Digital Panel

• • Amorphous Silicon
  • Cesium Scintillator
  • Cassette Sized: 14 x 17
  • Weight: 7.7 lbs
  • Construction: Carbon Fiber
  • Pixel Matrix: 2304 x 2800
  • Resolution: 3.3 lp / mm
  • Battery: Lithium Ion
  • Dual Battery Charger

Acquisition Workflow Management

• • Streamline based workflow optimal for maximum throughput
  • Automatic setting of acquisition parameters according to body part
  • Patient data entry: manually or automatically from the DICOM worklist (MWL HL7 May be required)
  • Urgent patient registration
  • Preview image typically within 4-5 seconds after exposure
  • Exam specific image processing for optimized image quality
  • Automatic backup of operator accepted images
  • Review & Processing
  • Patient review
  • Window/Level, Reverse Black/White (Window polarity inversion)
  • Image rotation
  • Electronic zoom with pan & scroll capabilities
  • Magnifying glass
  • Multi-scale contrast enhancement & Dynamic Range
  • Electronic shutter for masking of image (cropping)
  • Multi-format display (for printing)
  • DICOM Store: Interface to DICOM storage servers
  • DICOM Print
  • DICOM HIS/RIS MWM: Interface to Hospital/Radiology Information System’s Modality Worklist
