Source-Ray SR-115 Portable X-Ray

80 lb. Portable X-Ray Designed for Mobile Imaging

The Source-Ray SR-115 was developed for organizations that need a practical portable X-ray without the weight and footprint often associated with larger mobile imaging systems. Combining a lightweight travel stand, high-frequency generator technology, and straightforward operation, the SR-115 helps bring imaging directly to the patient in environments where mobility and accessibility are critical.

• 80 lb. total system weight
• Compact footprint for transportation and storage

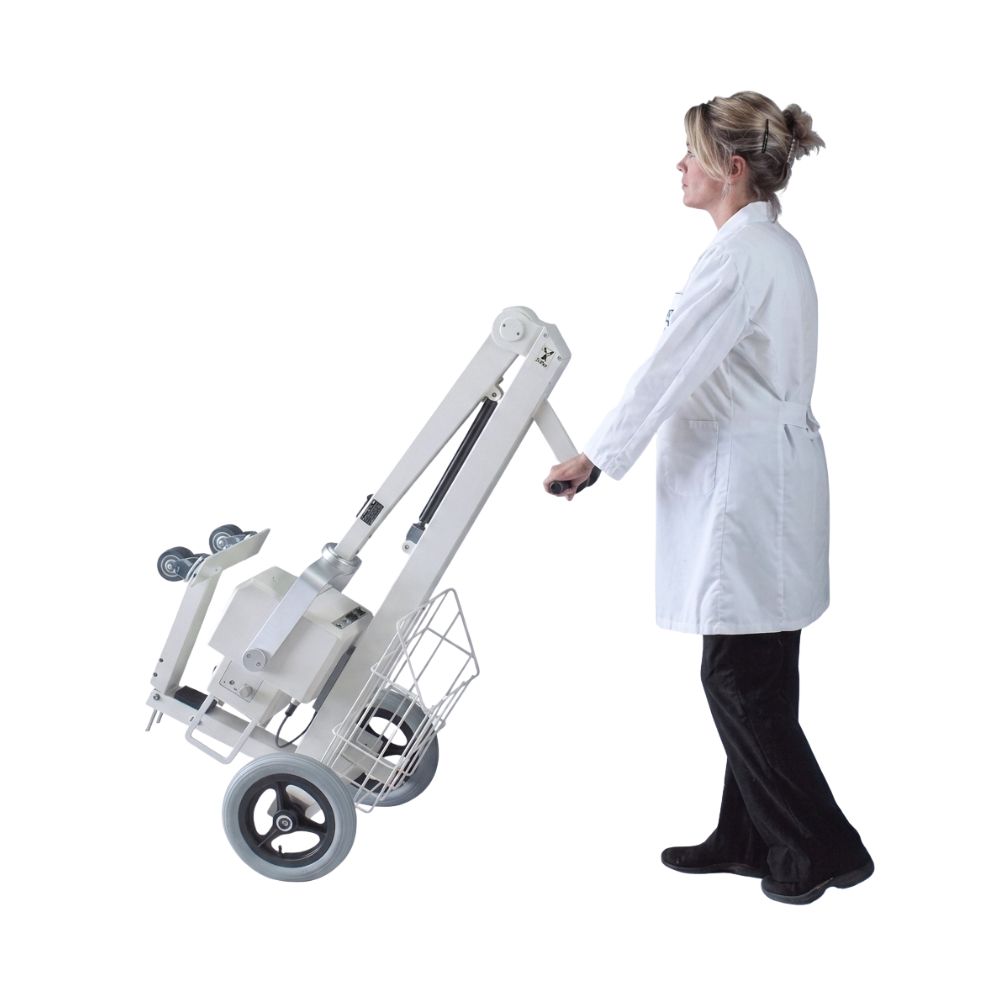

• Lightweight construction for easier movement between imaging locations
• Designed for frequent transport and deployment
• Built for environments where larger portable systems may be difficult to maneuver

Providers performing imaging outside traditional radiology departments often face transportation and positioning challenges. The SR-115 helps address those challenges with a design that prioritizes portability without sacrificing core radiographic functionality.

Maneuverability Around Beds, Equipment, & Patient Care Areas

The Source-Ray SR-115 is designed to operate in locations where space is often limited. Its compact footprint and mobile stand help support imaging in patient rooms, long-term care facilities, physician offices, and other environments where access may be restricted.

• Small footprint for tight imaging spaces
• Mobile stand designed for easy positioning
• Flexible movement around beds and furniture
• Suitable for imaging environments with limited working space

The combination of lightweight construction and compact dimensions helps simplify deployment in areas where larger portable systems may be more difficult to transport or position.

1.5 kW Generator Designed for Mobility-First Imaging Programs

The Source-Ray SR-115 pairs its lightweight design with a high-frequency resonant inverter generator that delivers dependable radiographic performance while helping maintain a compact overall system size.

• 1.5 kW generator output
• High-frequency resonant inverter technology
• Microprocessor-controlled operation
• 40-100 kVp operating range
• 0.15-60 mAs range

Rather than focusing on maximum generator output, the SR-115 is designed for organizations that prioritize portability, transportability, and ease of deployment. The generator configuration supports general radiographic imaging while contributing to the system’s lightweight design.

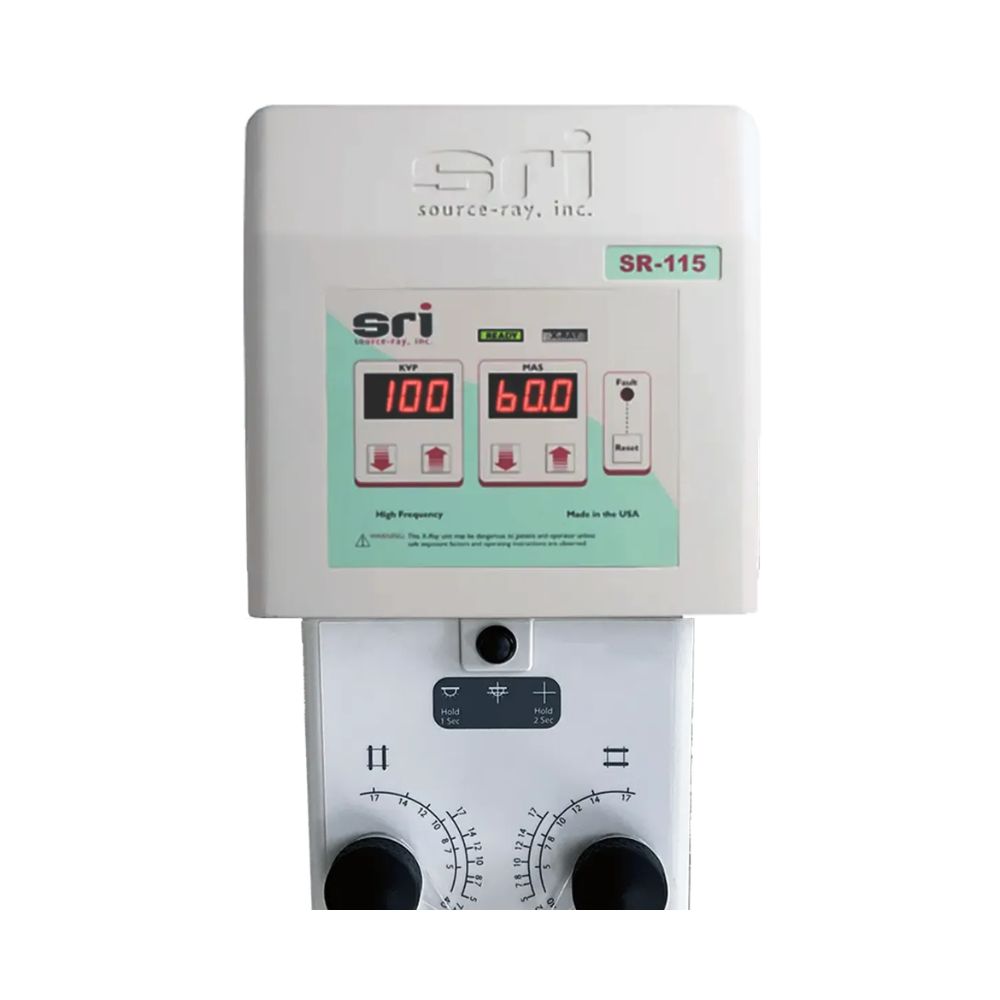

Exposure Controls and High-Frequency Operation

Integrated digital controls simplify operation and provide clear visibility of exposure settings.

• • Digital kVp display
  • Digital mAs display
  • X-ray ready indicator
  • Fault indicator
  • Detachable two-position exposure switch

The high-frequency design supports consistent exposure delivery while helping maintain a compact and user-friendly operating experience.

Where the Source-Ray SR-115 Fits Best

The SR-115 is particularly well suited for providers who routinely bring imaging directly to patients. Its lightweight design and compact footprint help support workflows where transportation, maneuverability, and ease of deployment are essential considerations.

• Mobile imaging service providers
• Nursing homes and long-term care facilities
• Home healthcare imaging programs
• Physician offices
• Community-based healthcare programs

Organizations operating outside traditional hospital radiology departments often require equipment that can be transported efficiently, positioned quickly, and stored without consuming excessive space. The SR-115 was designed with those practical workflow considerations in mind.

Portable Imaging for Space-Constrained Care Environments

Many portable imaging environments present challenges that do not exist in dedicated radiology rooms. The Source-Ray SR-115 is designed to help operators navigate these limitations.

• Patient rooms with limited working space
• Long-term care environments
• Small clinics and physician offices
• Home healthcare settings

Its compact design helps support imaging workflows where access, transportation, and maneuverability are often just as important as imaging performance.

Clinical Applications for General Radiography

The Source-Ray SR-115 is intended for providers who require portable imaging capabilities across a variety of care environments where transporting patients may be impractical.

Common Imaging Environments

• • Mobile imaging services
  • Nursing homes and long-term care facilities
  • Home healthcare imaging programs
  • Orthopedic practices
  • Sports medicine practices
  • Physician offices
  • Outpatient imaging environments
  • Community-based healthcare programs

The SR-115’s lightweight construction and compact design make it particularly well suited for organizations that routinely perform imaging outside traditional hospital radiology departments.

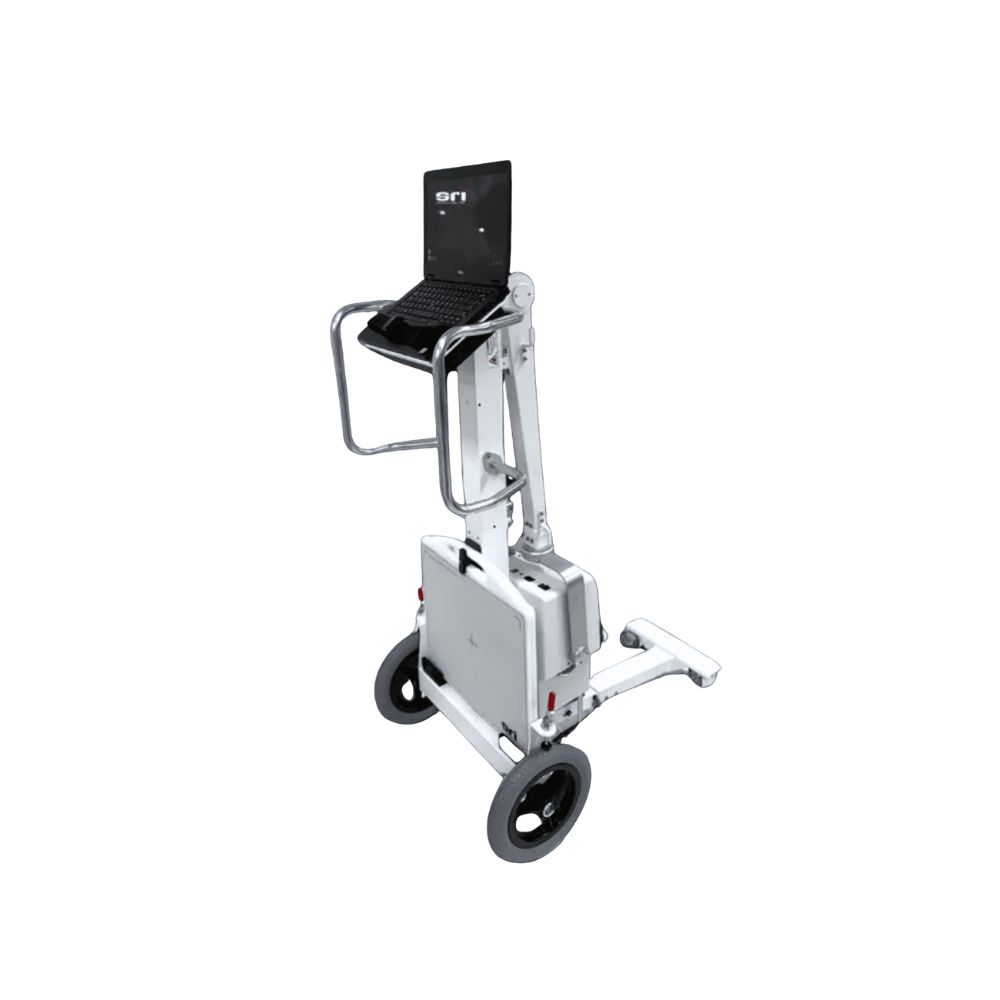

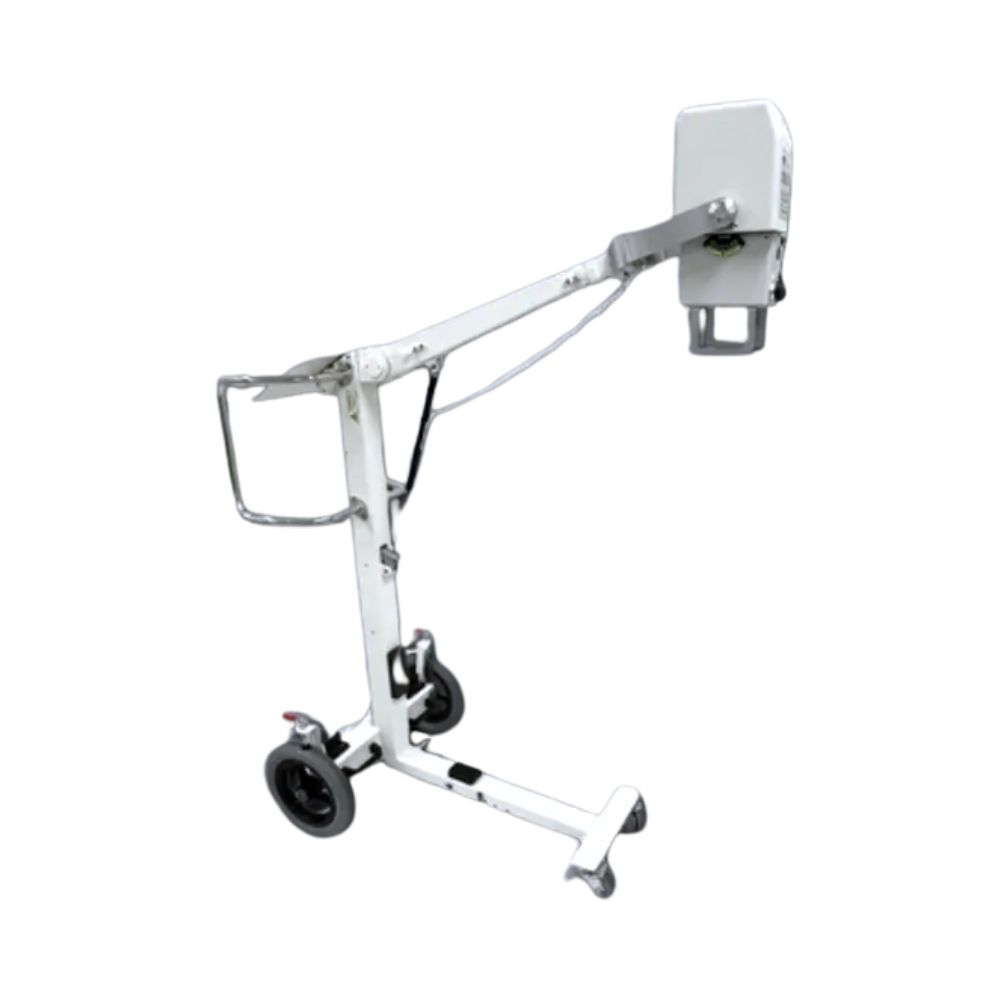

Portable Stand Design & Positioning Flexibility

The SR-115 travel stand is designed to balance portability with the positioning flexibility needed for general radiographic imaging.

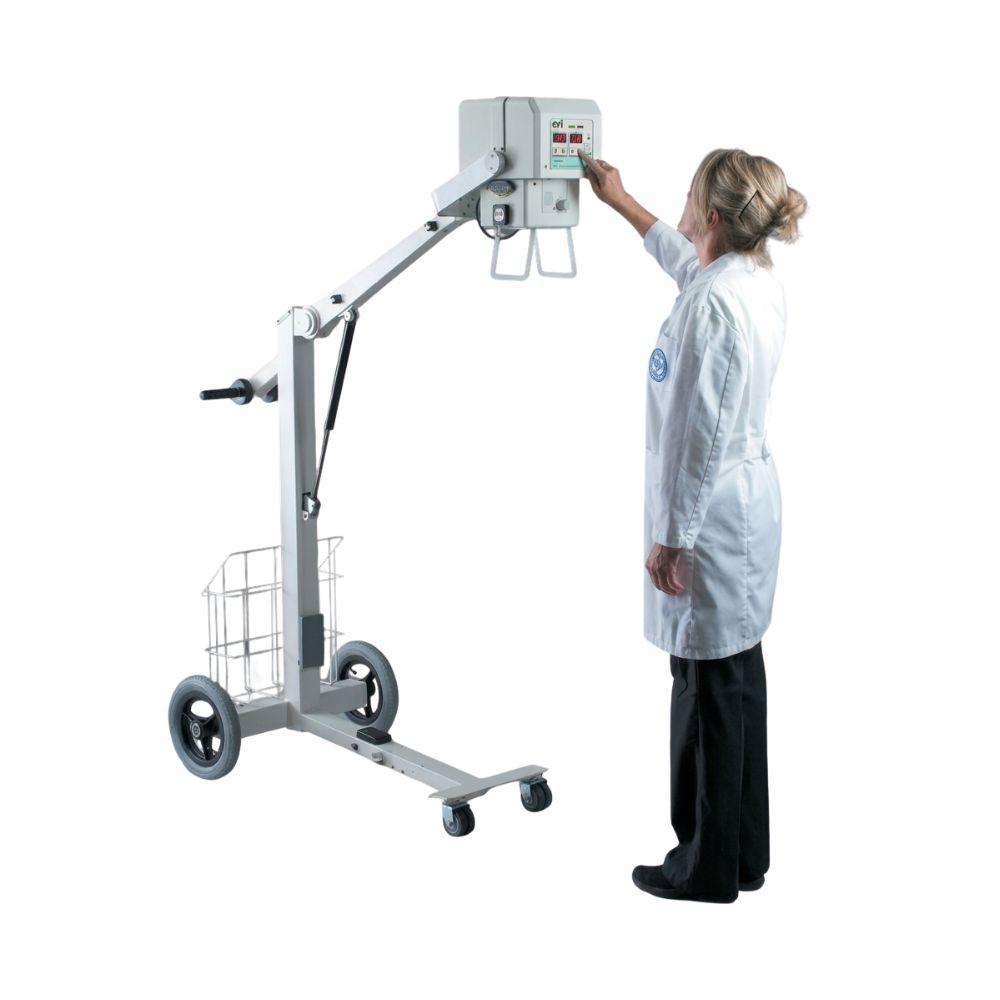

Tube Rotation & Working Range

The positioning system provides the movement necessary to accommodate a variety of patient and room configurations.

• • Maximum focal spot height: 78 in. (198 cm)
  • Minimum focal spot height: 13 in. (33 cm)
  • Horizontal extension: 21 in. (53 cm)
  • Horizontal rotation: 200°
  • Tube rotation: 270°

These positioning capabilities help support imaging in patient rooms, treatment areas, and other environments where fixed-room positioning equipment is unavailable.

Collimator Features for Setup & Alignment

The collimator includes built-in tools that assist with image setup and positioning.

• • SID measuring tape
  • Inclinometer for angle measurement
  • Adjustable collimation

Durable Construction for Daily Mobile Use

Portable imaging equipment must withstand frequent movement and repeated deployment. The SR-115 is designed to support daily operation while maintaining straightforward usability.

Microprocessor-Controlled Operation & Simplified Workflow

The system combines durable construction with practical operating features intended to support long-term use.

• • Microprocessor-controlled generator
  • Durable powder-coated finish
  • Compact single-package design
  • Integrated controls
  • Designed for dependable day-to-day operation

The result is a portable X-ray designed to support organizations seeking a lightweight and practical mobile imaging solution.

Source-Ray SR-115 Specifications

Generator

• • High-frequency resonant inverter
  • 1.5 kW output
  • 115/230 VAC, 50/60 Hz input
  • 40-100 kVp range
  • Adjustable in 1 kVp increments
  • Fixed 15 mA output
  • 0.15-60 mAs range

Displays and Indicators

• • Digital kVp display
  • Digital mAs display
  • X-ray indicator
  • Ready indicator
  • Fault indicator

X-Ray Tube

• • Stationary anode tube
  • 100 kVp rating
  • Tungsten target material
  • 1.0 mm focal spot
  • 15° target angle
  • 20,000 HU heat storage capacity
  • 2.7 mm Al minimum filtration

Exposure Controls

• • Detachable two-position exposure switch

Collimator

• • Advantech R72/32-ET
  • SID measuring tape
  • Inclinometer

Travel Stand

• • Minimum focal spot to floor: 13 in. (33 cm)
  • Maximum focal spot to floor: 78 in. (198 cm)
  • Horizontal extension: 21 in. (53 cm)
  • Horizontal rotation: 200°
  • Tube rotation: 270°

Physical Specifications

• • System weight: 80 lb. (36 kg)
