JPI ExamVue Apex Wireless DR Detector

Premium Image Quality, Rugged Durability, & Long-Term Value

The JPI  ExamVue Apex is designed for facilities that expect more than dependable wireless imaging. Every detector combines premium Trixell Pixium® technology, rugged glassless construction, and one of the industry’s strongest ownership packages to help maximize uptime while delivering exceptional diagnostic image quality.

Key Benefits

• • Available in three wireless detector configurations
  • Built in France by Thales, parent company of Trixell
  • Trixell Pixium® CsI detector technology
  • 99 μm pixel pitch
  • Glassless detector construction
  • IP67 waterproof rating
  • Drop-tested up to 4 ft. (47.24 in.)
  • Up to 8 hours of battery operation
  • Hot-swappable batteries
  • Seven-year manufacturer warranty
  • Seven-year drop insurance
  • Fast replacement program
  • Compatible with DR retrofit projects and new X-ray systems

The shared detector platform allows facilities to choose the detector size that best supports their workflow while maintaining the same premium image quality, rugged durability, and wireless performance across every configuration.

Built on Trusted Detector Technology

JPI  ExamVue™ Apex combines trusted technology, seamless integration, and long-term reliability. Built in France by Thales, parent company of Trixell, it delivers 99 microns image clarity, waterproof durability, and effortless PACS/RIS compatibility. With a 7-year warranty, drop insurance, and intuitive ExamVue™ Duo software, Apex offers confidence, performance, and value that make every upgrade an easy decision.

See the JPI  ExamVue Apex in Action

The video below provides an overview of the ExamVue Apex platform, highlighting its detector technology, rugged construction, workflow capabilities, and ExamVue™ Duo acquisition software.

Built to Minimize Downtime

Reliable detector performance goes beyond image quality. The JPI ExamVue Apex is engineered to help keep imaging rooms operating through rugged glassless construction, hot-swappable batteries, a fast replacement program, and industry-leading warranty protection. Together, these features help reduce unexpected interruptions and support consistent day-to-day workflow.

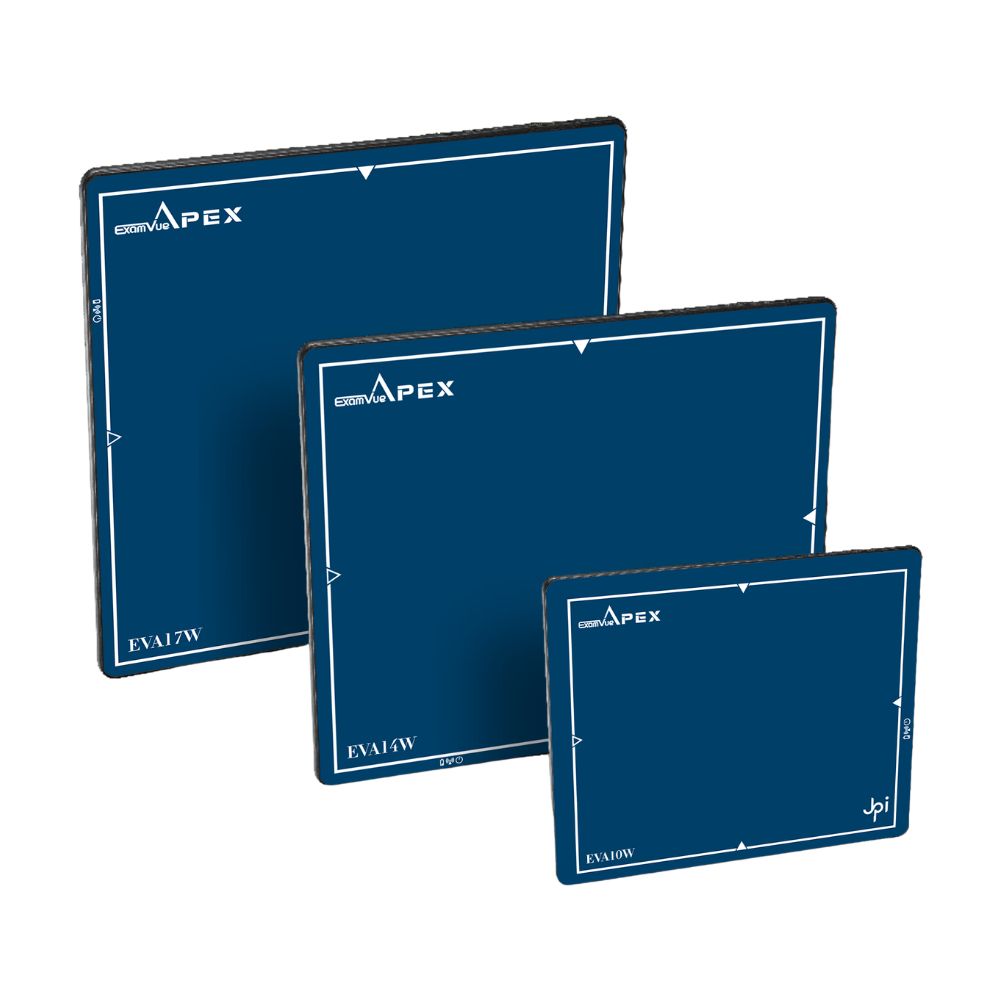

Choose the Right JPI ExamVue Apex Configuration for Your Workflow

The ExamVue Apex Wireless DR Detector is available in three configurations built on the same detector platform. The primary differences are detector size and active imaging area. Every configuration delivers the same Trixell Pixium® technology, 99 μm pixel pitch, glassless construction, and wireless performance.

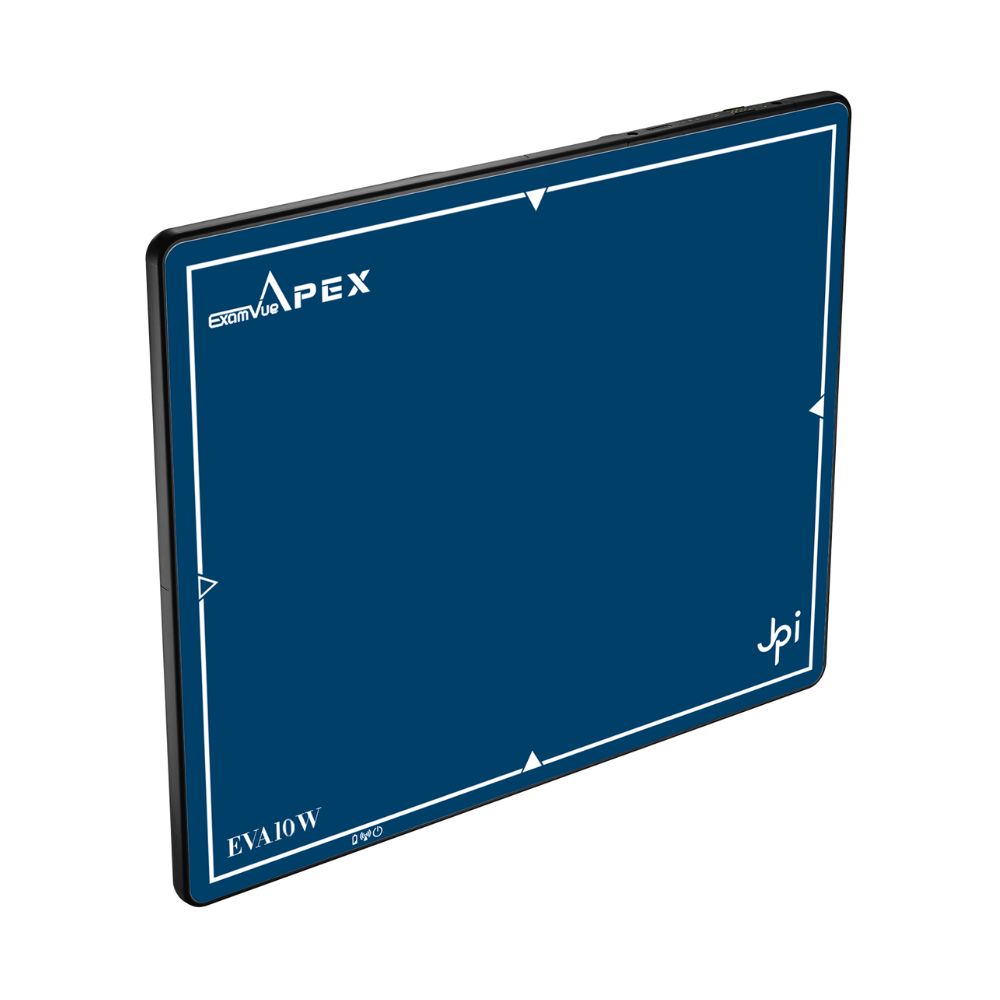

EVA10W | Compact Imaging for Smaller Anatomy

The EVA10W features an 8.8 × 11.2 in. active imaging area in a lightweight 3.53 lb. detector. Its compact footprint improves positioning flexibility for extremity imaging and other examinations where a full-size detector is unnecessary.

Ideal for:

• • Extremity imaging
  • Pediatric imaging where appropriate
  • Specialty imaging
  • Applications requiring greater positioning flexibility

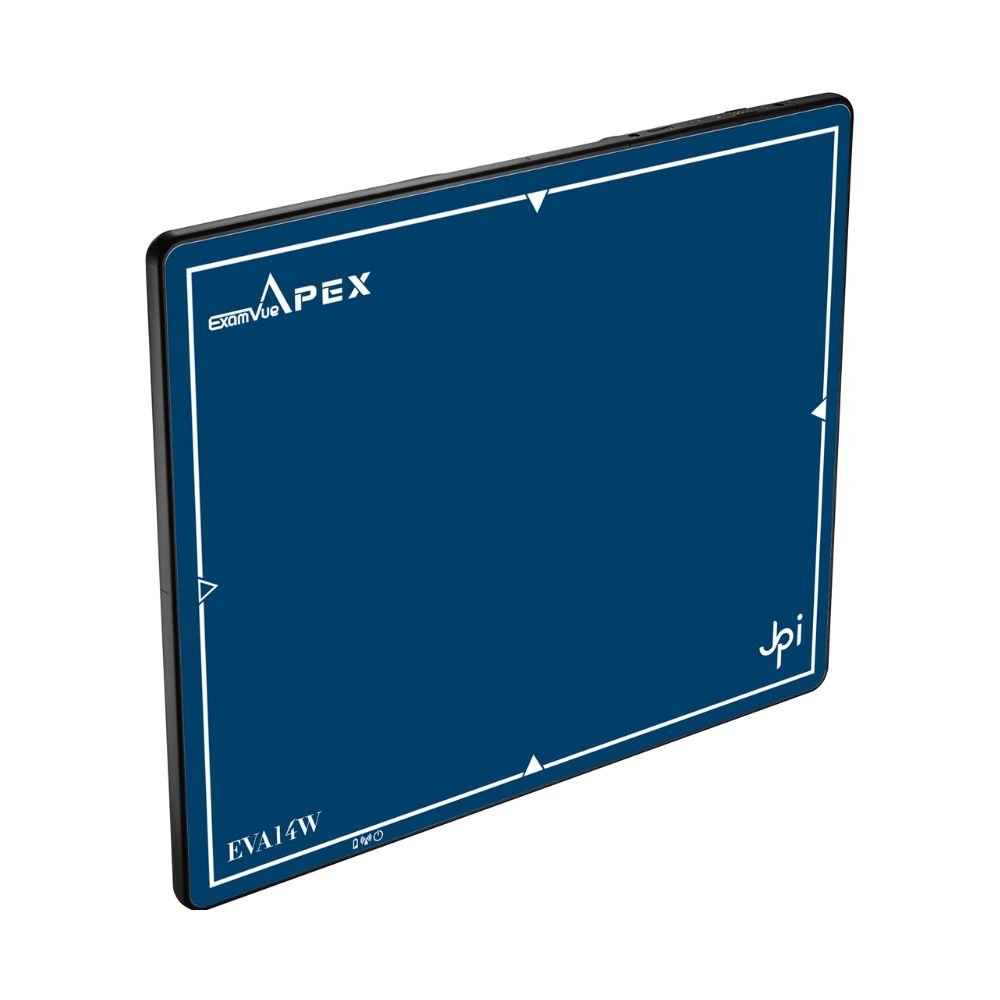

EVA14W | Everyday Imaging with a Standard 14 × 17 Detector

The EVA14W combines a 13.6 × 16.7 in. active imaging area with a weight of 5.73 lb., making it the most versatile configuration for routine digital radiography. It supports the broad range of examinations performed across hospitals, imaging centers, orthopedic practices, and outpatient clinics.

Ideal for:

• • General radiography
  • Chest imaging
  • Abdomen
  • Musculoskeletal imaging
  • Routine hospital workflow

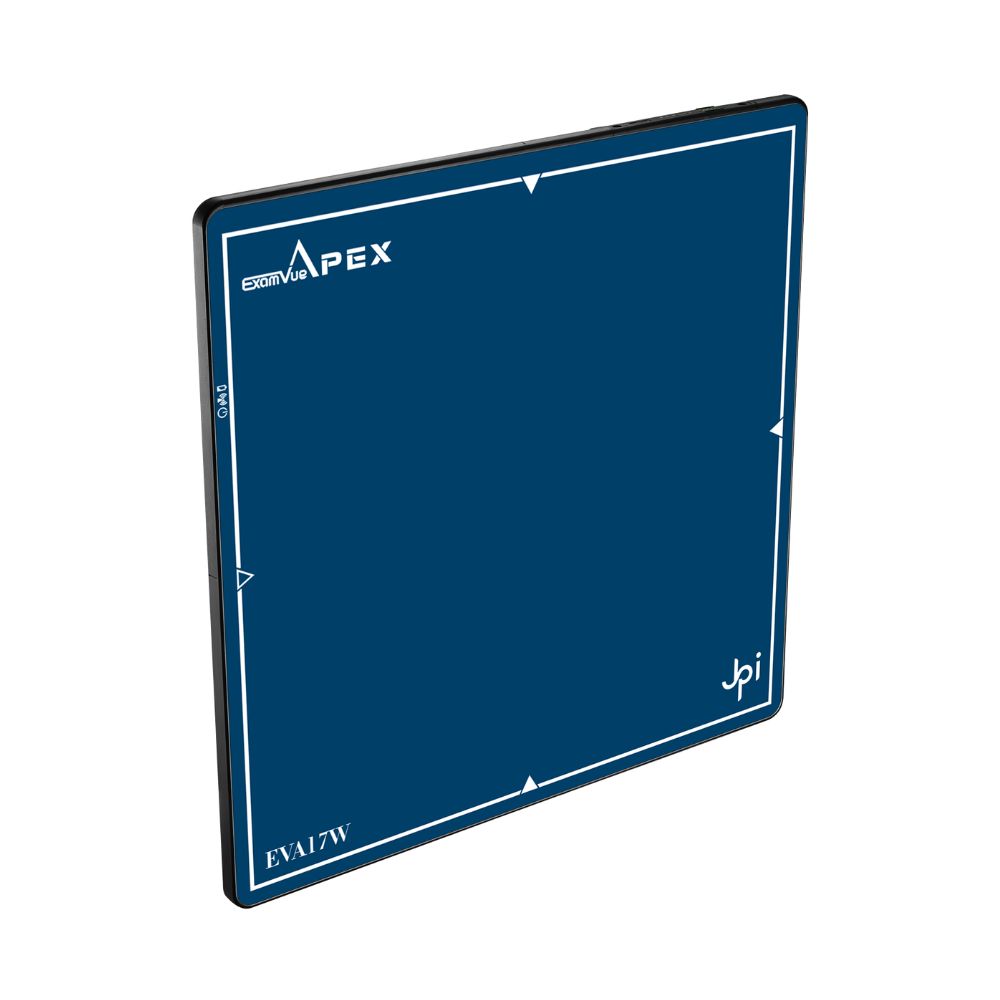

EVA17W | Broader Anatomical Coverage for Routine Imaging

The EVA17W provides a 16.6 × 16.6 in. active imaging area while maintaining the same detector platform and image quality. Weighing 6.61 lb., it is designed for facilities that routinely image larger anatomy and benefit from greater detector coverage during everyday imaging.

Ideal for:

• • Larger anatomical regions
  • General radiography
  • Orthopedic imaging
  • Trauma imaging
  • High-volume imaging departments

Where the JPI ExamVue Apex Fits Best

The JPI ExamVue Apex Wireless DR Detector supports routine digital radiography across a wide range of clinical environments. With three detector configurations built on the same platform, facilities can select the detector size that best supports their workflow while maintaining consistent image quality and wireless performance.

Common Imaging Environments

• • Hospitals & Health Systems
  • Outpatient Imaging Centers
  • Orthopedic Practices
  • Urgent Care Centers
  • Specialty Medical Practices
  • Mobile Imaging Providers using compatible DR systems

Clinical Applications Supported by the JPI ExamVue Apex

• • General radiography
  • Chest imaging
  • Abdomen
  • Pelvis
  • Spine
  • Musculoskeletal imaging
  • Extremity imaging
  • Trauma imaging

The three available detector sizes allow facilities to optimize positioning and anatomical coverage while maintaining one consistent detector platform.

Routine Examinations Supported by the JPI ExamVue Apex

The ExamVue Apex Wireless DR Detector supports routine digital radiography across a broad range of examinations.

Common Examinations Include

• • Chest
  • Abdomen
  • Pelvis
  • Spine
  • Shoulder
  • Upper extremities
  • Lower extremities
  • General musculoskeletal imaging

Selecting the appropriate detector size helps optimize positioning, anatomical coverage, and workflow efficiency for the examinations performed most frequently within your facility.

Wireless Workflow That Fits Your Existing Imaging Environment

The JPI ExamVue Apex Wireless DR Detector is designed to integrate into both new digital radiography systems and compatible DR retrofit projects with minimal disruption to existing workflows. Wireless connectivity, automatic exposure detection, hot-swappable batteries, and flexible communication options help keep examinations moving efficiently while reducing unnecessary downtime.

Whether replacing aging CR equipment or upgrading an analog X-ray room, the JPI ExamVue Apex provides a workflow that feels familiar while delivering the speed and convenience of modern wireless digital radiography.

Workflow Highlights

• • Compatible with new X-ray systems and DR retrofit projects
  • Wireless Wi-Fi (802.11ac/ax) communication
  • Optional Gigabit Ethernet wired connection
  • Thales Full-Field Automatic Exposure Detection (AED)
  • Auto-trigger functionality
  • Hot-swappable batteries
  • Up to 8 hours of battery operation
  • Three-slot battery charger available

Why Trixell Pixium® Technology Matters

Every JPI ExamVue Apex Wireless DR Detector is built around Trixell Pixium® CsI detector technology, manufactured in France by Thales, the parent company of Trixell. Rather than developing a proprietary detector from the ground up, JPI selected one of the industry’s most established detector platforms to provide proven image quality and dependable long-term performance.

According to JPI, Pixium panels are trusted worldwide and are used in approximately 50% of all X-ray examinations globally, making them one of the most widely deployed detector technologies available today. By pairing this proven imaging technology with JPI’s software, service, and ownership benefits, the ExamVue Apex delivers both confidence and long-term value.

Image Quality Features

• Trixell Pixium® CsI detector technology
• Built in France by Thales
• 99 μm pixel pitch
• 73% DQE (0 lp/mm @ 6 µGy)
• 68% MTF (1 lp/mm)
• 16-bit image acquisition
• Designed for excellent anatomical detail and diagnostic confidence

Engineered for Everyday Clinical Demands

Wireless DR detectors are exposed to daily bumps, spills, patient transfers, and demanding imaging environments. The JPI ExamVue Apex is engineered to withstand those challenges without compromising performance.

Its glassless construction, IP67 waterproof enclosure, and drop-tested design help protect the detector during everyday use, while its high weight capacity supports a broad range of patient imaging applications. These durability features help reduce the risk of accidental damage and contribute to long-term reliability.

Durability Features

• • Glassless detector construction
  • IP67 waterproof rating
  • Drop-tested up to 4 ft. (47.24 in.)
  • Distributed load capacity: 661 lb. (300 kg)
  • Localized load capacity: 220 lb. (100 kg)
  • Designed for everyday clinical use

ExamVue™ Duo Simplifies Image Acquisition

The JPI ExamVue Apex integrates with ExamVue™ Duo, JPI’s digital acquisition software designed to make everyday imaging easier for technologists while supporting an efficient radiography workflow.

The intuitive interface helps streamline image acquisition, review, and exam management while reducing the learning curve for new users. Built-in workflow tools such as patient positioning guides, auto-stitching, and PACS/RIS compatibility help improve productivity without adding unnecessary complexity. JPI also backs the platform with technical support, remote assistance, and ongoing training resources.

ExamVue™ Duo Features

• • Intuitive acquisition workflow
  • Image review tools
  • Patient positioning guides
  • Auto-stitching
  • PACS/RIS compatibility
  • Remote technical support
  • Technical training
  • Customer support resources

Long-Term Ownership Value

The JPI ExamVue Apex Wireless DR Detector is designed to deliver value well beyond installation. While image quality and workflow are essential, long-term ownership costs can have an equally significant impact on a facility’s investment.

JPI helps protect that investment with a 7-year manufacturer warranty, 7-year drop insurance, and a fast replacement program designed to minimize downtime if service is ever required. Combined with rugged detector construction and ongoing technical support, these ownership benefits help keep imaging departments productive while reducing unexpected interruptions.

Ownership Benefits

• • 7-year manufacturer warranty
  • 7-year drop insurance
  • Fast replacement program
  • Technical support
  • Remote support
  • Product training
  • Long-term service commitment

A Premium Wireless DR Platform Built for Long-Term Performance

The JPI ExamVue Apex Wireless DR Detector brings together proven Trixell Pixium® detector technology, rugged glassless construction, intuitive ExamVue™ Duo software, and one of the industry’s strongest ownership packages in a single wireless DR platform.

Available in three detector sizes, it allows healthcare facilities to select the configuration that best supports their workflow while maintaining the same image quality, durability, and long-term reliability across the entire product line. Whether you’re planning a new digital radiography installation or upgrading an existing X-ray room, the JPI ExamVue Apex delivers the performance, protection, and support needed for everyday clinical imaging.

JPI ExamVue Apex Specifications

Detector Technology

• • Trixell Pixium® CsI coupled TFT a-Si technology
  • Built in France by Thales
  • 99 μm pixel pitch
  • 16-bit A/D conversion
  • 73% DQE (0 lp/mm @ 6 µGy)
  • 68% MTF (1 lp/mm)
  • Thales Full-Field Automatic Exposure Detection (AED)

Available Configurations

EVA10W

• • • Active imaging area: 8.8 × 11.2 in. (223 × 284 mm)
    • Detector dimensions: 10.53 × 12.89 × 0.59 in. (267.5 × 327.5 × 15 mm)
    • Weight: 3.53 lb. (1.6 kg)

EVA14W

• • • Active imaging area: 13.6 × 16.7 in. (346 × 424 mm)
    • Detector dimensions: 15.1 × 18.09 × 0.59 in. (384 × 459.5 × 15 mm)
    • Weight: 5.73 lb. (2.6 kg)

EVA17W

• • • Active imaging area: 16.6 × 16.6 in. (422 × 421 mm)
    • Detector dimensions: 18.09 × 18.09 × 0.59 in. (459.5 × 459.5 × 15 mm)
    • Weight: 6.61 lb. (3.0 kg)

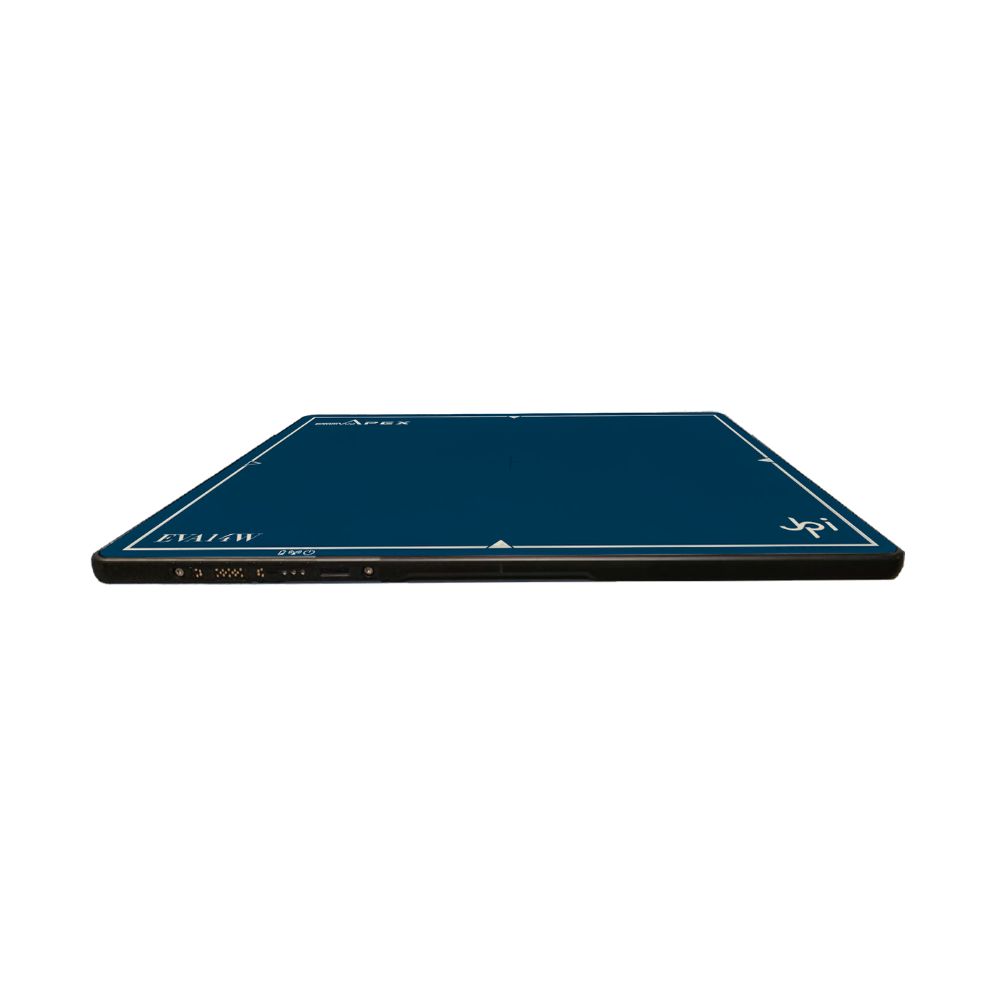

Connectivity

• • Wireless Wi-Fi (802.11ac/ax)
  • Optional Gigabit Ethernet connection
  • Hot-swappable battery
  • Up to 8 hours of battery operation
  • Three-slot battery charger
  • Automatic Exposure Detection (AED)
  • Auto-trigger support

Durability

• • Glassless detector construction
  • IP67 waterproof enclosure
  • Drop-tested up to 4 ft. (47.24 in.)
  • Distributed load capacity: 661 lb. (300 kg)
  • Localized load capacity: 220 lb. (100 kg)

Operating Environment

• • Operating temperature: 50°F to 95°F (10°C to 35°C)
  • Functional temperature: 50°F to 104°F (10°C to 40°C)
