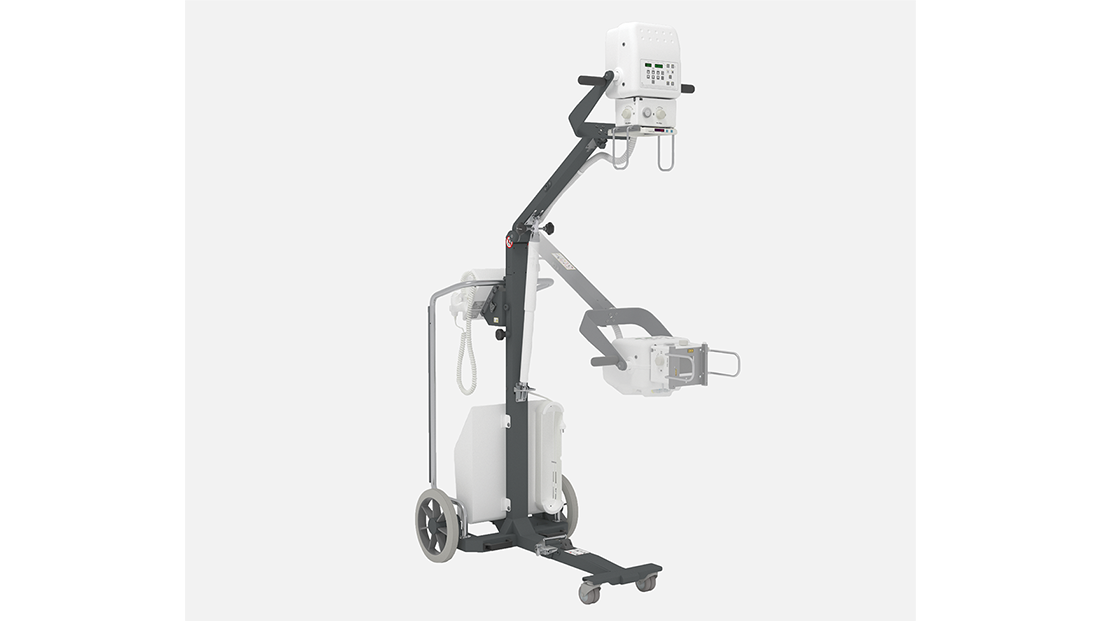

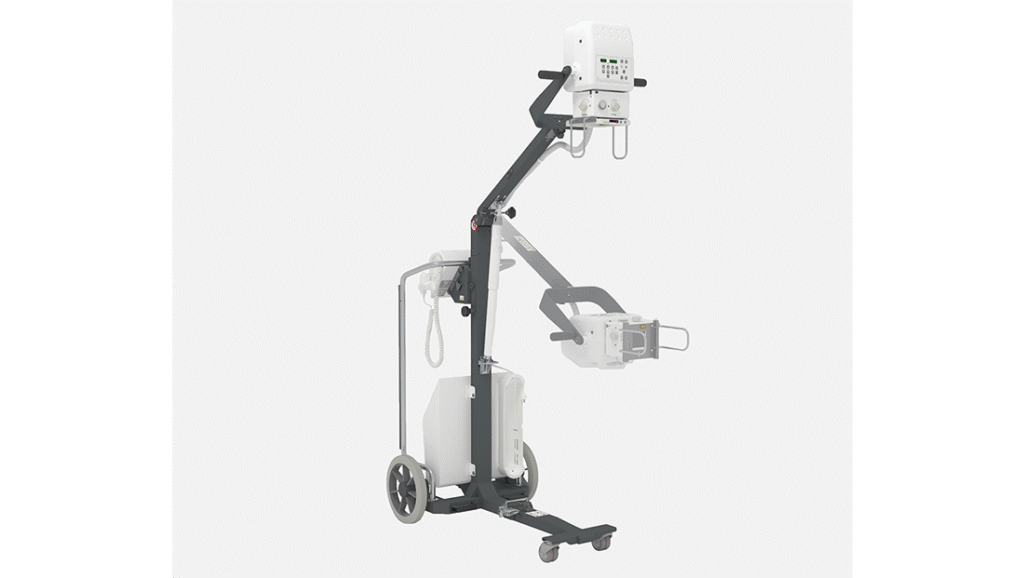

Summit AMRAD Medical Dragon Elite & Classic Portable X-ray

118 lb. Portable X-Ray System for Mobile Imaging Providers & Multi-Location Care

The Dragon platform was developed for organizations that routinely transport imaging equipment between patient locations. Its lightweight design, compact footprint, and mobile-friendly workflow help support providers delivering radiography beyond the traditional imaging department.

• Approximately 118 lb. (54 kg) system weight
• Compact mobile design
• Designed for transport between care locations
• Available in Classic and Elite configurations
• DR-ready upgrade path available

The Dragon is particularly well suited for imaging providers who require a portable system that can be moved frequently throughout the workday while maintaining positioning flexibility for a variety of exams.

Where the AMRAD Dragon X-Ray Is Most Commonly Used

• • Nursing homes
  • Home healthcare programs
  • Mobile imaging providers
  • Small hospitals
  • Community clinics

The Dragon’s lightweight design and transportability help support imaging programs that routinely travel to the patient rather than requiring the patient to travel to the imaging department.

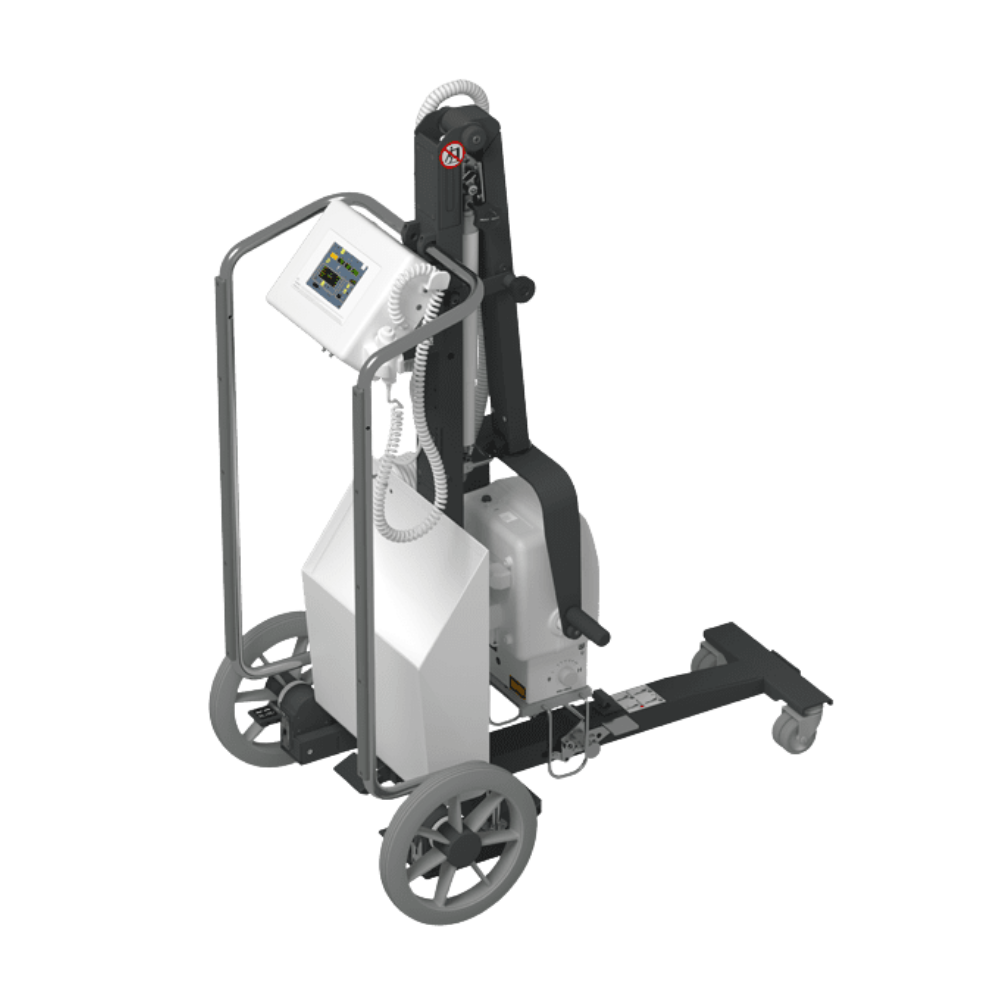

Compact Portable X-Ray Transport Mode for Easy Vehicle Loading & Daily Deployment

One of the Dragon platform’s distinguishing features is its compact transport configuration. The system is designed to simplify loading, unloading, and maneuvering throughout daily imaging routes.

• Compact transport position
• Large rear transport wheels
• Positive mechanical brakes
• Integrated cassette storage compartment
• Lightweight transport cart design

Organizations performing imaging across multiple locations may benefit from the Dragon’s transport-oriented design and compact footprint.

Designed for Daily Mobile Imaging & Frequent Movement

The Dragon combines portability with positioning flexibility, helping operators move efficiently between imaging locations.

• • Simplified transport between facilities
  • Compact footprint for storage and transport
  • Mobile-friendly system architecture
  • Designed for repeated daily deployment

These features support organizations whose imaging workflow depends on frequent equipment movement.



Dual Control Portable X-Ray System with Console & Tube Head Operation

The Dragon incorporates controls at both the console and generator assembly, helping reduce unnecessary movement during exam setup. The OEM also highlights multiple collimator activation points that can improve workflow efficiency during positioning.

• Technique selection available from multiple locations
• Generator-mounted controls
• Console-mounted controls
• Multiple collimator light activation points

These workflow-focused design features help operators remain closer to the patient and examination area during setup.

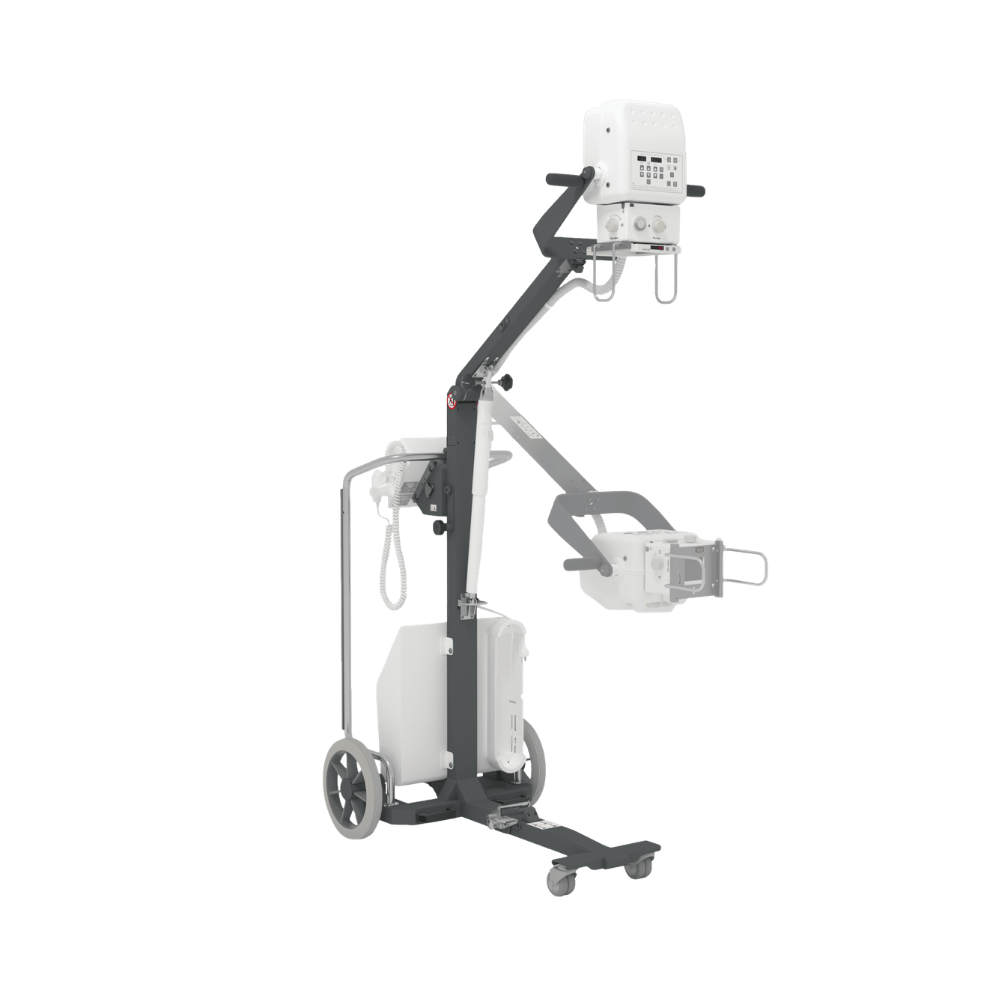

Flexible Tube Arm Positioning for Bedside & Mobile Imaging Environments

The Dragon’s arm mobility supports positioning flexibility in environments where room layouts and patient accessibility can vary.

• • Gas-spring-supported tube arm
  • Extended positioning flexibility
  • Designed for bedside and mobile imaging
  • Supports varied examination setups

The positioning system is intended to help support imaging workflows in nursing homes, clinics, patient rooms, and other non-traditional imaging environments.



Dragon Classic vs Dragon Elite Portable X-Ray Systems: Key Differences & Selection Guide

The Dragon platform is available in two generator configurations, allowing organizations to select a system that aligns with their workflow requirements, power availability, and imaging volume.

Dragon Classic Portable X-Ray System (4 kW, 110V Power)

The Dragon Classic incorporates a 4 kW high-frequency generator and operates on standard 110V power. This configuration may be attractive for organizations seeking deployment flexibility across a wide range of locations.

• • 4 kW high-frequency generator
  • 110V operation
  • Compact portable configuration
  • Designed for mobile imaging environments

Dragon Elite Portable X-Ray System (8 kW, 220V Power with Laser Collimator)

The Dragon Elite incorporates an 8 kW high-frequency generator and operates on 220V power. The Elite configuration includes a laser light collimator and additional generator output capability.

• • 8 kW high-frequency generator
  • 220V operation
  • Laser light collimator
  • Increased generator output

Organizations with higher imaging demands may benefit from the additional output provided by the Elite configuration.



DR-Ready Portable X-Ray System with Digital Radiography Retrofit Options

The Dragon platform is designed to support organizations that are transitioning to digital radiography. DR-ready configurations and retrofit options allow facilities to expand imaging capabilities while maintaining the underlying Dragon platform.

• DR-ready configurations available
• DR retrofit options available
• Flat panel integration options
• Compatible with customer-selected DR solutions

This flexibility can help organizations adopt digital radiography while preserving existing equipment investments.

Upgrade the Dragon Portable X-Ray System to Digital Radiography (DR)

Both the AMRAD Dragon and TXR Dragon product lines have been offered with digital imaging configurations.

• Available digital imaging upgrades
• Touchscreen workstation options
• Flat panel detector integration
• Future-focused imaging pathway

These options provide a migration path for organizations planning future digital imaging expansion.

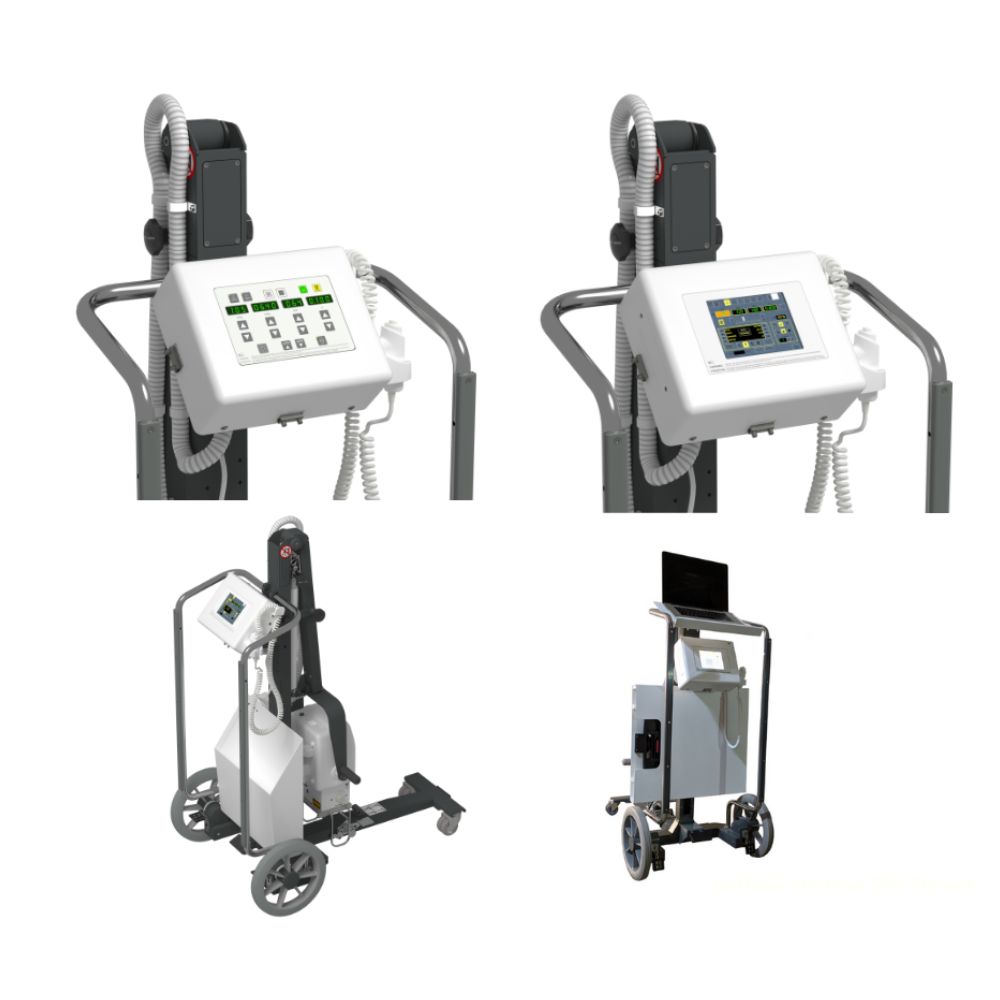

APR Console Options for Portable X-Ray: Membrane & Touchscreen Interfaces

The Dragon platform offers multiple console configurations to support different workflow preferences and operating environments.

Available APR Console Configurations for Portable X-Ray Operation

• • 1-region APR membrane console
  • 6-region APR touchscreen console
  • Anatomy-based APR organization
  • Multilingual interface capability

The touchscreen APR configuration supports organized technique selection across multiple anatomical regions.

Anatomical Programmed Radiography (APR) Features for Faster Exam Setup

• • Skull imaging APR selections
  • Thorax imaging APR selections
  • Spine imaging APR selections
  • Upper and lower extremity APR selections

These features help streamline exam setup while supporting workflow consistency.



Portable X-Ray Applications for Nursing Homes, Home Healthcare, & Mobile Imaging

The Dragon platform is most commonly deployed where imaging equipment must routinely travel between patients, buildings, or care locations. Its lightweight design, compact transport mode, and flexible power options support workflows that would be difficult with larger portable X-ray systems.

Common Clinical Applications

• General radiography
• Mobile imaging services
• Nursing home imaging
• Home healthcare imaging
• Community clinic imaging
• Small hospital imaging
• Bedside imaging programs

The Dragon platform is designed for organizations that require a balance of portability, positioning flexibility, and dependable radiographic performance.



Built-In Self-Diagnostics for Portable X-Ray System Maintenance & Troubleshooting

The Dragon platform incorporates self-diagnostic functionality designed to assist operators in identifying system issues and supporting ongoing equipment reliability.

Ownership & Maintenance Benefits of Dragon Portable X-Ray Systems

• • Integrated self-diagnostic capability
  • Helps identify power-related issues
  • Supports troubleshooting efficiency
  • Designed to assist long-term operation

These features contribute to overall system usability and support efficient equipment management.



AMRAD Dragon & TXR Dragon Portable X-Ray Systems

The AMRAD Dragon and TXR Dragon portable X-ray systems are manufactured by Summit Industries and share the same core hardware platform. Healthcare organizations researching TXR Dragon, TXR portable X-ray systems, TXR X-ray machines, or AMRAD Dragon equipment are evaluating the same portable X-ray technology, available in Dragon Classic and Dragon Elite configurations.

MXR Imaging supports both the AMRAD and TXR product lines, including Dragon portable X-ray systems, parts, service, and technical support. Whether your system carries AMRAD or TXR branding, our team can assist with equipment information, DR upgrades, replacement components, and ongoing service needs.



---

Summit AMRAD Dragon Portable X-Ray Specifications

Generator Options

Dragon Classic

• • • 4.0 kW high-frequency generator
    • 110V to 240V power compatibility
    • 300 kHz high-frequency ripple

Dragon Elite

• • • 8.0 kW high-frequency generator
    • 220V to 240V power compatibility
    • 300 kHz high-frequency ripple

Imaging Performance Specifications

• • • kVp range: 40-125 kVp
    • Exposure time range: 0.001-10 seconds
    • mAs range: 0.1-250 mAs
    • 41 exposure stations
    • 34 mAs stations

X-Ray Tube Specifications

Dragon Classic

• • • Dual focal spots: 0.5 mm / 1.8 mm
    • 47,215 HU anode heat storage
    • 16° target angle

Dragon Elite

• • • Dual focal spots: 0.6 mm / 2.8 mm
    • 40,000 HU anode heat storage
    • 15° target angle

Physical Specifications & Dimensions

• • • Weight: 118 lbs. (54 kg)
    • Power cord: 19.7 ft. (6 m)
    • Exposure cord: 9.8 ft. (3 m)
    • Positive mechanical brakes
    • Mobile transport cart design
