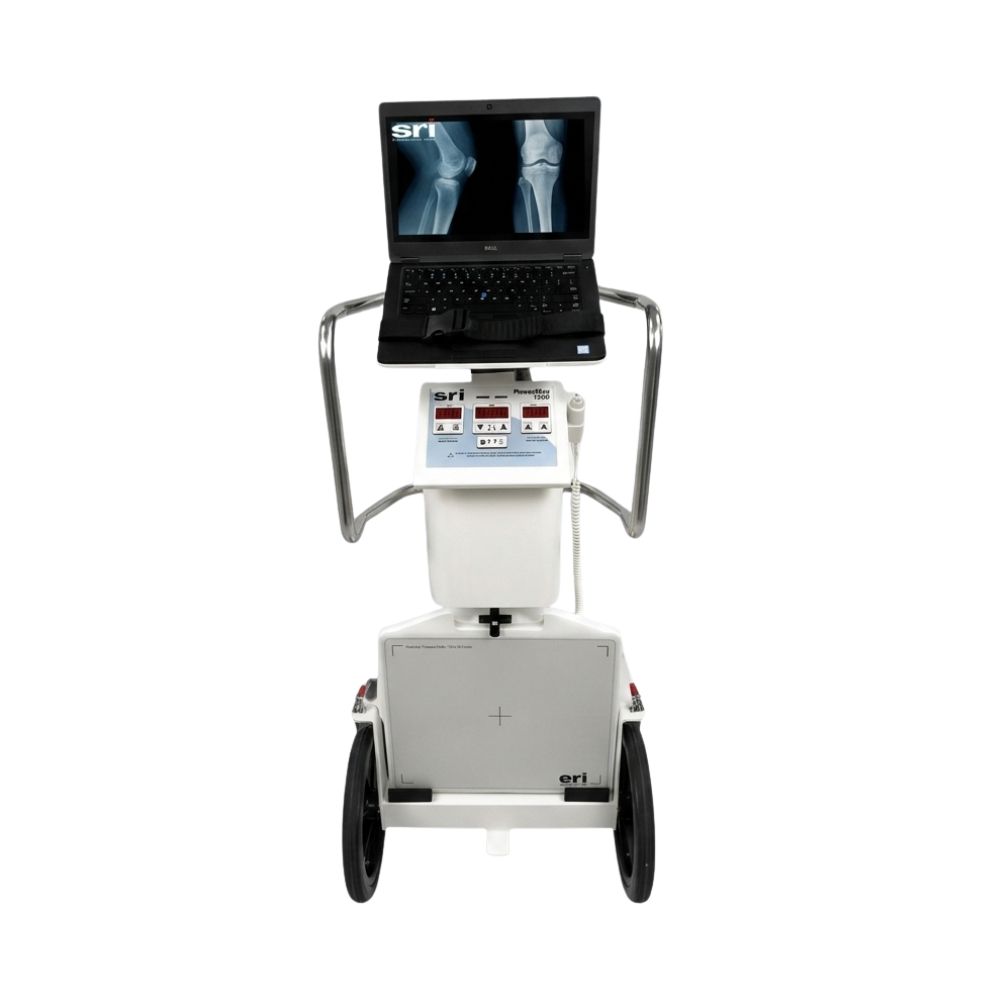

Source-Ray PowerMax 1260 Portable X-ray System

Category:: X-Ray & U-Arm Systems

Brand:: Source-Ray

The Source-Ray PowerMax 1260 Portable X-Ray System combines a 3.0 kW high-frequency generator, universal power input, and compact transport design for organizations that need more imaging power without sacrificing portability. Its 100 lb. design, 120 kVp output, and digital-ready architecture support a wide range of mobile and facility-based imaging environments.

Request a Quote

Maximum Portable X-Ray Power in a 100 lb. Design

The Source-Ray PowerMax 1260 is designed for organizations that need more output than entry-level portable X-ray systems can provide. Combining a 3.0 kW high-frequency generator with a lightweight transport design, the PowerMax 1260 delivers the exposure capability needed for a broader range of radiographic examinations while maintaining portability.

3.0 kW high-frequency generator
100 lb. system weight
120 kVp maximum output
Compact transport footprint
Digital-ready architecture

Many portable X-ray systems require a tradeoff between portability and power. The Source-Ray PowerMax 1260 is designed to help bridge that gap by providing greater output while remaining easy to transport and deploy.

Built for Imaging Programs That Need More Than Entry-Level Portable Output

The PowerMax 1260 is designed for organizations that require greater exposure capability than many lightweight portable X-ray systems can provide. Its higher-output generator supports increased technique flexibility while maintaining the mobility advantages of a portable platform.

- Designed for applications requiring greater exposure capability
- Expanded technique flexibility
- Broader imaging versatility
- Portable design with higher output capacity

The increased power capacity helps support providers seeking a portable X-ray that can perform across a wider range of imaging situations.

3.0 kW Generator for Higher Technique Flexibility

Generator performance is one of the primary differentiators of the PowerMax 1260. Its high-frequency resonant inverter generator provides greater exposure capability while maintaining a compact overall design.

3.0 kW generator output
High-frequency resonant inverter technology
Microprocessor-controlled operation
40-120 kVp operating range
0.125-200 mAs range

The combination of higher output and expanded technique ranges supports imaging programs that require greater flexibility than lower-powered portable systems.

Expanded Exposure Capability for Portable Imaging

The Source-Ray PowerMax 1260 is designed to support a broader range of radiographic examinations than many lower-output portable systems.

- 12.5-60 mA selectable range
- 96 exposure time steps
- Wider exposure flexibility
- Higher output portable imaging platform

These capabilities help support organizations that require greater versatility from a portable imaging system.

Universal 100-240V Input Power for Flexible Deployment

One of the PowerMax 1260’s most distinctive features is its ability to operate across a wide range of electrical environments. This flexibility can simplify deployment for organizations that routinely move equipment between locations.

Universal 100-240V input power
Designed for varied electrical infrastructures
Supports deployment across multiple environments
Eliminates the need for dedicated power configurations

The ability to operate across different power environments can help reduce installation and deployment limitations.

Power Factor Correction & Multi-Environment Operation

The Source-Ray PowerMax 1260 incorporates power factor correction technology to help maximize available electrical power while supporting efficient operation.

- Power factor correction technology
- Optimized power utilization
- Supports portable deployment strategies
- Designed for flexible operation

These capabilities contribute to the system’s ability to deliver higher output while maintaining portability.

Portable Imaging Environments That Benefit from Higher Output

The Source-Ray PowerMax 1260 is well suited for organizations that need both portability and increased imaging capability. Rather than focusing exclusively on lightweight transport, the system is designed to deliver stronger radiographic performance while remaining mobile.

Hospitals and health systems
Urgent care centers
Mobile imaging providers
Orthopedic practices
Sports medicine clinics

Organizations that need portable imaging but do not want to sacrifice exposure flexibility may benefit from the higher-output design of the PowerMax 1260.

Hospitals, Urgent Care, Orthopedic, & Mobile Imaging Environments

The combination of portable design and higher generator output supports a variety of imaging environments.

- Hospitals and health systems
- Urgent care centers
- Orthopedic practices
- Sports medicine clinics
- Nursing homes and long-term care facilities
- Home healthcare imaging programs
- Medical examiner offices
- Correctional healthcare environments
- Mobile imaging services
- Military field-deployable imaging programs

The combination of a 3.0 kW generator, universal input power, and portable design allows the PowerMax 1260 to support imaging workflows that may demand more exposure capability than lower-output portable systems. This flexibility makes it suitable for both traditional healthcare environments and mobile deployment applications.

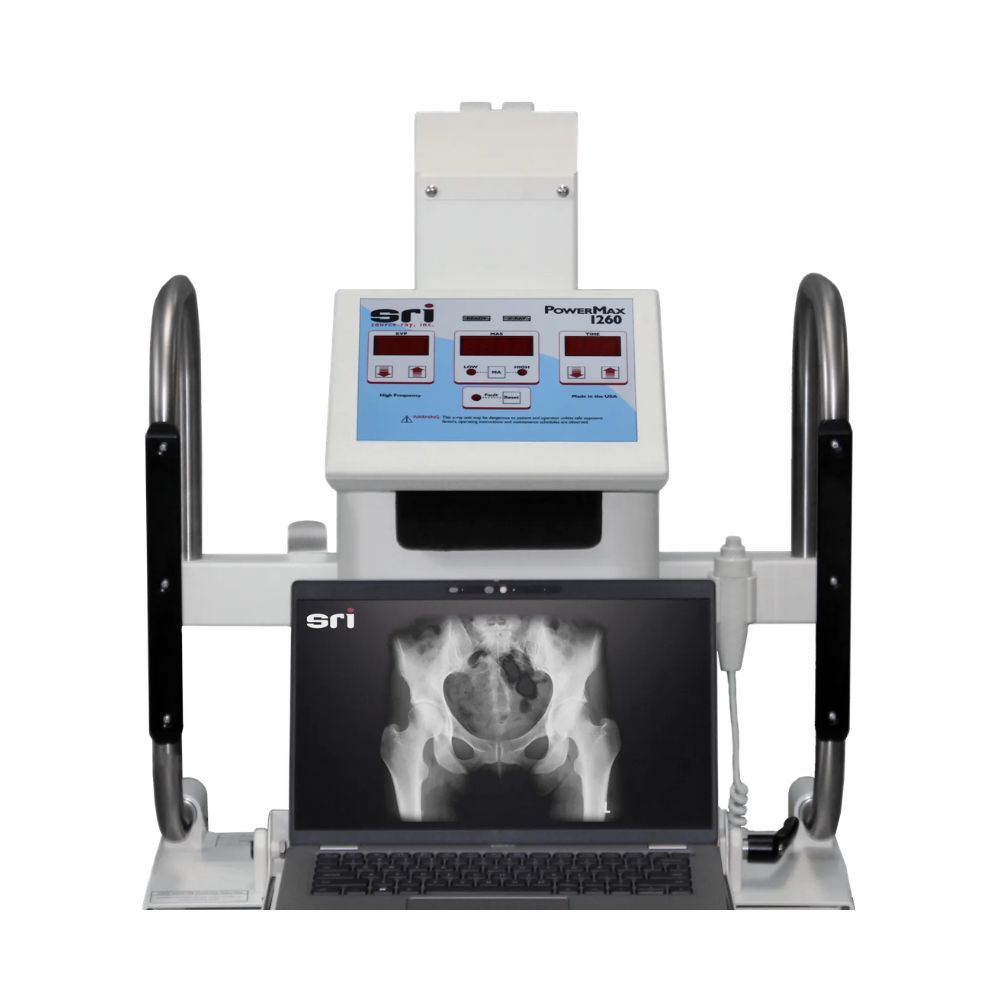

Digital-Ready Portable X-Ray for CR & DR Imaging

The Source-Ray PowerMax 1260 is designed to support organizations transitioning from traditional imaging workflows to digital radiography.

Supports Facilities Transitioning to Digital Imaging

The system’s output capabilities and design support integration into modern digital imaging environments.

- Suitable for CR imaging workflows
- Suitable for DR imaging workflows
- Digital imaging upgrade path
- High-frequency generator technology

This flexibility allows organizations to implement digital imaging strategies without immediately replacing their portable X-ray platform.

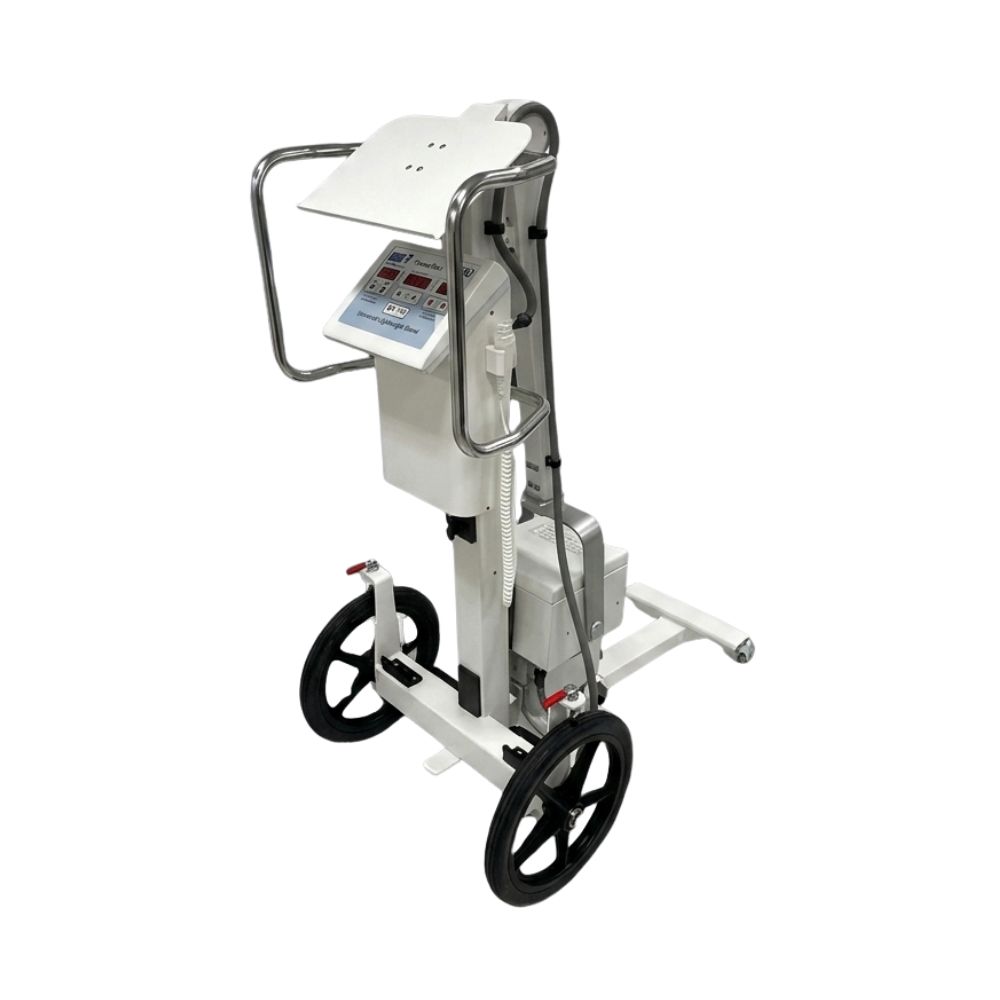

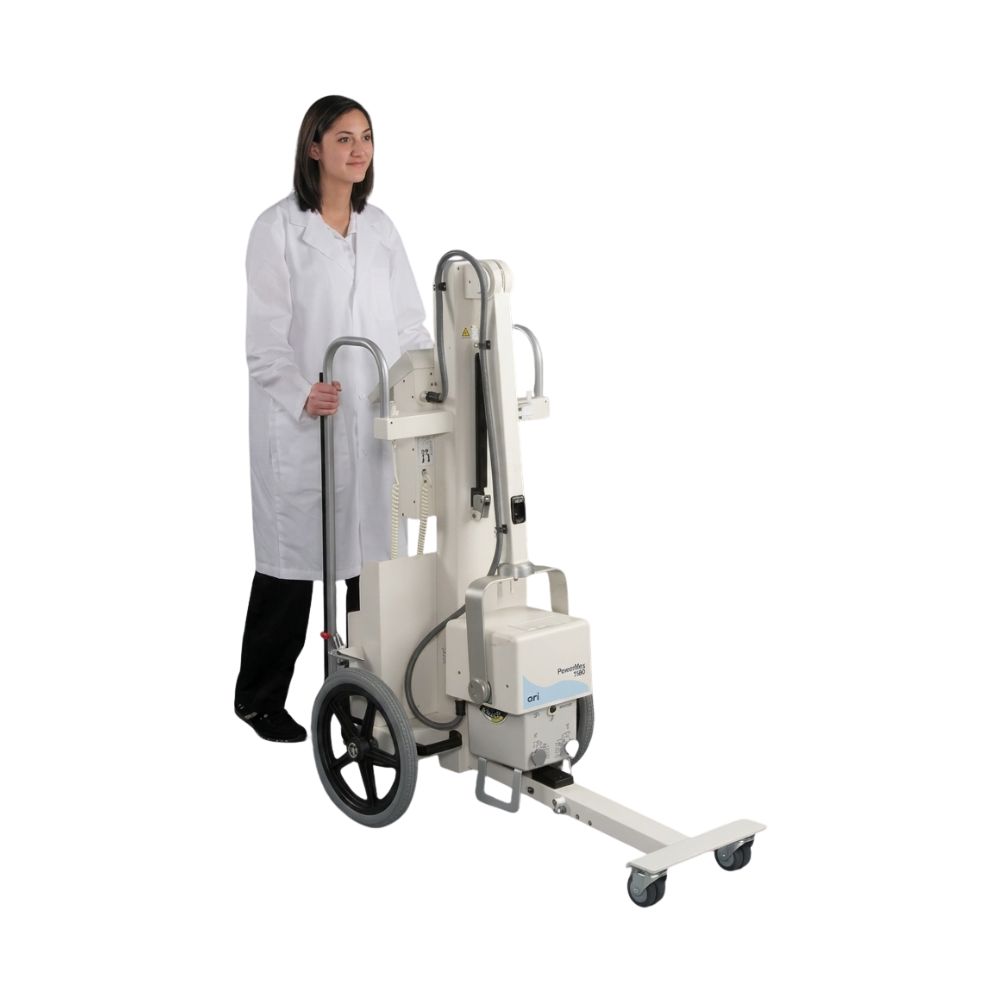

Portable Stand Design & Positioning Flexibility

The Source-Ray PowerMax 1260 combines a transportable stand design with the positioning flexibility needed for a variety of imaging environments.

Tube Rotation & Working Range

The positioning system provides flexibility for imaging patients in environments where traditional radiographic rooms may not be available.

- Maximum focal spot height: 78 in.
- Minimum focal spot height: 13 in.
- Horizontal extension: 21 in.
- Horizontal rotation: 200°
- Tube rotation: 270°

These positioning capabilities help support imaging in patient rooms, treatment areas, clinics, and mobile imaging environments.

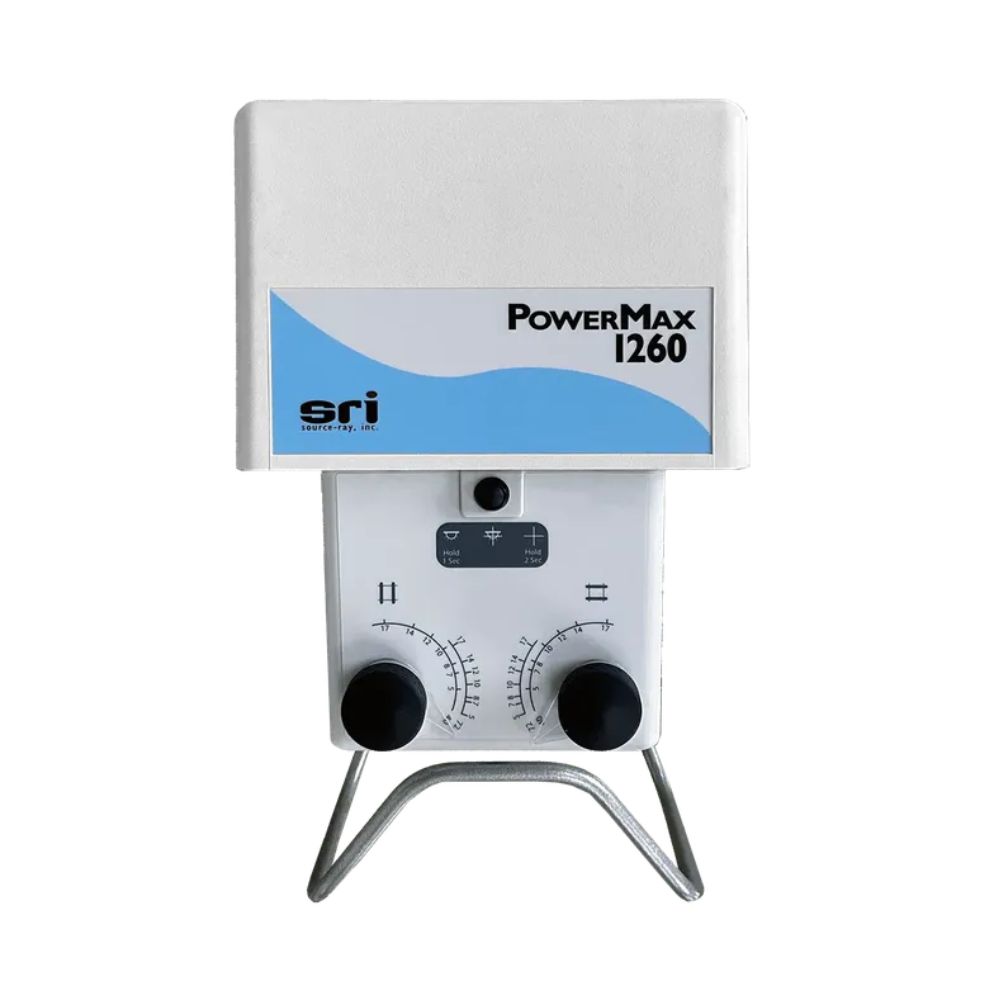

Collimator Features for Setup & Alignment

The collimator incorporates positioning tools designed to support workflow efficiency and image alignment.

- 300° collimator rotation
- High-output LED lamp
- Laser positioning indicators
- Adjustable collimation

These features help support image positioning across a variety of examination types.

Built for Daily Portable Imaging Deployment

Portable imaging equipment must withstand frequent movement and repeated deployment. The Source-Ray PowerMax 1260 is designed to support daily operation while maintaining straightforward usability.

Designed for Reliability & Long-Term Operation

The system combines durable construction with practical operating features intended to support long-term ownership.

- Microprocessor-controlled operation
- Durable powder-coated finish
- Compact transport footprint
- Designed for routine daily use
- Low-maintenance design philosophy

The result is a portable X-ray system built to balance output, mobility, and reliability.

Source-Ray PowerMax 1260 Specifications

Generator

- High-frequency resonant inverter
- 3.0 kW output
- Universal 100-240V input
- Power factor correction
- 40-120 kVp range
- 12.5-60 mA selectable
- 0.125-200 mAs range
- 96 exposure time steps
