MinXray SA100+HF Veterinary X-Ray System

Compact Veterinary X-Ray System for Small Clinics & Limited Spaces

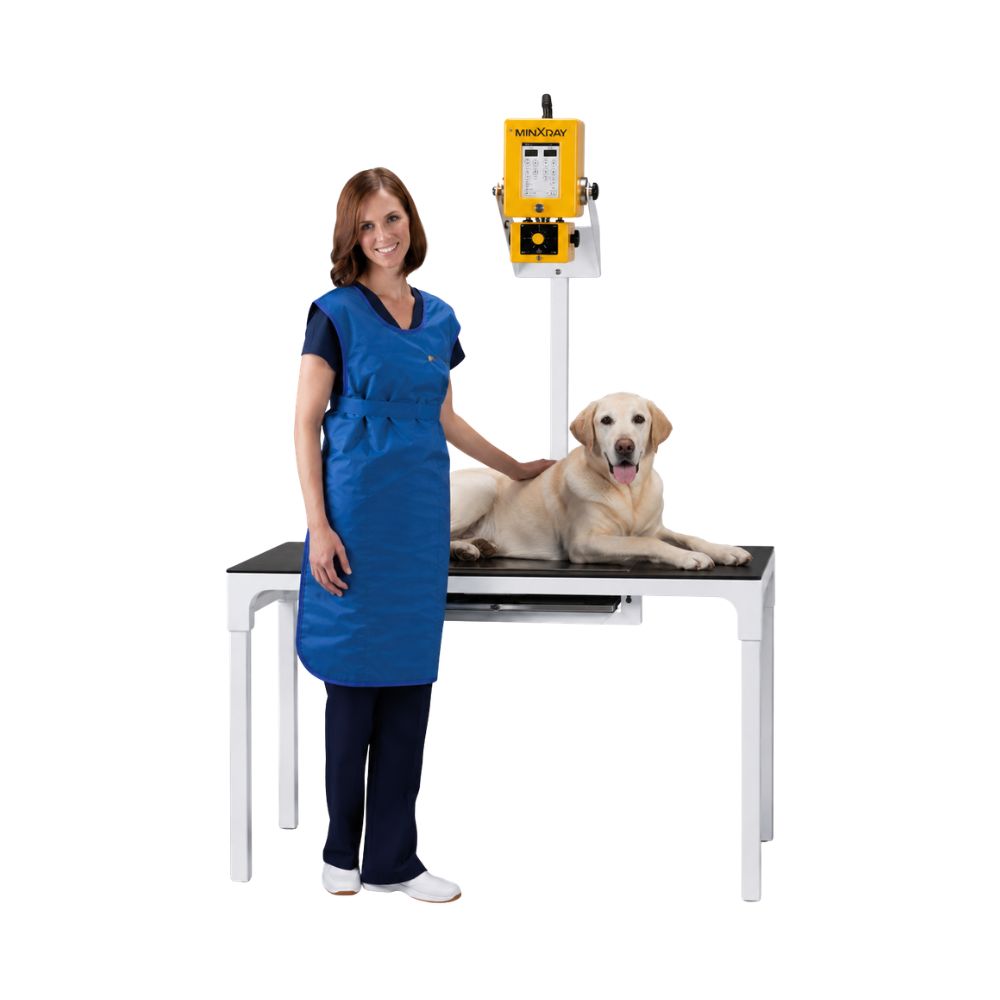

The MinXray SA100+HF veterinary X-ray is designed for professionals who need diagnostic imaging capabilities without dedicating significant floor space to radiography. Combining the HF100+ Ultra Light veterinary X-ray unit with the XRT100+ table creates a compact imaging solution that supports routine veterinary exams while maintaining portability for field use.

• Compact design requiring approximately 10 square feet of floor space
• HF100+ Ultra Light veterinary X-ray unit
• Operates on 110-240 VAC, 50/60 Hz power
• Integrated tube stand and cassette tray
• Backed by a 5-year limited warranty

The result is a veterinary imaging solution that balances clinic-based workflow efficiency with mobile imaging flexibility.



Portable Veterinary X-Ray System for Clinic & Ambulatory Use

One of the system’s defining advantages is the ability to move between fixed and portable imaging environments.

Removable HF100+ Portable X-Ray Generator for Mobile Veterinary Imaging

The HF100+ generator can be quickly mounted or removed from the table-mounted configuration, allowing veterinary professionals to perform radiographic exams both inside the clinic and during ambulatory visits. This flexibility can help practices maximize equipment utilization without investing in separate stationary and portable systems.

• • Simple mounting and removal of the X-ray generator
  • Suitable for mobile and ambulatory veterinary workflows
  • Optional carrying case available
  • Lightweight 24.2 lb (11 kg) generator

For practices that split time between the clinic and field work, the SA100+HF offers the convenience of both imaging environments in a single platform.

Veterinary X-Ray Table Design for Easy Positioning & Workflow Efficiency

Efficient patient positioning is essential for maintaining productivity and obtaining consistent diagnostic images.

Integrated Tube Stand & Cassette Tray for Accurate Patient Positioning

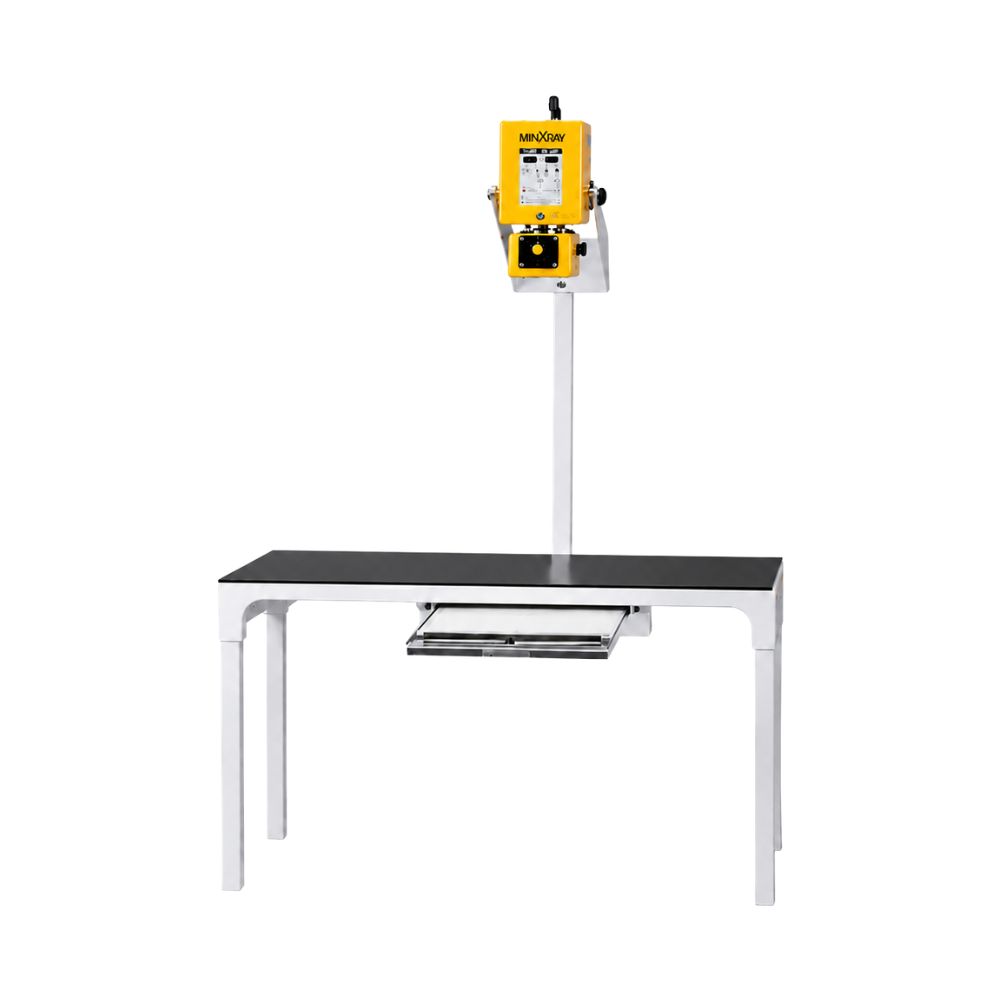

The standard XRT100+ table includes an integrated tube stand and cassette tray with longitudinal travel to simplify patient positioning and image acquisition.

• • Integrated tube stand design
  • Longitudinal cassette tray travel
  • Compact imaging footprint
  • Optional 12-inch side extensions available

This integrated configuration helps reduce setup complexity while supporting routine veterinary radiography procedures.



Veterinary X-Ray Table Options & Configurations

The MinXray SA100+HF veterinary X-ray is available with multiple table configurations to accommodate different clinical requirements and space constraints.

XRT100+ Compact Veterinary X-Ray Table (Standard Configuration)

The standard configuration includes the XRT100+ table, which provides a compact imaging platform requiring approximately 10 square feet of floor space.

XRT90 Small-Footprint Veterinary X-Ray Table (Optional)

The optional XRT90 table offers a smaller footprint for practices with more limited imaging space while maintaining compatibility with the SA100+HF system.

XRT400 4-Way Float Top Veterinary X-Ray Table (Optional Upgrade)

For practices seeking enhanced positioning flexibility, the XRT400 upgrade provides a larger 4-way floating tabletop that can support more advanced workflow requirements.

These configurations allow practices to tailor the SA100+HF system to their available space and imaging needs.



High-Frequency Veterinary X-Ray Generator Performance & Reliability

At the core of the system is the HF100+ Ultra Light veterinary X-ray unit.

Advanced High-Frequency Generator Technology for Consistent Imaging Output

The HF100+ utilizes computer-controlled, high-frequency electronics with automatic line voltage adjustment to help maintain consistent performance across a wide range of operating conditions.

• • Computer-controlled, high-frequency design
  • Full-wave rectified output
  • Automatic dynamic line voltage adjustment
  • 60 kHz resonating high-frequency inverter system

This design supports reliable diagnostic imaging while operating on standard electrical service.

Precision Exposure Controls & Positioning Tools for Veterinary Imaging

The MinXray SA100+HF veterinary X-ray system includes features designed to improve positioning accuracy and streamline image acquisition.

• • Adjustable light beam collimator
  • Dual integrated laser positioning pointers
  • Ultra-high-resolution timer with 61 exposure steps
  • Footswitch-controlled exposures

These tools help support efficient workflow and reproducible positioning during veterinary imaging exams.



Digital Veterinary X-Ray Upgrade Options for Future-Proof Imaging

Veterinary practices can configure the SA100+HF to support digital imaging workflows.

Digital Radiography Compatibility for Veterinary Imaging Workflows

The system is available with digital upgrade options, allowing practices to transition from traditional cassette-based imaging to digital radiography as workflow requirements evolve.

This flexibility can help protect long-term equipment investments while supporting future imaging upgrades.



Veterinary X-Ray Applications for Companion & Mixed Animal Practices

The MinXray SA100+HF Veterinary X-Ray System is suitable for:

• Companion animal practices
• Mixed animal practices
• General veterinary radiography
• Orthopedic imaging
• Musculoskeletal imaging
• Thoracic imaging
• Abdominal imaging
• Mobile veterinary imaging
• Ambulatory veterinary imaging



What’s Included with the MinXray SA100+HF Veterinary X-Ray System

The SA100+HF package typically includes:

• HF100+ Ultra Light X-ray unit
• FS-HF footswitch
• XRT100+ table
• Integrated tube stand
• Integrated cassette tray

Optional accessories include:

• 12-inch side table extensions
• Carrying case for ambulatory use
• Digital imaging upgrades
• Optional 6:1 ratio, 103 lpi stationary grid



---

Specifications for the MinXray SA100+HF Veterinary X-Ray System

HF100+ Ultra Light Veterinary X-Ray Generator Specifications

Generator Design

• • • Computer-controlled, high-frequency, full-wave rectified

X-Ray Output

• • • 40 mA @ 40-50 kVDC
    • 35 mA @ 52-60 kVDC
    • 30 mA @ 62-70 kVDC
    • 25 mA @ 72-80 kVDC
    • 20 mA @ 82-100 kVDC

Input Power

• • • 110V or 240V
    • 50/60 Hz
    • 20 amps

Line Voltage Adjustment

• • • Automatic, dynamic

Exposure Timer

• • • 0.1-2.0 seconds
    • 61 total exposure steps

Internal Power Supply

• • • 60 kHz resonating high-frequency inverter system

X-Ray Tube

• • • Toshiba D-124K

Focal Spot Size

• • • 1.2 mm

Anode Heat Storage

• • • 20 kHU

Total Filtration

• • • 2.7 mm Al equivalent

Collimator

• • • Continuously adjustable light beam collimator
    • Adjustable dual integrated laser pointers

Exposure Switch

• • • FS-HF footswitch

Exposure Cord

• • • 8 ft (2.4 m)

Power Cord

• • • 20 ft (6.1 m)

Generator Dimensions

• • • 9.45 × 7.72 × 14.37 in
    • 24 × 19.6 × 36.5 cm

Generator Weight

• • • 24.2 lb (11 kg)

XRT100+ Veterinary X-Ray Table Specifications (Standard)

Table Dimensions

• • • 23 × 54 in (58.4 × 137.2 cm)

Table Height

• • • 31.5 in (80 cm)

Source-to-Image Distance (SID)

• • • 34 in (86 cm)

Table Weight

• • • 140 lb (64 kg)
