MinXray HF120/60HPPWV PowerPlus™ Portable X-Ray

High-Output Portable X-Ray System for Demanding Imaging Environments

The MinXray HF120/60HPPWV PowerPlus combines high-frequency generator technology with portable mobility to deliver diagnostic-quality imaging in locations where traditional radiographic systems may not be practical. Designed for users who require greater output than standard portable X-ray units, it offers a broad exposure range while maintaining a compact footprint.

Key Features & Benefits of the HF120/60HPPWV PowerPlus

• • HighBurst™ design for increased X-ray output
  • 40-120 kV operating range
  • Compatible with all digital imaging modalities
  • CPU-controlled generator operation
  • Lightweight portable design for mobile imaging
  • Optional integration with DR systems

The result is a portable X-ray solution that delivers the power needed for a wide range of radiographic examinations while remaining easy to transport and deploy.

Portable X-Ray Designed for Mobile & Bedside Imaging Workflows

Whether imaging is performed in patient rooms, mobile healthcare settings, long-term care environments, specialty clinics, or field applications, the MinXray HF120/60HPPWV PowerPlus provides the flexibility required for efficient imaging.

Workflow Features That Improve Efficiency & Consistency

• • Five programmable memory stations for exposure techniques
  • Adjustable light-beam collimator
  • Broad line voltage compatibility from 100-260 VAC
  • Exposure cord and power cord included
  • Digital imaging compatibility for modern workflows

The system’s CPU-controlled operation helps streamline exam setup while supporting consistent exposure techniques across imaging locations.

Digital Radiography (DR) Compatibility for Modern Imaging Systems

The MinXray HF120/60HPPWV PowerPlus is designed to support contemporary digital imaging environments. It can be integrated with digital radiography systems and works with digital imaging modalities commonly used in portable imaging applications.

Benefits for Digital Radiography & Detector Integration

• • Compatible with DR imaging workflows
  • Supports digital detector integration
  • Consistent generator output for digital imaging
  • Suitable for mobile digital radiography programs

These capabilities help providers maintain efficient image acquisition without sacrificing portability.

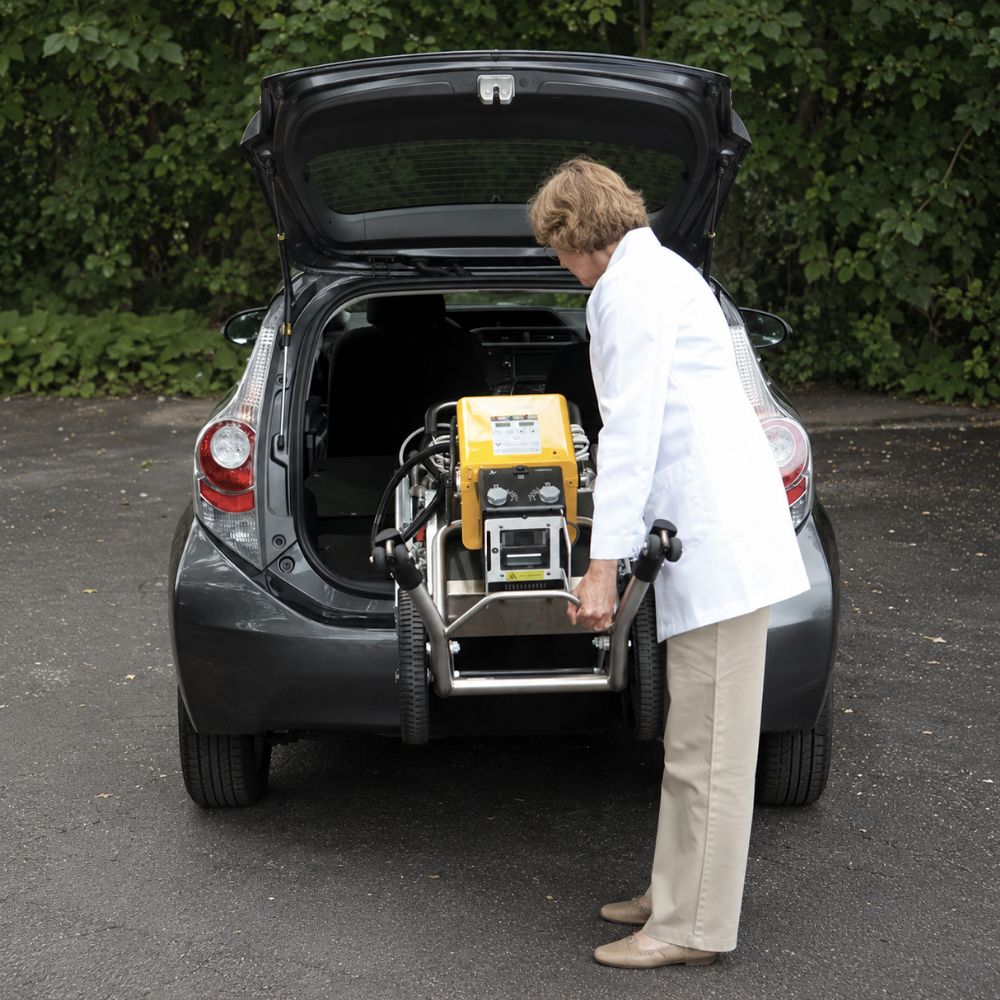

Lightweight Portable Design with Optional Mobile Stand for Easy Transport

Mobility is central to the MinXray HF120/60HPPWV PowerPlus platform. The system’s compact design allows transportation between imaging locations while maintaining the output capabilities needed for diagnostic radiography.

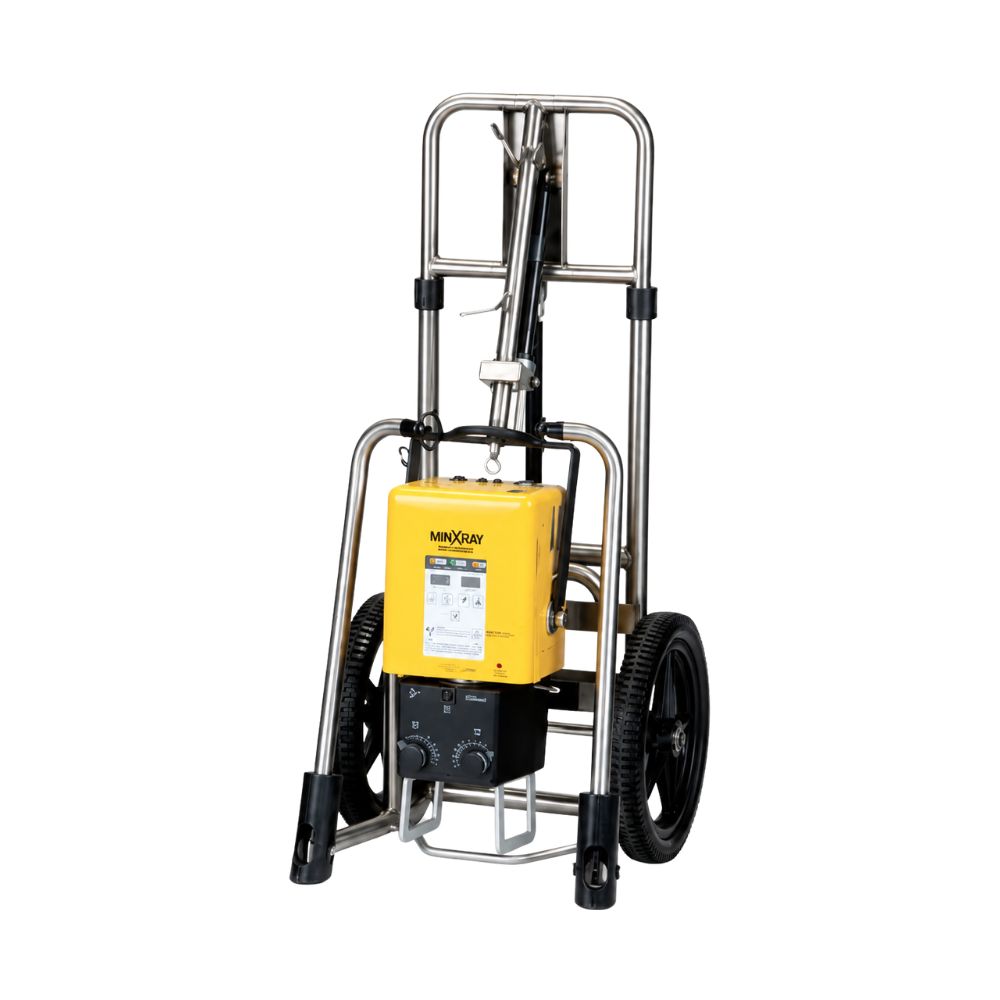

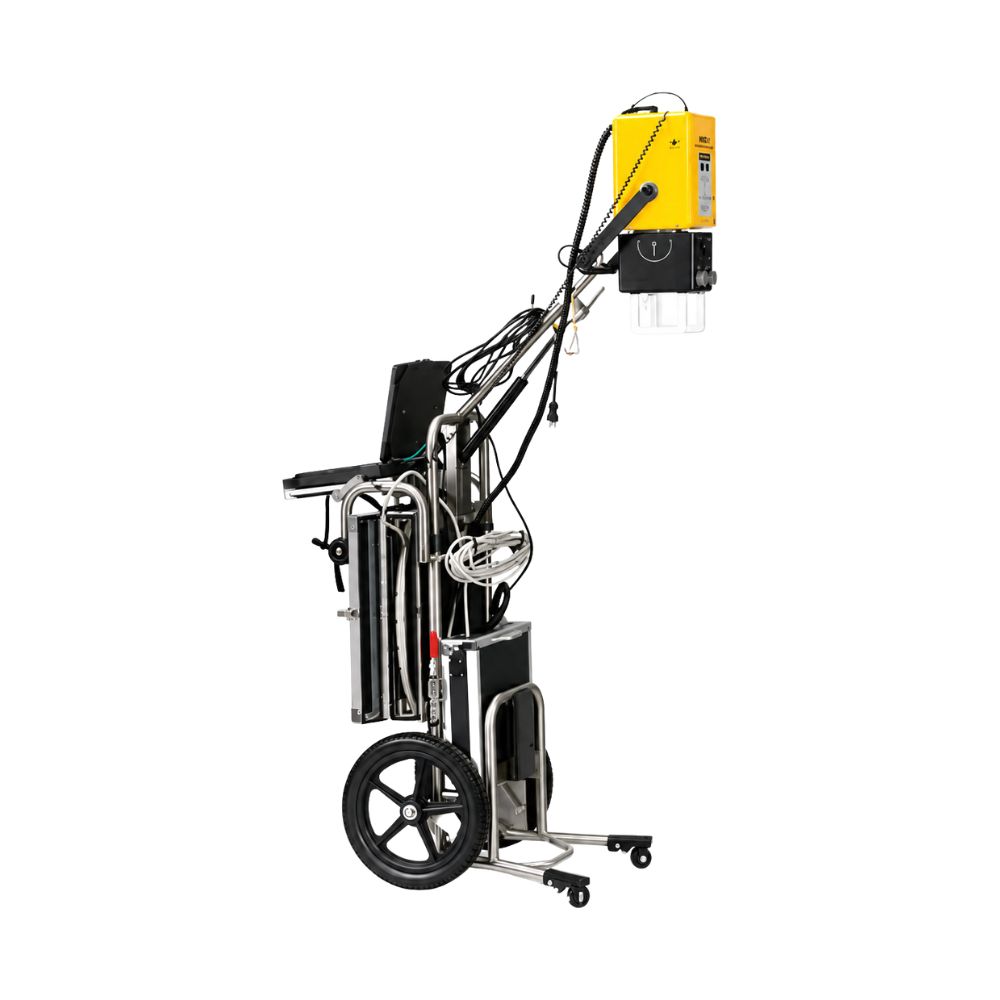

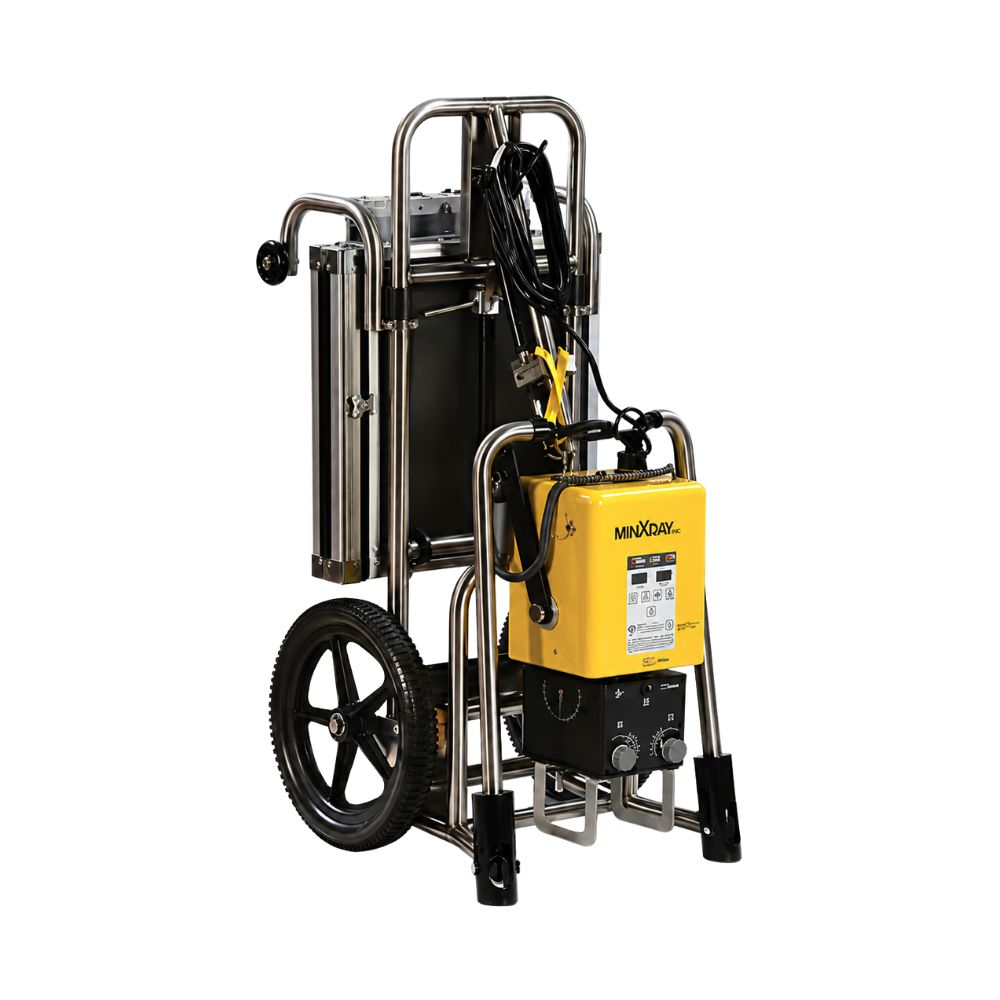

Optional XGS MKIV LW Mobile Stand for Improved Mobility & Positioning

• • Gas spring-assisted portable mobile stand
  • Large 16-inch wheels for transport
  • Designed for use with the HF120/60HPPWV PowerPlus
  • Supports improved positioning flexibility in mobile environments

The optional stand can enhance maneuverability for providers who routinely transport the system between examination locations.

Clinical Applications

The HF120/60HPPWV PowerPlus is suitable for portable diagnostic radiography applications, including:

• Mobile healthcare imaging
• Long-term care imaging
• Bedside radiography
• Occupational health imaging
• Sports medicine imaging
• Specialty outpatient imaging
• Veterinary radiography
• Field and remote imaging applications

Application suitability may vary based on detector selection, workflow requirements, and clinical protocols.

Exposure Control, Generator Performance, & Imaging Output Capabilities

The HF120/60HPPWV PowerPlus is built around a high-frequency generator architecture that delivers substantial output across a broad range of exposure settings. With variable mA operation and CPU-controlled exposure management, users can tailor techniques for diverse patient and imaging requirements while maintaining consistent performance.

Exposure Settings & Generator Performance Features

• • Variable mA output across multiple kV ranges
  • 41 kV steps in 2 kV increments
  • 0.6-212 mAs range
  • High-frequency inverter design
  • 80 kHz operating frequency

These capabilities help support a wide range of radiographic procedures while preserving the portability expected from a mobile X-ray unit.

Specifications for the HF120/60HPPWV PowerPlus

Generator Specifications & Performance Details

• • Construction: Monobloc HF generator, full bridge inverter
  • Frequency: 80 kHz
  • kV Range: 40-120 kVDC
  • kV Steps: 41 steps in 2 kV increments
  • mAs Range: 0.6-212 mAs

Output Ratings by kV Range

• • 60/42 mA @ 40-50 kVDC
  • 50/35 mA @ 52-60 kVDC
  • 45/31.5 mA @ 62-70 kVDC
  • 38/26.6 mA @ 72-80 kVDC
  • 33/23.1 mA @ 82-90 kVDC
  • 30/21 mA @ 92-100 kVDC
  • 20/14 mA @ 102-120 kVDC

Exposure Timer Settings & Increments

• • 0.01-0.2 sec in 0.01 sec increments
  • 0.2-0.4 sec in 0.02 sec increments
  • 0.4-1.0 sec in 0.05 sec increments
  • 1.0-5.0 sec in 0.1 sec increments

X-Ray Tube Specifications

• • Tube: Superior SXR-130-15 1.2
  • Focal Spot: 1.2 mm
  • Anode Heat Storage: 65 kHU

Beam Limitation & Filtration Details

• • Collimator: Collimare CPL-125-MX01-C LED
  • Total Filtration: 3.2 mm Al equivalent

Electrical Requirements & Power Consumption

• • Line Voltage: 100-260 VAC
  • Frequency: 50/60 Hz
  • Fuse Rating: 30 A
  • Electrical Consumption:
  • 19 A @ 120 V
  • 9 A @ 230 V
  • Maximum Consumption: 3.5 kVA ±10%

Physical Dimensions & System Weight

• • System Net Weight: 96.5 lb (43.8 kg)
  • Tubehead Dimensions: 16 × 8.8 × 9.5 in (40.6 × 22.4 × 23.9 cm)
  • Tubehead Weight: 38.6 lb (17.5 kg)

Included Components & Accessories

• • Adjustable light-beam collimator
  • Power cord (20 ft / 6.1 m)
  • Exposure cord (8 ft / 2.8 m)
