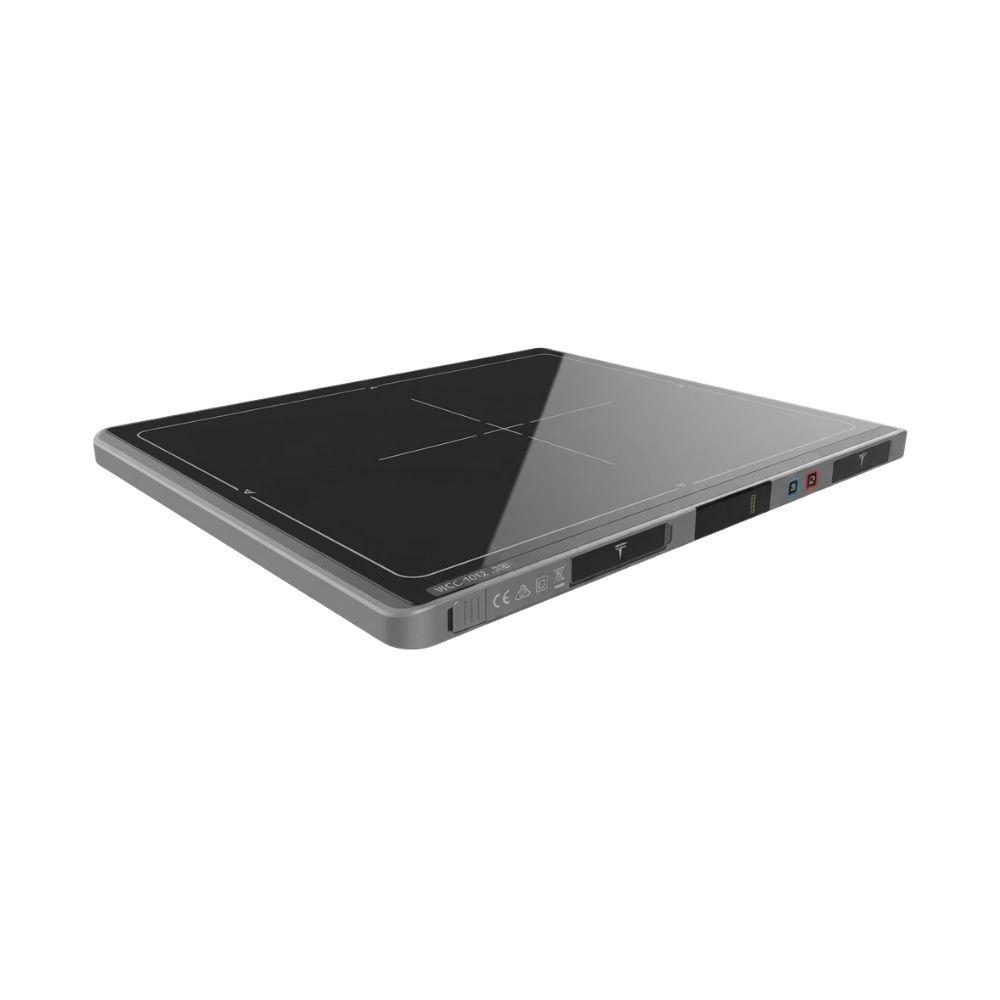

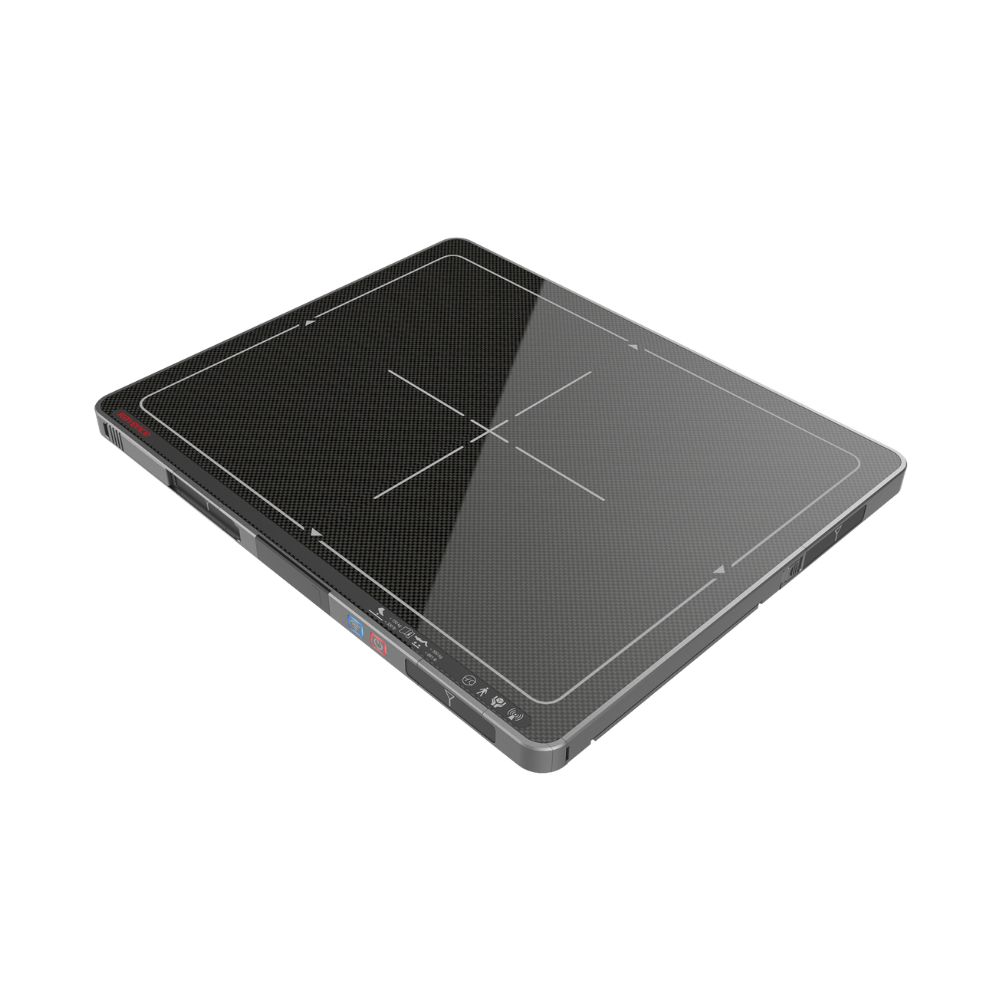

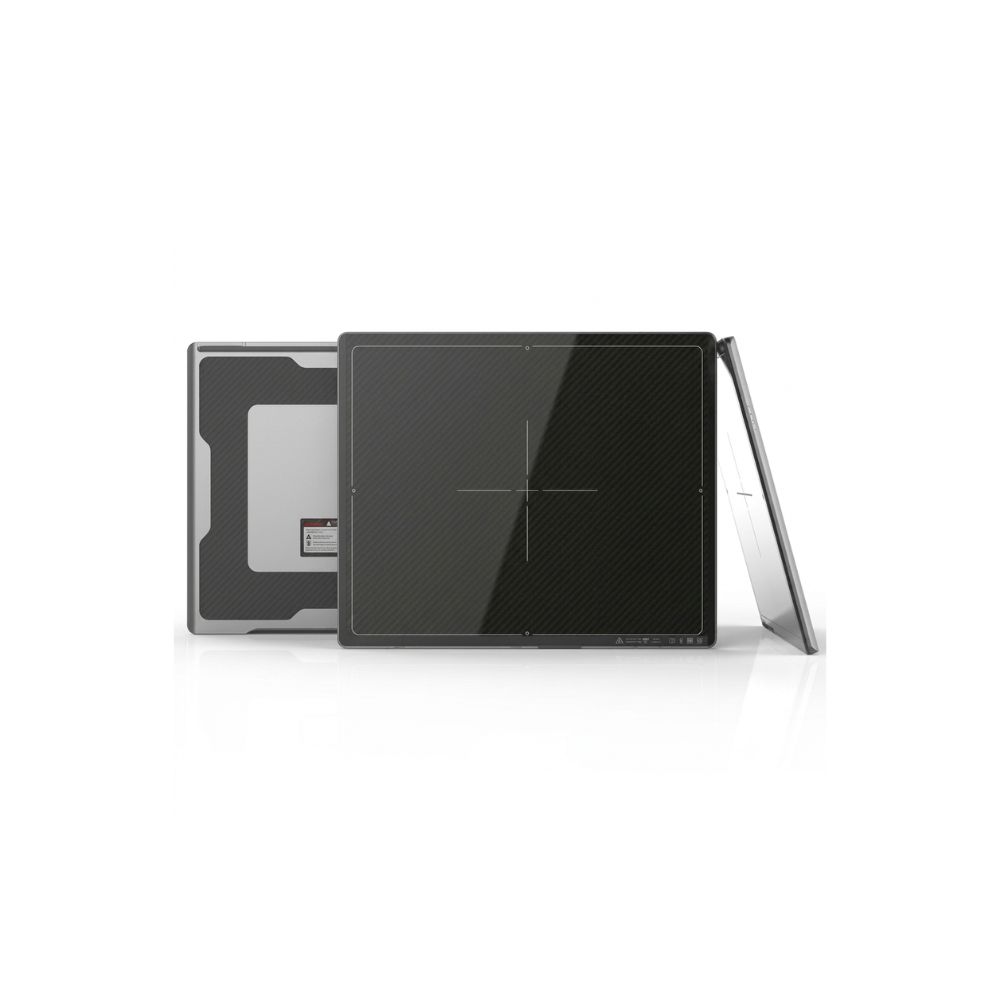

Rayence Xmaru 1012WCC/WGC Wireless DR Panel

Compact Detector Size for Smaller Imaging Areas & Flexible Positioning

The Rayence Xmaru 1012WCC/WGC is designed for facilities that prefer a smaller wireless detector for examinations where a full-size panel may be unnecessary or more difficult to position. Its compact footprint, wireless operation, and ISO 4090 cassette dimensions support digital radiography upgrades while preserving familiar imaging workflows.

• Compact 10 × 12-inch (260 × 325 mm) wireless detector
• Fits compatible ISO 4090 cassette tray installations
• Available in WCC (CsI) and WGC (GOS) configurations
• Optional GigE or C-Link connectivity

The smaller detector size can simplify positioning during many examinations while allowing compatible radiographic systems to transition from CR or film to wireless digital radiography.

When a 10 × 12 Detector Is the Right Choice

Improve Positioning in Smaller Imaging Areas

A compact detector can be easier to position during examinations involving smaller anatomy or imaging environments where additional maneuverability is beneficial. The reduced detector size may also improve handling while preserving the advantages of wireless digital radiography.

Benefits include:

• • Compact 10 × 12-inch imaging area
  • Easier detector positioning in many examinations
  • Reduced detector size for improved maneuverability
  • Standard cassette dimensions support compatible DR retrofits

Wireless Features That Simplify Daily Imaging

The Rayence Xmaru 1012WCC/WGC combines wireless detector operation with workflow features designed to support efficient day-to-day imaging.

Auto-AED Exposure Detection

Automatically recognizes X-ray exposure from compatible generators without requiring a dedicated synchronization connection.

Built-In Image Storage

Internal memory temporarily stores acquired images during wireless interruptions until communication is restored.

OLED Status Display

An integrated OLED display provides battery status, wireless connection information, and detector operating status directly on the detector.

Hot-Swappable Battery

The removable battery design helps minimize workflow interruptions by allowing batteries to be exchanged quickly between examinations.

Designed for Compatible DR Retrofit Projects & Portable Imaging Workflows

Compatible X-Ray Systems

The Rayence Xmaru 1012WCC/WGC is designed for compatible digital radiography upgrades using ISO 4090 cassette dimensions.

Compatible installations may include:

• • Fixed radiographic rooms
  • Compatible mobile X-ray systems
  • Portable X-ray systems that support cassette-style detectors
  • DR retrofit projects using ISO 4090-compatible buckys
  • Clinical Environments That Benefit From a 10 × 12 Detector

The compact detector size makes the Xmaru 1012WCC/WGC well suited for facilities where a smaller detector can improve positioning flexibility.

Common clinical environments include:

• • Hospitals and health systems
  • Medical imaging centers
  • Orthopedic practices
  • Chiropractic clinics
  • Podiatry practices
  • Veterinary imaging facilities

Choose Between WCC & WGC Detector Configurations

The Rayence Xmaru 1012 is available in two wireless detector configurations.

Xmaru 1012WCC

The WCC configuration uses a Cesium Iodide (CsI) scintillator.

CsI uses a columnar crystal structure that helps direct light more efficiently through the detector. This can improve detector efficiency and support excellent image quality at lower radiation doses.

Xmaru 1012WGC

The WGC configuration uses a Gadolinium Oxysulfide (GOS) scintillator.

GOS is a well-established scintillator technology that provides dependable image quality while offering an alternative detector configuration based on facility preferences and imaging requirements.

Both configurations share the same detector dimensions, wireless workflow, housing, and core specifications. The primary difference is the scintillator technology selected during system configuration.

Compare the Rayence Xmaru Detector Family

The Rayence Xmaru Series includes multiple wireless detector sizes designed to support different imaging environments and positioning requirements.

Looking for a standard 14 × 17 wireless detector? Explore the Rayence Xmaru 1417WCC/WGC.

Need the largest wireless imaging area? Explore the Rayence Xmaru 1717WCC/WGC.

Prefer a tethered 17 × 17 detector for a fixed imaging room? Explore the Rayence Xmaru 1717SCC/SGC.

Rayence Xmaru 1012WCC/WGC Specifications

Detector Dimensions

• • Detector Size: 260 × 325 × 15 mm (10 × 12 × 0.6 in.)
  • Active Imaging Area: Approximately 226 × 288 mm (8.9 × 11.3 in.)
  • Weight: Approximately 2.2 kg (4.9 lbs.) including battery

Image Performance

• • Pixel pitch: 127 μm or 140 μm (configuration dependent)
  • Pixel matrix: Up to 2,048 × 2,560
  • Limiting resolution: Up to 3.93 lp/mm
  • A/D conversion: 14-bit / 16-bit
  • Preview image: Less than 2 seconds
  • Energy range: 40 to 150 kVp

Construction & Durability

• • Carbon fiber detector housing
  • Thin cassette-sized profile
  • IPX6 water-resistant enclosure
  • Recessed detector edges
  • Uniform load capacity: 300 kg (661 lbs.)
  • Point load capacity: 150 kg (330 lbs.)

Connectivity & Workflow

• • Wireless communication
  • Optional GigE or C-Link interface
  • Auto-AED exposure detection
  • Built-in image storage
  • OLED status display
  • Hot-swappable battery
  • Automatic image orientation
