Radmedix G4 Acuity DR
- Category:
- X-Ray & U-Arm Systems
- Brand:
- Radmedix
Radmedix G4 Acuity DR Premium Flat Panel Detectors | High‑Performance DR Panels
Radmedix G4 Acuity DR Detectors: Radmedix has introduced its next generation premium panel line for integrated & retrofit applications. This panel line has been developed with the latest in digital detector technology utilizing a flexible glass-free substrate in the 14×17 for ultimate durability.
Key Features
- Full-Field AED: Stable and reliable Automatic Exposure Detection technology
- Increased Battery Standby: High efficiency lithium ion battery with up to an 9.5hr charge capacity.
- IP56 Rating: Provides ultimate protection against liquid and dust intrusion in the most demanding clinical environments.
- Cassette Size: Cassette size DR panel for seamless retrofit of your existing x-ray system

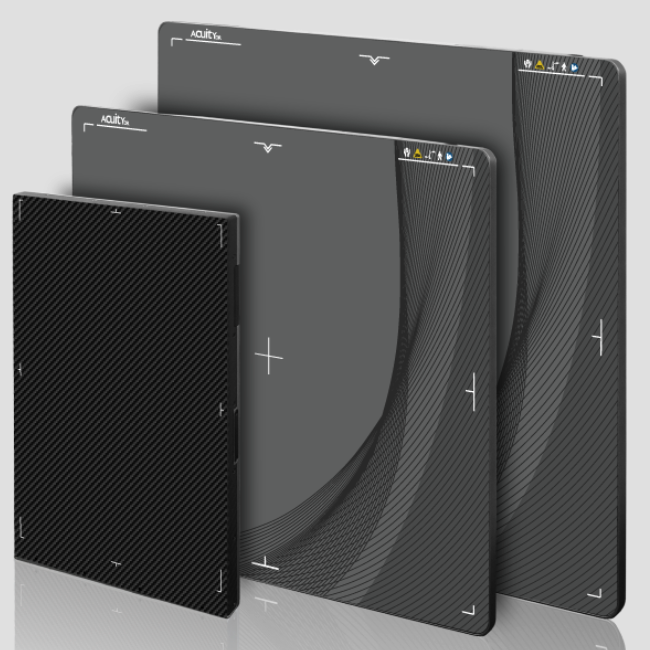

G4 Acuity DR Panels
Premium Panel Line
14×17 | 17×17 | 10×13
All G4 panels have been engineered with a carbon fiber enclosure to make them more lightweight with better protection than ever before. The image quality has also been upgraded with powerful image processing algorithms and they utilize a 100 µm pixel pitch for improved clarity/depth at lower doses as well.
Experience our Next Generation Performance G4 Acuity DR Panels today. Change the way you think about diagnostic imaging.
- G4 panels use a wide 16-bit dynamic range for highly detailed image resolution at 100 µm pixel pitch
- G4 Acuity DR 1417 utilizes a flexible GLASS-FREE substrate for ultimate durability
- Integrated high efficiency lithium ion battery technology with up to a 9.5hr capacity
- Patient dose reduction with stable and reliable Automatic Exposure Detection (AED) without limiting capturing all image data
- Integrated handgrips and lightweight carbon fiber chassis for ultimate durability with effortless handling
- G4 panels are IP56 rated for extreme resistance against liquid, dust, and bodily fluids
- Supports dual band wi-fi connectivity (2.4gHz/5gHz)

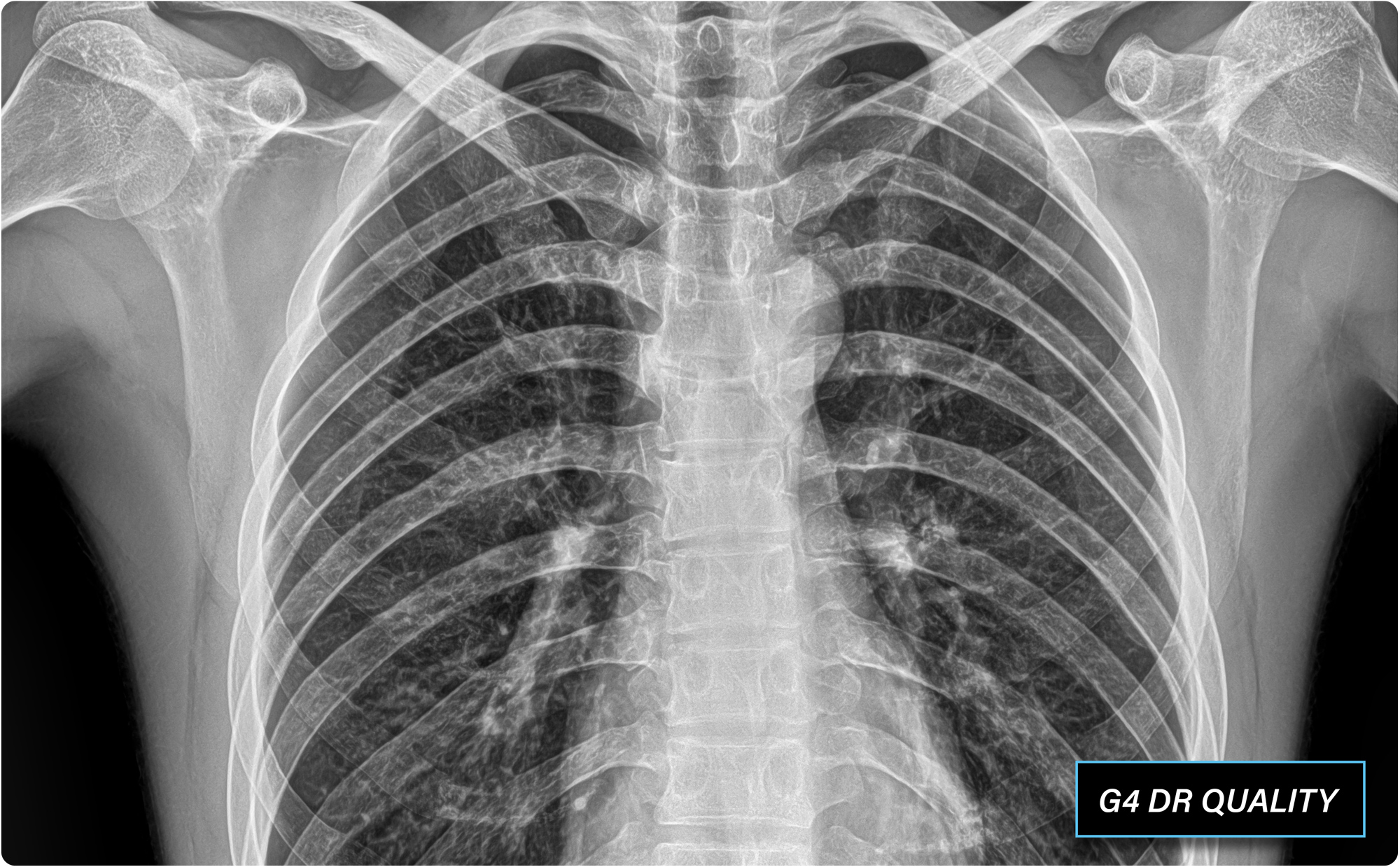

Enhanced Images 100µm Pixel Pitch
Sharper Lines. Greater Detail. Achieved at Lower Doses.
G4 Acuity DR premium panels offer enhanced imaging technology providing high contrast detailed images for ultimate diagnostic confidence in any clinical environment.
- Superior image sharpness with enhanced image processing algorithms
- Direct deposited CsI technology for ultra low dose imaging
- Increase in MTF from previous generation detectors for better spacial resolution
- Increased DQE at lower doses to reduce noise
- Patient dose reduction with reliable lossless AED technology
- Quick acquisition time, view image in as little as 3 seconds.

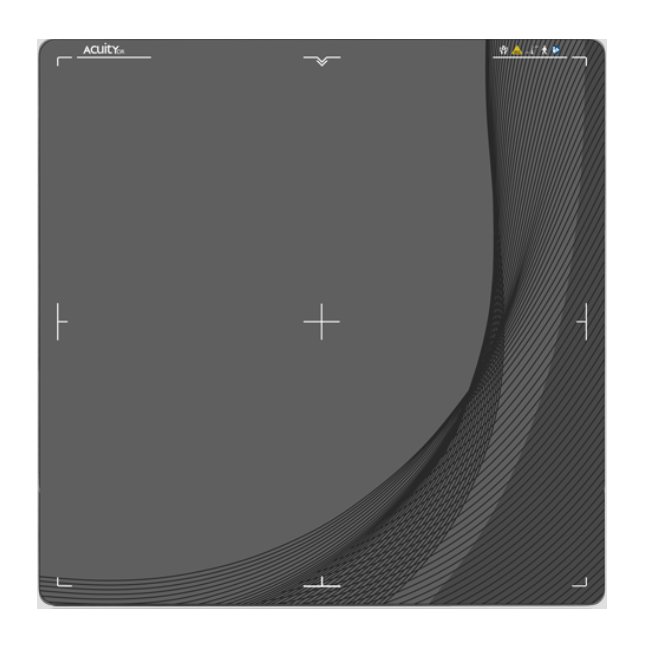

G4 Acuity DR 1717
G4 1717 is our next generation, high performance 17×17 DR panel for medical, veterinary, and chiropractic imaging. It features IP56 protection for resistance against liquid and dust intrusion. Configurable in both wireless and tethered options.
With its exceptional image quality, G4 1717 is an excellent high-end DR upgrade/retrofit solution or fully integrated into Radmedix x-ray suites.
Features
- 100 µm pixel pitch for sharper image detail
- Extended battery life up to 5.5 hrs for all day clinical use
- Maximized full field of view, perfect for no-rotation medical/vet/chiro exams
- Perfect for low dose exams and dose-lowering initiatives
- Cassette size fits in standard Bucky’s and holders
- Integrated hand grip for easy carrying and positioning
G4 Acuity DR 1417
G4 1417 is our next generation, flagship 14×17 wireless DR panel. It features IP56 protection for resistance against liquid and dust intrusion.
The NEW innovative flexible TFT, allows for a premium DR solution with exceptional durability. Its lightweight build and exceptional image quality makes it the perfect choice for any clinical application.
Features
- NEW flexible GLASS-FREE substrate for ultimate durability
- 100 µm pixel pitch for sharper image detail
- Extended battery life up to 9.5 hrs for all day clinical use
- Perfect for low dose exams and dose-lowering initiatives
- Cassette size fits in standard Bucky’s and holders
- Integrated hand grip for easy carrying and positioning
G4 Acuity DR 1013
G4 1013 is our next generation, high-performance 10×13 wireless DR panel designed for extremity orthopedics, podiatry, and equine.
It also has IP56 protection for resistance against liquid and dust intrusion.
Features
- 100 µm pixel pitch for sharper image detail
- Extended battery life up to 8 hrs for all day clinical use
- Perfect for low dose exams and dose-lowering initiatives
- Cassette size detector for small format, detailed exams
- Integrated hand grip for easy carrying and positioning
Ultimate IP56 Protection
G4 panels feature IP56 protection for resistance against liquid and dust intrusion in the most demanding clinical environments.

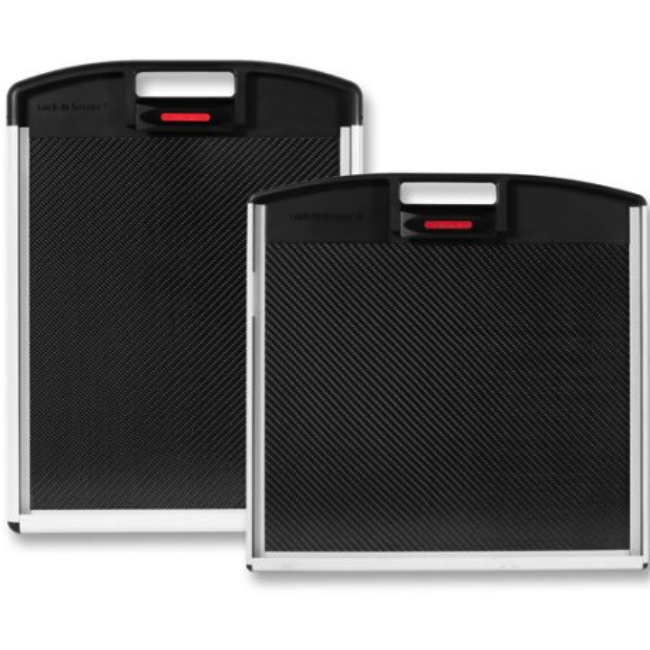

Portable DR Protection Cases
G4 Acuity DR panels are available with both gridded and non-gridded protection cases to provide ultimate panel protection for any wireless panel size. Cases come equipped with an ergonomical handle as well as lock-and-secure latch to keep the detector secure during handling. Combine with our tablet PCP and achieve ultimate portability.

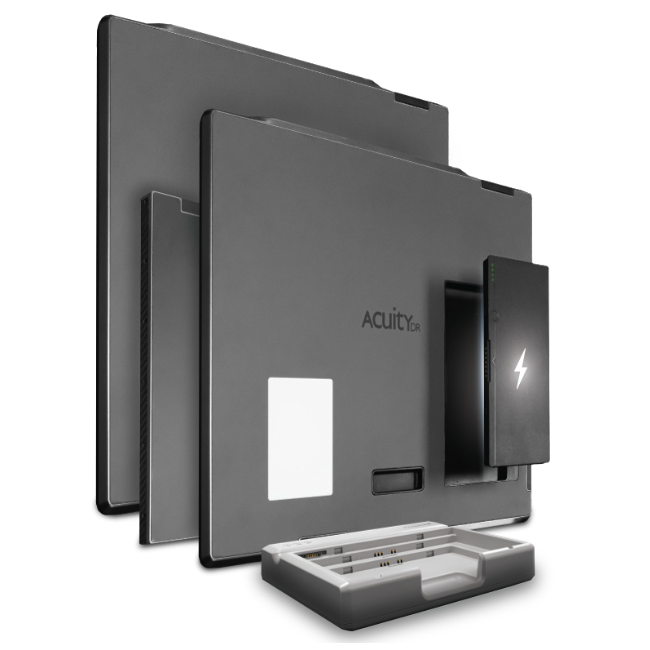

Increased Battery Life
Maximum Power for Maximum Care
G4 Acuity DR panels offer the latest lithium ion battery technology with a 9.5hr charge in the 14×17 and an 8hr charge in the 10×13. The 17×17 G4 panel has a capacity of 5.5hrs. Perform exams with confidence in the most demanding clinical environments without the burden of frequent battery changes.
- Battery Life Indicator Button. The battery has a button which quickly shows battery life through LED indicators.
- G4 Charger. G4 panels come with 2 batteries and a rapid charger. The batteries are universal between each panel size and can swap interchangeably.

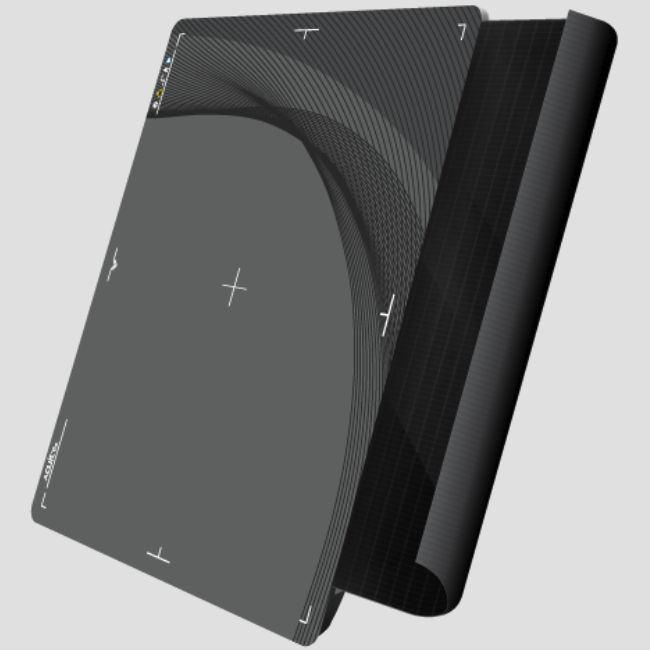

Introducing Glass-Free G4 1417 Panel
- Many DR panels in the industry use a glass substrate TFT but in our G4 Acuity DR 1417 panel we are introducing a flexible GLASS-FREE substrate.
- This innovative technology makes the panel more durable than ever before.
Lightweight Convenience:
G4 panels are constructed with lightweight carbon fiber and are designed to be easy to grasp from any angle with its ergonomical curved edges along each side.

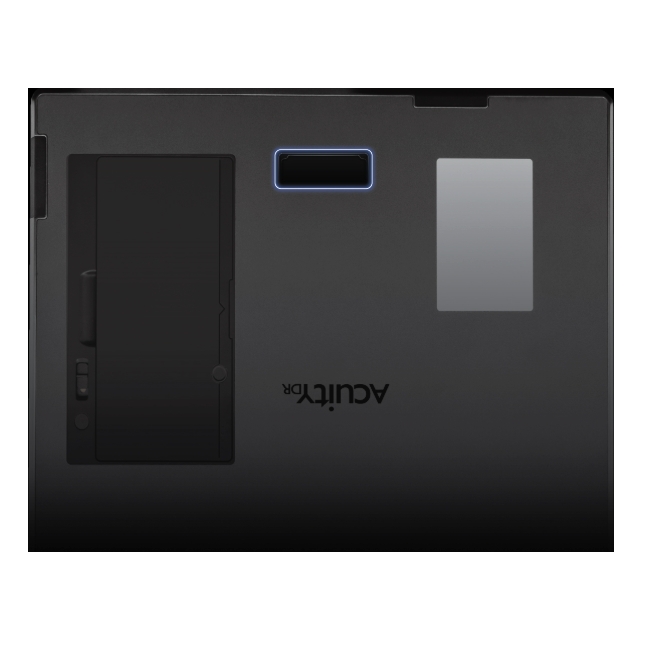

G4 Acuity DR lightweight panels have also been thoughtfully designed for easy carrying with an integrated hand grip.
G4 Smart Switch Technology
Radmedix smart switching technology allows for easy “smart switching” between two workstations for mobile and stationary x-ray needs.
With a single push of a button, G4 Acuity DR panels allow the user to quickly switch between use in a stationary x-ray room with a PC workstation to a portable tablet or laptop for ultimate portability.
Increased Protection and Durability
Stronger Drop Protection.
We upgraded the glass substrate in the G4 14×17 panel with our new, innovative flexible substrate TFT which makes the panel better equipped to prevent damage from shock.
Combined with a carbon fiber chassis, we’ve also increased the drop impact resistance from our previous generation of detectors for the most demanding clinical environments.
