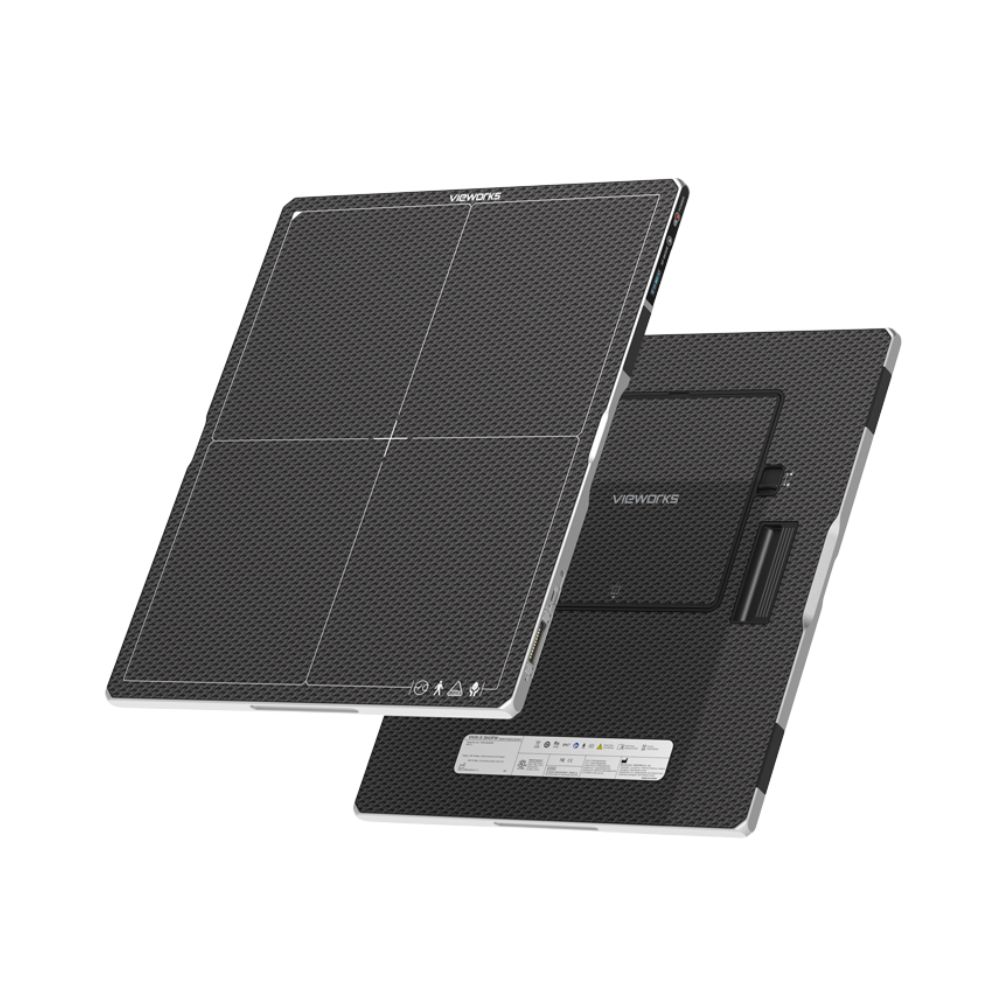

Vieworks VIVIX-S 3643VW Wireless DR Panel

High-Performance Diagnostic Imaging

Upgrade your digital workflow with a panel engineered to deliver superb diagnostic detail, fast image cycle times, and robust durability.

High-Resolution Scintillator and Sensor

• Scintillator: Cesium Iodide (CsI) for superior light conversion and low patient dose.
• Pixel Pitch: 140 um (microns) for sharp structural definition.
• Spatial Resolution: 3.5 lp/mm limiting spatial resolution.
• Pixel Matrix: 2560 x 3072 pixels for rich image detail.
• Grayscale: 16-bit A/D conversion for wide dynamic contrast.

Rapid Imaging Cycle

• Acquisition Time: Raw image preview in just 3 seconds over a secure wireless connection.
• Cycle Time: Recommended cycle time of only 4 seconds, boosting patient throughput.

Seamless Wireless Workflow and Connectivity

Engineered to operate either completely wirelessly or with a tethered backup, the VIVIX-S 3643VW fits effortlessly into your existing clinical space.

Advanced Dual-Band Wireless

• Standard: Dual-band IEEE 802.11n/ac.
• Data Interface: High-speed Gigabit Ethernet capability for wired operation.
• Inside AP: Allows direct communication with smart devices or workstations without an external access point.

Long-Lasting Dual Battery System

• Operation Time: Up to 14 hours of continuous operation or 16 hours of standby time.
• Hot-Swappable Battery: Dual internal lithium-ion batteries allow uninterrupted clinical rotations.
• Flexible Charging: Charge via a standard USB Type-C cable or an optional dual-slot desktop charging cradle.

Supreme Durability for Demanding Environments

The VIVIX-S 3643VW is built to withstand the physical demands of high-traffic hospitals, mobile clinics, and orthopedic suites.

Advanced Liquid and Dust Protection

• IP67 Rating: Certified dust-tight and water-resistant. Capable of surviving temporary immersion in water up to a depth of 1 meter for up to 30 minutes.
• Temperature Stability: Reliable operation ranging from 0 to 40 degrees Celsius.

Heavy-Duty Structural Design

• Drop Tested: Designed to survive impact drops up to 1 meter (100 cm).
• Load Capacities: Supports up to 400 kg of uniform load and up to 200 kg of local load.
• Ergonomic Mobility: Lightweight design starting at 2.95 kg (including one battery) with built-in ergonomic handles for easy positioning.

Advanced Exposure Detection and Image Processing

Integrate with virtually any high-frequency X-ray generator without physical synchronization cables.

Reliable Automatic Exposure Detection (AED)

• Anytime Technology: Highly reliable, proprietary AED mode that automatically senses X-ray exposure without direct physical generator connections.
• Trigger Support: Supports DR Trigger Mode, Packet Trigger Mode, and AED Mode.

PureImpact Image Enhancement

• Processing Software: Powered by Vieworks’ advanced software suite to deliver highly detailed, low-noise diagnostic images.
• Image Recovery: Built-in memory stores up to 100 images in case of temporary wireless connection drops.

Physical and Electrical Specifications

Dimensions and Weights

• Physical Size: 38.4 cm x 46.0 cm x 1.5 cm (ISO 4090 compliant to fit standard film or CR buckys).
• Weight (with 1 Battery): 2.95 kg (6.5 lbs).
• Weight (with 2 Batteries): 3.15 kg (6.94 lbs).
• Power Requirements
• Normal Consumption: Maximum 24 W.
• Charging Consumption: Maximum 80 W.
• Voltage Compatibility: Compatible with X-ray generators operating from 40 kVp to 150 kVp.
