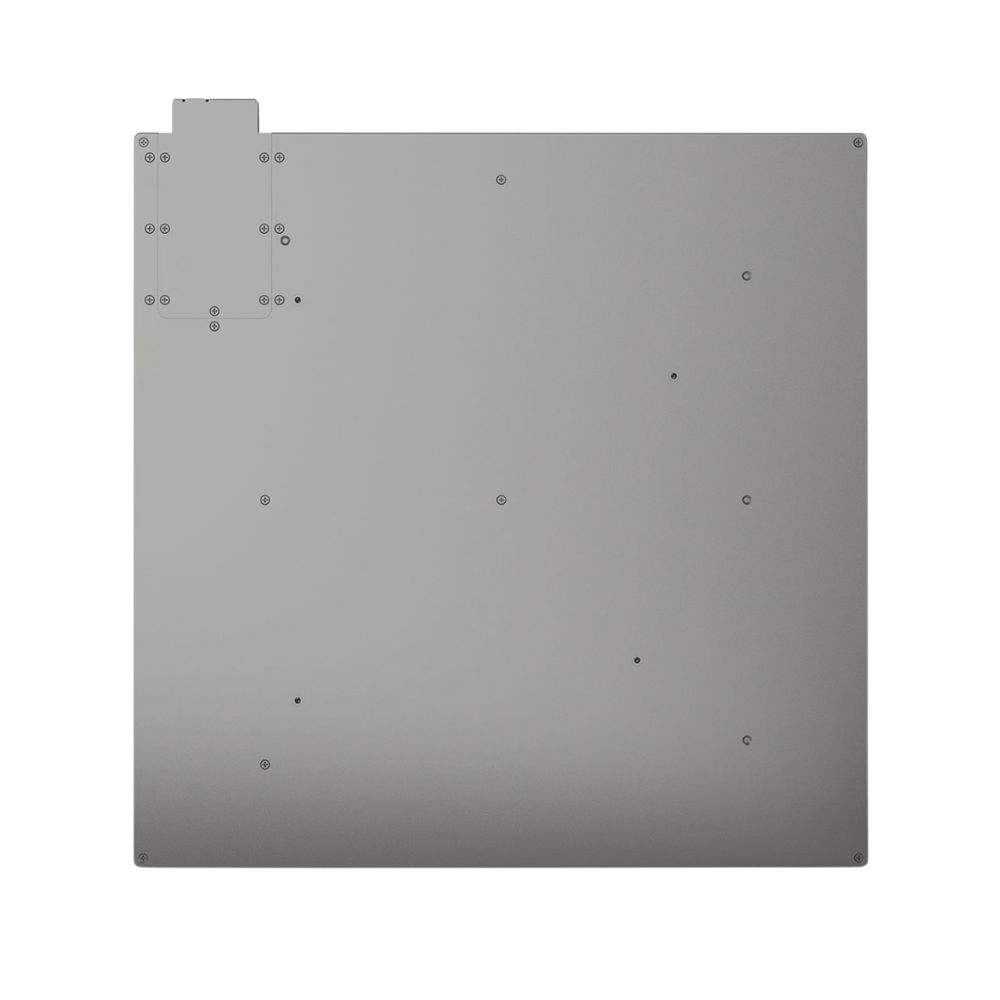

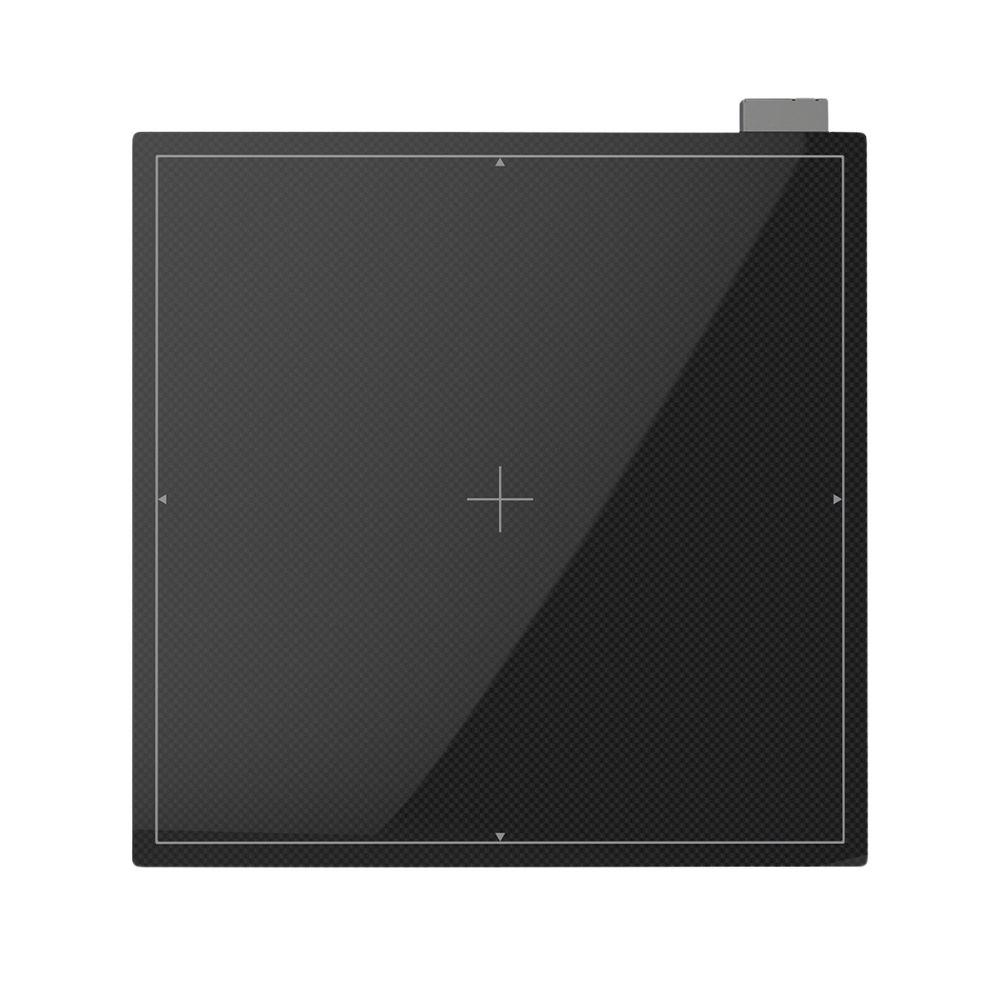

Rayence 1717SCV Tethered DR Detector

17×17 Tethered DR Detector with Commercial LAN Connectivity

The Rayence 1717SCV combines a full 43×43 cm imaging area with GigE data transfer through a commercial LAN cable. This wired architecture simplifies installation and maintenance while supporting dependable digital image acquisition in dedicated X-ray rooms.

Key Benefits

• • Commercial LAN cable data transfer
  • Full-size 17×17 tethered DR detector
  • Cassette-style 15.6 mm / 0.61 in. thickness
  • 127 μm or 140 μm pixel configurations
    Image preview in 2 seconds or less

Its thin detector profile and fixed wired connection make the 1717SCV well suited for facilities replacing film or CR workflows, upgrading compatible radiography equipment, or configuring a dedicated DR room.

When the Rayence 1717SCV Fits the X-Ray Room

Commercial LAN Connectivity for Fixed-Room Integration

The Rayence 1717SCV flat panel detector transfers image data over a commercial LAN cable using a GigE interface. This connection supports straightforward installation and maintenance in X-ray rooms where detector mobility is not required.

Cassette-Style Thickness Supports DR Upgrades

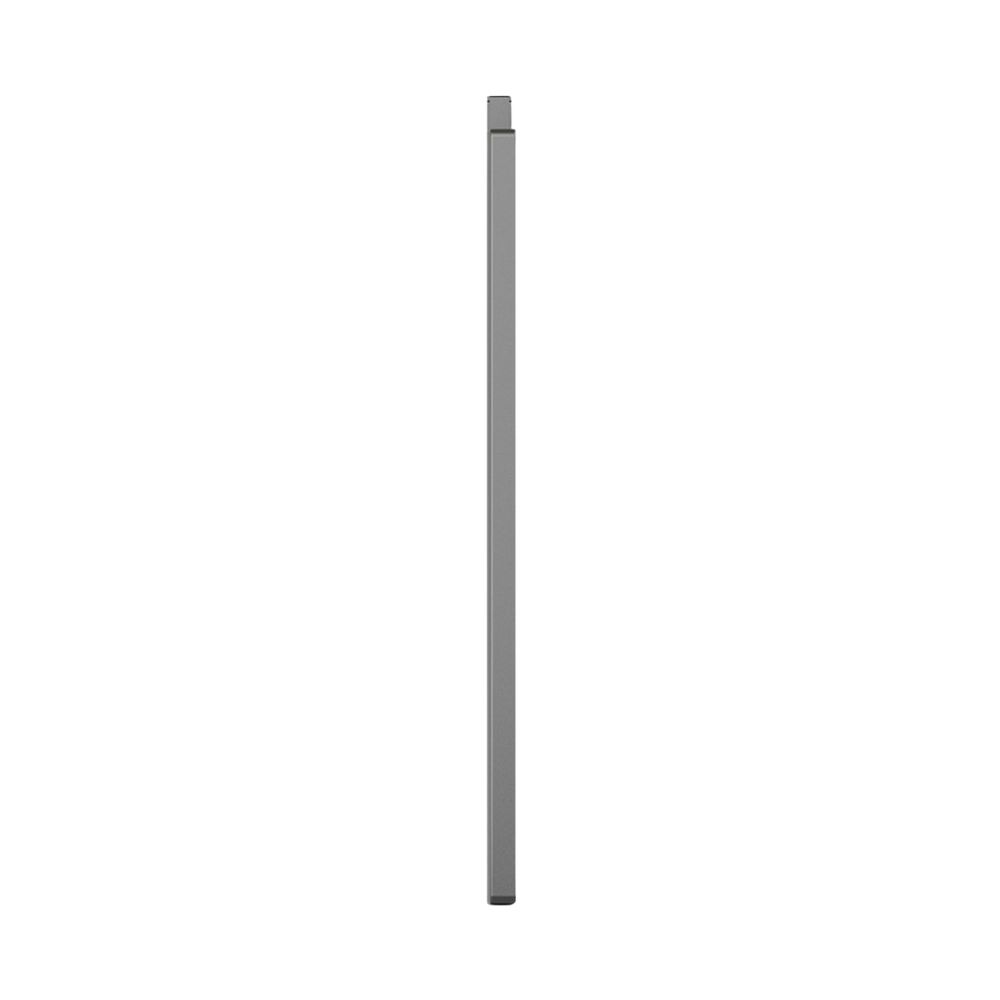

At approximately 15.6 mm / 0.61 in. thick, the detector closely follows the profile of a traditional film-screen cassette. This design supports digital upgrades without requiring modification to compatible X-ray equipment.

Full 43×43 cm Coverage for Routine Radiography

The large square imaging area provides approximately 43×43 cm / 16.9×16.9 in. of coverage. The 17×17 format can accommodate broad anatomy such as the chest or abdomen without requiring detector rotation for certain examinations, helping simplify positioning in routine fixed-room radiography.

2-Second Image Preview Supports Efficient Review

An image preview time of 2 seconds or less allows acquired images to become available quickly for technologist review, helping maintain an efficient fixed-room workflow.

Clinical Environments & Applications for the 1717SCV

The Rayence 1717SCV is suited to clinical environments that use a dedicated X-ray room and benefit from full-size detector coverage with continuous wired communication.

Common Imaging Environments

• • Hospitals and health systems
  • Diagnostic imaging centers
  • Orthopedic practices
  • Chiropractic practices
  • Urgent care and outpatient facilities with dedicated X-ray rooms
  • Veterinary practices using compatible fixed DR systems

Common Clinical Applications

• • General radiography
  • Chest and abdominal imaging
  • Pelvis imaging
  • Spine imaging
  • Musculoskeletal radiography
  • Upper and lower extremity imaging
  • General veterinary radiography with compatible systems

The full-size square detector format allows the 1717SCV to support a varied mix of routine static radiography rather than a narrowly defined examination type.

Fixed-Room DR Upgrades Without Replacing X-Ray Equipment

Transition From Film or CR to DR

The Rayence 1717SCV provides a path from film-screen or computed radiography workflows to direct digital image acquisition. Its cassette-style dimensions help simplify integration into compatible radiographic equipment.

Preserve Compatible X-Ray Equipment

The detector supports DR upgrades that allow facilities to modernize image acquisition while retaining suitable X-ray equipment already in service.

Auto-Trigger Detection Simplifies DR Integration

The 1717SCV supports automatic X-ray exposure detection, allowing the detector to recognize an incoming exposure without requiring a separate generator synchronization connection. This can simplify integration when converting compatible film or CR rooms to digital radiography.

Tethered GigE Communication for Dedicated Rooms

Because the detector remains connected through GigE, the 1717SCV is particularly appropriate for dedicated X-ray rooms where consistent wired communication is more important than wireless detector mobility.

Imaging Technologies Built Into the Rayence 1717SCV

CsI Scintillator & a-Si TFT Sensor

The Rayence 1717SCV combines a Cesium Iodide (CsI) scintillator with an amorphous silicon TFT sensor for static digital radiography. This detector architecture supports high-resolution digital image acquisition across routine examinations.

127 μm & 140 μm Pixel Configurations

The 1717SCV is available with 127 μm and 140 μm pixel configurations. The 127 μm configuration provides resolution up to 3.9 lp/mm, while the 140 μm configuration provides resolution up to 3.5 lp/mm.

14-Bit or 16-Bit Image Acquisition

The detector supports 14-bit or 16-bit A/D conversion, providing the grayscale data used by the imaging system for digital image processing and display.

Rayence Acquisition & Image Processing Software

Compatible Rayence software supports image acquisition, image processing, and routine digital radiography workflows through the acquisition workstation.

GridON Anti-Scatter Processing

Rayence also offers GridON, a software-based anti-scatter processing capability designed to reduce the effects of scatter in supported imaging workflows. Available features depend on the detector, software, and workstation configuration.

Compatible Imaging Platforms

The Rayence 1717SCV is designed for compatible fixed digital radiography systems using GigE detector communication. Compatibility depends on the X-ray equipment, acquisition workstation, software, and system integration.

For existing-room upgrades, the primary consideration is whether the current imaging equipment can accommodate the detector and its tethered acquisition workflow.

Compare Rayence 17×17 DR Detector Options

Rayence offers several full-size detector configurations for different radiography workflows.

• Need wireless 17×17 imaging for greater detector positioning flexibility? Explore the Rayence Xmaru 1717WCC/WGC Wireless DR Detector, available with CsI or GOS scintillator configurations.
• Need a cassette-size tethered 17×17 detector with CsI or GOS scintillator options? Explore the Rayence Xmaru 1717SCC/SGC Tethered DR Detector, designed for permanent GigE connectivity and compatible ISO 4090 cassette tray installations.

Commercial LAN Tethering for Straightforward Fixed-Room DR

The Rayence 1717SCV Tethered DR Detector combines full-size digital radiography with commercial LAN connectivity, cassette-style thickness, fast image previews, and a 43×43 cm field of view. These features make it a practical fit for dedicated X-ray rooms and compatible DR upgrades where wireless detector mobility is not required.

Rayence 1717SCV Specifications

Detector & Imaging Specifications

• • Sensor type: a-Si TFT
  • Scintillator: CsI
  • Detector format: 17×17 in. class
  • Full field of view: 43×43 cm / 16.9×16.9 in.
  • Pixel pitch: 127 μm or 140 μm
  • Energy range: 40 to 150 kVp
  • A/D conversion: 14-bit or 16-bit
  • Data interface: GigE
    Automatic Exposure Detection (AED): Supported
    Image preview time: 2 seconds or less

127 μm Configuration

• • Total pixel matrix: 3,328 x 3,328
  • Active area: 422.7 x 422.7 mm / 16.6 x 16.6 in.
  • Resolution: 3.9 lp/mm

140 μm Configuration

• • Total pixel matrix: 3,072 x 3,072
  • Active area: 430.1 x 430.1 mm / 16.9 x 16.9 in.
  • Resolution: 3.5 lp/mm

Dimensions & Weight

• • Detector dimensions: 460 x 460 x 15.6 mm / 18.1 x 18.1 x 0.61 in.
  • Weight: 4.0 kg / 8.8 lb.
