20/20 Imaging Universal-DR 17 × 17 DR Detector

Category:: X-Ray & U-Arm Systems

Brand:: 20/20 Imaging by Konica Minolta

The 20/20 Imaging Universal-DR 17×17 DR Detector is a full-size digital radiography detector designed for everyday imaging across a broad range of examinations. Available in tethered and wireless configurations, it supports routine digital radiography, compatible DR retrofit projects, and new imaging installations while adapting to different clinical workflows.

Request a Quote

One Detector for Everyday Digital Radiography

The 20/20 Imaging Universal-DR 17×17 is designed to serve as the primary detector for routine digital radiography. Its full-size 17×17-inch imaging area provides broad anatomical coverage for everyday examinations while supporting compatible retrofit projects and new DR installations.

Key Benefits

Full-size 17×17 detector
Available in tethered and wireless configurations
Cesium (CsI) scintillator
139 μm pixel pitch
3.6 lp/mm spatial resolution
16-bit image acquisition
Compatible with DR retrofit and new imaging installations
Five-year manufacturer warranty

Whether replacing film, upgrading computed radiography (CR), completing a DR upgrade, or implementing a new digital radiography workflow, the 20/20 Imaging Universal-DR 17×17 provides a versatile detector designed to support routine imaging across a wide variety of clinical environments.

When a Full-Size 17×17 Detector Is the Right Choice

Broad Anatomical Coverage for Everyday Imaging

The 17×17 detector size supports a wide range of routine radiographic examinations without the limitations of smaller specialty detectors. Its larger imaging area makes it practical for facilities that perform diverse imaging studies throughout the day.

One Detector for Multiple Examination Types

Rather than switching between multiple detector sizes, many facilities rely on a 17×17 detector for the majority of routine digital radiography examinations. Its versatile imaging area supports everything from chest imaging to extremity studies while simplifying everyday workflow.

A General-Purpose Alternative to Specialty Detector Sizes

The Universal-DR 17×17 fills the gap between compact detectors designed for smaller anatomy and long-length detectors designed for extended anatomy. It provides broad coverage for everyday imaging without being limited to a specialized clinical application.

Available Tethered & Wireless Configurations

The 20/20 Imaging Universal-DR 17×17 is available in multiple configurations to support different imaging environments and workflow preferences.

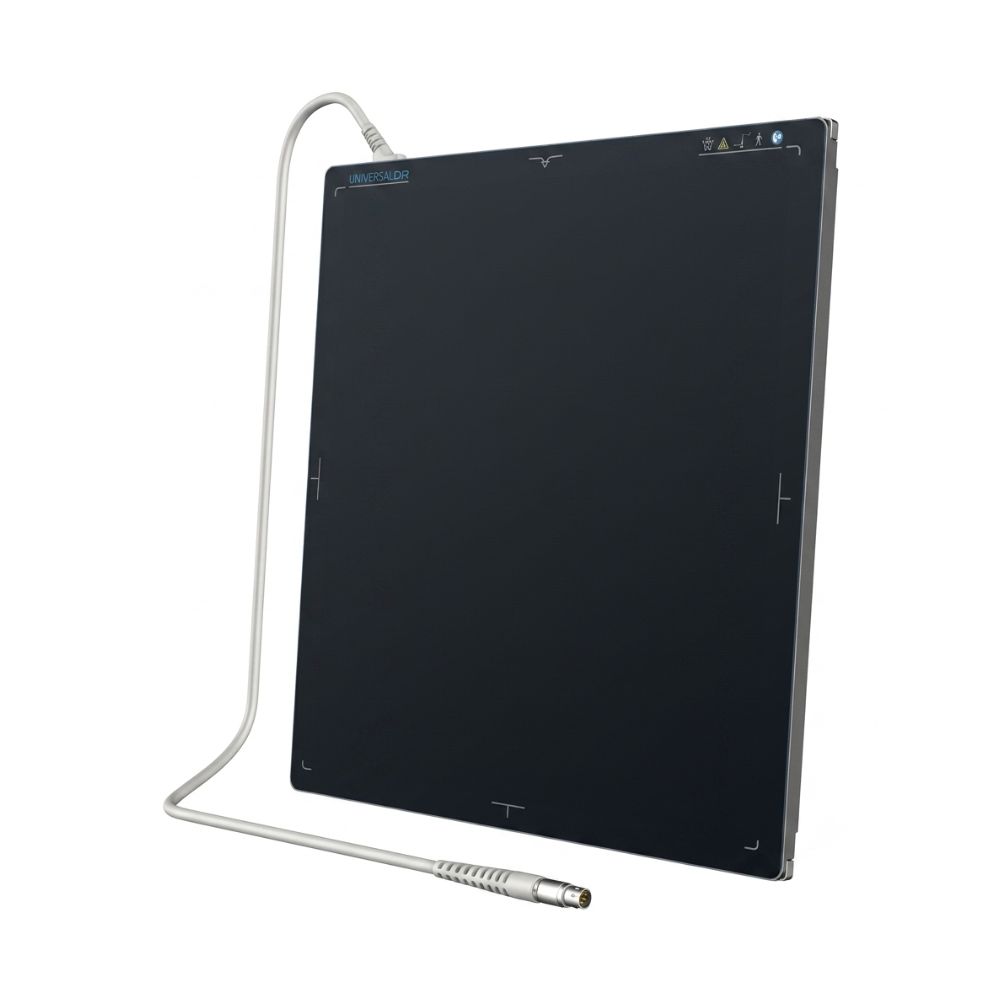

Tethered Configuration

The tethered configuration provides continuous wired communication between the detector and acquisition workstation. This option is well suited for fixed imaging rooms where consistent connectivity is preferred throughout the workday.

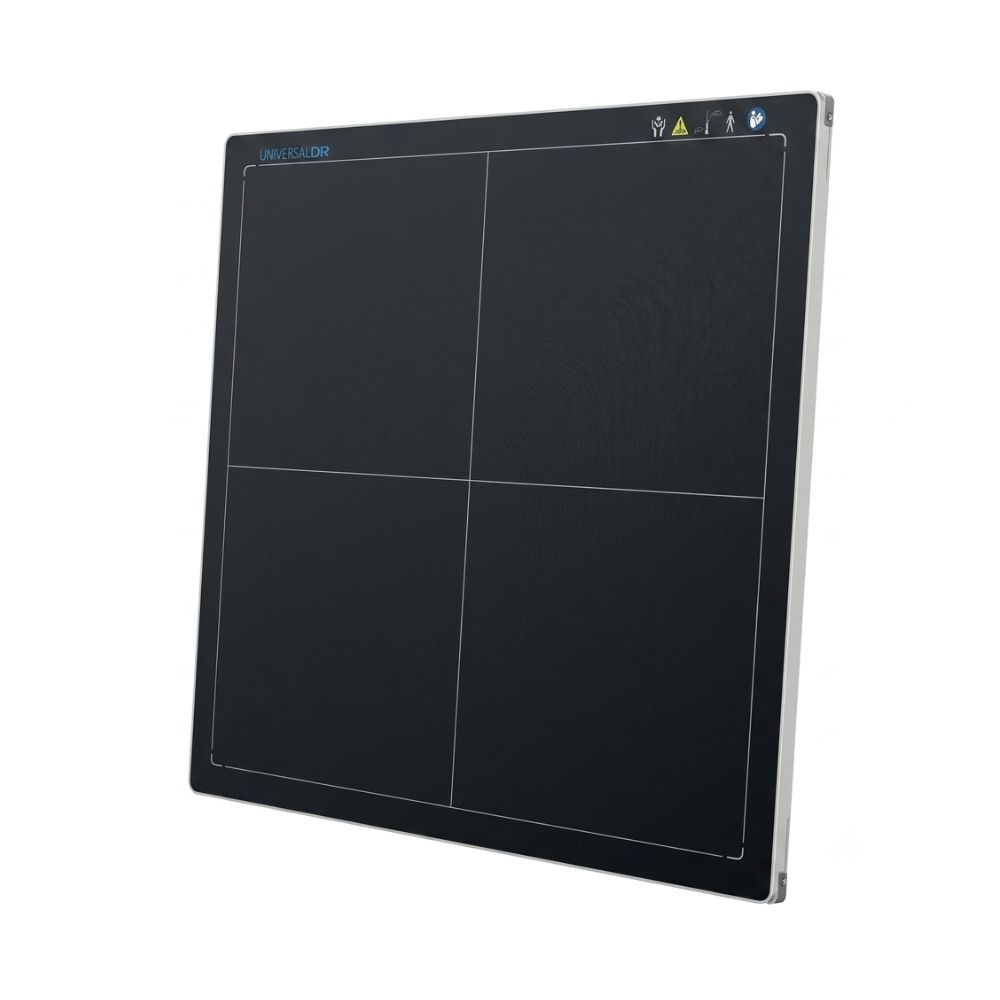

Wireless Configuration

The wireless configuration provides greater positioning flexibility by reducing cable management during image acquisition. It is well suited for imaging environments where detector mobility supports workflow efficiency.

Hybrid Workflow Flexibility

Depending on the selected configuration, the detector can support wireless operation, tethered communication, or hybrid workflows that combine wired power with wireless image acquisition. This flexibility allows facilities to choose the workflow that best complements their clinical environment while supporting different imaging preferences across compatible DR systems.

Clinical Environments That Benefit From a Full-Size DR Detector

The 20/20 Imaging Universal-DR 17×17 is designed for facilities performing routine digital radiography across a broad range of examinations.

Hospitals & Health Systems

Support routine inpatient and outpatient imaging across general radiography departments.

Orthopedic Practices

Capture large-field musculoskeletal examinations, weight-bearing studies, and routine orthopedic imaging.

Urgent Care Centers

Perform everyday radiographic examinations using a full-size detector that accommodates a wide range of patient presentations.

Chiropractic Practices

Support routine spinal, extremity, and musculoskeletal imaging.

Outpatient Imaging Centers

Perform general radiography examinations across diverse patient populations.

Veterinary Practices

Support companion animal and compatible veterinary imaging applications requiring a full-size detector.

Common Radiographic Examinations

The full-size detector is well-suited for routine imaging including:

Chest
Abdomen
Pelvis
Shoulder
Spine
Upper extremities
Lower extremities
General musculoskeletal imaging
Routine digital radiography examinations

How the Universal-DR 17×17 Supports Different Imaging Workflows

Modernize Existing X-Ray Rooms

The 20/20 Imaging Universal-DR 17×17 can be integrated into compatible DR upgrade and DR retrofit projects, allowing facilities to modernize existing X-ray rooms without replacing compatible imaging equipment. This approach helps facilities transition from film or computed radiography (CR) to digital radiography while preserving existing room infrastructure whenever practical.

Support New Digital Radiography Installations

The detector also integrates into new DR rooms where a full-size detector supports routine imaging across a broad range of examinations.

Adapt to Different Clinical Workflows

Whether a facility prefers tethered communication, wireless flexibility, or a hybrid workflow, the Universal-DR 17×17 can be configured to support the operational needs of compatible imaging environments.

Technologies That Support Everyday Digital Radiography

Cesium (CsI) Scintillator

The detector uses a Cesium (CsI) scintillator to efficiently convert X-ray energy into digital image data while supporting image quality across routine digital radiography examinations.

16-Bit Image Acquisition

The detector captures images using 16-bit acquisition, providing a broad grayscale range for visualization across diverse examination types.

High-Resolution Detector Design

A 139 μm pixel pitch and 3.6 lp/mm spatial resolution help support detailed digital image acquisition for routine clinical imaging.

Compatible Imaging Platforms

The 20/20 Imaging Universal-DR 17×17 is designed for compatible digital radiography systems that support the detector, acquisition software, and overall imaging workflow. Compatibility depends on detector configuration, workstation software, and the complete imaging system.

Acquisition Software Designed for the Universal-DR 17×17

The detector integrates with compatible acquisition software to support image capture, image processing, DICOM communication, image review, and routine digital radiography workflow. Available software capabilities vary depending on the complete imaging system configuration.

Compare 20/20 Imaging DR Detector Options

Each 20/20 Imaging detector is designed to support a different imaging workflow.

Need a compact detector for smaller anatomy and extremity imaging? Explore the 20/20 Imaging 1012V Tethered DR Detector.
Need long-length imaging for full-spine, long-leg, scoliosis, and extended anatomy studies? Explore the 20/20 Imaging 17×48 DR Panel.

Why Imaging Teams Choose a Full-Size 17×17 Detector

For many facilities, a full-size 17×17 detector becomes the primary detector used throughout the workday because it supports the widest range of routine radiographic examinations. The 20/20 Imaging Universal-DR 17×17 combines broad anatomical coverage with configuration flexibility, making it a practical choice for facilities modernizing existing X-ray rooms, completing DR upgrade projects, or implementing new digital radiography systems. Multiple configuration options allow facilities to select a tethered, wireless, or hybrid workflow that best supports their clinical imaging needs.
