MinXray CMDR Tethered Portable Digital X-Ray System

What Is the MinXray CMDR Tethered X-Ray System?

The CMDR Tethered portable digital X-ray system is designed for organizations that need diagnostic-quality digital radiography without a fixed imaging room. By integrating a portable X-ray generator, detector, software, laptop workstation, and transport cart into a single package, the system simplifies deployment across multiple locations.

• Complete portable digital radiography solution
• Available with multiple generator configurations
• Integrated tethered cesium digital detector
• Mobile two-wheel transport platform
• DICOM-compatible digital workflow

The result is a compact imaging platform that can be transported, deployed, and operated quickly while maintaining the image quality expected from modern digital radiography systems.

Key Features of the MinXray CMDR Tethered X-Ray System

Designed around portability and efficiency, the CMDR portable digital x-ray system helps reduce setup time while supporting imaging across a variety of environments.

• Rugged yet compact construction
• Easily transportable between sites
• System setup in less than one minute
• Image acquisition in less than 10 seconds
• Superior digital image resolution

Whether supporting occupational health programs, community healthcare initiatives, mobile imaging services, or government healthcare operations, the system is built to travel where imaging is needed.

Mobile Transport Design for Fast Setup & Deployment

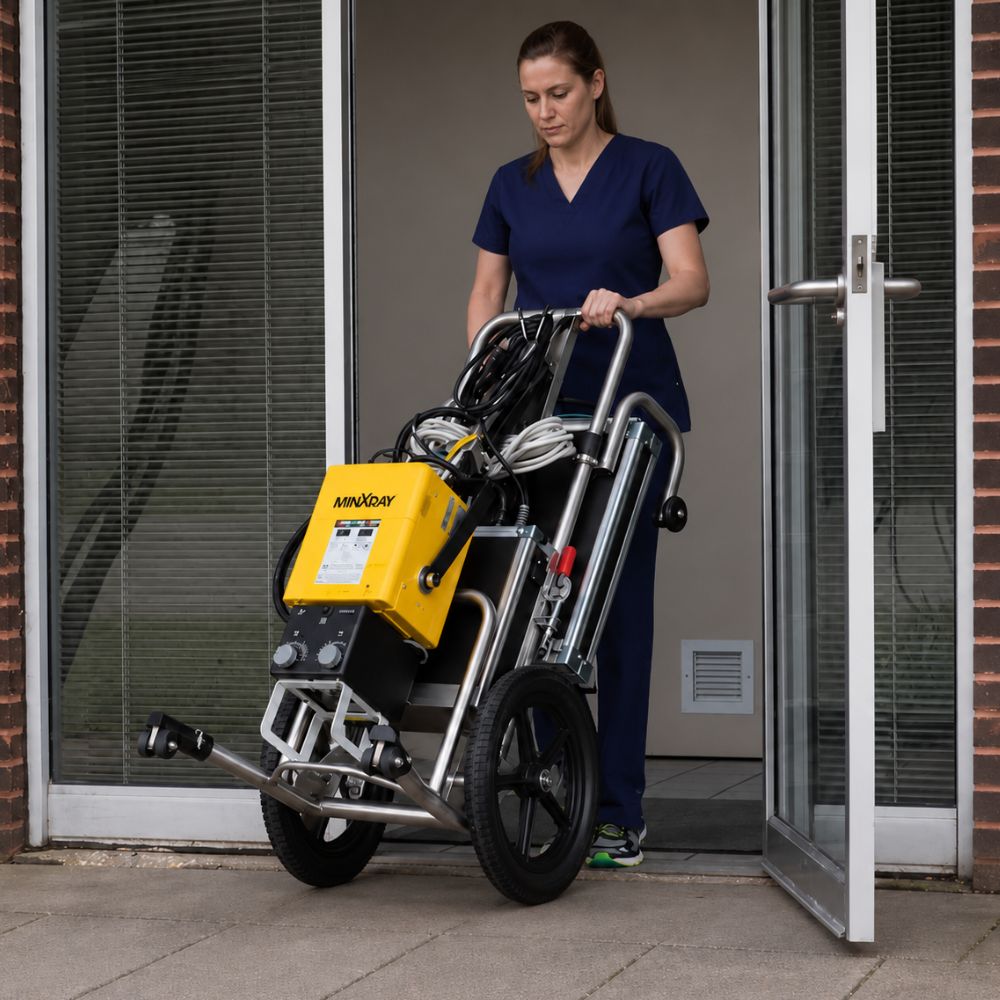

The MinXray CMDR Tethered X-ray system uses a rugged mobile cart that keeps major system components organized and protected during transportation. The detector removes from its protective enclosure for imaging, helping operators move quickly from transport mode to image acquisition.

Mobility Features & Transport Benefits

• • Stainless steel mobile transport stand
  • Two-wheel transport design
  • Approximately 147 lb assembled system weight
  • Compact footprint for transportation and storage

The streamlined design helps reduce setup complexity while supporting imaging across multiple locations during a single day.

14 × 17 Tethered Cesium Digital Detector Overview

The MinXray CMDR portable digital x-ray system incorporates a high-resolution tethered cesium iodide detector designed for general radiography applications. The detector combines fast image availability with excellent image quality for routine diagnostic imaging.

Digital Detector Performance Specifications

• • 14 × 17 in imaging area
  • 143 μm pixel pitch
  • Approximately 7.3 million pixels
  • 16-bit image acquisition
  • 16-bit grayscale image output

The detector delivers a preview image approximately four seconds after exposure, helping accelerate workflow and patient throughput.

Digital Imaging Software & DICOM Connectivity

Integrated acquisition software and DICOM connectivity support efficient image management and workflow integration.

Imaging Software & Workflow Integration Features

• • MinXray DXR imaging software
  • DICOM 3.0 compliant
  • Storage Service Class (SCU)
  • Print Management Class (SCU)
  • Ethernet 10/100/1000 Base-T connectivity
  • Wireless networking capability

These capabilities support integration with PACS and other image management environments.

Available Portable X-Ray Generator Configurations

The MinXray CMDR Tethered X-ray system can be configured with several MinXray portable X-ray generators to match clinical and operational requirements.

HF100H+ Portable X-Ray Generator Option

The HF100H+ portable X-ray generator is a compact high-frequency generator designed for portable radiography applications requiring maximum mobility.

HF120/60HPPWV PowerPlus™ Generator Option

The HF120/60HPPWV PowerPlus™ generator is a higher-output portable generator that provides greater exposure flexibility for demanding imaging environments.

HF1202 High-Frequency Generator Option

An additional high-frequency generator option that expands available power configurations.

Contact MXR Imaging to discuss generator availability and configuration options.

Clinical Applications for the MinXray CMDR Tethered X-Ray System

The MinXray CMDR Tethered Portable Digital X-Ray System supports a variety of general radiography applications where mobility and deployment flexibility are priorities.

Common Portable X-Ray Imaging Applications

• • Mobile healthcare imaging
  • Occupational health programs
  • Community health screening
  • Public health initiatives
  • Government healthcare operations
  • Remote medical services
  • Mobile radiography services
  • General radiography
  • Chest imaging
  • Extremity imaging
  • Musculoskeletal imaging

What Is Included with the CMDR System

Each system typically includes the core components required to begin digital radiography imaging.

• Portable X-ray generator
• Tethered digital detector
• Laptop workstation
• MinXray DXR imaging software
• Mobile transport stand
• Protective detector accessories

Commercial & Government Deployment Options for CMDR Systems

The CMDR Tethered X-ray system is available in commercial configurations and may be available for specialized government deployment requirements. Contact MXR for information on available configurations, procurement pathways, and application-specific requirements.

Specifications for the CMDR Tethered X-ray System

Digital Detector Technical Specifications

• • Detector Type: Cesium iodide (CsI)
  • Image Area: 14 × 17 in (35 × 43 cm)
  • Pixel Pitch: 143 μm
  • Pixel Matrix: 2448 × 2984
  • A/D Conversion: 16-bit
  • Preview Image Access Time: Approx. 4 seconds
  • MTF (2 lp/mm): 36% typical
  • DQE (0): 70% typical
    Detector Weight: 6.6 lb (3 kg)

System Connectivity & Networking Specifications

• • DICOM 3.0 compliant
  • Ethernet 10/100/1000 Base-T
  • Wireless networking support

Environmental Operating Specifications

• • Operating Temperature: 50°F to 95°F (10°C to 35°C)
  • Humidity: 10% to 85% RH non-condensing
