MinXray HF100H+ Portable X-ray

Portable Imaging Designed for Flexible Care Environments

The MinXray HF100H+ portable X-ray delivers diagnostic X-ray imaging in locations where a fixed radiography room may not be practical. Combining high-frequency generator technology, CPU-controlled operation, and digital radiography compatibility, the system provides reliable imaging performance in mobile and point-of-care environments.

Key Features & Benefits

• • High-frequency inverter technology for stable X-ray output
  • Compact and lightweight design for mobile deployment
  • Compatible with digital radiography (DR) systems
  • CPU-controlled exposure operation
  • Five programmable memory stations for frequently used techniques

Portable X-ray System for Mobile & Point-of-Care Imaging

The MinXray HF100H+ portable X-ray is designed for healthcare professionals who need imaging flexibility without sacrificing performance. The compact X-ray unit can be transported between imaging locations and supports mobile radiography workflows that extend beyond traditional imaging departments.

Features That Support Mobile Imaging Workflows

• • Lightweight portable design
  • Independent output performance across varying power conditions
  • Adjustable light beam collimator for accurate positioning
  • Long power and exposure cords for flexible deployment

Mobile imaging providers, home healthcare organizations, and healthcare facilities can use the HF100H+ to bring diagnostic imaging closer to the patient while maintaining workflow efficiency.

High-Frequency Generator Technology for Consistent X-ray Output

The HF100H+ utilizes a full-wave rectified high-frequency inverter that delivers consistent output performance while helping reduce the impact of line voltage fluctuations. Combined with automatic dynamic line compensation and CPU-controlled operation, the system is designed to provide reliable imaging performance in mobile and point-of-care environments.

High-Frequency Technology Features

• • Full-wave rectified high-frequency inverter
  • Automatic dynamic line compensation
  • CPU-controlled exposure operation
  • Consistent output across varying power conditions
  • Programmable technique memory for repeatable exams

DR-Compatible Portable X-ray for Digital Radiography Workflows

As healthcare providers continue adopting digital imaging technology, the HF100H+ integrates seamlessly with available DR systems. The combination of portable imaging capability and digital workflow compatibility helps support efficient image acquisition in a variety of care environments.

Clinical Applications & Recommended Healthcare Settings

The MinXray HF100H+ portable X-ray can support a variety of diagnostic radiography exams when paired with appropriate DR technology and positioning accessories.

Common Portable X-ray Exam Types

• • Extremity imaging
  • Chest imaging
  • Cervical spine imaging
  • General radiographic procedures requiring portable X-ray capability
  • Ideal Practice Settings

The HF100H+ is designed for providers who need portable diagnostic imaging capabilities in locations where access to a dedicated radiography room may be limited.

• • Chiropractic clinics
  • Orthopedic practices
  • Sports medicine clinics
  • Occupational health providers
  • Urgent care centers
  • Mobile imaging services
  • Home healthcare organizations
  • Long-term care and skilled nursing facilities
  • Correctional healthcare facilities

This portable X-ray system is particularly well suited for organizations that require flexible imaging workflows, point-of-care radiography, or mobile diagnostic services.

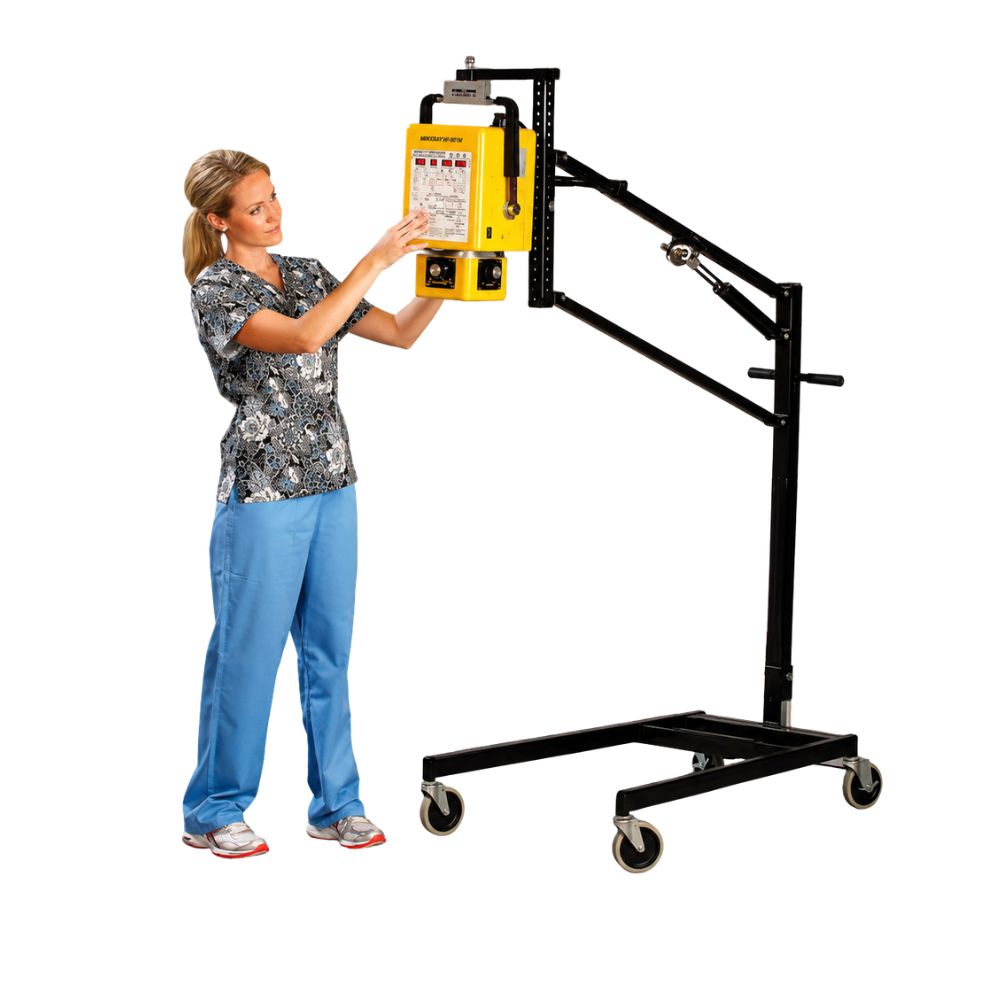

Optional XGS MKIV Mobile Stand for Transport & Positioning

While the HF100H+ is a portable X-ray unit on its own, providers who need additional mobility and positioning flexibility can add the optional XGS MKIV mobile stand. The gas-spring-assisted stand is designed to simplify transport and positioning for mobile imaging and point-of-care applications.

Mobile Stand Features & Benefits

• • HF100H+ portable X-ray unit can be used without the stand
  • Optional XGS MKIV gas-spring mobile stand

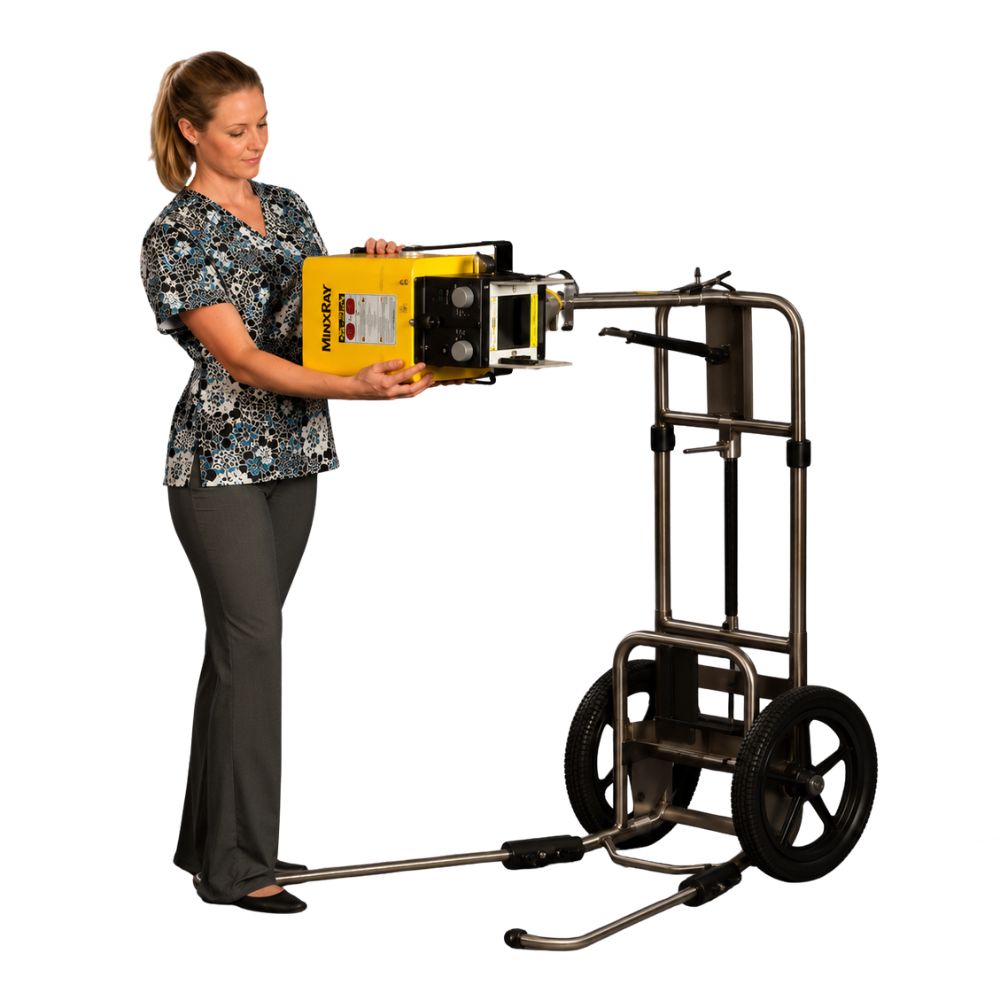

  • Available with large 16-inch wheels
  • Supports transport between imaging locations
  • Additional positioning flexibility for a variety of exam types

When paired with an optional XGS MKIV mobile stand, the HF100H+ can be transported between imaging locations and quickly positioned for mobile imaging and off-site radiography applications.

XGS MKIV Mobile Stand Specifications

The XGS MKIV LW mobile stand features a gas-spring-assisted design and large 16-inch wheels to support transport and positioning. The stand is available as an optional accessory for providers seeking a complete mobile imaging solution.

Exposure Controls & Portable X-ray Performance Specifications

The MinXray HF100H+ portable X-ray utilizes a monobloc high-frequency generator with a full-bridge inverter design. Variable mA operation and programmable exposure settings allow users to tailor imaging parameters to specific clinical requirements while maintaining consistent output performance.

Exposure Range & Output Capabilities

• • 40-100 kV operating range
  • Variable output settings of 30, 25, and 20 mA
  • 2 kV increment selection
  • 0.6-120 mAs range
  • Exposure times from 0.03 to 4.0 seconds

The combination of CPU-controlled operation, programmable techniques, and high-frequency output helps support repeatable imaging performance across a wide range of examinations.

MinXray HF100H+ Specifications

Generator & Exposure Specifications

• • Generator Type: Monobloc high-frequency generator, full-bridge inverter
  • Inverter Frequency: 60 kHz
  • kV Range: 40-100 kVDC
  • kV Increments: 2 kV
  • mA Output:
  • 30 mA @ 40-60 kVDC
  • 25 mA @ 62-80 kVDC
  • 20 mA @ 82-100 kVDC
  • mAs Range: 0.6-120
  • Exposure Time: 0.03-4.0 seconds

X-ray Tube Specifications

• • Tube Model: Toshiba D-124S
  • Focal Spot: 1.2 mm
  • Anode Heat Storage: 20 kHU
  • Total Filtration: 3.8 mm Al Equivalent

Electrical Power Requirements

• • Line Voltage: 100-140 V AC, Single Phase, 50/60 Hz
  • Fuse Rating: 30 Amp @ 125 V
  • Maximum Power Consumption: 2.0 kW @ 100 kVDC, 20 mA

Physical Dimensions & Weight

• • Tube Head Dimensions: 11.5″ × 9.1″ × 17.7″
  • Tube Head Weight: 44.5 lb (20.2 kg)
  • System Weight with Optional XGS MKIV LW Stand: 86.5 lb (39.2 kg)

Collimator & Control Features

• • Continuously adjustable light beam collimator
  • Central X-ray indicator
  • Two-stage deadman exposure switch
  • 20 ft power cord
  • 12 ft exposure cord
