Medlink JADE Mobile Portable Digital X-ray

Overview of the Medlink JADE Mobile Portable Digital X-ray

The JADE Mobile is a portable digital radiography system by Medlink Imaging is designed for facilities that need diagnostic imaging capabilities outside of a dedicated radiography room. Its compact design, integrated DR workflow, and transport-friendly construction support imaging in a wide range of healthcare environments.

Portable Digital X-ray System for Mobile Imaging

• • Lightweight 119 lb system weight
  • Compact transport configuration
  • Foldable two-step stand
  • Vehicle-loadable design
  • Integrated wireless DR workflow

The system combines portability and digital imaging performance, helping facilities bring radiography directly to the patient when necessary.

Key Features

The JADE Mobile combines a high-frequency generator, wireless detector technology, and simplified positioning controls into a single mobile imaging platform.

• • 4 kW high-frequency generator
  • Maximum 120 kVp output
  • Up to 250 mAs
  • Dual focal spot X-ray tube
  • Wireless detector integration

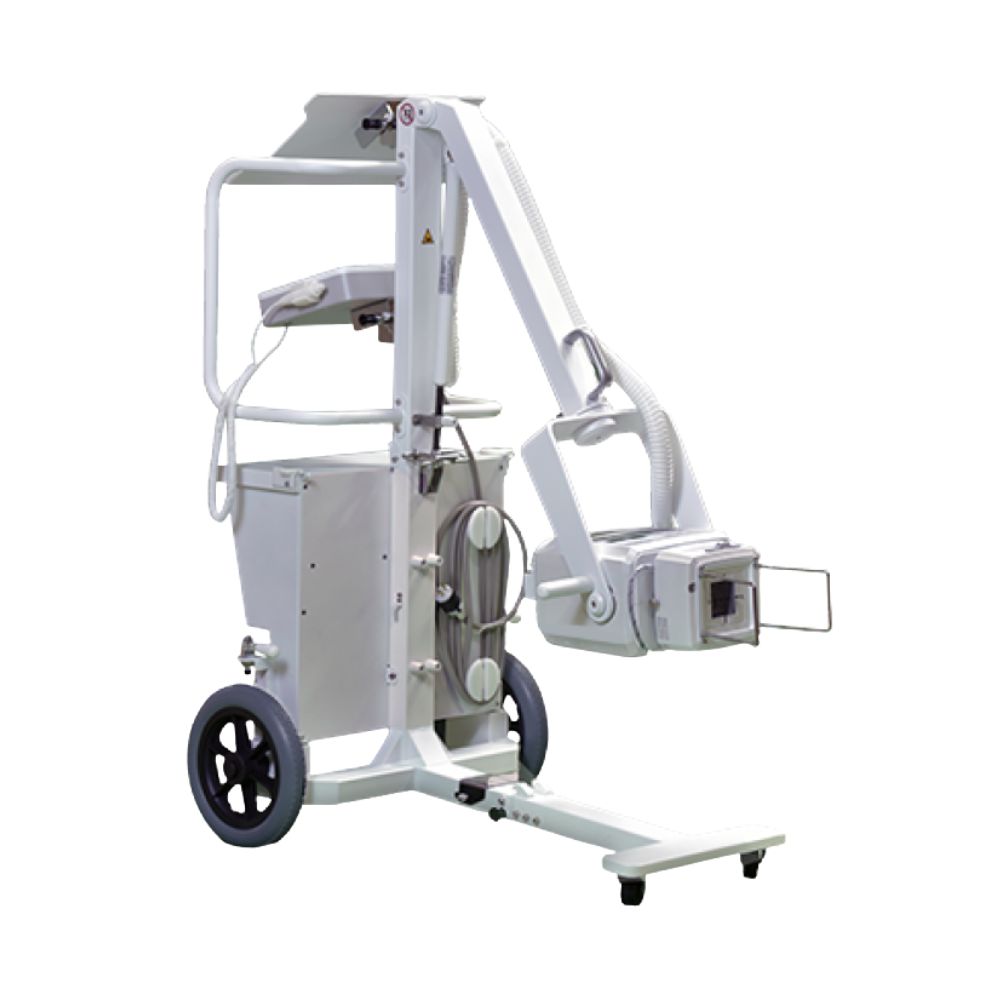

Portable X-ray System Design & Transport Features

Portable imaging equipment must be easy to move, store, and deploy. The Medlink JADE Mobile Portable Digital X-ray was designed with these requirements in mind.

Foldable Mobile Stand for Easy Transport & Storage

• • Foldable two-step stand
  • Compact storage profile
  • Simplified transport between locations

The folding design allows the system to be transported and stored efficiently without requiring extensive setup time.

• • Vehicle-Loadable Portable X-ray Design
  • Vehicle-loadable construction
  • Wheel-locking system
  • Portable deployment capabilities

These features support mobile imaging programs, satellite locations, and facilities that require imaging in multiple environments.

Wireless Digital Detector Features & Imaging Technology

The JADE Mobile package includes a wireless cesium iodide flat panel detector designed for general radiography applications.

14″ x 17″ Wireless CsI Flat Panel Detector

• • 14″ × 17″ imaging area
  • Cesium iodide scintillator
  • 140 μm pixel pitch
  • 2560 × 3072 image matrix
  • 16-bit grayscale

The CsI detector design supports efficient dose utilization while producing high-quality digital images.

Automatic Exposure Detection (AED) Workflow

• • Automatic Exposure Detection (AED)
  • Wireless image transmission
  • Fast image acquisition
  • Flexible detector positioning

AED functionality allows image acquisition without a direct generator interface connection, supporting efficient workflow in portable environments.

X-ray Generator Specifications & Performance

The Medlink JADE mobile portable digital X-ray utilizes high-frequency inverter technology to provide exposure flexibility across a variety of imaging applications.

Exposure Settings, Output Range, & APR Programs

• • 40-120 kVp range
  • 10-100 mA output range
  • 0.1-250 mAs range
  • Exposure times from 0.001-10 seconds
  • Up to 9 programmable APR settings

The system provides straightforward operation while allowing facilities to customize exposure techniques for common examinations.

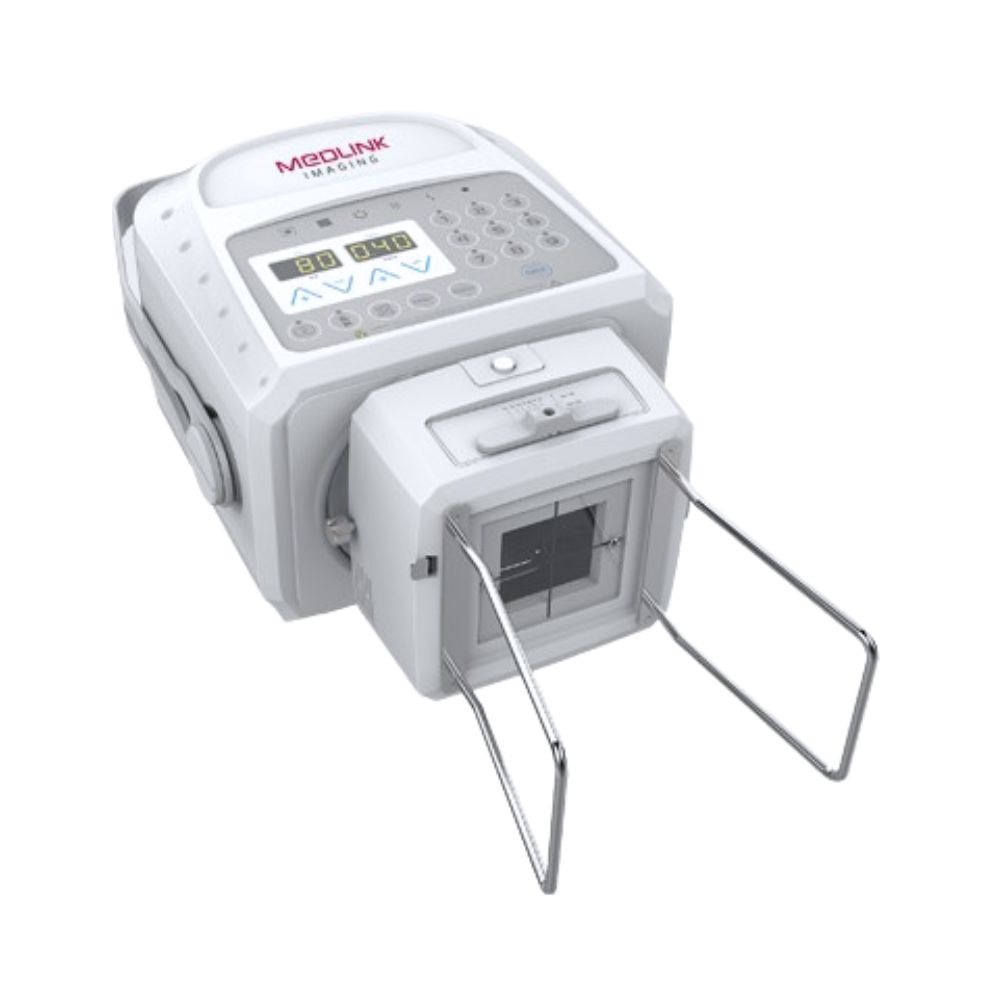

X-ray Tube, Tube Arm, & Collimator Features

• • Dual focal spots of 0.5 mm and 1.5 mm
  • Stationary anode tube
  • 100 kHz switching frequency
  • LED collimator light
  • 30-second lamp timer

The tube arm automatically locks at virtually any angle, helping simplify positioning during exams.

Clinical Applications for Medical & Veterinary Imaging

The Medlink JADE mobile portable digital X-ray supports general radiography imaging in facilities that require a portable imaging solution.

Medical Imaging Applications & Use Cases

• • General radiography
  • Orthopedic imaging
  • Urgent care imaging
  • Outpatient imaging
  • Occupational health imaging
  • Veterinary Radiography Applications
  • Companion animal radiography
  • Veterinary orthopedic imaging
  • General veterinary diagnostic imaging

The portable design makes the system particularly useful when imaging must be performed outside a fixed radiography room.

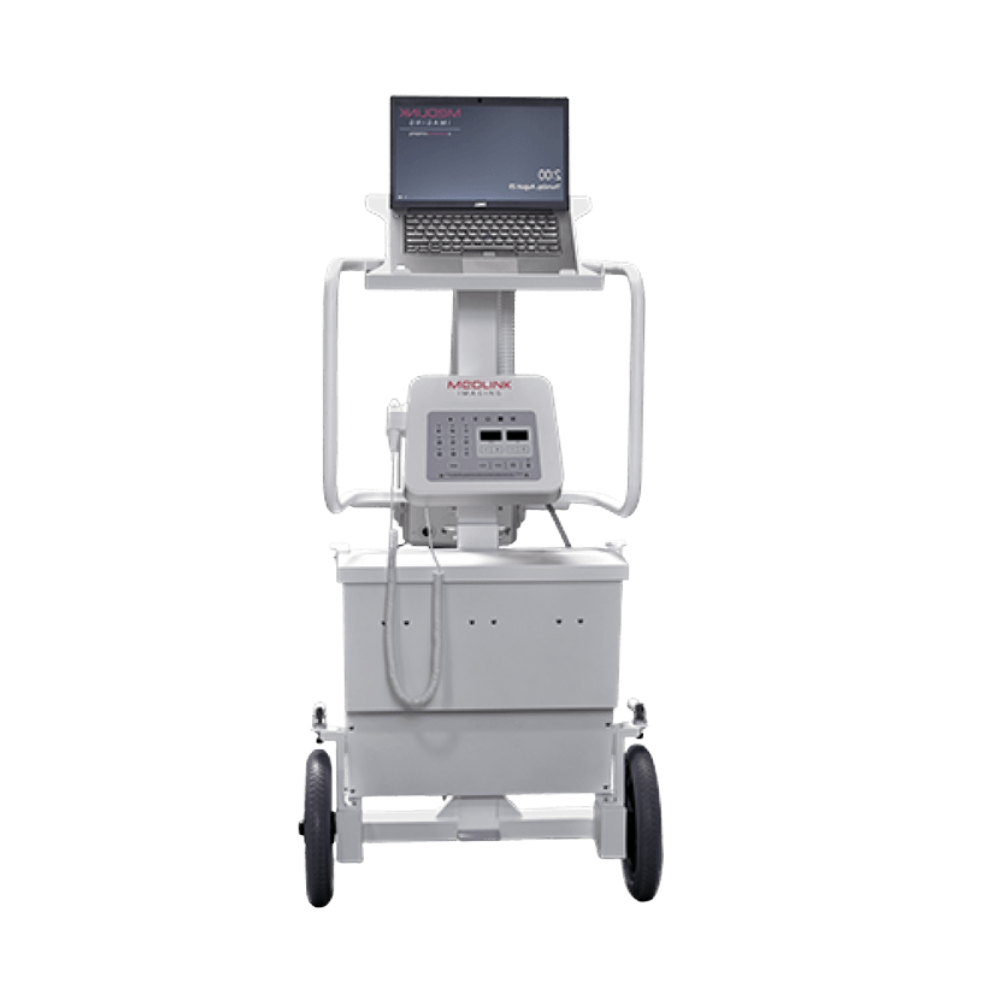

Imaging Software, Workstation, & Connectivity Options

The JADE Mobile includes a complete digital imaging workflow solution.

• Wireless communication
• USB connectivity
• Bluetooth connectivity
• Acquisition workstation included
• Digital acquisition and viewing software included

The bundled workstation and imaging software support image acquisition, review, and workflow management from a single platform.

Medlink JADE Mobile Portable Digital X-ray Specifications

X-ray Generator Specifications

• • Generator Output: 4.0 kW
  • Generator Type: High-Frequency Inverter
  • kVp Range: 40-120 kVp
  • mA Range: 10-100 mA
  • mAs Range: 0.1-250 mAs
  • Exposure Time: 0.001-10 sec
  • X-ray Switching Frequency: 100 kHz
  • Control Method: 2-Point Control (kV, mAs)

Wireless Detector Specifications

• • Detector Size: 14″ × 17″
  • Detector Technology: a-Si TFT
  • Pixel Pitch: 140 μm
  • Resolution: 2560 × 3072 pixels
  • Grayscale: 16-bit
  • AED Capability: Yes
  • IP67 Rated: Yes

Physical Dimensions & System Specifications

• • Weight: 119 lbs
  • Maximum Height: 7 ft 5 in
  • Power Cord Length: 15 ft
  • Foldable Stand: Yes
  • Vehicle Loadable: Yes
  • Wheel Lock: Yes
  • Automatic Tube Arm Lock: Yes

Warranty Coverage and Support Information

• • X-ray System Warranty: 1 Year
  • Detector Warranty: 5 Years
