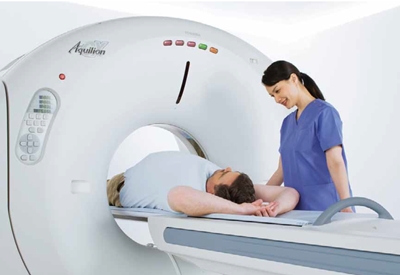

Canon Aquilion CXL 128-Slice CT

Category:
CT Scanners
Brand:
Canon

The Canon Aquilion CXL 128-Slice CT is a versatile diagnostic imaging system well suited for hospitals, outpatient imaging centers, and specialty practices. Its 64-row detector, coneXact 128-slice reconstruction, and advanced radiation dose reduction technologies support detailed anatomical imaging, efficient workflows, and a broad range of clinical applications.

Advanced 128 Slice Technology for Precise Diagnostic Imaging

The Canon Aquilion CXL 128-Slice CT scanner, originally manufactured by Toshiba, offers advanced diagnostic imaging capabilities across a broad spectrum of medical disciplines. Built on the Aquilion 64 platform, the CXL combines a 64-row detector with coneXact Double Slice Technology to generate up to 128 reconstructed slices per rotation.

Designed for versatility and reliability, the CXL supports high-speed diagnostic imaging in hospitals, outpatient imaging centers, orthopedic centers, and veterinary facilities.

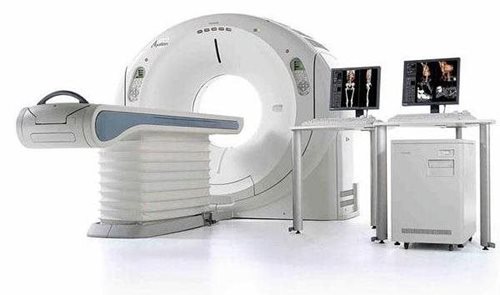

In addition to the CXL, Toshiba Aquilion 128-slice configurations may include compatible Aquilion 64 systems equipped with the ENCORE VeloCT console upgrade. This upgrade enables 128-slice reconstruction, advanced dose reduction, and faster image processing through upgraded computing and reconstruction hardware.

Key Features

  • 128-Slice Reconstruction & Anatomical Detail: coneXact Double Slice Technology produces up to 128 reconstructed slices per rotation from a 64-row detector, improving anatomical visualization and the quality of multiplanar and 3D images.
  • High-Resolution Imaging: 0.5 mm detector elements help visualize small anatomical structures and fine details for more precise diagnostic evaluation.
  • Radiation Dose Management: Adaptive Iterative Dose Reduction (AIDR) reduces image noise, while active collimation limits unnecessary radiation exposure.
  • Rapid Scanning & Reduced Motion: Gantry rotation times as fast as 0.35 seconds help shorten acquisitions and minimize motion-related image artifacts.
  • Accelerated Image Processing: Upgraded computing and reconstruction hardware help reduce image processing times, supporting efficient examination workflows and patient throughput.
  • Versatile Clinical Applications: Supports a broad range of examinations, including neurological, cardiovascular, oncological, orthopedic, and veterinary imaging.

Additional Features

  • Patient Accessibility & Comfort: A 72 cm gantry aperture and available high-capacity patient table accommodate a wide range of patient body types.
  • Advanced Cardiac Imaging: Optional SURECardio technology optimizes scan and reconstruction parameters to support cardiac visualization and radiation dose management.
  • Seamless Integration: DICOM connectivity and PACS compatibility facilitate image storage, transfer, and review within existing healthcare information systems.



Aquilion CXL Availability & Warranty

This Canon Aquilion CXL 128-Slice CT Scanner is available as reconditioned equipment therough MXR Imaging’s Platinum Certified program. Systems reconditioned to MXR Platinum Certified standards undergo a comprehensive process to restore imaging performance, acquisition efficiency, and system reliability. Every Platinum Certified system includes a full one-year warranty, with additional service and support options available through MXR Imaging, including extended service agreements, preventive maintenance, and remote support.

Canon Aquilion CXL 128-Slice Specifications

Gantry & Patient Table

    • Gantry Aperture:** 72 cm
    • Gantry Rotation Time:** As fast as 0.35 seconds (configuration-dependent)
    • Maximum Patient Weight Capacity:** Up to 660 lbs. (300 kg), depending on installed table

X-Ray Tube & Generator

    • X-Ray Tube Model:** CXB-750D
    • X-Ray Tube Heat Capacity:** 7.5 MHU
    • Generator Power:** Up to 72 kW
    • X-Ray Tube Voltage:** 80, 100, 120, and 135 kV

Image Acquisition & Reconstruction

    • Detector Technology:** Quantum Detector
    • Physical Detector Rows:** 64
    • Reconstructed Slices:** Up to 128 per rotation
    • Detector Element Width:** 0.5 mm
    • Detector Coverage:** 32 mm per rotation
    • Image Reconstruction Technology:** coneXact Double Slice Technology
    • Scanning Modes:** Axial and helical

Dose Management & Image Quality

    • Adaptive Iterative Dose Reduction (AIDR)
    • AIDR 3D iterative reconstruction, depending on software configuration
    • SUREExposure automatic exposure control
    • Active collimation
    • Prospective ECG-gated cardiac scanning (optional)

Workflow & Post-Processing

      • Multiplanar reconstruction (MPR)
      • 3D image reconstruction and visualization
      • DICOM connectivity
      • PACS compatibility
      • SURECardio cardiac imaging applications (optional)
      • SURESubtraction CT digital subtraction angiography (optional)
      • SUREXtension remote image processing and review (optional)



Specifications, hardware configurations, and installed software options may vary by individual system.*

MXR Platinum Certified Shield LOGO

MXR’s Platinum Certified Service is available when you purchase select CT, MRI, PET/CT, & Ultrasound imaging systems. Our premium reconditioning process delivers OEM level image quality. The system includes a full 1-year warranty, with additional support options from MXR Imaging.

We provide: Systems, Service, Parts, & Supplies. MXR holds ISO 13485 and we maintain System Refurbishment, Part Repair, Part Sales status for our certificate.
