AMRAD Medical by Summit CS Classic

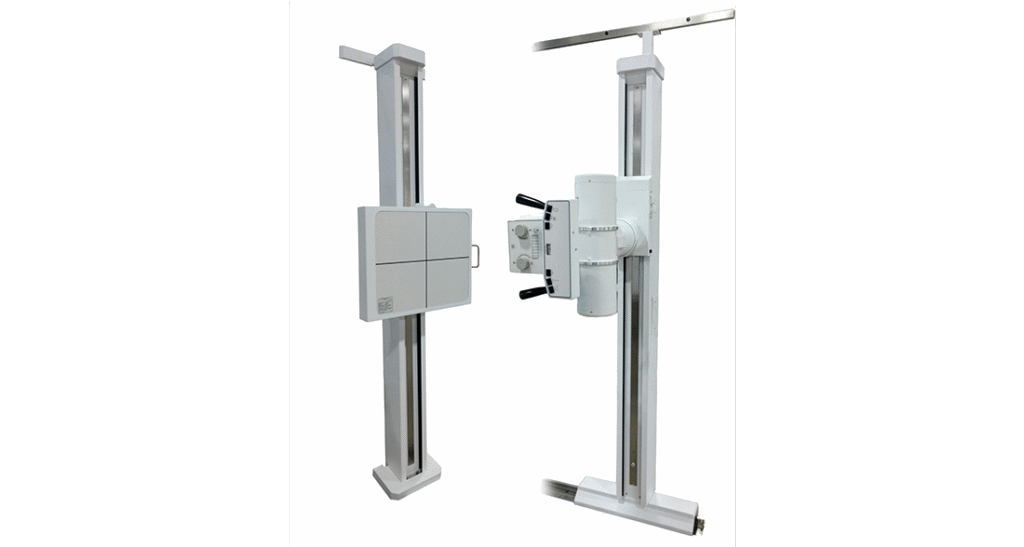

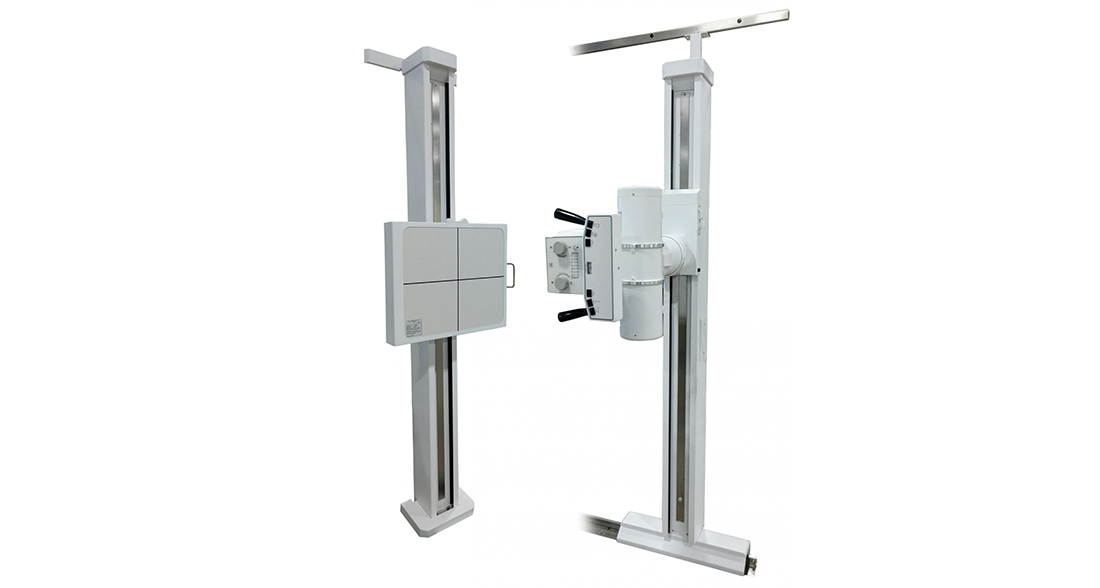

The AMRAD Medical CS Classic is a wall-mounted X-ray system designed for chiropractic, pulmonology, occupational medicine, and outpatient imaging facilities. Its counterbalanced tube and wall stands provide flexible upright positioning, while 30–50 kW generator options, DR upgrade compatibility, and an optional mobile table accommodate different radiographic needs.

CS Classic Highlights & Benefits

The AMRAD Medical CS Classic provides a dedicated upright radiography solution for facilities focused on chest, spine, and selected general X-ray examinations. Its counterbalanced tube stand and wall-mounted image receptor support flexible patient positioning, while configurable generators and optional accessories accommodate different imaging requirements.

Key Benefits

    • Versatile upright imaging: Supports chest radiography, selected spine examinations, and occupational health imaging.
    • Flexible tube positioning: 360° tube angulation, extensive vertical adjustment, and 10 inches of transverse movement.
    • Counterbalanced stands: Adjustable tube and wall stands with electric positioning locks.
    • 30–50 kW generator options: Multiple configurations for different examination requirements.
    • Compact configuration: Wall-mounted receptor stand without a permanent radiographic table.
    • DR upgrade compatibility: Supports compatible digital detectors and acquisition software.
    • Optional mobile table: Expands positioning capabilities for additional radiographic examinations.
    • 5-year parts warranty: Manufacturer-backed parts coverage, subject to applicable terms.



Upright Imaging & Patient Positioning

The AMRAD Medical CS Classic combines independently adjustable tube and wall stands to accommodate different patient heights and radiographic projections. Both assemblies are counterbalanced for easier positioning, with electric locks that secure the selected alignment during examinations.

Counterbalanced Tube Stand with 360° Angulation

The CS Classic features a non-rotating tube stand with a 24-inch (61 cm) angulating tube arm. The X-ray tube provides 360° angulation with detents at 0° and ±90°, while 10 inches (25.4 cm) of total transverse movement allows additional alignment flexibility. Together with the stand’s vertical and horizontal travel, these adjustments accommodate a range of upright imaging positions.

Technologists can reposition the tube using the integrated handgrips and angulation dial, then secure the selected position with electric locks.

Height-Adjustable Wall Stand

The counterbalanced wall stand provides approximately 10–72 inches (25.4–182.9 cm) of detector center height adjustment, allowing the image receptor to accommodate different patient heights and examination positions.

Its 17 × 17-inch (43.2 × 43.2 cm) grid cabinet includes a heavy-duty cassette tray and electric positioning locks, with left- or right-side cassette loading specified during configuration. The stand also supports compatible digital detectors when equipped with an appropriate DR package.

Optional Mobile Table for Additional Examinations

For facilities requiring additional general radiography capabilities, the CS Classic can be paired with an optional mobile table. This expands the available patient positioning options beyond upright imaging without requiring a permanent fixed radiographic table.

Table dimensions, patient weight capacity, and supported examinations depend on the selected model.



Clinical Environments & Applications

The AMRAD Medical CS Classic supports upright chest, spine, and selected general radiographic examinations, making it suitable for chiropractic, pulmonary, occupational health, and outpatient imaging facilities.

Clinical Environments

    • Chiropractic clinics
    • Pulmonology clinics
    • Occupational medicine clinics
    • Cardiology and internal medicine practices
    • Primary care and multispecialty clinics
    • Urgent care centers
    • Outpatient diagnostic imaging centers
    • Hospital outpatient radiology departments
    • Orthopedic practices with compatible upright imaging requirements

Clinical Specialties & Imaging Applications

    • Chiropractic: Selected upright cervical, thoracic, and lumbar spine radiographs.
    • Pulmonology: Chest radiography, respiratory evaluations, and follow-up imaging.
    • Occupational Medicine: Chest radiography for workplace health assessments and respiratory surveillance.
    • Cardiology & Internal Medicine: Upright chest radiography for thoracic and cardiopulmonary evaluations.
    • General Radiology: PA and lateral chest examinations, selected upright extremity views, and additional examinations with an optional mobile table.
    • Orthopedics: Selected upright spine and extremity radiographs where positioning and detector coverage permit.



CS Classic Imaging Workflow

The AMRAD Medical CS Classic uses independent tube and receptor positioning to accommodate different imaging projections without automated tracking. The tube stand provides vertical, horizontal, and transverse movement, along with 360° tube angulation, while the wall stand can be adjusted separately to achieve the required receptor height. Electric locks secure both assemblies once aligned.

For beam positioning, the CS Classic collimator configuration includes adjustable shutters, a white LED field light, laser positioning assistance, and a measuring tape. These controls provide flexibility for different examination fields, with a 150 kVp-rated collimator and six pairs of shutters for beam limitation.



Generator & Digital Imaging Options

30–50 kW Generator Configurations

The CS Classic is available with 30–50 kW generator options for upright chest imaging and selected general radiographic examinations. The appropriate generator depends on the facility’s clinical workload and electrical infrastructure, with tube voltage, current, and exposure capabilities determined by the selected configuration.

Digital Radiography Upgrade Compatibility

The CS Classic supports compatible digital radiography (DR) upgrades, allowing facilities to select detector and acquisition software options based on their imaging requirements. Fixed or wireless detectors may be available depending on the selected package, with image processing capabilities and PACS integration determined by the installed DR system.

Digital detectors, acquisition workstations, and related software are configuration-dependent.



Installation & Room Requirements

Floor-to-Wall or Floor-to-Ceiling Mounting

The CS Classic offers floor-to-wall and floor-to-ceiling tube stand mounting configurations to accommodate different X-ray room layouts. Its 8-foot (2.44 m) rails provide approximately 6.5 feet (1.98 m) of horizontal travel, with final mounting requirements determined by ceiling height, structural support, and equipment clearances.

Electrical, Shielding, & Room Planning

Installation planning should account for generator electrical requirements, radiation shielding, equipment movement, and patient access, along with network and workstation accommodations when DR equipment is included.

MXR Imaging provides room planning, radiation shielding, equipment installation, and turnkey project management services to support the installation process.



CS Classic Configurations, Price & Availability

The AMRAD Medical CS Classic can be configured for dedicated upright chest radiography or expanded imaging applications with optional equipment. Generator selection, tube stand mounting, image receptor compatibility, DR upgrades, and mobile table options can be matched to the facility’s clinical requirements.

Equipment Selection & Long-Term Support

MXR Imaging assists facilities with equipment selection, configuration, and installation planning, with additional support available throughout ownership. Services include preventive maintenance, X-ray system repairs, and ongoing equipment support through MXR Imaging’s nationwide service network.

Pricing & Availability

Pricing depends on the selected generator, detector package, accessories, installation requirements, and associated services. Contact MXR Imaging to discuss available configurations and installation options.

Final equipment specifications and availability are subject to confirmation.




AMRAD Medical CS Classic X-Ray System Specifications

System Configuration

    • Manufacturer: AMRAD Medical by Summit Industries
    • Model: CS Classic
    • System type: Wall-mounted chest X-ray system
    • Primary applications: Upright chest and selected general radiography
    • Generator options: 30–50 kW
    • Tube stand: Non-rotating, floor-to-wall or floor-to-ceiling mounted
    • Wall stand: Counterbalanced, floor-to-wall mounted
    • Digital radiography: DR upgrade compatible
    • Optional equipment: Mobile radiographic table
    • Warranty: 5-year manufacturer parts warranty, subject to applicable terms

X-Ray Tube Stand Specifications

    • Tube arm length: 24 in. (61 cm)
    • Tube angulation: 360°, with 0° and ±90° detents
    • Transverse movement: ±5 in. (±12.7 cm)
    • Minimum focal spot height: 13.25 in. (33.7 cm) above the floor
    • Maximum vertical dimension: 73.5 in. (186.7 cm), per manufacturer specification
    • Rail length: 8 ft. (2.44 m)
    • Horizontal travel: Approximately 6.5 ft. (1.98 m)
    • Tube mounting: Platform tube mount
    • Positioning controls: Angulation dial and operator handgrips
    • Electric locks: Vertical, horizontal, transverse, and tube arm angulation
    • Operating voltage: 24 VDC

Wall Stand & Detector Specifications

    • Mounting: Floor-to-wall
    • Column: Counterbalanced
    • Detector center height: Approximately 10–72 in. (25.4–182.9 cm) above the finished floor
    • Grid cabinet: 17 × 17 in. (43.2 × 43.2 cm)
    • Grid ratio: 10:1
    • Grid density: 103 lines per inch
    • Cassette tray: Heavy-duty deluxe
    • Loading orientation: Left or right, specified during configuration
    • Positioning locks: Electric
    • Detector compatibility: Conventional image receptors and compatible DR configurations
    • Collimator Specifications
    • Rated capacity: 150 kVp
    • Beam field: Adjustable square field
    • Shutters: Six pairs
    • Positioning assistance: Laser positioning light and measuring tape
    • Field illumination: White LED
    • Minimum inherent filtration: 2 mm aluminum equivalent

Generator & Digital Imaging Specifications

    • Generator power: 30–50 kW configurations
    • Image acquisition: Conventional radiography or compatible DR configuration
    • Digital upgrade: Supported
    • Detector options: Configuration-dependent
    • Acquisition software: Dependent on selected DR package
    • Optional mobile table: Available

Dimensions & Installation Requirements

    • Tube stand mounting: Floor-to-wall or floor-to-ceiling
    • Rail length: 96 in. (243.8 cm)
    • Horizontal travel: Approximately 78 in. (198.1 cm)
    • Ceiling height requirements: Dependent on selected mounting configuration
    • Structural requirements: Appropriate floor, wall, and ceiling support
    • Electrical requirements: Generator- and configuration-dependent
    • Radiation protection: Site-specific shielding and regulatory compliance

Final dimensions, electrical requirements, and equipment compatibility should be confirmed for the selected configuration.

For additional information and specifications, access the PDF provided below.
