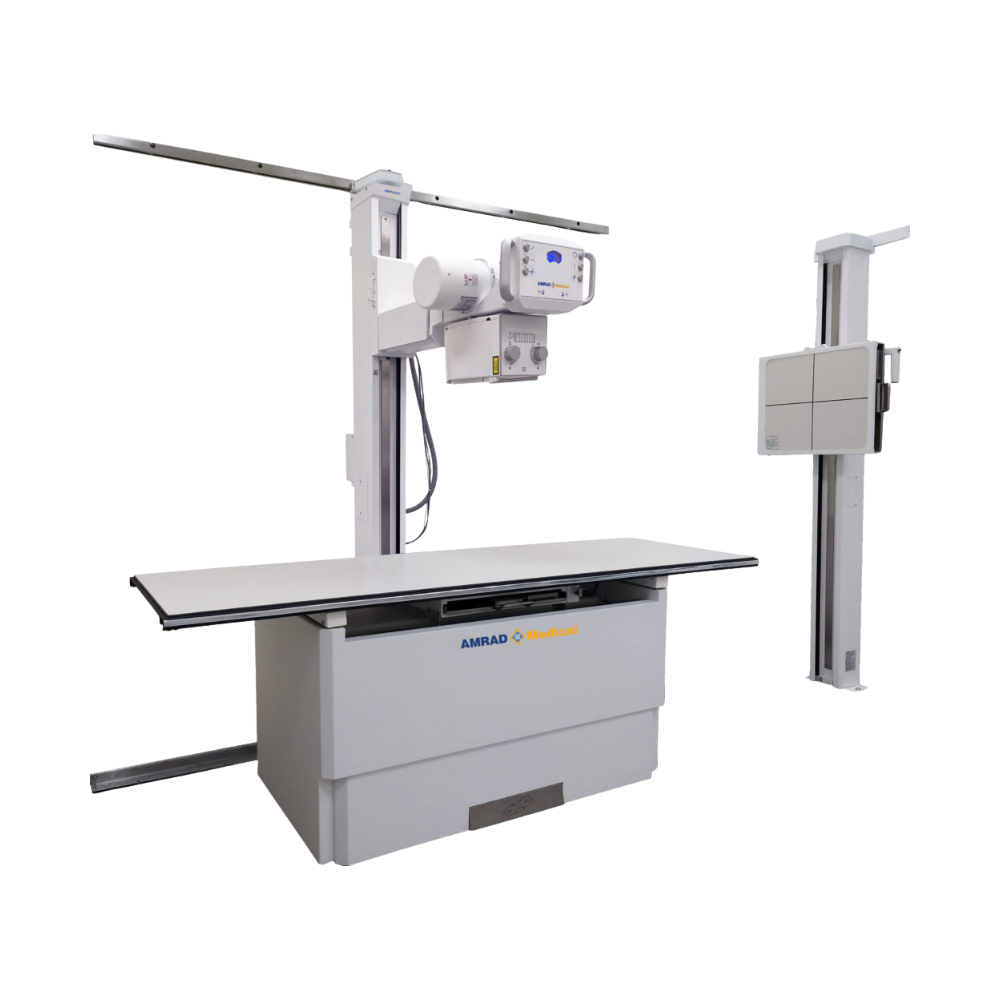

AMRAD Medical SIMPLICITY FW/FC X-Ray System

Floor-Wall and Floor-Ceiling Tube Stand Design

The AMRAD Medical SIMPLICITY is available in either a floor-wall (FW) or floor-ceiling (FC) tube stand configuration, allowing facilities to select the installation approach that best fits their room layout and construction requirements.

Both configurations utilize a floor-mounted rail system that supports efficient longitudinal positioning between table and wall stand imaging locations. The result is a practical and affordable radiography room that delivers essential imaging functionality while minimizing space requirements and facility modifications.

Key Features

• • Available in floor-wall (FW) and floor-ceiling (FC) configurations
  • Longitudinal floor rail positioning between table and wall stand
  • Four-way float radiographic table
  • Weight-bearing wall stand capabilities
  • Electric lock positioning controls
  • DR-ready design for digital radiography workflows

Built with a simple, durable design, the SIMPLICITY helps facilities perform routine diagnostic radiography efficiently while avoiding the complexity and space requirements of larger overhead tube crane systems.

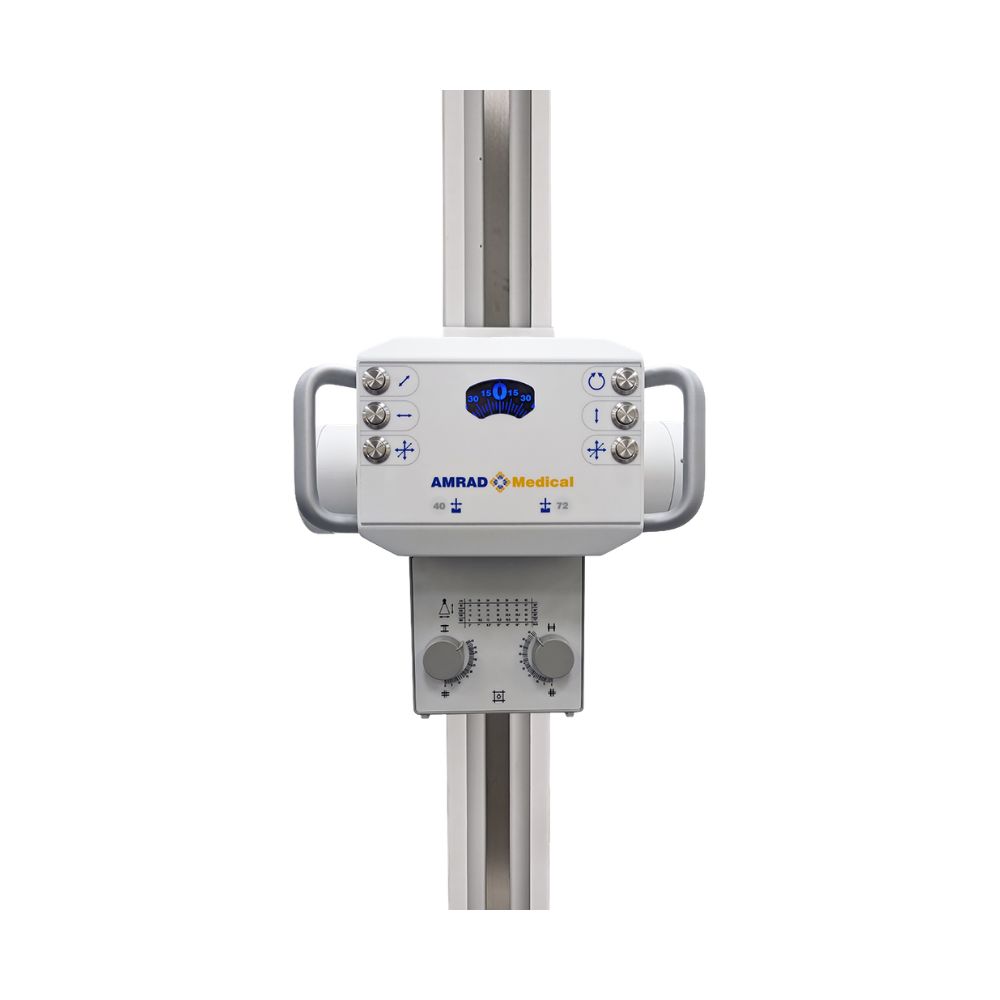

FW/FC Tube Stand Positioning

Whether configured as a floor-wall or floor-ceiling installation, the SIMPLICITY provides smooth longitudinal movement and precise positioning for both table and upright imaging exams.

Purpose-built detent locations help technologists quickly align the tube for common imaging positions, while the easy-read angulation dial simplifies positioning adjustments and supports workflow consistency throughout the imaging process.

Positioning Features

• • 360° rotational tube stand base with 90° detents
  • Fixed-length angulating tube arm
  • Electric locks for vertical, horizontal, and tube arm positioning
  • Fully counterbalanced tube stand design
  • Easy-read angulation dial

These positioning features help support efficient patient throughput while maintaining accurate exam setup.

Clinical Applications

The AMRAD Medical SIMPLICITY is designed for outpatient radiography environments that need versatile general X-ray capabilities within a compact footprint. Its combination of table imaging, upright imaging, and weight-bearing exam support makes it well suited for facilities performing routine diagnostic radiography without the complexity of a larger overhead tube crane room.

Ideal Healthcare Environments

• • Urgent care centers
  • Outpatient imaging centers
  • Community health centers
  • Primary care and multi-specialty clinics
  • Rural hospitals and critical access hospitals
  • Orthopedic and sports medicine practices
  • Podiatry clinics

Common Exams Performed

• • Upright chest imaging
  • General table radiography
  • Extremity studies
  • Weight-bearing lower extremity exams
  • Standing knee imaging

The wall stand’s extended vertical travel and low positioning capability support both routine upright imaging and weight-bearing studies, while the four-way float table provides flexibility for a wide range of general radiography procedures.

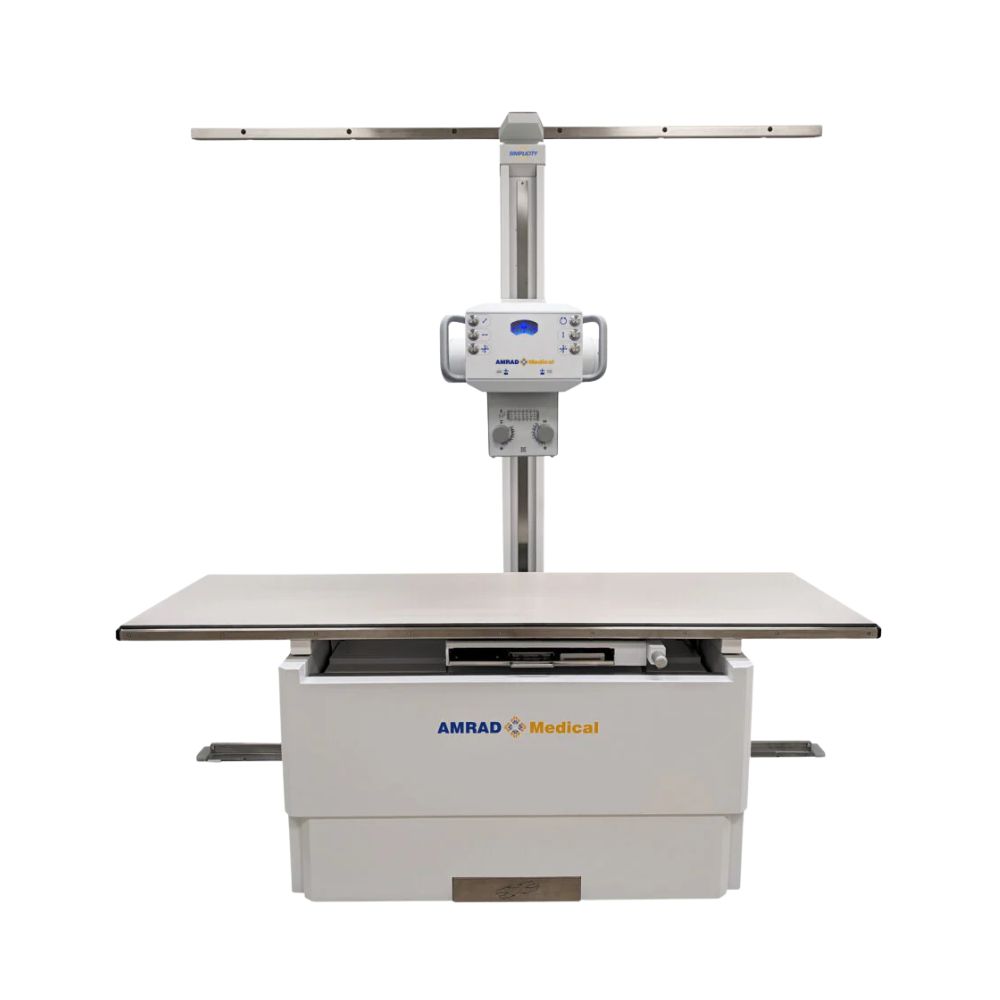

Radiographic Table Design

The included four-way float radiographic table is designed to support patient comfort, efficient positioning, and everyday workflow demands.

Its low table height helps simplify patient transfers, while the generous weight capacity supports a broad patient population across a variety of exam types.

Table Features

• • Four-way float tabletop
  • 400 lb patient capacity
  • Foot-treadle tabletop controls
  • Recessed foot pedal design
  • 84 in. × 30 in. tabletop
  • 31.5 in. table height

The hands-free foot treadle operation allows technologists to reposition the table efficiently while maintaining focus on patient positioning and safety.

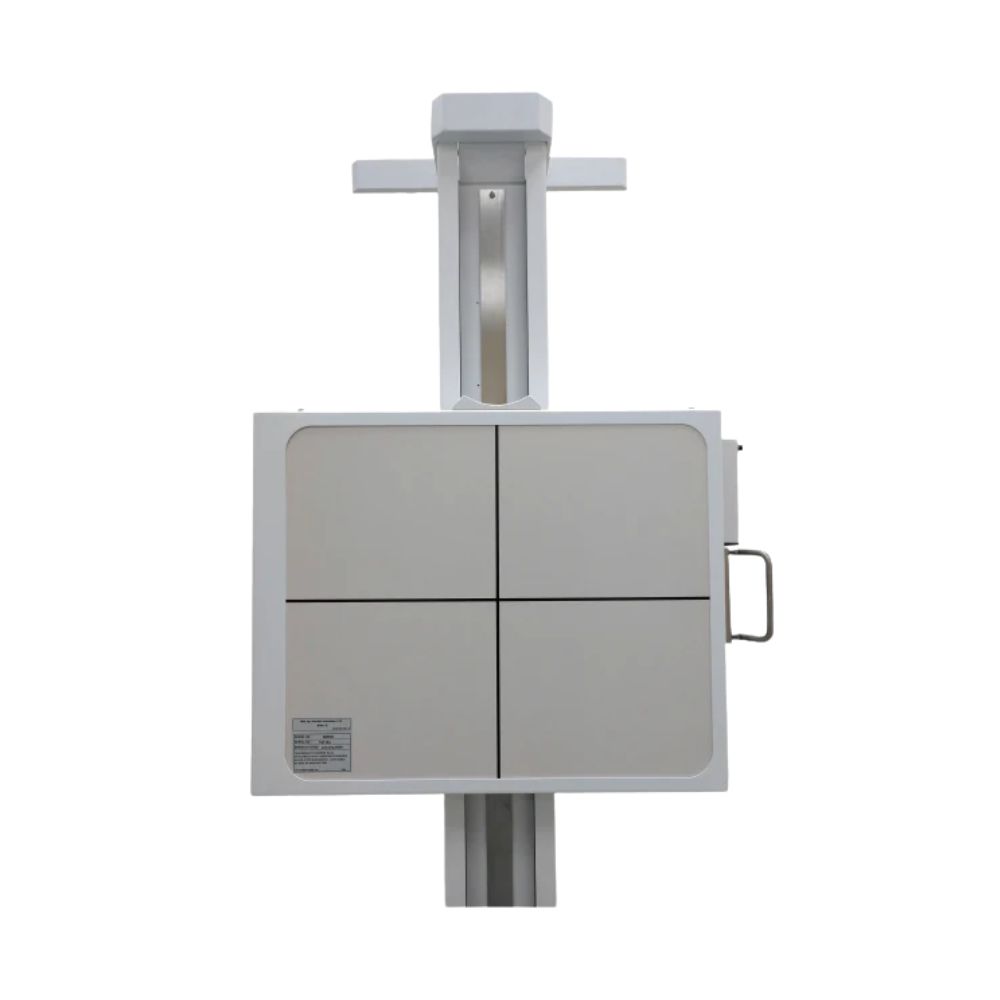

Wall Stand Positioning

The SIMPLICITY wall stand is designed to support upright chest imaging, extremity exams, and weight-bearing studies.

Its extended vertical travel range accommodates patients of varying heights while allowing receptor positioning close to the floor for standing lower-extremity imaging.

Wall Stand Features

• • Vertical receptor travel from floor level to 76 in.
  • One-touch release positioning handle
  • Fully counterbalanced design
  • Integrated chin rest
  • Electric lock operation

The low-positioning capability makes the wall stand particularly useful for standing knee and other weight-bearing studies.

DR-Ready Digital Radiography Workflow

The AMRAD Medical SIMPLICITY is DR ready and compatible with modern digital radiography workflows. Facilities can pair the system with fixed or wireless DR detectors and digital acquisition software to support efficient image capture, image processing, and exam throughput.

This flexibility allows practices to implement digital imaging workflows while maintaining the straightforward operation and compact design that define the SIMPLICITY platform.

Specifications

Tube Stand (S225)

• • Floor-wall or floor-ceiling mounted configuration
  • Fully counterbalanced design
  • 8 ft floor rail standard
  • Optional 10 ft floor rail
  • ±5 in. transverse tube arm travel
  • 360° rotational base with 90° detents
  • Vertical focal spot travel: 13.5 in. to 76.8 in.
  • Easy-read angulation dial
  • Electric lock release system
    24 VDC operation

Radiographic Table (S210)

• • Non-elevating four-way float table
  • 400 lb patient capacity
  • 84 in. × 30 in. tabletop
  • 31.5 in. table height
  • 28 in. longitudinal travel
  • ±5 in. transverse travel
  • 17 in. grid cabinet
  • 10:1 grid ratio
  • 103 LPI grid

Wall Stand (S109)

• • Fully counterbalanced wall stand
  • Vertical receptor travel from floor level to 76 in.
  • Electric lock operation
  • 17 in. × 17 in. grid cabinet
  • Heavy-duty cassette tray
  • Left-load or right-load configuration available
  • 10:1 grid ratio
  • 103 LPI grid
