Radmedix Acuity CDR Chiropractic X-Ray

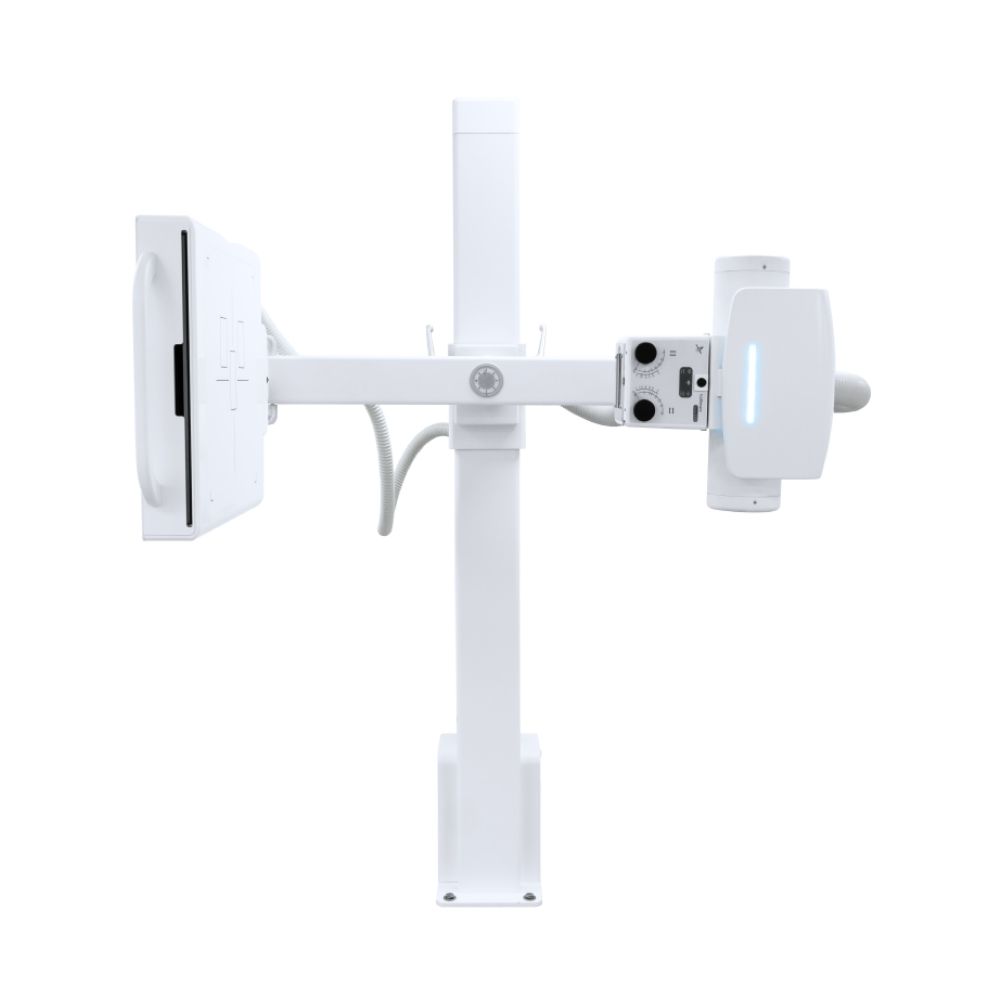

Acuity CDR Straight-Arm Design & Key Features

The Radmedix Acuity CDR brings X-ray generation, digital image acquisition, positioning, and software controls together in a compact straight-arm system designed around chiropractic radiography. Its integrated configuration supports standing exams while reducing the equipment footprint and number of separately positioned components within the X-ray room.

Key Benefits

• • Ultra-small-footprint straight-arm design
  • Integrated high-frequency 40 kW X-ray generator
  • Integrated digital radiography
  • Head-to-toe vertical positioning for standing exams
  • Arm angulation with rotating Bucky alignment
  • Fully counterbalanced movement with magnetic lock brakes
  • Fixed 40 in. (101.6 cm) source-to-image distance
  • Integrated software with anatomy-based technique selection

Additional system features include a rotating dual-laser LED collimator, removable grid, and optional Automatic Exposure Control (AEC). Together, these technologies give chiropractic practices a dedicated system for digital image acquisition and standing radiographic positioning within a compact configuration.

Acuity CDR System Overview

See the Radmedix Acuity CDR straight-arm system and its chiropractic-focused positioning and imaging configuration.

Acuity CDR Room Fit & Installation

The physical requirements of an X-ray system can be just as important as its imaging capabilities, particularly when replacing equipment or planning a chiropractic X-ray room. The Acuity CDR addresses this with a compact integrated configuration and fixed imaging geometry.

Ultra-Small Footprint

Radmedix designed the Acuity CDR with an ultra-small footprint to accommodate a wide range of chiropractic X-ray rooms.

Its straight-arm configuration keeps the tube head and image receptor within the same positioning assembly, reducing the need for the larger mechanical footprint associated with some conventional radiographic room configurations.

Fixed 40-Inch SID Considerations

The Acuity CDR uses a fixed 40 in. (101.6 cm) source-to-image distance, maintaining a consistent relationship between the X-ray tube and image receptor as the system is positioned.

Practices that use imaging protocols based on a different SID should confirm that the Acuity CDR’s fixed 40-inch configuration aligns with their requirements when evaluating the system.

Streamlined Installation

The Acuity CDR’s compact, integrated construction is designed to simplify installation and reduce installation time compared with more complex room configurations.

Actual room requirements depend on the installation site. MXR can help evaluate system configuration and installation needs when planning an Acuity CDR X-ray room.

Acuity CDR Chiropractic Applications

The Radmedix Acuity CDR is designed specifically for standing chiropractic radiography. Its vertical positioning range allows the imaging assembly to move from the skull through the lower extremities while keeping the tube and Bucky within one integrated positioning system.

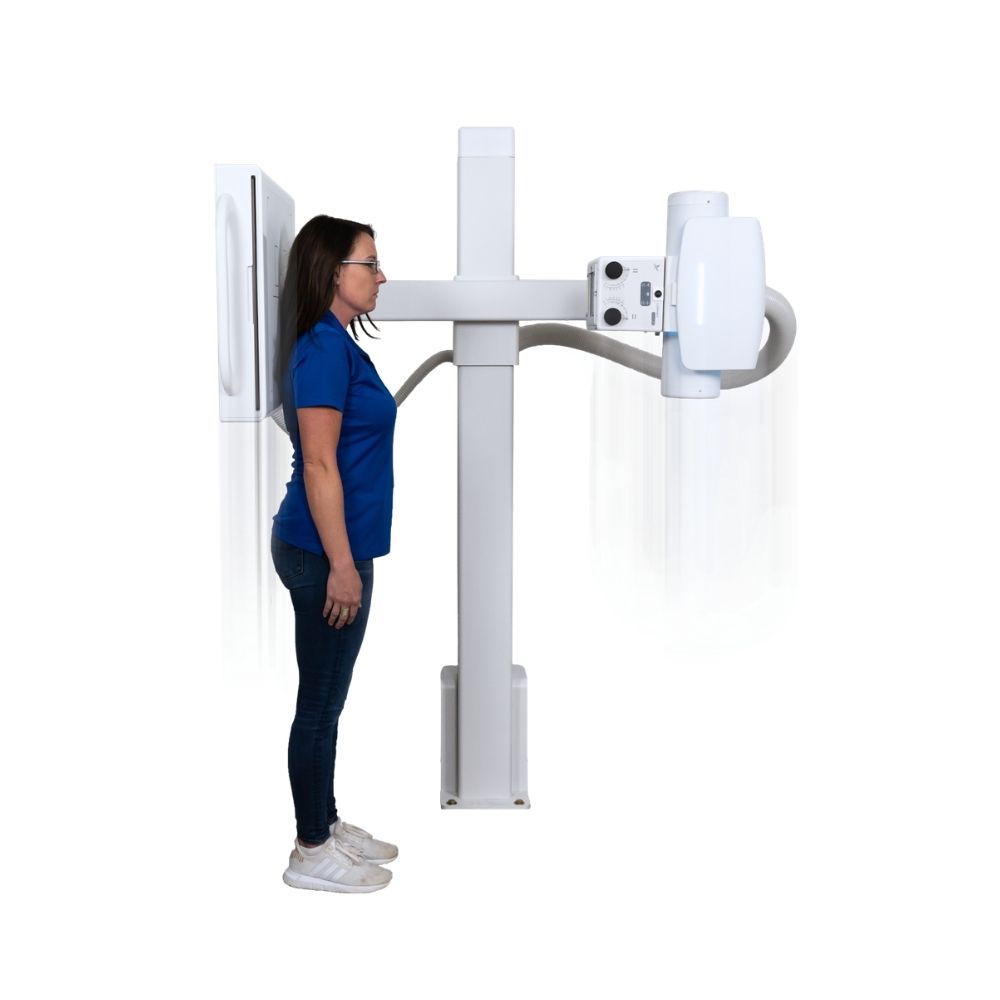

Head-to-Toe Standing Imaging

The Acuity CDR raises and lowers to support standing radiographic examinations across multiple anatomical regions, including:

• • Skull and cervical region
  • Thoracic and lumbar spine
  • Pelvic region
  • Upper extremities
  • Lower extremities

This head-to-toe positioning range allows chiropractic practices to perform standing skeletal and spinal radiography with one dedicated X-ray system.

Angled Chiropractic Views

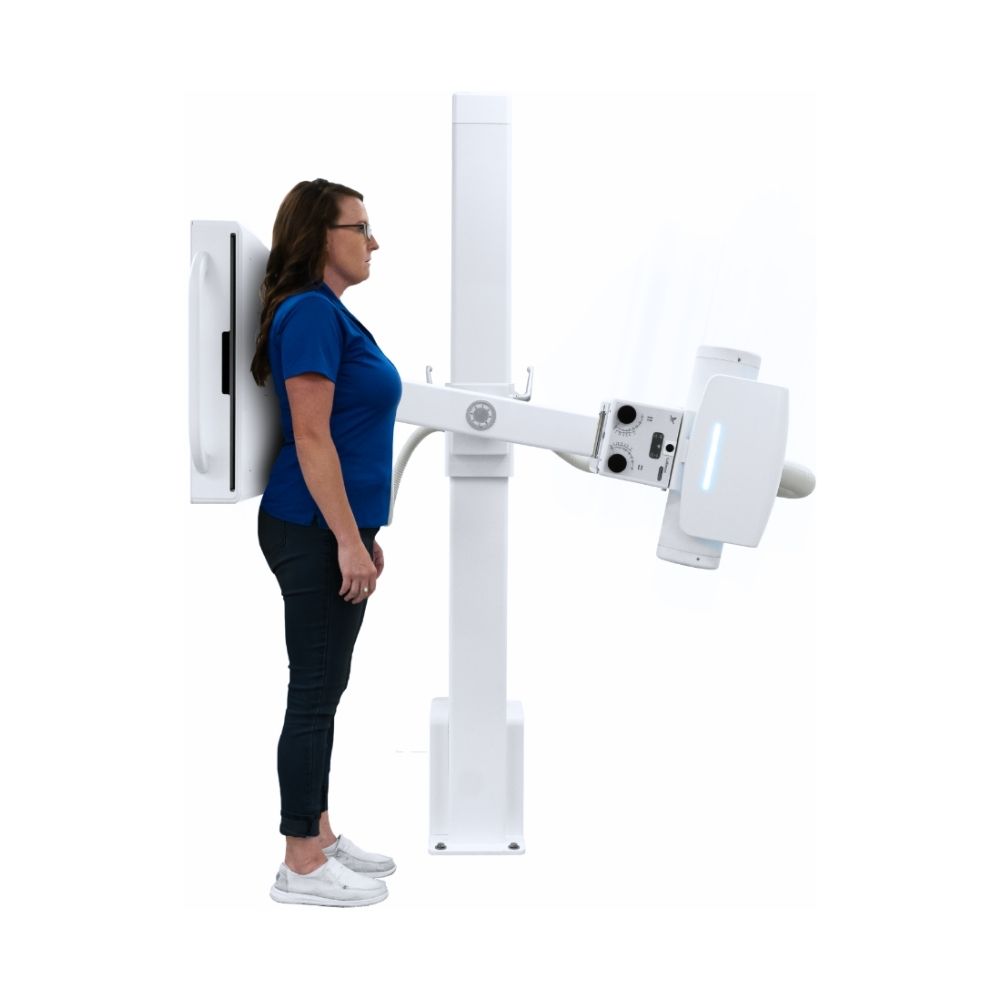

The Acuity CDR arm can be angled when an examination requires positioning beyond a horizontal projection or adjustment for anatomical variation.

As the arm is angled, the Bucky rotates to maintain alignment with the X-ray tube. This coordinated movement helps preserve the tube-to-receptor relationship during angled positioning.

Acuity CDR Positioning & Workflow

The Acuity CDR combines mechanical positioning with integrated generator and software controls, helping streamline the workflow from exam selection and patient positioning through exposure and digital image acquisition.

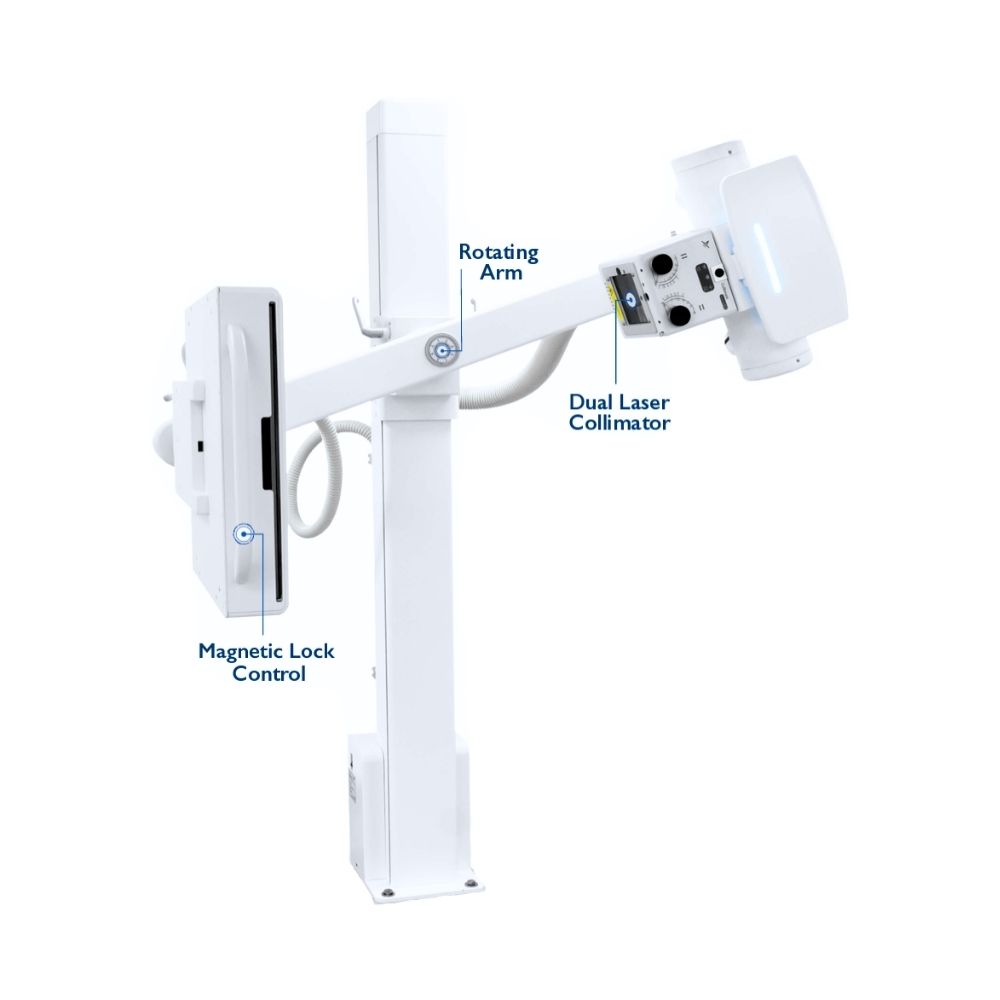

Counterbalanced Magnetic Positioning

The system is fully counterbalanced for vertical movement and uses magnetic lock brakes controlled from the positioning handle.

The operator can raise or lower the imaging assembly to the required anatomical level and secure the system in position without separately moving the tube head and Bucky.

Arm Angulation & Rotating Bucky

The Acuity CDR provides arm angulation for exams requiring an angled projection. The Bucky rotates with the positioning assembly to maintain alignment with the X-ray tube as the arm angle changes.

Keeping these components mechanically coordinated reduces the need for independent tube and receptor realignment during positioning.

Anatomy-Based Technique Presets

The Acuity CDR software is fully integrated with the X-ray generator. X-ray techniques can be preselected according to the anatomical region selected for the examination.

This integration connects exam selection more directly with technique setup, positioning, exposure, and digital image acquisition.

Acuity CDR Generator, DR & Software

The Acuity CDR integrates the core technologies required for chiropractic radiography into the same straight-arm platform, including X-ray generation, digital image acquisition, collimation, and software controls.

Integrated 40 kW Generator

The Acuity CDR incorporates a high-frequency 40 kW X-ray generator within the system configuration.

The generator also communicates with the imaging software, allowing X-ray techniques to be associated with the anatomical region selected for the exam.

Integrated DR Detector Configuration

The Acuity CDR is designed for integrated digital radiography using a flat-panel detector configuration. Digital image acquisition is incorporated into the same workflow as patient positioning and generator operation.

Detector configurations and available options can vary. MXR can help practices review current detector options and determine the appropriate Acuity CDR configuration for their imaging needs.

The system also incorporates a removable grid, providing additional flexibility within the detector and Bucky configuration.

Dual-Laser LED Collimator

A rotating LED collimator with dual-laser alignment helps the operator establish the imaging field and align the system before exposure.

The collimator operates within the Acuity CDR’s fixed 40 in. (101.6 cm) imaging geometry. Optional Automatic Exposure Control is also available.

AccuVue Software Integration

Radmedix AccuVue software supports the Acuity CDR imaging workflow and integrates with the X-ray generator.

The software allows X-ray techniques to be preselected according to the anatomical region selected for the exam, helping reduce separate technique-setting steps and connect generator operation with digital image acquisition.

Acuity CDR Installation, Service & Support

Selecting an X-ray system also involves planning for installation and long-term equipment support. MXR provides X-ray equipment installation, preventative maintenance, repair, parts, and technical support for installed radiography systems.

For the Acuity CDR, MXR can also help practices evaluate room requirements, system configuration, detector options, and other equipment considerations before installation.

Ongoing X-ray service and support options are available to help practices maintain their imaging equipment throughout its operational life.

Radmedix Acuity CDR Specifications

System Configuration & Positioning

• • System type: Chiropractic digital X-ray system
  • Configuration: Compact straight-arm system
  • Primary clinical use: Chiropractic radiography
  • Patient positioning: Standing imaging
  • Vertical positioning: Skull through lower extremities
  • Arm positioning: Angulating arm
  • System movement: Fully counterbalanced
  • Positioning locks: Magnetic lock brakes with handle control
  • Bucky movement: Rotates to maintain tube alignment during arm angulation

Generator & Imaging Geometry

• • Generator: Integrated high-frequency X-ray generator
  • Generator power: 40 kW
  • Source-to-image distance: Fixed 40 in. (101.6 cm)
  • Automatic Exposure Control: Optional AEC
  • Collimator: Rotating LED collimator
  • Alignment: Dual laser

Digital Imaging & Software

• • Imaging technology: Digital radiography
  • Detector configuration: Integrated flat-panel DR configuration
  • Grid: Removable
  • Software: Radmedix AccuVue
  • Generator integration: Integrated with imaging software
  • Technique workflow: Anatomy-based X-ray technique preselection
  • Detector options: Contact MXR for current available configurations
