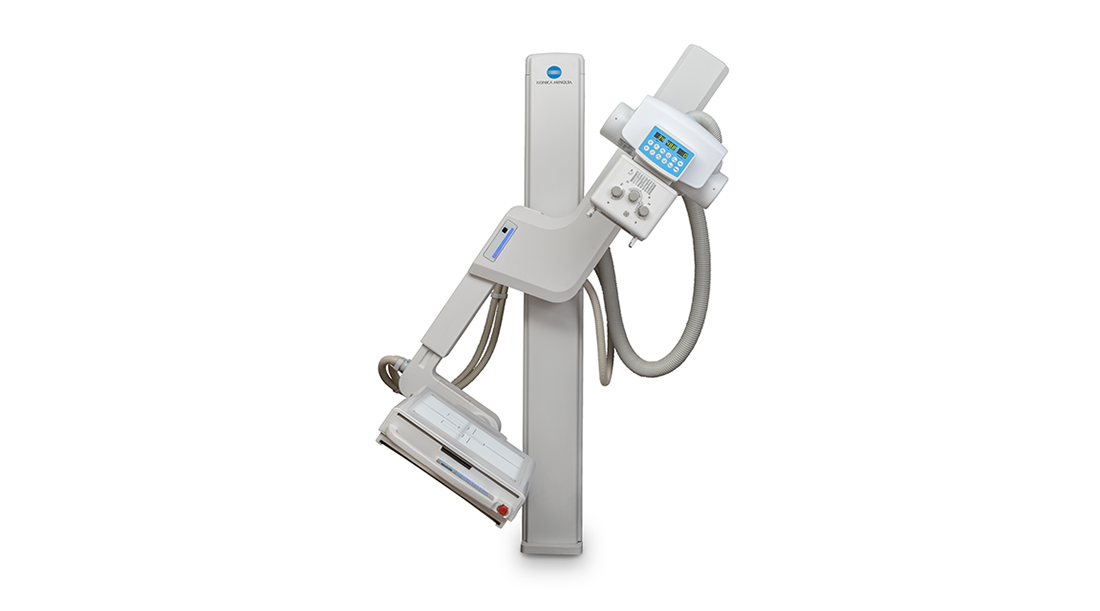

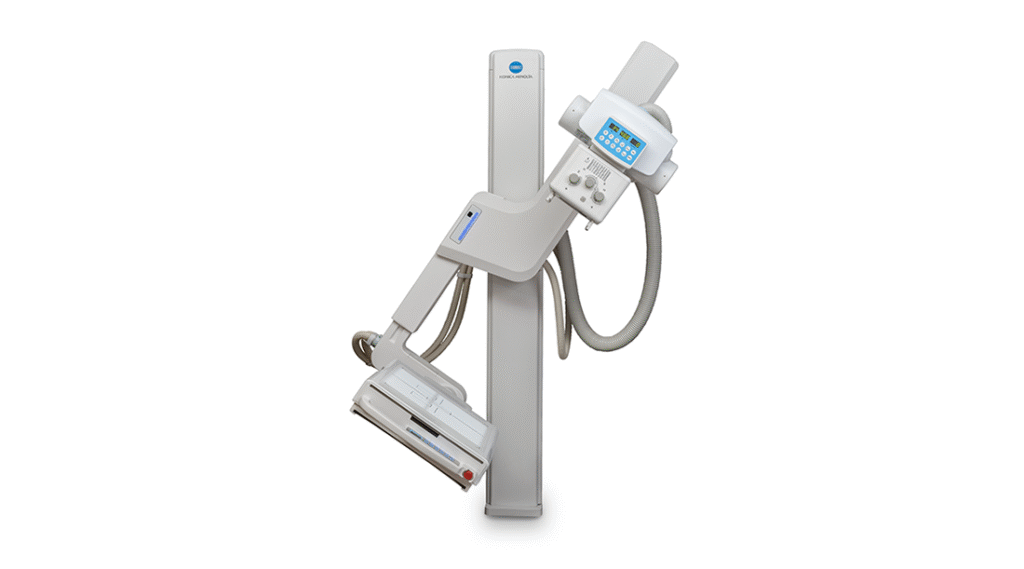

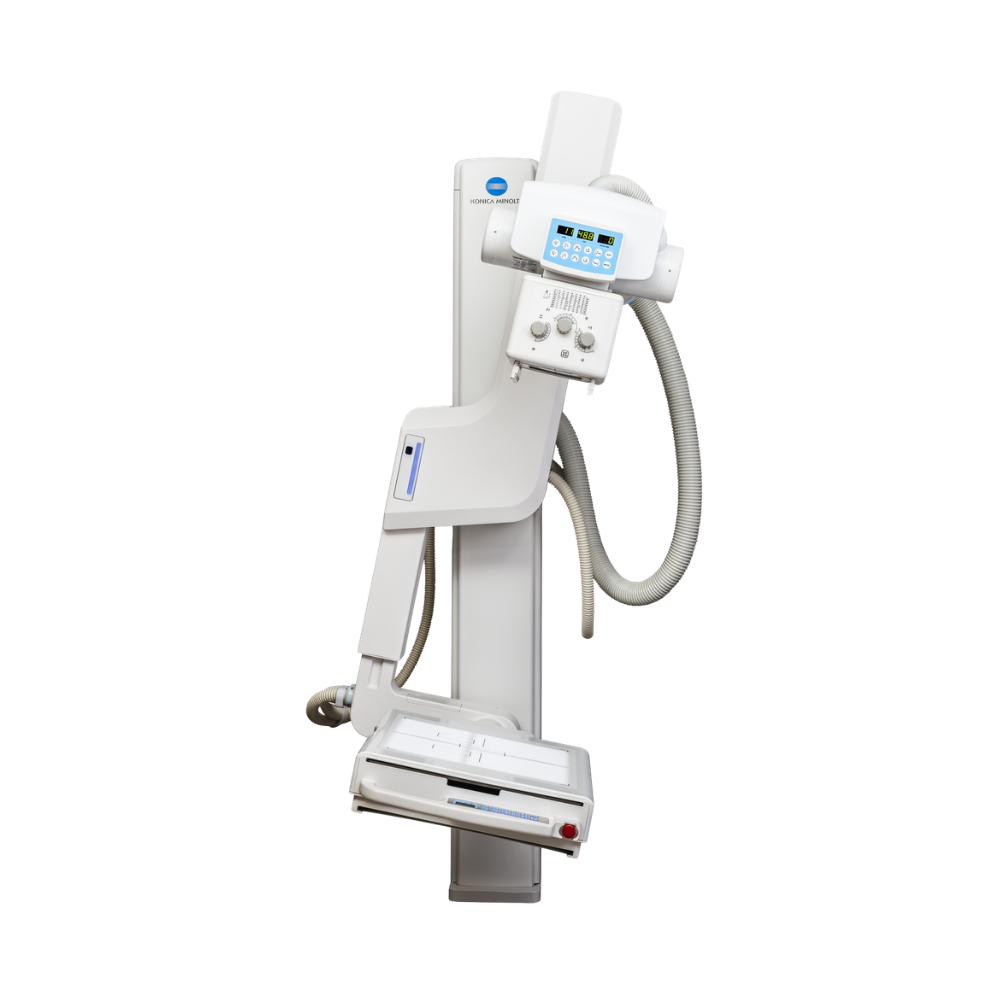

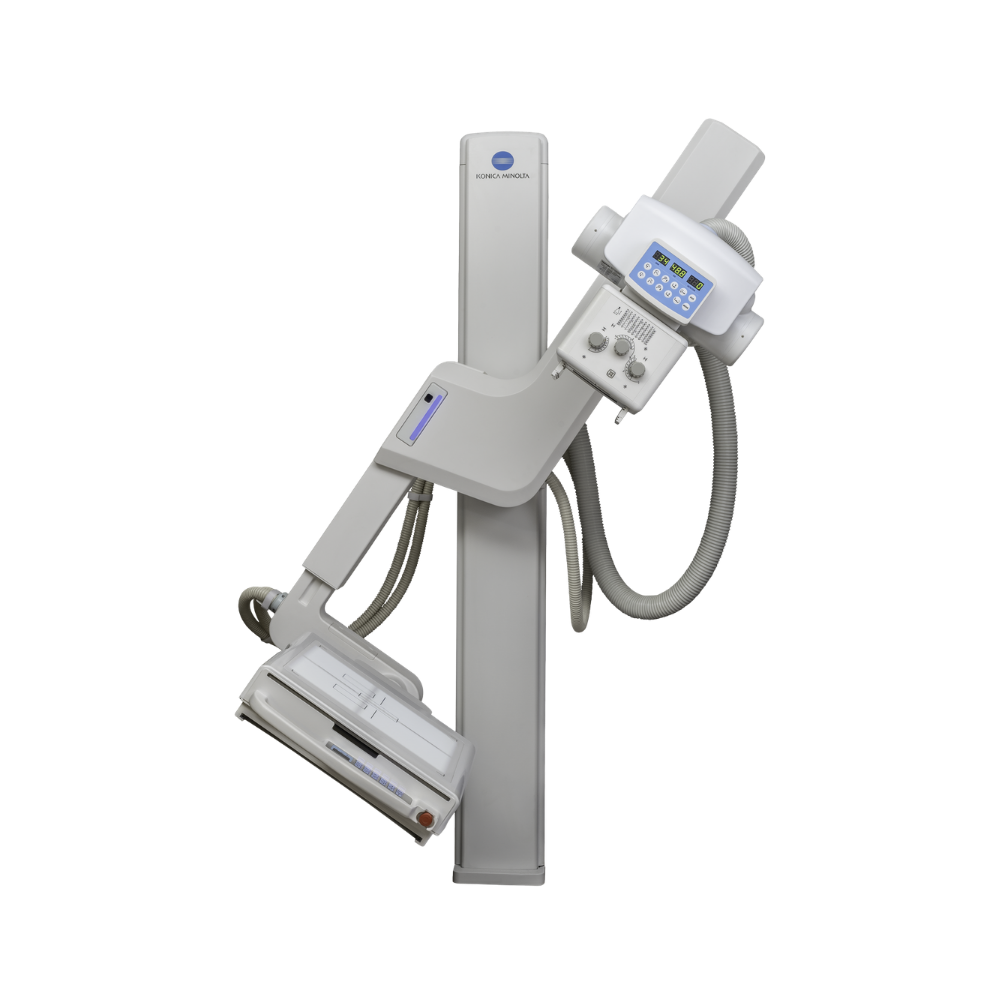

Konica Minolta KDR Primary U-Arm

Konica Minolta KDR Primary Video Tour & System Overview

High-Resolution U-Arm X-Ray Imaging

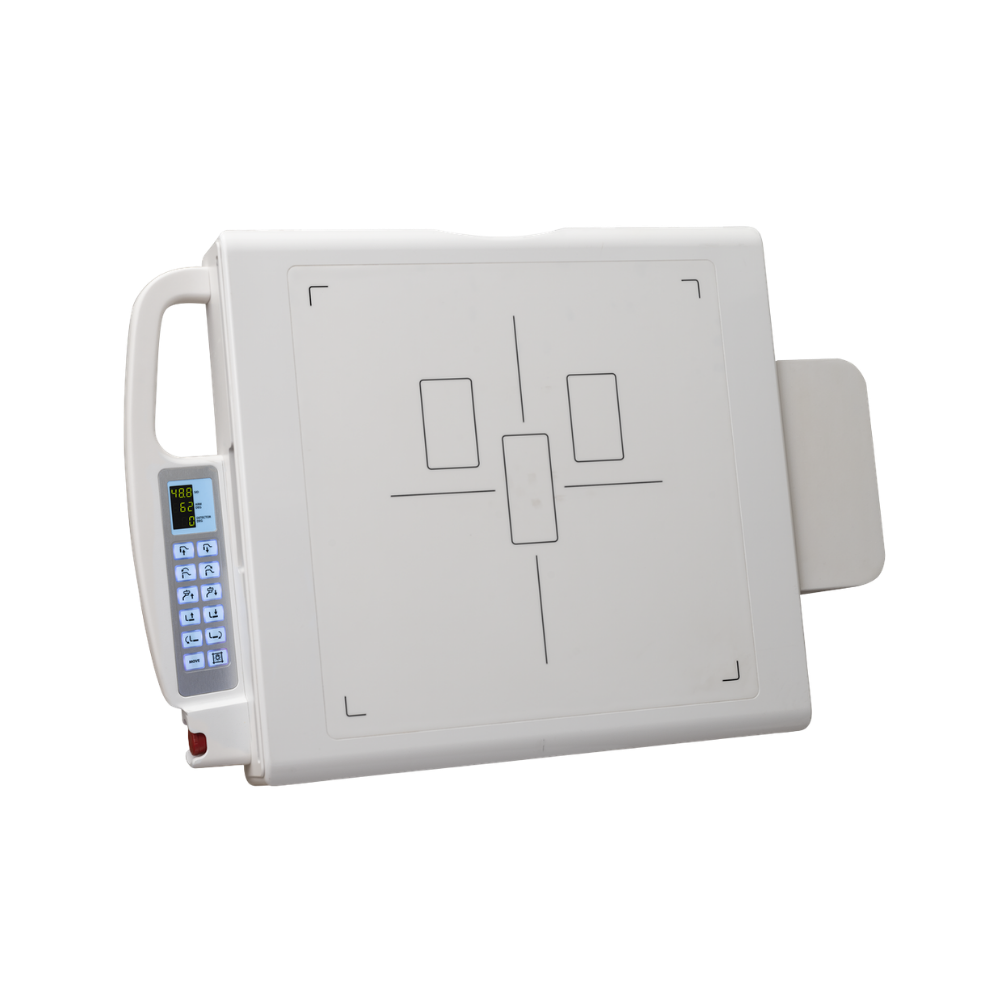

AeroDR 17×17 Detector & Advanced Software

The system includes a 17 in. x 17 in. detector that captures high-resolution digital images rapidly. Combined with ULTRA, the state-of-the-art Konica Minolta imaging software, the system delivers detailed bone and soft-tissue visualization for a complete diagnostic picture from a single exposure.

Rapid Decisions & Faster Patient Throughput

• • State-of-the-art imaging software supports detailed bone and soft-tissue visualization.
  • Immediate results allow clinicians to make critical care decisions faster.
  • High-resolution data improves diagnostic precision across diverse clinical applications, helping your practice maximize daily throughput.

Compact & Space-Saving Design

Standard Ceiling Fit & Wall-Flush Mount

The base and swivel arm install flush with the wall to maximize every square foot, allowing practices to avoid overcrowded exam rooms. This design provides staff with the freedom to maneuver easily and focus directly on patient care.

Floor Space Flexibility without Fixed Tables

• • Standard Ceiling Fit: Fits comfortably into a standard 8-foot ceiling room.
  • No Permanent Table Required: Eliminates the need for a fixed exam table, offering additional room flexibility.
  • Compact Setup: Maximizes clinical space without sacrificing advanced diagnostic capabilities.

Engineered for Patient Versatility

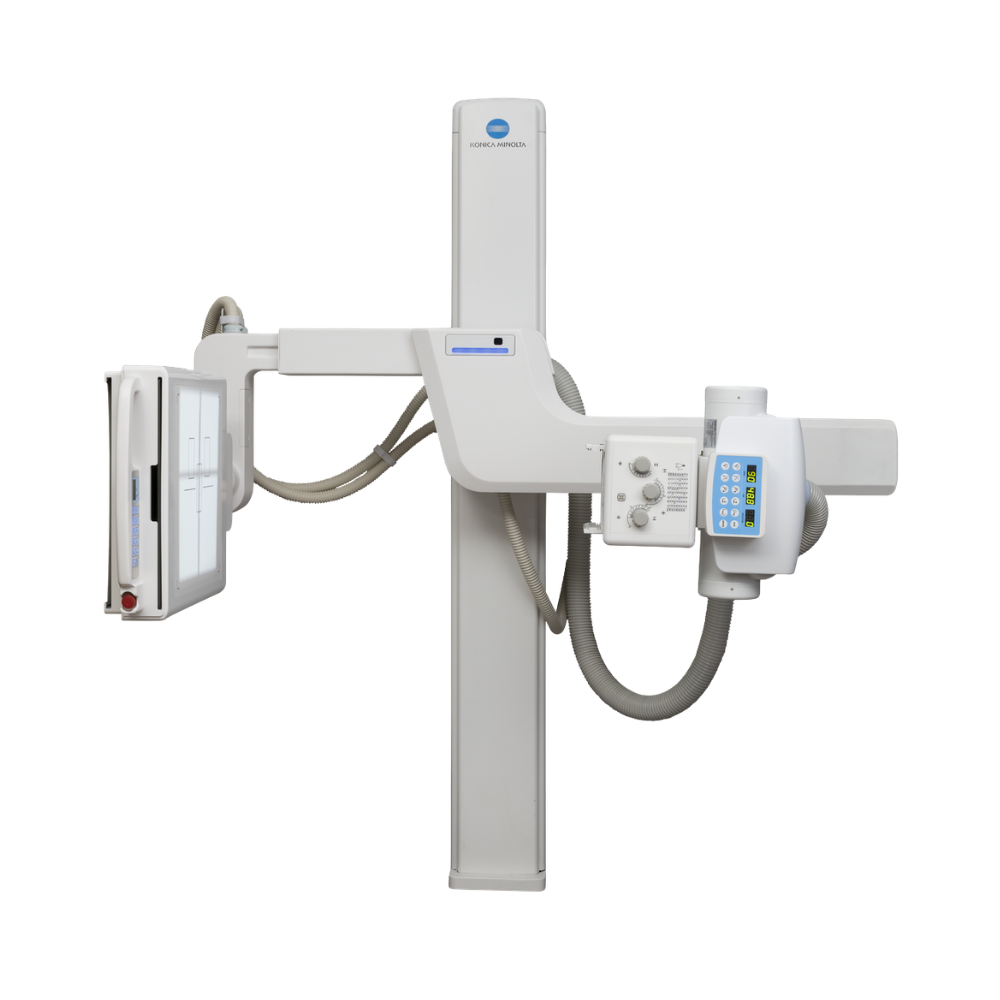

Full Range of Motion & Easy Positioning

An extensive range of motion enables all required imaging views while accommodating patients who are standing, sitting, lying on a table, or confined to a wheelchair.

135-Degree Arm Rotation & Detector Tilt

• • Swivel Arm Rotation: Rotates 135 degrees clockwise and counterclockwise.
  • Vertical Travel: Moves 39 inches vertically (40 to 170 cm) to easily arrive at the ideal exposure position.
  • Detector Tilt: Tilts 45 degrees in two directions for precise positioning.
  • Convenient Swivel Arm: Provides wide motion for flexibility and precision.

Specifications & System Setup

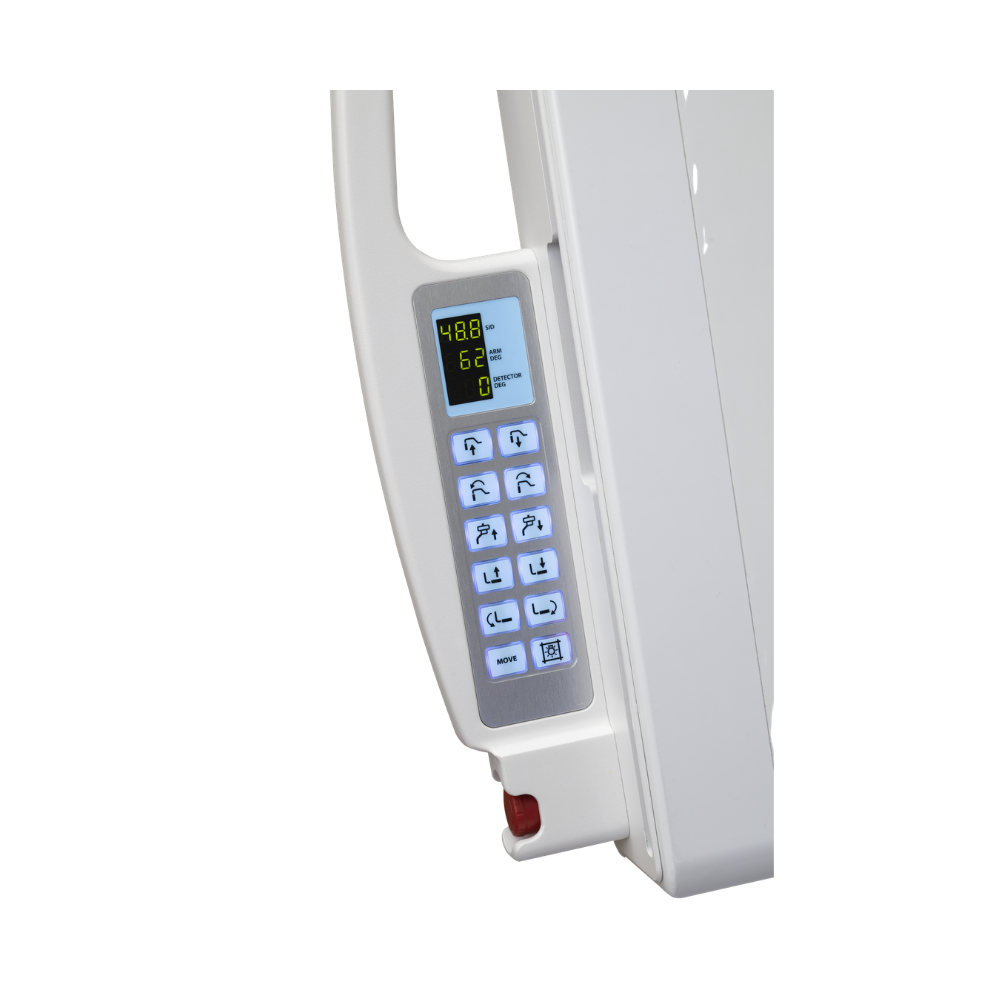

Motorized Movements & Mechanical Adjustments

• • Motor-assisted variable SID: 1000 to 1800 mm (39.5 to 72 in.)
  • Manual rotation with detents on 30, 60, 90, and 120 degrees
  • Tube rotation: +/- 90 degrees
  • Detector swivel: +/- 45 degrees

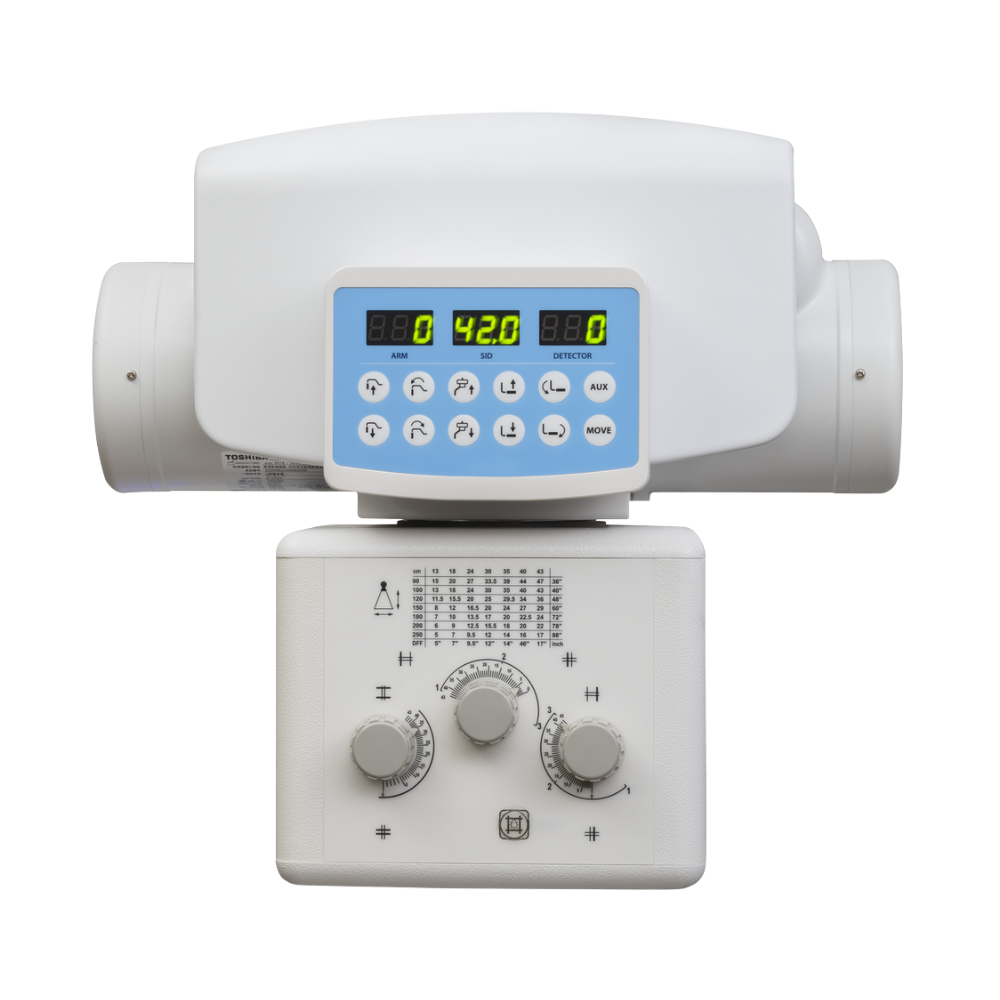

Manual Collimation & Field Light Controls

• • Manual control with six blades
  • Accessory rails for cones, filters, and DAP
  • Integrated field light

Configurable Tubes, Tables & Upgrades

• • Multiple tube and generator combinations with AEC options
  • Three-knob collimator
  • Weight-bearing stand
  • Pediatric imaging package
  • Mobile or standard radiographic tables

National Service & Expert System Support

Dedicated Maintenance & Equipment Lifecycle Support

MXR Imaging provides national service support for multiple modalities to ensure your equipment operates at peak performance. We offer customizable service offerings to healthcare networks, hospitals, imaging centers, and Independent Service Organizations, as well as orthopedic, podiatry, veterinary, chiropractic, and diagnostic centers.

Shared Commitment & Customer Focus

Together, MXR and Konica Minolta go beyond just imaging. By providing seamless coordination, exceptional service, and early access to new products, technologies, and upgrades, we keep innovation and customer satisfaction at the core of your practice.
