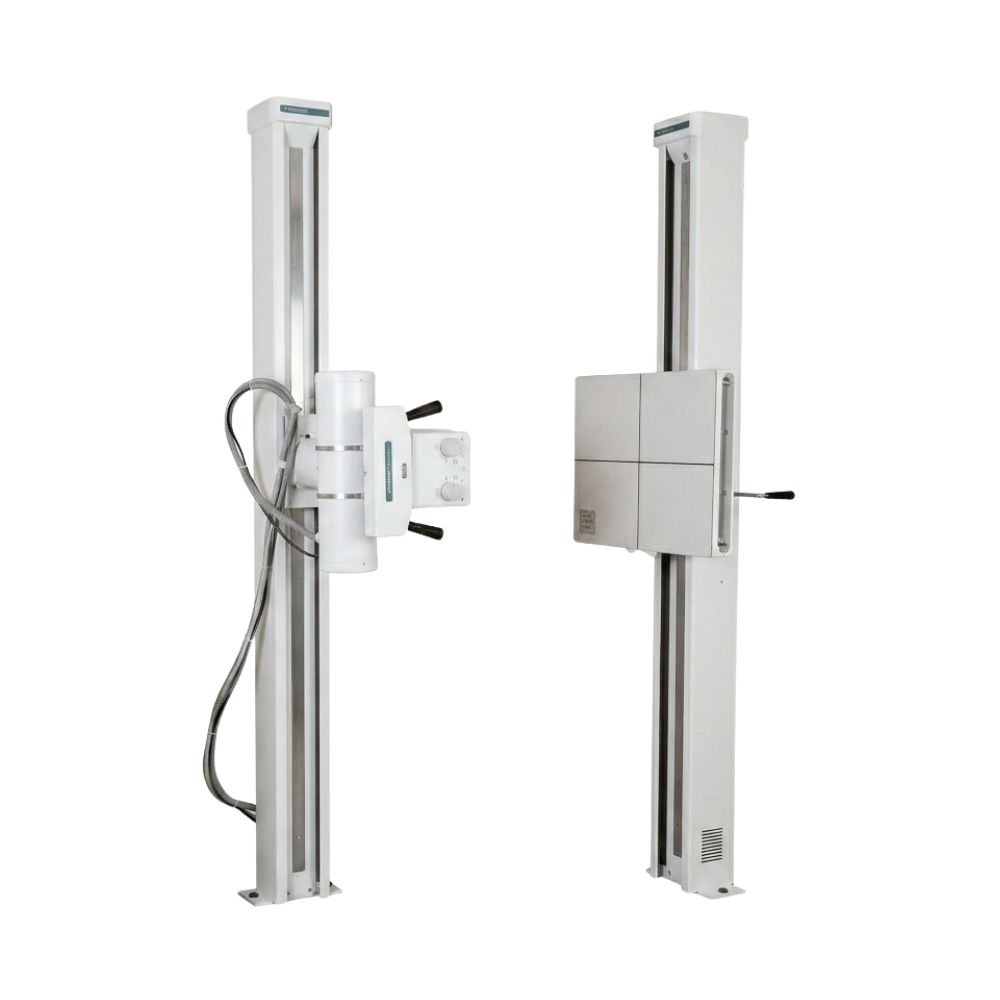

AmeriComp AC Chiropractic X-ray System

Category:: X-Ray & U-Arm Systems

Brand:: Americomp by Summit

The AmeriComp AC is a configurable chiropractic X-ray system for practices seeking dependable upright radiography and straightforward operation. Available in variable-SID AC 1se and space-saving fixed-SID AC 4se configurations, it combines proven mechanical positioning with digital-ready flexibility for different room layouts and imaging needs.

Request a Quote

Configurable Chiropractic Imaging with Proven Mechanical Design

For practices evaluating a chiropractic X-ray machine, the AmeriComp AC combines durable mechanical construction with configuration flexibility for different room layouts and positioning needs. The AC 1se provides variable-SID positioning, while the AC 4se offers a fixed-SID configuration specifically intended for limited-space installations.

Key Benefits

- Choice of variable-SID AC 1se or fixed-SID AC 4se configuration
- Heavy-duty mechanical positioning platform
- Full-travel wall stand for upright imaging
- Manual positioning with optional electric locks
- Digital-ready design for DR integration
- High-frequency generator options
- Configuration flexibility for standard or space-constrained X-ray rooms

Both configurations provide the core AmeriComp approach to chiropractic radiography while allowing practices to prioritize either greater positioning flexibility or a smaller installation footprint.

Which AmeriComp AC Configuration Fits Your X-Ray Room?

The primary difference between the AC 1se and AC 4se is the tube positioning and SID configuration. The AC 1se provides variable source-to-image distance for greater positioning flexibility, while the AC 4se uses a fixed-SID design to accommodate rooms where available space is a greater consideration.

AC 1se Variable-SID Configuration

The AC 1se uses the traditional AmeriComp tube stand arrangement for practices that need greater flexibility in tube positioning and source-to-image distance.

The AmeriComp platform documented in the OEM brochure provides focal distances from 40 to 72 inches, with the tube moving smoothly along its travel range on stainless steel ball bearings.

The current AC 1se is also available with tube stand options such as electric locks and extended rails, reinforcing its role as the more flexible tracked configuration.

Best suited for:

- Standard chiropractic X-ray rooms
- Practices that need variable SID positioning
- Imaging workflows requiring greater tube travel flexibility
- Rooms with sufficient space for the tracked tube stand configuration

AC 4se Fixed-SID Configuration

The AC 4se is the space-conscious configuration within the AmeriComp AC platform. Summit specifically describes it as a fixed-SID system for limited spaces.

By using fixed imaging geometry rather than the longer positioning travel associated with the AC 1se, the AC 4se provides an option for chiropractic practices where room dimensions are a primary installation consideration.

Best suited for:

- Smaller chiropractic X-ray rooms
- Practices where available floor space is limited
- Imaging workflows that do not require variable SID positioning
- Facilities prioritizing a simpler fixed-distance room layout

Chiropractic X-ray Applications

The AmeriComp AC is purpose-built for chiropractic radiography. Its upright wall stand and configurable tube positioning support routine spinal and musculoskeletal imaging, while the choice between AC 1se and AC 4se allows the room layout to be matched to available space and positioning requirements.

Chiropractic & Musculoskeletal Imaging

The AmeriComp AC supports routine radiographic examinations including:

- Cervical spine
- Thoracic spine
- Lumbar spine
- Pelvis
- Sacrum and coccyx
- Shoulder
- Hip
- Standing knee
- Standing ankle
- Upper and lower extremities

The full-travel wall stand supports vertical positioning across a broad range of patient heights and upright examinations. The OEM literature specifically identifies standing knee and ankle imaging among the procedures enabled by its wall stand travel.

Full-Travel Wall Stand for Upright Exams

The wall stand uses a precision bearing system for smooth vertical movement of the image receptor. Its full range of travel supports upright examinations across different patient heights, including standing knee and ankle procedures specifically identified in AmeriComp’s documentation.

Manual locking provides secure receptor positioning, with an optional electric lock available for practices that prefer powered positioning control.

Positioning Workflow for AC 1se & AC 4se Configurations

The AC 1se and AC 4se provide two approaches to tube positioning. Practices can choose variable positioning flexibility with the AC 1se or a fixed-SID workflow with the AC 4se based on room size and imaging requirements.

Variable-SID Positioning with the AC 1se

The AC 1se allows the tube-to-receptor distance to be adjusted across its positioning range. Smooth bearing-based tube travel, an integrated angulation indicator, and secure positioning locks give operators direct control over tube placement for each examination.

Fixed-SID Positioning with the AC 4se

The AC 4se maintains a fixed source-to-image distance, removing the need for the longitudinal positioning range of the AC 1se. The result is a more space-efficient arrangement for rooms where a traditional variable-SID installation is impractical.

This distinction gives practices a clear configuration choice: AC 1se for SID flexibility or AC 4se for a smaller installation footprint.

Digital Radiography & Generator Options

The AmeriComp AC combines its mechanical positioning platform with digital imaging compatibility and high-frequency generator options, allowing it to be configured as a digital chiropractic X-ray system around the practice’s imaging requirements.

Digital-Ready Imaging

AmeriComp radiographic equipment is compatible with digital imaging systems. The AC can therefore be configured for DR while retaining the tube stand and wall stand architecture that defines the system.

This also allows practices to select the detector and imaging workflow appropriate for their clinical needs rather than tying the AC platform to a single digital imaging configuration.

AmeriComp High-Frequency Generators

AmeriComp offers high-frequency generators for its radiographic systems, allowing generator selection to be matched to the final system configuration and imaging requirements. The OEM specifically positions these generators as complementary components within AmeriComp radiographic systems.

Final generator and DR configurations can be determined based on room requirements, clinical workflow, and selected AC configuration.

Which AmeriComp AC Configuration Is Right for Your Practice?

The AC 1se is the better fit when variable SID and greater tube positioning flexibility are priorities and the room can accommodate a traditional tracked configuration.
The AC 4se is intended for practices where available room space is the greater constraint and a fixed-SID configuration can support the required imaging workflow.

Both options provide the same core AmeriComp approach: straightforward chiropractic radiography, durable mechanical positioning, upright imaging capability, and compatibility with digital imaging technology. Final system pricing depends on the selected AC configuration, generator, digital imaging components, and installation requirements.
