Accogent Paxis 200 Digital X-Ray System

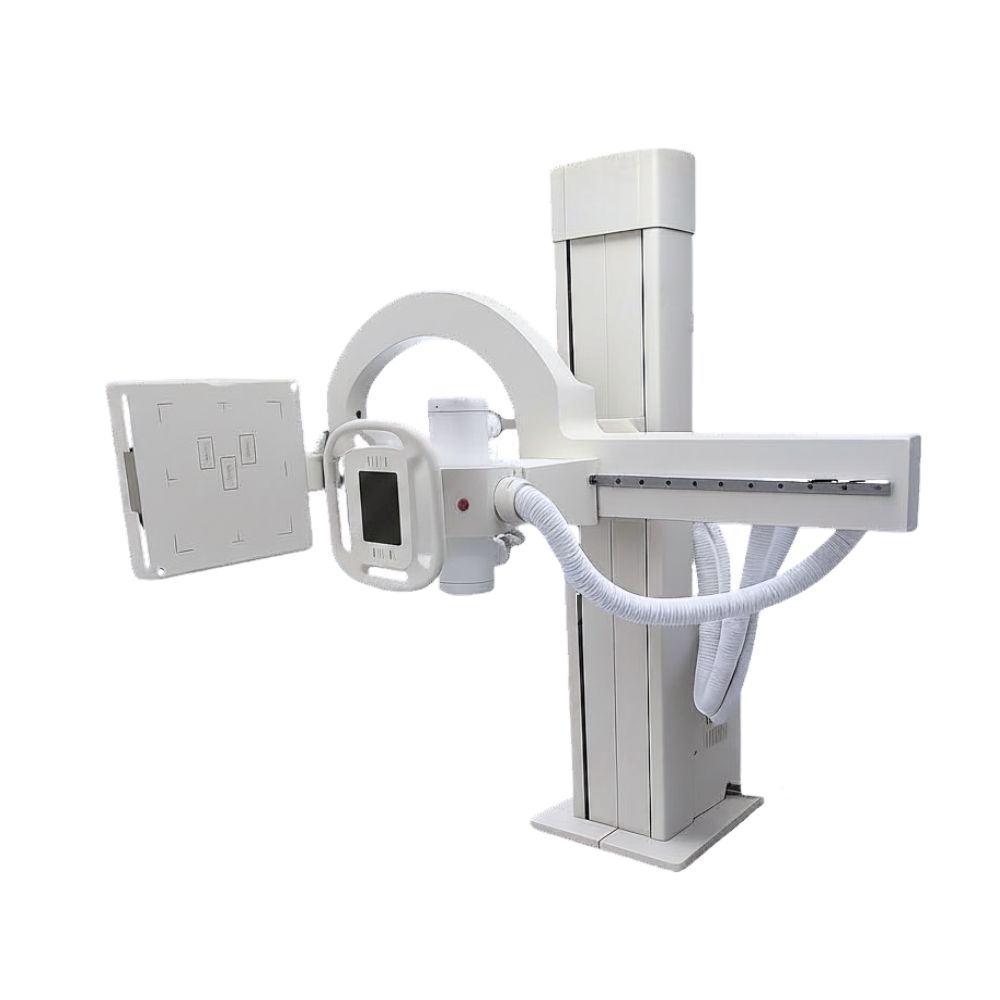

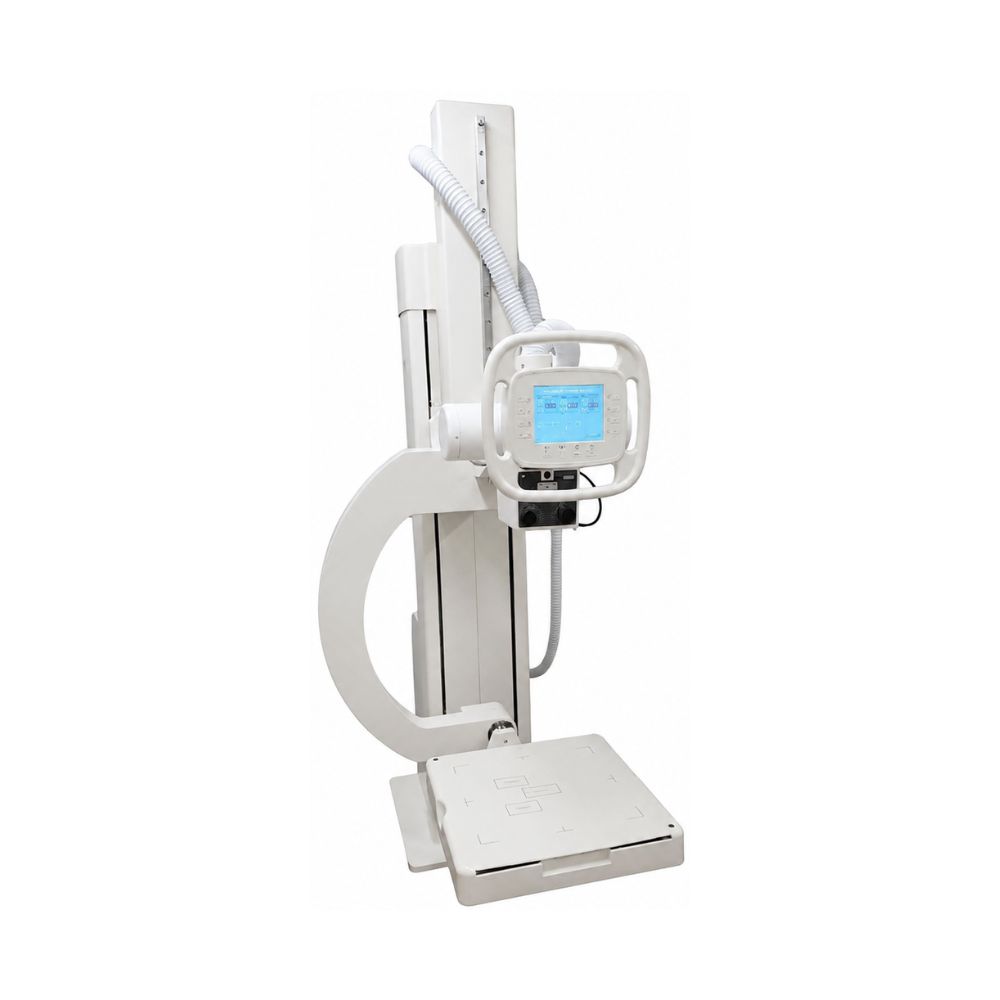

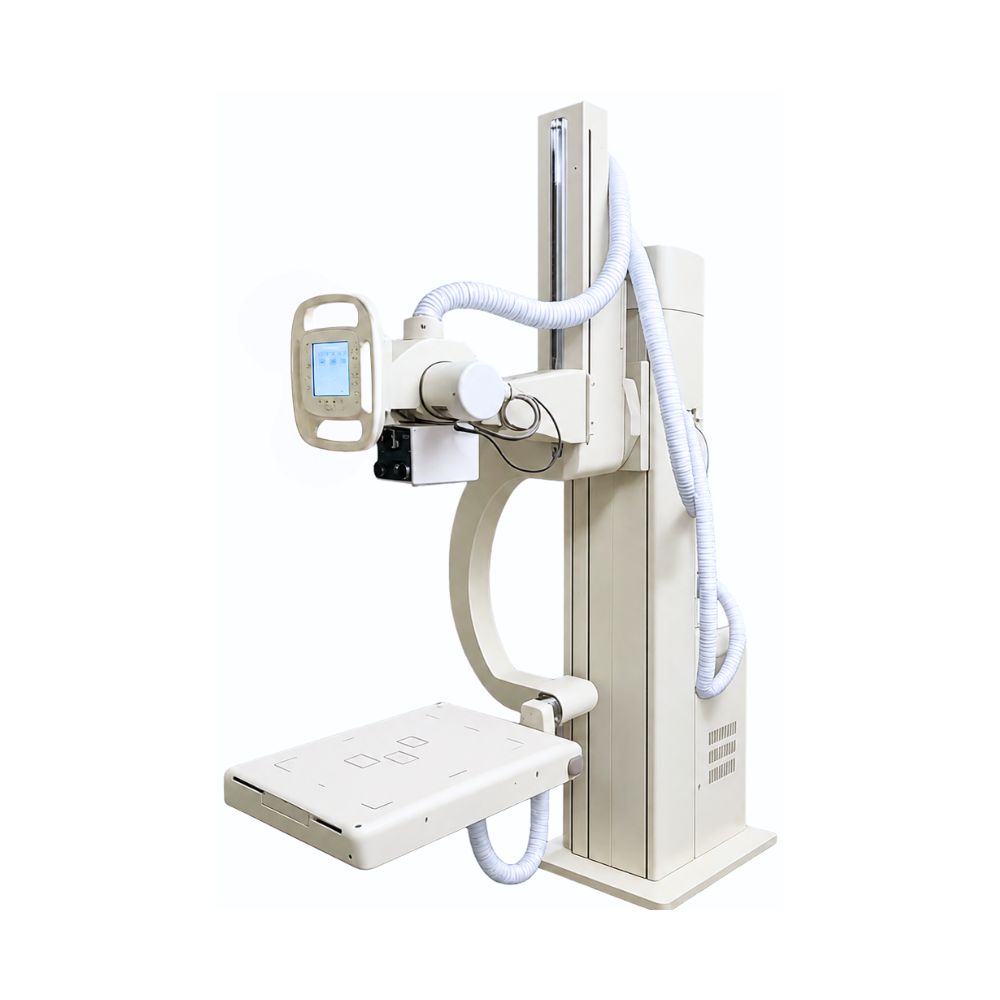

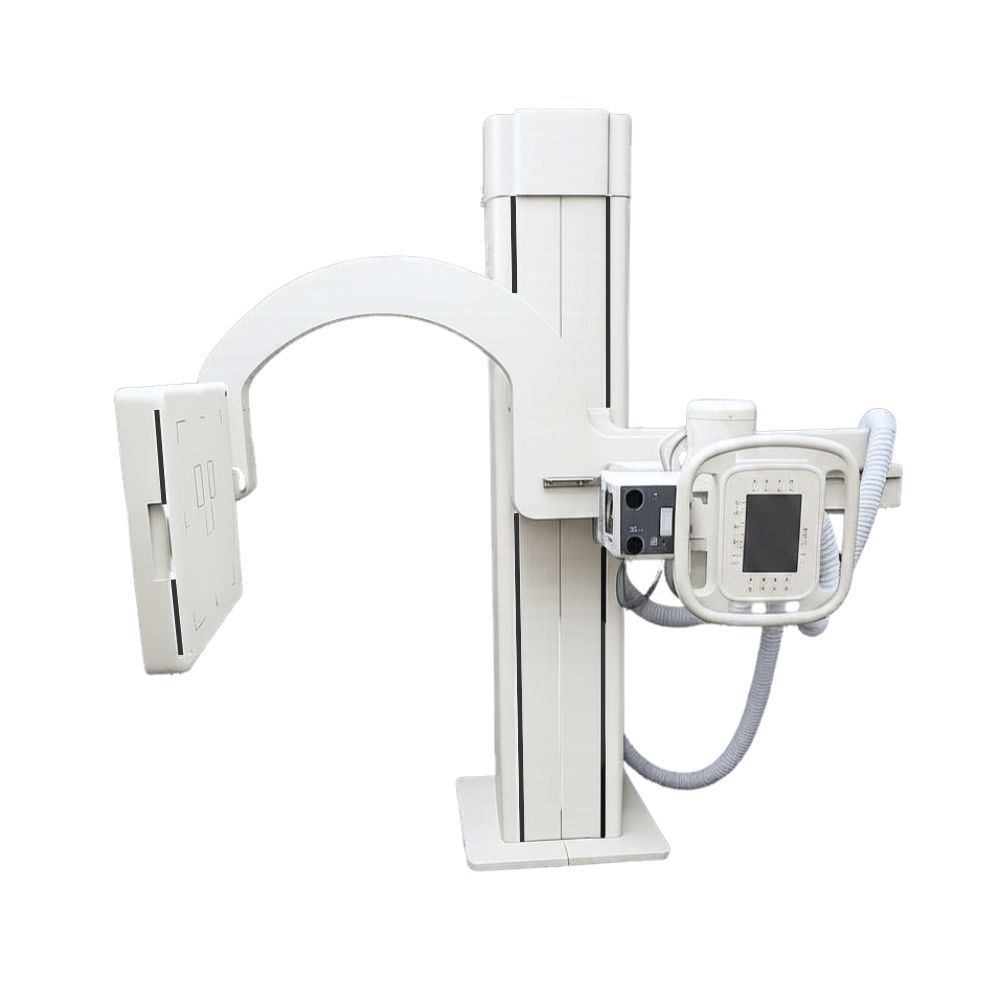

Accogent Paxis 200 Motorized U-Arm Positioning for Faster, More Flexible Exams

The Accogent Paxis 200 is designed to reduce manual positioning while helping technologists move quickly between exams. Multiple motorized movements allow the system to adapt to a variety of patient positions while maintaining consistent tube and detector alignment throughout the imaging workflow.

• Motorized source-to-image distance (SID) from 40 to 72 inches
• Motorized vertical travel and arm rotation
• Floor-mounted design with a compact footprint
• Smooth, quiet movement for everyday operation

The combination of automated positioning and a compact room layout helps practices improve workflow without requiring a large radiography suite.

Touchscreen & Remote Controls for Efficient Workflow

Motorized positioning is controlled through an intuitive touchscreen interface while a handheld remote allows technologists to reposition the system from anywhere in the room. This flexibility can improve efficiency during routine imaging and assist when working with patients who have limited mobility.

• LCD touchscreen controls
• Remote control for all motorized movements
• Clearly identified motion controls
• Repeatable positioning for consistent workflows

Floor-Mounted Design for Compact Room Installation

Because the Paxis 200 uses a floor-mounted design, it can be incorporated into new imaging rooms or retrofit projects without the complexity of overhead support structures. Its smaller footprint helps preserve valuable floor space while maintaining a broad positioning range.

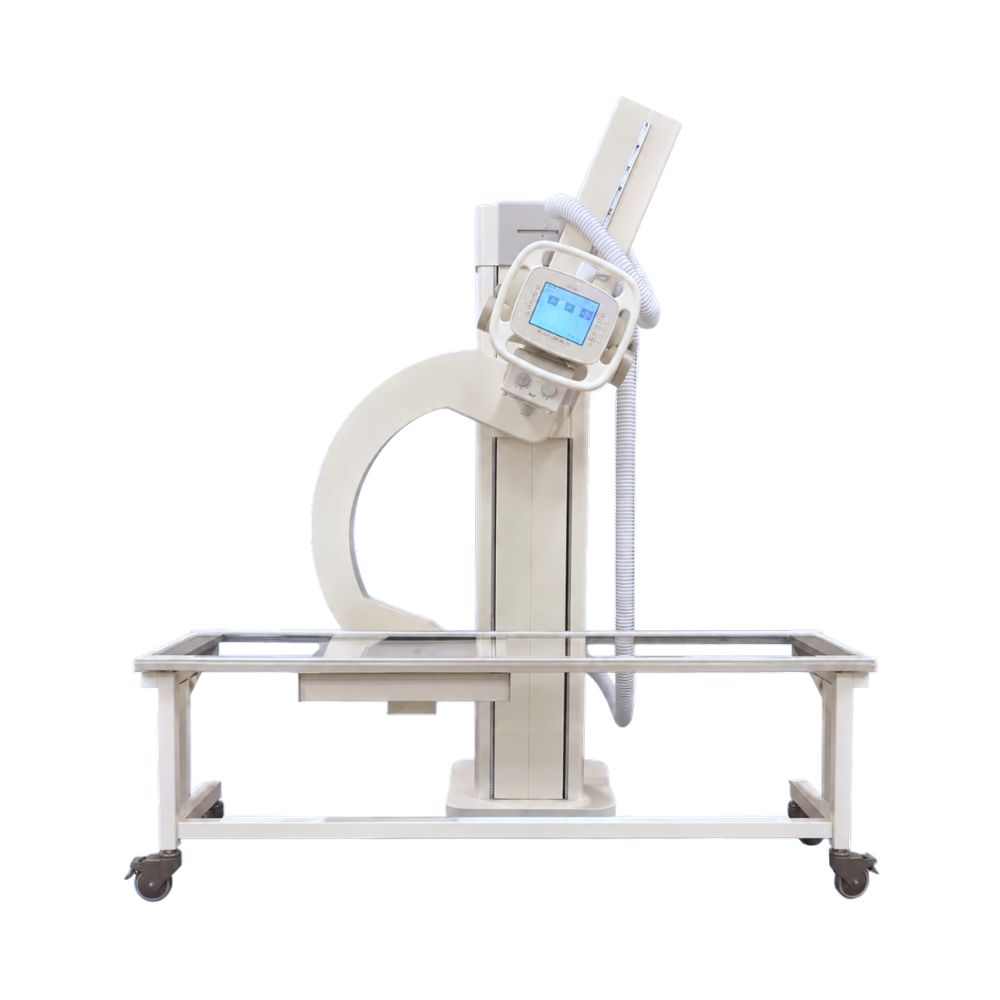

Included MRPT 100 Mobile Positioning Table for Complete Imaging Setup

The system includes the MRPT 100 Mobile Positioning Table, providing a complete imaging solution for facilities that perform a wide range of routine radiographic studies.

• • Compact room footprint
  • Flexible room placement
  • Included MRPT 100 Mobile Positioning Table

Positioning Range & Motion Capabilities

The motorized U-arm allows technologists to position the X-ray tube for a variety of projections while maintaining alignment with the image receptor. This design supports efficient patient positioning for both routine and specialty examinations.

Motion Range Specifications

• • Motorized SID from 40 to 72 inches
  • +105° / -15° arm rotation
  • 48-inch vertical travel
  • Tube head rotation to 90°
  • Bucky angulation of ±30°
  • Lowest beam centerline of approximately 17 inches from the floor

Clinical Applications Across Outpatient & Hospital Settings

The Accogent Paxis 200 is well suited for facilities performing routine diagnostic radiography across multiple patient populations, including:

• Hospitals and health systems
• Orthopedic practices
• Outpatient imaging centers
• Multi-specialty medical practices
• Urgent care centers
• Primary care clinics

Its positioning flexibility also supports lower extremity imaging and other general radiographic procedures that benefit from a motorized U-arm design.

Accogent Paxis 200 Specifications & System Details

System Design

• • Floor-mounted motorized U-arm radiography system
  • Compact installation footprint
  • Included MRPT 100 Mobile Positioning Table

Positioning Specifications

• • Motorized SID: 40 to 72 inches
  • Vertical travel: 48 inches
  • Lowest beam centerline: 17 inches
  • Arm rotation: +105° / -15°
  • Tube head rotation: 90°
  • Bucky angulation: ±30°

Control System Features

• • LCD touchscreen interface
  • Integrated push-button controls
  • Full-function remote control
