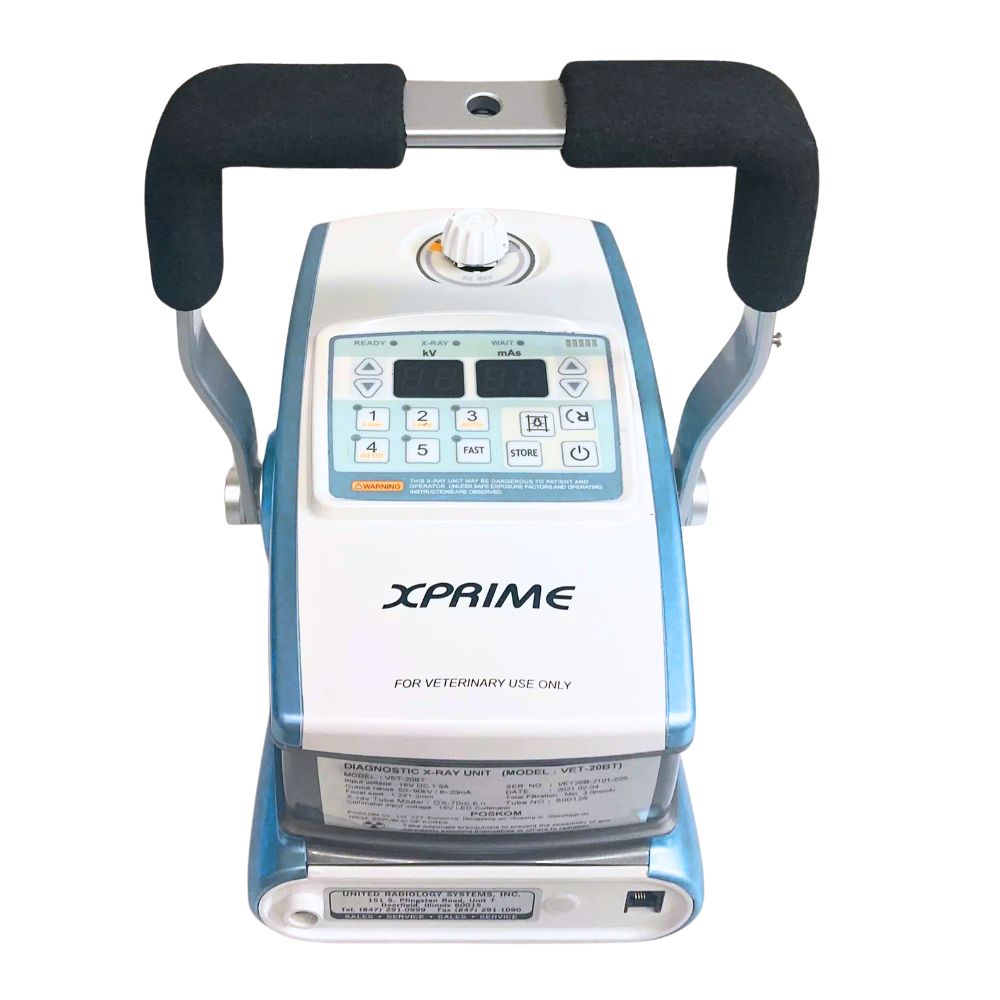

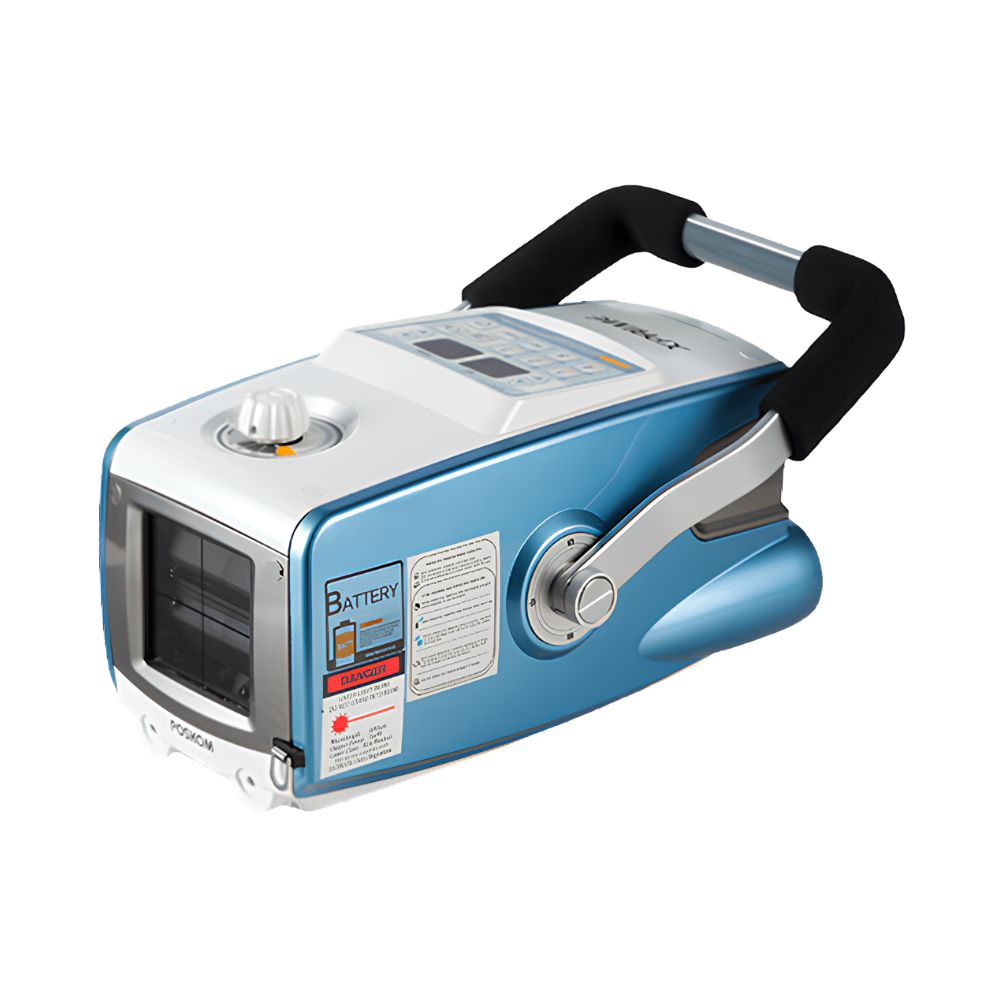

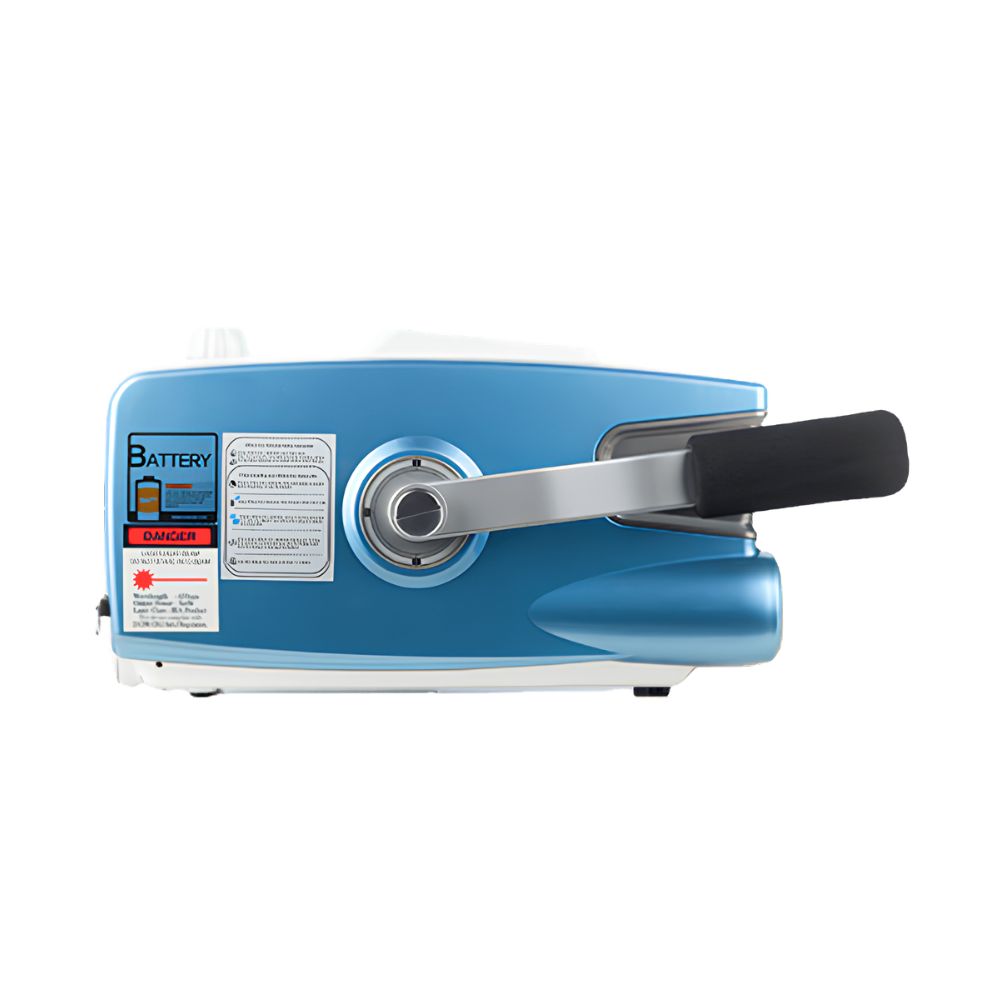

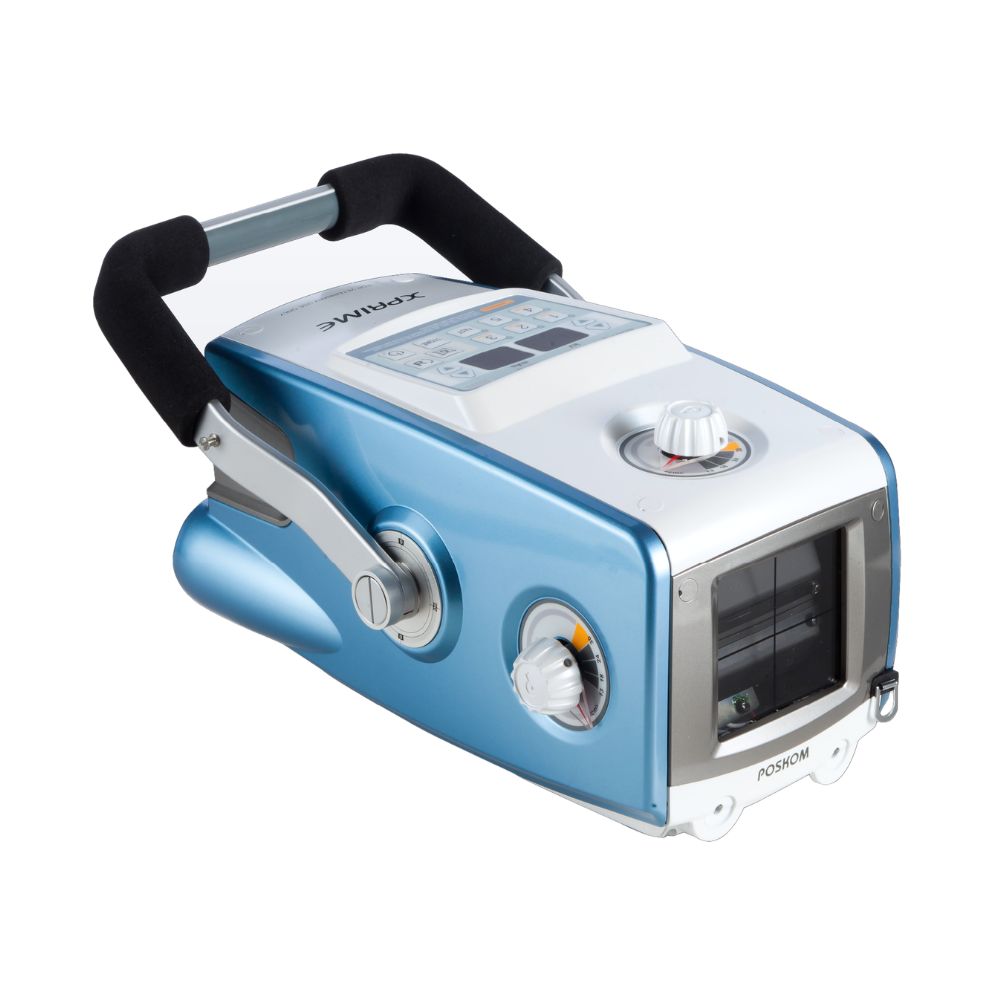

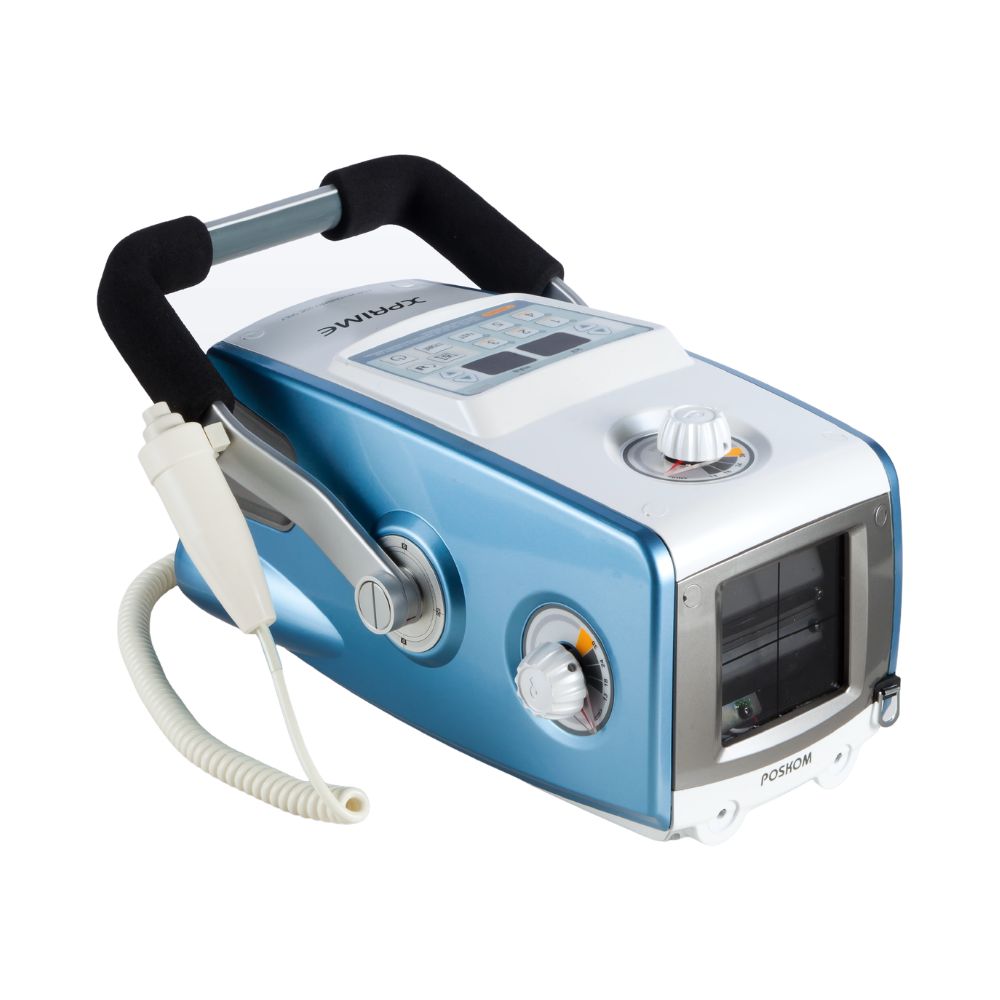

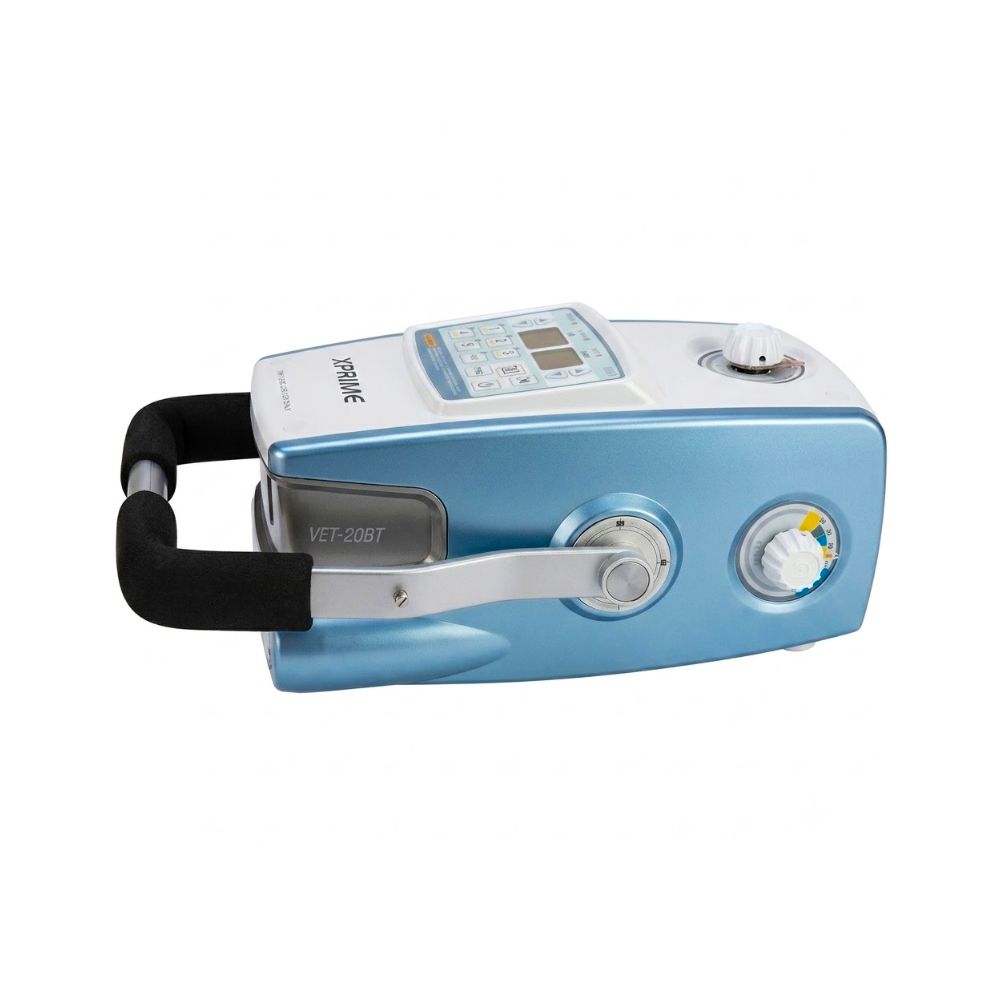

Poskom VET-20BT Portable X-Ray

Battery-Powered Performance Built for Veterinary Imaging

The Poskom VET-20BT is designed specifically for veterinarians who perform diagnostic imaging beyond a traditional imaging room. Its lightweight battery-powered design, high-frequency generator, and approximately 300 exposures per charge make it well suited for companion animal, equine, mixed animal, and mobile veterinary practice.

Key Performance Benefits

• • Lightweight 15 lb (6.8 kg) portable design
  • Approximately 300 exposures per battery charge
  • Designed specifically for veterinary imaging
  • High-frequency generator technology
  • Fifteen programmable APR memory presets
  • Dual laser positioning system
  • Wireless DR communication support
  • Remote operation capability

The VET-20BT combines dependable generator performance with the portability veterinary professionals need to perform diagnostic imaging in clinics, barns, farms, and other field environments without relying on external AC power.

How Does the VET-20BT Improve Veterinary Mobile Imaging?

Veterinary professionals routinely move between examination rooms, treatment areas, barns, farms, and outdoor environments where transporting patients or accessing dedicated imaging rooms may not be practical. The VET-20BT is designed to simplify portable radiography through its lightweight battery-powered design, dependable high-frequency performance, and workflow features that support efficient imaging wherever patients are treated.

Approximately 300 Exposures per Charge

The rechargeable lithium-ion battery is designed to deliver approximately 300 exposures on a single charge, allowing veterinarians to complete routine imaging throughout the day without relying on external power.

Stable High-Frequency X-Ray Output

The high-frequency generator provides stable X-ray output while maintaining the compact size and lightweight portability expected from a veterinary portable X-ray generator.

Faster Veterinary Workflow with 15 APR Presets

Fifteen programmable Anatomical Programmed Radiography (APR) memory presets allow operators to store frequently used exposure techniques, helping reduce setup time while promoting consistent imaging across routine veterinary examinations.

Where the Poskom VET-20BT Fits Best

The VET-20BT is well suited for veterinary practices that routinely move imaging equipment between examination rooms, treatment areas, barns, farms, and off-site locations. Its lightweight battery-powered design provides the flexibility needed to perform diagnostic imaging wherever veterinary patients are treated.

Veterinary Practice Settings

Typical environments include:

• • Companion animal practices
  • Mixed animal practices
  • Equine practices
  • Livestock veterinary services
  • Mobile veterinary practices
  • Veterinary referral hospitals

Common Veterinary Examinations

When paired with a compatible veterinary DR detector, the VET-20BT supports a variety of routine diagnostic procedures, including:

• • Companion animal radiography
  • Equine distal limb imaging
  • Orthopedic examinations
  • Mobile veterinary imaging

Portable Features That Support Veterinary Workflow

The VET-20BT is designed to simplify transportation, setup, and day-to-day operation for veterinary professionals who routinely perform imaging across multiple clinical environments.

Lightweight 15 lb Design

Weighing approximately 15 lb (6.8 kg), the VET-20BT is easy to transport between examination rooms, treatment areas, barns, farms, and mobile veterinary vehicles, helping reduce fatigue during busy imaging schedules.

Battery Power That Travels with You

The rechargeable lithium-ion battery allows veterinarians to perform diagnostic imaging in clinics, barns, farms, and outdoor environments without depending on nearby wall power. Approximately 300 exposures per charge support productive mobile imaging throughout the day.

Faster Exam Setup with 15 APR Presets

Fifteen programmable APR memory presets allow operators to quickly recall commonly used exposure techniques, reducing repetitive setup and supporting consistent imaging across routine examinations.

Dual Laser Positioning

Integrated dual laser pointers provide an additional visual reference during positioning, helping improve alignment efficiency before each exposure in both clinical and field environments.

Technologies Behind the VET-20BT

The Poskom VET-20BT combines a power-dense battery system, high-frequency X-ray generation, rugged construction, and dual-laser positioning in a 6.8 kg portable unit. These technologies support veterinary imaging in clinics, barns, farms, and other environments where mobility, durability, and efficient positioning matter.

Power-Dense Battery Module

The VET-20BT uses a 14.8 V, 5,000 mAh battery power supply. Poskom pairs the compact battery module with a lightweight generator design to support extended field use without requiring continuous access to wall power.

High-Frequency Veterinary Imaging

The 1.6 kW generator operates across a 50 to 90 kV range with tube current settings from 8 to 20 mA. Its high-frequency design supports detailed radiographic imaging across a range of veterinary patients while maintaining the portability required for mobile and barn-side use.

Dual-Laser Positioning

Dual laser beams provide visible positioning references that help operators align the generator with the area of interest. This can simplify setup when working with animal patients that may be difficult to position or keep still.

Rugged Construction for Animal Environments

The VET-20BT is built to tolerate the bumps, dust, fur, and transportation demands associated with veterinary fieldwork. Its impact-ready construction makes it suitable for movement between examination rooms, vehicles, barns, and outdoor locations.

Dose-Conscious X-Ray Output

Poskom designed the VET-20BT to support diagnostic veterinary imaging while limiting unnecessary radiation exposure to the operator and animal. Appropriate technique selection, positioning, collimation, and radiation-safety procedures remain essential for every examination.

A Portable Veterinary Generator Built for Field Use

The Poskom VET-20BT is intended for veterinary practices that need a lightweight, battery-powered X-ray generator capable of moving between clinical and field environments. Its 1.6 kW output, 50 to 90 kV range, dual-laser positioning, and rugged 6.8 kg design make it particularly relevant for companion animal, mixed animal, equine, and mobile veterinary workflows.

For practices that perform imaging beyond a fixed radiology room, the VET-20BT offers a practical balance of portability, battery operation, positioning support, and veterinary-focused durability.

Poskom VET-20BT Specifications

Generator

• • Generator type: Battery-powered portable veterinary X-ray generator
  • Maximum output: 1.6 kW
  • Tube voltage range: 50 to 90 kV
  • Tube current range: 8 to 20 mA
  • Power supply: 14.8 V / 5,000 mAh
  • Weight: 15.0 lb (6.8 kg)
  • Dimensions: 510 × 360 × 370 mm
  • Certifications listed by Poskom: U.S. FDA cleared, CE marked, ISO 13485:2016 certified, and KGMP certified

X-Ray Tube

• • Focal spot: 1.2 mm

Positioning & Construction

• • Dual-laser positioning system
  • Lightweight, impact-ready construction
  • Rugged housing designed for animal and outdoor environments
  • Compact battery module designed for extended field operation
