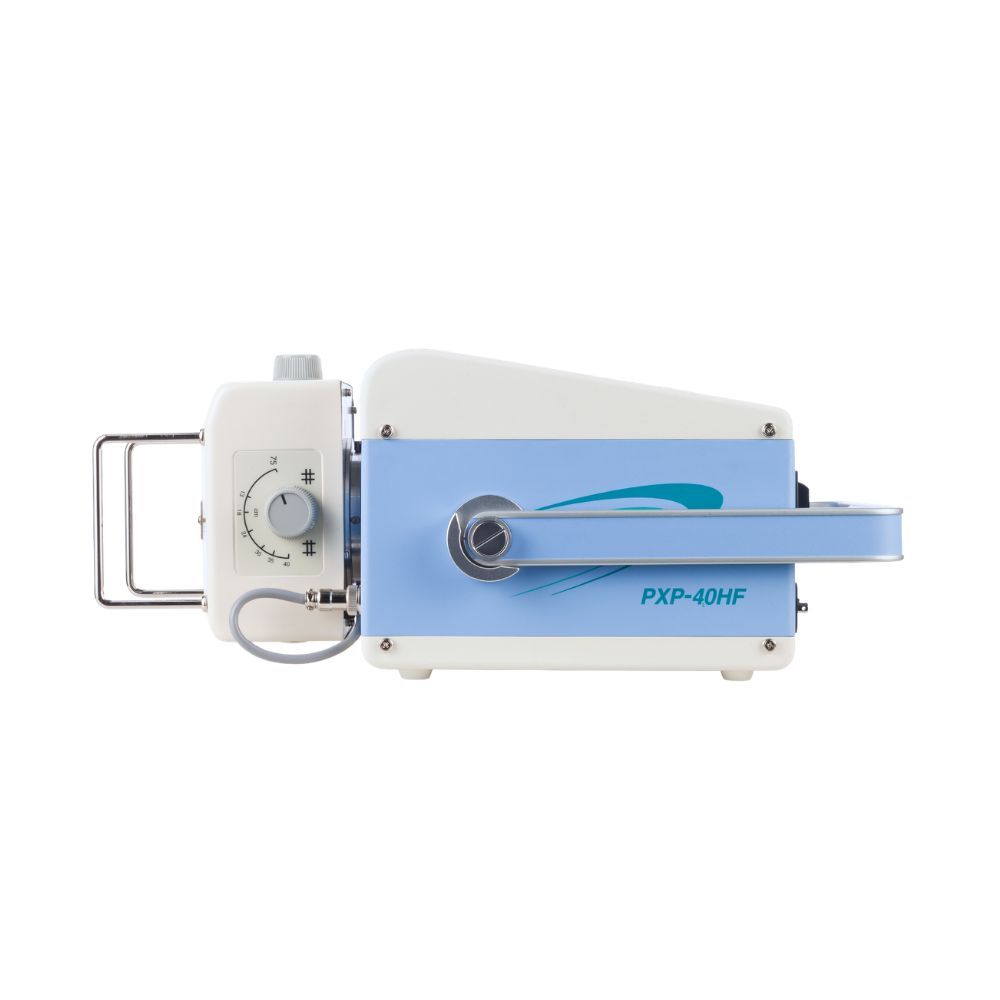

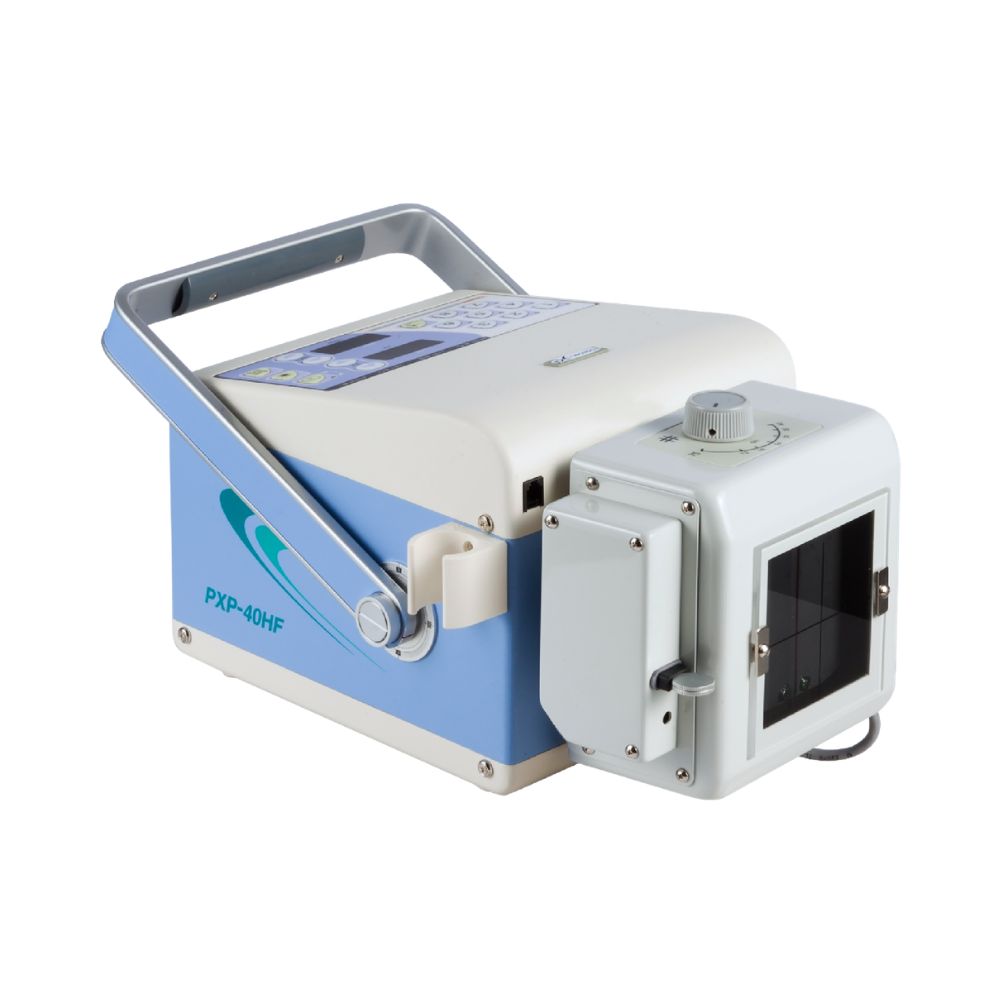

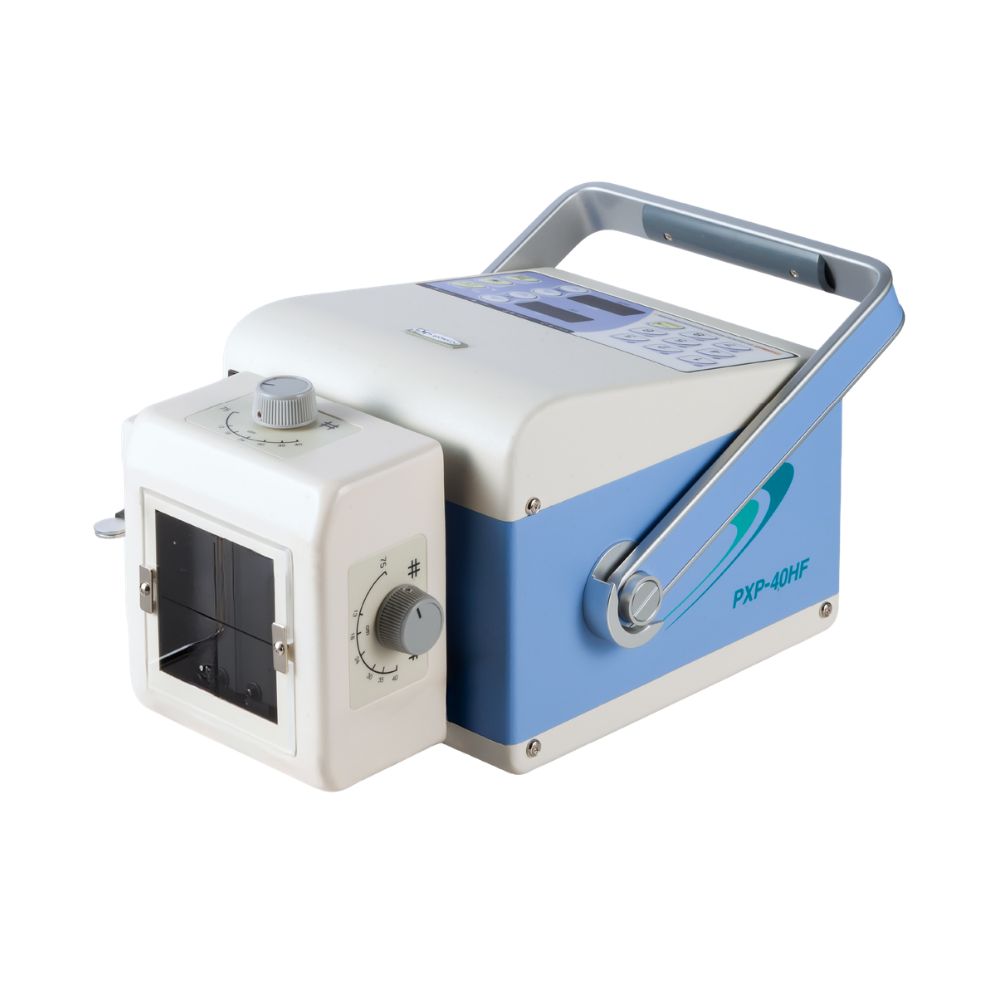

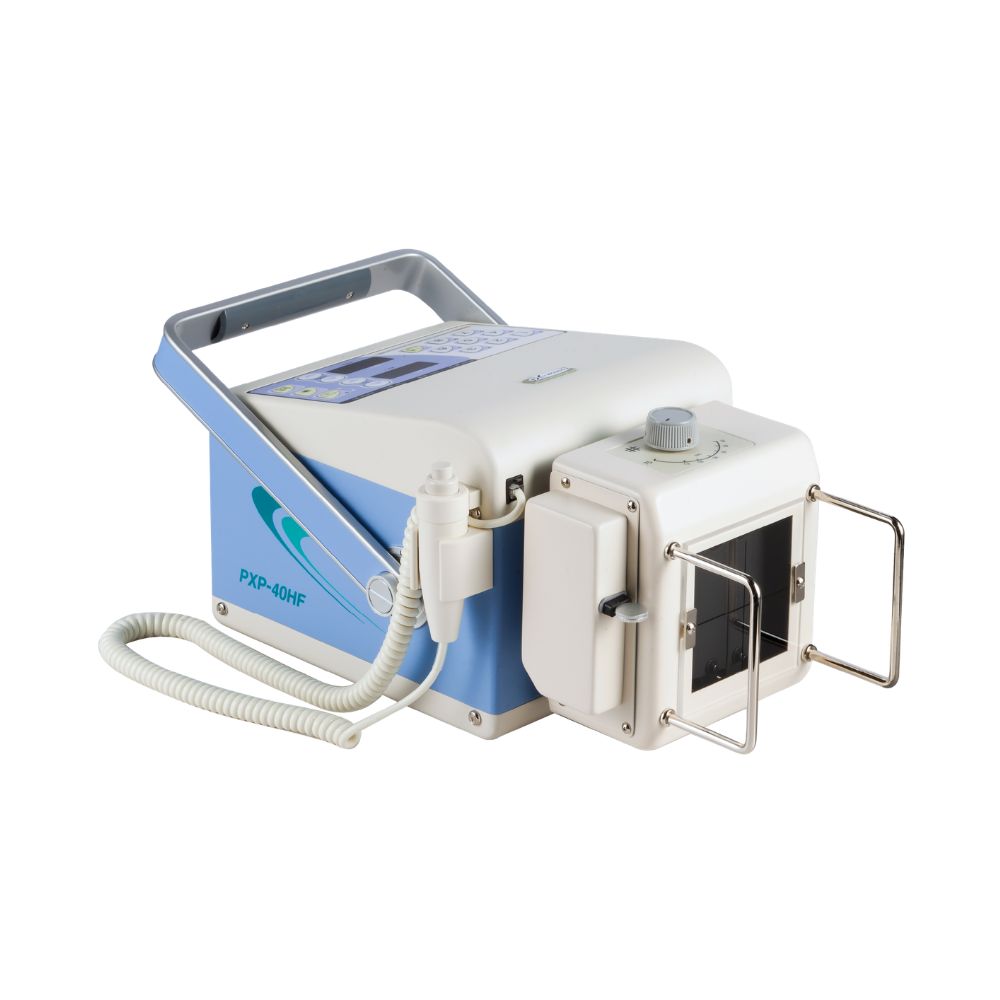

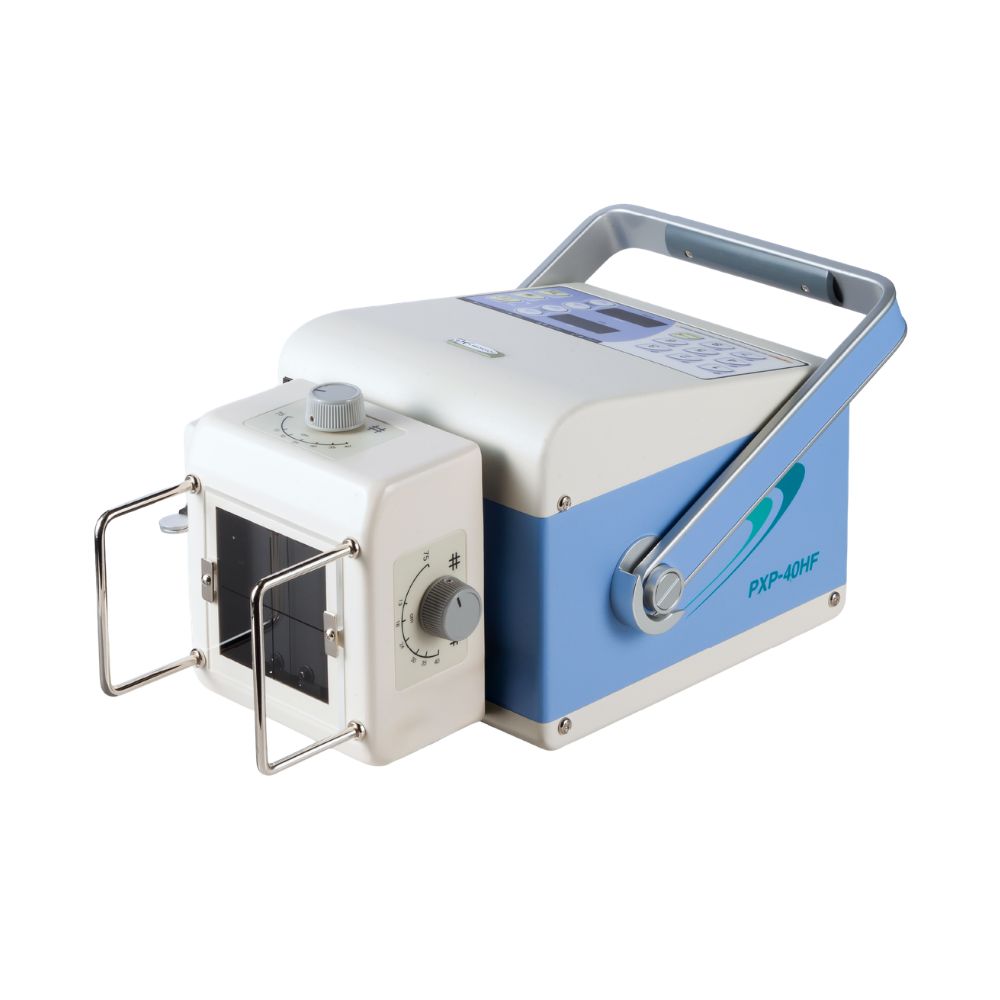

Poskom PXP-40HF Portable X-Ray

Compact 2.4 kW Performance with AC-Powered Simplicity

The Poskom PXP-40HF is designed for organizations that need the portability of a compact X-ray generator while working in environments with dependable AC power. Its 2.4 kW high-frequency output, automatic line compensation, and intuitive controls provide consistent performance in a lightweight generator built for routine mobile imaging.

Key Performance Benefits

• • 2.4 kW high-frequency portable X-ray generator
  • Up to 100 kV and 35 mA output
  • Compact AC-powered design
  • Automatic line compensation for consistent generator performance
  • Eight programmable APR memory presets
  • Remote operation capability
  • Integrated light beam collimator with optional laser pointer

The PXP-40HF combines dependable high-frequency performance with the simplicity of an AC-powered portable generator, making it a practical choice for facilities that routinely perform mobile imaging where reliable wall power is available.

How Does the PXP-40HF Deliver Consistent Portable Performance?

The PXP-40HF combines high-frequency generator technology with practical workflow features that help produce consistent exposures throughout the workday. Its compact design, automatic power management, and programmable controls are designed to support dependable imaging while simplifying day-to-day operation.

High-Frequency Generator Performance

The 2.4 kW high-frequency inverter generator delivers up to 100 kV and 35 mA while maintaining the compact footprint expected from a portable X-ray generator. High-frequency technology supports stable X-ray output for routine diagnostic imaging.

Automatic Line Compensation

Power quality can vary between facilities. Automatic line compensation continuously adjusts for fluctuations in incoming voltage to help maintain consistent generator performance across a variety of imaging environments.

Faster Exam Setup with APR Memory

Eight programmable Anatomical Programmed Radiography (APR) memory presets allow operators to save frequently used exposure techniques, reducing repetitive setup while promoting consistency between examinations.

Where the Poskom PXP-40HF Fits Best

The PXP-40HF is designed for healthcare organizations and veterinary practices that perform portable imaging in facilities with dependable AC power. It offers a balance of output, portability, and workflow efficiency in a compact generator for providers that prioritize reliable high-frequency performance.

Healthcare & Veterinary Settings

Typical environments include:

• • Hospitals
  • Outpatient imaging centers
  • Urgent care centers
  • Orthopedic practices
  • Sports medicine clinics
  • Nursing homes and long-term care facilities
  • Mobile imaging providers
  • Veterinary practices

Common Diagnostic Examinations

When paired with a compatible DR detector or film imaging system, the PXP-40HF supports a variety of routine imaging procedures, including:

• • Bedside imaging
  • Orthopedic imaging
  • Mobile healthcare imaging
  • Chest imaging
  • Companion animal imaging
  • Equine distal limb imaging

Portable Features That Support Daily Workflow

The PXP-40HF is designed to simplify transportation, setup, and routine operation for providers who move imaging equipment throughout the day.

Compact Design for Easy Transport

The compact housing is easy to transport between patient care areas while requiring minimal storage space when not in use.

Faster Workflow with APR Memory

Eight programmable APR presets allow operators to quickly recall commonly performed examination techniques, helping reduce setup time and improve consistency throughout the workday.

Remote Operation Capability

Optional remote control software provides additional flexibility for facilities that incorporate the generator into established imaging workflows.

Precise Beam Positioning

The integrated light beam collimator helps accurately define the X-ray field before each exposure, while the optional laser pointer provides an additional positioning reference during examinations.

High-Frequency Technology Behind the PXP-40HF

The Poskom PXP-40HF combines a compact 2.4 kW high-frequency generator with automatic line compensation and streamlined controls to support dependable portable imaging in facilities where reliable AC power is available. Its integrated technologies are designed to produce consistent performance while keeping day-to-day operation straightforward.

High-Frequency Inverter Generator

The PXP-40HF features a 2.4 kW high-frequency inverter generator capable of delivering up to 100 kV and 35 mA. High-frequency technology supports stable X-ray output while allowing the generator to maintain the compact footprint expected from a portable imaging system.

Automatic Line Compensation

Power quality can vary between imaging locations. Automatic line compensation continuously adjusts for fluctuations in incoming voltage to help maintain consistent generator performance without requiring manual intervention.

Faster Exam Setup with APR Memory

Eight programmable Anatomical Programmed Radiography (APR) memory presets allow operators to store and quickly recall frequently used exposure techniques. This helps reduce repetitive setup while improving consistency across routine examinations.

Precision Light Beam Collimation

The integrated light beam collimator helps accurately define the X-ray field before each exposure. An optional laser pointer provides an additional positioning reference, helping simplify patient positioning during routine imaging procedures.

Where the PXP-40HF Delivers the Most Value

The Poskom PXP-40HF is designed for healthcare organizations and veterinary practices that need a compact, AC-powered portable X-ray generator with dependable high-frequency performance. Its combination of 2.4 kW output, automatic line compensation, programmable APR memory, and streamlined operation makes it well suited for providers who routinely perform portable imaging in facilities with reliable electrical service.

For organizations looking for a compact portable X-ray generator that prioritizes dependable performance, straightforward operation, and workflow efficiency, the PXP-40HF offers a practical solution for everyday mobile imaging.

Poskom PXP-40HF Specifications

Generator

• • Generator type: High-frequency inverter portable X-ray generator
  • Output power: 2.4 kW
  • Maximum output: 100 kV / 35 mA
  • Input voltage: 100 to 120 VAC or 200 to 240 VAC
  • Single-phase, 50/60 Hz
  • Automatic line compensation
  • Weight: 28.2 lb (12.8 kg)
  • Dimensions: 18.1 × 9.8 × 7.9 in (460 × 250 × 200 mm)

Exposure Performance

• • Tube voltage: 40 to 100 kV
  • Tube current: Up to 35 mA
  • mAs range: 0.4 to 100 mAs
  • 1 kV adjustment increments
  • Eight programmable APR memory presets

X-Ray Tube

• • Tube model: Toshiba D-124
  • Focal spot: 1.2 × 1.2 mm
  • Target angle: 16°
  • Anode heat storage: 20 kHU
  • Heat dissipation: 250 HU/sec
  • Total filtration: 2.5 mm Al equivalent at 100 kV

Collimator

• • Integrated manual double-slit light beam collimator
  • Optional Class IIIA laser pointer
  • Maximum field size: 35 × 35 cm at 65 cm SID
  • Minimum field size: ≤5 × 5 cm at 100 cm SID
  • 12 V / 50 W halogen positioning lamp

Controls & Workflow Features

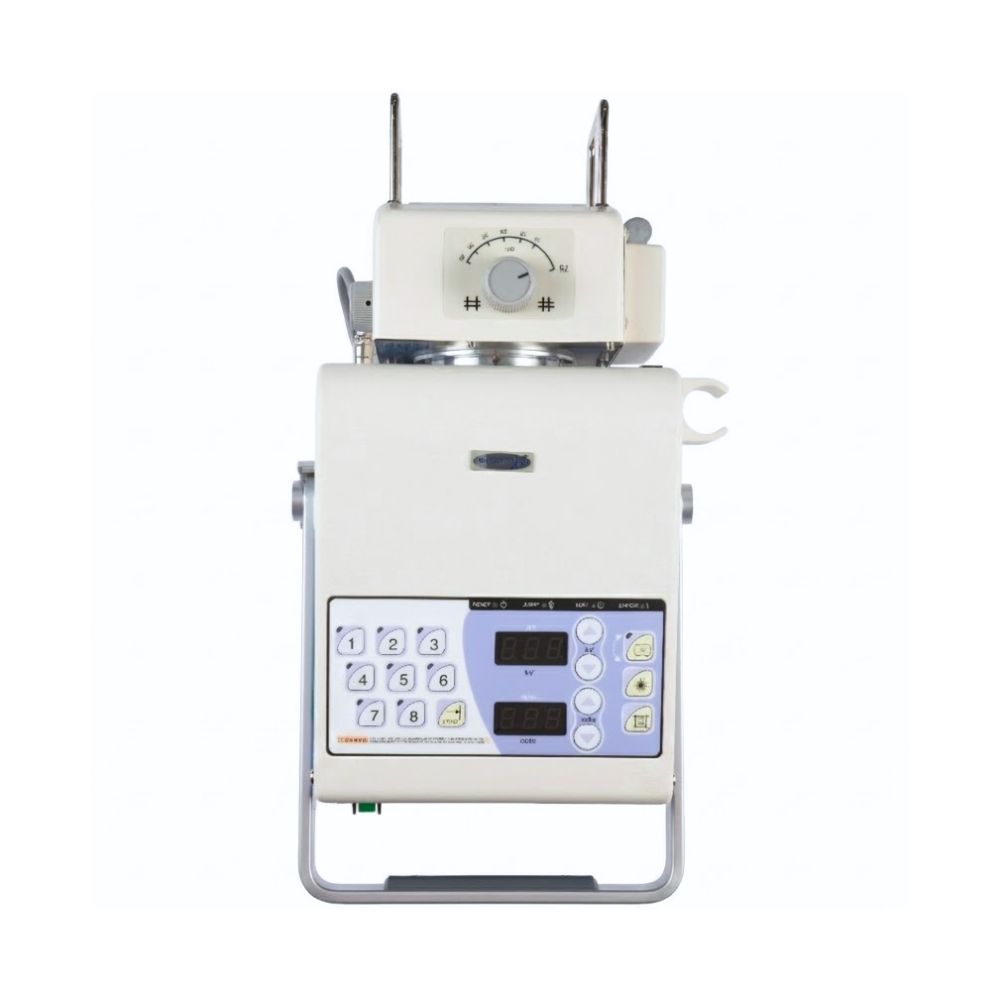

• • One-touch control panel
  • Digital LED display
  • Display reversal function
  • Remote control software capability
  • Exposure hand switch
