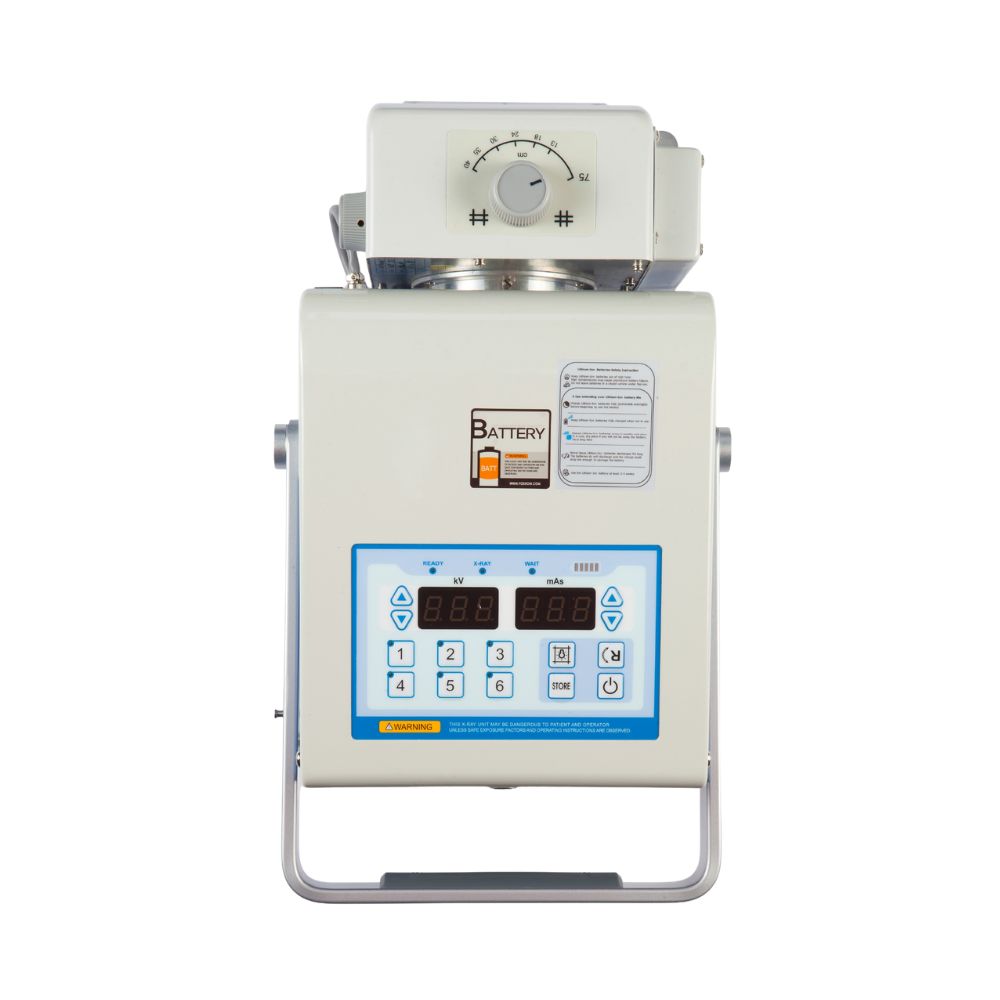

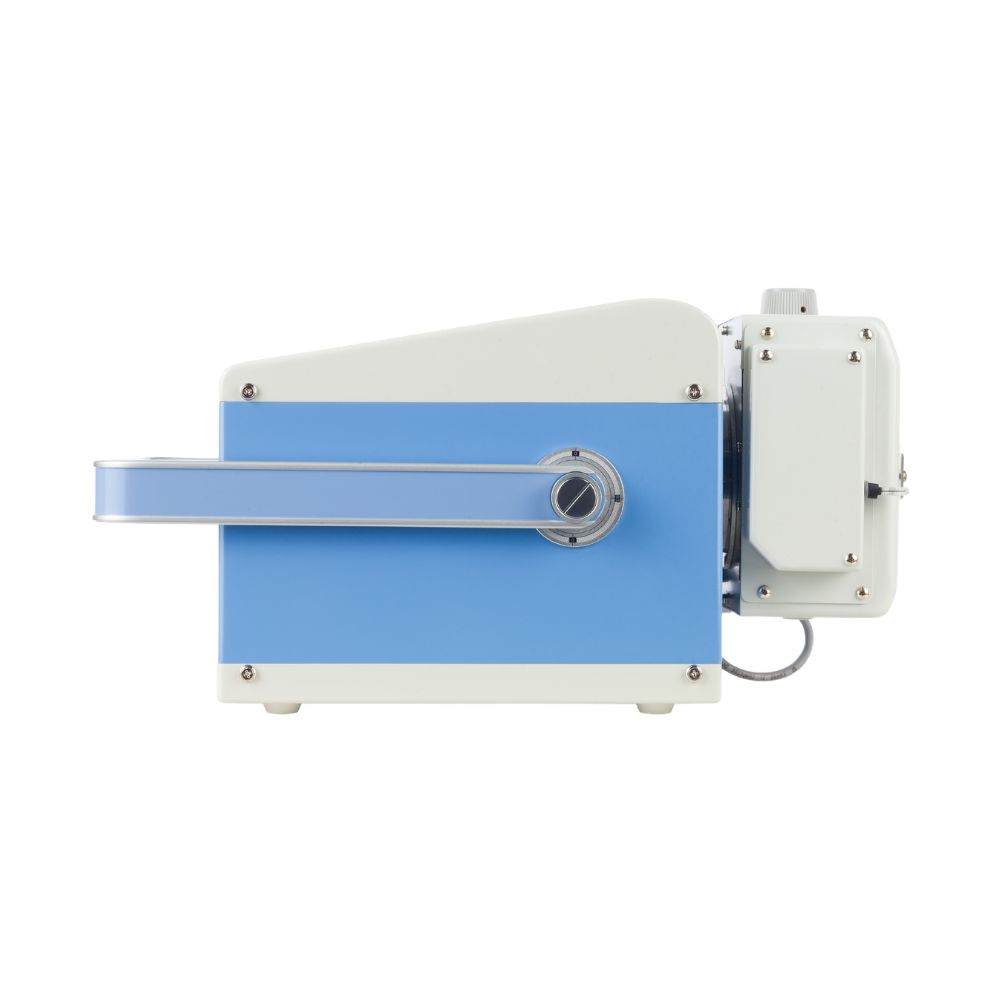

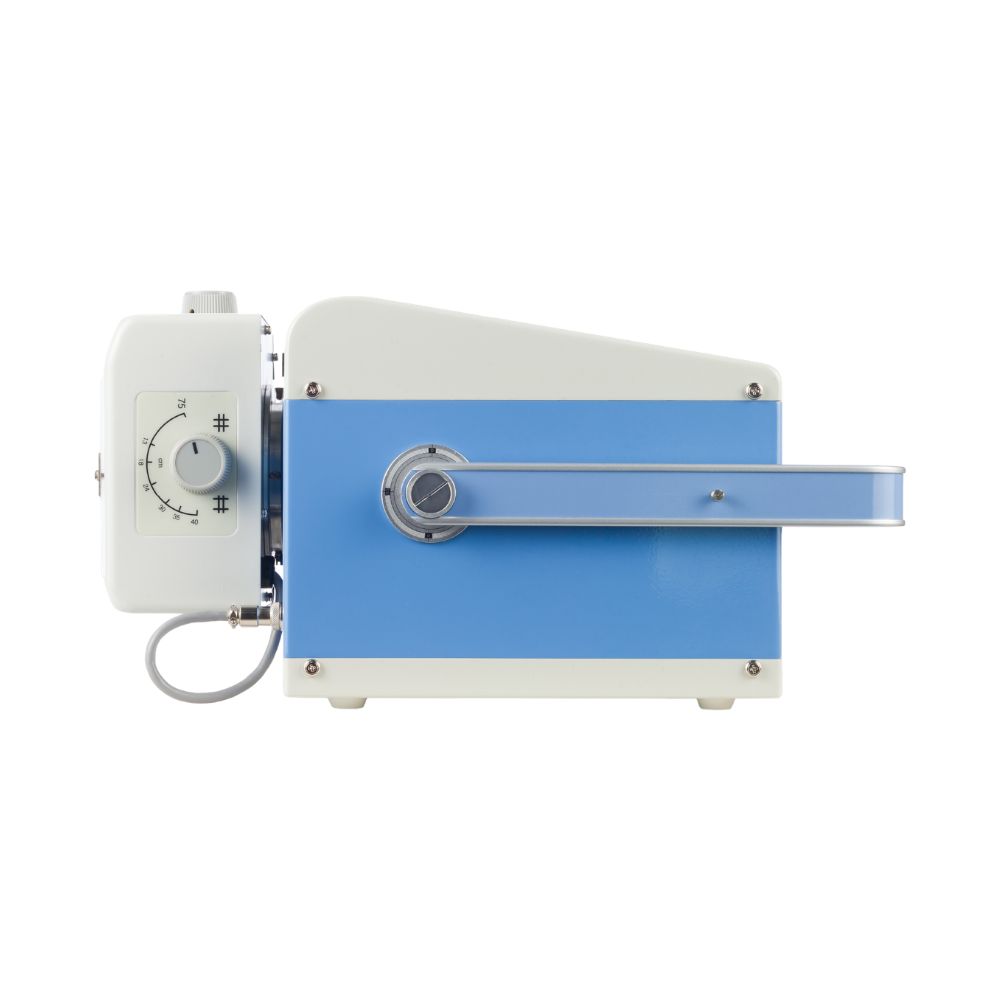

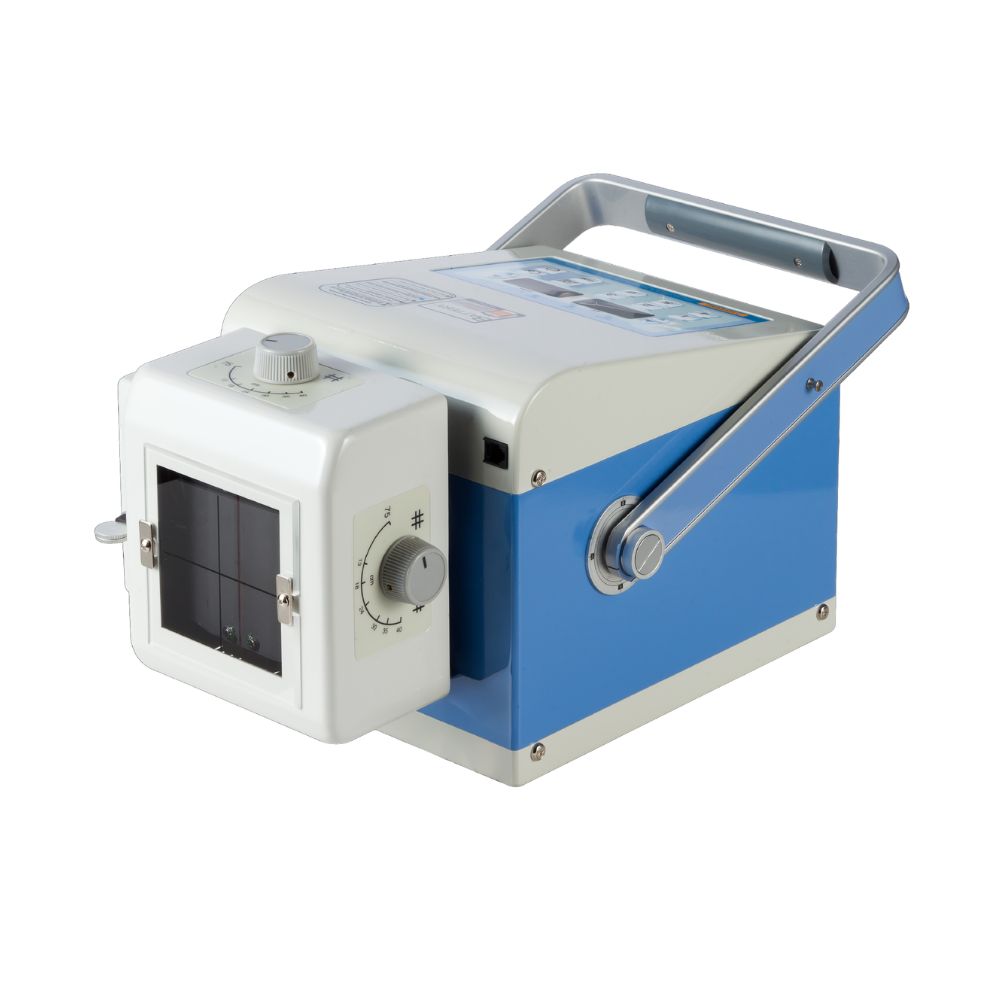

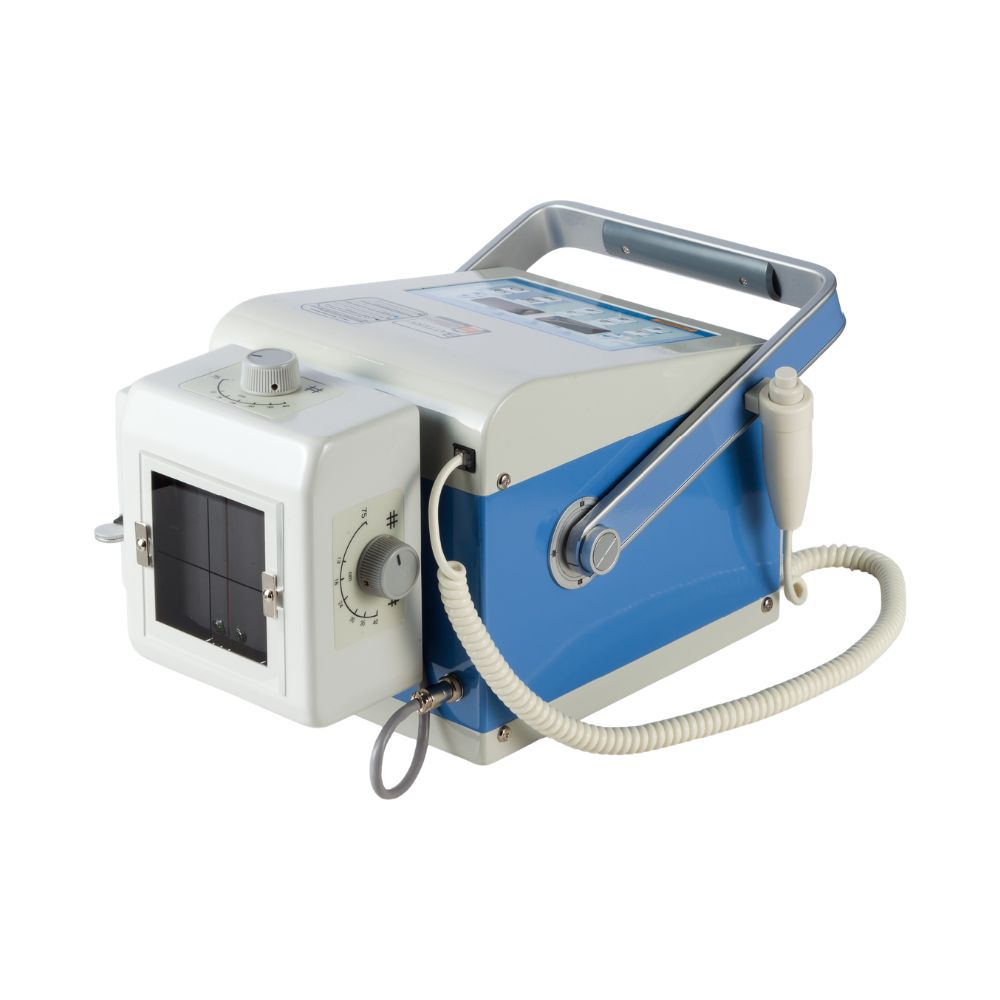

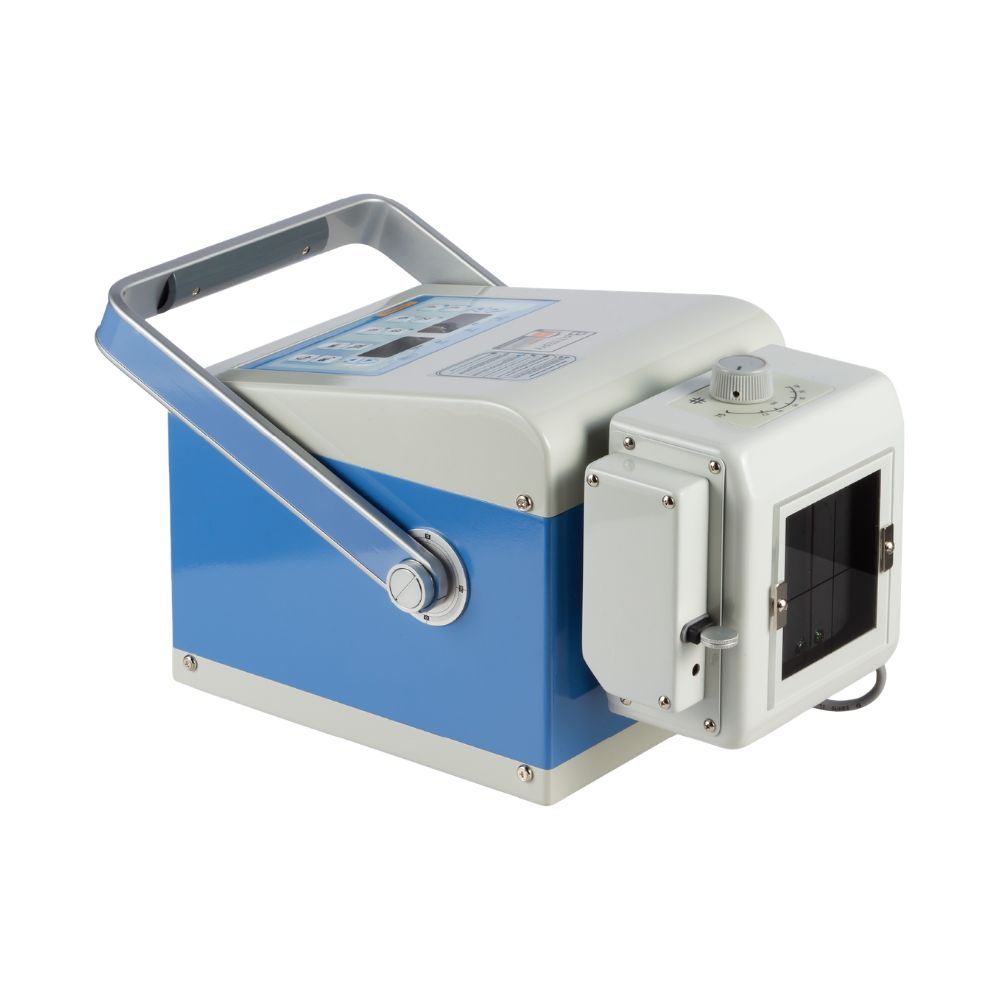

Poskom PXM-40BT Plus Portable X-Ray

Portable X-Ray Imaging with 2.4 kW Battery-Powered Performance

The Poskom PXM-40BT Plus combines the mobility of a battery-powered generator with the output capabilities required for more demanding radiographic applications. It is designed for organizations that need portable imaging flexibility without stepping down to lower-powered mobile solutions.

Key Benefits of the PXM-40BT Plus Portable Design

• • 2.4 kW maximum output
  • Battery-powered operation without continuous AC power
  • Broad 16-35 mA operating range
  • Portable deployment across multiple imaging environments
  • Designed for healthcare, veterinary, and field-based imaging workflows

The PXM-40BT Plus helps bring diagnostic imaging directly to the patient while maintaining the output capacity needed for a wider range of examinations.

More Power for Expanded Imaging Flexibility

The most significant differentiator of the PXM-40BT Plus is its ability to deliver higher output performance while maintaining the portability expected from a battery-powered generator. This combination can help support imaging environments that require greater exposure flexibility than lower-output portable systems.

2.4 kW Output & 16-35 mA Performance

• • Maximum output: 2.4 kW
  • mA range: 16-35 mA
  • kV range: 40-100 kV
  • High-frequency generator technology
  • 1.2 mm focal spot

Compared with lower-output portable generators, the PXM-40BT Plus provides additional exposure flexibility for organizations performing a broader range of radiographic examinations.

Higher Output Power for Extended Imaging Workflows

The PXM-40BT Plus is engineered around a power-dense battery platform that supports extended mobile imaging workflows. The combination of battery-powered mobility and higher output capability makes it well suited for imaging providers who require more than basic portable radiography performance.

A Strong Fit for Higher-Volume Mobile Imaging

Common examples include:

• • Mobile imaging providers
  • Bedside radiography programs
  • Community healthcare services
  • Rural healthcare outreach
  • Temporary imaging environments

These workflows often require a portable generator capable of supporting multiple imaging examinations while maintaining consistent performance throughout the day.

Supports Equine & Large-Animal Imaging Workflows

Veterinary imaging often requires equipment capable of supporting examinations outside of dedicated imaging rooms.

Common examples include:

• • Equine imaging programs
  • Large-animal veterinary services
  • Mobile veterinary imaging
  • Veterinary hospitals
  • Agricultural and livestock imaging environments

The higher-output design of the PXM-40BT Plus may be beneficial in veterinary environments that require greater imaging flexibility while maintaining portability.

Precision LED Collimation for Efficient Positioning

The integrated LED collimation system is designed to support accurate beam alignment and efficient positioning during radiographic examinations.

Supports Consistent Exam Setup

• • Helps simplify patient positioning
  • Supports repeatable imaging workflows
  • Useful in mobile imaging environments
  • Assists with efficient exam preparation

These capabilities can help support workflow consistency across healthcare and veterinary imaging environments.

Pair the PXM-40BT Plus with a Complete DR Workflow

The PXM-40BT Plus is commonly integrated into complete digital radiography systems. Depending on the intended application, the generator can be paired with detectors, acquisition software, stands, and mobility accessories to create a workflow-specific imaging solution.

Common Healthcare Imaging Configurations

Healthcare-focused configurations are often paired with:

• • Wireless DR detectors
  • Portable acquisition workstations
  • Mobile imaging carts
  • Bedside imaging workflows

These configurations are typically optimized around healthcare imaging requirements and applicable regulatory clearances.

Common Veterinary Imaging Configurations

Veterinary-focused configurations are often paired with:

• • Veterinary DR detectors
  • Mobile imaging stands
  • Equine imaging accessories
  • Veterinary imaging software

These configurations are typically optimized around veterinary imaging workflows and species-specific imaging requirements.

Where the PXM-40BT Plus Fits Best

The Poskom PXM-40BT Plus platform can be incorporated into imaging solutions designed for a variety of clinical environments. Available software, accessories, workflow tools, and regulatory clearances vary based on the intended use of the system.

Human Healthcare Imaging Applications

Common healthcare imaging applications may include:

• • Bedside radiography
  • Extremity imaging
  • Outpatient imaging programs
  • Community healthcare services
  • Rural healthcare imaging

Application suitability depends on the detector, software platform, accessories, and regulatory configuration selected.

Veterinary Imaging Applications

Common veterinary imaging applications may include:

• • Small animal radiography
  • Equine radiography
  • Mobile veterinary imaging
  • Veterinary hospital imaging
  • Shelter and rescue medicine

Application suitability depends on the selected configuration and intended veterinary workflow.

Low-Dose Imaging with 2.4 kW Portable Performance

According to Poskom, the PXM-40BT Plus is designed to support low-dose imaging while maintaining the image quality needed for diagnostic radiography.

Supports Reliable Diagnostic Imaging

• • Supports detailed radiographic imaging
  • Designed for consistent image quality
  • Helps support diagnostic confidence
  • Suitable for routine imaging workflows

Image quality performance ultimately depends on detector selection, acquisition software, imaging technique, and workflow configuration.

Certifications & Regulatory Compliance

According to Poskom, the PXM-40BT Plus platform is supported by the following certifications and regulatory credentials:

• U.S. FDA Cleared
• CE Marking
• ISO 13485:2016 Certified
• KGMP Certified

Availability of specific clearances and configurations may vary by market and intended application.

Configure the PXM-40BT Plus Around Your Imaging Workflow

The Poskom PXM-40BT Plus is available as a portable X-ray generator platform that can be configured around a variety of imaging environments. Detector selection, acquisition software, transport accessories, stands, and workflow tools may vary depending on the clinical application.

MXR can help configure the system around your specific imaging goals, workflow requirements, and operational environment.

Configuration Note: The PXM-40BT Plus platform may be available in configurations optimized for either human healthcare or veterinary imaging environments. Available software, accessories, workflow tools, and regulatory clearances vary based on the intended use of the system.

Poskom PXM-40BT Plus Specifications

PXM-40BT Plus Generator Specifications

• • Maximum Output: 2.4 kW
  • kV Range: 40-100 kV
  • mA Range: 16-35 mA
  • Power Supply: 14.8 V / 5,000 mAh battery
  • Tube Focal Spot: 1.2 mm
  • Weight: 14 kg (30.9 lbs)
  • Dimensions: 640 × 400 × 390 mm
