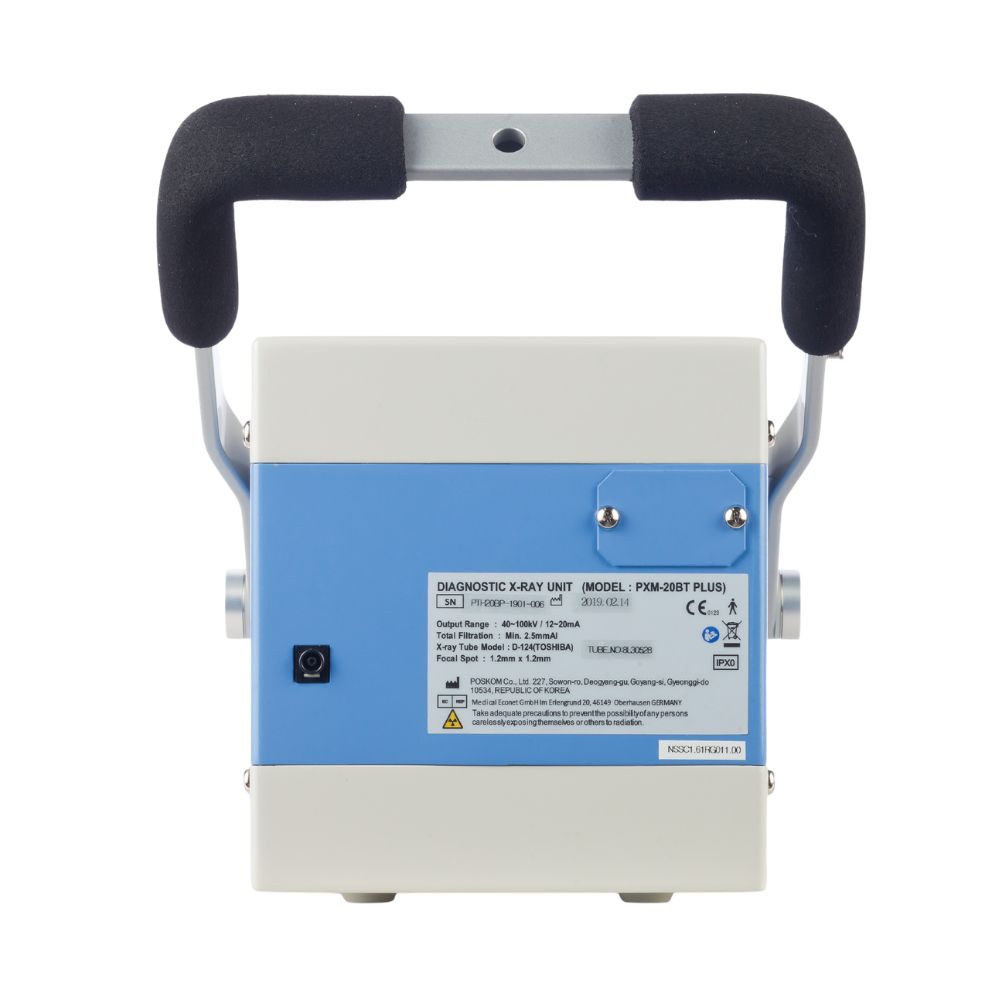

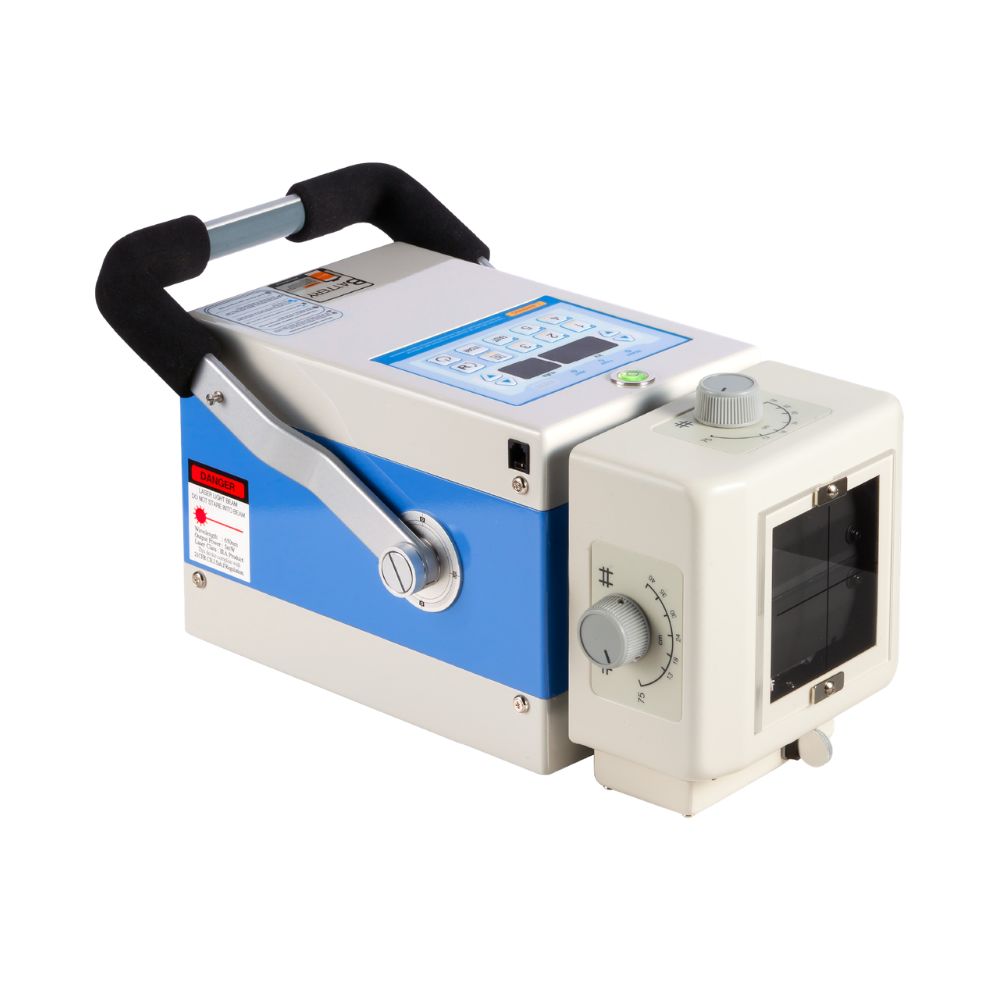

Poskom PXM-20BT Plus Portable X-ray

Portable X-Ray Imaging at the Point of Care

The POSKOM PXM-20BT PLUS is designed to bring diagnostic imaging directly to the patient. Its compact footprint and battery-powered operation support imaging workflows where a traditional X-ray room may not be available or where transporting patients or animals may be impractical.

Key Benefits of the PXM-20BT PLUS Portable Design

• • Battery-powered operation for imaging without continuous AC power
  • Compact footprint for easier transportation and storage
  • Lightweight 23.4 lb (10.6 kg) design
  • High-frequency generator technology in a portable package
  • Supports imaging workflows closer to the point of care

Whether deployed in a healthcare environment, veterinary practice, mobile imaging program, or field-based setting, the PXM-20BT PLUS is designed to provide diagnostic imaging flexibility without the limitations of a fixed radiography room.

1.6 kW High-Frequency Performance in a Portable Package

The PXM-20BT PLUS combines portability with the performance characteristics required for diagnostic radiography. Its high-frequency generator technology is designed to provide stable output while maintaining a compact and transportable form factor.

Generator Technology & Imaging Performance

• • Maximum output of 1.6 kW
  • Operating range of 40-100 kV
  • Output range of 12-20 mA
  • 1.2 mm focal spot
  • Rechargeable battery-powered operation

These specifications allow the generator to support a wide range of radiographic examinations when integrated into a complete digital imaging workflow.

Lightweight Design for Mobile Healthcare & Veterinary Imaging

The compact size and battery-powered operation of the PXM-20BT PLUS make it well suited for imaging programs that require equipment to travel between patients, departments, facilities, or field locations.

A Practical Fit for Mobile Healthcare Imaging

The PXM-20BT PLUS can support healthcare imaging workflows where mobility is a priority.

Common examples include:

• • Bedside radiography
  • Mobile imaging services
  • Community healthcare programs
  • Rural healthcare outreach
  • Temporary or satellite imaging locations

These environments often benefit from portable imaging equipment that can be deployed quickly without the infrastructure requirements of a dedicated imaging suite.

Designed for Veterinary Mobility

Veterinary imaging environments often require equipment that can adapt to patient movement, multiple treatment areas, and field-based imaging needs.

Common examples include:

• • Equine imaging programs
  • Mobile veterinary services
  • Veterinary hospitals
  • Small animal practices
  • Shelter and rescue medicine

The lightweight design of the PXM-20BT PLUS can help simplify transportation between imaging locations while supporting diagnostic radiography workflows.

Build a Complete Portable DR Solution

The Poskom PXM-20BT Plus is commonly integrated into complete digital radiography systems. Depending on the intended application, the generator can be paired with detectors, acquisition software, stands, and mobility accessories to create a workflow-specific imaging solution.

Common Healthcare Imaging Configurations

Healthcare-focused configurations are often paired with:

• • Wireless DR detectors
  • Portable acquisition workstations
  • Mobile imaging carts
  • Bedside imaging workflows

These configurations are typically optimized around healthcare imaging requirements and applicable regulatory clearances.

Common Veterinary Imaging Configurations

Veterinary-focused configurations are often paired with:

• • Veterinary DR detectors
  • Mobile imaging stands
  • Equine imaging accessories
  • Veterinary imaging software

These configurations are typically optimized around veterinary imaging workflows and species-specific imaging requirements.

Clinical Applications for Healthcare & Veterinary Imaging

The Poskom PXM-20BT Plus platform can be incorporated into imaging solutions designed for a variety of clinical environments. Available software, accessories, workflow tools, and regulatory clearances vary based on the intended use of the system.

Human Healthcare Imaging Applications

Common healthcare imaging applications may include:

• • Bedside radiography
  • Extremity imaging
  • Outpatient imaging programs
  • Community healthcare services
  • Rural healthcare imaging

Application suitability depends on the detector, software platform, accessories, and regulatory configuration selected.

Veterinary Imaging Applications

Common veterinary imaging applications may include:

• • Small animal radiography
  • Equine radiography
  • Mobile veterinary imaging
  • Veterinary hospital imaging
  • Shelter and rescue medicine

Application suitability depends on the selected configuration and intended veterinary workflow.

Certifications & Regulatory Compliance

According to Poskom, the PXM-20BT Plus platform is supported by the following certifications and regulatory credentials:

• U.S. FDA Cleared
• CE Marking
• ISO 13485:2016 Certified
• KGMP Certified

Availability of specific clearances and configurations may vary by market and intended application.

Configure the PXM-20BT PLUS Around Your Imaging Workflow

The POSKOM PXM-20BT PLUS is available as a portable X-ray generator platform that can be configured around a variety of imaging environments. Detector selection, acquisition software, transport accessories, stands, and workflow tools may vary depending on the clinical application.

MXR Imaging can help configure the system around your specific imaging goals, workflow requirements, and operational environment.

Configuration Note: The Poskom PXM-20BT Plus platform may be available in configurations optimized for either human healthcare or veterinary imaging environments. Available software, accessories, workflow tools, and regulatory clearances vary based on the intended use of the system.

Poskom PXM-20BT Plus Specifications

• PXM-20BT PLUS Generator Specifications
• Maximum Output: 1.6 kW
• kV Range: 40-100 kV
• mA Range: 12-20 mA
• Power Supply: 14.8 V / 5,000 mAh battery
• Tube Focal Spot: 1.2 mm
• Weight: 10.6 kg (23.4 lbs)
• Dimensions: 640 × 400 × 390 mm
