Del Medical FMT18T Floor-Mounted X-Ray

Del Medical FMT18T Highlights & Benefits

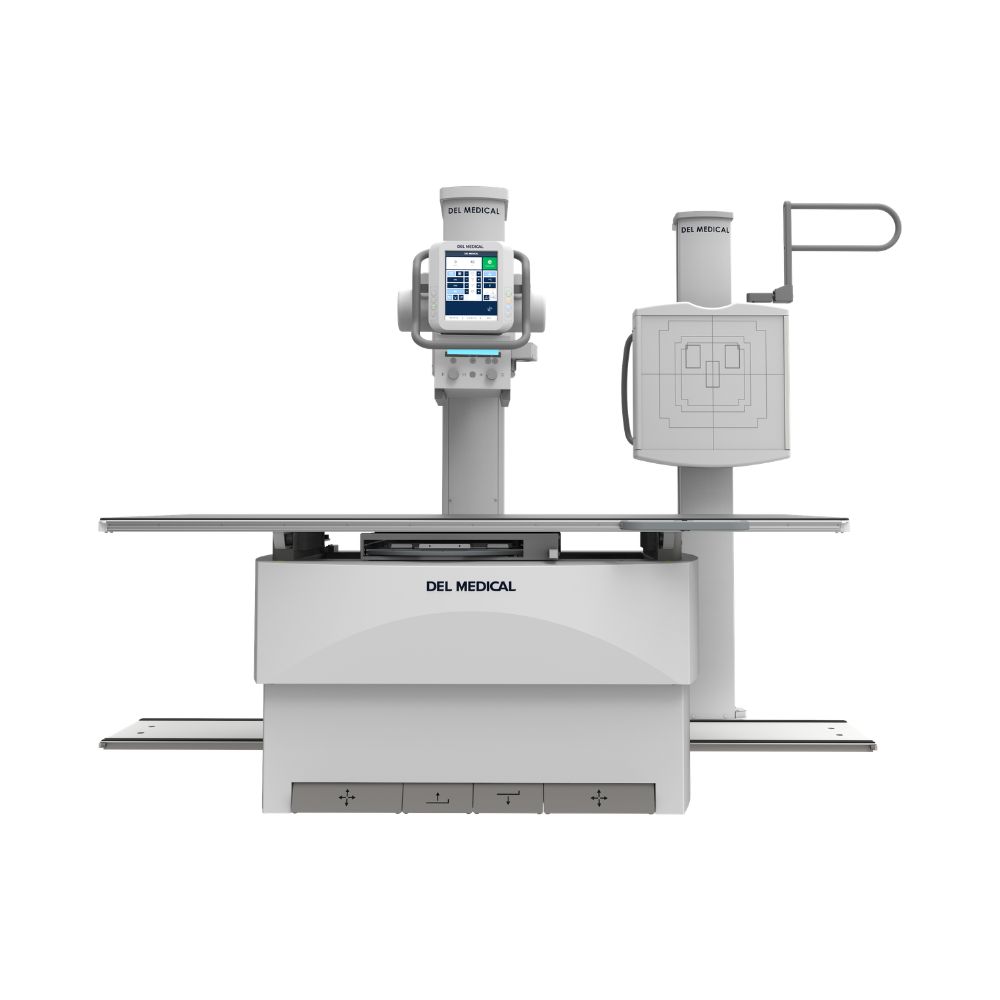

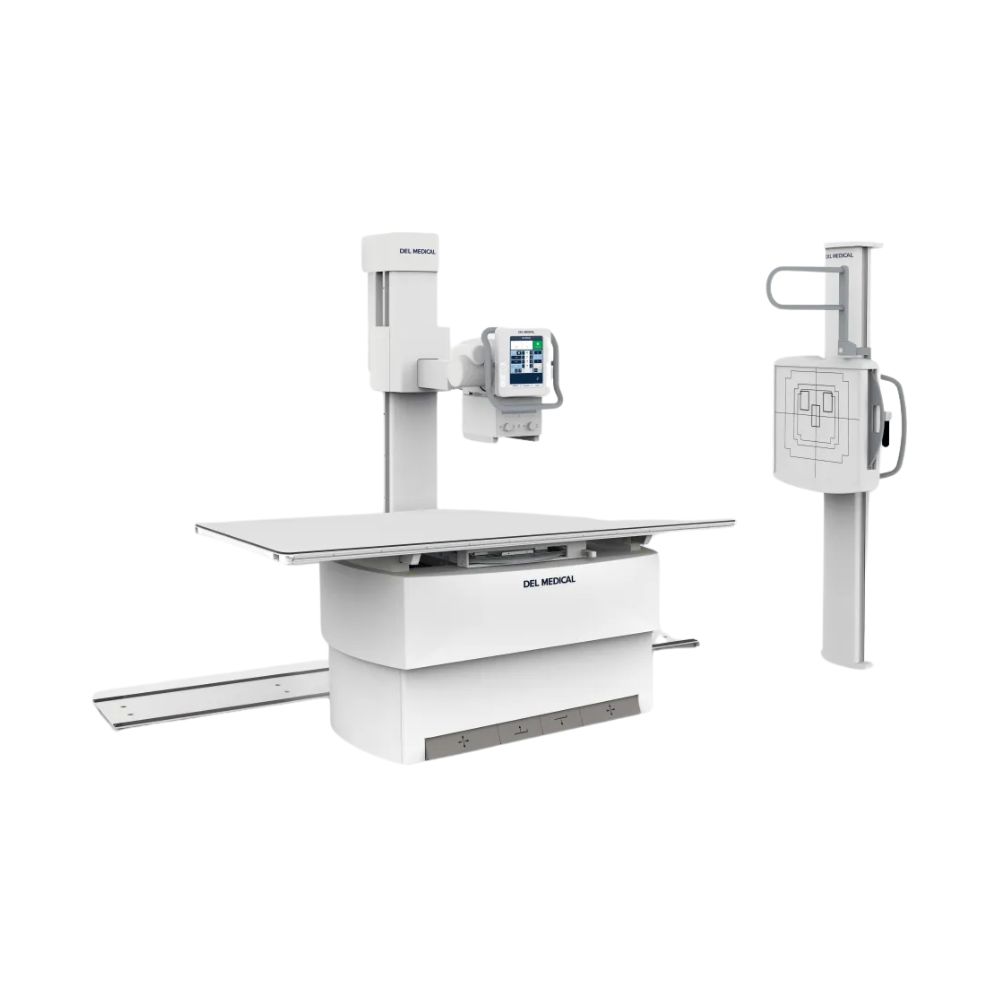

The Del Medical FMT18T floor-mounted digital X-ray system combines the FMT18T tube stand, EV800 elevating table, VS300 wall stand, high-frequency generator, and DELWORKS digital radiography workflow. Its floor-mounted design provides broad positioning capability without requiring an overhead tube crane.

FMT18T Key Benefits

• • Synchronized vertical tracking to the VS300 wall stand
  • Source-to-image distance tracking to the EV800 elevating table
  • 10.4-inch tube-side touchscreen with positioning and compatible generator controls
  • Electromagnetic braking for secure tube positioning
  • Minimum ceiling height of 92 in (234 cm)
  • EV800 elevating table with an 800 lb (363 kg) patient capacity
  • VS300 wall stand with receptor travel toward floor level
  • Automatic collimation available with compatible DELWORKS configurations
  • Fixed and wireless digital detector options

Together, these features reduce repetitive positioning steps while supporting table, upright, weight-bearing, and cross-table radiography within a fixed imaging room.

Synchronized Tracking Reduces Manual Alignment

The FMT18T’s synchronized tracking maintains alignment between the X-ray tube and image receptor as the system is repositioned. Vertical tracking follows the VS300 wall stand, while source-to-image distance tracking follows the EV800 table, reducing the need for repeated manual alignment during exam setup.



Get a Preview of the Del Medical FMT18 Series

See the floor-mounted FMT18 platform, system positioning, and imaging-room workflow before exploring the FMT18T’s individual features below.



FMT18T Synchronized Tracking & Tube-Side Controls

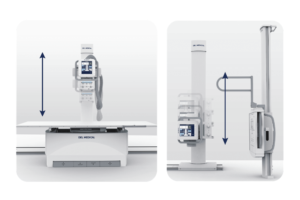

The FMT18T provides synchronized vertical tracking to the VS300 wall stand and source-to-image distance tracking to the EV800 elevating table. These functions help maintain tube-to-receptor alignment while reducing manual repositioning between exams.

Vertical Tracking to the VS300 Wall Stand

Synchronized vertical tracking moves the tube stand with the VS300 wall stand receptor to help maintain alignment during upright positioning.

This reduces the need to independently reposition the X-ray tube each time the receptor height changes.

Source-to-Image Distance Tracking to the EV800 Table

Source-to-image distance, or SID, is the distance between the X-ray tube focal spot and the image receptor.

The FMT18T can track SID as the tube is positioned with the EV800 elevating table, helping maintain consistent tube-to-detector alignment without repeated manual adjustments.

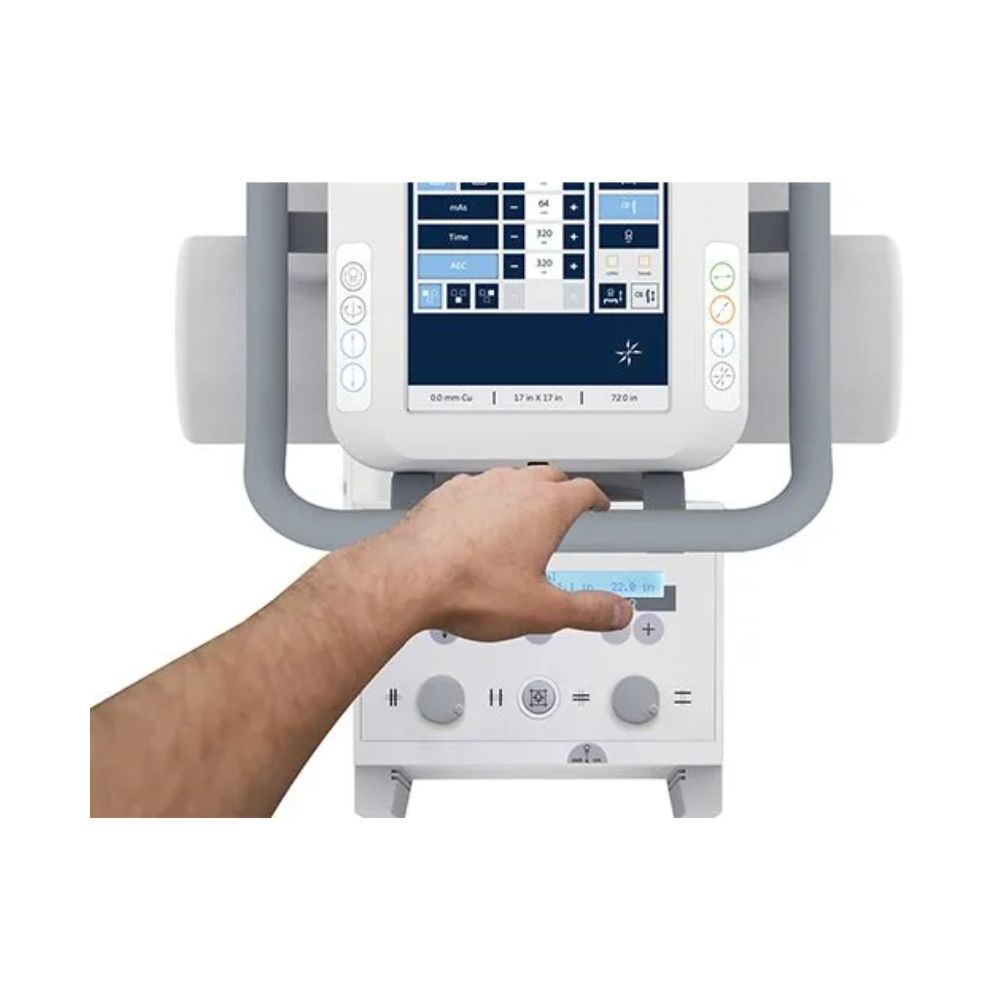

10.4-Inch Touchscreen & All-Lock Release

The tube stand includes a 10.4-inch touchscreen that displays tube angulation, SID values, and compatible generator controls.

An all-lock release sensor positioned near the lower tube-head handle allows the technologist to release the movement locks while gripping the handle. Electromagnetic braking secures the tube after positioning.

Automatic Collimation Using Anatomy-Based Exam Settings

With the automatic collimator and compatible DELWORKS configuration, pre-programmed anatomy-based exam settings can automatically adjust the X-ray field for the selected examination.

These exam presets are commonly referred to as anatomical programming radiography, or APR, settings. They help standardize collimation while reducing manual setup steps.



FMT18T Table, Upright & Weight-Bearing Positioning

The FMT18T pairs the floor-mounted tube stand with the EV800 table and VS300 wall stand to support recumbent, upright, weight-bearing, and cross-table examinations within the same room.

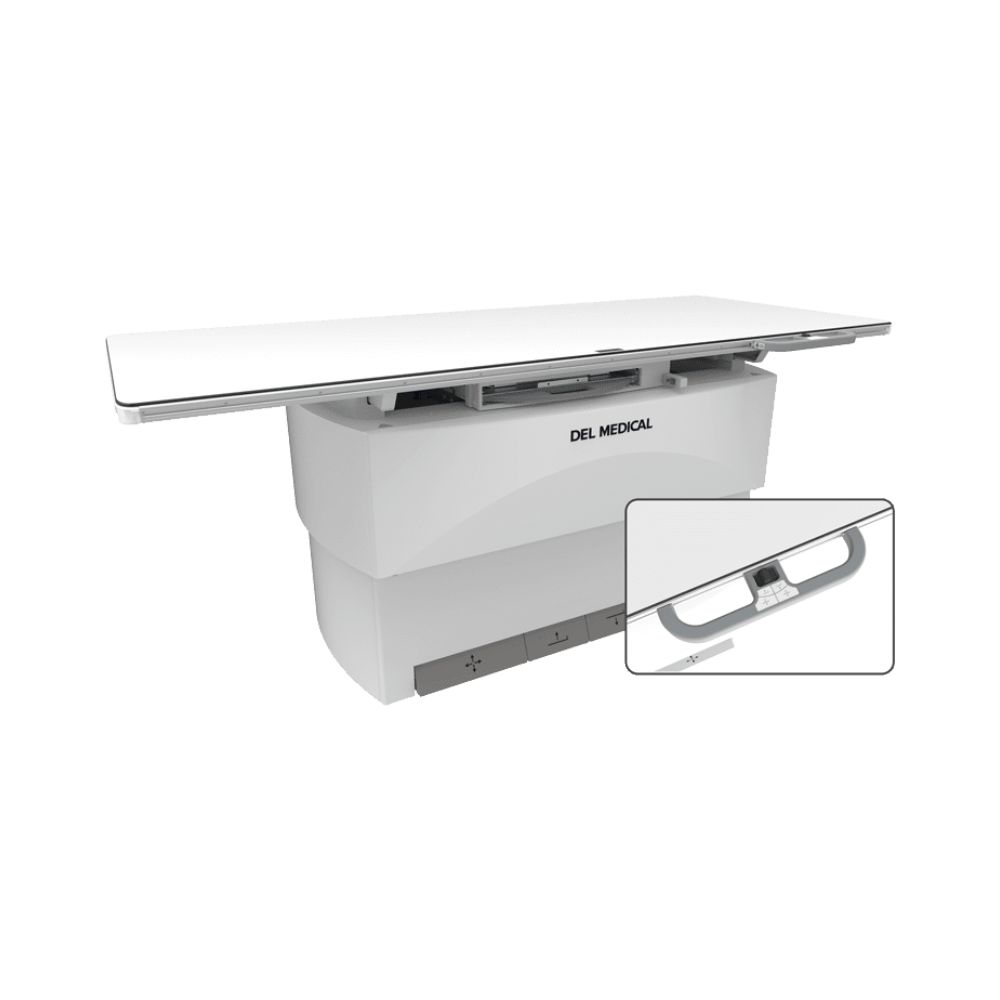

EV800 800 lb Elevating Float-Top Table

The EV800 supports patients up to 800 lb (363 kg) and lowers to approximately 22.25 in (56.5 cm), helping simplify transfers and patient positioning.

Its four-way floating tabletop moves longitudinally and transversely, allowing the technologist to reposition the patient relative to the X-ray beam without repeatedly moving the entire patient.

Recessed foot controls and available table-side controls provide additional positioning access around the table.

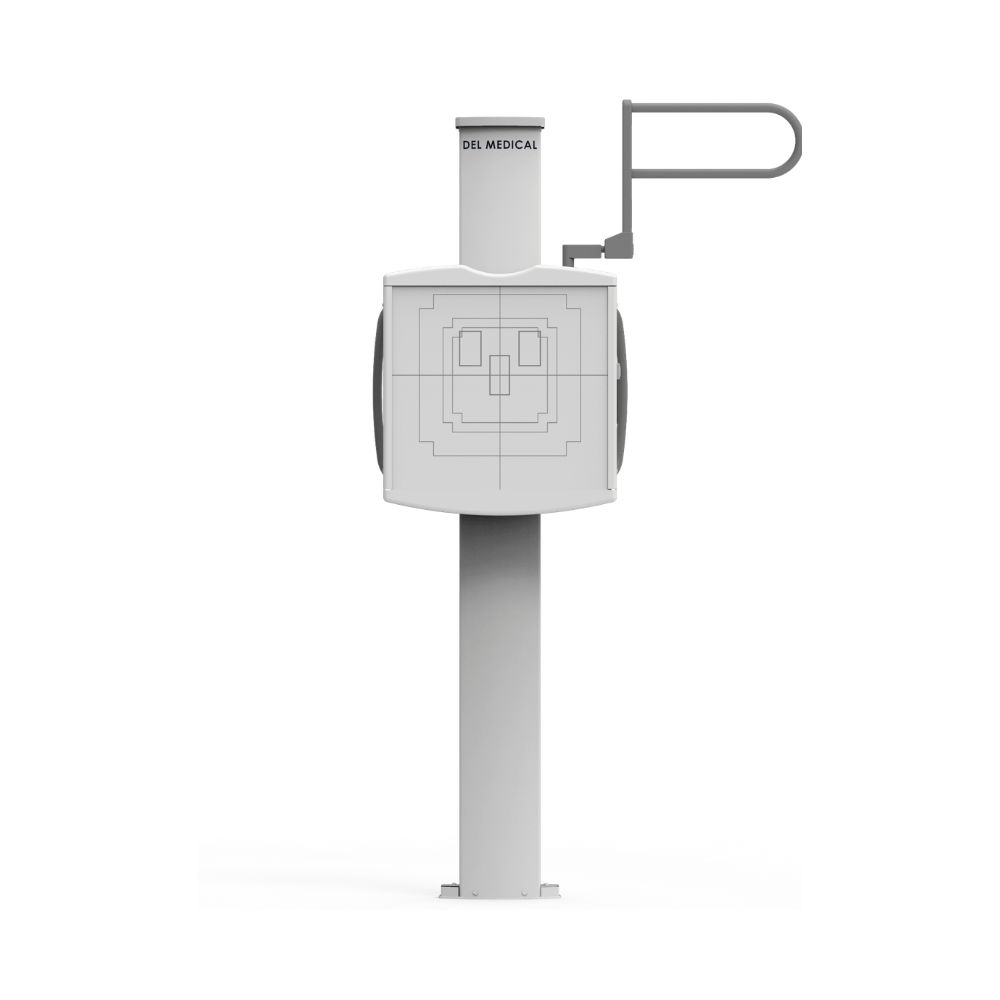

VS300 Wall Stand for Upright & Weight-Bearing Exams

The VS300 uses electromagnetic fail-safe locks to secure receptor positioning. Its receptor can travel toward floor level, supporting upright examinations as well as weight-bearing imaging that requires lower detector placement.

Patient-side handgrips assist with positioning, while the technologist handgrip is designed to move comfortably as the receptor travels vertically.

Rotating Detector Tray & EV800 Positioning Accessories

An optional rotating detector tray allows compatible 14 x 17 in (35 x 43 cm) detectors to move between portrait and landscape orientation without removing the detector from the tray.

Available table and positioning accessories include:

• • Lateral detector holder for cross-table views
  • Table-side patient handgrips
  • Compression band
  • Table-side controls
  • Additional detector tray configurations

Options depend on the selected system configuration.



FMT18T Clinical Environments & Exam Types

The FMT18T supports fixed-room general radiography where table, upright, weight-bearing, and cross-table imaging are required. Its floor-mounted tube stand and 92 in (234 cm) minimum ceiling requirement can also accommodate rooms where an overhead tube crane is not practical.

General Radiography Rooms Using Table & Upright Imaging

The FMT18T most commonly supports general radiography workflows in:

• • Hospital radiology departments
  • Outpatient imaging centers
  • Urgent care facilities with dedicated radiography rooms
  • Orthopedic and musculoskeletal imaging environments
  • General radiography rooms using both table and wall stand imaging

Its configurable room design supports a wide range of general radiography environments based on room requirements, exam mix, and detector configuration.

Upright, Tabletop, Weight-Bearing & Cross-Table Exams

The FMT18T can support:

• • General head-to-toe radiography
  • Upright chest and other standing examinations
  • Weight-bearing musculoskeletal imaging
  • Tabletop examinations
  • Cross-table lateral projections
  • Small-anatomy imaging with an appropriately sized detector
  • Pediatric imaging with an appropriately sized detector
  • Full-length spine imaging when optional DELWORKS software image stitching is configured

The combination of tube travel, table movement, wall stand positioning, and tube rotation allows the room to accommodate a broad general X-ray exam mix.



DELWORKS Digital X-Ray Workflow & Generator Controls

DELWORKS provides digital radiography acquisition, image processing, exam management, and compatible generator controls for the FMT18T.

Patient and procedure information, acquired images, processing tools, and compatible exposure controls are brought together within the digital X-ray workflow.

Adjust Exposure Settings at the Tube-Side Touchscreen

With compatible generator integration, technologists can access exposure settings through the FMT18T tube-side touchscreen while remaining near the patient during positioning.

Choose from Del Medical CM Series high-frequency generator configurations ranging from 32 to 80 kW to match the radiographic requirements of the imaging room.

DELWORKS Exam Presets & Image Processing

DELWORKS uses exam-specific presets and processing based on the selected anatomy.

Available image and quality-control functions include:

• • Image rotation and cropping
  • Brightness and contrast adjustment
  • Look-up table, or LUT, adjustments that affect image display
  • Patient orientation and laterality verification
  • Orientation markers and text annotations
  • Pixel-density histograms
  • Rejected-image management
  • Exam-specific image processing

The workstation can also display patient information, procedure information, exposure settings, generator status, and system controls within the acquisition workflow.

Optional DELWORKS Software Image Stitching

The FMT18T tube stand does not use motorized stitching. Optional DELWORKS software image stitching can combine acquired images for applications such as full-length spine studies.

This keeps stitching within the digital image-processing workflow rather than requiring a motorized stitching function in the tube stand.



DELWORKS Detector Options for the FMT18T

The FMT18T can be configured with fixed or wireless DELWORKS digital detectors to match different anatomy, positioning requirements, and room workflows.

Wireless Detector Sizes

Wireless detector options provide flexibility for different anatomy and exam requirements.

Available formats include:

• • 10 x 12 in (24 x 30 cm) for smaller anatomy and pediatric imaging
  • 14 x 17 in (35 x 43 cm) for flexible general radiography
  • 17 x 17 in (43 x 43 cm) for larger-format imaging

Wireless operation provides additional positioning flexibility when compatible detectors need to be used across supported imaging positions.

Fixed 17 x 17 Detector Configuration

A fixed 17 x 17 in (43 x 43 cm) detector can remain dedicated to the table or wall stand.

Fixed detector configurations reduce detector handling and can streamline rooms with frequently repeated table or upright examinations.

EasyConnect Automatic Exposure Detection

EasyConnect uses automatic exposure detection, or AED, to allow a compatible wireless detector to recognize an X-ray exposure.

The detector remains ready for an exposure, captures the image when the X-ray is detected, and transmits the image wirelessly to the DELWORKS workstation. This supports wireless detector operation without requiring a physical detector-to-generator trigger connection in compatible configurations.



---

Del Medical FMT18T Specifications

FMT18T Floor-Mounted Tube Stand

• • Minimum ceiling height: 92 in (234 cm)
  • Column height: 91.3 in (231 cm)
  • Total vertical travel: 64.5 in (164 cm)
  • Floor-to-focal-spot range: 11 to 75.5 in (28 to 192 cm)
  • Longitudinal travel: 94 in (239 cm)
  • Floor plate longitudinal length: 120 in (305 cm)
  • Transverse travel: 11 in (28 cm)
  • Tube, collimator, and cable support capacity: 88 lb (40 kg)
  • Weight including floor track and components: 950 lb (431 kg)
  • Column rotation: 180° where installation permits
  • Tube rotation: ±180° with preset stops for side-lying lateral projections
  • Base assembly to rear wall: 8 in (20.5 cm)
  • Power requirements: 99-132 / 198-264 VAC, 50/60 Hz

EV800 Elevating Radiographic Table

• • Patient load capacity: 800 lb (363 kg)
  • Table base length: 53 in (135 cm)
  • Table base width: 25 in (64 cm)
  • Longitudinal tabletop movement: ±19.75 in (50 cm)
  • Transverse tabletop movement: ±6.5 in (16.5 cm)
  • Variable table height: 22.25 to 34.25 in (56.5 to 87 cm)
  • Detector tray/Bucky travel: ±8.5 in (22 cm)
  • Standard tabletop length: 86.5 in (220 cm)
  • Standard tabletop width: 36 in (91 cm)
  • Tabletop-to-detector distance: 3.2 in (8 cm)
  • Upper-position tabletop-to-detector distance for special applications: 2.7 in (6.9 cm)
  • Standard tabletop beam attenuation: less than 0.7 mm aluminum
  • Optional carbon-fiber tabletop attenuation: less than 0.4 mm aluminum
  • Table weight: 563 lb (256 kg)
  • Power requirements: 120 / 230-240 VAC, 50/60 Hz, 10 A

VS300 Wall Stand

• • Height and vertical travel: 84 in (213.4 cm)
  • Depth: 13.4 in (34 cm)
  • Receptor width: 24.6 in (62.5 cm)
  • Receptor height: 26.5 in (67.3 cm)
  • Weight with receptor: 200 lb (91 kg)
  • Power requirements: 24 VDC at 1.25 A

CM Series High-Frequency Generator

Available CM Series generator configurations include:

• • 32 kW
  • 40 kW
  • 50 kW
  • 65 kW
  • 80 kW

Generator selection and electrical requirements depend on the final FMT18T configuration and installation.

Available FMT18T Options & Accessories

FMT18T configuration options include:

• • Manual collimator
  • 8 ft and 12 ft floor plates
  • Dose Area Product (DAP) measurement for monitoring radiation delivered across the exposed area
  • Full system integration with or without compatible generator control
  • 78 x 32 in (198 x 81 cm) EV800 tabletop
  • Carbon-fiber tabletop
  • Lateral detector holder
  • Table-side patient handgrips
  • Table-side controls
  • Compression band
  • Grids and grid cabinet
  • Reciprocating detector tray/Bucky
  • Size-sensing detector tray
  • Rotating detector tray
  • Automatic Exposure Control (AEC)
  • VS300 freestanding floor-mount kit
  • VS300 wall-mount bracket
