Summit AMRAD DFMT Elite

Video Overview & Product Demonstration

Optimize Patient Workflow & Technologist Productivity

To maintain high patient volume without sacrificing care, diagnostic facilities require robust and reliable technology. MXR Imaging provides the AMRAD DFMT Elite, which is robustly designed for high-volume facilities, to simplify daily imaging workflows. With its user-friendly interface, technologists can focus on patient comfort and safety rather than struggling with complex machinery.

Clinical Applications & Exam Versatility

The AMRAD DFMT Elite supports an extensive range of radiographic studies to accommodate diverse patient needs. Real-world clinical applications include:

• Orthopedic Care: Smooth adjustments make weight-bearing, extremity, and precise joint views simple to capture.
• Chest Examinations: Fully counterbalanced vertical tracking on the wall stand ensures effortless upright chest imaging.
• Trauma & Lateral Studies: Transverse and rotational tube stand travel enables cross-table lateral imaging for patients who cannot be easily moved.
• Full-Spine & Scoliosis Assessments: An optional long-format wall stand captures full spinal or long leg alignments in a single exposure.

Heavy-Duty Radiographic Table Features

Maximum Patient Safety & Weight Capacity

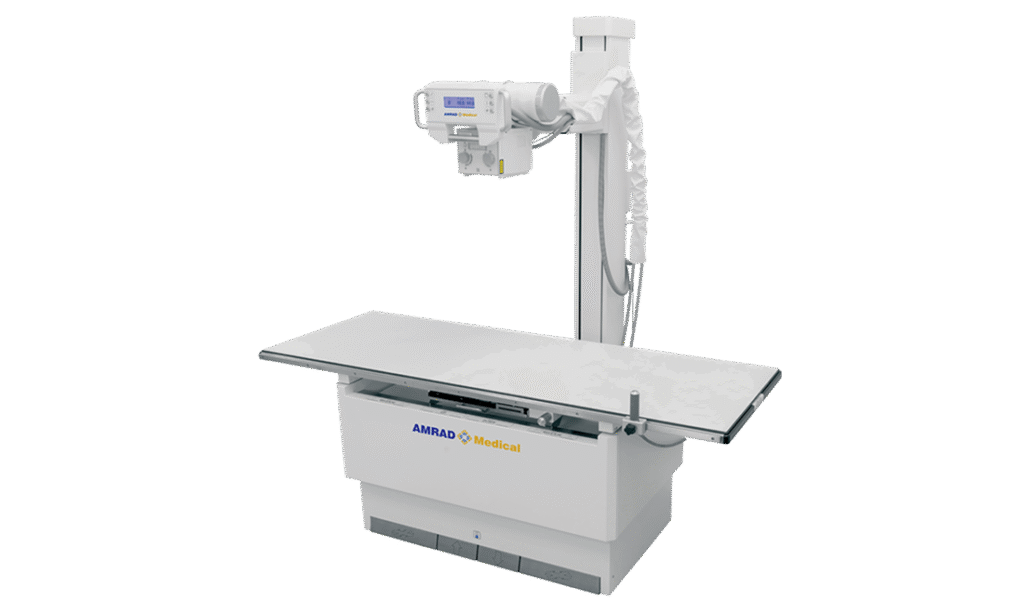

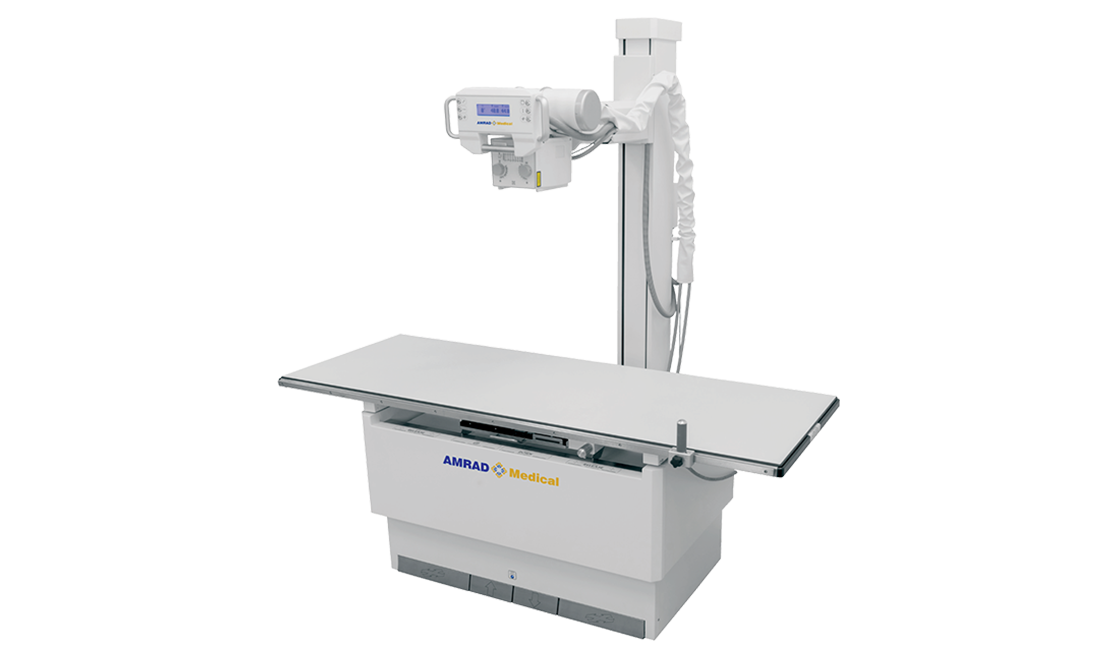

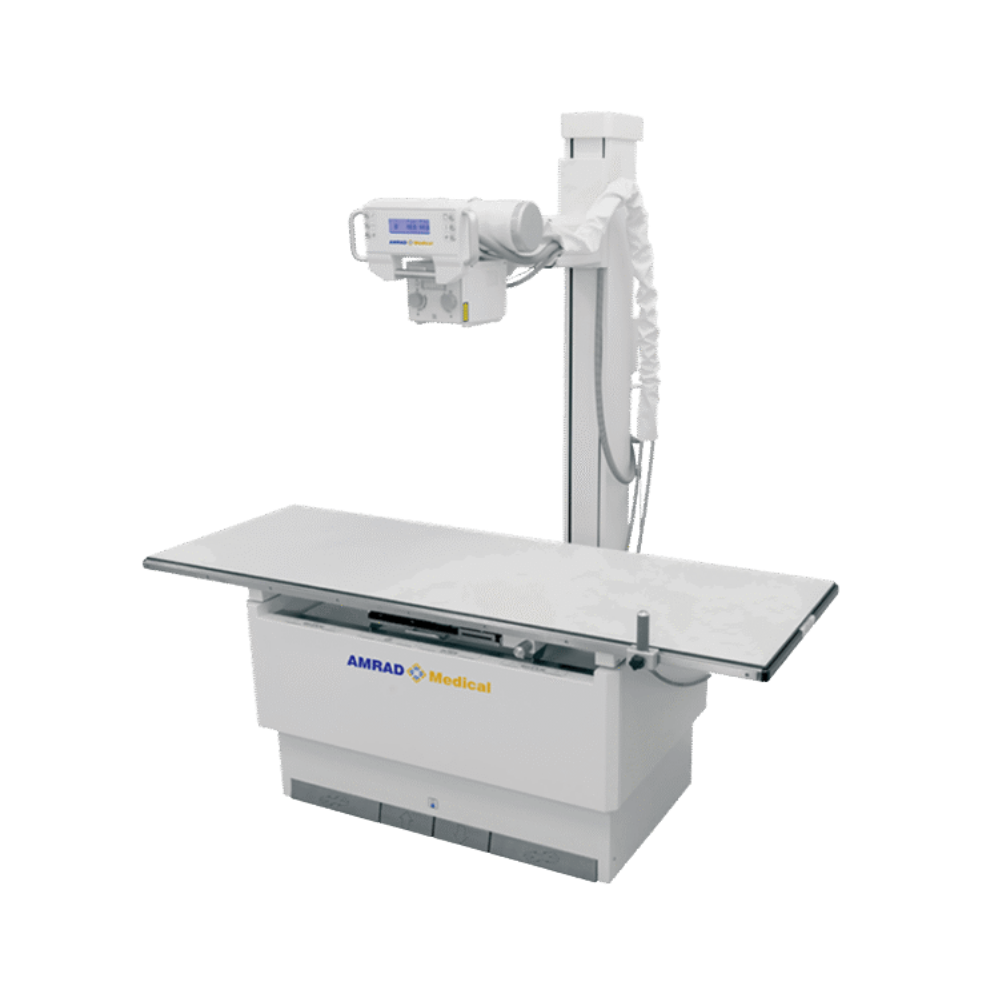

The elevating, four-way float flat-top table (Model S222) handles a rated patient capacity of 650 pounds, making it highly suitable for bariatric care. Its variable height ranges from 23 inches to 34 inches, facilitating safe and easy transfers for pediatric, elderly, or mobility-impaired patients.

Intuitive Foot Treadles & Collision Protection

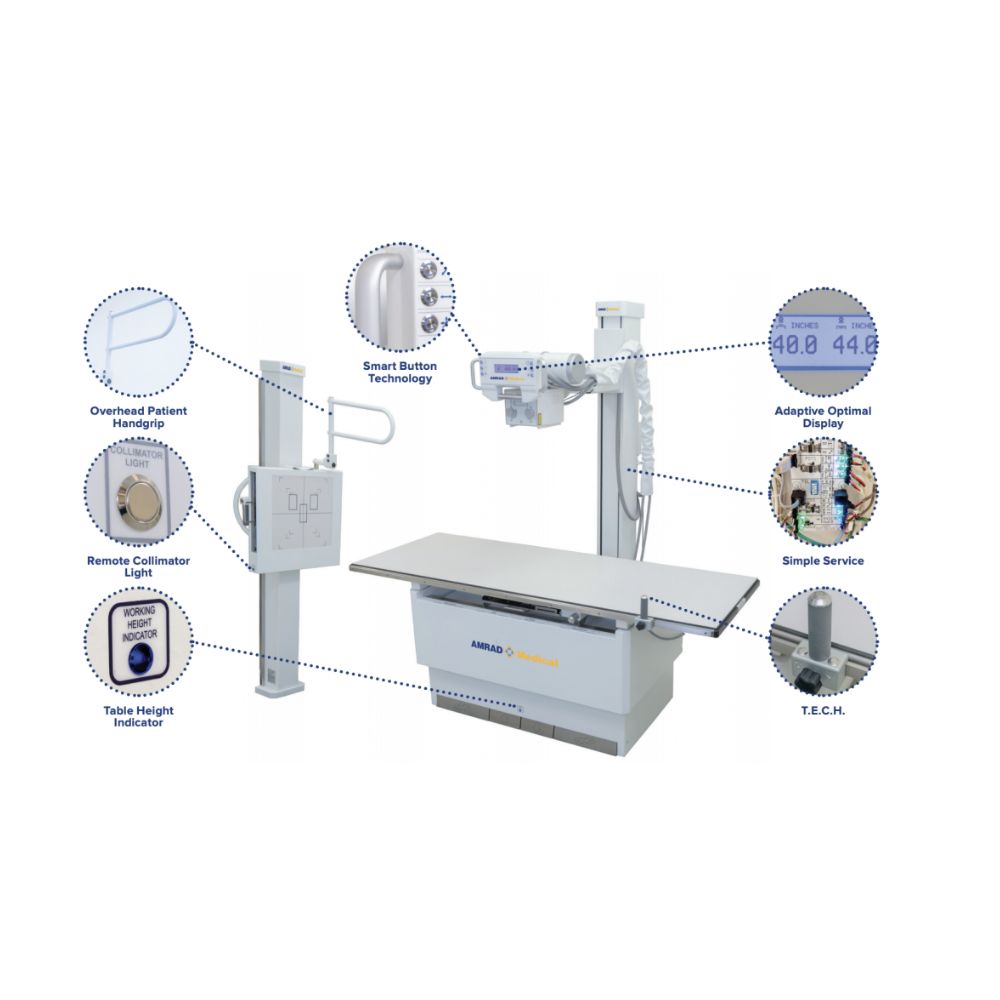

Recessed foot pedals control table top and height movements safely, while integrated collision protection and fail-safe locks help prevent accidental movement. Integrated illumi-sense LED lighting projects a soft, soothing glow to keep patients calm, while the Table Elevation Control Handle (T.E.C.H.) provides quick manual lock release.

Smart Floor-Mounted Tube Stand Capabilities

Continuous SID Tracking & Smart Button Technology

The floor-mounted tube stand (Model J700D) features Smart Button Technology to simplify alignment, letting technologists change configurations with minimal physical effort. The Adaptive Optimal Display changes orientation for easy viewing and provides continuous Source-to-Image Distance (SID) readouts to both the table and wall stand.

360-Degree Rotation & Transverse Travel

A 10-foot floor-mounted platform enables long longitudinal travel, while the rotational base rotates 360 degrees with convenient 90-degree detents. With 8.5 inches of transverse tubearm travel and a digital angulation indicator, precise angles are easy to duplicate. Additionally, the buttons for vertical and horizontal movement intuitively swap functions for seamless operation when rotating the angulation handle from the table to the wall stand.

High-Performance Wall Stand Configurations

Center-Mounted Adjustments & Ergonomic Hand Grips

The fully counterbalanced J1000 wall stand is built with a rigid frame for precise alignment. It can be center- or side-mounted to maximize room space. Side-mounted and overhead hand grips assist patients during standing chest or spine procedures, and the collimator light can be activated directly from the wall stand.

Optional Long-Format Spine & Scoliosis Imaging

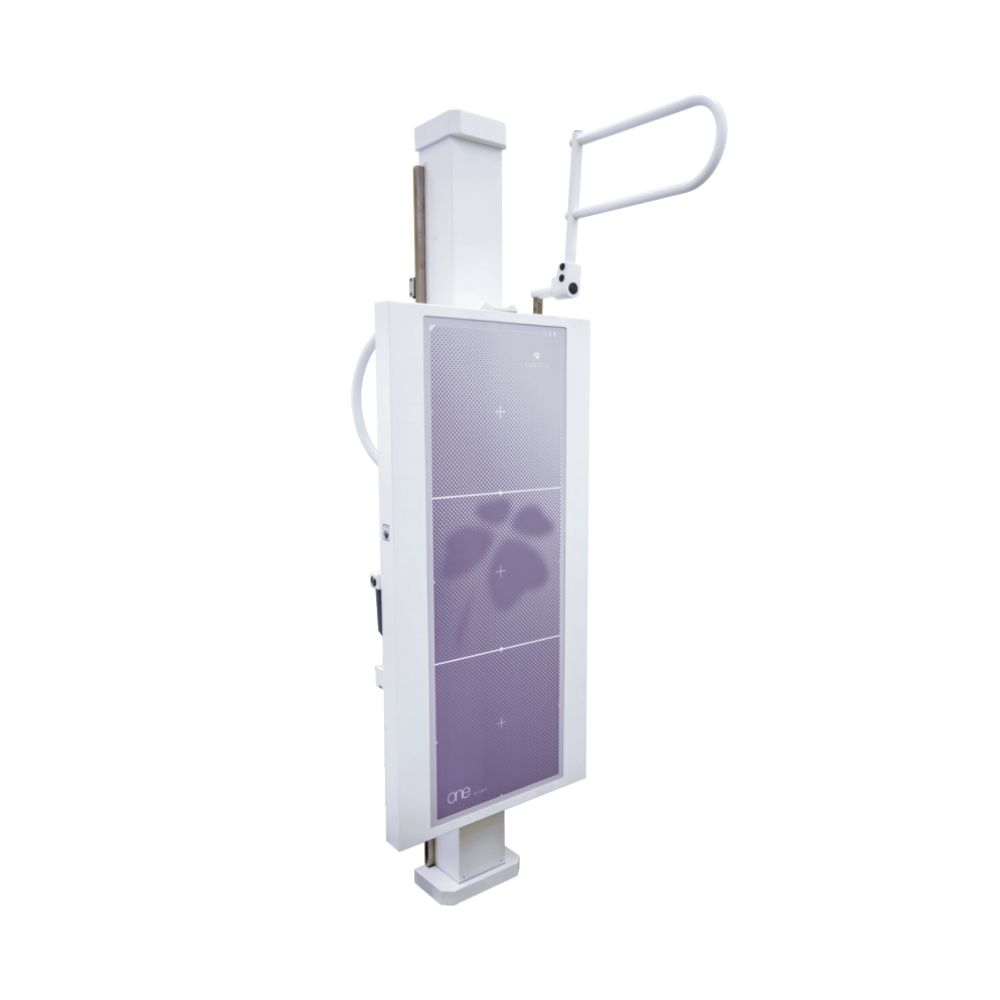

For advanced orthopedic clinics, the optional J1000-51 long-format wall stand provides a 17-inch by 51-inch field of view. This setup allows technologists to capture full spine, scoliosis, and long leg studies in a single exposure, reducing radiation exposure and eliminating alignment errors from multiple exposures.

Simplified Maintenance & Technical Specifications

Easy Serviceability & LED Operational Indicators

Designed with long-term reliability in mind, the system supports simple service to minimize equipment downtime. Built-in LED operational status indicators allow service technicians to quickly diagnose the system’s operational status, keeping your imaging workflow uninterrupted.

Technical Specifications & Generator Options

We help customize the system to your room layout and clinical volume requirements with high-frequency generator options ranging from 40 kW to 80 kW.

• • Table Top Dimensions: 84 inches by 30 inches flat, seamless top (optional 35.5-inch width available)
  • Table Travel: plus or minus 5 inches transverse, 30 inches longitudinal
  • Wall Stand Grid Cabinet: 17 inches by 17 inches, traveling from the floor up to 76 inches
  • Grid Specs: 10:1 ratio, 103 lines per inch (LPI)
  • Cassette Tray: Heavy-duty deluxe tray (Model 06338)
  • Wall Stand & Tube Stand Power: Operates on 24VDC
