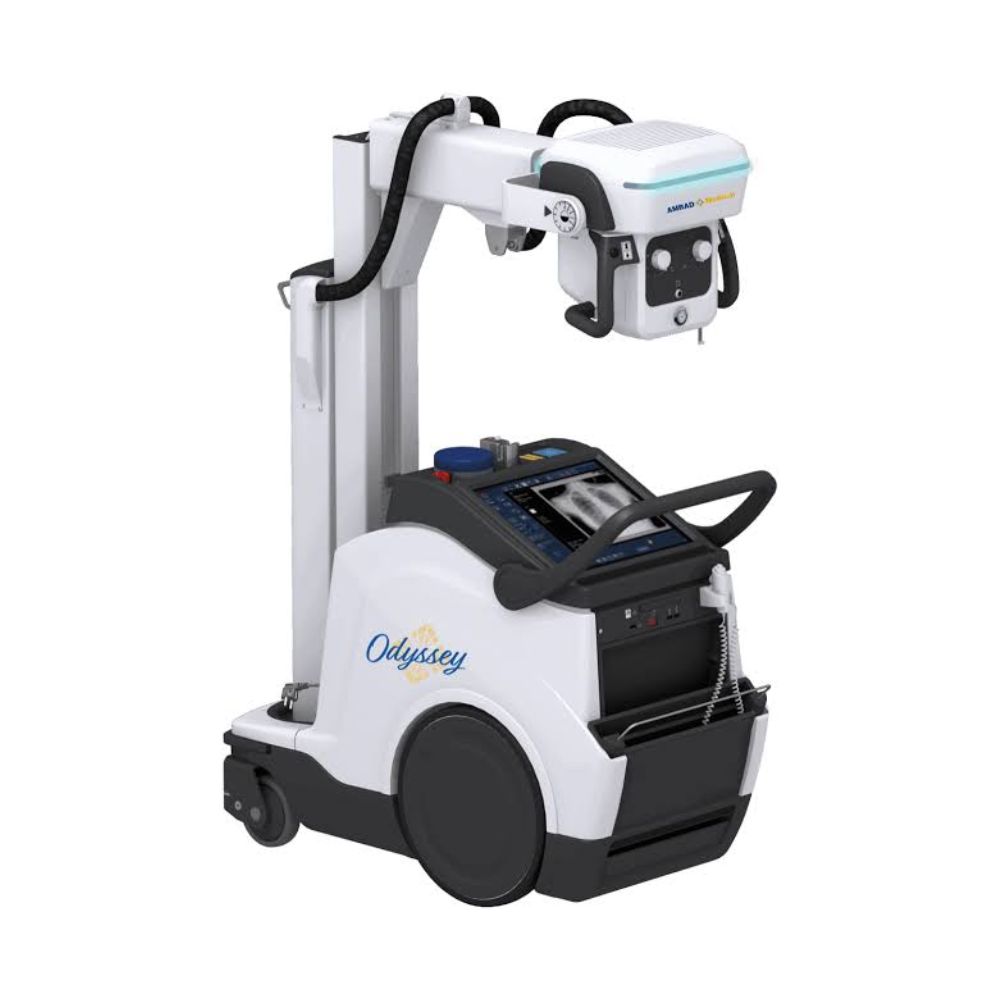

AMRAD Medical by Summit Odyssey Plus Mobile X-Ray

AMRAD Medical Odyssey Plus Highlights & Benefits

The AMRAD Medical Odyssey Plus combines high-output mobile radiography with a compact footprint, flexible tube positioning, and integrated wireless DR. Part of the AMRAD Medical by Summit product line, the system is designed to help technologists move between patient areas, position the X-ray source efficiently, and review images without relying on a fixed radiography room.

Odyssey Plus Key Benefits

• • 40 kW high-frequency generator with a 40 to 150 kVp range
  • Four-step telescopic arm extending from 24.8 to 48 in. (63 to 122 cm)
  • Motor-assisted Easy Moving System for maneuverability
  • 19 in. (48.3 cm) primary color touchscreen
  • 8.4 in. (21.3 cm) secondary touchscreen at the tube head
  • Integrated Canon CXDI-Pro wireless DR options
  • Energy Recovery Technology and Optimized Battery Management
  • Compact transport dimensions for movement through confined clinical areas

When fully compacted, the Odyssey Plus measures 50.7 in. H x 48 in. W x 21.2 in. D (129 x 122 x 54 cm). The retractable column lowers the system profile during transport and storage while helping improve forward visibility.

Odyssey Plus Mobile X-Ray System Video

See the Odyssey Plus mobile X-ray system and its positioning and workflow features in this product video.

Odyssey Plus Bedside X-Ray Workflow

The Odyssey Plus is designed around the movement and positioning demands of mobile radiography. Motor-assisted transport, a flexible telescopic arm, and controls at both the main console and tube head help technologists bring imaging directly to the patient and manage exams without unnecessary movement around the system.

Easy Moving System for Motor-Assisted Transport

The patented Easy Moving System uses motor-assisted drive and capacitive-touch handle controls to support one-handed movement. The system can travel forward at up to approximately 3.4 mph (5.5 km/h).

At low speed, individual wheel movement can also be used to fine-tune positioning around beds, wheelchairs, and other obstacles.

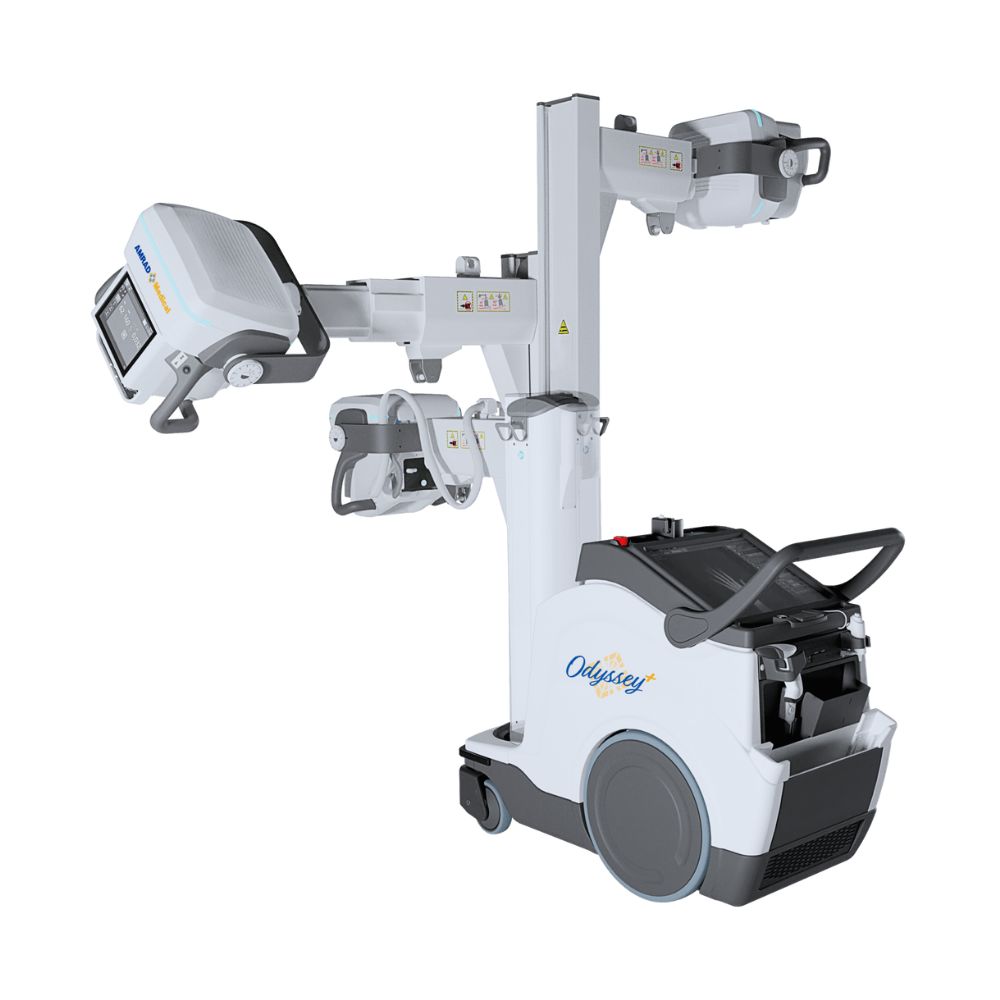

Four-Step Telescopic Arm & Tube Positioning

The four-step telescopic arm extends from 24.8 to 48 in. (63 to 122 cm). The telescopic column provides a maximum SID of 79.5 in. (202 cm) and a minimum focal distance from the floor of less than 20.8 in. (53 cm).

Additional positioning capabilities include:

• • Column rotation of ±317°
  • Collimator rotation of ±90° with a 0° detent
  • Head rotation perpendicular to the arm from -30° to +90°
  • Head rotation around the arm axis of ±180°
  • Electromagnetic brakes for multidirectional tube-head movement

These positioning ranges allow the X-ray source to be adjusted around the patient without repeatedly moving the entire system.

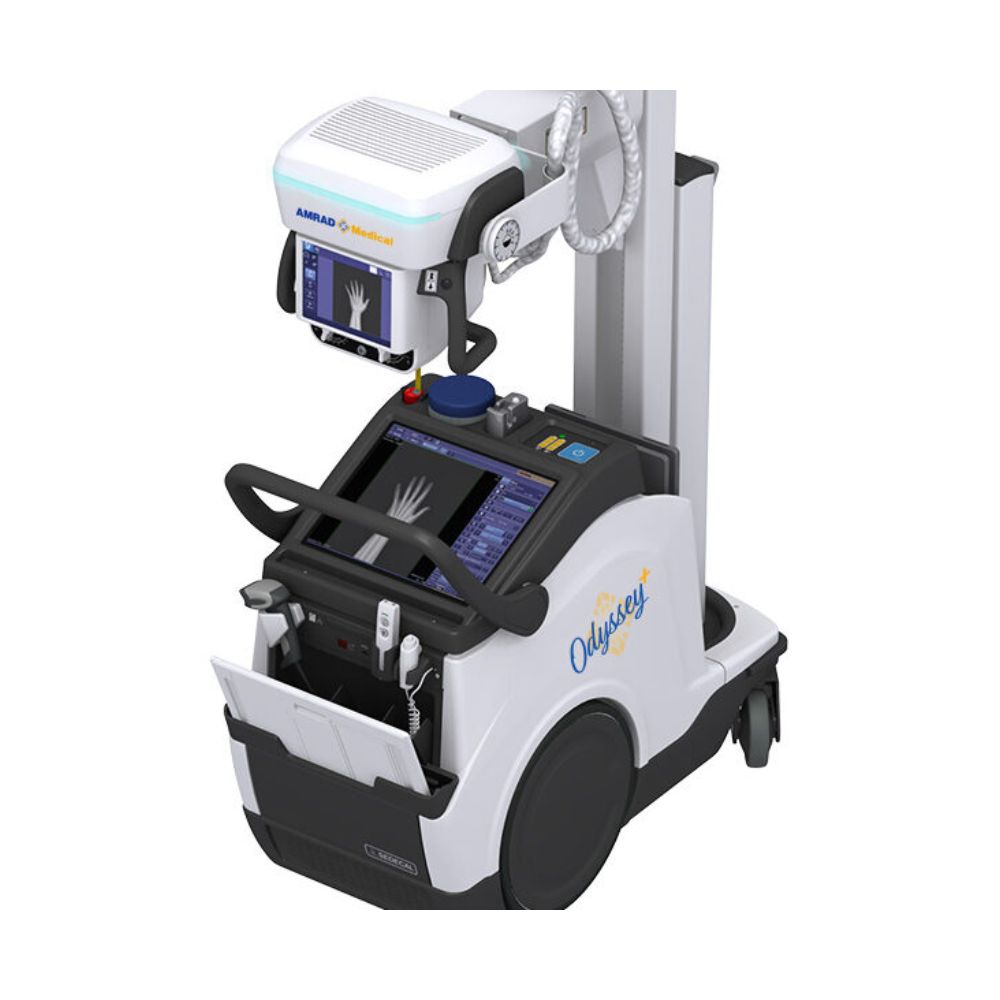

Dual Touchscreens for Bedside Imaging Controls

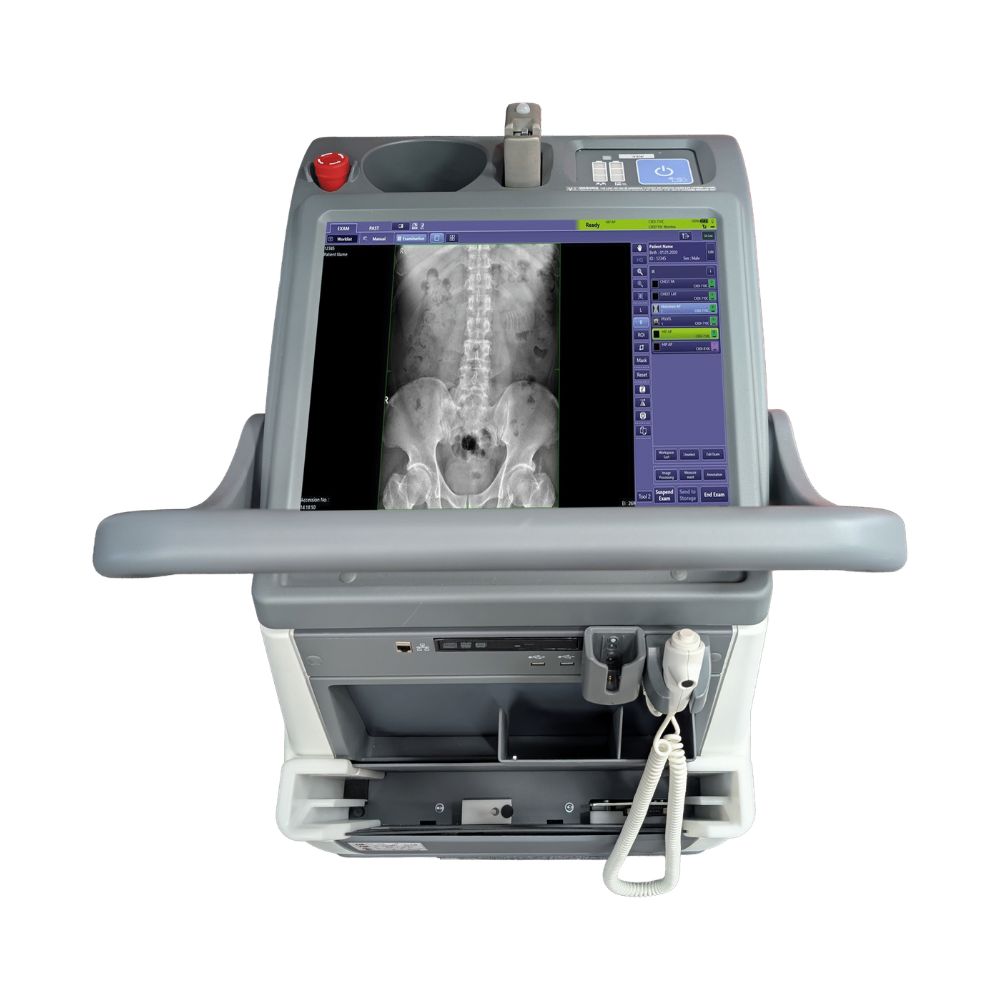

The primary 19 in. (48.3 cm) color touchscreen provides image preview and access to image-enhancement tools.

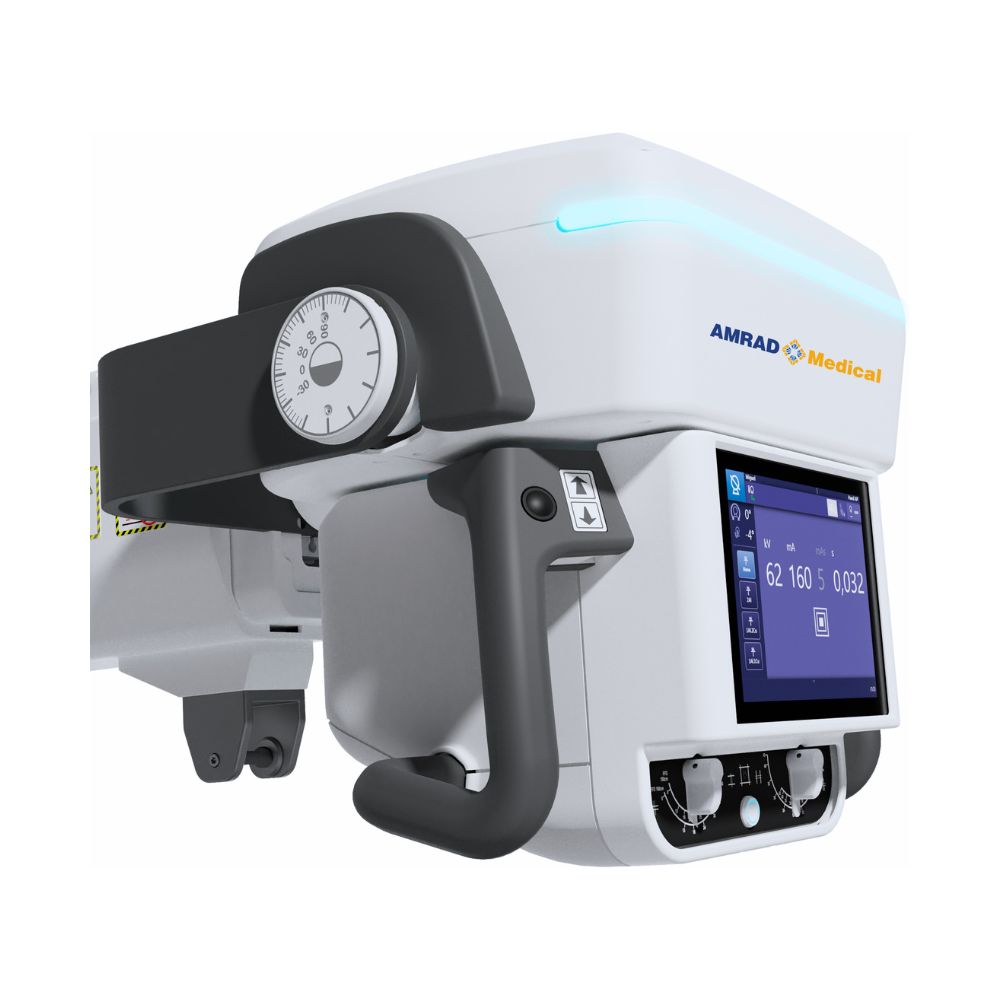

A secondary 8.4 in. (21.3 cm) touchscreen on the head assembly allows positioning acceptance, technique adjustments, and image preview closer to the patient.

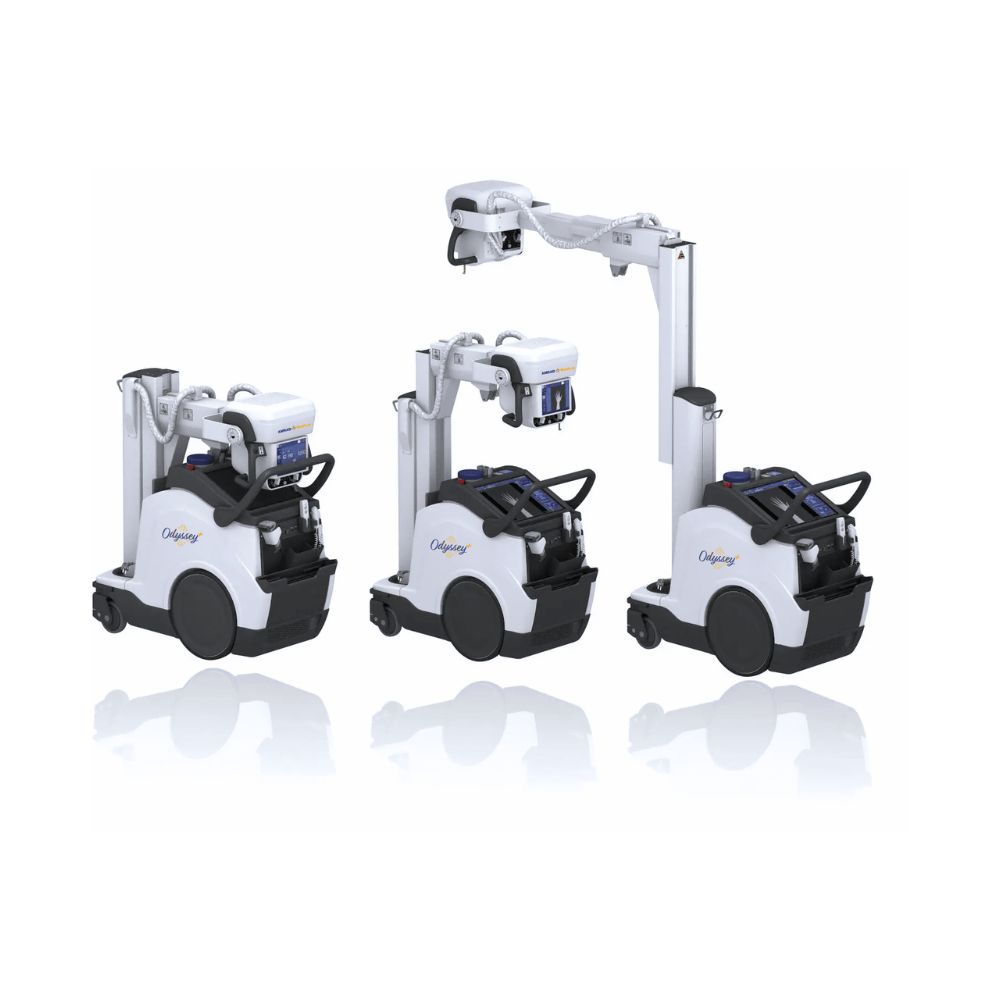

Retractable Column & Transport Safety Features

The fully counterbalanced telescopic column retracts to a height of 50.7 in. (129 cm), providing a lower profile and clearer forward view during transport.

An Emergency OFF switch allows the unit to be transferred to manual movement when needed. Optional anti-collision proximity sensors are also available.

AMRAD Medical Odyssey Plus vs. Odyssey Mobile X-Ray

The AMRAD Medical Odyssey Plus uses a 40 kW high-frequency generator and four-step telescopic arm, while the AMRAD Medical Odyssey Mobile X-Ray System uses a 32 kW generator and three-step telescopic arm. Both systems are designed for mobile radiography, but their generator output and arm configurations differ.

The Odyssey arm retracts to 27.7 in. (70.5 cm), while the Odyssey Plus retracts to 24.8 in. (63 cm). Both extend to 48 in. (122 cm).

For facilities comparing the two systems, the primary differences are generator output and telescopic arm design.

View the AMRAD Medical Odyssey mobile X-ray system for specifications, features, and configuration details for the 32 kW model.

Odyssey Plus Clinical Environments & Applications

The Odyssey Plus is designed for general radiography in clinical environments where imaging needs to be brought to the patient rather than performed in a fixed X-ray room.

Clinical Environments for the Odyssey Plus

The system can support mobile radiography workflows in:

• • Hospitals and health systems
  • Medical imaging facilities and departments
  • Inpatient and bedside care areas
  • Emergency care environments
  • High-dependency patient care environments
  • Other healthcare facilities with a need for point-of-care general radiography

Its compact footprint, motor-assisted movement, wireless detectors, and flexible tube positioning are particularly useful where access around the patient is limited or transporting the patient to a fixed radiography room is not ideal.

Odyssey Plus General Radiography Applications

The Canon CXDI-Pro detectors available with the Odyssey Plus are designed for general radiography. The system supports mobile digital radiography workflows that require flexible patient access, tube positioning, and wireless image acquisition.

Canon image-processing capabilities also include enhancement settings designed to improve visualization of small structures, bone detail, tubes, and catheters.

Canon CXDI-Pro Wireless DR Integration for the Odyssey Plus

The Odyssey Plus with Canon DR can be fully integrated with Canon CXDI-Pro wireless digital radiography detectors and Canon CXDI Control Software NE.

This configuration combines X-ray generation, wireless image acquisition, image preview, and processing within the mobile radiography workflow.

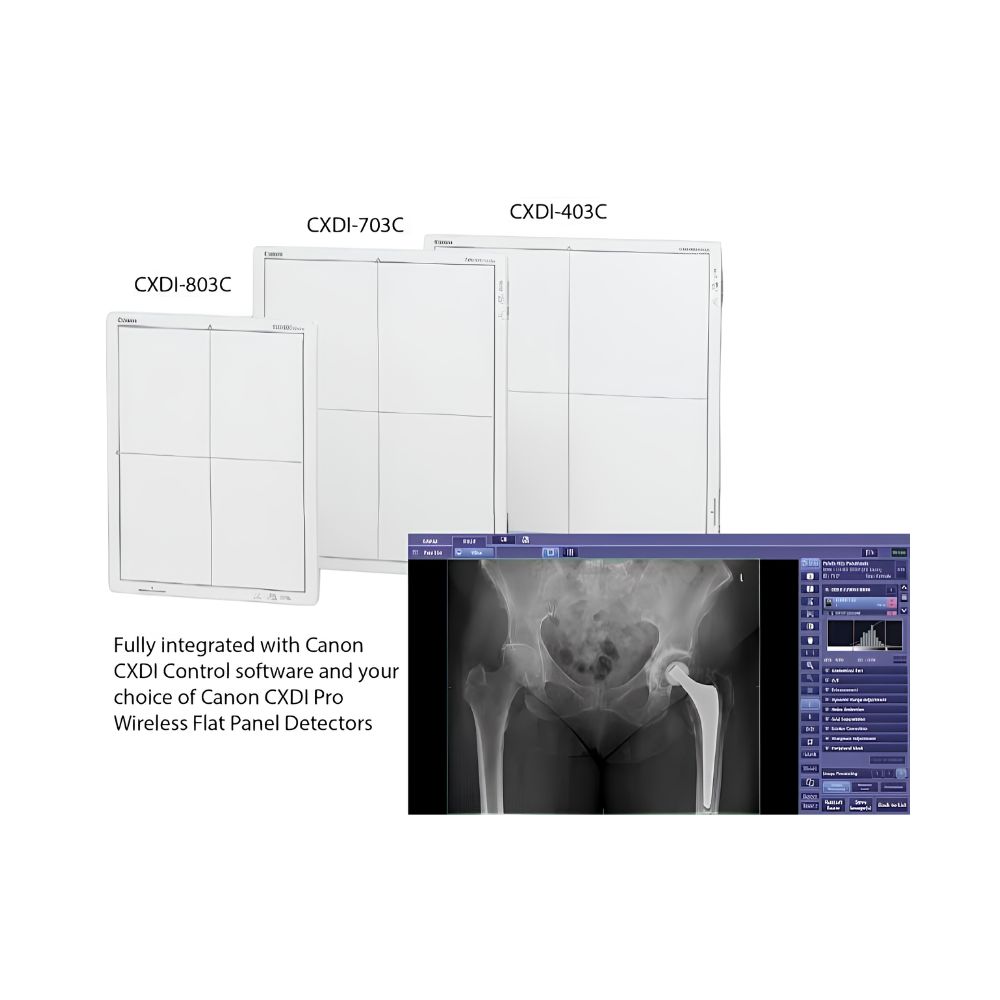

Canon CXDI-Pro Detector Size Options

Three detector formats are available:

• • CXDI-803C: 11 x 14 in. (273 x 349 mm)
  • CXDI-703C: 14 x 17 in. (349 x 426 mm)
  • CXDI-403C: 17 x 17 in. (426 x 426 mm)

The multiple detector sizes allow facilities to select a configuration based on imaging requirements, positioning needs, and preferred detector handling.

Choosing a Canon CXDI-Pro Detector Size

The CXDI-803C provides the smallest imaging area and is the lightest of the three options at 4.6 lb. (2.1 kg) with battery. The CXDI-703C expands the imaging area to 14 x 17 in. (349 x 426 mm) at 6.4 lb. (2.9 kg), while the CXDI-403C provides a 17 x 17 in. (426 x 426 mm) imaging area at 7.7 lb. (3.5 kg).

Facilities can choose a detector format based on the balance of imaging area, detector handling, and their mobile radiography workflow.

Canon CXDI-Pro Detector Technology & Protection

The CXDI-Pro detectors use amorphous silicon flat-panel technology with cesium iodide scintillators. They support wireless operation, Automatic Exposure Detection, and IP55 protection for added assurance during use and cleaning in demanding clinical environments.

Quick detector readiness and image preview also help reduce delays between positioning and image review during mobile exams.

Canon CXDI Control Software Integration for the Odyssey Plus

Canon CXDI Control Software NE provides the acquisition and image-processing platform for the integrated CXDI wireless detectors.

DICOM, Worklist & Dose Reporting

CXDI Control Software NE supports:

• • Windows 11
  • Interactive graphical user interface
  • IHE compliance
  • User and connection authentication
  • Flexible DICOM configuration for worklists and image export
  • IHE ATNA support for secure DICOM and audit trails
  • Radiation Dose Structured Report
  • MPPS
  • Exposure logs

These capabilities help integrate the Odyssey Plus into digital imaging and information workflows across a range of clinical environments.

Advanced Edge Enhancement & Scatter Correction

Advanced Edge Enhancement provides image-processing settings for small structures, bone detail, and catheter visualization.

Optional Scatter Correction is designed to support imaging without a physical grid while helping maintain image contrast, reduce detector handling weight, and avoid grid misalignment and related artifacts.

Odyssey Plus Battery Runtime, Energy Recovery & 40 kW Generator

The 40 kW mobile X-ray system combines battery-powered operation with a constant-potential high-frequency generator designed for general radiography. Battery management and onboard charging technologies help support movement and imaging throughout the clinical day while reducing interruptions between patient areas.

Energy Recovery, Battery Runtime & Charging

Energy Recovery Technology uses braking energy to help recharge the onboard batteries during operation.

Optimized Battery Management provides:

• • 5,760 Wh total energy storage capacity
  • More than 800 exposures at the stated test technique of 80 kV, 400 mA, and 5 ms
  • More than 11 hours of standby time with the system ready to work
  • More than 15.5 miles (25 km) of travel at approximately 3.4 mph (5.5 km/h)
  • Approximately 80% charge after four hours
  • Full charge in approximately eight hours

X-ray exposures can also be performed while the Odyssey Plus is connected to a power source.

Canon Detector Battery Charging

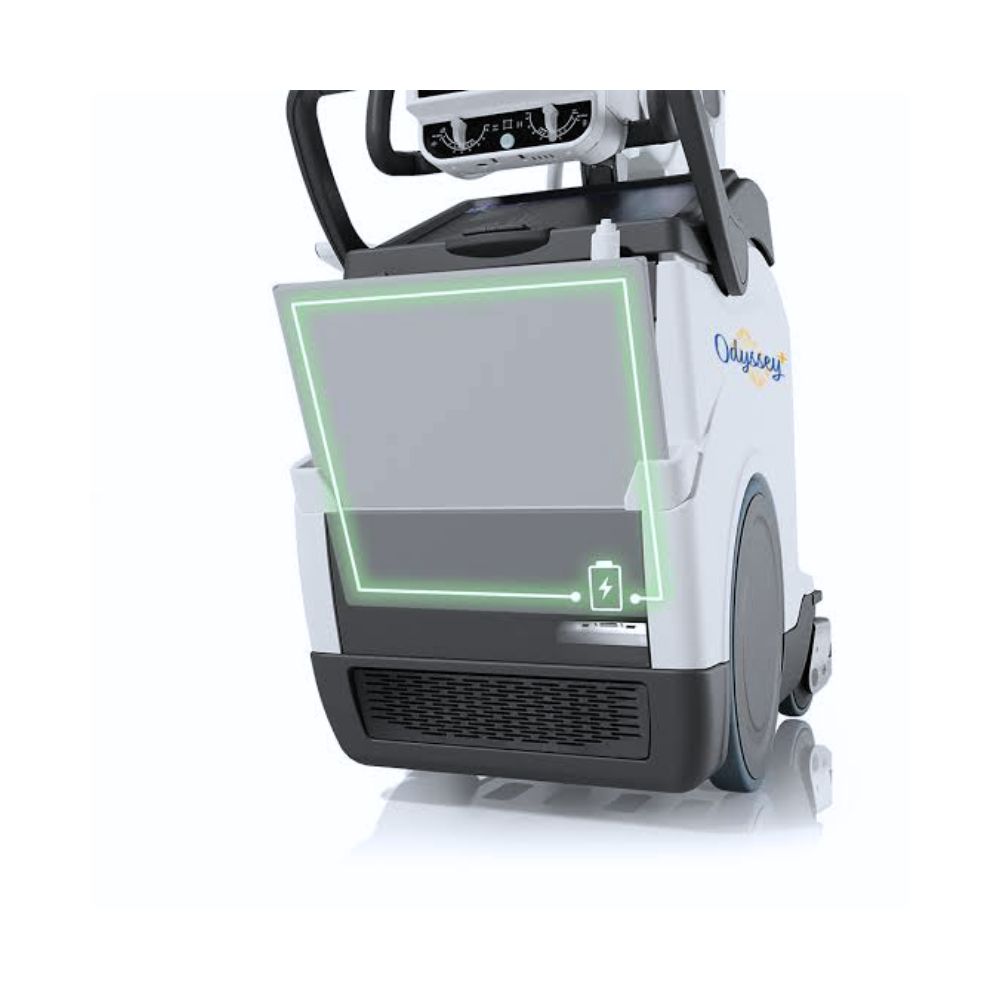

The integrated detector battery charger can charge up to two Canon detector batteries at the same time. Indicator lights display charging status at 25%, 50%, 75%, and 100%, and charging stops automatically once full battery capacity is reached.

This helps keep additional detector batteries available for continued imaging workflow.

Odyssey Plus 40 kW Constant-Potential Generator

The high-frequency generator provides output from 40 to 150 kVp and up to 500 mA.

Its constant-potential design uses closed-loop control of X-ray tube current, kVp, and filaments. Monoblock construction eliminates external high-voltage cables, while multiple microprocessors regulate generator operation for exposure consistency and system efficiency.

Choosing the AMRAD Medical Odyssey Plus for Mobile Radiography

The AMRAD Medical Odyssey Plus is designed for healthcare facilities that need a motor-assisted mobile X-ray system with 40 kW generator output, flexible bedside tube positioning, integrated wireless DR, and imaging controls available at both the main console and tube head.

Its Canon CXDI-Pro detector options also allow the digital configuration to be matched to imaging requirements and detector-handling preferences rather than limiting the system to a single detector format.

Contact MXR to discuss Odyssey Plus configurations, Canon detector options, system requirements, and how the system can fit into your mobile radiography workflow.

AMRAD Medical Odyssey Plus Specifications

Odyssey Plus System & Transport

• • System type: Mobile digital radiography system
  • Generator output: 40 kW
  • Compacted dimensions: 50.7 in. H x 48 in. W x 21.2 in. D (129 x 122 x 54 cm)
  • Maximum forward speed: Approximately 3.4 mph (5.5 km/h)
  • Primary touchscreen: 19 in. (48.3 cm)
  • Secondary touchscreen: 8.4 in. (21.3 cm)
  • Drive system: Motor-assisted Easy Moving System
  • Optional anti-collision proximity sensors

Odyssey Plus Telescopic Arm & Tube Positioning

• • Four-step telescopic arm
  • Arm extension: 24.8 to 48 in. (63 to 122 cm)
  • Maximum SID: 79.5 in. (202 cm)
  • Minimum focal distance from floor: Less than 20.8 in. (53 cm)
  • Column rotation: ±317°
  • Collimator rotation: ±90°
  • Head rotation perpendicular to arm: -30° to +90°
  • Head rotation around arm axis: ±180°
  • Electromagnetic tube-head brakes

Odyssey Plus 40 kW Generator

• • Generator type: Single-phase, high-frequency constant-potential generator
  • kVp range: 40 to 150 kVp in 1 kVp increments
  • mA range: 10 to 500 mA
  • mAs range: 0.1 to 500 mAs
  • Maximum power: 40 kW
  • Closed-loop control of X-ray tube current, kVp, and filaments
  • Monoblock design without external high-voltage cables

Odyssey Plus Battery & Charging

• • Total energy storage capacity: 5,760 Wh
  • Exposure autonomy: More than 800 exposures at 80 kV, 400 mA, and 5 ms under stated conditions
  • Standby autonomy: More than 11 hours
  • Approximate charge level after four hours: 80%
  • Approximate full charge time: Eight hours
  • X-ray exposure capability while connected to external power

Canon CXDI-Pro Wireless DR Options

• • CXDI-803C: 11 x 14 in. (273 x 349 mm) imaging area; 4.6 lb. (2.1 kg) with battery
  • CXDI-703C: 14 x 17 in. (349 x 426 mm) imaging area; 6.4 lb. (2.9 kg) with battery
  • CXDI-403C: 17 x 17 in. (426 x 426 mm) imaging area; 7.7 lb. (3.5 kg) with battery
  • Detector technology: Amorphous silicon flat-panel detector with cesium iodide scintillator
  • Pixel size: 140 μm
  • Grayscale: 16-bit A/D
  • Limiting resolution: 3.5 lp/mm
  • Protection rating: IP55
  • Wireless standard: IEEE 802.11ac
  • Wireless bands: 2.4 GHz and 5 GHz
  • Automatic Exposure Detection supported
  • Ready time: Less than four seconds, depending on acquisition mode
  • Preview image time: Approximately one second, depending on acquisition mode
