Fujifilm FDR Go PLUS Portable

Fujifilm FDR Go PLUS Highlights & Benefits

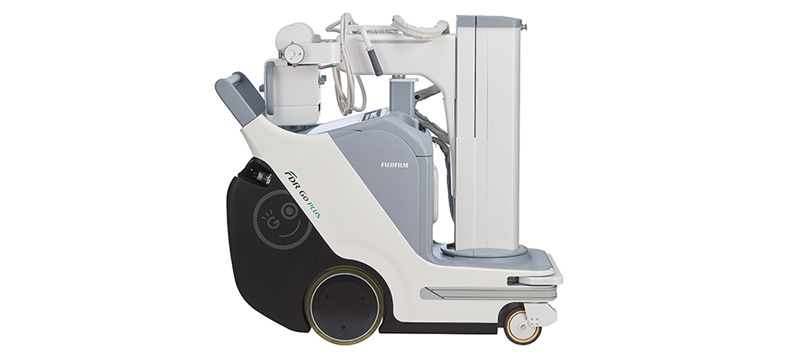

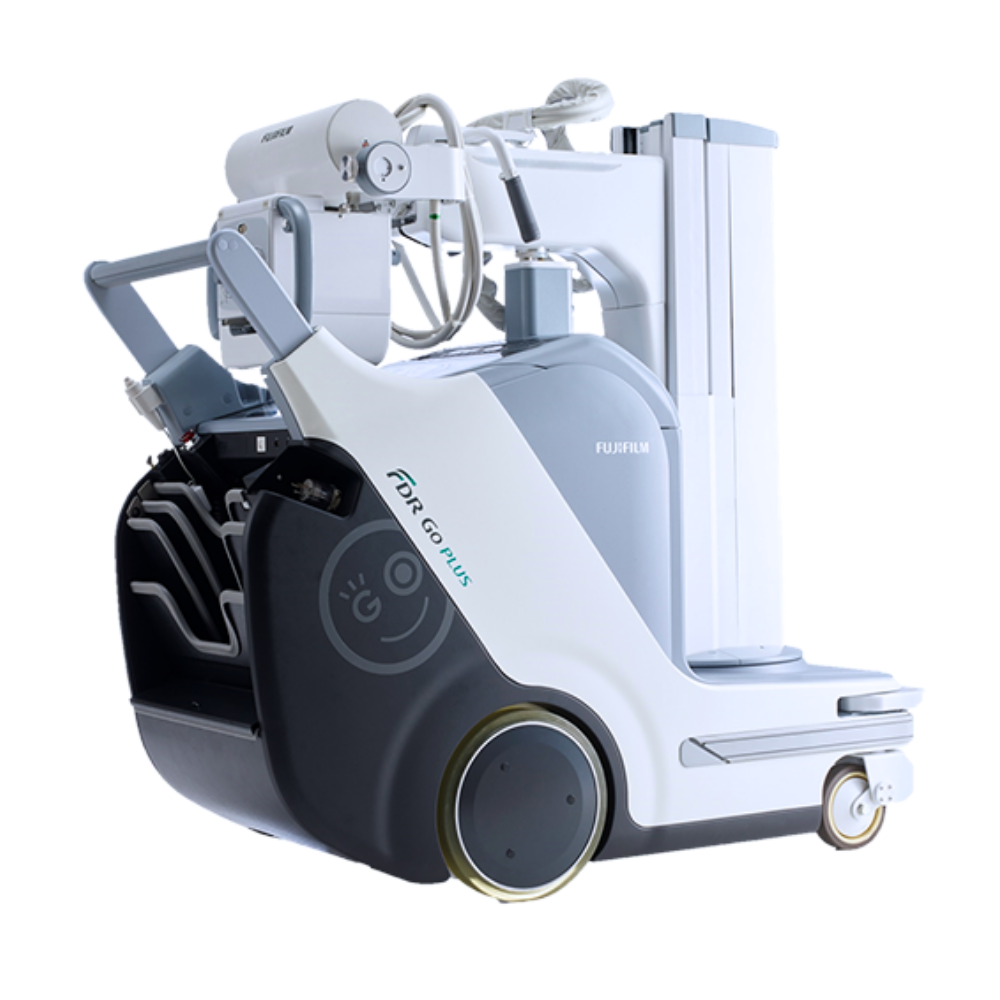

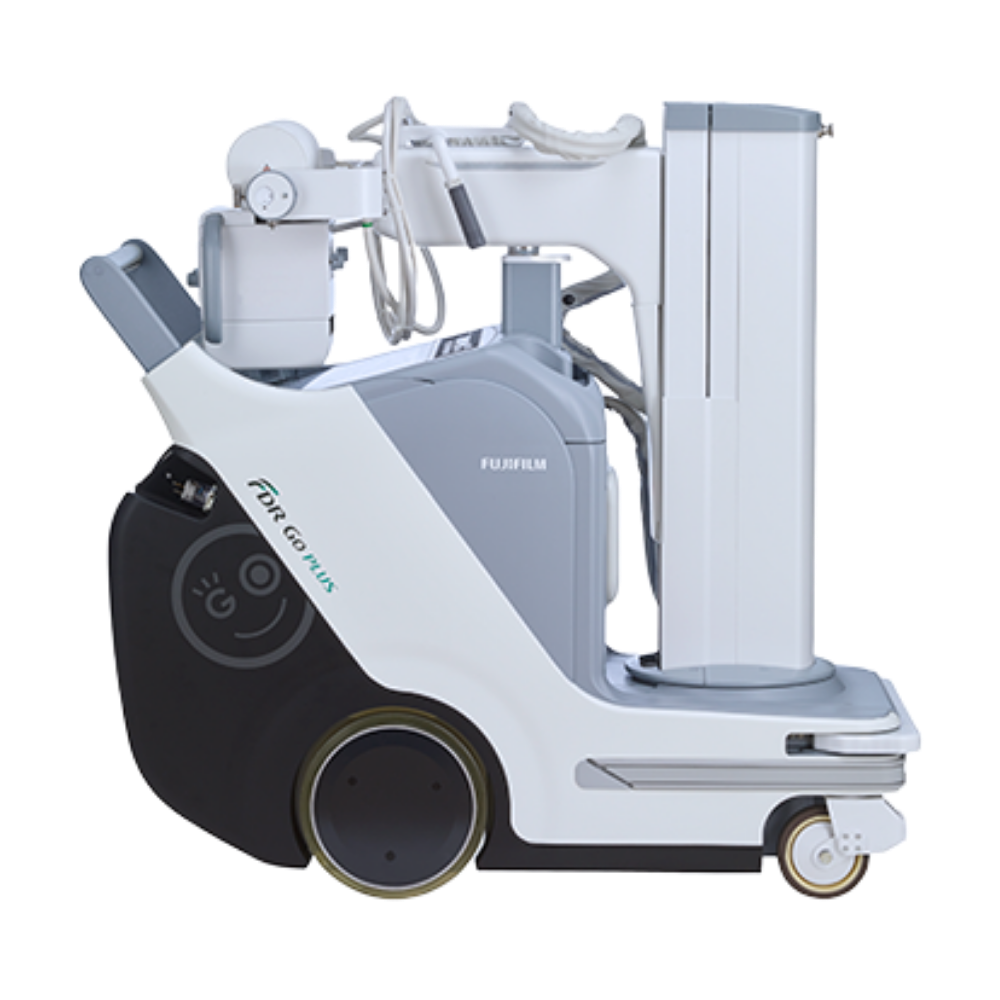

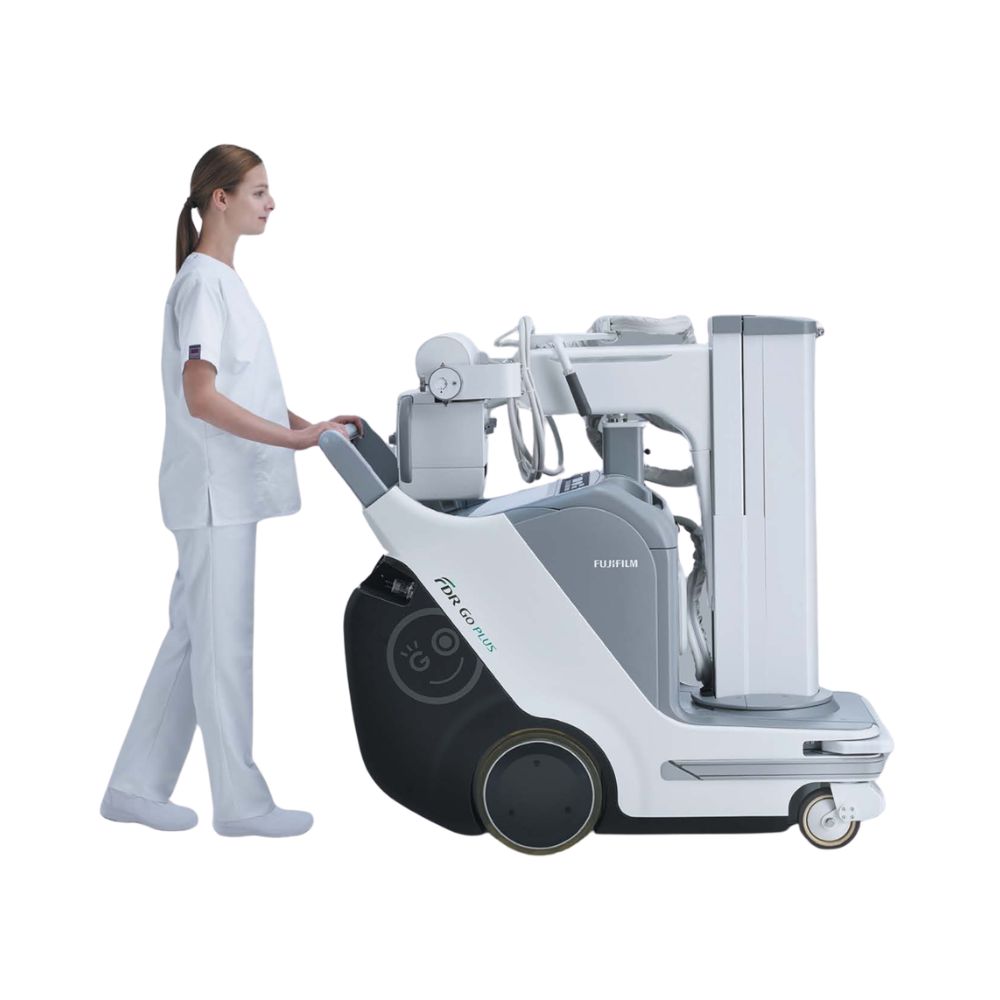

The FDR Go PLUS combines a 32 kW X-ray generator with a compact powered platform designed around bedside radiography. Its maneuverability, positioning controls, onboard imaging console and Fujifilm DR technology help technologists move efficiently from transport and positioning to acquisition and image review.

Key Benefits

• • Compact 22 in. (55.9 cm) wide chassis with a retractable column for easier travel through hallways, patient rooms and confined spaces
  • Smooth, quiet powered travel with a touch-sensing safety bumper
  • Tube-side inching controls for precise forward and backward positioning at the bedside
  • Front and rear collimation controls with multiple tube-positioning releases
  • 19 in. (48.3 cm) touchscreen console for bedside image preview and exam controls
  • Dedicated storage for detectors, grids, batteries and frequently used accessories
  • Wired and wireless connectivity to hospital imaging networks

See the Fujifilm FDR Go PLUS in Use

See how the FDR Go PLUS moves, positions and supports portable digital X-ray imaging at the patient bedside.

Compact Travel & Bedside Positioning

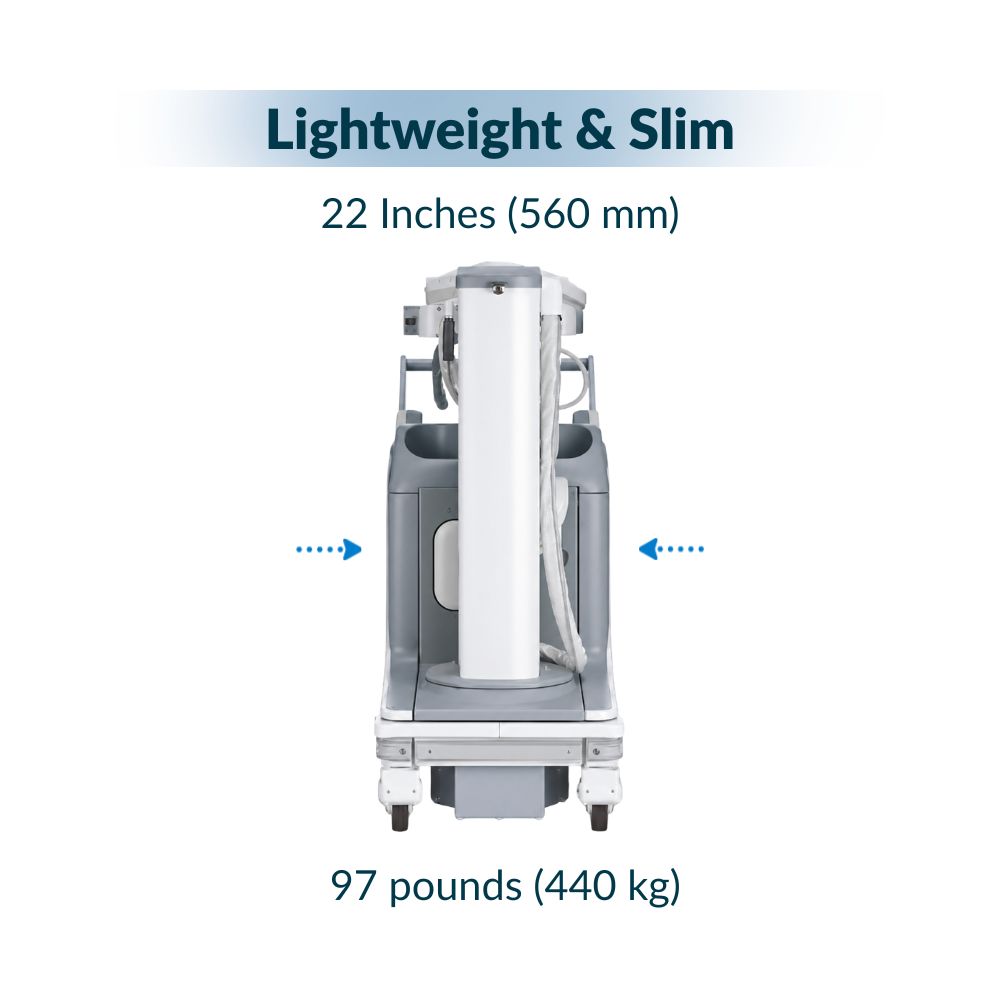

22-Inch Chassis & Retractable Column

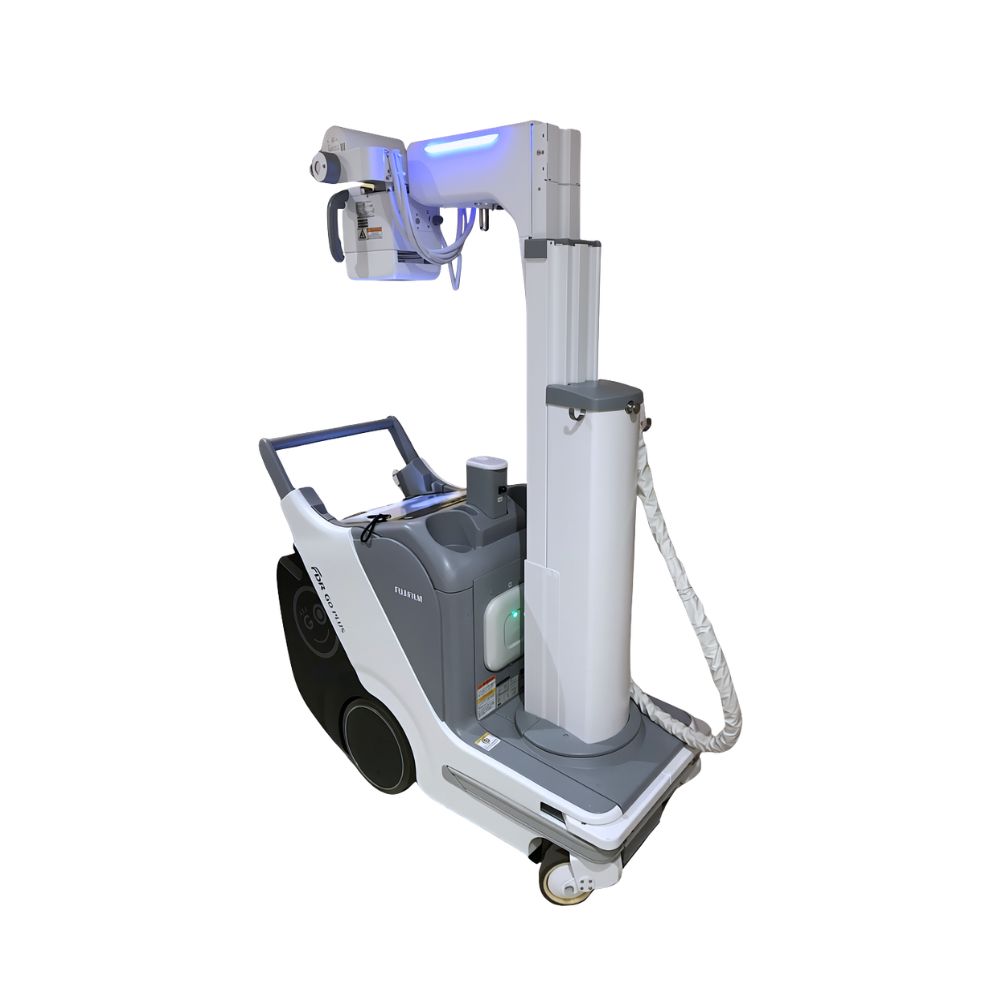

At 22 in. (55.9 cm) wide, the FDR Go PLUS is designed to navigate hospital hallways, patient rooms and other confined spaces. The retractable column lowers the system profile during travel to improve forward visibility while moving the unit.

Tube-Side Inching & Positioning Controls

Forward and backward inching controls at the tubehead allow the technologist to make small positioning adjustments without returning to the drive handle.

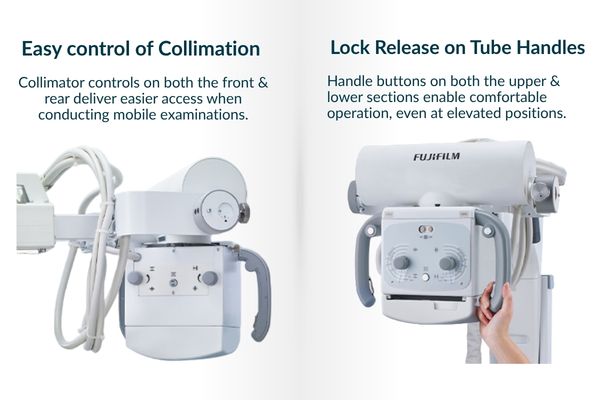

Three sets of tube-arm releases provide multiple access points for positioning, while front and rear collimation controls allow adjustment from either side of the tubehead.

Touch-Sensing Safety Bumper & Status Indicators

A touch-sensing bumper stops system movement and signals the operator when contact is detected. LED indicators near the monitor and tube arm provide at-a-glance information for exposure, battery charge and system status.

Clinical Environments & Applications

The Fujifilm FDR Go PLUS is primarily designed for hospital-based portable radiography, bringing digital X-ray imaging to patients when transport to a fixed radiography room is difficult or impractical.

Hospital Specialties & Care Teams

The system supports portable imaging needs across:

• • Emergency medicine and trauma
  • Critical care and intensive care
  • Surgery and perioperative care
  • Neonatal and pediatric care
  • Orthopedic care
  • General inpatient care
  • Bedside, ICU, OR & NICU Imaging

The FDR Go PLUS can be used at the patient bedside and in emergency departments, ICUs, operating rooms, NICUs and inpatient units where portable radiography is required.

The 10 x 12 in. (25 x 30 cm) FDR D-EVO III detector is also suited to neonatal isolette trays and challenging orthopedic positioning.

Bedside Workflow From Acquisition to PACS

19-Inch Console for Bedside Image Review

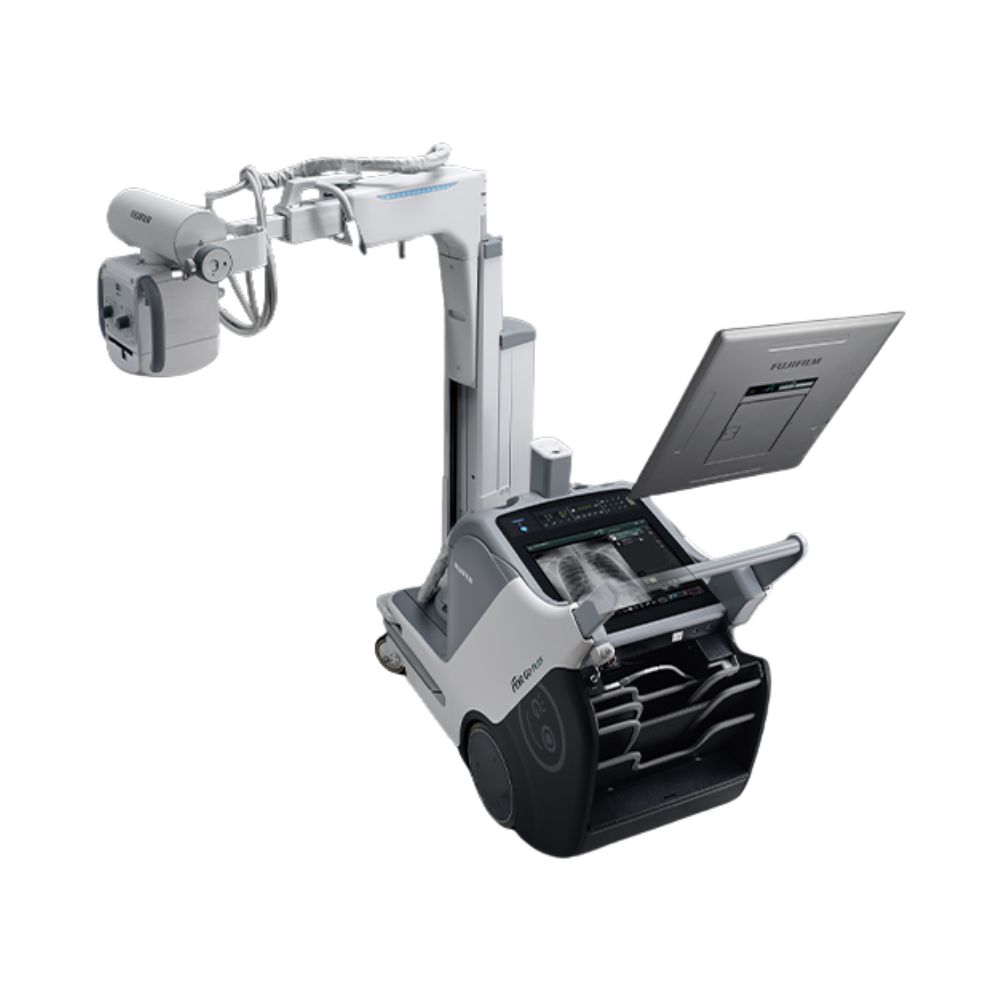

The 19 in. (48.3 cm) touchscreen console provides immediate image previews directly on the FDR Go PLUS along with exposure information, dose information and image-processing controls.

This keeps image acquisition and initial review close to the patient rather than requiring a separate workstation for routine exam workflow.

Built-In Detector Storage & Handling

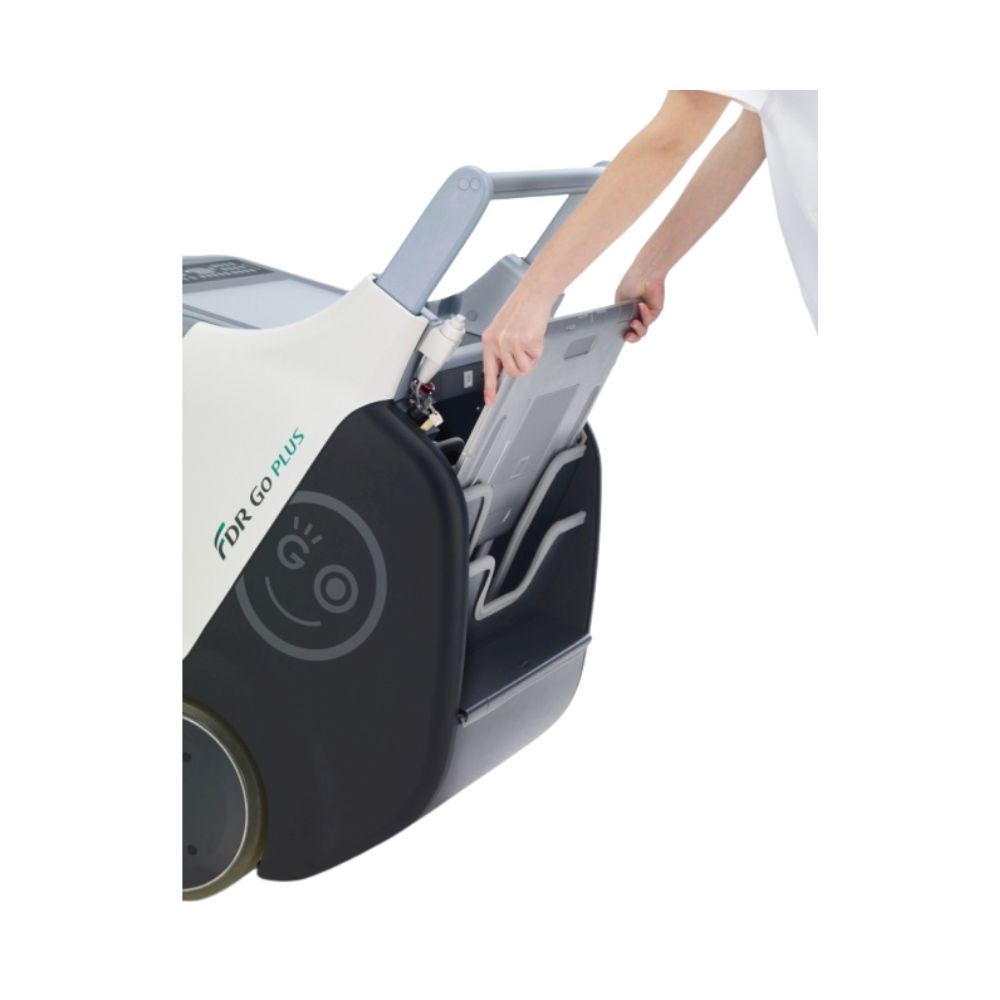

Dedicated onboard storage provides space for large and small detectors, grids, protective bags, wipes, gloves and spare detector batteries.

A separate detector-holding area provides a convenient location for changing batteries, placing protective bags on detectors or cleaning detector surfaces. Detector storage can also be locked to help keep detectors secured with the system.

Wired & Wireless Hospital Imaging Connectivity

The FDR Go PLUS connects to a facility’s radiology information system (RIS) and picture archiving and communication system (PACS) through wired Ethernet or built-in wireless networking.

The system also calculates Dose Area Product (DAP), displays the result on the control panel and stores it with the image in the DICOM header for PACS storage. An optional measured DAP chamber is also available for facilities that require direct dose measurement.

FDR D-EVO III Detectors & Image Processing

Detector Sizes for Neonatal, General & Larger-Field Imaging

The FDR Go PLUS can be configured with FDR D-EVO III detectors in several sizes:

• • 10 x 12 in. (25 x 30 cm)
  • 14 x 17 in. (35 x 43 cm)
  • 17 x 17 in. (43 x 43 cm)

The 10 x 12 in. (25 x 30 cm) detector is suited to neonatal isolette trays and challenging orthopedic positioning. The 14 x 17 in. (35 x 43 cm) format supports many common portable exams, while the 17 x 17 in. (43 x 43 cm) format provides a larger imaging area.

FDR D-EVO III detectors use a lightweight, glass-free design with a magnesium-alloy frame. Tapered edges help simplify insertion beneath the patient and lifting the detector from flat surfaces.

For more information on the standard 14 x 17 in. Fujifilm detector platform, see the Fujifilm D-EVO III G35 Panel.

Optional G80i for Long-Length Imaging

The optional FDR D-EVO III G80i expands the FDR Go PLUS beyond standard detector sizes with a 17 x 32 in. (43 x 81 cm) imaging area and single-exposure long-length acquisition.

Its direct integration with the FDR Go PLUS supports long-length imaging in orthopedic, trauma, pediatric and operating room workflows without requiring a dedicated long-length X-ray room. See the Fujifilm D-EVO III G80i Panel for complete detector information.

ISS Detector Design & Hydro AG Antibacterial Coating

Fujifilm’s Irradiation Side Sampling (ISS) design places the detector’s capture electronics where the X-ray signal is stronger, helping preserve image detail while supporting dose efficiency.

FDR D-EVO III detectors also use Fujifilm Hydro AG antibacterial coating, which is designed to reduce bacteria on detector surfaces.

Virtual Grid Processing Without a Physical Grid

Optional Virtual Grid digitally corrects for scatter radiation, reducing the need to position a physical grid during bedside exams. This can simplify positioning and reduce problems caused by grid misalignment.

Fujifilm states that Virtual Grid can provide as much as 50% lower dose compared with grid examinations.

Dynamic Visualization II for Automatic Image Optimization

Optional Dynamic Visualization II automatically adjusts image contrast and density based on anatomy and features such as orthopedic hardware, helping optimize visualization across areas with different thicknesses and densities.

Fujifilm FDR Go PLUS Specifications

X-Ray Generator & Tube

• • Maximum X-ray output: 32 kW
  • Tube voltage: 40 to 133 kV in 1 kV steps
  • Tube current: 50 to 400 mA
  • Focal spot sizes: 0.7 mm / 1.3 mm
  • Target angle: 16°
  • Anode heat capacity: 300 kHU (210 kJ)
  • SID to floor: 26.7 to 79.7 in. (67.8 to 202.4 cm)

Power, Battery & Travel

• • Power supply: 100 / 110 / 120 / 200 / 220 / 230 / 240 VAC
  • Phase: Single phase
  • Frequency: 50 to 60 Hz
  • Charger power consumption: 1.0 kVA
  • Approximate battery operating time: 3 to 4 hours
  • Charge time to 90%: Approximately 5 hours
  • Charge time to 100%: Approximately 8 hours
  • Emergency reserve mode: Up to 10 additional exposures
  • Maximum travel speed: Approximately 3.1 mph (5.0 km/h), depending on conditions

Dimensions & Positioning

• • Overall width: 22 in. (55.9 cm)
  • Overall length: 50.6 in. (128.5 cm)
  • System weight: 970 lb (440 kg)
  • Retractable column height range: 50 to 79.7 in. (127 to 202.4 cm)
  • Arm reach: 25.1 to 47.4 in. (63.8 to 120.4 cm)
  • Column rotation: ±270°
  • X-ray tube unit rotation: ±180°
  • X-ray tube axial rotation: +90° / -30°
  • Monitor size: 19 in. (48.3 cm)

Hospital Network & Detector Connectivity

• • Detector-to-console wireless: 2.4 or 5 GHz 802.11n short-range connection
  • Hospital network connection: Wired Ethernet or built-in wireless
  • Wireless network: IEEE 802.11a/b/g/n, 2.4 to 5 GHz
  • Wired network: 10/100/1000 Base-T
  • Network configuration: DHCP or static
  • RIS/PACS connectivity: Wired or wireless

Compatible FDR D-EVO III Detectors

• • FDR D-EVO III C25i: 10 x 12 in. (25 x 30 cm), approximately 3 lb (1.4 kg) excluding battery
  • FDR D-EVO III C35i: 14 x 17 in. (35 x 43 cm), approximately 4.85 lb (2.2 kg) excluding battery
  • FDR D-EVO III C43i: 17 x 17 in. (43 x 43 cm), approximately 5.73 lb (2.6 kg) excluding battery
  • FDR D-EVO III G35i: 14 x 17 in. (35 x 43 cm), approximately 4 lb (1.8 kg) excluding battery
  • FDR D-EVO III G43i: 17 x 17 in. (43 x 43 cm), approximately 4.6 lb (2.1 kg) excluding battery
  • FDR D-EVO III G80i: 17 x 32 in. (43 x 81 cm) long-length detector with direct FDR Go PLUS integration

Standard Features

• • Calculated Dose Area Product display with DICOM support
  • Keyless entry for powered drive operation
  • Luminous handswitch
  • Wireless LAN connectivity to RIS/PACS
  • System status indicators
  • Tube-side inching controls
  • Front and rear collimation controls
  • Multiple tube-positioning releases

Options & Accessories

• • Dynamic Visualization II image processing
  • Virtual Grid processing
  • Wireless handswitch
  • Bluetooth barcode reader
  • RFID card console login
  • Wired detector connection kit
  • Additional wired luminous handswitch mounted at the front of the cart
  • External monitor interface with DVI connection kit

Specifications, detector compatibility and available options are subject to change. Contact MXR Imaging to confirm current FDR Go PLUS configuration and availability.
