Radmedix Acuity DR Go

Acuity DR Go for Equine & Mixed-Practice Veterinary Imaging

Acuity DR Go is designed for veterinary teams that need to move digital radiography between imaging locations instead of working from a permanently installed DR workstation. It supports equine and mixed-practice veterinary X-ray imaging with detector configurations matched to different practice needs.

Equine & Ambulatory Veterinary Settings

The portable veterinary DR system is best suited for:

• • Equine veterinary practices
  • Mixed-practice veterinary clinics
  • Ambulatory veterinary services
  • Veterinary practices that perform imaging in multiple locations

Its self-powered workstation and protected detector storage allow the core DR components to travel together between exams.

Learn more about MXR veterinary imaging solutions.

Portable Imaging Across Veterinary Exams

The two detector configurations support different veterinary imaging requirements:

• • Equine radiography with the 10 × 13 detector
  • Smaller-format detailed exams
  • Mixed-practice radiography with the 14 × 17 detector
  • Exams requiring multiple projections within the same patient study

AccuVue Vet allows operators to move between saved projections during an exam, helping reduce unnecessary patient repositioning. Additional images can also be added to an examination after it has been completed.

See Acuity DR Go in Equine Practice

Watch EQuiVET Medicine discuss the Acuity DR Go in an equine veterinary setting.

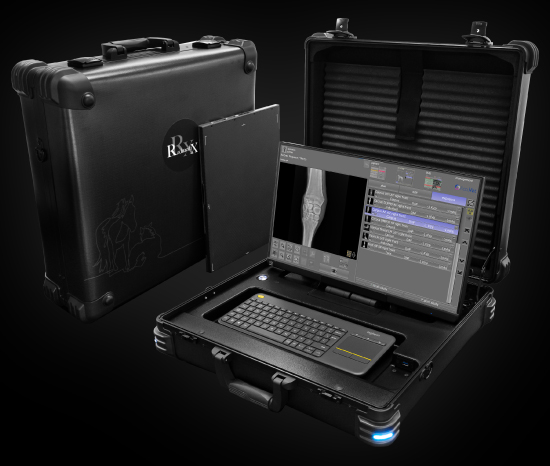

Self-Powered Acuity DR Go Case & Workstation

The Acuity DR Go case functions as both the transport platform and imaging workstation. Battery power, the touchscreen PC, controls, and detector storage remain together instead of requiring a separate laptop and workstation setup.

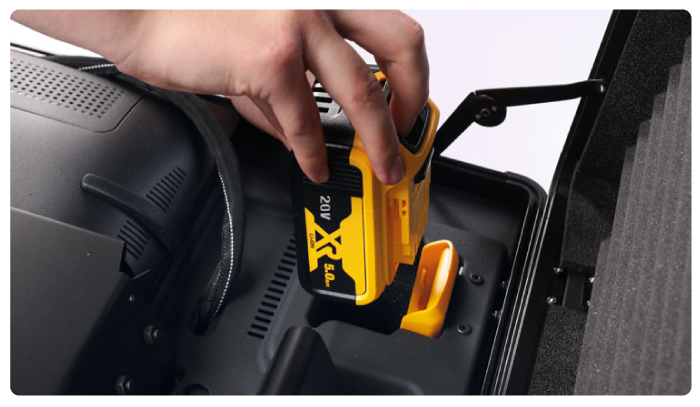

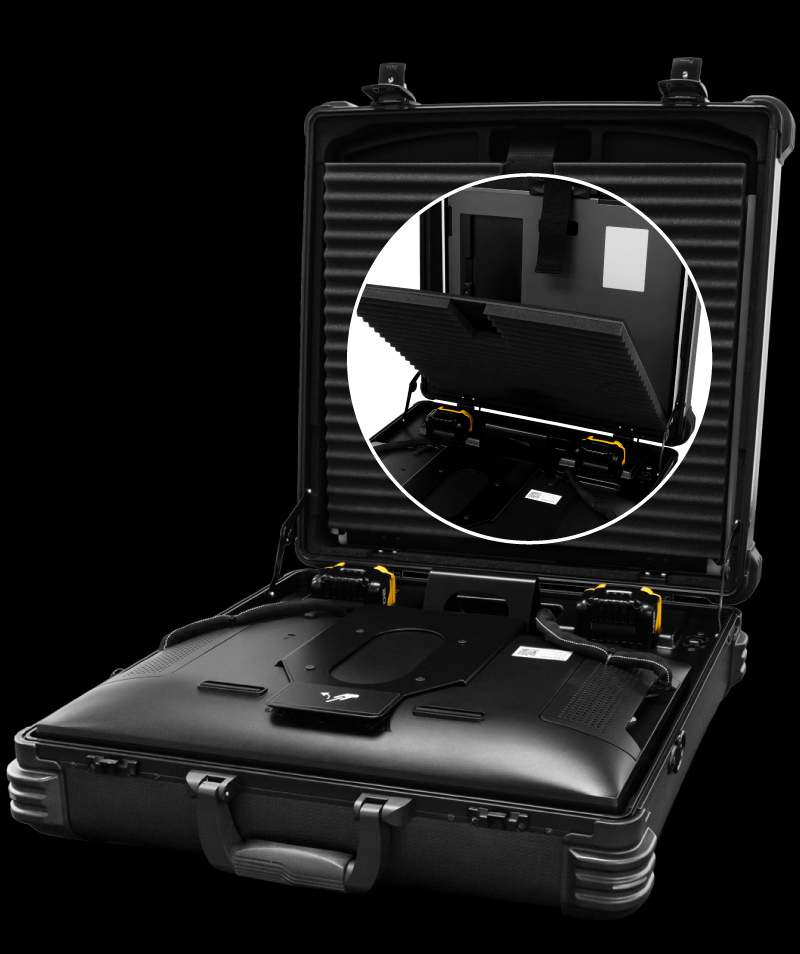

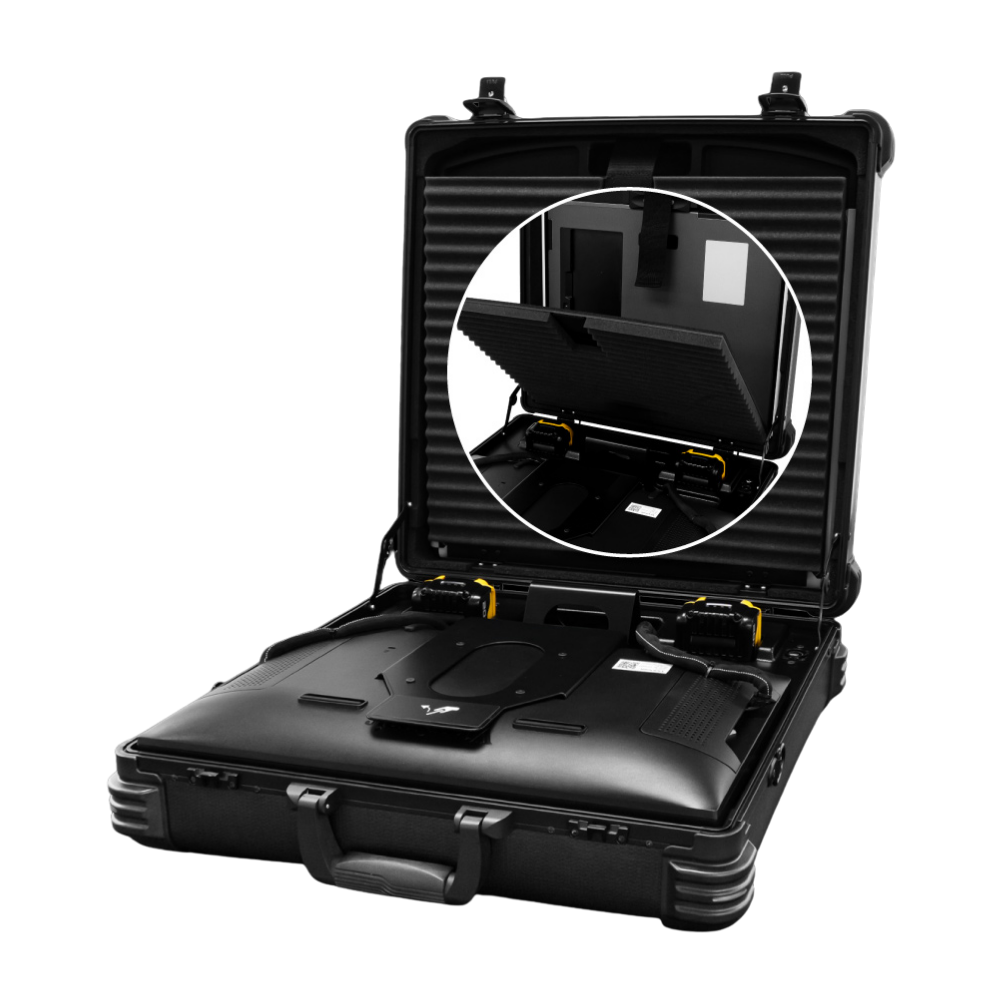

Change Batteries Without Shutting Down

Two rechargeable 20 V / 5 Ah DeWalt batteries power the workstation for approximately 8.5 hours across 500 X-ray exposures.

The batteries can be changed while the system is operating, so the workstation does not need to be shut down and restarted during a battery swap.

Closing the monitor automatically places the computer into standby mode. When the case is reopened within the configured timeframe, the operator can continue from the previous workflow without restarting the computer.

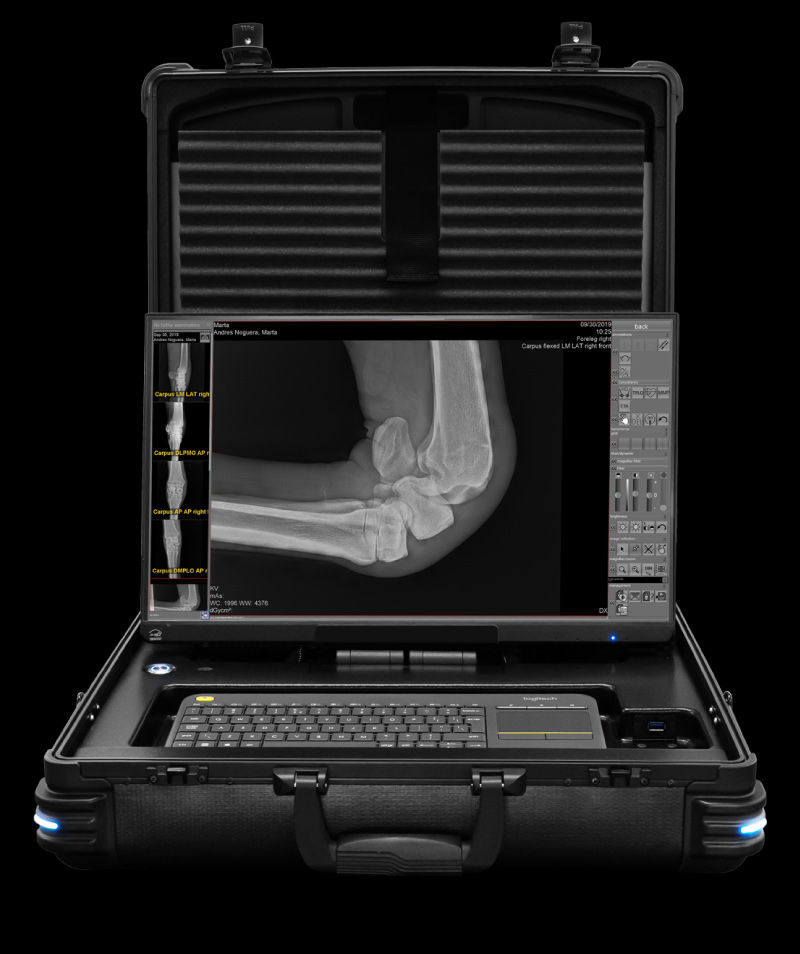

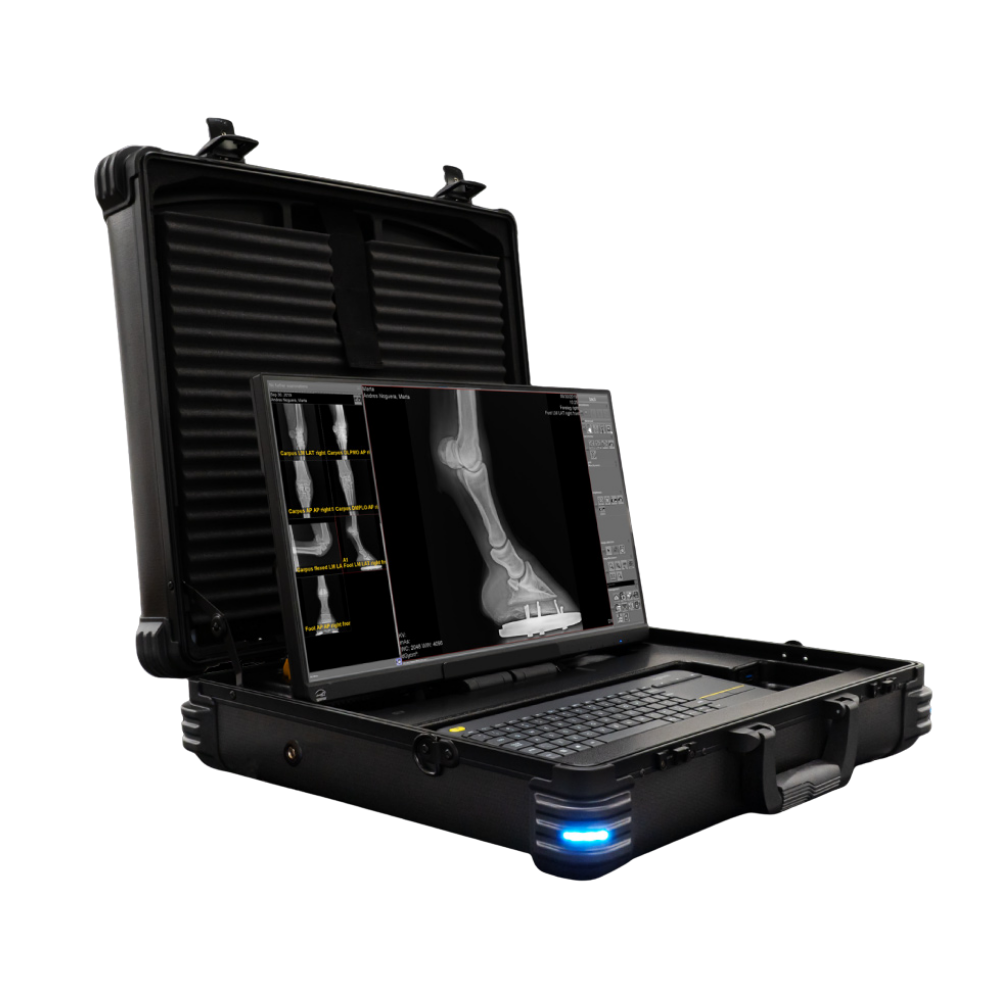

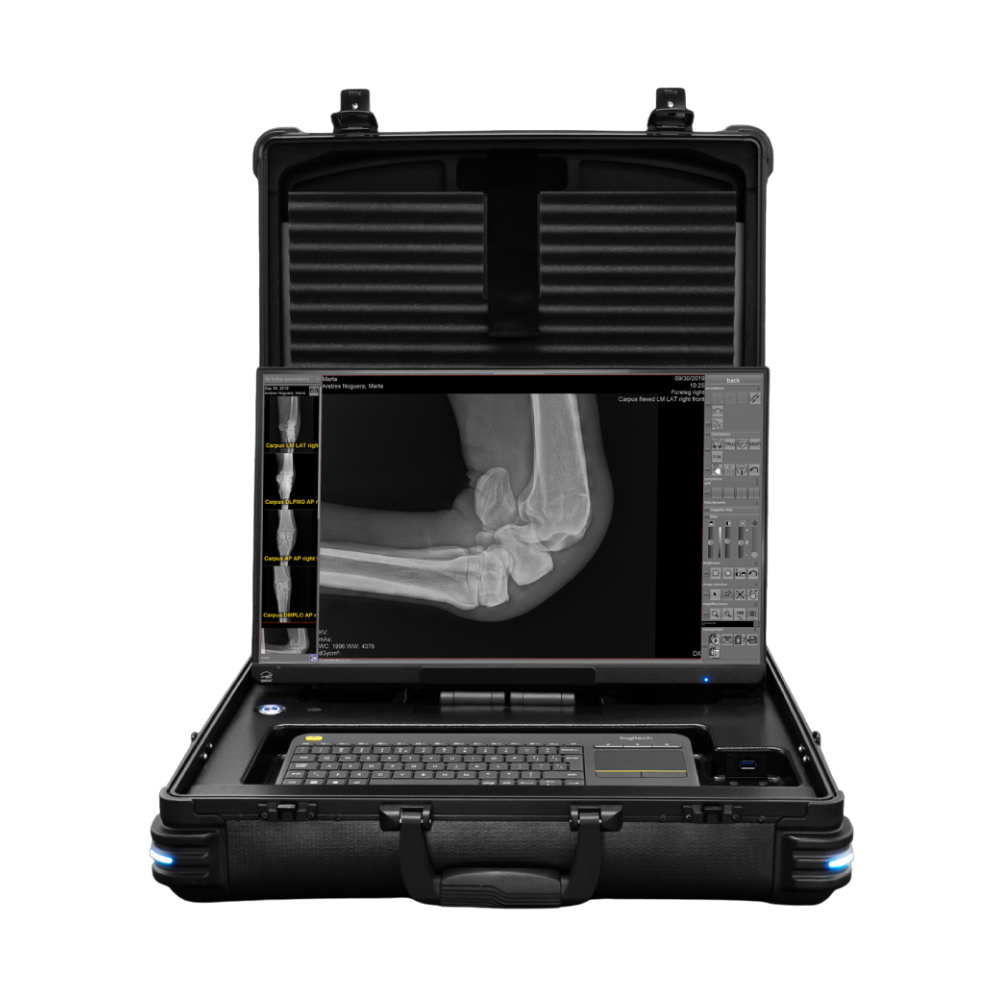

22-Inch Touchscreen Workstation

The built-in workstation uses a 22 in. (55.9 cm) anti-glare Full HD touchscreen that tilts into the working position for image acquisition and review.

A built-in keyboard and trackpad provide additional workstation control, while the 10-point touchscreen interface supports direct operation of AccuVue Vet software.

Padded Detector Storage Inside the Case

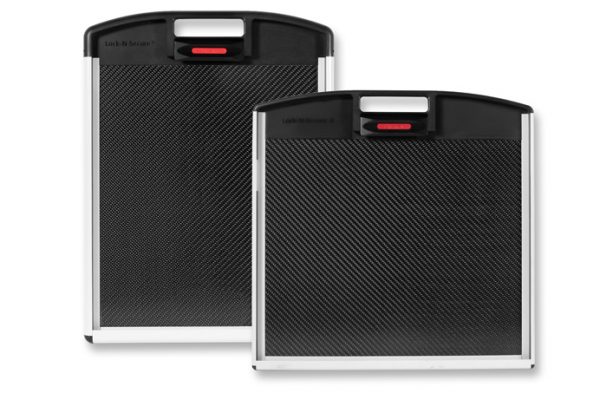

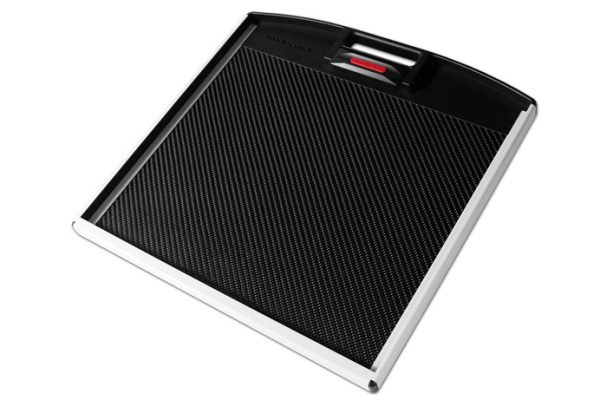

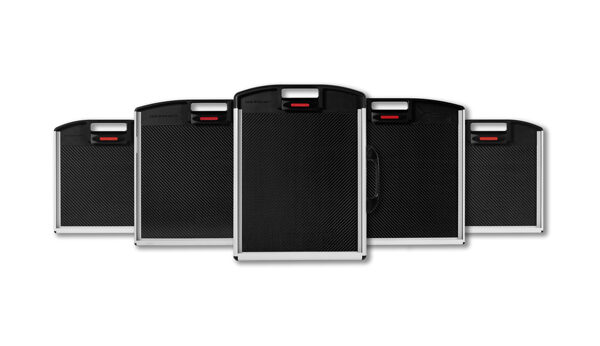

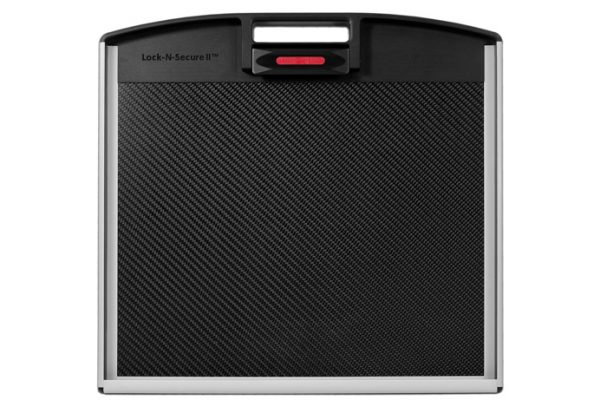

A dedicated padded compartment stores either supported detector size with its protection case.

Keeping the detector and workstation within the same portable case simplifies transport and helps protect the DR panel between imaging locations.

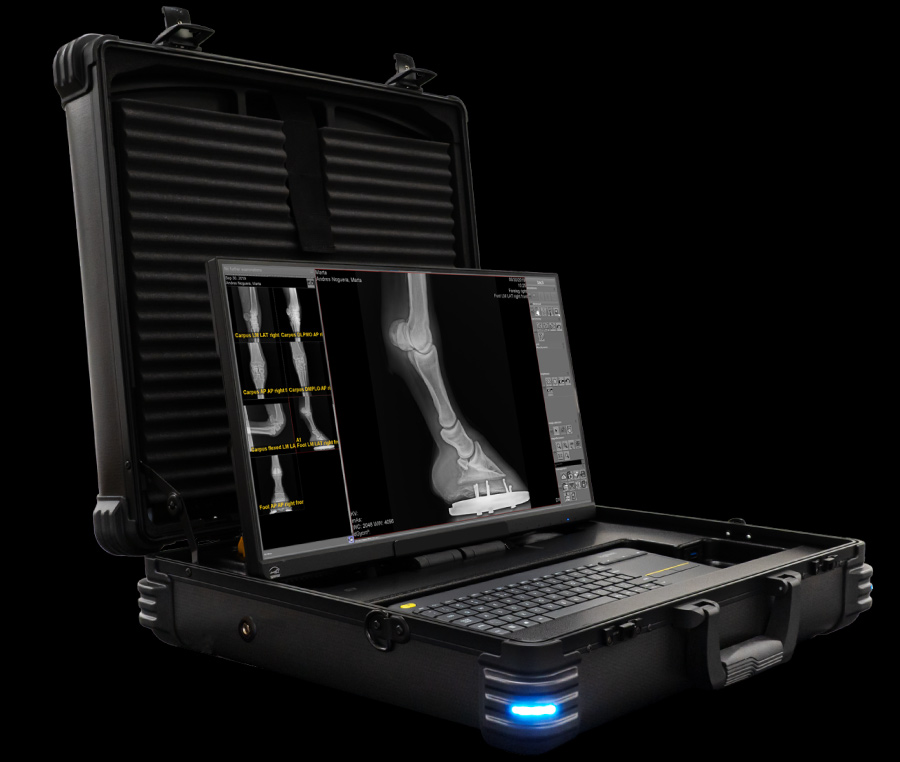

AccuVue Vet Software for Equine & Mixed-Practice Exams

AccuVue Vet is integrated into the Acuity DR Go workstation and is designed specifically for equine and mixed-practice veterinary imaging. The touchscreen interface brings exam setup, image acquisition, patient information, and image review into the same workstation.

200+ Veterinary Projections & Configurable Exams

AccuVue Vet includes configurable body parts with more than 200 projections and additional adjustments already available within the software.

This gives operators access to established veterinary exam selections without requiring every projection to be built manually.

Patient Registration & Practice-System Connectivity

AccuVue Vet can receive patient and examination information from compatible veterinary practice-management systems using supported connectivity protocols. Patient information can also be entered manually when a connected workflow is not available.

The software supports rapid emergency patient registration and allows operators to switch between projections during an exam, helping reduce unnecessary patient repositioning.

Wireless Smartphone Control

Acuity DR Go can also be controlled wirelessly from a compatible smartphone, giving the operator an additional way to interact with the system when working away from the case.

Radmedix Acuity DR Go Specifications

Portable Case & Workstation

• • System type: Portable veterinary digital radiography system
  • Veterinary use: Equine and mixed-practice imaging
  • Total weight: 21 lb (9.5 kg), including case, monitor, and detector
  • Dimensions: 21 W × 24 H × 20 D in. (53.3 × 61.0 × 50.8 cm)
  • Case construction: Lightweight composite hard shell
  • Case protection: IPX4 splash resistant with shock-absorbing edge reinforcement
  • Display: 22 in. (55.9 cm) anti-glare Full HD touchscreen
  • Computer: Integrated workstation PC
  • Detector storage: Padded internal compartment
  • Carrying strap: Included
  • Imaging software: AccuVue Vet

Workstation Power

• • Batteries: Two rechargeable 20 V / 5 Ah DeWalt batteries
  • Approximate operating time: 8.5 hours for 500 X-ray exposures
  • Battery swapping: Batteries can be changed during operation
  • Power-saving mode: Activates when the monitor is closed

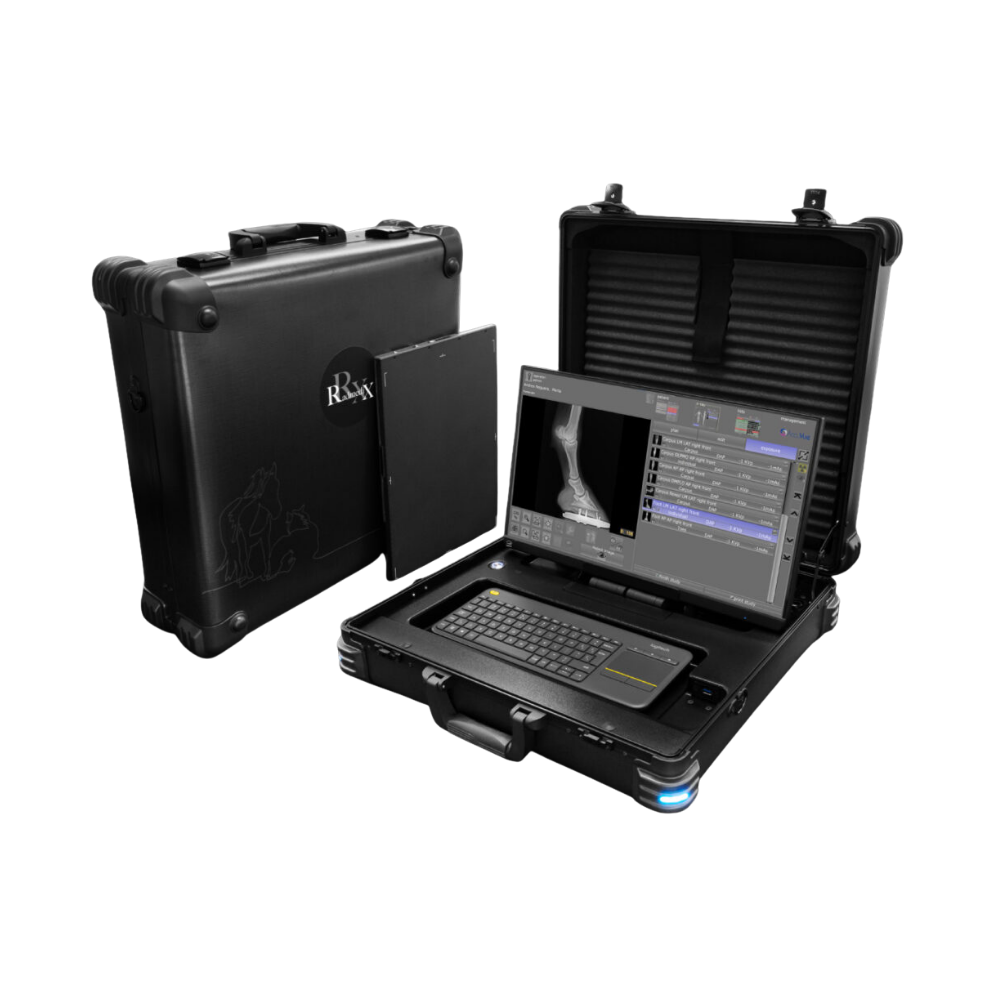

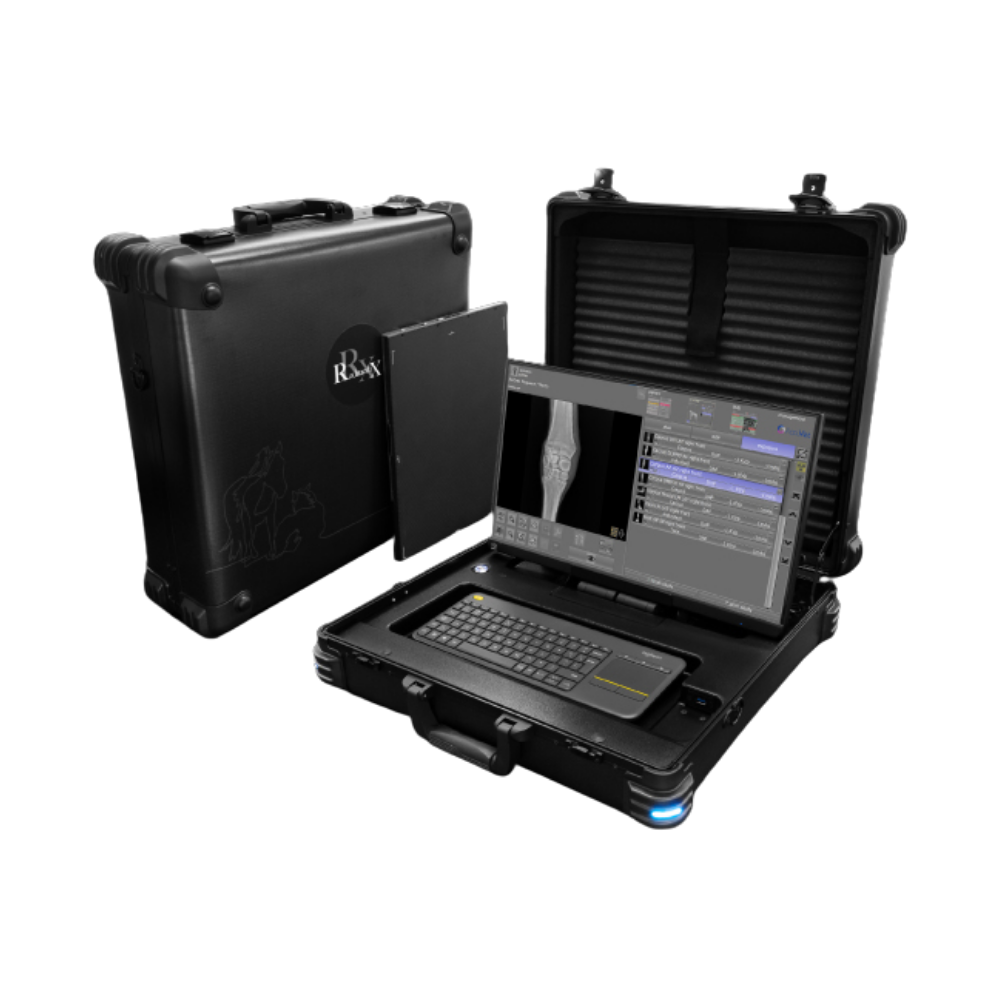

10 × 13 Detector Configuration

• • Detector size: 10 × 13 in. (254 × 330 mm)
  • Configuration: Equine imaging
  • Pixel pitch: 100 µm
  • Dynamic range: 16-bit
  • Battery capacity: Up to 8 hours
  • Protection rating: IPX5
  • Detector protection case: Included

14 × 17 Detector Configuration

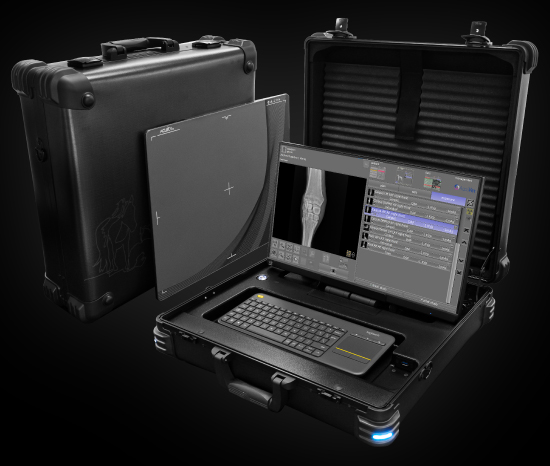

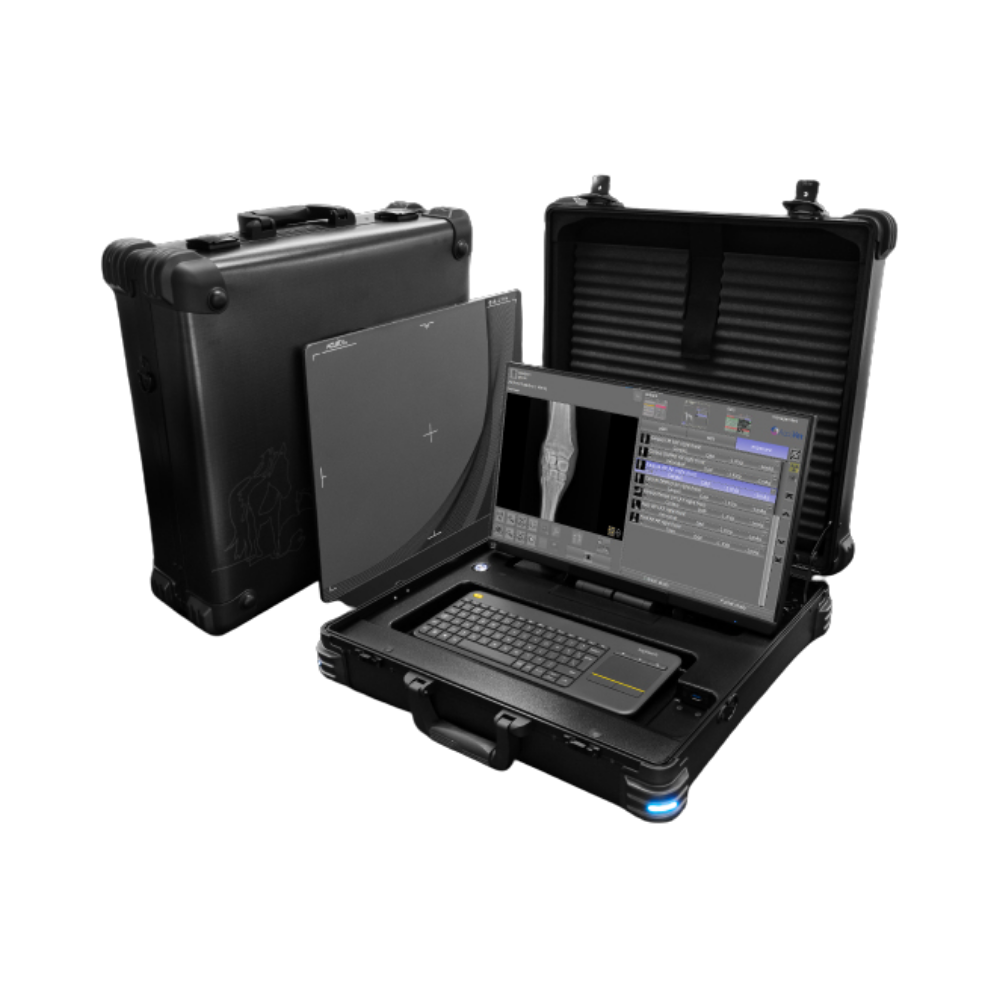

• • Detector size: 14 × 17 in. (356 × 432 mm)
  • Configuration: Mixed-practice veterinary imaging
  • Pixel pitch: 100 µm
  • Dynamic range: 16-bit
  • Battery capacity: Up to 9.5 hours
  • Protection rating: IP56
    Detector protection case: Included

Software & Connectivity

• • AccuVue Vet veterinary imaging software
  • More than 200 veterinary projections
  • Configurable exam selections
  • Emergency patient registration
  • DICOM Worklist and Procedure Code support
  • BDT/GDT and HL7 support
  • Wireless smartphone control
  • Connections: USB, LAN, WLAN/Wi-Fi, Bluetooth, and DC
