MinXray Impact Wireless Portable X-Ray System

Portable Digital Radiography System for Mobile & Point-of-Care Imaging

The MinXray Impact Wireless portable X-ray is a complete wireless digital radiography solution built for healthcare providers who need diagnostic imaging outside of traditional radiology suites. Combining a portable X-ray generator, wireless detector, imaging workstation, and transport case, the system supports high-quality digital imaging in a compact footprint.

Key Benefits of the MinXray Impact Wireless Portable X-Ray System

• • Battery-powered operation with no fixed installation required
  • Wireless 14″ × 17″ digital detector
  • FDA-certified generator for full-body imaging
  • Approximately 4-5 second image preview time
  • DICOM 3.0-compliant imaging workflow

The system enables providers to acquire diagnostic images and share them electronically for interpretation, helping support timely clinical decision-making across a variety of care environments.

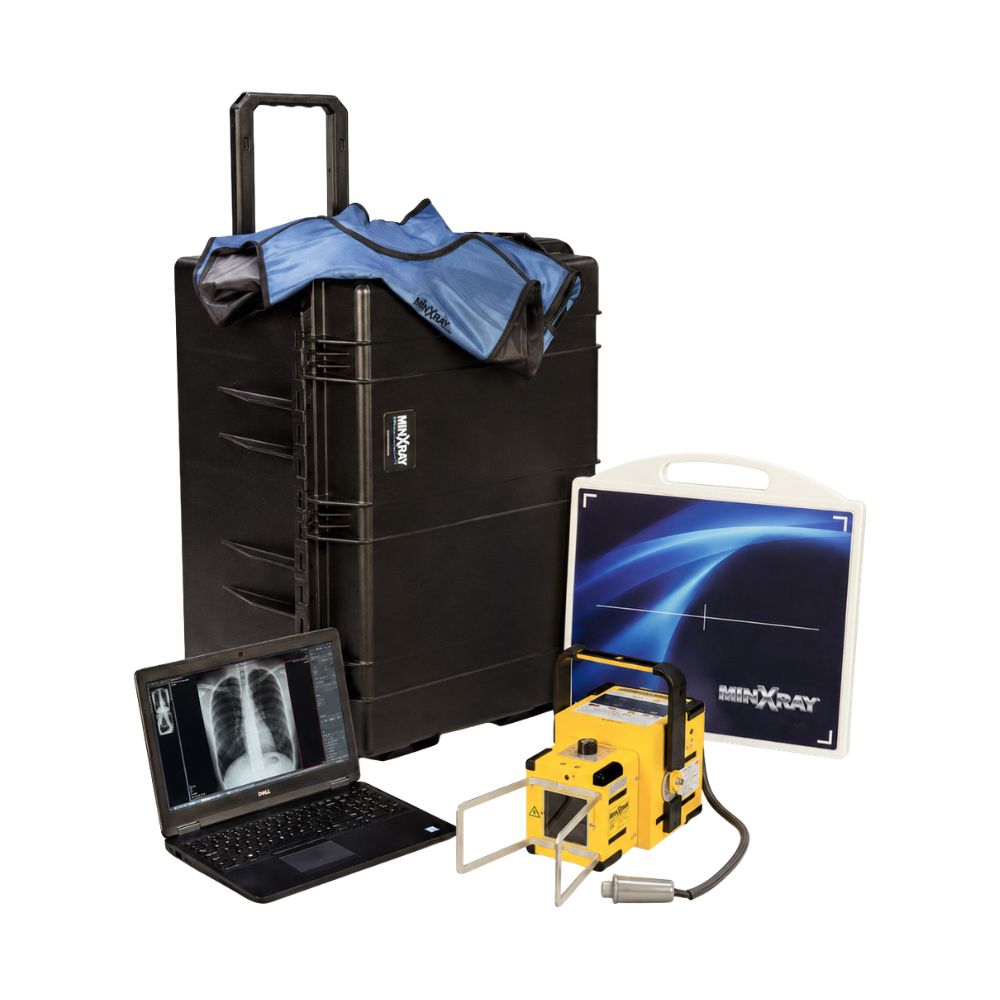

What Is Included with the MinXray Impact Wireless Portable X-Ray System

• • TR90BH battery-powered X-ray generator
  • Wireless 14″ × 17″ CsI flat panel detector
  • Laptop or tablet workstation
  • MinXView imaging software
  • Exposure switch and cord
  • Rechargeable batteries and chargers
  • Custom transport case



Wireless Flat Panel Detector for Fast, High-Quality Digital Imaging

At the core of the Impact system is a wireless cesium iodide flat panel detector designed to support fast image acquisition while maintaining portability. Its lightweight construction and durable housing make it well suited for mobile imaging workflows.

Key Features of the Wireless Digital X-Ray Detector

• • Wireless image acquisition
  • 14″ × 17″ imaging area
  • Direct deposit cesium iodide (CsI) scintillator
  • 16-bit grayscale imaging
  • Carbon-fiber front housing
  • High-strength aluminum alloy rear construction

Fast image availability helps improve workflow efficiency while reducing delays between image acquisition and review.

The detector also supports full-field automatic exposure detection and manual exposure control options, providing flexibility across a range of imaging scenarios.

Performance Specifications of the Flat Panel Detector

• • Approximately 6.5 million pixels
  • Pixel pitch of 100-154 μm
  • Approximately 4-5 second image preview time
  • 16-bit output data
  • Durable lightweight construction
  • Battery-Powered X-Ray Generator for Portable Imaging Flexibility

The Impact system utilizes the MinXray TR90BH battery-powered X-ray generator, allowing imaging to be performed without dependence on fixed radiographic infrastructure.

TR90BH Portable X-Ray Generator Features & Capabilities

• • FDA-certified for full-body imaging
  • 40-90 kVDC operating range
  • 10-20 mA output range
  • Rechargeable lithium-ion battery power
  • Lightweight portable design

Its compact size and cordless operation support imaging in locations where traditional radiographic systems may not be practical.



DICOM Imaging Software & Remote Image Sharing Capabilities

Digital connectivity is a key advantage of the MinXray Impact platform. Images can be reviewed locally or transferred electronically for interpretation and consultation.

MinXView Imaging Software Features & Workflow Tools

• • MinXView imaging software
  • DICOM 3.0 compliant workflow
  • Digital image management tools
  • Remote image sharing capabilities
  • Support for off-site image review

The ability to electronically transmit studies can help support remote radiology workflows and collaborative patient care.

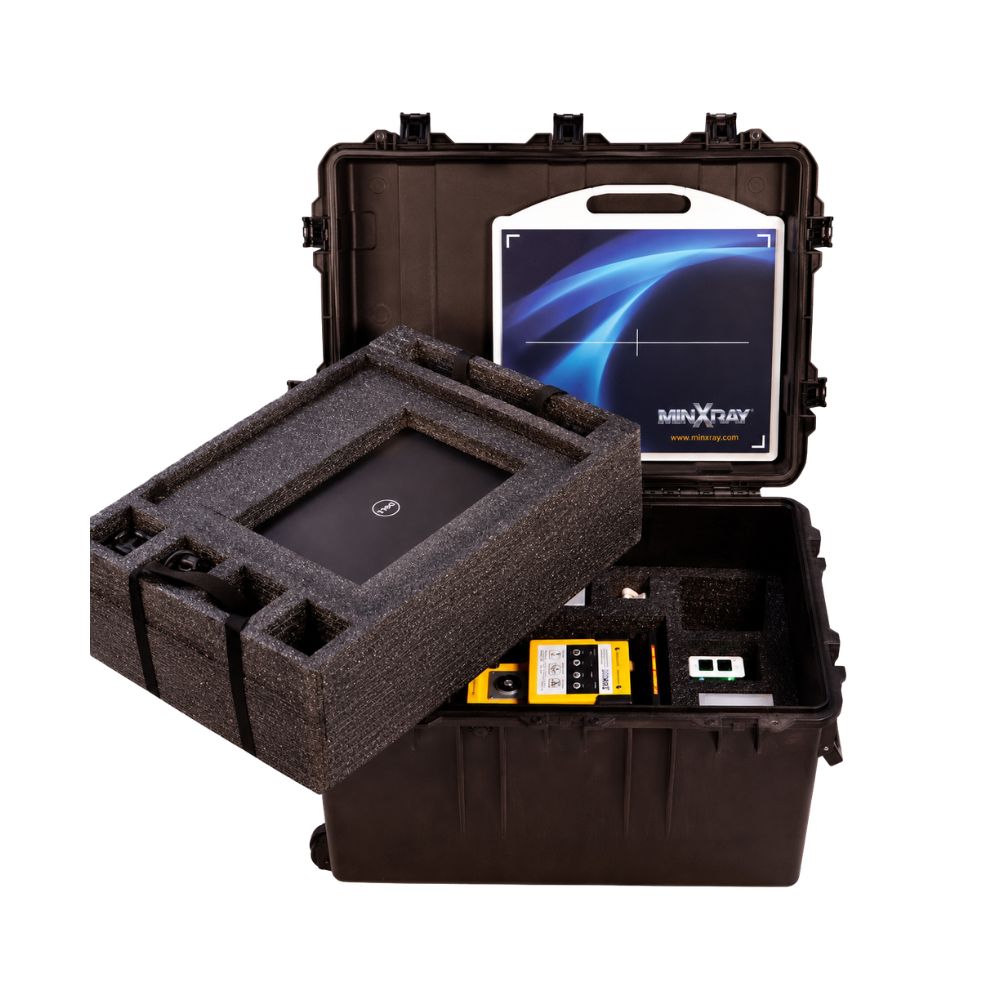

Portable Design with Transport Case for Easy Deployment

The Impact system is designed for providers who regularly transport imaging equipment between locations. Included protective transport solutions help simplify movement and storage while helping protect critical components.

Mobility & Transport Features for Portable X-Ray Use

• • Custom transport case included
  • Compact generator footprint
  • Lightweight wireless detector
  • Portable workstation configuration
  • Customizable casing options available

These design elements help streamline deployment in mobile healthcare and decentralized imaging environments.



Optional Positioning Accessories for Flexible Imaging Setup

Optional positioning accessories allow organizations to configure the MinXray Impact Wireless Portable X-Ray system around their workflow and imaging requirements.

Available X-Ray Positioning Accessories

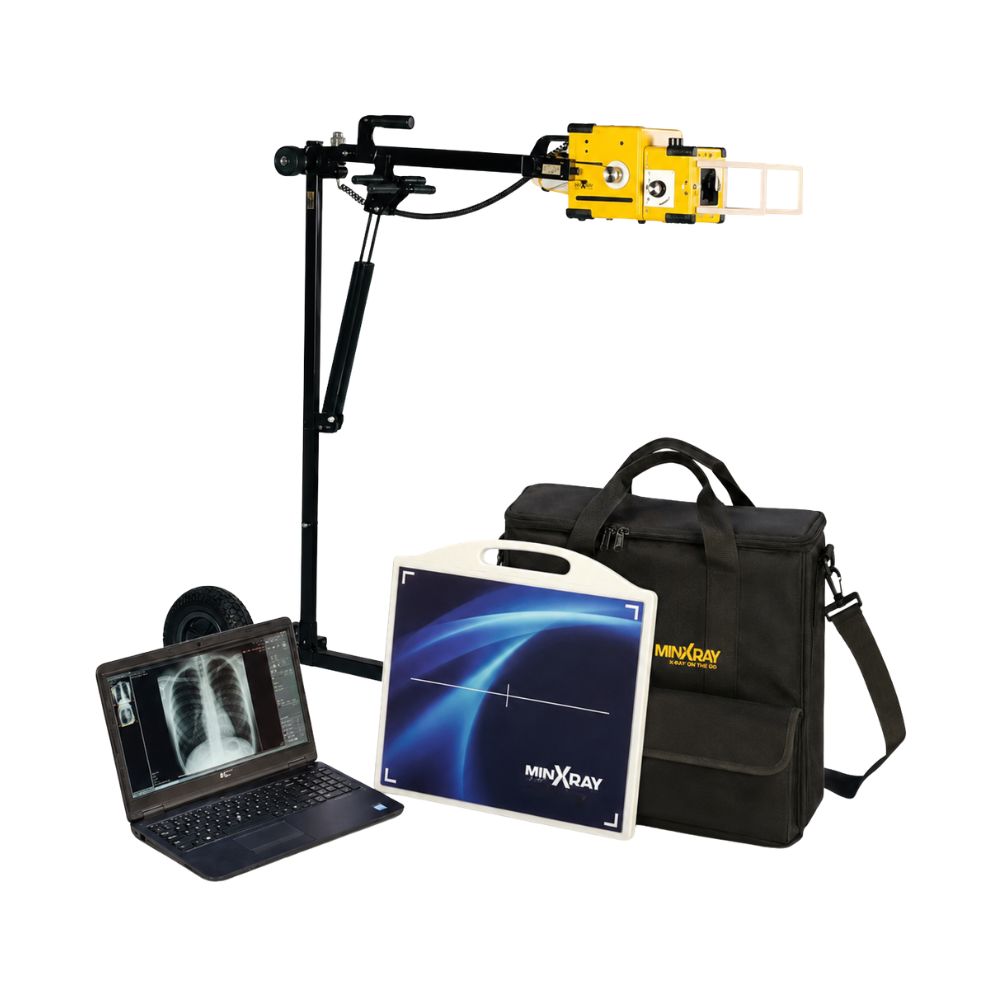

• • X200S Tripod
  • XGS-SF Portable Stand
  • MS-IV Compact Stand

These options provide additional positioning flexibility while preserving the portability of the overall system.



Clinical Applications & Use Cases

The MinXray Impact Wireless portable X-ray system is designed for general radiographic imaging in environments where mobility, portability, and workflow flexibility are priorities.

Common Healthcare Settings

• • Physician offices
  • Community health clinics
  • Urgent care centers
  • Occupational health clinics
  • Mobile healthcare programs
  • Public health initiatives
  • Point-of-care imaging environments
  • Types of Imaging Exams Supported by the System
  • Chest imaging
  • Extremity imaging
  • Orthopedic imaging
  • Musculoskeletal imaging
  • Skeletal examinations
  • General radiographic studies
  • Full-body diagnostic imaging



---

Specifications for MinXray Impact Wireless Portable X-Ray System

TR90BH Portable X-Ray Generator Specifications

• • Generator Type: Battery-powered portable X-ray generator
  • X-Ray Output: 20-10 mA @ 40-90 kVDC
  • Dimensions: 7.48″ × 6.89″ × 9.84″ (18.0 × 17.5 × 25.0 cm)
  • Weight: 17.0 lb (7.7 kg) with battery
  • Power Source: 60 VDC rechargeable lithium-ion battery

Wireless Flat Panel Detector Technical Specifications

• • Detector Type: Wireless CsI Flat Panel Detector
  • Scintillator: Direct Deposit Cesium Iodide (CsI)
  • Image Size: 14″ × 17″ (35 × 43 cm)
  • Pixel Matrix: 2816 × 2304 (approximately 6.5 million pixels)
  • Pixel Pitch: 100-154 μm
  • A/D Conversion: 16-bit
  • Output Data: 16-bit grayscale
  • Preview Image Access Time: Approximately 4-5 seconds after exposure
  • Exposure Control: Full-field automatic exposure detection or manual control
  • Detector Dimensions: 384 × 460 × 15 mm
    Detector Weight: 8.2 lb (3.7 kg)
    Housing Material: Carbon fiber front, high-strength aluminum alloy rear

Operating Requirements & Environmental Specifications

• • Input Power: AC 100-240V, 50/60 Hz
  • Operating Temperature: 40-95°F (5-35°C)
  • Humidity Range: 30-75% RH
