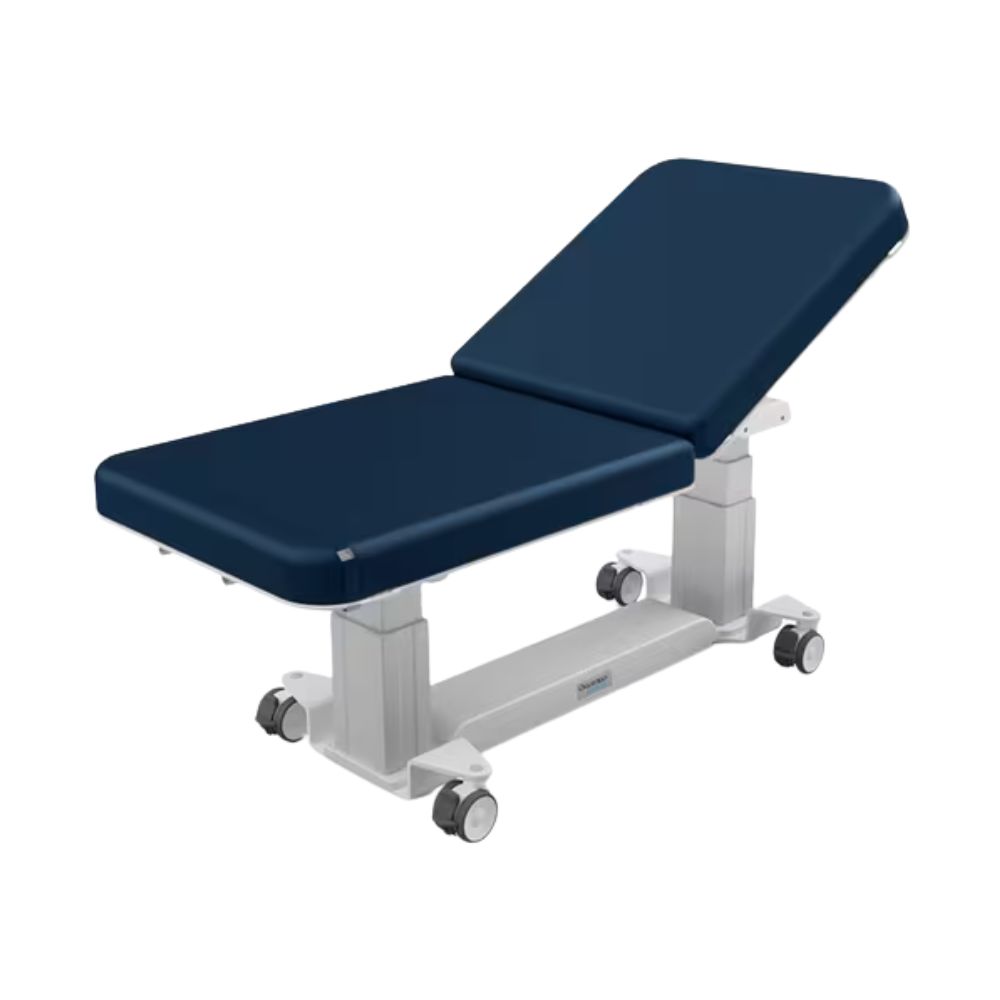

Oakworks General 2-Section Ultrasound Table

Oakworks General 2 Section Ultrasound Table Highlights & Benefits

The General 2 Section is part of Oakworks Medical Products’ Ergonomic Advantage line of ultrasound tables. Three powered movements allow clinicians to adjust table height, tilt, and the Fowler backrest while the two-section top provides straightforward positioning for a broad range of ultrasound exams.

Key Benefits

• • Electric height, Trendelenburg/reverse Trendelenburg, and Fowler positioning
  • Functions as an exam table or upright exam chair
  • 550 lb (250 kg) patient weight capacity
  • Choice of 26 in. (66 cm) or 30 in. (76 cm) tabletop widths
  • Low or high powered height configurations
  • Twin lifting towers provide rigid table support
  • Compact covered base supports close sonographer and ultrasound-system positioning
  • Replaceable padded sections simplify long-term table upkeep

The design provides powered positioning without the independently adjustable leg section found on a three-section table. This makes the General 2 Section a practical choice when Fowler positioning, table tilt, and adjustable working height meet the department’s exam requirements.

Oakworks General 2 Section Powered Positioning in Practice

Powered positioning allows the table to adapt as patient and scanning requirements change. This video provides a closer look at Oakworks table movement and positioning, including the adjustments that help clinicians establish practical working heights and patient positions during sonography.

On the General 2 Section, powered movement includes height adjustment, ±18° Trendelenburg/reverse Trendelenburg, and a Fowler backrest that raises from 0° to 75°.

How Does the Oakworks General 2 Section Improve Patient Positioning & Sonographer Access?

Three Powered Movements for Patient Positioning

The General 2 Section provides electric height, table tilt, and Fowler adjustment so clinicians can adapt the table to the patient and exam without relying primarily on manual repositioning.

The electric Fowler backrest adjusts from 0° to 75° for elevated torso positioning, allowing the General 2 Section to function as either an exam table or an upright exam chair when the workflow requires it. Trendelenburg and reverse Trendelenburg provide ±18° powered tilt, while electric height adjustment allows the table to move between patient-transfer and sonographer working heights.

The low-height configuration adjusts from 19 to 33 in. (48 to 84 cm), while the high-height configuration provides a 22 to 36 in. (56 to 91 cm) range.

Sonographer Access & Twin-Tower Support

A compact covered base leaves more working space around the tabletop so the sonographer and ultrasound equipment can move closer to the patient. This helps reduce unnecessary reach while preserving access from different scanning positions.

Twin lifting towers provide a rigid support structure, and the table has a 550 lb (250 kg) patient weight capacity.

Graphic Hand Control, Locking Casters & Replaceable Pads

A graphic multi-function hand control manages powered table positioning and includes presets that can coordinate multiple movements for faster patient adjustment. An optional foot control provides another way to operate height, tilt, and Fowler functions.

The table includes 4 in. (10 cm) locking casters for room positioning. An optional powered central base locking system allows the base to be locked or released through the hand control.

Three-inch (8 cm) Comfort Foam padding supports patient comfort. Individual padded sections are replaceable, allowing worn or damaged pads to be serviced without replacing the complete table.

Oakworks General 2 Section Ultrasound Table Clinical Applications

The Oakworks General 2 Section ultrasound table is intended for departments that need powered patient positioning across multiple sonography procedures without requiring the independently powered leg section of a three-section table.

Oakworks recommends the table for:

• Abdominal ultrasound
• Superficial-structure ultrasound
• Musculoskeletal ultrasound
• Vascular ultrasound
• Ultrasound-guided biopsies

The General 2 Section is suited to ultrasound workflows that benefit from powered torso positioning and table tilt but do not require independent powered leg adjustment. Its Fowler backrest, tilt, and adjustable height allow clinicians to adapt patient position while maintaining practical access for scanning.

Facilities requiring a powered leg section and greater positioning flexibility should consider the Oakworks General 3-Section Top Ultrasound Table. More specialized cardiac or venous reflux workflows may be better served by the Oakworks Echocardiography EA Ultrasound Table or Oakworks Vascular with Fowler EA Table.

Oakworks General 2 Section Configurations, Options & Accessories

The Oakworks General 2 Section ultrasound table can be configured around patient population, transfer requirements, room workflow, and the procedures performed in the department. Table width, height range, and factory-installed options should be selected according to how the table will be used.

26- or 30-Inch Tabletop & Two Height Ranges

The two-section tabletop measures 72 in. (183 cm) long and is available in:

• • 26 in. (66 cm) width
  • 30 in. (76 cm) width

Two powered height configurations are available:

• • Low height: 19 to 33 in. (48 to 84 cm)
  • High height: 22 to 36 in. (56 to 91 cm)

The 19 in. (48 cm) low-height configuration can support easier wheelchair transfers while also providing a lower starting point for patient positioning. The two tabletop widths allow facilities to balance patient support, sonographer reach, and available room space.

Powered Base Locking, Side Rails, Stirrups & Battery Backup

Oakworks offers several factory-installed options for adapting the General 2 Section to different patient-access and workflow requirements.

Available options include:

• • Powered central base locking system
  • Multi-function foot control
  • Battery backup
  • Recessing side rails
  • Retractable stirrups
  • Removable procedure tray on 30 in. (76 cm) tables
  • Non-U.S. electrical configurations

The optional side rails measure 25.5 in. (65 cm) long by 6 in. (15 cm) high and recess beneath the tabletop when not in use, helping preserve close access around the patient.

Battery backup can maintain powered table operation during a power failure. The optional procedure tray holds approximately 2 qt (1.9 L), while adjustable stirrups store beneath the table when they are not needed.

Upholstery is available in TerraTouch medical-grade fabric or optional Ultraleather with multiple color selections.

Arm Board, Table Extender & Headrest Accessories

Additional accessories can adapt the General 2 Section for patient support and specialized positioning needs.

Available accessories include:

• • Detachable arm board
  • T-rail adapter
  • Table extender
  • QuickLock headrest with AeroCel pad
  • Compatible Oakworks stools

The detachable arm board measures 5 x 20.5 in. (13 x 52 cm) and requires the T-rail adapter. The 8 in. (20 cm) T-rail adapter mounts to the backrest for compatible accessories.

A 24 x 12 in. (61 x 30 cm) table extender increases usable table length for taller patients or specialized positioning. The QuickLock headrest provides adjustable prone or supine support.

Evaluating the Oakworks General 2 Section for Your Ultrasound Department

When a 2-Section Ultrasound Table Makes Sense

The Oakworks General 2 Section Ultrasound Table is best suited to facilities that need powered height, tilt, and Fowler positioning but do not require independent powered leg adjustment.

Compared with the Oakworks General 3-Section, the 2 Section uses a simpler tabletop architecture while retaining the powered movements needed for abdominal, superficial-structure, musculoskeletal, vascular, and biopsy ultrasound workflows.

Configuration should be based on tabletop width, preferred transfer height, patient population, exam mix, room layout, and whether options such as side rails, stirrups, foot controls, battery backup, or powered base locking are required. Selected options and accessories affect final table configuration and pricing.

Support for Older Oakworks General with Fowler Tables

Earlier Oakworks general ultrasound tables were sold under the General with Fowler name. Previous-generation models included the 69222-T with a 27 in. (69 cm) tabletop and the 61988-T with a 30 in. (76 cm) tabletop.

The current Oakworks General 2 Section Ultrasound Table occupies a similar role in the Oakworks sonography lineup, but it should not be treated as an identical replacement. Current height ranges, tabletop configurations, tilt capabilities, options, and other specifications differ from earlier General with Fowler tables.

MXR provides medical imaging equipment service and support as well as replacement parts and repair solutions for installed equipment. Facilities operating an older Oakworks General with Fowler table should provide the model and serial number when contacting MXR so service needs, parts availability, and current replacement options can be evaluated.

Oakworks General 2 Section Ultrasound Table Specifications

Tabletop & Dimensions

• • Top design: 2-section
  • Tabletop width: 26 in. (66 cm) or 30 in. (76 cm)
  • Overall tabletop length: 72 in. (183 cm)
  • Backrest length: 34 in. (86 cm)
  • Seat length: 38 in. (97 cm)

Powered Positioning

• • Low height configuration: 19 to 33 in. (48 to 84 cm)
  • High height configuration: 22 to 36 in. (56 to 91 cm)
  • Trendelenburg/reverse Trendelenburg: ±18°
  • Electric Fowler backrest: 0° to 75°
  • Controls: Graphic multi-function hand control

Capacity, Padding & Mobility

• • Patient weight capacity: 550 lb (250 kg)
  • Product weight: 359 lb (163 kg)
  • Padding: 3 in. (8 cm) Comfort Foam
  • Upholstery: TerraTouch medical-grade fabric or optional Ultraleather
  • Casters: 4 in. (10 cm) locking casters
  • Paper roll holder: Included
  • Replaceable padded sections: Yes

Factory Options

• • Powered central base locking system
  • Multi-function foot control for height, Trendelenburg/reverse Trendelenburg, and Fowler adjustment
  • Battery backup
  • Side rails: 25.5 in. (65 cm) long x 6 in. (15 cm) high
  • Retractable stirrups
  • Procedure tray: approximately 2 qt (1.9 L) capacity, available on 30 in. (76 cm) tables
  • Non-U.S. electrical configurations

Accessories

• • Detachable arm board: 5 x 20.5 in. (13 x 52 cm)
  • T-rail adapter: 8 in. (20 cm) long
  • Table extender: 24 x 12 in. (61 x 30 cm)
  • QuickLock headrest with AeroCel pad
  • Oakworks stools

Warranty & Safety Listings

• • Parts warranty: 3 years
  • Labor warranty: 2 years
  • FDA listed
  • CE marked
  • cETLus listed
  • CB Certificate
