Oakworks General 3-Section Top Ultrasound Table

Oakworks General 3-Section Ultrasound Table Highlights & Benefits

The General 3-Section Top Ultrasound Table from Oakworks Medical Products combines powered positioning with a flexible three-section design. Its compact base and configurable options support patient access, sonographer ergonomics, and a range of ultrasound workflows.

Key Benefits

• Powered height, Trendelenburg/reverse Trendelenburg, Fowler backrest, and leg-rest positioning

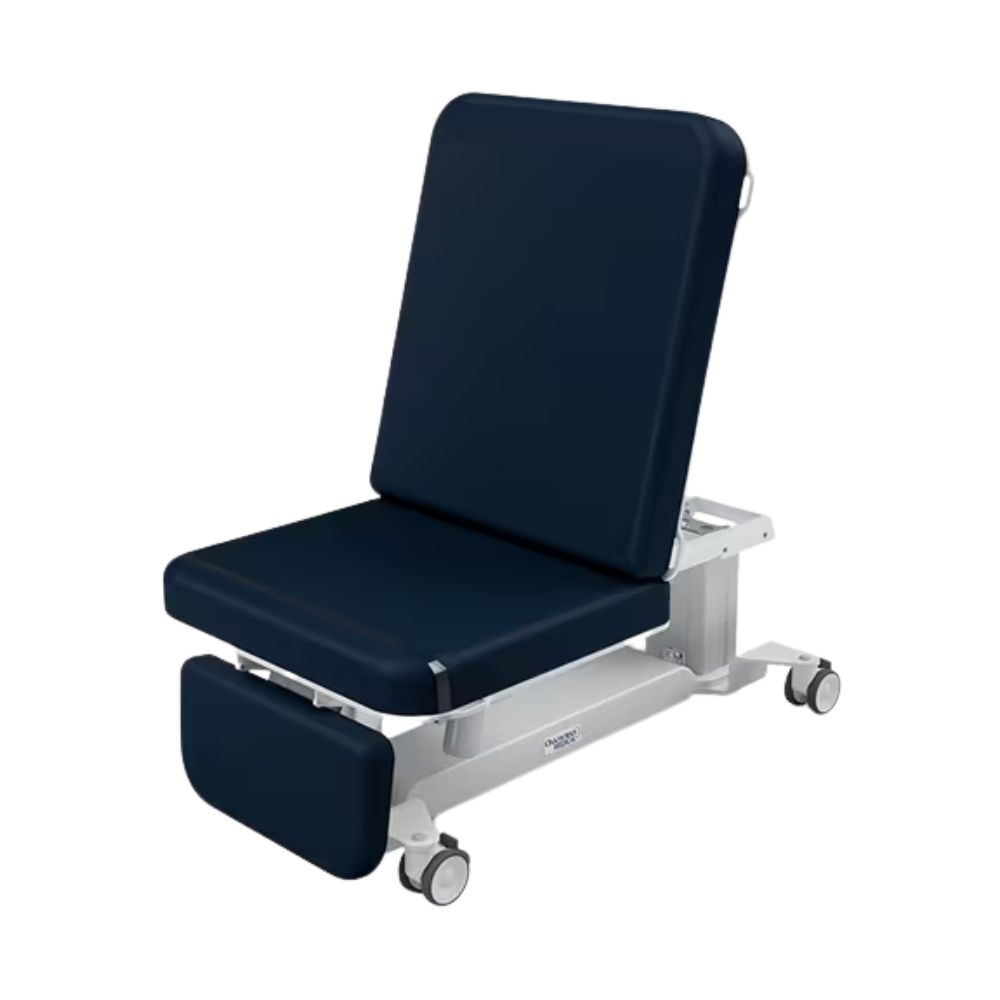

• Converts between table and upright exam-chair positions
• Choice of 26 in. (66 cm) or 30 in. (76 cm) tabletop widths
• 550 lb (250 kg) patient weight capacity
• Compact base supports close sonographer and ultrasound-system positioning
• Graphic multi-function hand control simplifies powered adjustments
• Replaceable padded sections help extend the usable life of the table

Twin lifting towers provide a rigid support structure, while the small-profile covered base reduces obstruction around the table. The result is a sonography-specific platform built around patient positioning, clinician access, and efficient exam workflow.

Oakworks General 3-Section Powered Positioning Demonstration

See how the Oakworks General 3-Section Top Ultrasound Table adjusts between imaging and upright patient positions. The video demonstrates the powered height, Fowler backrest, leg section, and table positioning capabilities that support flexible ultrasound workflows.

How the Oakworks General 3-Section Ultrasound Table Supports Ultrasound Workflow

Powered Patient Positioning

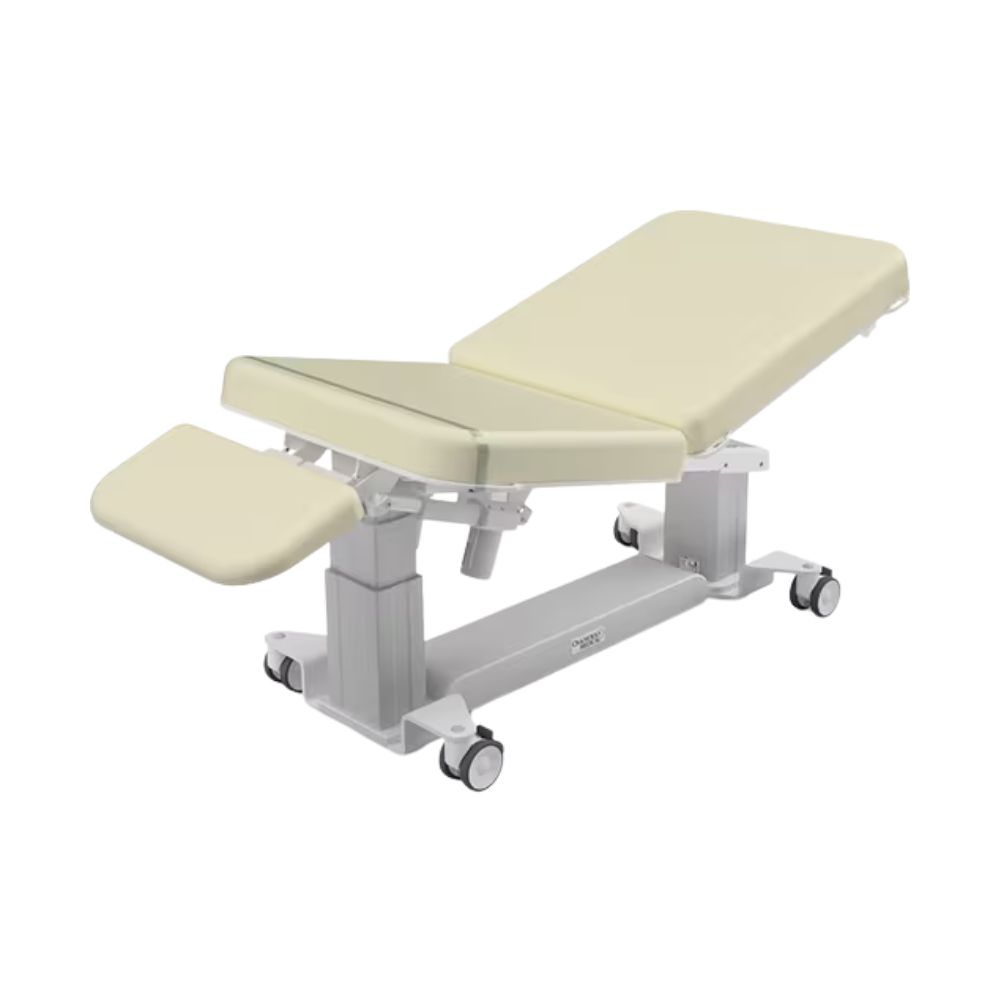

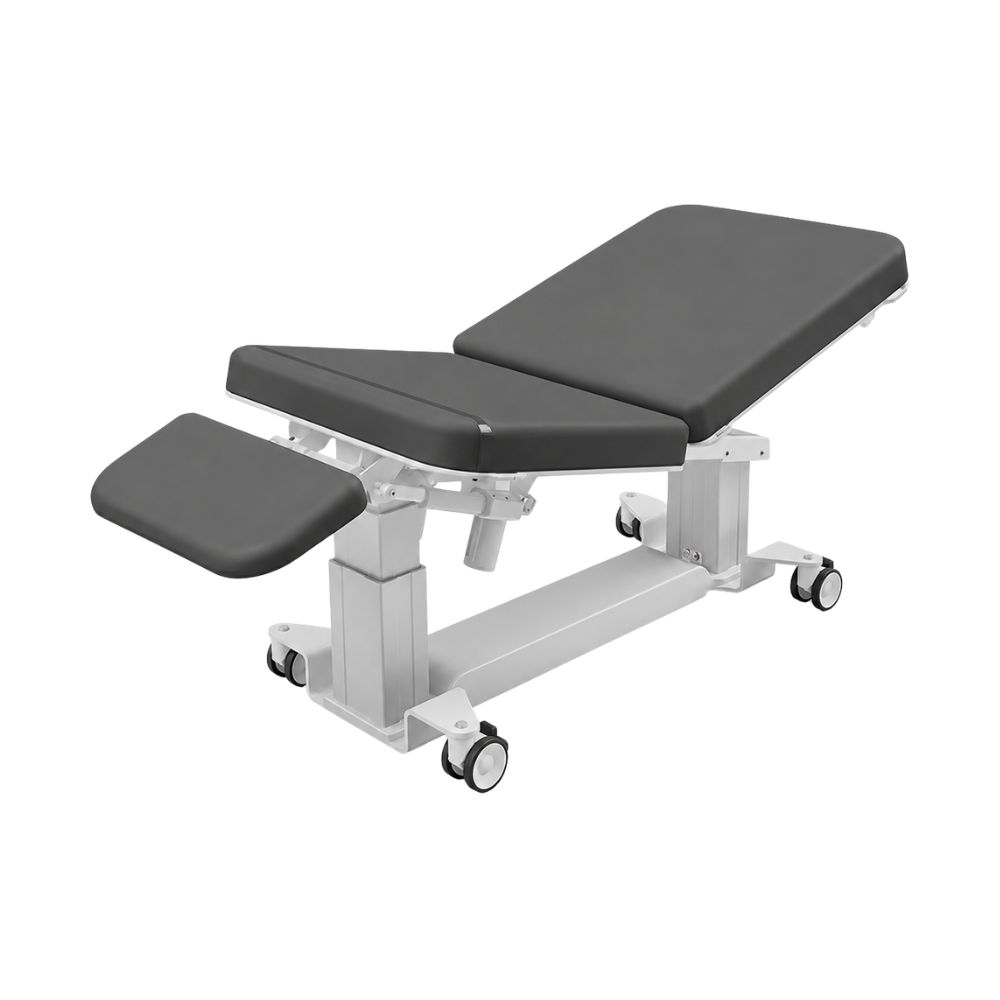

Four electric motions allow clinicians to adjust the patient without relying primarily on manual repositioning. Powered height adjustment is combined with ±18° Trendelenburg and reverse Trendelenburg, a Fowler backrest that adjusts from 0° to 75°, and an electric leg section that moves from 0° to 90°.

These movements allow the table to transition between horizontal scanning positions, elevated torso positioning, and an upright exam-chair configuration. The powered leg section can also elevate the patient’s legs and work with optional retractable stirrups when needed.

Sonographer Access & Table Base Design

The compact covered base helps the sonographer move closer to the patient from different working positions while leaving room for ultrasound equipment around the table. This reduces unnecessary reach and supports more ergonomic positioning during scanning.

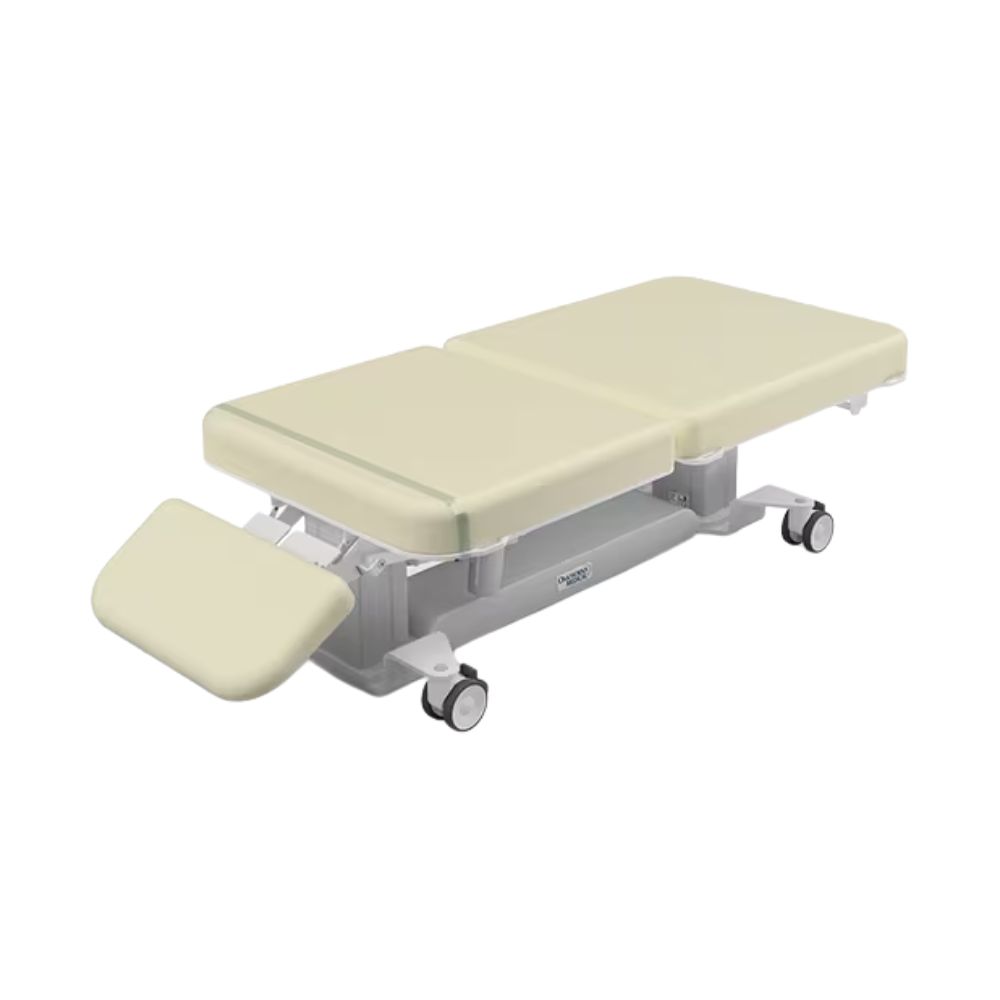

The three-section top adds positioning flexibility by allowing the backrest and leg section to move independently rather than requiring the patient to remain on a fixed flat surface.

Controls, Mobility & Serviceability

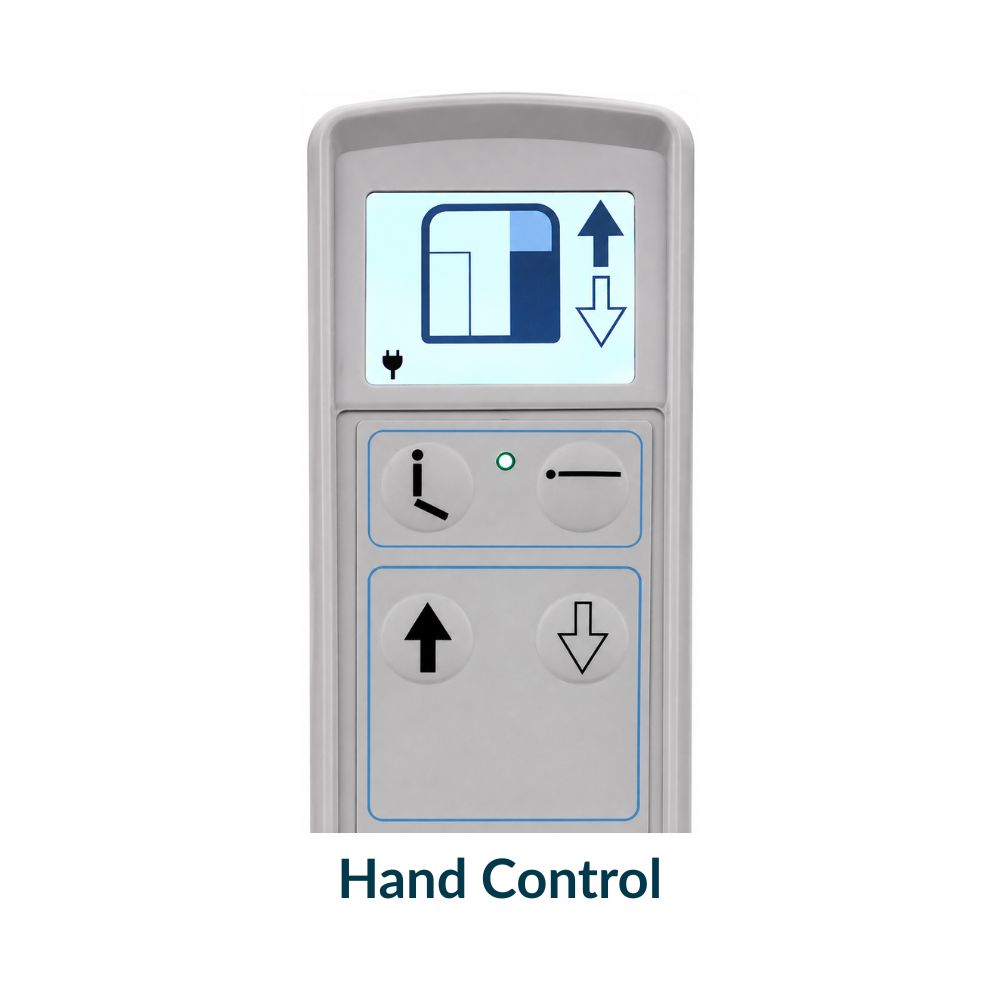

The graphic multi-function hand control manages powered table positioning and includes presets that can coordinate multiple functions for faster patient adjustment. An optional foot control provides hands-free access to major positioning functions.

The table includes 4 in. (10 cm) locking casters for room positioning. An optional powered central base locking system allows the table to be locked or released through the hand control.

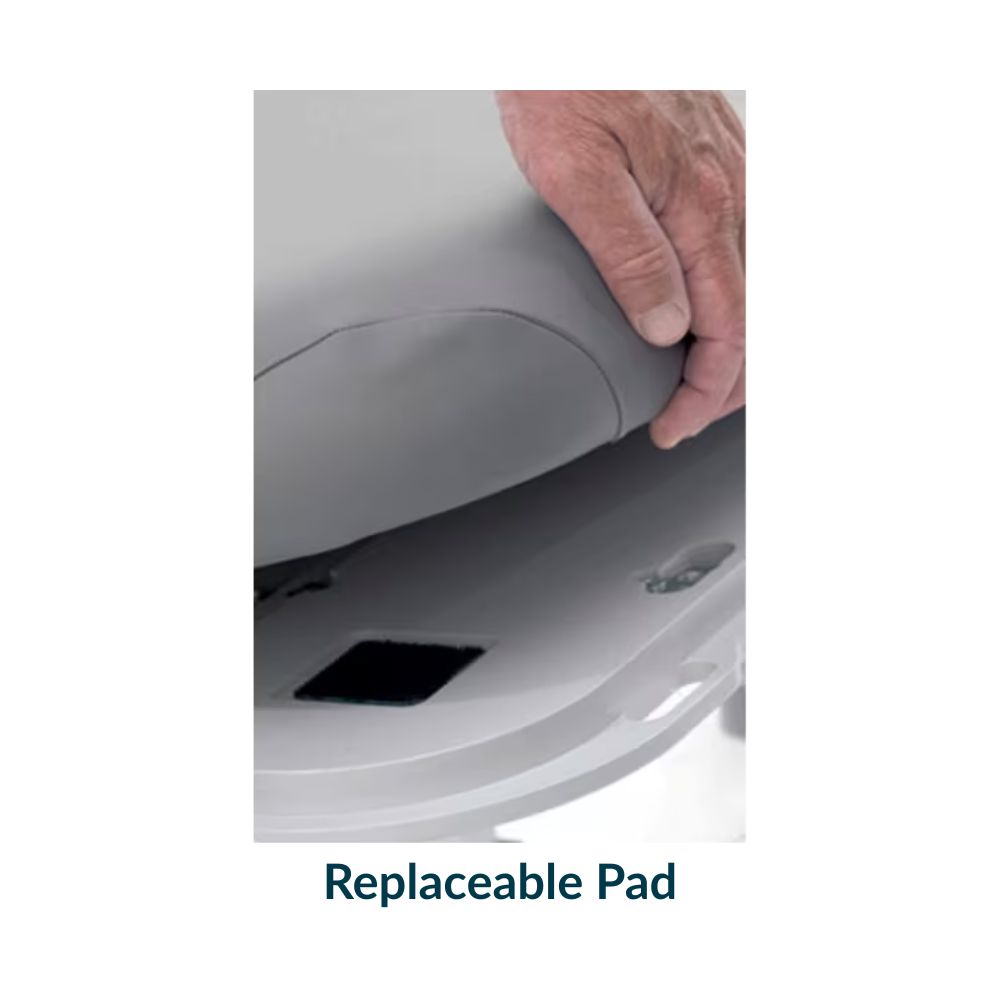

Three-inch (8 cm) Comfort Foam padding supports patient comfort, while individually replaceable padded sections allow worn or damaged upholstery components to be replaced without replacing the complete table.

Oakworks General 3-Section Ultrasound Table Clinical Applications

The Oakworks General 3-Section ultrasound table is intended for sonography departments that need flexible patient positioning across several types of ultrasound examinations rather than a table dedicated to a single specialty.

Recommended applications include:

• Abdominal and superficial-structure ultrasound
• Vascular ultrasound
• Musculoskeletal ultrasound
• OB/GYN ultrasound with optional stirrups for applicable exams

The combination of powered Fowler positioning, leg adjustment, table tilt, and adjustable height allows the patient’s position to be adapted to different examinations while maintaining practical access for the sonographer.

For dedicated cardiac imaging or specialized vascular applications such as venous reflux studies, facilities should also consider the Oakworks Echocardiography EA Ultrasound Table or Oakworks Vascular with Fowler EA Table, which incorporate positioning features developed for those specific workflows.

Oakworks General 3-Section Configurations, Options & Accessories

The Oakworks General 3-Section ultrasound table can be configured around patient population, sonography workflow, room requirements, and procedure mix. Table width, height range, and factory options should therefore be selected according to how the table will be used.

Table Width & Height Configurations

The three-section tabletop is available in either a 26 in. (66 cm) or 30 in. (76 cm) width and measures 75 in. (191 cm) long.

Two powered height ranges are available:

• • Low height: 19 to 33 in. (48 to 84 cm)
  • High height: 22 to 36 in. (56 to 91 cm)

The lower configuration provides a lower starting position for patient transfers. Certain specialized factory options, including the electric cardio/access panel configuration and procedure tray, require the 30 in. (76 cm) tabletop.

Factory-Installed Options

Available factory options allow the table to be configured for additional positioning, workflow, and patient-access requirements.

Options include:

• • Powered central base locking
  • Multi-function foot control
  • Battery backup
  • Recessing side rails
  • Retractable stirrups
  • Removable procedure tray
  • Electric sliding cardio panel and adjustable access/back support panel on 30 in. (76 cm) tables
  • Non-U.S. electrical configurations

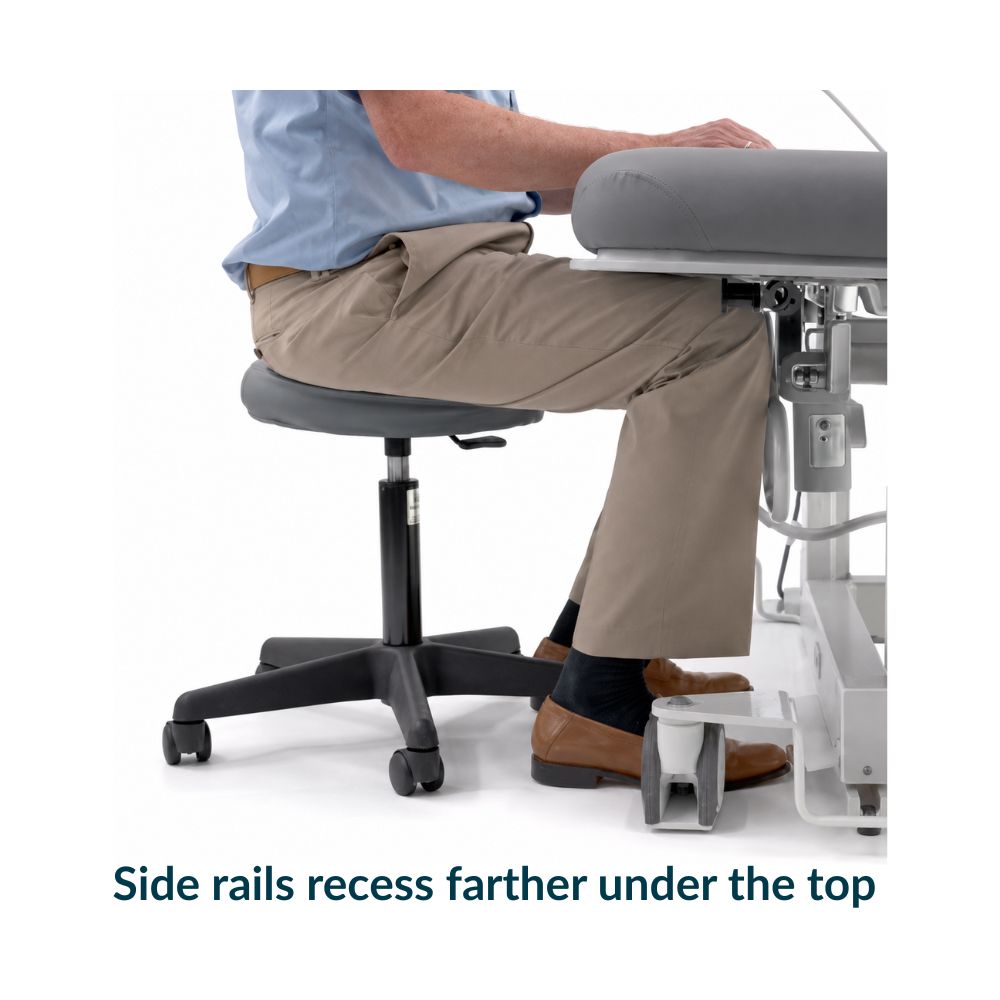

The optional side rails measure 25.5 in. (65 cm) long by 6 in. (15 cm) high and recess beneath the tabletop when not in use, helping preserve close access around the patient.

The optional battery backup allows powered table operation during a power failure. Upholstery is available in TerraTouch medical-grade fabric or optional Ultraleather, with multiple color selections available.

Patient Positioning Accessories

Accessories can be added to adapt the table for additional positioning requirements.

Available accessories include:

• • Detachable arm board
  • T-rail adapter
  • Table extender
  • QuickLock headrest with AeroCel pad

The detachable arm board measures 5 x 20.5 in. (13 x 52 cm) and requires the T-rail adapter. The 8 in. (20 cm) T-rail adapter mounts to the backrest and supports compatible accessories.

A 24 x 12 in. (61 x 30 cm) table extender increases overall table length for taller patients or specialized positioning. The QuickLock headrest with AeroCel pad provides adjustable support for prone or supine positioning.

Choosing the Right Oakworks General 3-Section Configuration

The Oakworks General 3-Section ultrasound table is best suited to facilities that perform multiple ultrasound exam types and need more positioning flexibility than a fixed or two-section table provides. Its powered backrest, leg section, tilt, and height adjustment are particularly useful when patient position changes across the department’s exam mix.

Configuration should be based on required tabletop width, preferred transfer height, patient population, ultrasound applications, mobility requirements, and whether stirrups, side rails, battery backup, powered base locking, or specialized access panels are needed. Factory-selected options and accessories affect the final table configuration and pricing.

Oakworks General 3-Section Ultrasound Table Specifications

Tabletop & Dimensions

• • Top design: 3-section
  • Tabletop width: 26 in. (66 cm) or 30 in. (76 cm)
  • Overall tabletop length: 75 in. (191 cm)
  • Backrest length: 34 in. (86 cm)
  • Seat length: 26 in. (66 cm)
  • Leg rest: 22 in. (56 cm) wide x 11 in. (28 cm) long

Powered Positioning

• • Low height configuration: 19 to 33 in. (48 to 84 cm)
  • High height configuration: 22 to 36 in. (56 to 91 cm)
  • Trendelenburg/reverse Trendelenburg: ±18°
  • Fowler backrest: 0° to 75°
  • Electric leg rest: 0° to 90°
  • Controls: Graphic multi-function hand control

Capacity, Padding & Mobility

• • Patient weight capacity: 550 lb (250 kg)
  • Product weight: 359 lb (163 kg)
  • Padding: 3 in. (8 cm) Comfort Foam
  • Upholstery: TerraTouch medical-grade fabric or optional Ultraleather
  • Casters: 4 in. (10 cm) locking casters
  • Paper roll holder: Included
  • Replaceable padded sections: Yes

Factory Options

• • Powered central base locking system
  • Multi-function foot control
  • Battery backup
  • Side rails: 25.5 in. (65 cm) long x 6 in. (15 cm) high
  • Retractable stirrups
  • Removable procedure tray
  • Electric sliding cardio panel: Opens up to 15 in. (38 cm)
  • Electric access/back support panel: 10 in. (25 cm) wide x 22 in. (56 cm) long
  • Cardio and access/back support panels available on 30 in. (76 cm) tables
  • Non-U.S. electrical configurations

Accessories

• • Detachable arm board: 5 x 20.5 in. (13 x 52 cm)
  • T-rail adapter: 8 in. (20 cm) long
  • Table extender: 24 x 12 in. (61 x 30 cm)
  • QuickLock headrest with AeroCel pad

Warranty & Safety Listings

• • Parts warranty: 3 years
  • Labor warranty: 2 years
  • FDA listed
  • CE marked
  • cETLus listed
  • CB Certificate
