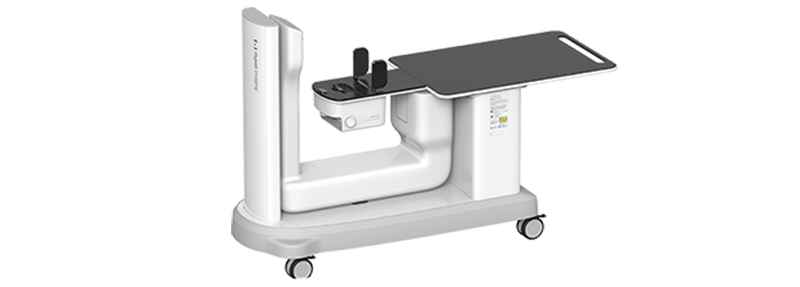

MyVet Pan i2D Dental X-Ray

MyVet Pan i2D + EzSensor Vet Dental Imaging Benefits

The Pan i2D provides full-mouth panoramic veterinary dental X-ray imaging, while EzSensor Vet provides detailed intraoral images of individual teeth and localized areas. Together, they give veterinary teams complementary views for dental assessment and treatment planning.

Key Benefits

• • 20-second full-mouth panoramic scanning
  • Panoramic imaging designed specifically for small-animal patients
  • EzSensor Vet intraoral imaging for detailed tooth-level assessment
  • Veterinary-specific jaw-size presets
  • 22-inch touchscreen with direct access to scan controls and images
  • Laser-guided patient positioning
  • Integrated carbon fiber patient table
  • Adjustable and removable headrest
  • Wheeled base for flexible placement within the practice
  • Multiple EzSensor Vet sizes for different intraoral positioning needs
  • Multiple EzSensor Vet sizes for intraoral positioning needs

This combination allows the clinician to begin with a broad view of the mouth and surrounding anatomy, then capture focused intraoral images when an individual tooth or localized area requires closer evaluation.

Preview the MyVet Pan i2D

See the Pan i2D veterinary dental imaging system, integrated patient table, positioning setup, and panoramic imaging workflow in this product overview.

MyVet Pan i2D Panoramic X-Ray & EzSensor Vet Intraoral Detail

Pan i2D Full-Mouth Panoramic Imaging

The Pan i2D uses panoramic scanning technology and acquisition software developed specifically for veterinary dental imaging. Presets for different jaw sizes help adapt the acquisition to the patient, while the software processes each scan to improve visualization of relevant dental and skeletal structures.

Panoramic imaging provides a broad view that can support evaluation of the teeth, jaws, surrounding skeletal anatomy, dental pathology, and jaw-joint abnormalities.

EzSensor Vet Tooth-Level Imaging

EzSensor Vet provides close-up intraoral images when an individual tooth or localized area requires more detailed evaluation.

Its CMOS sensor technology is designed to maintain image quality across a wide exposure range while reducing image noise and artifacts. Intraoral views can provide additional detail for dental fractures, cavities, root canal abnormalities, and other localized findings.

Combined Imaging for Dental Treatment Planning

Panoramic imaging establishes the broader dental picture, while intraoral imaging provides greater detail where needed.

Using both imaging methods allows the clinician to evaluate the full mouth and then concentrate on individual teeth or suspicious areas during dental assessment and treatment planning. The resulting images can also help veterinary teams visually explain dental findings and proposed treatment to pet owners.

Small-Animal Dental Exams & Pan i2D Applications

The Pan i2D is designed around the positioning and dental imaging requirements of small-animal veterinary patients.

Small-Animal Practices, Hospitals & Dental Suites

The system is suited for veterinary facilities that perform routine or dedicated dental imaging, including:

• • Small-animal veterinary practices
  • Veterinary hospitals
  • Practices with dedicated veterinary dental services
  • Veterinary dental treatment and imaging areas

Its integrated table, imaging hardware, touchscreen, and wheeled platform create a dedicated dental imaging workstation that can be repositioned as practice space and workflow needs change.

For additional veterinary radiography equipment, explore MXR’s Veterinary X-Ray Products.

Dental Screening, Localized Evaluation & Treatment Planning

The Pan i2D and EzSensor Vet can support:

• • Full-mouth dental assessment
  • Evaluation of teeth and surrounding skeletal structures
  • Detection and assessment of dental pathology
  • Individual tooth evaluation
  • Dental fracture assessment
  • Evaluation of cavities
  • Root canal assessment
  • Jaw-joint evaluation
  • Pre-treatment dental imaging
  • Dental treatment planning

The combination of broad panoramic views and detailed intraoral images helps the clinician select the appropriate level of imaging detail for each stage of the dental exam.

MyVet Pan i2D Positioning, Table & Practice Workflow

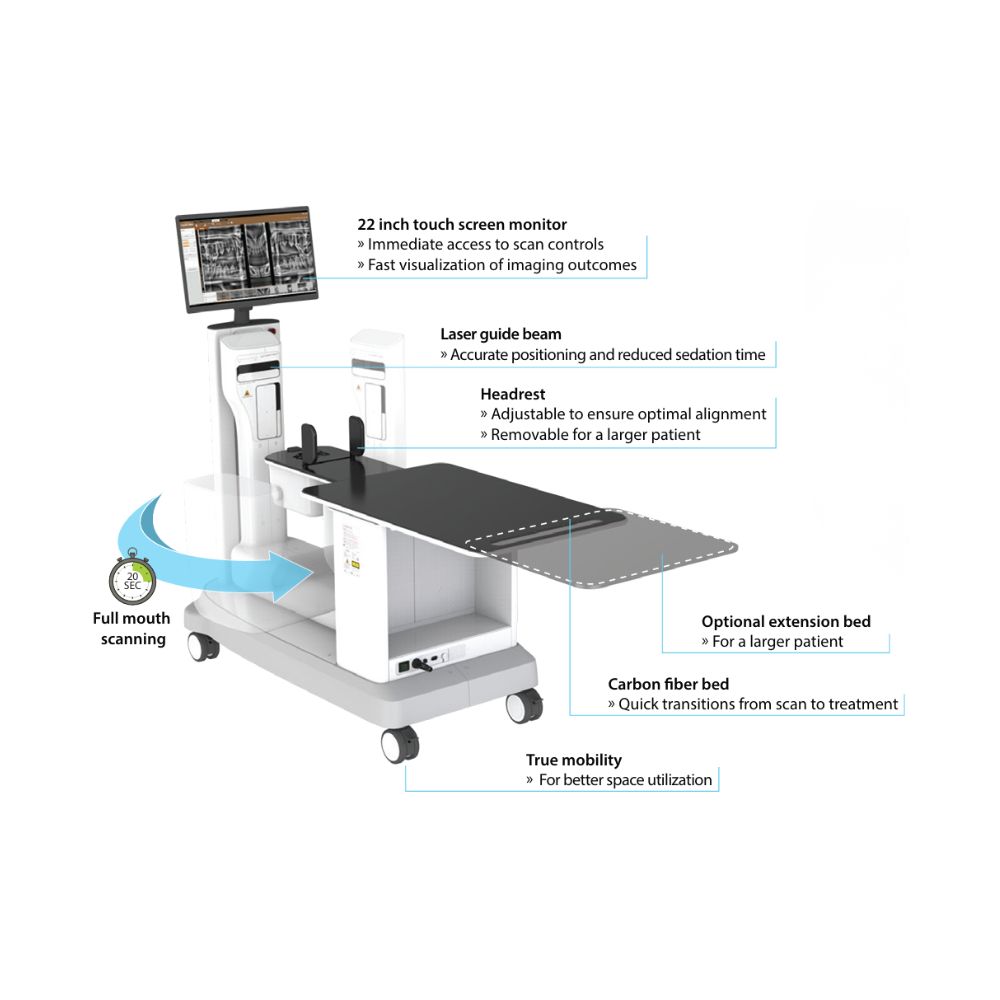

22-Inch Touchscreen & Laser-Guided Positioning

The 22-inch touchscreen gives the operator direct access to scan controls and allows imaging results to be viewed immediately after acquisition.

Laser guidance helps establish patient alignment efficiently before panoramic scanning, reducing the amount of positioning adjustment required before image acquisition.

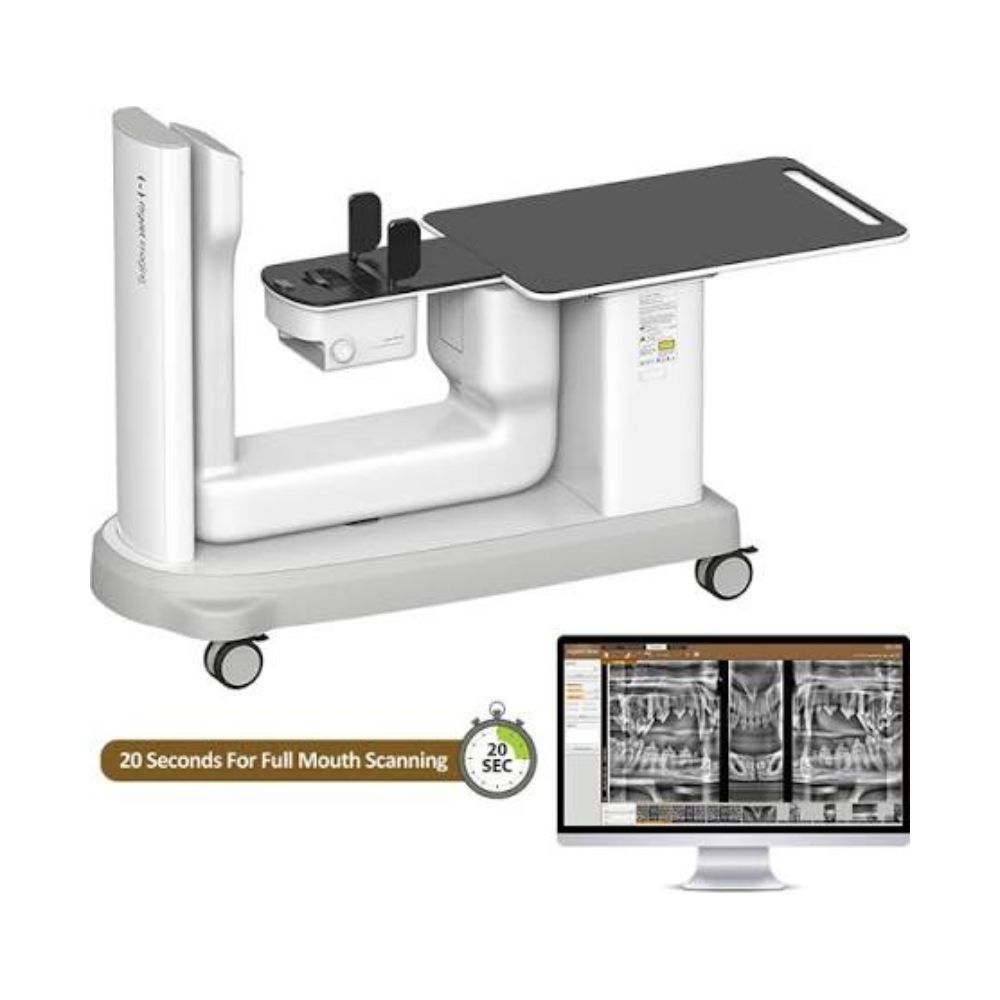

A 20-second full-mouth scan keeps panoramic acquisition brief, while immediate image access supports a faster transition from positioning to image review.

Carbon Fiber Table & Adjustable Headrest

The integrated carbon fiber table keeps the patient positioned within the dental imaging workflow and supports an efficient transition from scanning to treatment.

The adjustable headrest helps align the patient’s head for panoramic acquisition and can be removed when additional patient space is needed.

Wheeled Base & Optional Extension Bed

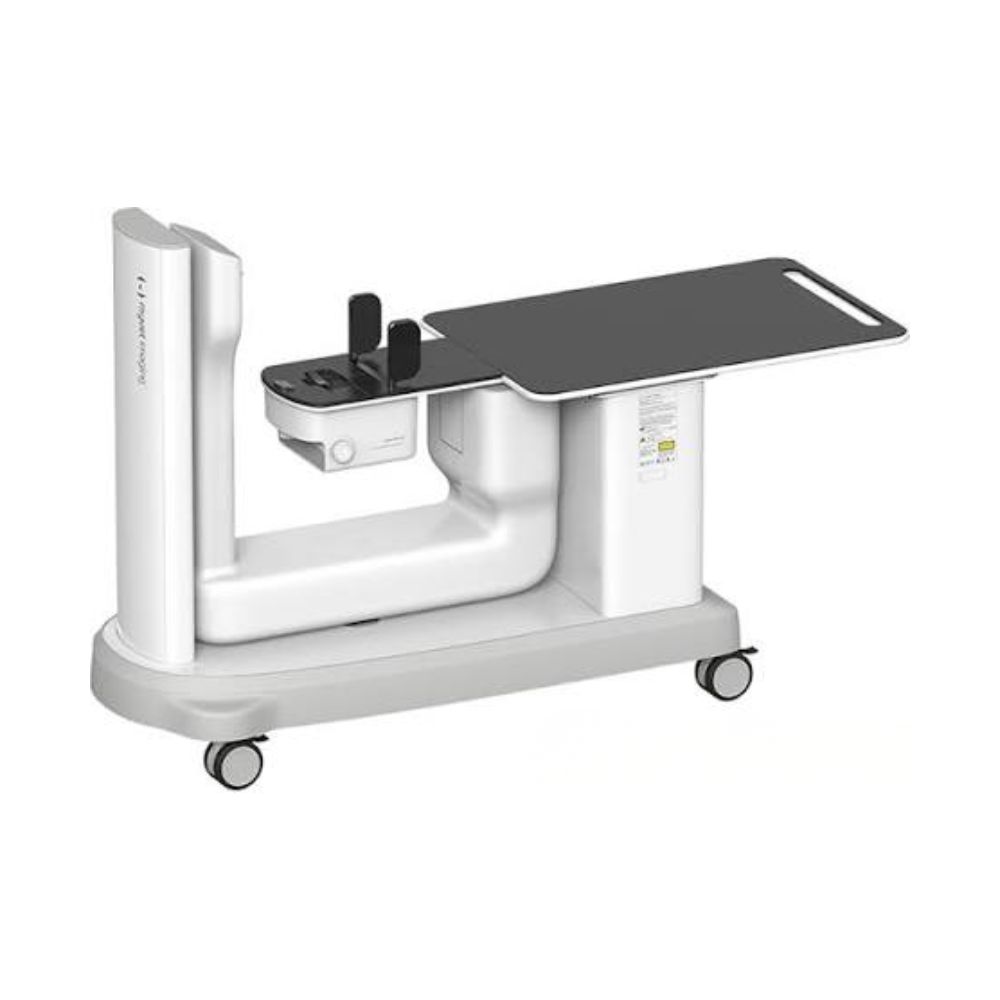

The Pan i2D is built on a wheeled base so it can be repositioned within the practice as room use and workflow requirements change.

At approximately 22.3 inches (566 mm) wide, the system maintains a relatively narrow footprint while integrating the patient table, imaging equipment, and workstation.

An optional extension bed adds 19.77 × 21.42 inches (502.2 × 544.1 mm) of patient support area for larger small-animal patients and incorporates rounded edges for patient comfort.

MyVet Pan i2D Software & EzSensor Vet Sensor Technology

Jaw-Size Presets & Panoramic Image Processing

The Pan i2D acquisition software includes preset options for different jaw sizes, helping veterinary teams adapt the imaging technique to the individual patient.

After acquisition, the software processes and refines the panoramic image to improve visualization of relevant dental anatomy.

EzSensor Vet CMOS Imaging

EzSensor Vet uses CMOS detector technology with a 29.6 µm pixel size for detailed intraoral imaging.

Three sensor sizes are available, providing options for different intraoral positioning needs and areas of interest.

USB 2.0 Connectivity & IP68 Sensor Protection

EzSensor Vet connects directly through USB 2.0 for integration with the imaging workstation.

The sensor uses a strong, lightweight aluminum-alloy housing and reinforced flexible fiber-optic cable. Its IP68 rating provides protection against dust and water for the handling demands of veterinary dental imaging.

MyVet Pan i2D & EzSensor Vet Specifications

Pan i2D System

• • Weight: 308.6 lb (140 kg)
  • Dimensions, L × W × H: 64 × 22.3 × 66 in maximum (1627 × 566 × 1676 mm)
  • Minimum height shown: 61.9 in (1572 mm)
  • Rotator rotation radius: 16.97 in (431 mm)
  • Touchscreen monitor: 22 in
  • Full-mouth scanning time: 20 seconds
  • Patient support: Carbon fiber table
  • Positioning guidance: Laser
  • Headrest: Adjustable and removable
  • Base: Wheeled

Optional Extension Bed

• • Dimensions: 19.77 × 21.42 × 0.28 in (502.2 × 544.1 × 7 mm)
  • Rounded edges for patient comfort

EzSensor Vet

• • Sensor type: CMOS
  • Pixel size: 29.6 µm
  • Data output: Direct USB 2.0
  • Thickness: 0.19 in (4.8 mm)
  • Protection rating: IP68
  • Housing: Lightweight aluminum alloy
  • Cable: Reinforced flexible fiber-optic cable

EzSensor Vet Size 1.0

• • Active area: 0.79 × 1.18 in (20 × 30 mm)
  • Overall dimensions: 1 × 1.45 in (25.4 × 36.8 mm)
  • Thickness: 0.19 in (4.8 mm)

EzSensor Vet Size 1.5

• • Active area: 0.94 × 1.30 in (24 × 33 mm)
  • Overall dimensions: 1.14 × 1.55 in (29.2 × 39.5 mm)
  • Thickness: 0.19 in (4.8 mm)

EzSensor Vet Size 2.0

• • Active area: 1.02 × 1.42 in (26 × 36 mm)
  • Overall dimensions: 1.23 × 1.69 in (31.3 × 42.9 mm)
  • Thickness: 0.19 in (4.8 mm)
