IWV Digital X-Ray Image-Vet ISDC Veterinary Dental X-Ray

Key Features of the IWV Digital X-Ray Image-Vet ISDC Veterinary Dental X-Ray

Veterinary dental radiography plays a critical role in identifying pathology below the gum line and supporting treatment planning. The ImageVet ISDC is designed to help practices acquire consistent diagnostic images while maintaining a straightforward workflow for doctors and staff.

Key Benefits

• • High-frequency X-ray generation for stable image quality
  • 0.4 mm focal spot for detailed dental imaging
  • Wall-mounted and mobile configuration options
  • Intuitive operation with pre-programmed techniques
  • Compatibility with digital veterinary dental imaging workflows

Veterinary Dental Image Quality & X-Ray Performance

Image quality is essential when evaluating dental anatomy, periodontal disease, retained roots, fractures, and other oral conditions.

The IWV Digital X-Ray  ImageVet ISDC veterinary dental X-ray incorporates features designed to support image consistency and diagnostic confidence.

• 0.4 mm focal spot for sharp image detail
• Stable high-frequency output
• Power correction technology designed to reduce output fluctuations
• Tube potential range of 60-70 kVp
• Tube current range of 4-8 mA

The system is engineered to provide consistent exposures across a wide range of veterinary dental examinations.

Installation Options: Wall-Mounted & Mobile Systems

Practices can select the configuration that best matches their facility layout and workflow requirements.

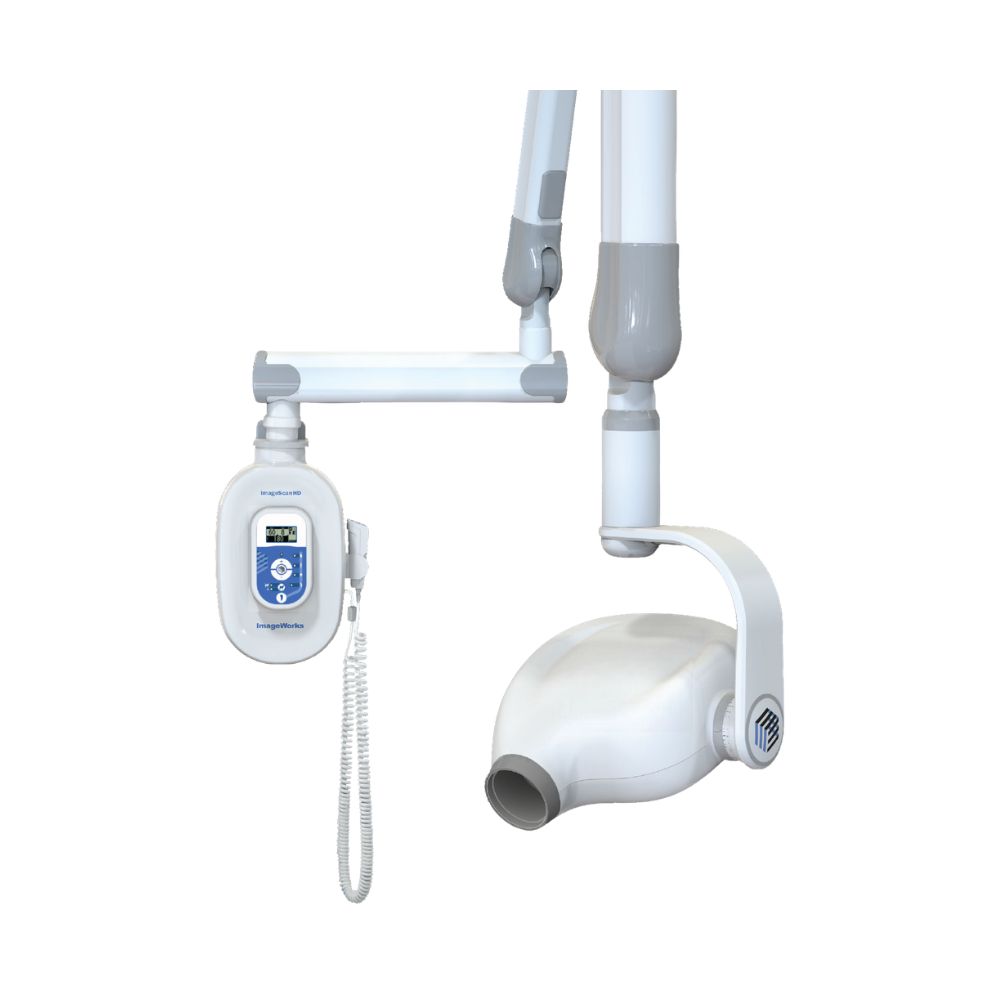

Wall-Mounted Veterinary Dental X-Ray Configuration

The wall-mounted ImageVet ISDC is available with multiple arm lengths to accommodate different operatory layouts and room sizes.

Available arm configurations include:

• • Short arm
  • Medium arm
  • Long arm

The wall-mounted design provides stable positioning while preserving valuable floor space.

Mobile Veterinary Dental X-Ray Configuration

The mobile version provides the flexibility to move the X-ray unit between operatories and treatment areas.

Benefits include:

• • Supports multiple operatories with a single unit
  • Compact footprint for space-conscious practices
  • No wall mounting requirements
  • Simplified installation compared to fixed installations

This configuration may be particularly useful for practices seeking additional deployment flexibility.

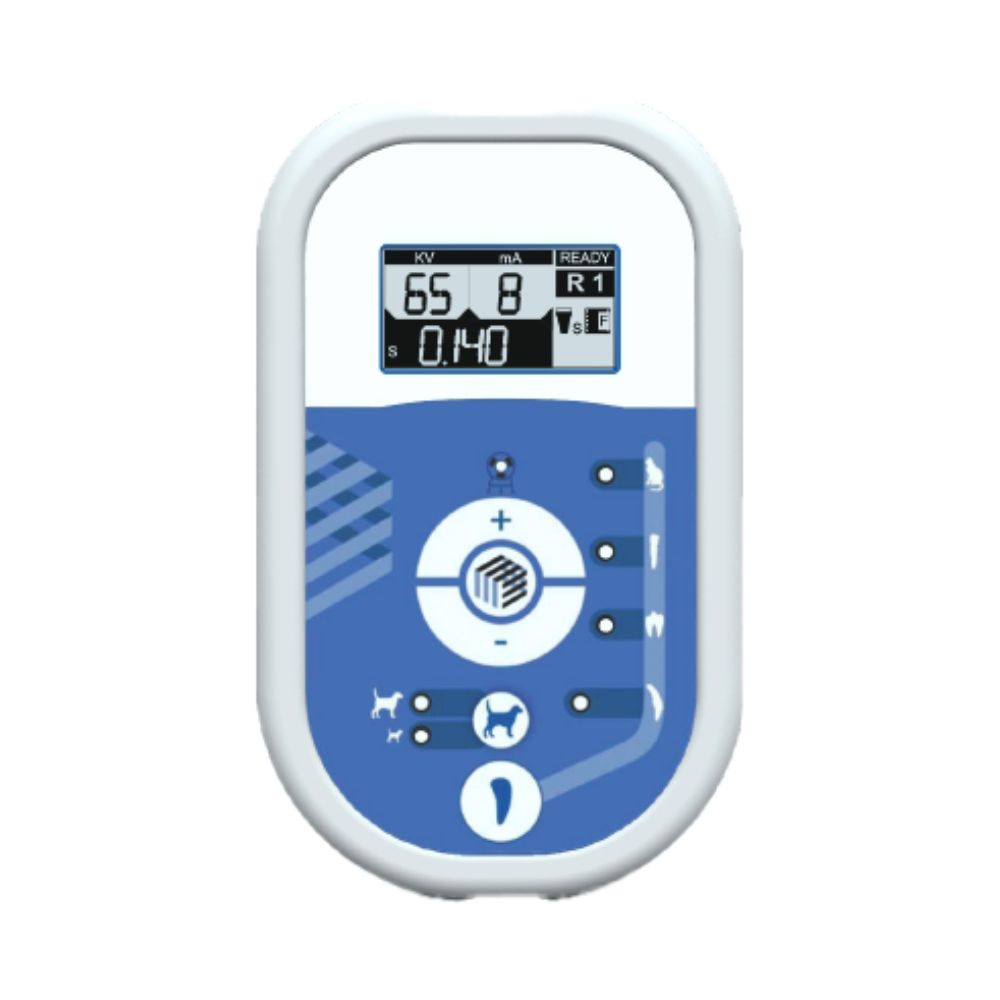

Workflow Features for Efficient Veterinary Dental Imaging

The ImageVet ISDC is designed to support efficient operation across veterinary dental teams.

• Intuitive user interface
• Pre-programmed technique settings
• Automated technique selection based on examination parameters
• Minimal training requirements for staff

These workflow-focused features can help practices maintain consistency across operators while supporting efficient patient throughput.

Positioning, Reach, & Arm Design Features

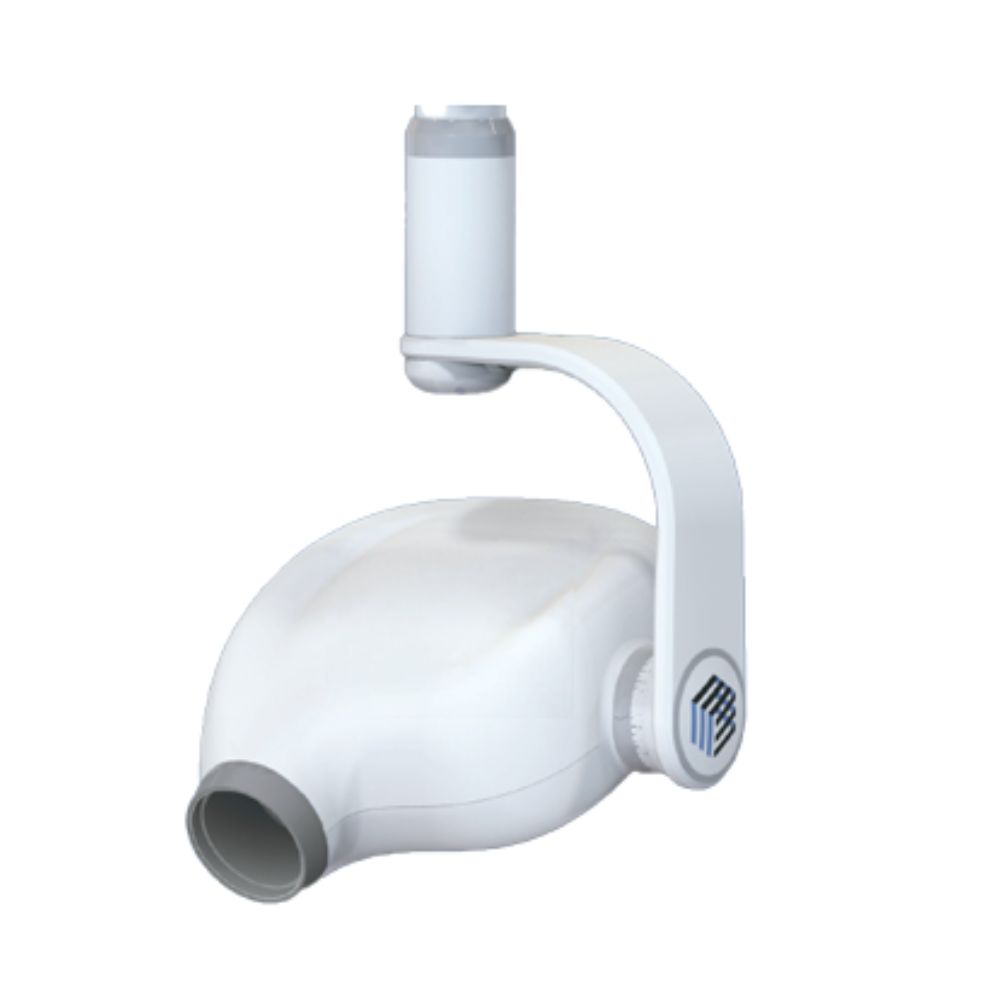

Stable Tube Head Positioning for Veterinary Dental Exams

The system incorporates a high-precision arm assembly engineered for smooth movement and stable positioning.

Key advantages include:

• • Smooth positioning adjustments
  • Motionless stability during exposure
  • Multiple reach options
  • Flexible positioning around patients

The arm design helps operators position the tube head efficiently while maintaining consistent alignment during dental imaging procedures.

Durability & Lifecycle Testing for Long-Term Use

The ImageVet ISDC has undergone extensive mechanical and electrical lifecycle testing.

• • Tested through more than 200,000 cycles
  • Designed for long-term clinical use
  • Durable construction for daily veterinary workflows

This focus on durability helps support reliable operation in busy veterinary environments.

Radiation Shielding & Exposure Management Features

The system incorporates shielding and high-frequency technology designed to support efficient radiation utilization during imaging procedures.

• • Patented shielding design
  • Reduced soft radiation compared with conventional AC systems
  • Stable output characteristics
  • High-frequency operation

These features are intended to support image quality while promoting efficient exposure management.

Clinical Applications

The IWV Digital X-Ray ImageVet ISDC is designed for veterinary dental imaging applications, including:

• Veterinary dental examinations
• Dental treatment planning
• Periodontal assessments
• Evaluation of retained roots
• Oral pathology investigations
• Companion animal dental imaging

The system is intended for intraoral veterinary dental radiography and should be used according to applicable clinical protocols.

IWV Digital X-Ray ImageVet ISDC Specifications

X-Ray Generator Technical Specifications

• • Tube Potential: 60-70 kVp
  • Tube Current: 4-8 mA
  • Exposure Time: 0.04-4 seconds
  • Focal Spot: 0.4 mm (IEC 60336)
  • Minimum Inherent Filtration: 2.5 mm Al Equivalent @ 70 kVp
  • Duty Factor: 1:15
  • Line Voltage: 110V ±10%, 60 Hz
  • Line Current: 8 A

Physical Dimensions and Shipping Weights

• • Wall-Mounted Shipping Weight: 100 lbs
  • Mobile Shipping Weight: 170 lbs

Available System Configurations

• • Wall-Mounted Long Arm
  • Wall-Mounted Medium Arm
  • Wall-Mounted Short Arm
  • Mobile Unit
