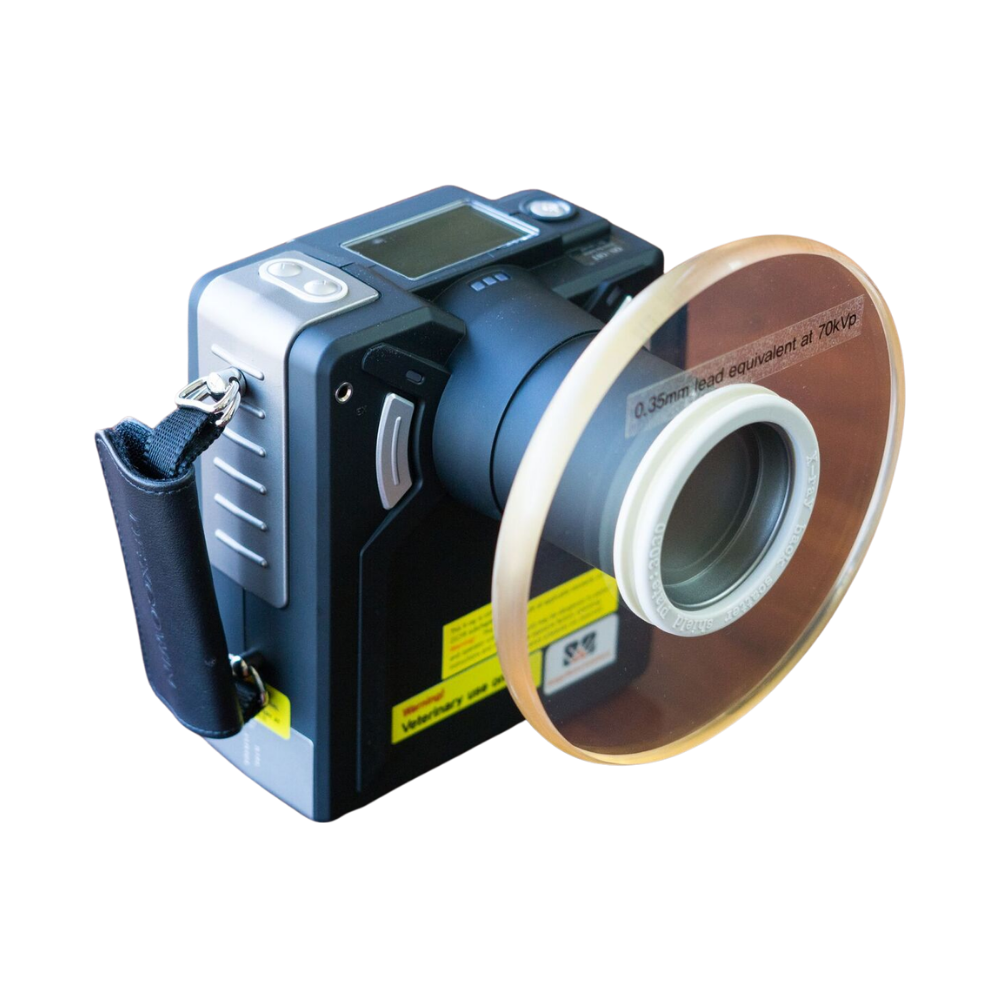

IWV Digital Image-Vet FleXX Portable Veterinary Dental X-Ray
- Category:
- X-Ray & U-Arm Systems
- Brand:
- IWV Digital X-Ray
The Image-Vet FleXX Veterinary Dental X-Ray is a handheld veterinary dental X-ray designed for veterinary practices that perform companion animal dentistry. Weighing only 4 pounds and requiring no installation, it delivers portable intraoral imaging with one-handed operation, FDA-approved handheld use, and fast image acquisition for efficient dental workflows.
Portable Veterinary Dental X-Ray for Flexible Clinical Use
The IWV Digital Image-Vet FleXX veterinary dental X-ray helps veterinary teams perform dental radiography wherever it is needed within the practice. Its lightweight handheld design eliminates the limitations of fixed dental X-ray units while supporting efficient imaging workflows for companion animal dentistry.
Key Benefits
-
- Fully portable handheld design
- Compact 4 lb system for easy transport
- No installation or assembly required
- One-handed operation
- FDA approved for handheld use
Handheld Design for Faster Dental Imaging
Veterinary dental procedures often require efficient imaging without interrupting patient care. The Image-Vet FleXX veterinary dental X-ray is designed to streamline image acquisition by combining handheld portability with simple operation and rapid positioning.
Workflow Advantages
-
- Faster image acquisition than conventional generators
- No arm drift or repositioning issues
- Easy movement between treatment areas
- Simple setup and transport
- Supports efficient digital dental imaging workflows
The handheld design allows clinicians to position the X-ray source quickly while maintaining focus on patient positioning, sensor placement, and image acquisition.
High-Frequency X-Ray Performance for Veterinary Dentistry
The Image-Vet FleXX combines portability with the imaging power needed for routine veterinary dental examinations. Its high-frequency generator and oil-cooled tube support consistent image quality across a wide range of patients.
60 kV High-Frequency Generator and Oil-Cooled Tube
The system is designed to deliver reliable performance for veterinary dental radiography while maintaining a compact and lightweight form factor.
Key Imaging Features
-
- High-frequency 60 kV / 2 mA output
- Oil-cooled Toshiba tube
- Double lead shielding to reduce leakage radiation
- Compatible with digital dental sensors and high-speed dental film
The combination of high-frequency output and handheld flexibility allows clinicians to capture diagnostic dental images efficiently across routine and advanced dental procedures.
Safe Handheld Veterinary Dental Imaging
Safety is a critical consideration for portable dental radiography. The Image-Vet FleXX veterinary dental X-ray incorporates multiple protective features that support routine handheld operation in veterinary environments.
The unit includes double lead shielding, a backscatter shield, and FDA approval for handheld use. A neck strap further improves handling and supports comfortable one-handed operation during image acquisition.
Included Accessories
The Image-Vet FleXX includes accessories designed to support daily clinical use:
-
- Neck strap
- Backscatter shield
- Two rechargeable battery packs
- Battery charging station
- Hard-shell transport case
These accessories help simplify transportation, storage, and workflow efficiency throughout the practice.

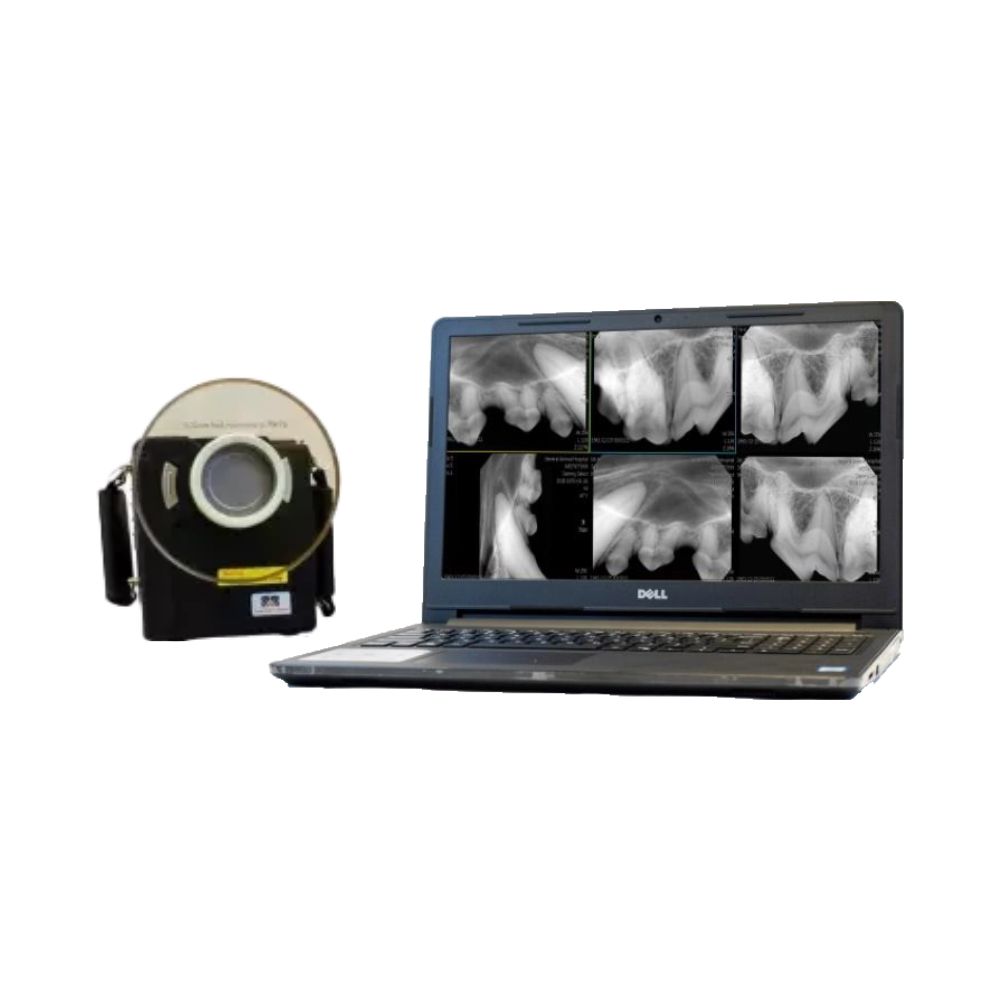

Digital Sensor & Imaging Software Compatibility
The Image-Vet FleXX integrates into modern veterinary dental imaging workflows and is compatible with digital dental sensors and high-speed dental film. Its portable design allows practices to add dental radiography capabilities without installing dedicated dental X-ray equipment.
The system can be incorporated into existing digital dental imaging environments, helping veterinary teams expand diagnostic capabilities while maintaining workflow flexibility.
Clinical Applications
The Image-Vet FleXX X-ray is designed specifically for veterinary dental imaging applications, including:
- Companion animal dental examinations
- Periodontal disease assessment
- Dental extractions
- Endodontic evaluation
- Oral surgery planning
- Common Veterinary Dental Procedures
Veterinary teams routinely use dental radiography to support diagnosis, treatment planning, and post-procedure evaluation.
Common Applications
- Tooth root evaluation
- Retained tooth assessment
- Dental treatment follow-up imaging
- Comprehensive oral health evaluations
Typical users include small animal veterinary practices, veterinary dental specialists, multi-doctor veterinary hospitals, and specialty referral centers.
IWV Digital Image-Vet FleXX Specifications
X-Ray Generator
-
- Generator Type: High Frequency
- Output: 60 kV / 2 mA
- Tube Type: Oil-Cooled Toshiba Tube
- Operation: Handheld
Physical Characteristics
-
- Weight: 4 lbs
- Design: Portable Intraoral Dental X-Ray
- Installation Requirements: None
Battery System
-
- Battery Type: Lithium-Ion
- Battery Capacity: Up to 500 exposures per charge
- Included Batteries: Two rechargeable battery packs
Safety Features
-
- FDA approved for handheld use
- Double lead shielding
- Backscatter shield
- Generates less harmful radiation than conventional systems
Included Accessories
-
- Neck strap
- Backscatter shield
- Two rechargeable batteries
- Charging station
- Hard-shell transport case
