Radmedix Podiatry X-Ray
- Category:
- Radiology Imaging
- Brand:
- Radmedix
Radmedix understands your need for detailed and advanced x-ray viewing. Our podiatry specific line of solutions include pre-operative planning capabilities and Podiatry specific toolsets, such as image stitching for long length studies. If you are searching for affordable, reliable, high quality, wireless, flat panel detectors and podiatry specific digital imaging solutions contact us today for information on our turn-key podiatry digital radiography solutions.
Podiatry DR Solutions
Whether you are a start-up or an existing clinic looking for affordable equipment, contact us today for a free consultation from our team.
- High definition imaging with 100um pixel pitch
- Ultimate portability
- Water resistant function for increased reliability [IPX5]
- Various applications available
- A slim and lightweight 5 lbs.
Podiatry Wireless DR Panels

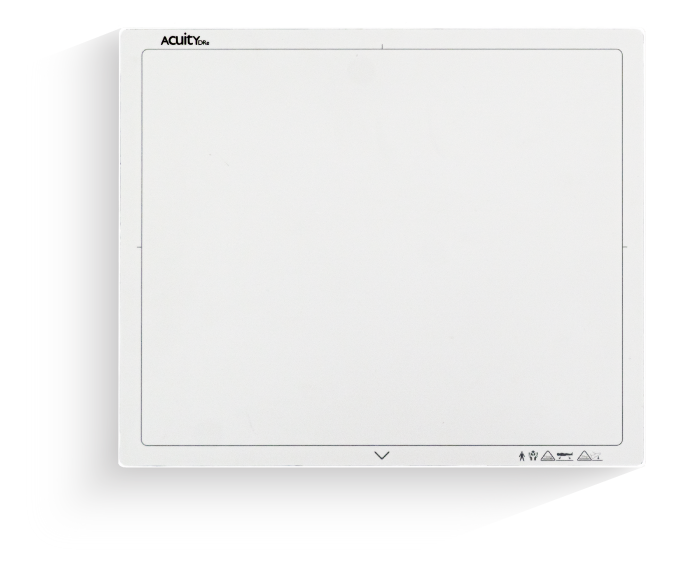

Acuity DRe 14×17
The Acuity DRe 1417 is our next generation, high-performance 14×17 wireless DR panel designed for extremity orthopedics, podiatry, and equine. In podiatry medicine, its larger size allows the accommodation of larger feet and the ability to capture both larger feet in a single image. With its increased field of view, the 14×17 size also minimizes the need for multiple exposures, improving efficiency and comfort for patients.
- 14×17″ Wireless
- Direct Deposited CSI
- Resolution – 4.3 1p/mm
- Pixel Pitch – 100um
- Weight – 7 lbs
- 16 bit
- Trigger Mode: Automatic Exposure Detection (AED)
- No data loss regardless of exposure time
- IPX5 rated for resistance against liquid intrusion.
- Pair with the X-Cel system for the ultimate podiatry solution

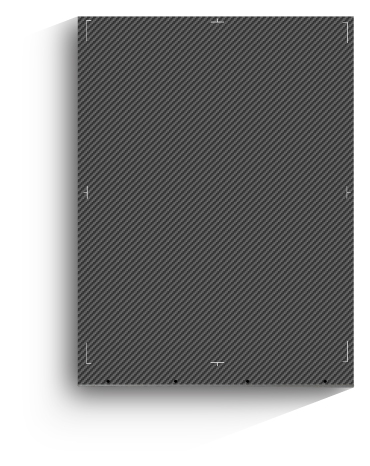

G4 Acuity DR 10×13
The G4 Acuity DR 1013 is our next generation, high-performance 10×13 wireless DR panel designed for extremity orthopedics, podiatry, and equine. It also has IPX5 protection for resistance against liquid intrusion.
- 10×13″ Wireless
- Direct Deposited CSI
- Resolution – 4.3 1p/mm
- Pixel Pitch – 100um
- Weight – 5 lbs
- 16 bit
- Trigger Mode: Automatic Exposure Detection (AED)
- No data loss regardless of exposure time

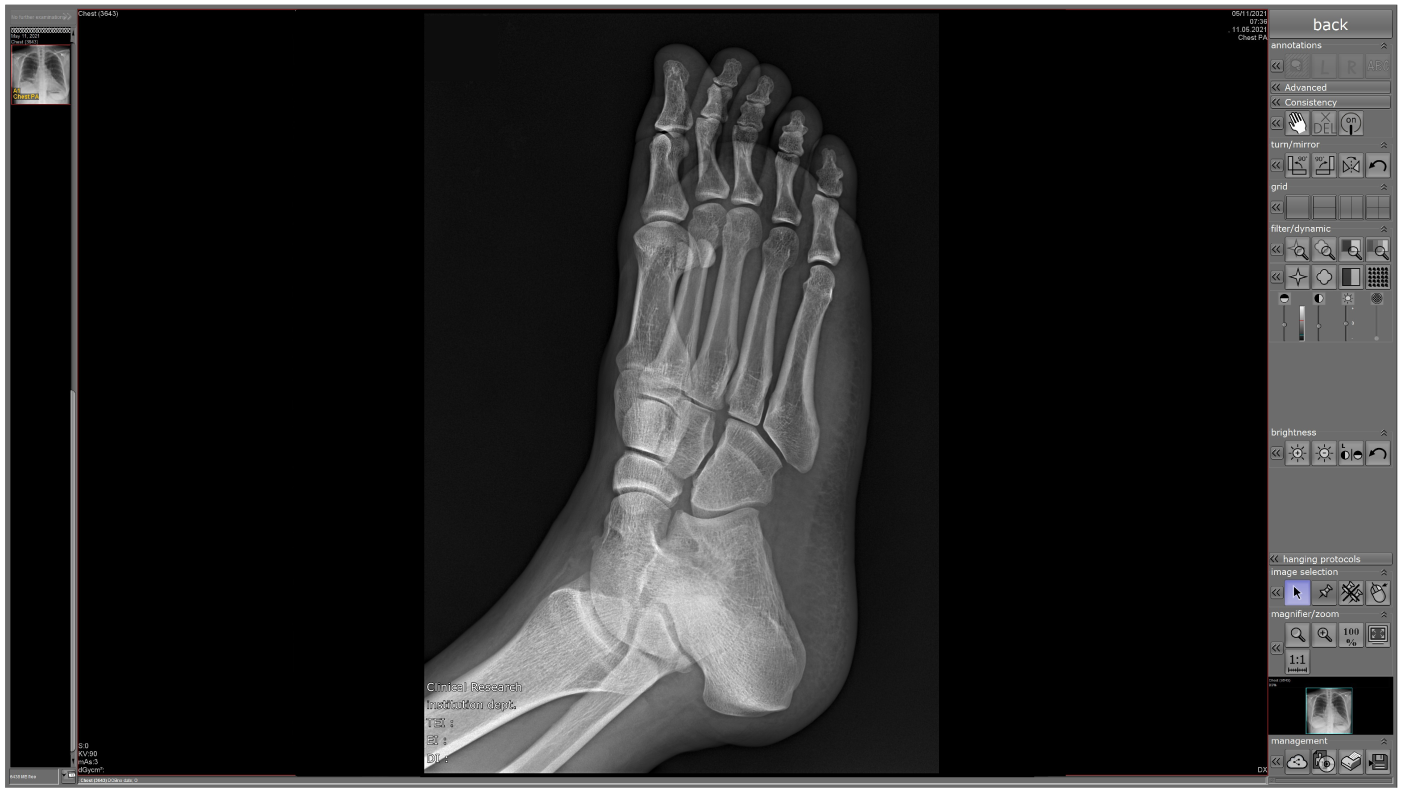

Radmedix’s powerful AccuVue software offers a clean, customizable user interface for fluid workflow even when complex exams are demanded. It’s 10 point touch optimization offers the look and feel of a modern software GUI users expect from a seasoned imaging system. AccuVue is designed for premium podiatry imaging in mind.
- 10 point touchscreen optimization
- Customizable tool bar menu’s – display only what you use
- Email exams from directly within the software
- Complete generator integration with Radmedix X-Ray Systems
- Create unlimited common customized exams
- Create and generate reports
- HIPPA Compliant
- Secure, tier 3 data center
- Supports all vendor neutral DICOM modalities (CT, MRI, DR/CR, Dental, and Ultrasound)

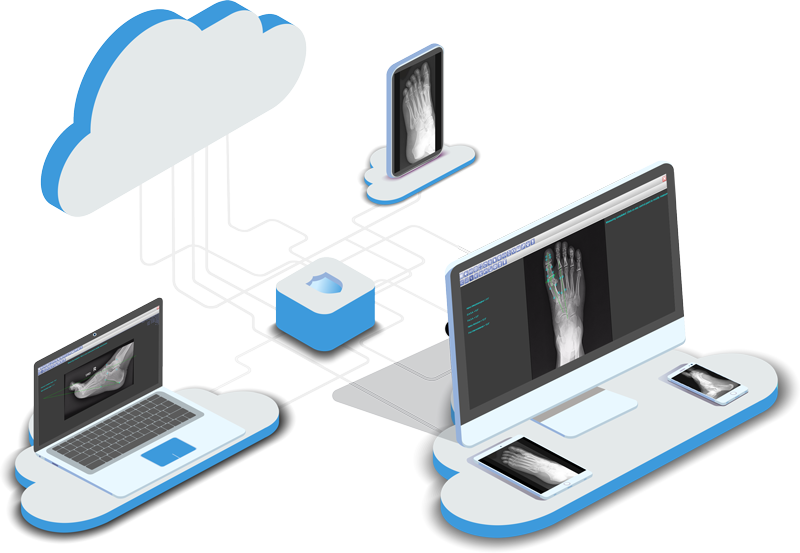

- True web based platform – no apps to buy or download
- Unlimited viewers from anywhere, anytime, any device
- Unlimited storage, no “per study” fee’s
Advanced Podiatry Tools included:
- Metatarsus Adductus
- Total Adductory Angle
- Metatarsal Parabola
- Metatarsal Protrusion
- Talo-Calcaneal
- Hallux Interphalangeus
- Hallus Abductus
- First Intermetatarsal
- P.A.S.A.
- D.A.S.A.

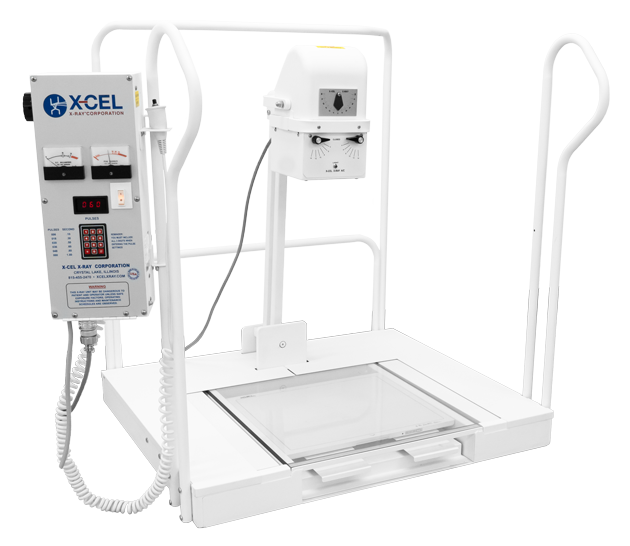

X-Cel Podiatry X-Ray Machine
The Radmedix Acuity DR 14×17 or 10×13 wireless can be used with a new x-cel x-ray system or your existing x-ray system. The X-Cel podiatry x-ray machine allows for limitless podiatric exams without limiting clinical workflow or space. The X-Cel 715-BD Series offers patented tilt-head functionality and 3.5″ base that comply with ADA guidelines tax credit (consult your accountant).
- Eliminate the need to rotate the patient for the DP view
- Eliminate the need to rotate the arm for the AP view
- Eliminate the need to readjust the collimator lateral views
- Enable wheelchair patients to be easily accommodated without having to leave the wheelchair
- 29″ SID
- Integrated Safety Features
- Tilt-Head eliminates the need for patient rotation
- Patient support rail allows access from side or front
