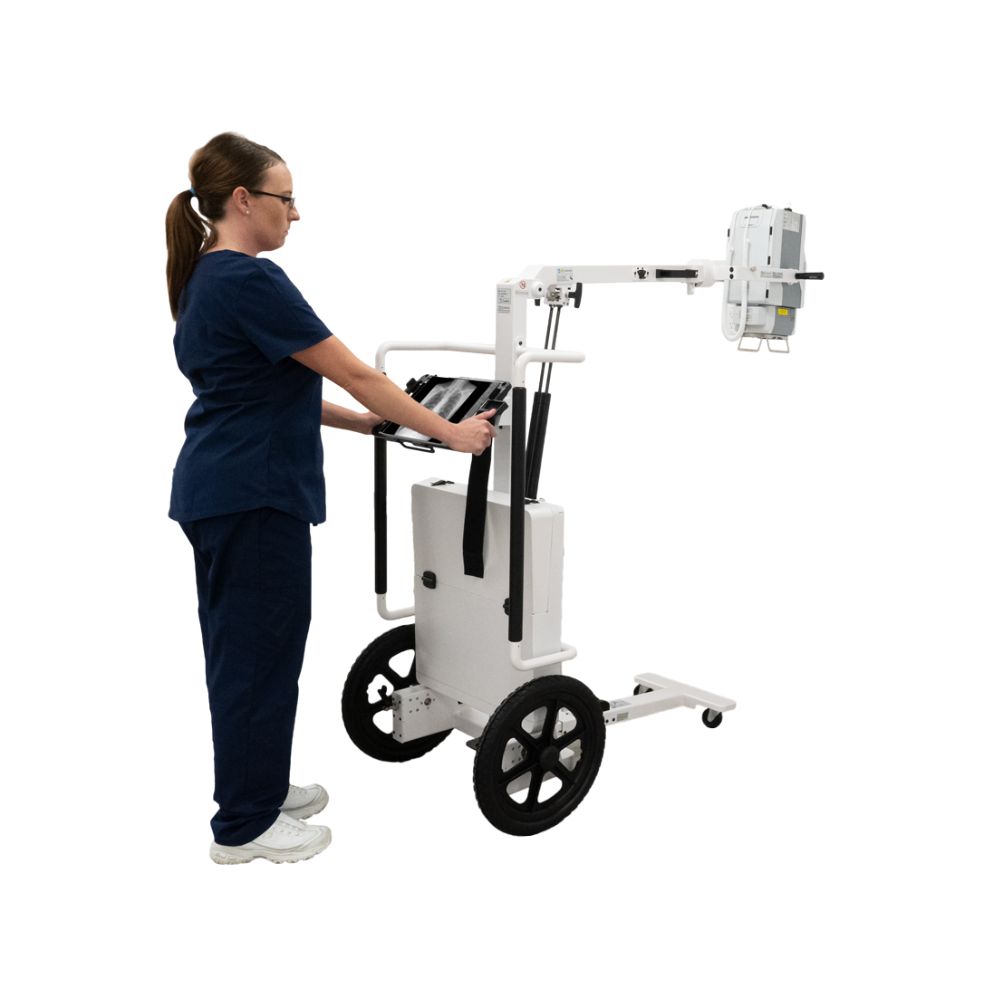

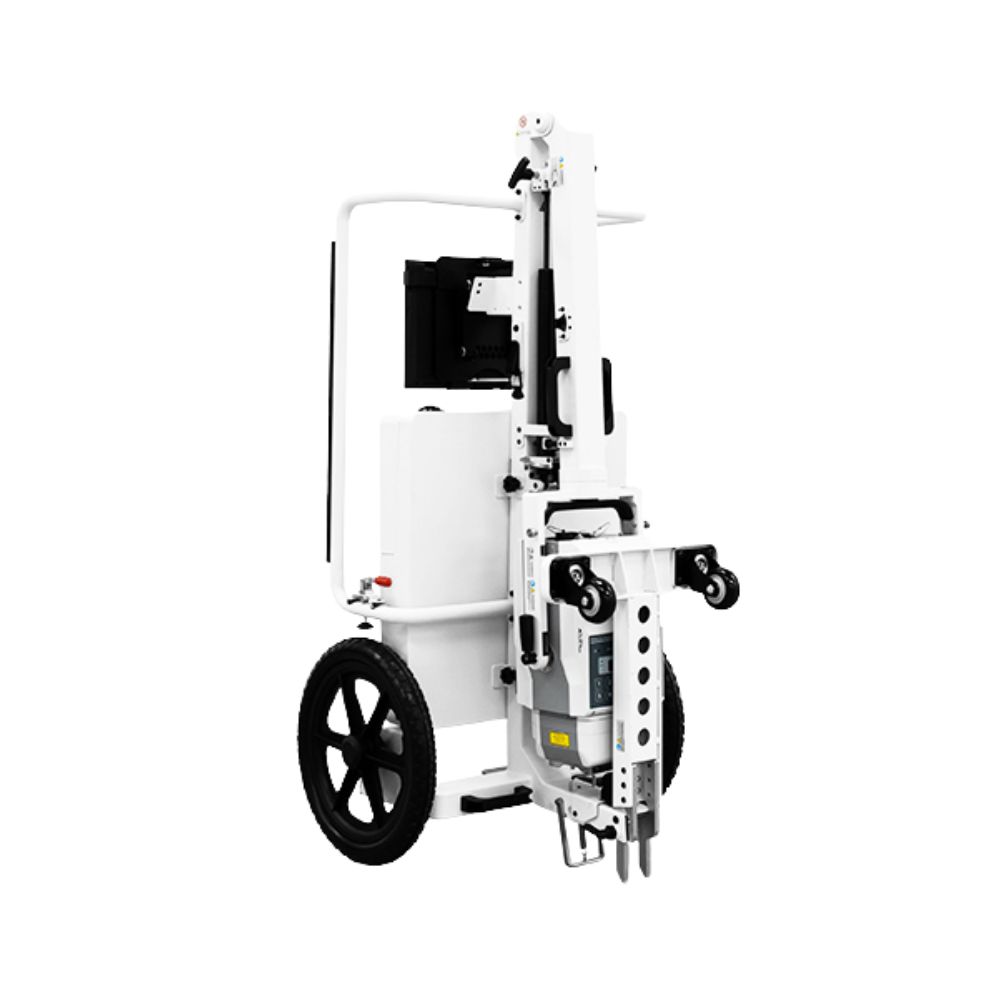

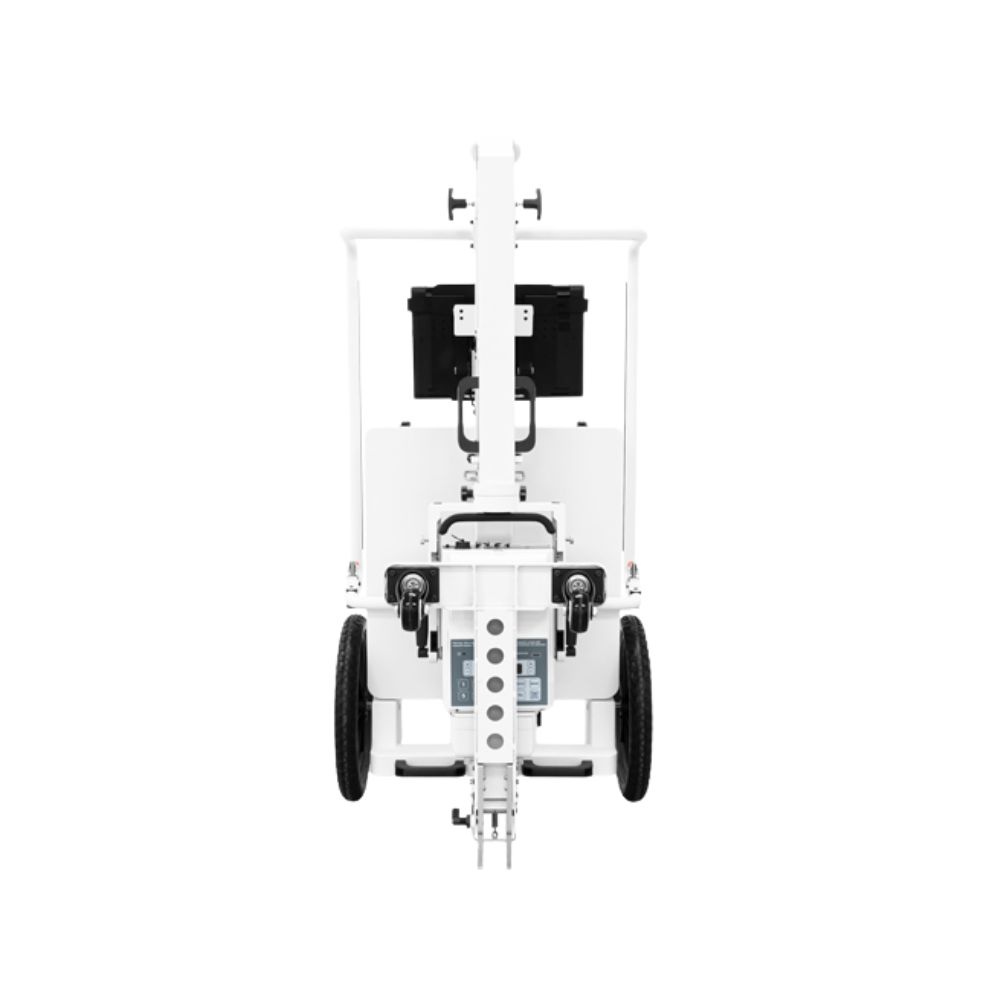

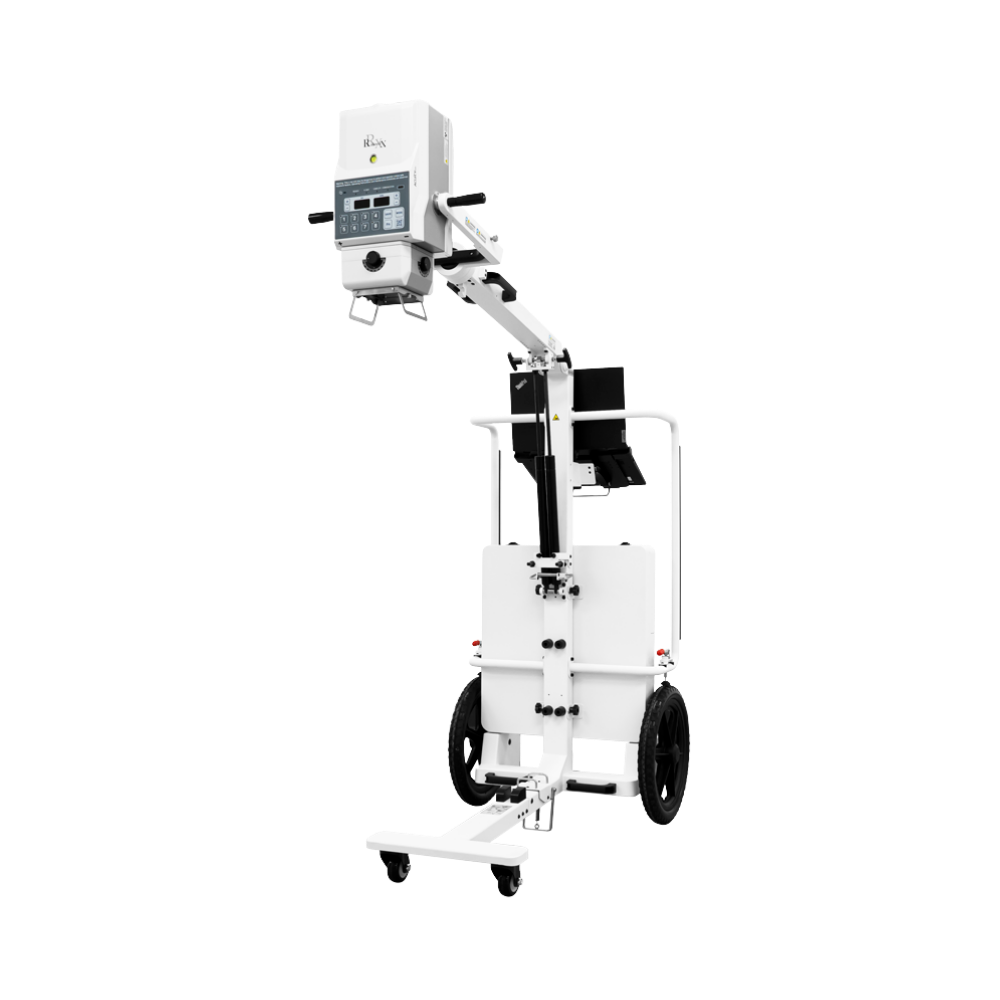

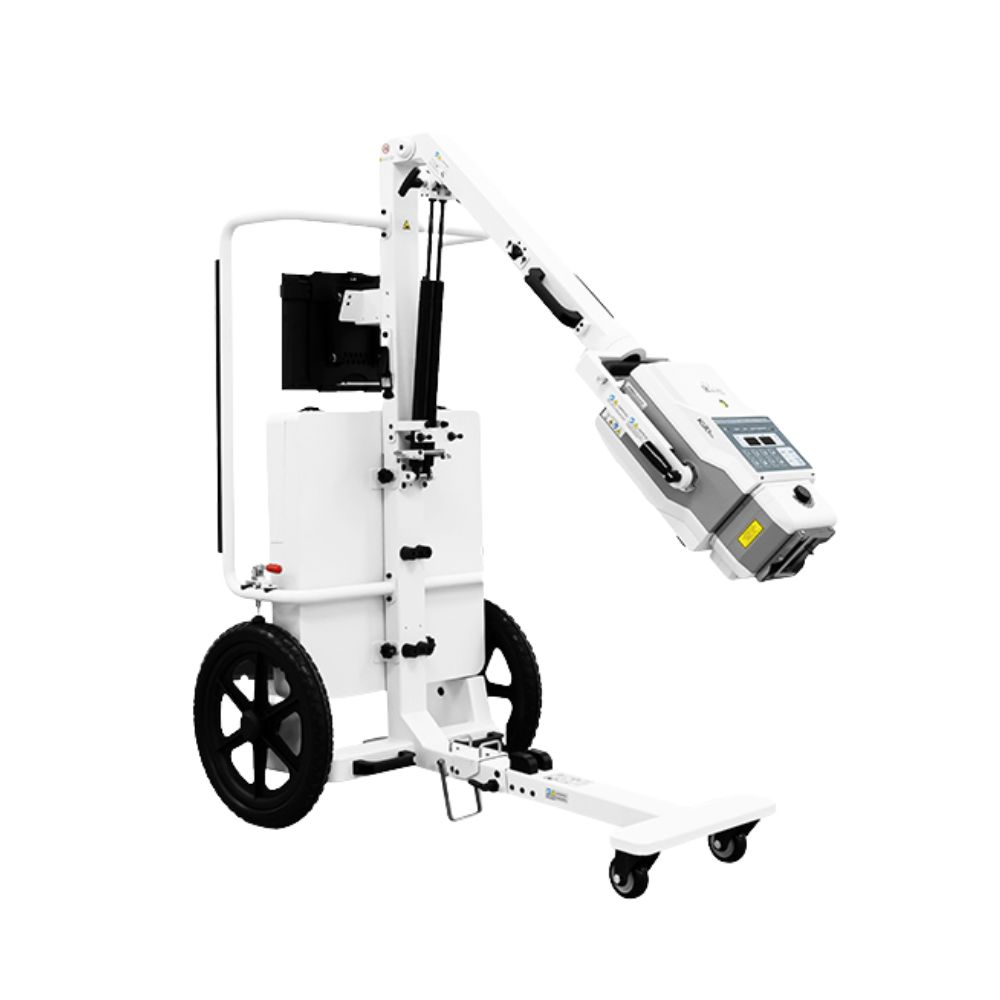

Radmedix Acuity PDR Portable X-ray

Cordless Design & True Portability

Lithium Battery Power for Mobile Imaging

Forget the hassle of searching for standard wall outlets or worrying about adequate electrical amperage during mobile exams. The Acuity PDR operates on a high-capacity lithium battery that supports more than 300 exposures on a single full charge. If you run low, a 10-minute rapid charge quickly prepares the system for up to 50 additional exposures, keeping your workflow moving without interruption.

Quick-Detach Head for Challenging Angles

The PDR system features a rapid-release function that allows users to instantly detach the X-ray head from the stand. This enables seamless handheld operation, making it easy to capture clear images in confined, hard-to-reach clinical spaces or during unique patient positioning.

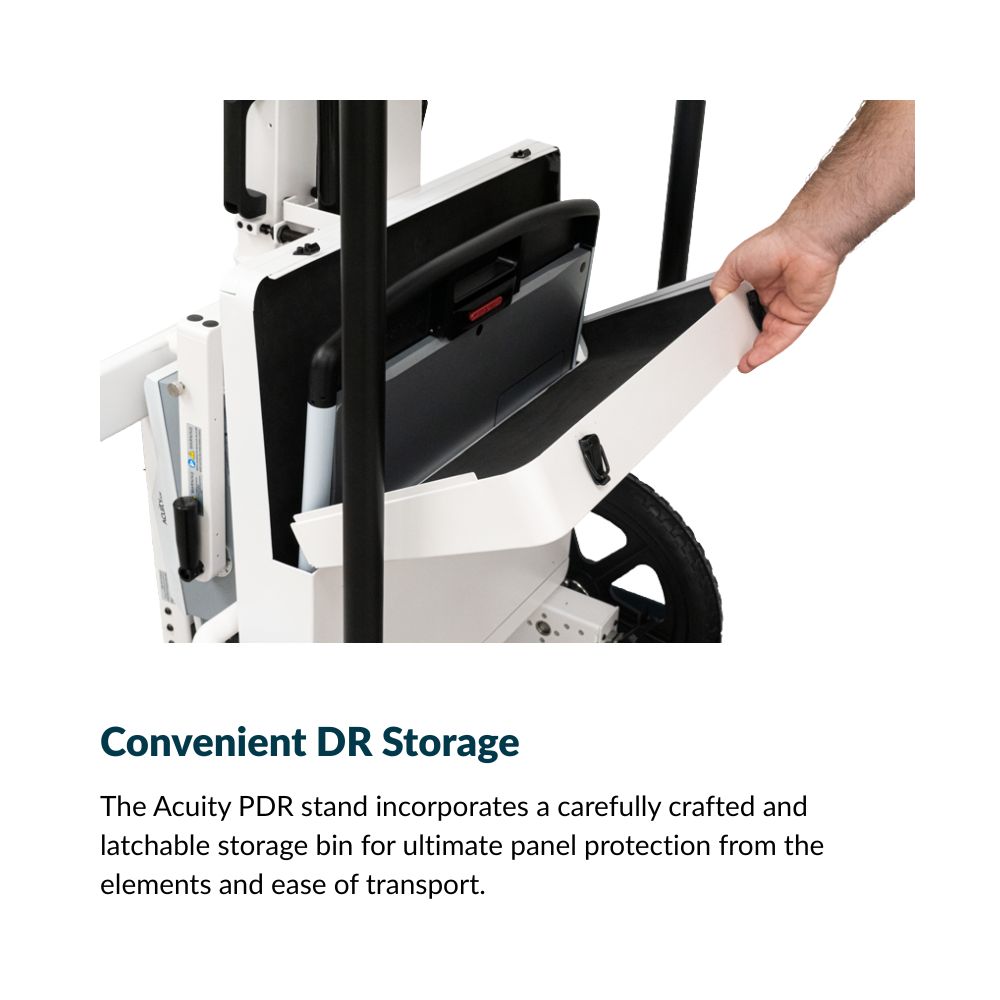

Smart Integrated DR Panel Storage

Protect your investment on the move. The Acuity PDR stand is built with a carefully molded, latching storage compartment designed to protect your digital radiography panel from environmental wear and impacts. The compact 2-foot footprint ensures the entire system fits easily into standard transport vehicles.

Advanced Features for Accurate Diagnostics

Integrated Laser Indicators & Rotating Collimator

Equipped with a bright LED, a 90-degree rotating collimator, and an integrated SID laser distance indicator. The SID laser provides immediate feedback: when the two laser dots converge, you are at the correct 40-inch imaging distance, supporting patient safety and visual accuracy.

Built-In Safety & Simplified Maintenance

The system features built-in tube protection and an automated diagnostic program. It reports system status via 14 distinct error fault codes on a soft-touch membrane control interface, allowing for fast, smart troubleshooting and minimal down-time. Pre-program up to 16 customized techniques for fast, single-touch diagnostic setup.

The Ultimate Mobile Pair & Glass-Free Durability

G4 Acuity DR Panel Integration

For a completely mobile, digital experience, pair the Acuity PDR with the G4 Acuity DR 14×17 digital detector. Running on AccuVue software, this system offers incredibly fast acquisition times to display your high-resolution diagnostic images almost instantly.

• • Impact-Resistant Design: Built with a flexible, glass-free substrate to absorb heavy impacts and drop damage.
  • Superior Clarity: Features a 100-micrometer pixel pitch for outstanding image depth and fine-detail resolution.
  • All-Day Performance: Offers an extended battery life of up to 9.5 hours of continuous clinical use.
  • Environmental Protection: Certified with an IP56 rating for extreme resistance against dust, moisture, and biological fluids.

Technical Specifications & Model Comparison

Choose between the agile 2kW Acuity PDR or the higher-output 5kW Acuity PDR+ to align with your specific clinical volume and diagnostic imaging needs.

Agile 2kW Model Technical Specifications

• • Max Power Output: 2kW
  • Battery Charger Input: 100-240VAC, 50/60Hz, 1.2A (max)
  • Battery Input Voltage: 29.6VDC
  • Rating: 40-100KV auto-switching, 20/25mA (50mAs max)
  • Focal Spot Size: 1.2mm
  • Collimator: LED laser, glass-etched crosshair, 90-degree rotating with manual shutters
  • Memory Keys: 16 pre-programmed techniques
  • Min X-ray Field: 5cm x 5cm @ 100cm SID
  • Max X-ray Field: 35cm x 35cm @ 65cm SID
  • Cart Weight: 115 lbs
  • Head Weight: 26 lbs

High Output 5kW Model Technical Specifications

• • Max Power Output: 5kW
  • Battery Charger Input: 100-240VAC, 50/60Hz, 1.6A (max)
  • Battery Input Voltage: 44.4VDC
  • Rating: 40-125KV auto-switching, 20-100mA (200mAs max)
  • Focal Spot Size: 1.2mm
  • Collimator: LED laser, glass-etched crosshair, 90-degree rotating with manual shutters
  • Memory Keys: 16 pre-programmed techniques
  • Min X-ray Field: 5cm x 5cm @ 100cm SID
  • Max X-ray Field: 35cm x 35cm @ 65cm SID
  • Cart Weight: 115 lbs
  • Head Weight: 29 lbs
