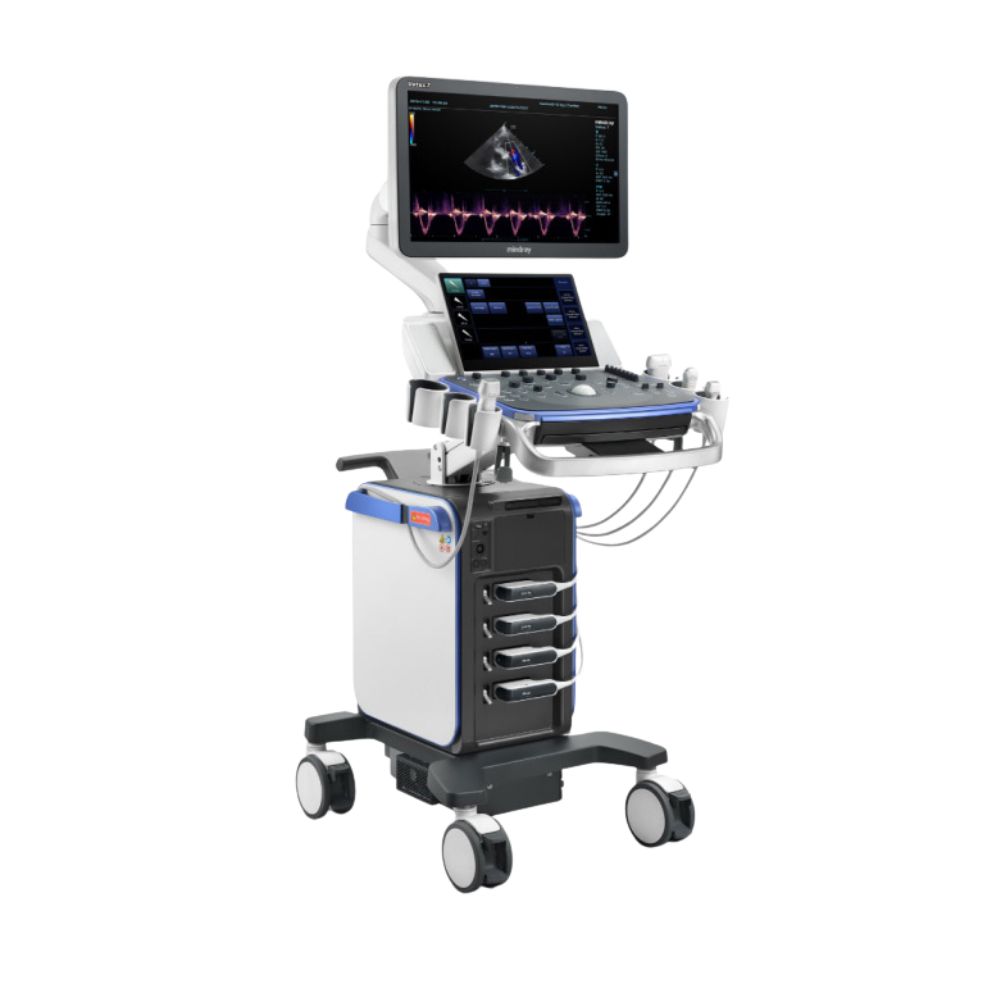

Mindray Animal Vetus 7 Veterinary Ultrasound

Mindray Animal Medical Vetus 7 Ultrasound for Small & Large Animal Practice

The Mindray Animal Medical Vetus 7 is designed around veterinary scanning rather than adapting a general ultrasound workflow to animal patients. Species- and size-specific presets, rapid probe and exam-mode switching, four active transducer sockets, dual displays, and dedicated small- and large-animal probes allow one cart-based system to support applications ranging from feline abdominal imaging to equine reproduction and advanced veterinary cardiology.

Key Benefits

• • Species- & Size-Specific Presets: Professional veterinary presets support canine, feline, equine, bovine, ovine, and customizable species, with further subdivision by weight and body size.
  • Large Dual-Display Interface: A 21.5-inch high-definition monitor provides the primary imaging display, while a 13.3-inch anti-glare touch screen supports exam selection and multi-touch operation.
  • Four Active Transducer Sockets: Keep multiple probes connected for faster transitions between abdominal, cardiac, superficial, and reproductive exams.
  • Fast Exam Setup: Transducers and corresponding exam modes appear in the same interface, with frequently used modes available for quick access.
  • Advanced Veterinary Cardiology: Dedicated phased-array probes and tools including TDI, TDI QA, Auto EF, Free Xros M, Stress Echo, and TTQA support more advanced cardiac assessment.
  • Veterinary-Focused Cart Design: Integrated cable management, a sliding keyboard with silicone cover, adjustable controls, and 360° wheels support daily clinical use.

The result is a full-size veterinary ultrasound platform that can support both companion-animal and large-animal imaging without limiting the practice to a single species group or exam type.



Mindray Vetus Series for Multi-Species Imaging

This Mindray Animal Medical video introduces the Vetus Series and its veterinary ultrasound capabilities across a wide range of species, from small companion animals to large farm animals. The video features the Vetus 8 while providing broader context for the Vetus Series workflows and imaging capabilities that also apply to the Vetus 7.



How Does the Mindray Animal Vetus 7 Simplify Daily Veterinary Ultrasound?

The Mindray Animal Vetus 7 reduces the number of steps required to move from patient setup to scanning. Veterinary presets, quick exam-mode access, automated optimization, and protocol-based tools help make routine ultrasound exams more consistent and efficient.

Veterinary Presets by Species, Weight & Body Size

The Mindray Animal Vetus 7 includes professional veterinary image presets for canine, feline, equine, bovine, ovine, and customizable species. Animal categories can be further divided by weight and body size, such as small, medium, and large dogs, so image settings can be matched more closely to the patient being scanned.

Transducers and corresponding exam modes appear in the same interface, allowing users to switch between probes and exam types quickly. Frequently used modes can also be accessed directly from the touch screen.

iTouch One-Touch Image Optimization

iTouch provides one-touch image optimization to reduce manual tuning during an exam. It automatically optimizes image quality in supported modes, helping clinicians spend less time adjusting settings and more time evaluating the study.

Auto Volume Control for Animal Comfort

The Mindray Animal Vetus 7 includes volume control designed specifically around animal exams. Doppler signal audio can be managed to reduce the chance of startling animals during scanning, helping minimize unnecessary movement during cardiac and vascular studies.

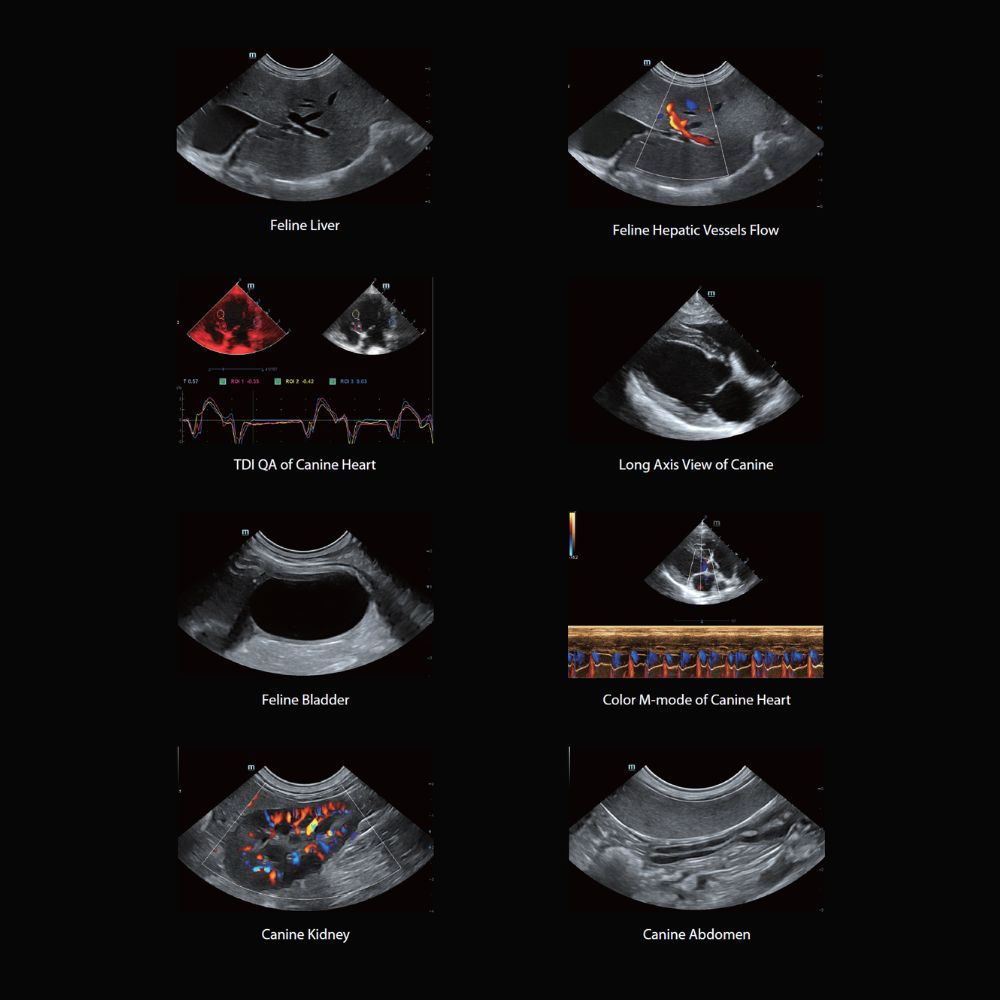

Mindray Animal Medical Vetus 7 Small Animal Imaging Applications

The Mindray Animal Medical Vetus 7 supports feline, canine, and small exotic animal imaging across abdominal, reproductive, cardiac, superficial, and musculoskeletal applications. Dedicated small-animal probes extend the system from routine abdominal exams to advanced cardiac and guided-procedure workflows.

Abdomen & Reproduction

The C11-3s micro-convex transducer is designed for small-animal abdominal scanning and can also support basic cardiac ultrasound in cats, small dogs, and exotic animals.

Relevant applications include:

• • liver, spleen, kidneys, bladder, and gastrointestinal imaging
  • abdominal blood-flow evaluation
  • reproductive tract imaging
  • pregnancy and reproductive assessment
  • basic cardiac imaging with the appropriate probe

Superficial & Musculoskeletal Imaging

High-frequency linear transducers support superficial structures and musculoskeletal evaluation.

Available tools include:

• • iNeedle: Needle enhancement and guidance for ultrasound-guided procedures.
  • iScape View: Real-time panoramic imaging that extends the visible field of view.
  • HR Flow: High-resolution flow imaging for displaying finer vascular detail.
    Elastography: Tissue stiffness imaging for additional tissue and lesion evaluation.

Cardiology

Dedicated phased-array transducers support veterinary cardiac imaging across different patient sizes. The P8-2s is intended for mid- and small-sized species, while the P10-4s supports smaller species.

Cardiac capabilities include:

• • Free Xros M anatomical M-mode with up to three sample lines
  • Tissue Doppler Imaging with TVI, TVD, TVM, and TEI modes
  • TDI QA for quantitative myocardial motion analysis
  • Auto EF for automatic ejection fraction calculation
  • Stress Echo for evaluating segmental myocardial movement under increased workload
  • TTQA tissue tracking for quantitative assessment of myocardial movement



Mindray Animal Vetus 7 Imaging for Equine & Large Animal Practice

The Mindray Animal Medical Vetus 7 supports dedicated large-animal workflows with intrarectal, convex, and low-frequency phased-array transducers for equine and farm-animal reproduction, abdominal imaging, and cardiology. This gives mixed-animal practices purpose-built probe options for larger patients rather than relying only on companion-animal transducers.

Equine & Farm-Animal Reproduction

The 6LE5Vs intrarectal linear array transducer is designed specifically for equine and farm-animal reproductive exams.

Its design includes:

• • 3-meter cable for large-animal scanning
  • anti-liquid and anti-dirty construction
  • easy-clean design
  • wide field of view
  • high-resolution imaging for reproductive evaluation

Large-Animal Abdominal Imaging

The C6-2s convex array transducer supports abdominal and reproductive scanning in large animals.

iNeedle can support biopsy guidance, while iScape View provides real-time panoramic imaging when a wider anatomical field is useful.

Large-Animal Cardiology

The P4-2s low-frequency phased-array transducer is designed for medium- and large-sized species.

Cardiac tools include:

• • Free Xros M anatomical M-mode
  • Free Xros CM curved anatomical M-mode
  • Tissue Doppler Imaging for myocardial wall-motion assessment



Mindray Animal Vetus 7 Automation for Faster, More Consistent Exams

The Mindray Animal Medical Vetus 7 combines automatic measurements with protocol-based workflow guidance to reduce repetitive steps during abdominal, Doppler, and cardiac exams.

Auto PW, Auto CW & Auto EF Measurements

Automatic measurement tools help streamline common Doppler and cardiac calculations.

The Mindray Animal Medical Vetus 7 includes:

• • Auto PW: Automated Pulsed Wave Doppler measurement support
  • Auto CW: Automated Continuous Wave Doppler measurement support
  • Auto EF: Automatic ejection fraction calculation for cardiac assessment

These tools reduce repetitive tracing and calculation steps during Doppler and cardiac exams, helping make measurements faster and more repeatable.

iWorks Abdomen & Cardiology Protocols

iWorks provides automated workflow guidance for abdominal and cardiology ultrasound scanning.

Protocols can incorporate:

• • annotations
  • body marks
  • measurements
  • standardized workflow steps

By guiding the operator through predefined exam steps and automatically adding selected annotations, body marks, and measurements, iWorks helps reduce missed steps and variation between operators.

iStation Veterinary Study Management

iStation supports veterinary study management directly within the ultrasound workflow. It allows teams to integrate, review, archive, and retrieve animal exam data so previous studies remain accessible for follow-up, comparison, and ongoing patient management.

For practices performing repeat imaging, this keeps current and historical ultrasound information connected to the diagnostic workflow rather than treating each exam as an isolated study.



Mindray Animal Vetus 7 Imaging Tools for Tissue, Flow & Cardiac Assessment

The Mindray Animal Medical Vetus 7 combines image optimization, flow visualization, cardiac analysis, and procedure guidance tools to support more than routine B-mode scanning.

iClear & HR Flow for Tissue and Vascular Detail

• • iClear supports improved contrast resolution and clearer tissue border definition.
  • HR Flow provides high-resolution flow imaging for displaying finer vascular detail in animal tissue.
  • iTouch provides one-touch image optimization to reduce manual image adjustment during scanning.

Cardiac Analysis with TDI, TDI QA & Auto EF

The Mindray Animal Medical Vetus 7 includes dedicated tools for veterinary echocardiography and myocardial assessment.

Available capabilities include:

• • Free Xros M anatomical M-mode
  • Tissue Doppler Imaging with TVI, TVD, TVM, and TEI
  • TDI QA for quantitative myocardial motion analysis
  • Auto EF for automatic ejection fraction calculation
  • Stress Echo
  • TTQA tissue tracking

These tools extend the system beyond basic cardiac imaging by supporting quantitative evaluation of myocardial function and movement.

iNeedle, iScape View & Elastography

• • iNeedle enhances needle visualization during biopsy and other ultrasound-guided procedures.
  • iScape View creates real-time panoramic images to extend the visible anatomical field beyond a standard ultrasound sector.
  • Elastography displays tissue stiffness to provide additional information during tissue and lesion assessment.

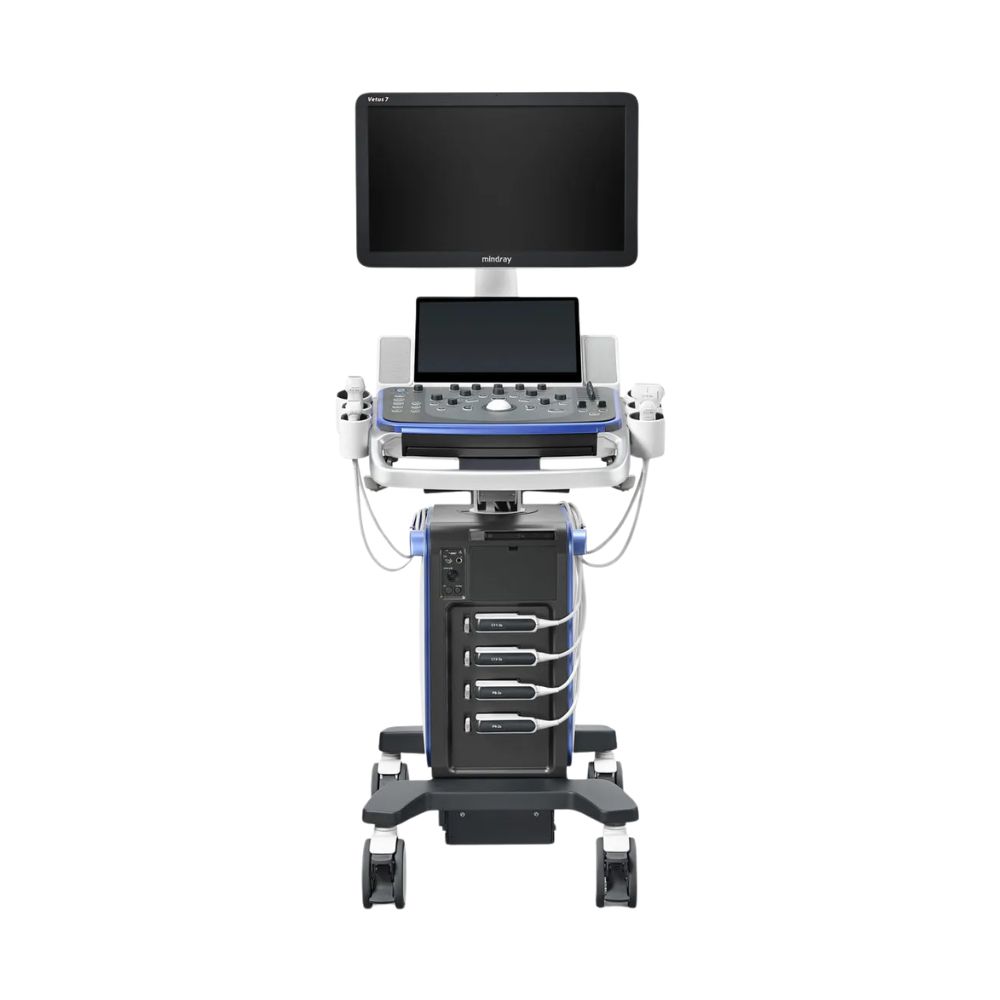

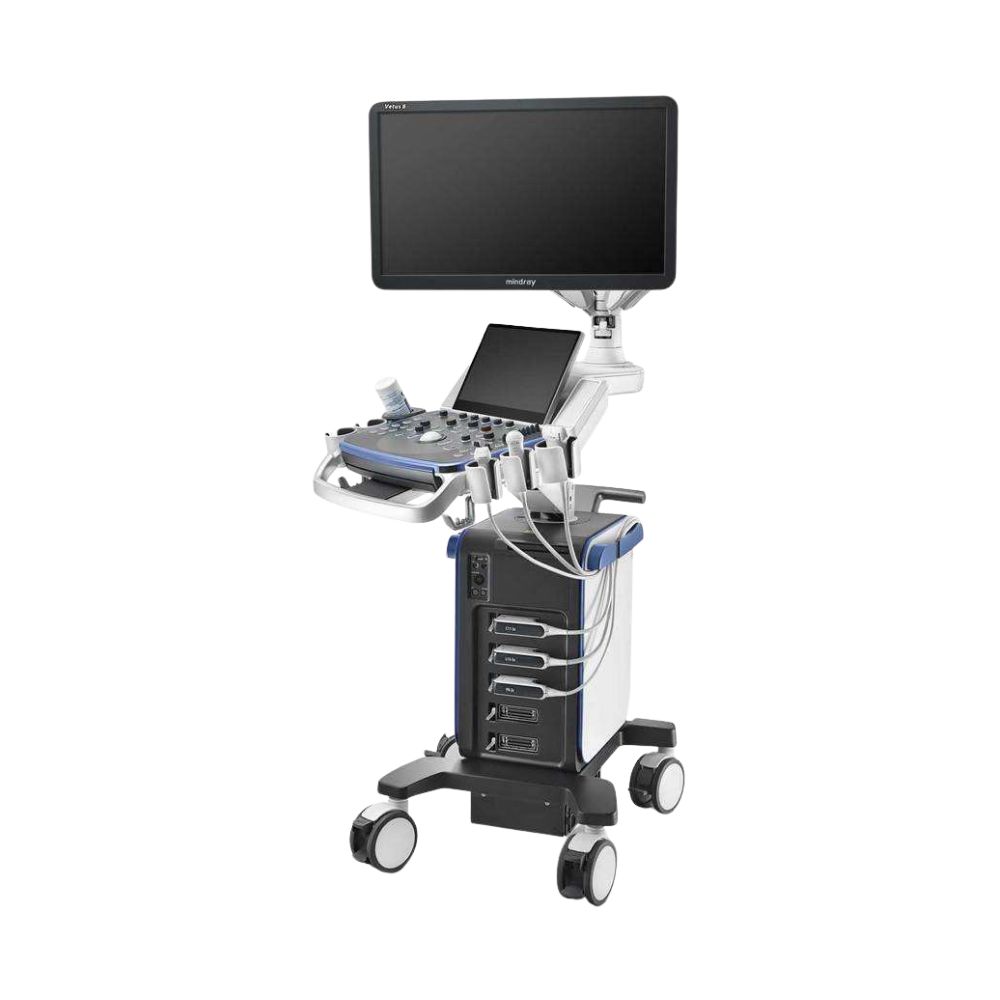

Mindray Animal Vetus 7 Cart Design for Daily Veterinary Scanning

The Mindray Animal Care Vetus 7 is a cart-based system designed around repeated scanning, probe changes, cleaning, and movement between veterinary exam areas. Its dual-display layout and adjustable controls allow the system to adapt to different patient sizes and operator positions.

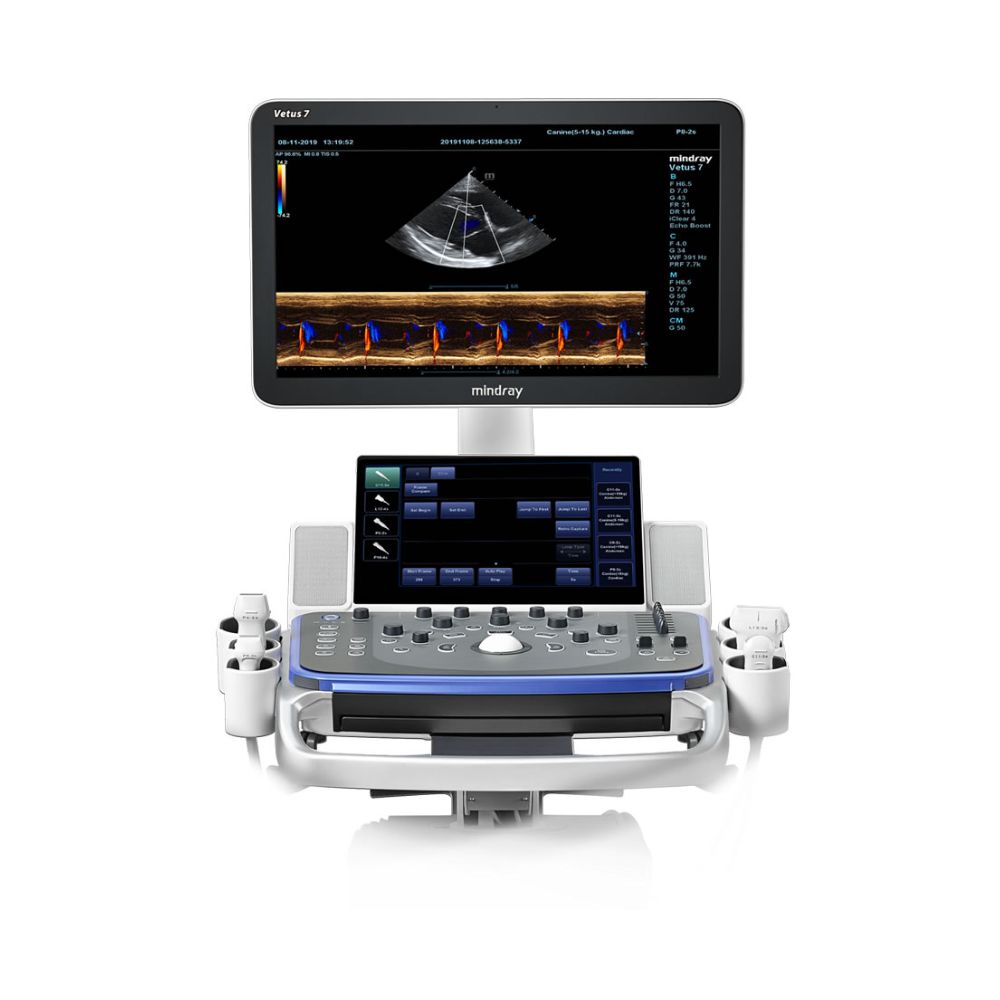

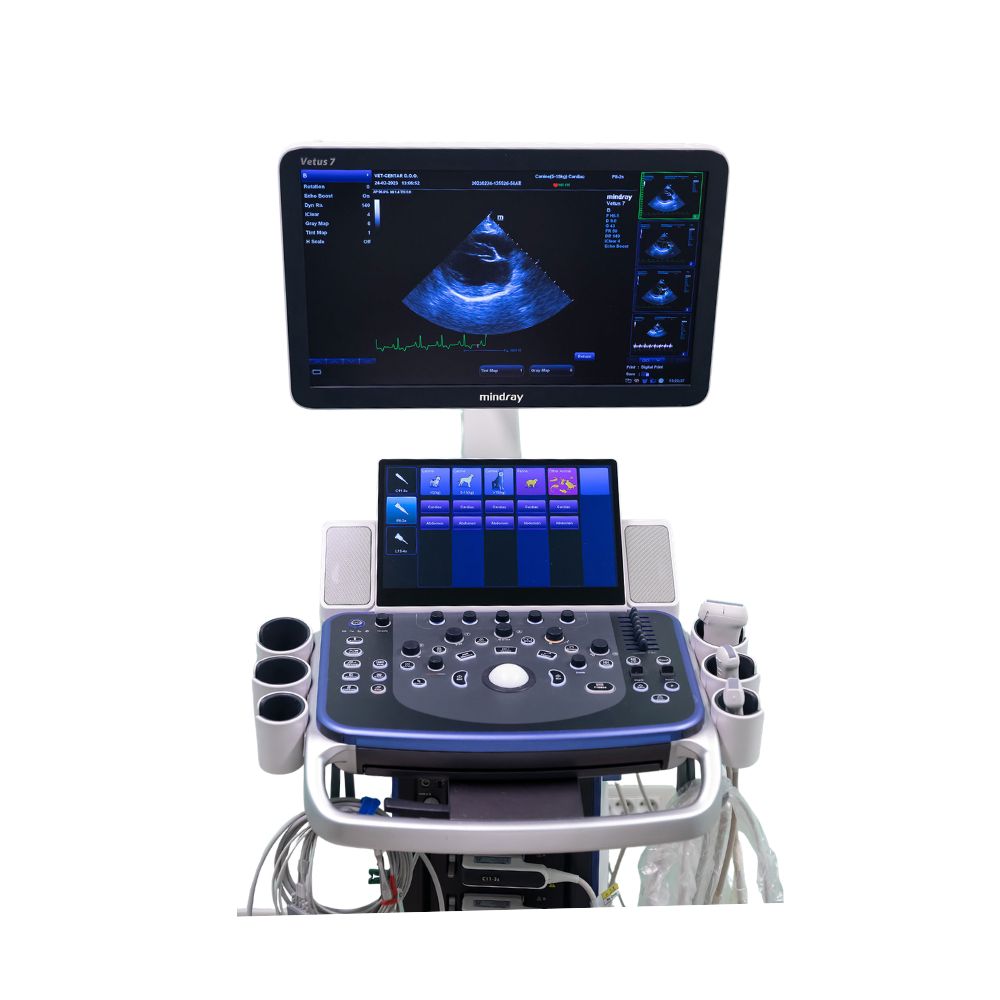

21.5-Inch Monitor & 13.3-Inch Touch Screen

The Vetus 7 separates image viewing from workflow control with two displays:

• • 21.5-inch high-definition monitor
  • articulating primary monitor arm
  • 13.3-inch anti-glare touch screen
  • 30° touch-screen rotation
  • multi-touch gesture support

The large primary monitor supports detailed image review, while the touch screen provides direct access to exam modes and system controls.

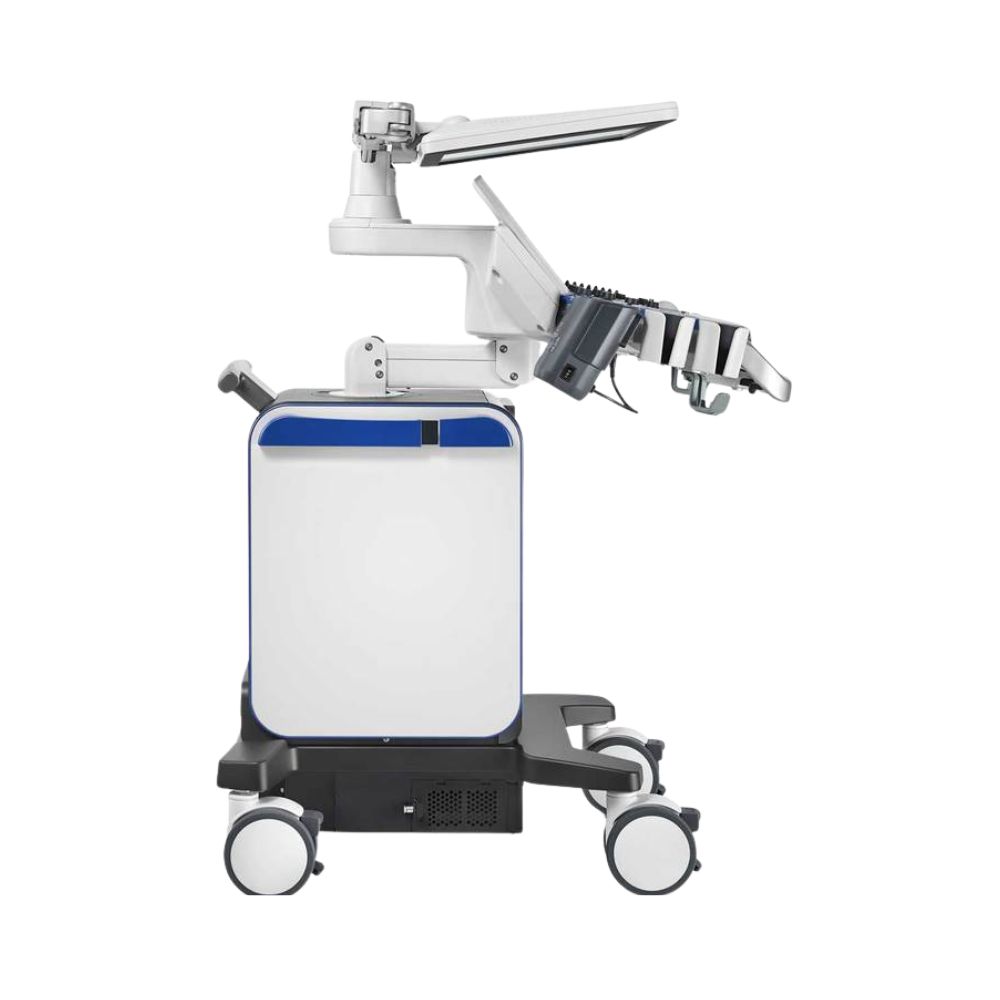

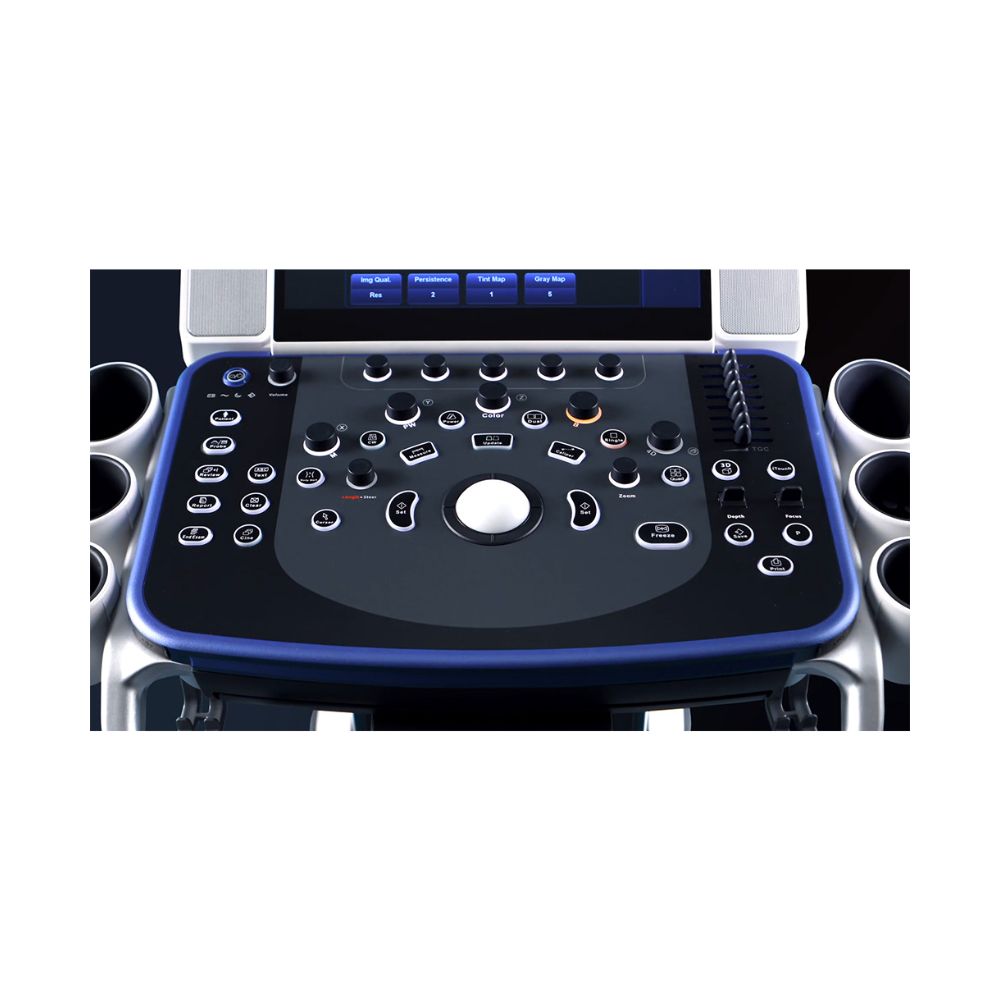

Cable Management, Adjustable Controls & Hair-Resistant Wheels

The Mindray Animal Vetus 7 includes practical cart features intended for daily veterinary use:

• • four active transducer sockets
  • sliding keyboard with silicone cover
  • integrated transducer cable management
  • rotatable and height-adjustable control panel
  • stable, small-footprint cart
  • 360° wheel rotation
  • wheel design intended to reduce hair wrapping
  • optional high-capacity battery for standby operation

Keeping multiple transducers connected is especially useful for practices that regularly move between abdominal, cardiac, superficial, reproductive, and musculoskeletal exams without wanting to reconnect probes between studies.



Mindray Animal Medical Vetus 7 Transducers for Small & Large Animal Imaging

The Mindray Animal Medical Vetus 7 can be configured with probes for companion-animal, exotic, equine, bovine, ovine, and other large-animal applications. The transducer range allows practices to configure the system around the species and specialties they scan most often.

• C11-3s Micro-Convex: Small-animal abdomen and basic cardiology.
• L12-4s / L13-3s Linear: Superficial and musculoskeletal imaging.
• P8-2s / P10-4s Phased Array: Small- and medium-patient cardiology.
• 6LE5Vs Intrarectal Linear: Equine and farm-animal reproduction.
• C6-2s Convex: Large-animal abdomen and reproduction.
• P4-2s Phased Array: Medium- and large-animal cardiology.

With its cart-based design, dual displays, four active transducer sockets, species- and size-specific presets, advanced cardiac tools, and dedicated small- and large-animal probes, the Vetus 7 is a strong fit for veterinary hospitals and mixed-animal practices that need broad ultrasound capability from a single system.



---

Mindray Animal Medical Vetus 7 Specifications

System & Display

• • System type: Cart-based veterinary diagnostic ultrasound system
  • Primary display: 21.5-inch high-definition monitor
  • Monitor arm: Articulating
  • Touch screen: 13.3-inch anti-glare display
  • Touch-screen rotation: 30°
  • Touch controls: Multi-touch gesture support
  • Control panel: Rotatable and height adjustable
  • Keyboard: Sliding keyboard with silicone cover
  • Active transducer sockets: 4

Veterinary Workflow

• • Professional veterinary image presets
  • Supported preset species include canine, feline, equine, bovine, and ovine
  • Customizable species support
  • Species can be subdivided by weight and body size
  • Transducers and corresponding exam modes displayed in the same interface
  • Quick switching to frequently used exam modes
  • Dedicated animal information system
  • iStation Veterinary Information Management System
  • iWorks protocol-based workflow guidance
  • Auto Volume Control
  • iTouch one-touch image optimization

Automated Measurement Tools

• • Auto PW
  • Auto CW
  • Auto EF

Imaging & Diagnostic Tools

• • iClear
  • HR Flow
  • iNeedle
  • iScape View
  • Elastography
  • Free Xros M anatomical M-mode
  • Free Xros CM curved anatomical M-mode
  • Tissue Doppler Imaging
  • TDI QA
  • Stress Echo
  • TTQA tissue tracking

Animal Applications by Patient Type

Small-Animal Applications

• • • • Abdomen
      • Reproduction
      • Cardiology
      • Superficial imaging
      • Musculoskeletal imaging
      • Canine imaging
      • Feline imaging
      • Small exotic animal imaging

Large-Animal Applications

• • • • Equine reproduction
      • Bovine reproduction
      • Ovine reproduction
      • Large-animal abdominal imaging
      • Large-animal reproduction
      • Large-animal cardiology
      • Large-dog imaging
      • Large exotic animal imaging

Transducers by Patient Size

Small-Animal Transducers

• • • • C11-3s micro-convex array
      • L12-4s high-frequency linear array
      • L13-3s high-frequency linear array
      • P8-2s mid/high-frequency phased array
      • P10-4s high-frequency phased array

Large-Animal Transducers

• • • • 6LE5Vs intrarectal linear array for equine and farm-animal reproduction
      • C6-2s convex array for large-animal abdominal and reproductive scanning
      • P4-2s low-frequency phased array for medium- and large-animal cardiology

Cart & Mobility

• • Integrated transducer cable management
  • Stable small-footprint cart
  • 360° wheel rotation
  • Hair-resistant wheel design
  • Sliding keyboard with silicone cover
  • Rotatable and height-adjustable control panel
  • Optional high-capacity battery for standby operation
