Canon Aquilion 16 CT Scanner

Category:
CT Scanners
Brand:
Canon

Advanced Imaging with Rapid, High-Resolution Technology

The Canon Aquilion 16 Computed Tomography (CT) Scanner, formally known as the Toshiba Aquilion 16, represents a sophisticated imaging solution designed to meet the needs of modern medical facilities. Renowned for its reliable performance and advanced technology, this scanner provides high-quality imaging with exceptional speed and precision. It is well-suited for a wide range of diagnostic applications, ensuring excellent patient care and streamlined workflow.

Request a Quote View CT Scanners Inventory

Key Features

  • Slice Count: 16
  • Gantry Aperture: 72 cm with ±30 degree gantry tilt
  • Slice Thickness: 0.5 mm to 3 mm, customizable for precision
  • Rotation Speed: 0.5 to 3 seconds per rotation
  • Table Coverage: Up to 180 cm
  • Spatial Resolution: High-contrast spatial resolution of 0% MTF at 18 lp/cmHelical
  • Tilt: Delivers enhanced imaging performance with quiet operation

Specifications

  • Power Output: 60 kW generator
  • Tube Type: 7.5 MHU anode grounded tube
  • Data Acquisition: 16 parallel rows of data per rotation
  • Collimation Options: 16 x 0.5 mm, 16 x 1 mm, 16 x 2 mm
  • Optical Disk Storage: High-capacity optical disk image storage
  • Display: Dual LCS flat panel monitors
  • Gantry Drive: Linear induction gantry drive (no belts)

Additional Features

  • Multi-Modal Imaging: Supports advanced techniques for comprehensive diagnostics
  • ATM Optical Transfer: Eliminates brush noise for clearer imaging
  • SureStart Contrast Tracking: Ensures precise imaging with optimal contrast usage
  • Pediatric Scanning: Specialized features for safe, low-dose pediatric imaging
  • Raster Artifact Suppression Protocol: Enhances image quality by minimizing artifacts

Applications

  • Trauma Imaging: Fastest trauma CT on the market, delivering high-quality images in under three minutes
  • CT Fluoro: Real-time imaging for guided procedures
  • Cardiac Scoring and Function Analysis: Detailed assessments for cardiac conditions
  • Cerebral Blood Flow Analysis: Offers vital insights into cerebrovascular health
  • General Imaging and Basic Cardiac Studies: Ideal for a variety of diagnostic needs

MXR Platinum Certified Shield LOGO

MXR’s Platinum Certified Service is available when you purchase select CT, MRI, PET/CT, & Ultrasound imaging systems. Our premium reconditioning process delivers OEM level image quality. The system includes a full 1-year warranty, with additional support options from MXR Imaging.

We provide: Systems, Service, Parts, & Supplies. MXR holds ISO 13485 and we maintain System Refurbishment, Part Repair, Part Sales status for our certificate.
Download Complete Inventory List
Why Us

Why Buy From Us?

MXR Imaging has been family owned for over six decades and features the industry’s largest nationwide support network. MXR’s team of over 400-customer facing imaging professionals are committed to providing medical imaging expertise required to identify, design, stage and install the equipment.

MXR Imaging provides both preventative maintenance and repair services for everything it sells. MXR Imaging is a one-stop-shop for everything related to medical imaging from room shielding to MRI supplies.

Related Products

GE BrightSpeed 16 CT Scanner
GE BrightSpeed 16 CT Scanner
GE Lightspeed VCT CT Scanner
GE LightSpeed 16 CT Scanner
GE Optima 520 16 CT Scanner
GE Optima 520 16 CT Scanner

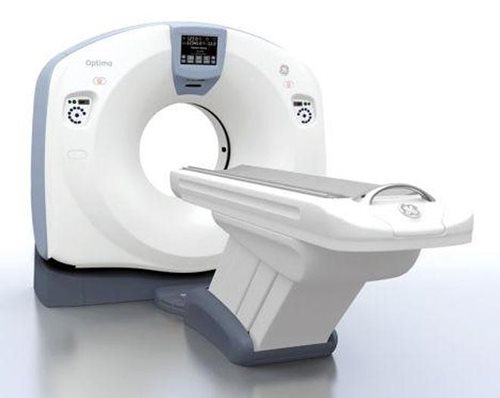

GE Optima 540 16 CT Scanner
