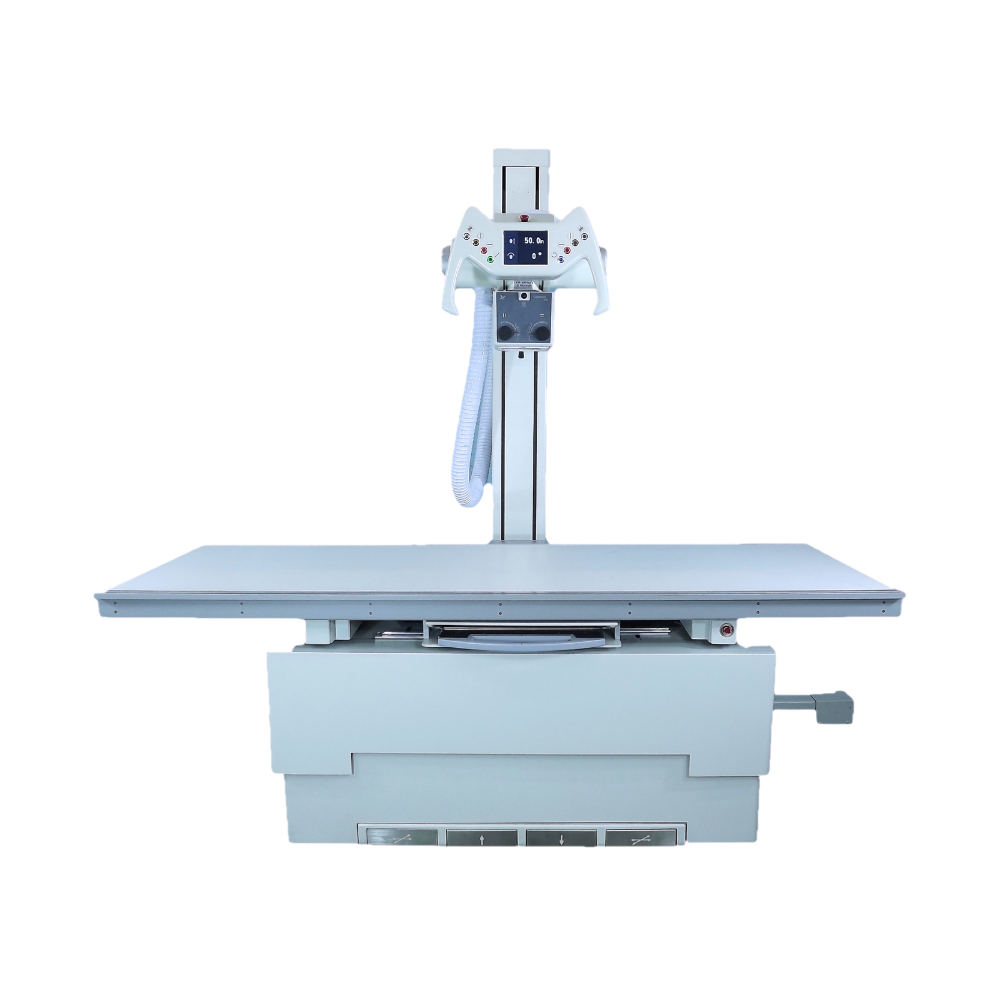

Accogent CombiMax Digital X-Ray

Accogent CombiMax Digital X-Ray Benefits & Overview

The Accuray CombiMax is designed to bring full-featured radiography capabilities into facilities where space efficiency and installation flexibility are important considerations. By combining a high-capacity elevating table with a compact rail-mounted tube support system, the CombiMax helps practices perform a broad range of general radiographic exams while minimizing room requirements.

Its versatile design supports both traditional and digital imaging workflows, making it suitable for facilities looking to modernize imaging capabilities without requiring a large radiography suite.

Key Benefits

• • Compact footprint designed for smaller imaging rooms
  • High-capacity elevating table supports patients up to 770 lbs (350 kg)
  • Extensive tube positioning range for a variety of exam types
  • Available DR-ready configurations for digital imaging workflows
  • Multiple generator options available to match clinical requirements
  • Space-Saving Design for Orthopedic and Outpatient Imaging

Many orthopedic offices, outpatient imaging centers, and private practices must balance imaging capabilities with limited facility space. The CombiMax addresses this challenge by combining the tube support system and elevating patient table within a compact footprint that can fit a wide range of room layouts.

Its positioning flexibility supports routine musculoskeletal imaging while helping facilities maximize available clinical space. The high-capacity elevating table and broad tube travel range also accommodate diverse patient populations and exam requirements without the complexity of larger radiography installations.

Compact Design for Flexible Positioning

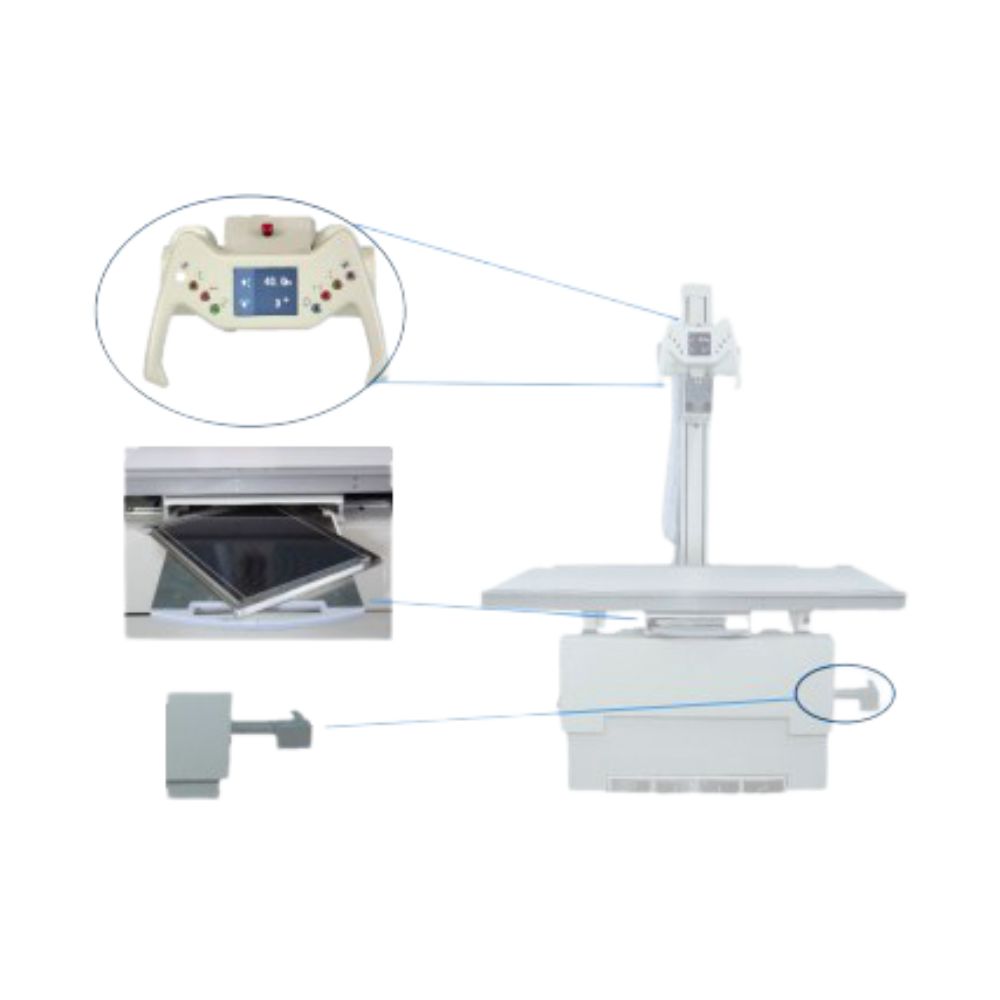

The Accogent CombiMax digital X-ray combines a leading-edge rail tube support system with an elevating float-top patient table to maximize positioning flexibility within a compact installation footprint. This design helps facilities perform routine radiographic exams while preserving valuable floor space.

The system’s extended vertical travel range and rotating tube arm support a variety of projections, including lateral views that may be difficult to obtain in more confined imaging environments.

Positioning Features

• • Vertical tube travel from 12.5″ to 75″
  • Rotating tube arm for lateral imaging projections
  • 44″ longitudinal floating tabletop movement
  • Elevating table range from 22.5″ to 36″

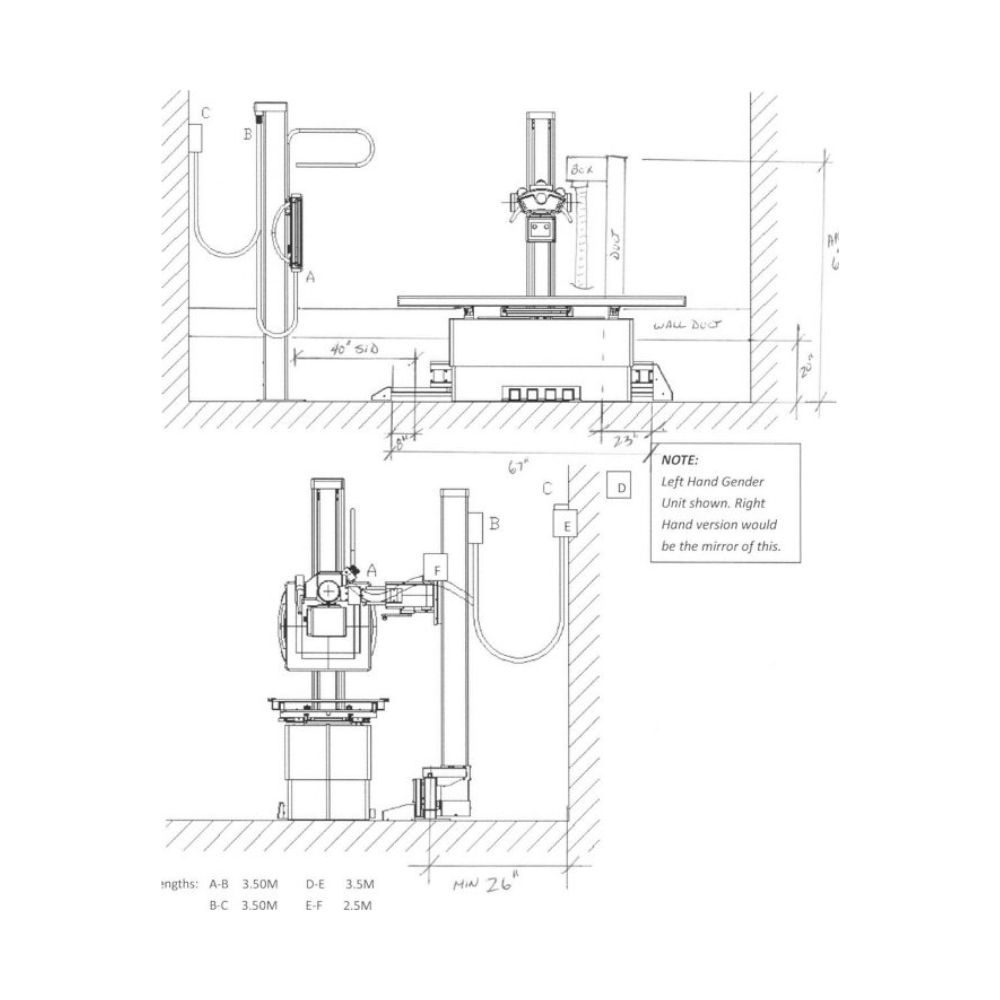

  • Compact room installation requirements

Workflow-Focused Imaging Performance

Designed for efficient daily operation, the CombiMax includes exam protocol programming and automated technique selection capabilities that help streamline radiographic workflows. Technologists can quickly access preconfigured imaging techniques while maintaining focus on patient positioning and exam completion.

The system is available with multiple high-frequency generator configurations, allowing facilities to select output levels appropriate for their patient population and imaging volume.

Generator Options

• • 40 kW generator
  • 50 kW generator
  • 65 kW generator
  • 80 kW generator
  • 125 kVp to 150 kVp operating range
  • Programmable APR functionality

Digital Radiography Integration

The Accogent CombiMax digital X-ray can be configured for both traditional and digital imaging environments. Facilities implementing DR workflows can integrate wireless detector technology and advanced imaging software to support faster image acquisition and review.

Optional workflow enhancements such as body-part APR selection, automatic collimation, and unified system controls further simplify daily operation.

Available Digital Imaging Options

• • BladeView wireless DR detector
  • Single-screen user interface
  • Body-part APR programming
  • Automatic collimation
  • Dose Area Product (DAP) meter
  • Vertical wall stand integration

Elevating Table Design

The elevating float-top table is engineered to accommodate a wide range of patients while providing smooth positioning during exams. Its robust design supports high patient loads and helps improve accessibility for patients with mobility limitations.

The integrated floating tabletop movement allows technologists to position patients efficiently while reducing unnecessary repositioning throughout the imaging process.

Table Features

• • 770 lb (350 kg) maximum patient capacity
  • Elevating tabletop design
  • Float-top patient positioning
  • Rotating cassette tray
  • Smooth longitudinal movement

Clinical Applications

The Accogent CombiMax Digital X-Ray is well suited for facilities performing routine general radiography examinations, including:

• Orthopedic imaging
• Outpatient imaging services
• Private medical practices
• Urgent care imaging
• General diagnostic radiography
• Musculoskeletal imaging
• Extremity imaging
• Weight-bearing orthopedic studies

Reliability & Serviceability

The CombiMax is designed for long-term operation with an emphasis on reliability, ease of installation, and straightforward maintenance. Its compact architecture allows it to fit within a wide range of room layouts while supporting consistent imaging performance over time.

For facilities seeking a space-conscious radiography solution without sacrificing positioning flexibility or patient capacity, the CombiMax offers a practical balance of performance, workflow efficiency, and installation versatility.

Specifications

Radiographic Table

• • Maximum patient weight capacity: 770 lbs (350 kg)
  • Table elevation range: 22.5″ to 36″
  • Longitudinal float travel: 44″
  • Rotating cassette tray

Tube Support

• • Rail-mounted tube support
  • Vertical travel range: 12.5″ to 75″
  • Rotating tube arm for lateral projections
  • Compact installation footprint

Generator Options

• • CMP200 Generator
  • 40 kW, 50 kW, 65 kW, or 80 kW configurations
  • 125 kVp to 150 kVp output range
  • Programmable APR capability
  • Over 768 pre-programmed APR techniques

Optional Features

• • Automatic Exposure Control (AEC)
  • BladeView wireless DR detector
  • Single-screen interface
  • Body-part APR
  • Automatic collimation
  • Dose Area Product (DAP) meter
  • Vertical wall stand
  • Grids (multiple sizes available)
