20/20 Imaging H-DR 102 Hand X-Ray System

H-DR 102 Digital Hand X-Ray Package

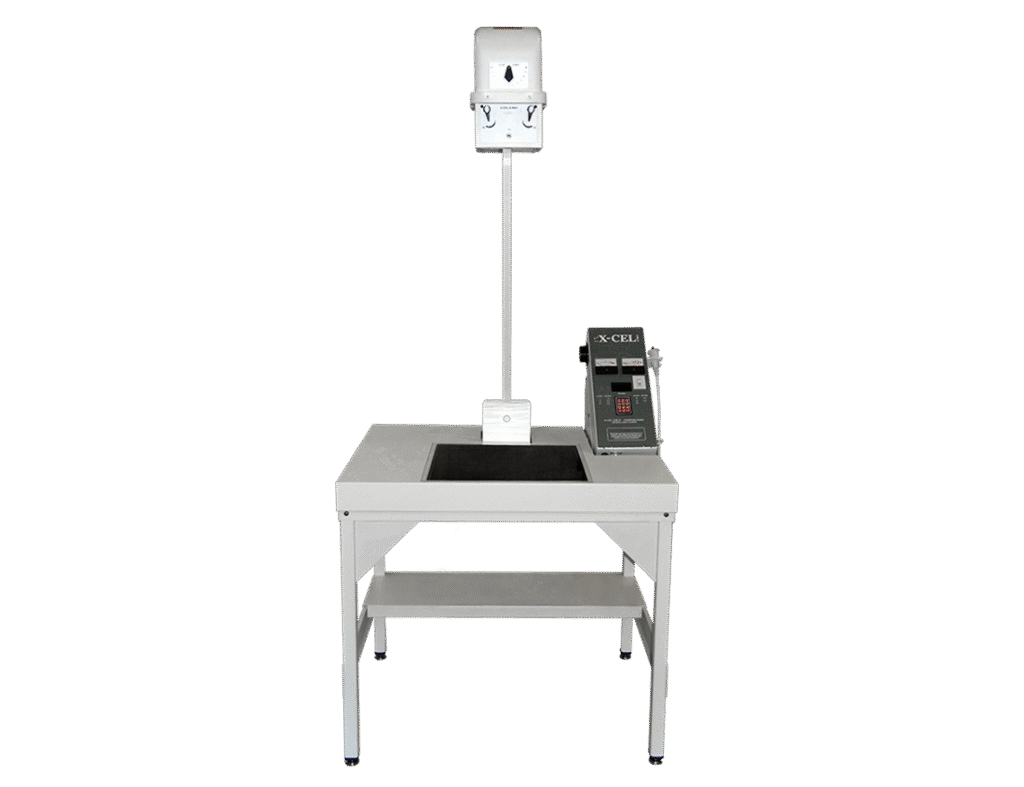

The 20/20 Imaging H-DR 102 is a complete digital orthopedic X-ray configuration built specifically for hand and wrist imaging. It pairs the X-Cel orthopedic/hand X-ray unit with a 20/20 Imaging C-FP fixed flat-panel detector and Symmetry-Sync digital imaging software. The H-DR 102 name refers to the complete digital system rather than only the underlying X-ray unit.

Key Benefits

• • Dedicated orthopedic hand and wrist X-ray configuration
  • 40 in. (101.6 cm) source-to-image distance
  • 45° rotation for carpal tunnel views
  • Adjustable X-ray collimation
  • Flush tabletop for hand and wrist positioning
  • 17 × 17 in. (43.2 × 43.2 cm) fixed DR detector
  • Symmetry-Sync image acquisition, viewing, and storage
  • Professional installation and system training

The 20/20 Imaging H-DR 102 is purpose-built for focused hand and wrist radiography rather than the broader positioning requirements of a general-purpose X-ray room.



X-Cel Positioning for Hand, Wrist & Carpal Tunnel X-Ray

40-Inch Source-to-Image Distance

The X-Cel radial-arm unit maintains a 40 in. (101.6 cm) source-to-image distance between the X-ray tube and detector. This fixed geometry provides a consistent setup for dedicated hand and wrist X-ray examinations.

45° Rotation for Carpal Tunnel Views

The radial arm rotates 45° to support carpal tunnel views. This built-in positioning capability allows the tube to reach the required angle within the dedicated hand X-ray system.

Flush Tabletop for Hand & Wrist Positioning

The flush tabletop provides a continuous surface for positioning the hand and wrist while maintaining alignment with the fixed detector and X-ray tube.

Adjustable Collimator for Focused X-Ray Fields

The adjustable collimator allows the technologist to control the size of the X-ray field around the anatomy being examined. This supports appropriate field sizing across different hand and wrist projections.



Orthopedic Hand & Wrist X-Ray Applications

The 20/20 Imaging H-DR 102 is designed for practices that regularly perform focused orthopedic X-ray imaging of the hand, wrist, and carpal anatomy.

Orthopedic & Hand Specialty Practices

The dedicated hand X-ray system is suited to environments such as:

• • Orthopedic practices
  • Hand and upper-extremity specialty practices
  • Outpatient imaging centers performing hand and wrist X-ray
  • Physician practices with in-office orthopedic X-ray services

Hand, Wrist & Carpal Tunnel Views

The tabletop and radial-arm configuration support radiography of:

• • Hands
  • Fingers
  • Thumbs
  • Wrists
  • Carpal anatomy
  • Carpal tunnel views using the 45° radial-arm rotation

The specialized configuration keeps the imaging workflow centered on hand and wrist studies rather than trying to function as a general radiography system.



17 × 17-Inch Fixed DR Detector in the H-DR 102

The complete 20/20 Imaging H-DR 102 configuration pairs the X-Cel X-ray unit with a fixed 17 × 17 in. (43.2 × 43.2 cm) C-FP flat-panel detector.

Full-Size Hand & Wrist Imaging Area

The detector provides a 17 × 17 in. (43.2 × 43.2 cm) imaging area for hand and wrist radiography. The H-DR 102 configuration specifies 3.5 lp/mm spatial resolution and 14-bit image conversion, with digital images available within seconds of exposure.

Fixed Detector Alignment

The C-FP uses a fixed interface within the dedicated hand imaging configuration. The detector does not need to be repositioned between routine studies, helping maintain a consistent relationship between the tabletop, detector, and X-ray tube.



17 × 17-Inch Fixed DR Detector in the H-DR 102

The complete 20/20 Imaging H-DR 102 configuration pairs the X-Cel X-ray unit with a fixed 17 × 17 in. (43.2 × 43.2 cm) C-FP flat-panel detector.

Full-Size Hand & Wrist Imaging Area

The detector provides a 17 × 17 in. (43.2 × 43.2 cm) imaging area for hand and wrist radiography. The H-DR 102 configuration specifies 3.5 lp/mm spatial resolution and 14-bit image conversion, with digital images available within seconds of exposure.

Fixed Detector Alignment

The C-FP uses a fixed interface within the dedicated hand imaging configuration. The detector does not need to be repositioned between routine studies, helping maintain a consistent relationship between the tabletop, detector, and X-ray tube.



Symmetry-Sync Digital X-Ray Workflow

The H-DR 102 integrates 20/20 Imaging’s Symmetry-Sync platform for digital X-ray acquisition, image processing, study management, viewing, and PACS image storage.

Automatic Image Processing After Exposure

The acquisition interface includes:

• • Quick view selection
  • Automatic contrast processing
  • Automatic image shuttering and cropping
  • Customizable image sharpness
  • Grid-suppression configuration
  • Automatic image saving during acquisition

These functions reduce manual processing steps between X-ray exposure and image review while keeping image acquisition within one digital workflow.

PACS & DICOM Study Management

Symmetry-Sync includes PACS functionality for storing and managing imaging studies along with a DICOM image viewer for clinical review. The platform also provides customizable workflow settings, study lists, viewing tools, and cybersecurity features.

Optional Browser-Based DICOM Viewer

An optional browser-based viewer allows authorized users to access DICOM studies without installing dedicated viewing software on each compatible device. Available functions include study-list access, image viewing, search, navigation, and customizable layouts.



---

20/20 Imaging H-DR 102 Specifications

X-Cel X-Ray Unit

• • Configuration: Dedicated orthopedic/hand X-ray unit
  • Tube support: Radial-arm design
  • Source-to-image distance: 40 in. (101.6 cm)
  • Radial-arm rotation: 45° for carpal tunnel views
  • Collimation: Adjustable
  • Tabletop: Flush design
  • X-ray tube: SR Series proprietary tube

20/20 Imaging C-FP Detector

• • Detector type: Fixed flat panel
  • Imaging area: 17 × 17 in. (43.2 × 43.2 cm)
  • Interface: Fixed
  • Spatial resolution: 3.5 lp/mm
  • Analog-to-digital conversion: 14-bit
  • Detector warranty: 5 years

Symmetry-Sync Software

• • Digital X-ray acquisition
  • Multi-functional study list
  • PACS functionality
  • DICOM image viewer
  • Customizable workflow and interface
  • Automatic contrast processing
  • Automatic shuttering and cropping
  • Customizable image sharpness
  • Automatic image saving during acquisition
  • Optional browser-based DICOM viewer

Workstation Configuration

Current complete-system configurations can include:

• • Small-form-factor computer
  • Intel processor
  • Memory: 32 GB RAM
  • Storage: Dual 2 TB NVMe mirrored storage
  • Network connectivity: Wi-Fi 6E and dual Ethernet
  • Display: 24 in. LED IPS 2 MP touchscreen
  • Touch interface: 10-point touchscreen
  • Mounting: VESA-compatible

Computer and display brands, models, and component specifications may vary with current system configuration and availability.

Installation & Training

• • Professional on-site system installation
  • System setup by a 20/20 Imaging certified installer
  • Training for physicians and X-ray technologists

Warranty

• • X-Cel X-ray unit mechanical components: 5 years
  • X-Cel X-ray unit electrical components: 2 years
  • C-FP DR detector: 5 years
  • PC components: 3-year on-site warranty, including parts
