Konica Minolta AeroDR Portable Retrofit

Category:: X-Ray Systems

Brand:: Konica Minolta

The Konica Minolta AeroDR Portable Retrofit upgrades compatible existing portable X-ray systems to wireless digital radiography. Best suited for facilities modernizing portable imaging without replacing a serviceable X-ray unit, AeroDR retrofit configurations pair wireless detectors with digital acquisition and patient-side image review across multiple equipment generations.

Request a Quote

AeroDR Portable X-Ray Retrofit Highlights & Benefits

The Konica Minolta AeroDR Portable Retrofit adds wireless digital radiography to compatible existing portable X-ray equipment. Rather than replacing the complete X-ray unit solely to gain DR, facilities can retain the existing exposure system while adding AeroDR digital image acquisition, cable-free detector positioning, and rapid image review.

Key Benefits

- Upgrades compatible portable X-ray equipment to wireless DR
- Retains the existing X-ray generator and positioning platform
- Supports cable-free AeroDR detector positioning
- Brings digital image review to the patient side
- Supports multiple AeroDR generations and configurations
- AeroDR roaming is available with compatible configurations
- Provides an upgrade path for existing portable radiography equipment

AeroDR portable retrofit technology has evolved over time, so exact detectors, acquisition hardware, software, and performance depend on the generation and configuration selected.

Upgrade Existing Portable X-Ray Equipment to DR

Retrofit Instead of Replacing the Complete System

The AeroDR Portable Retrofit is designed around compatible portable X-ray equipment already in use. The existing unit continues to provide X-ray generation and positioning while the AeroDR configuration adds the detector, digital acquisition, processing, and image-review components required for DR.

This approach can extend the usefulness of portable X-ray equipment that continues to meet the facility’s imaging requirements while modernizing the image acquisition workflow.

Cable-Free Detector Positioning

AeroDR wireless flat panel detectors eliminate the detector cable required by tethered acquisition systems. This gives technologists more flexibility when positioning a panel behind, beside, or beneath the patient.

Wireless positioning can be especially useful around beds, monitoring equipment, surgical equipment, and other obstacles encountered during point-of-care imaging.

Fast Digital Image Review

AeroDR retrofit configurations bring digital image review to the portable workflow so technologists can evaluate an acquired image while still with the patient.

Earlier AeroDR Portable Retrofit configurations documented image preview in approximately 3 seconds. Preview performance can vary with detector generation, acquisition hardware, software, and system configuration.

Portable Imaging Environments

The AeroDR Portable Retrofit is intended for facilities that already use compatible portable X-ray equipment and want to incorporate wireless DR acquisition and patient-side image review.

Potential environments include:

- Inpatient and bedside radiography
- Emergency and trauma areas
- Operating rooms and surgical environments
- Outpatient facilities using portable X-ray equipment
- Other point-of-care imaging environments supported by the existing X-ray system

The retrofit does not determine the clinical capabilities of the X-ray equipment itself. Available examinations remain dependent on the underlying portable X-ray unit, selected detector, system configuration, and clinical protocols.

Portable DR Workflow at the Patient’s Side

Position, Expose & Review

The AeroDR detector is positioned for the examination while the existing portable X-ray system generates the exposure. The acquired digital image is then available through the configured AeroDR acquisition and image-processing system.

This keeps image acquisition and review close to the patient while allowing the existing portable X-ray unit to continue performing its original exposure function.

Image QC Before Moving On

Patient-side image review allows technologists to evaluate positioning and image quality before moving the X-ray equipment to another patient or clinical area.

For portable workflows involving multiple rooms or locations, identifying an acquisition issue at the point of care can help reduce unnecessary return trips.

AeroDR Panel Roaming

Compatible AeroDR configurations support detector roaming, allowing AeroDR panels to be shared between portable use and other compatible AeroDR-equipped general radiography systems.

For organizations already using the AeroDR platform, detector sharing can provide additional flexibility in how panels are deployed across imaging environments.

AeroDR Portable Retrofit Compatibility

Existing Portable X-Ray Compatibility

The AeroDR Portable Retrofit is not a standalone X-ray machine. It is a digital radiography upgrade designed to work with compatible existing portable X-ray equipment.

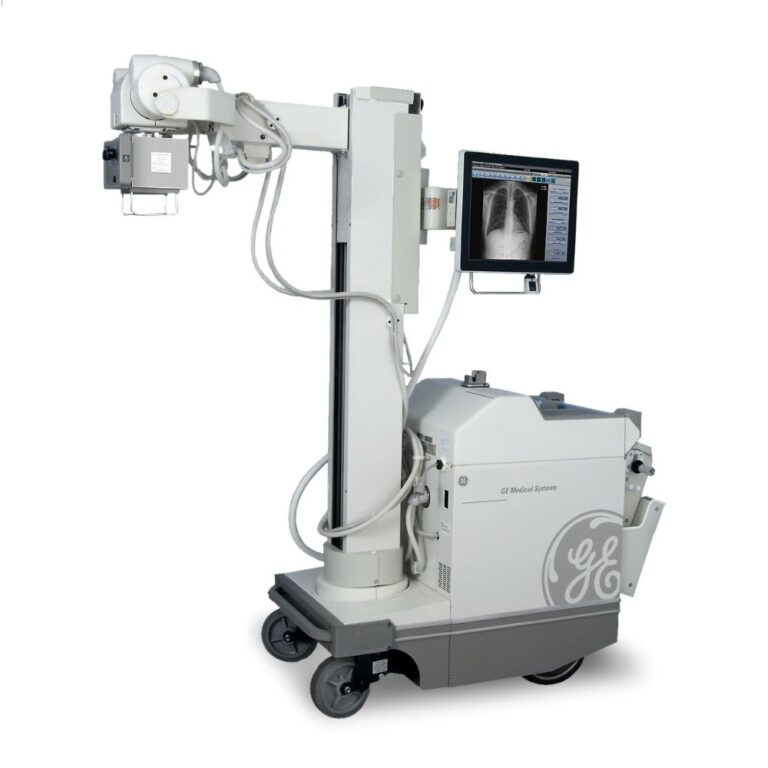

Earlier Konica Minolta retrofit configurations specifically documented compatibility with systems including the GE AMX-4 Plus, GE AMX-4, and Siemens Mobilett. AeroDR Portable configurations were also developed for select Shimadzu MobileArt systems.

Other portable X-ray systems may be compatible depending on the equipment, AeroDR generation, and retrofit configuration. Because compatibility has expanded and changed across AeroDR generations, MXR can evaluate an existing portable X-ray system and help identify an appropriate retrofit configuration.

Detector Configuration

AeroDR portable retrofit systems have been available with multiple generations of Konica Minolta wireless flat panel detectors.

Detector size, resolution, construction, weight, power design, and available imaging features vary by generation. The detector should therefore be matched to the existing X-ray system, clinical requirements, and other AeroDR equipment already in use.

Imaging Network Integration

AeroDR retrofit configurations can incorporate acquired images into the facility’s digital imaging workflow.

PACS/RIS connectivity, DICOM configuration, network communication, and image-transfer capabilities depend on the acquisition software, console, AeroDR generation, and facility network environment associated with the installation.

AeroDR Retrofit Generations & Configuration Options

Earlier AeroDR Portable RF Configurations

Earlier-generation systems may use the AeroDR Portable RF Unit with AeroDR SYSTEM or AeroDR SYSTEM 2 components and an image-processing controller such as the Konica Minolta CS-7 or ImagePilot.

These configurations represent an earlier architecture of the AeroDR portable retrofit platform and remain relevant for facilities operating existing AeroDR systems or seeking compatible prior-generation equipment.

Later-Generation AeroDR Retrofit Technology

Later AeroDR portable retrofit configurations can incorporate newer AeroDR wireless detectors and more integrated acquisition hardware.

Depending on configuration, later systems may include technologies such as a combined laptop/tablet acquisition console, AeroLink detector communication, and REALISM image processing.

These features should not be assumed to be present on every AeroDR Portable Retrofit. Available technology depends on the detector, console, software, and generation being configured.

New, Used & Specific AeroDR Configurations

AeroDR retrofit equipment is available across multiple generations, and availability can vary by detector, console, software, and supporting hardware.

MXR can help evaluate current AeroDR retrofit options, existing installations, compatible used equipment, and specific AeroDR components when a particular generation or configuration is required. Availability and compatibility should be confirmed for the portable X-ray system and AeroDR environment being evaluated.

Konica Minolta AeroDR Technologies

AeroDR Wireless Flat Panel Detection

AeroDR wireless detectors provide digital image acquisition in a cassette-style flat panel format. Wireless operation gives technologists greater freedom when positioning the detector for portable examinations and allows compatible panels to integrate with AeroDR radiography environments.

Different AeroDR detector generations provide different physical, resolution, durability, and workflow characteristics, allowing the retrofit configuration to be matched more closely to the facility’s requirements.

Acquisition & Image Processing by Configuration

The acquisition platform has changed across AeroDR generations.

Earlier configurations may incorporate controllers such as CS-7 or ImagePilot, while later retrofit configurations can use newer portable acquisition hardware and image-processing technologies such as REALISM.

This multi-generation approach allows facilities to maintain an existing AeroDR environment, replace compatible components, or evaluate a newer retrofit configuration without treating every AeroDR Portable Retrofit as the same hardware package.
